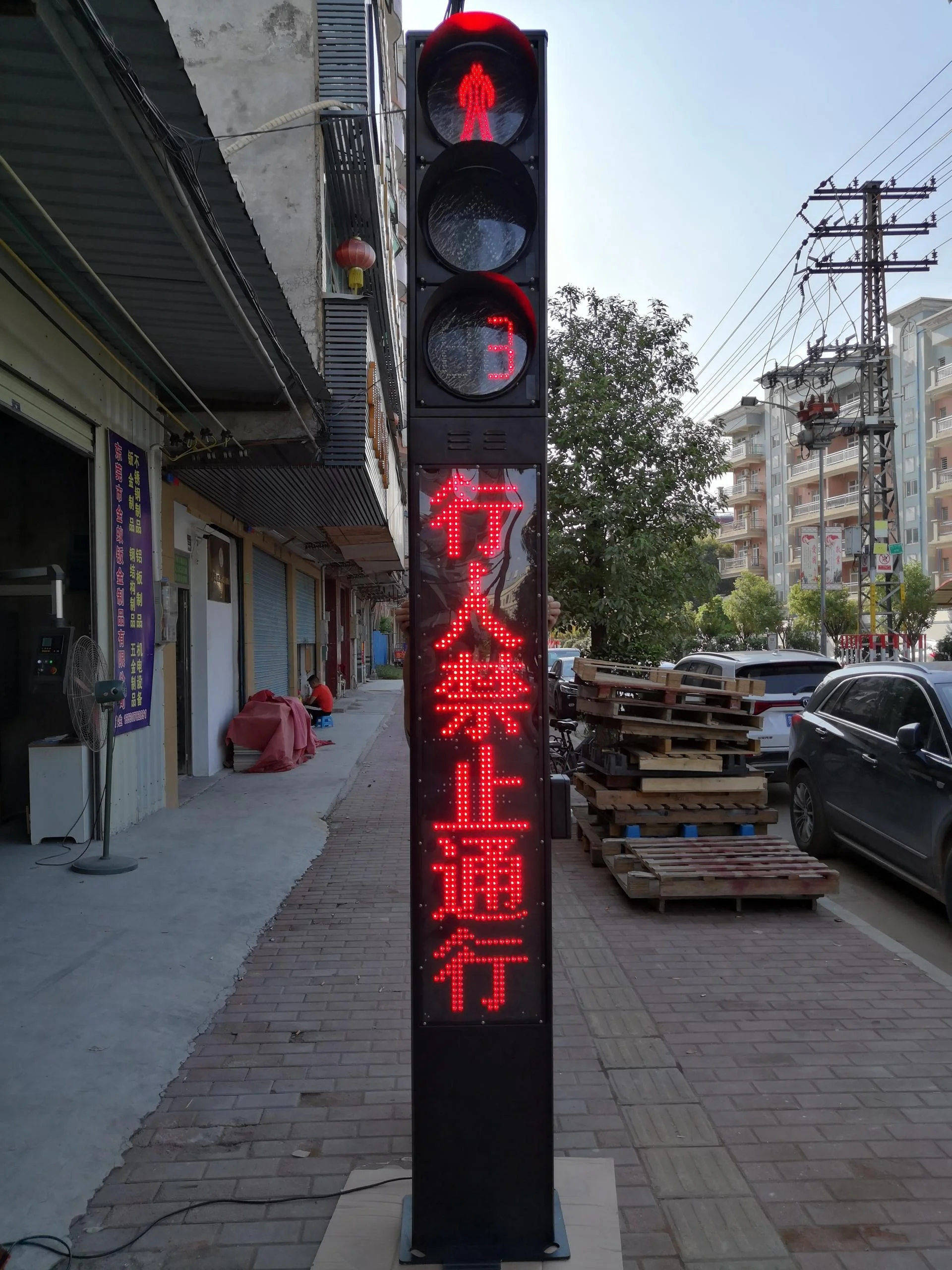

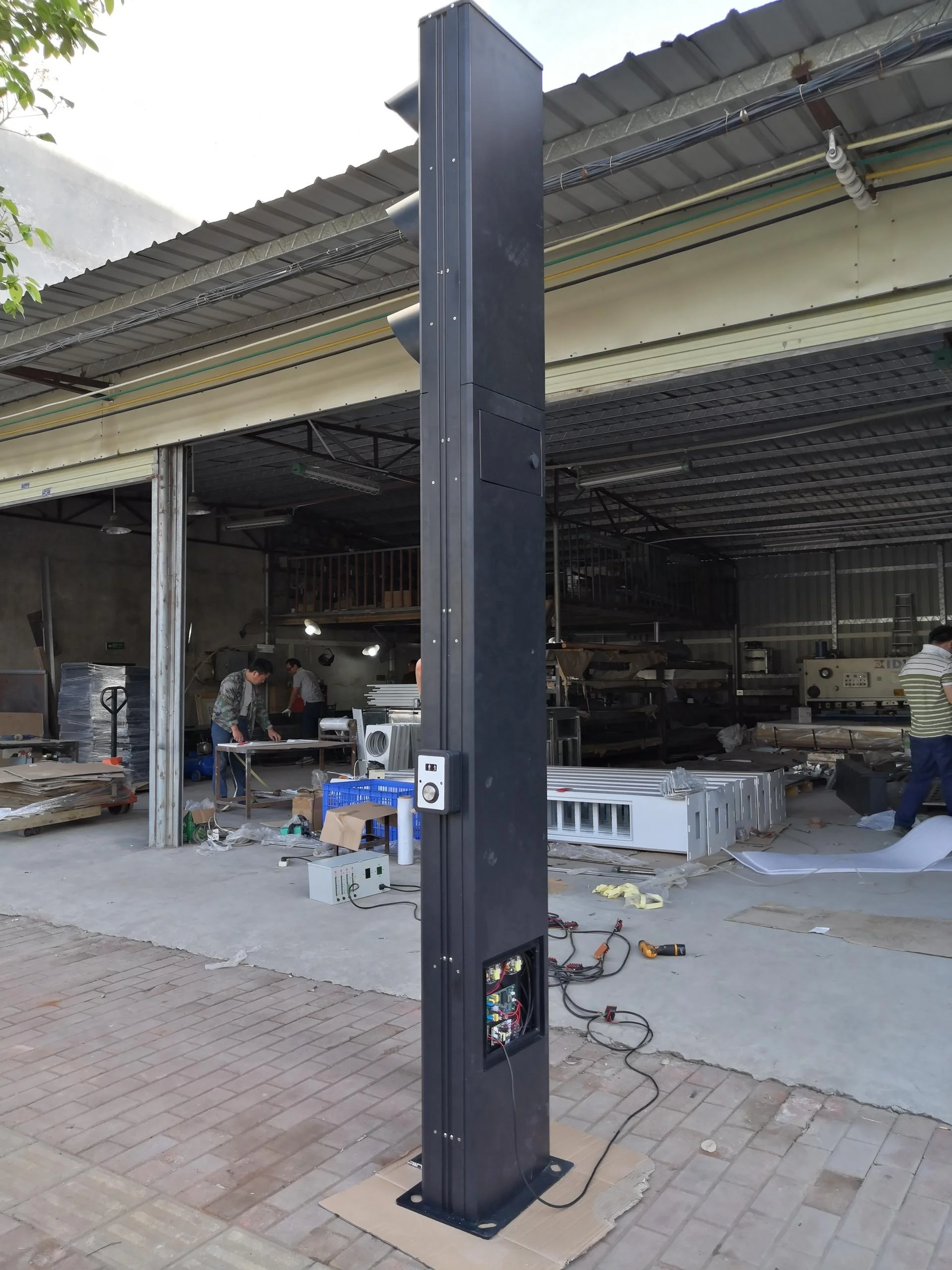

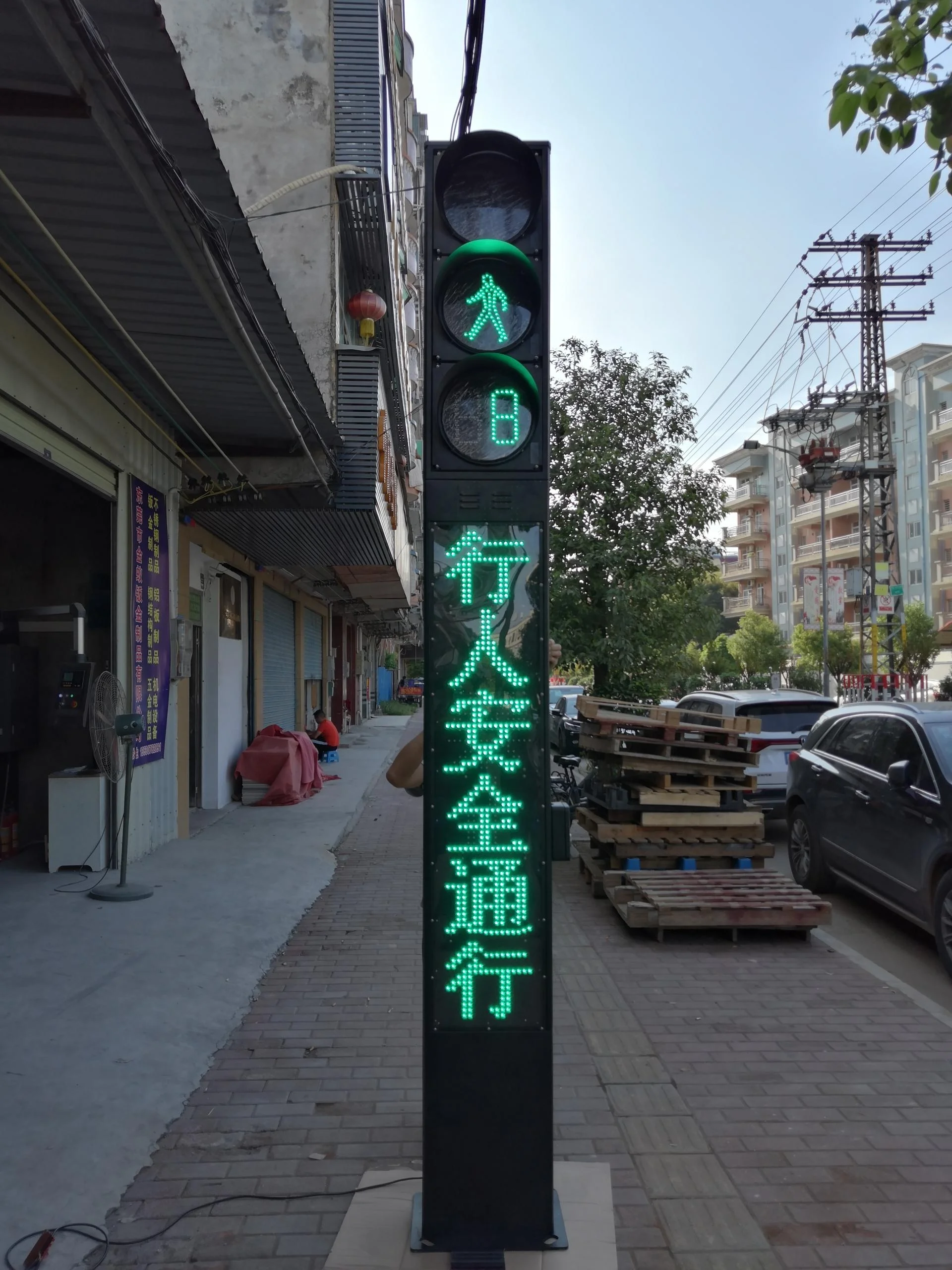

Intelligent pole pedestrian traffic light with countdown timer,pedestrian button and LED screen

Product Overview

Description

300mm Intelligent pole pedestrian traffic light with countdown timer,pedestrian button and LED screen



Product Introduction



 The 300mm Intelligent pedestrian traffic signal lights source adopts imported ultra high brightness LED. The lamp housing is made of disposable aluminum die casting or engineering plastics (PC). The luminescence diameter of the lamp is 200mm, 300mm and 400mm. The lamp body can be assembled arbitrarily and installed vertically. The light emitting unit is monochromatic. All the technical parameters are in line with the GB14887-2011 standard of People's Republic of China road traffic lights.



Parameters:



« Red man: 80pcs LED, Brightness: 4360~6300mcd, Wavelength: 625±5nm, View Angle: 30°, Power: ≤10W

« Dynamic green man: 129pcsLED, Brightness: 8667~12480mcd, Wavelength: 505±5nm, View Angle: 30°, Power: ≤8W

« Red countdown timer: 64pcsLED, Brightness: 4360~6300mcd, Wavelength: 625±5nm, View Angle: 30°

« Green countdown timer: 64pcsLED, Brightness: 8667~12480mcd, Wavelength: 505±5nm, View Angle: 30°

« P10 outdoor red and green display (When pedestrian light is red, the display shows re; When pedestrian light is green, the display shows green)

« With Infrared induction function and voice broadcast

« Humidity: -20%~+95%

« LED average lifespan: ≥100000 hours

« Working Voltage: AC220V±150%, 50Hz±3Hz

« Pixels of the display: 32dot(W)*160dot(H)

« Maximum power consumption of the display: ≤180W; Average power: ≤80W

« Transmission mode: GPRS or RS232; Transmission speed: 57600bps

« Optimum view Distance: 12.5-35m

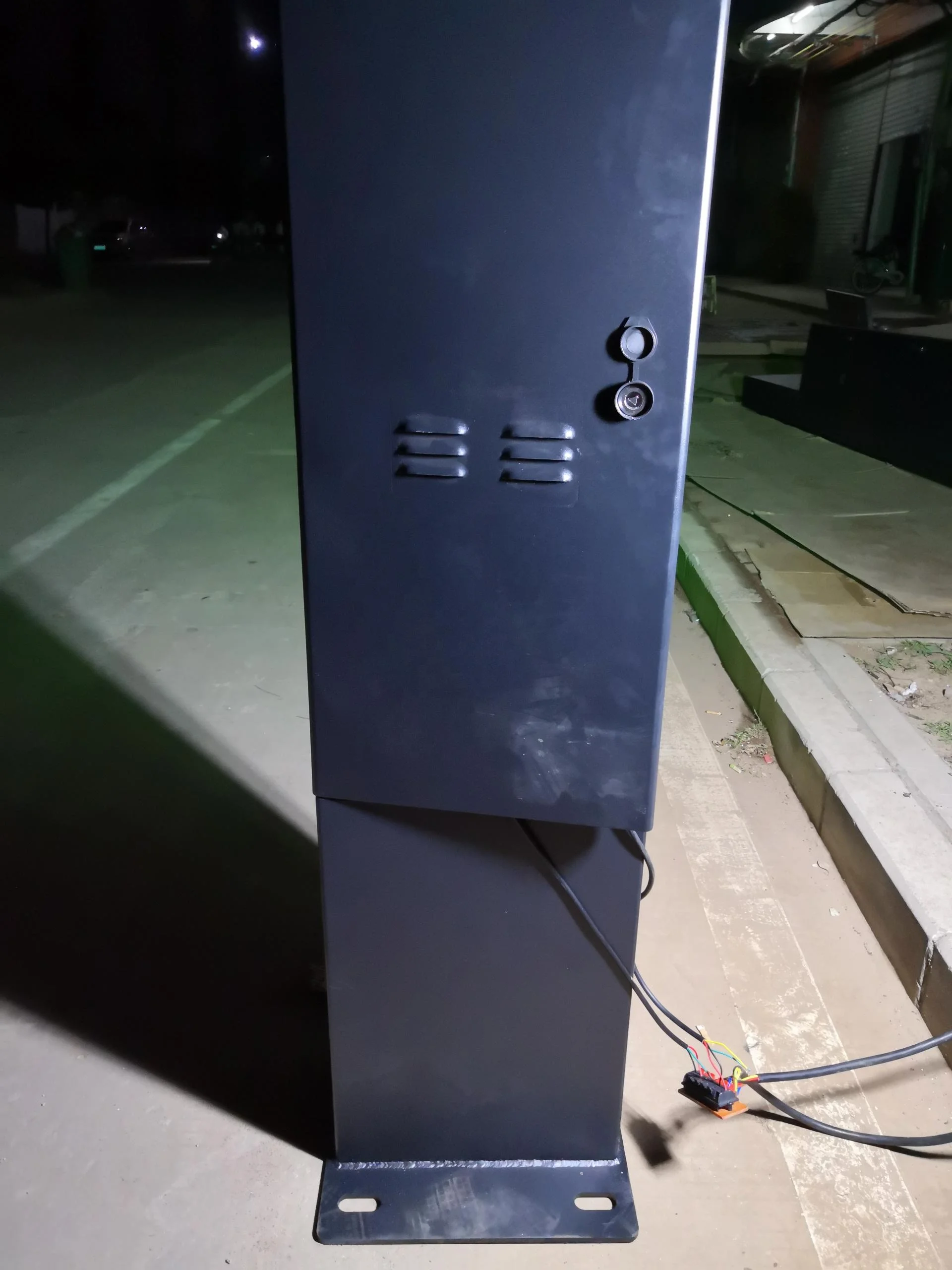

« Material of cabinet: T=1.5 cold rolling plate

« Dimension of cabinet: 3500mm*360mm*200mm

« MTBF: ≥10000 hours

« Wind Resistance: 40m/s

« IP: IP65
