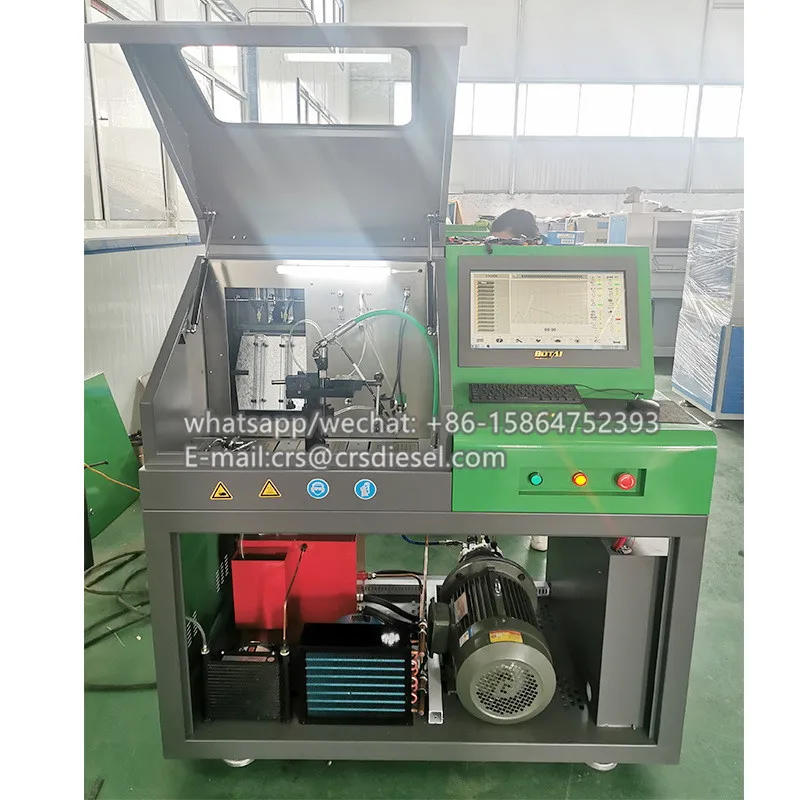

Best sell CR300 common rail injector test bench with injector QR code function

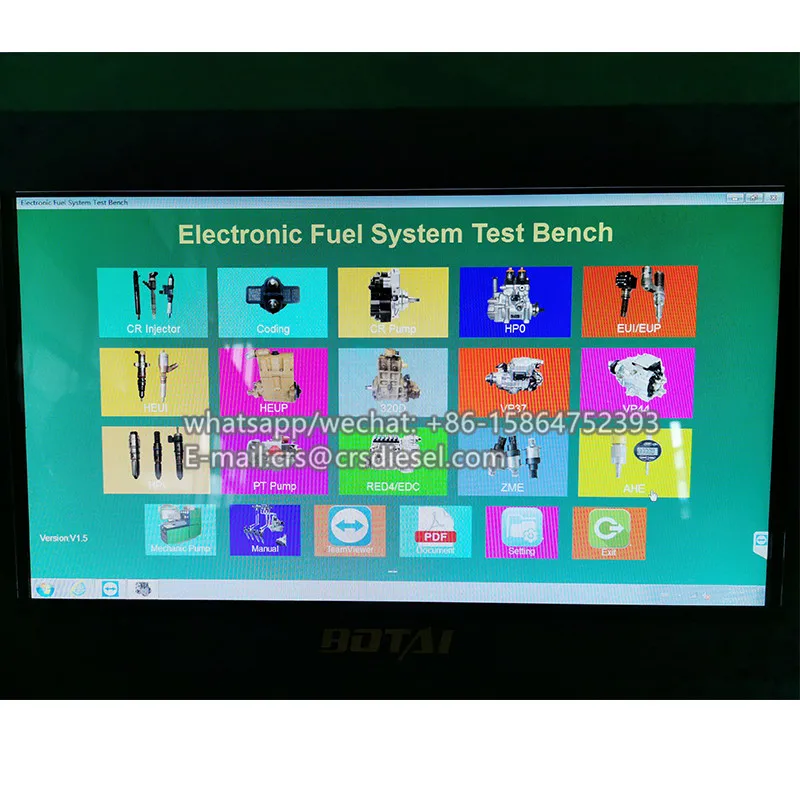

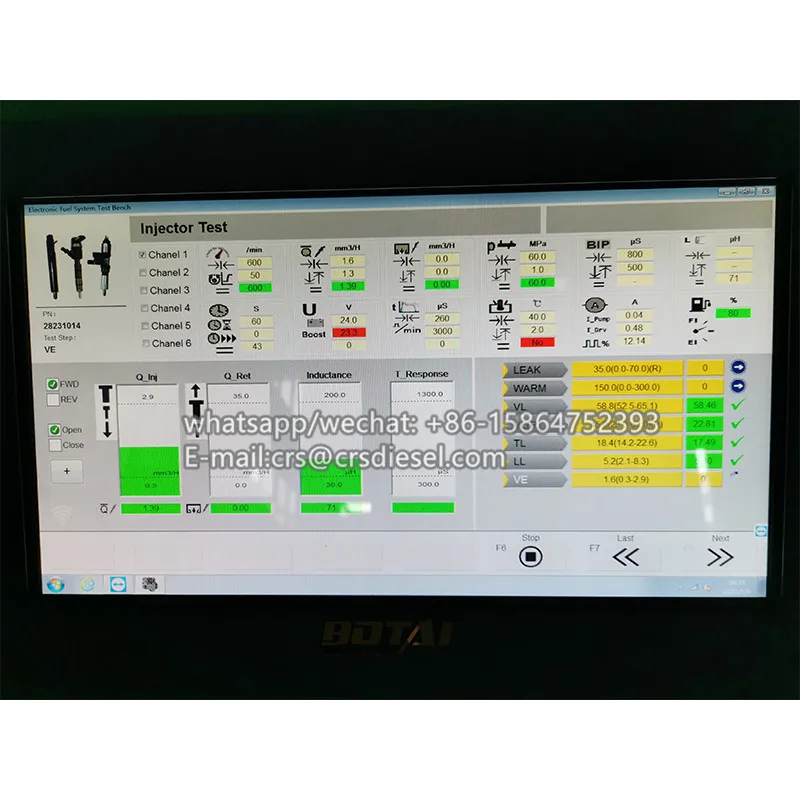

 CR300 test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen (Electronic fuel delivery system). All data can be searched and saved. It adopts original common rail pump to provide 0~2400 bar for rail pressure,The rail pressure can be adjusted automatically, and it also provide pressure overload protect. Advanced technology,steady performance,precise measurement and convenient

 >>>FUNCTION

1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.,CAT 320D and piezo injector testing.

2. Test 1 piece of injector.

3. Test the pre-injection of common rail injector.

4. Test the max. oil quantity of common rail injector.

5. Test the cranking oil quantity of common rail injector.

6. Test the back flow oil quantity of common rail  injector.

7.Test the average oil quantity of common rail injector.

8. Test the seal performance of common rail injector.

9. Data can be searched and saved.

10. Injector BIP testing (optional)

11. Injector QR code generate (optional)

12. Injector Inductance testing (optional)

>>>TECHNICAL PARAMETER

1. Pulse width: 0.1~20ms

2. Continuous injection times: 0~1000

3. Fuel temperature: 40±2℃

4. Rail high pressure: 0~2400bar

5. Test oil filtered precision: 5μ

6. Input power: 380V/50hz/3phase or 220V/60hz/3phase

7. Rotation speed: 0~3000RPM

PACKAGE:
--Standard export plywood packing.--
DELIVERY TIME:
5-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

>>> Main products include:
     1, Diesel Engine Parts (Nozzle, plunger, Delivery valve, head Rotor, injector, fuel pump and other accessories) 2,  Diesel Injection Pump Test Bench 3,Common Rail /EUI/EUP/HEUI Tools 4  Auto parts 5,Special Vehicles  Parts 6 , Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
