ASFROM NON PAD GEL PRESS MACHINE FOR SHOES MAKING
- Category: Other Shoemaking Machines >>>
- Supplier: Dongguan Asfrom Rubber And Plastic Technology Co. Ltd.
Share on (62587915650):
Product Overview
Description

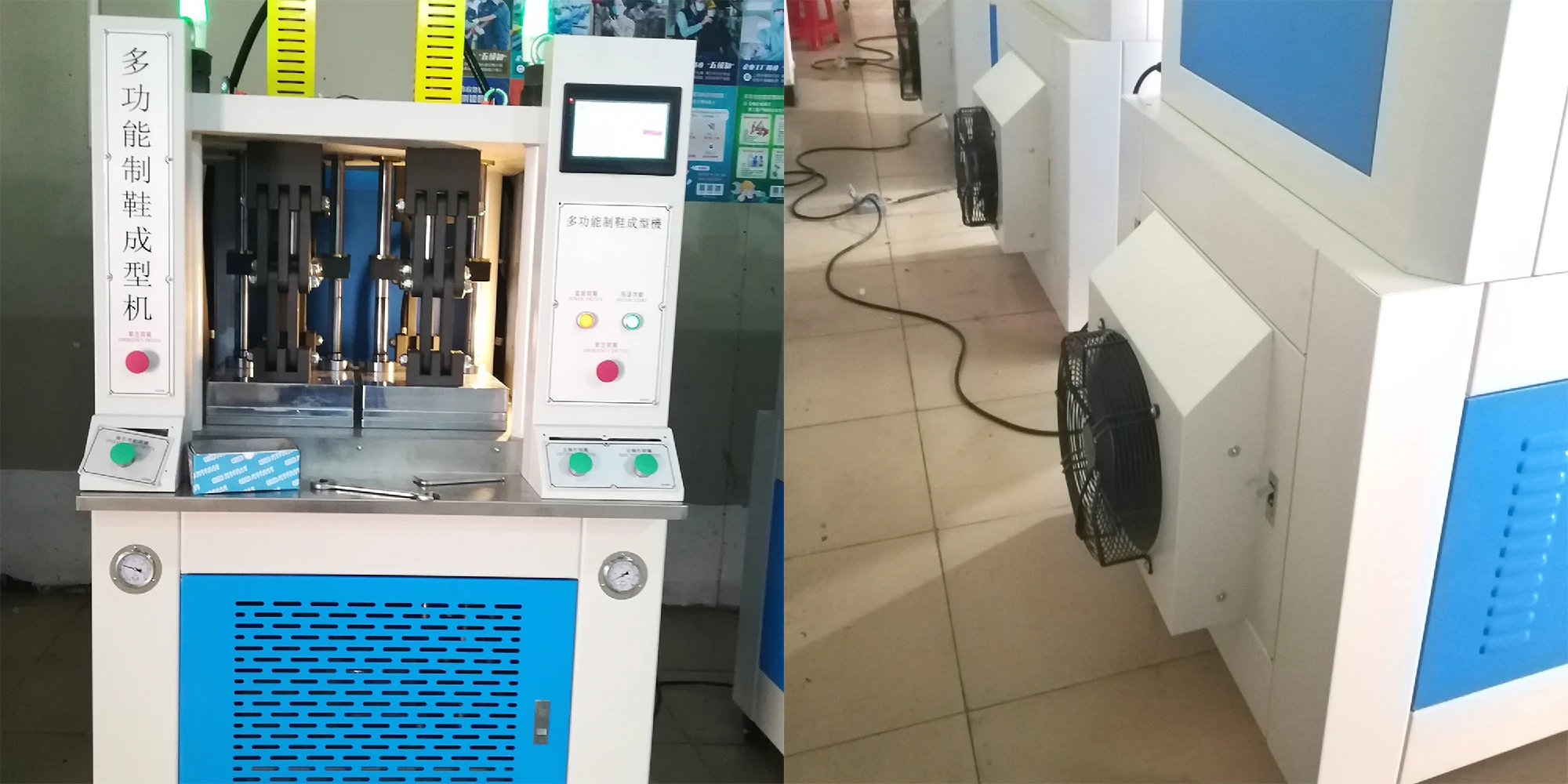

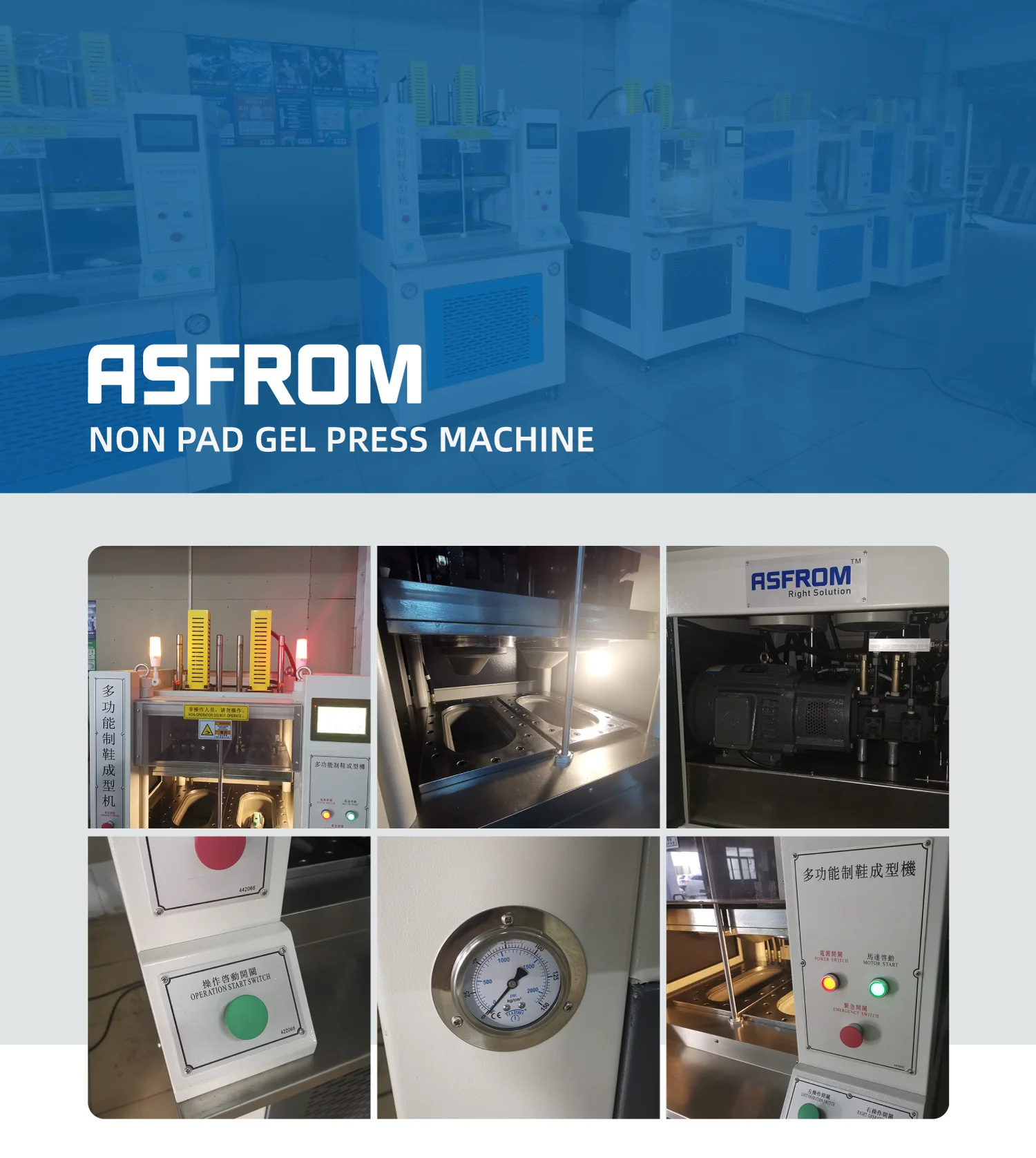

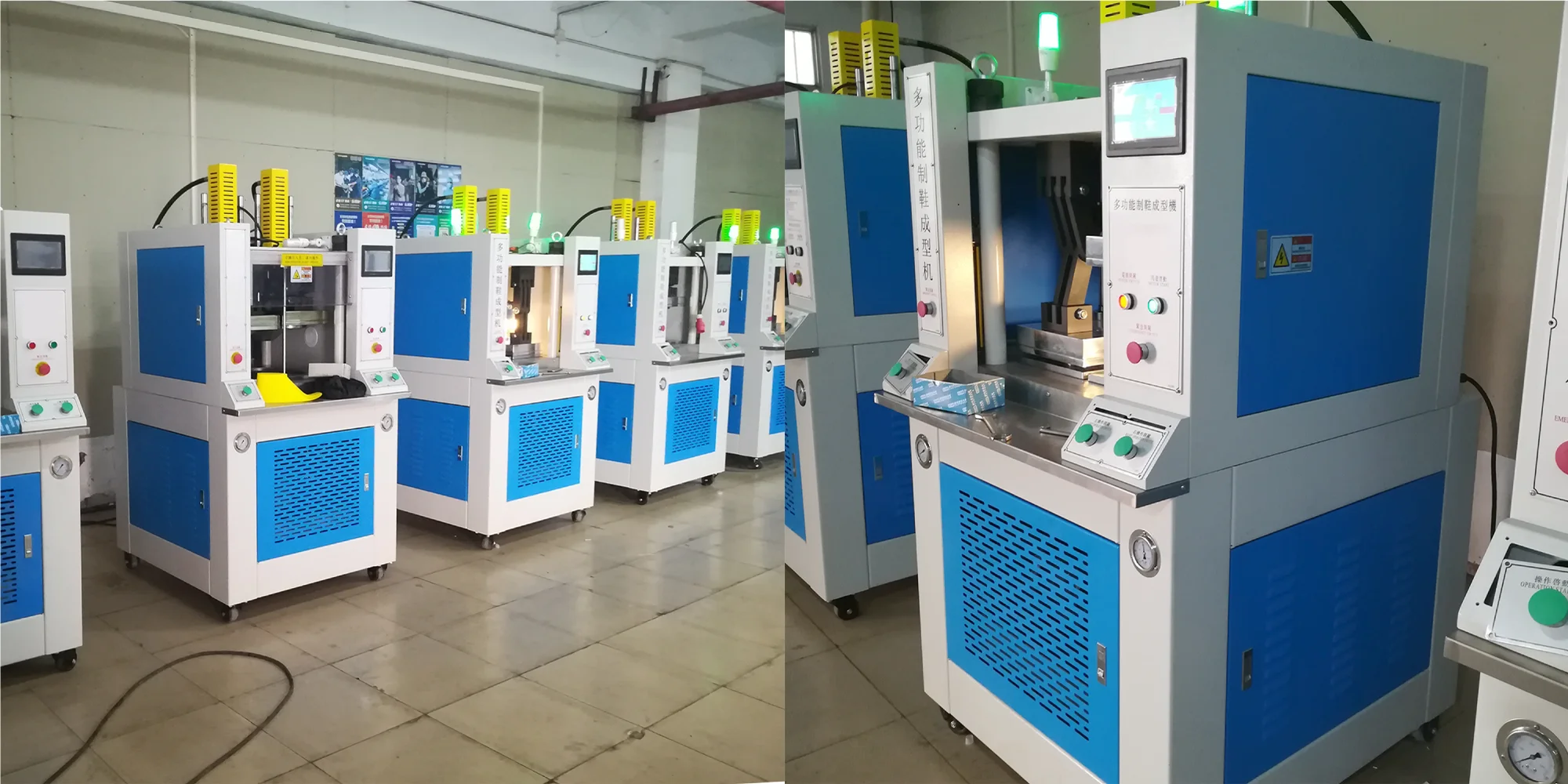

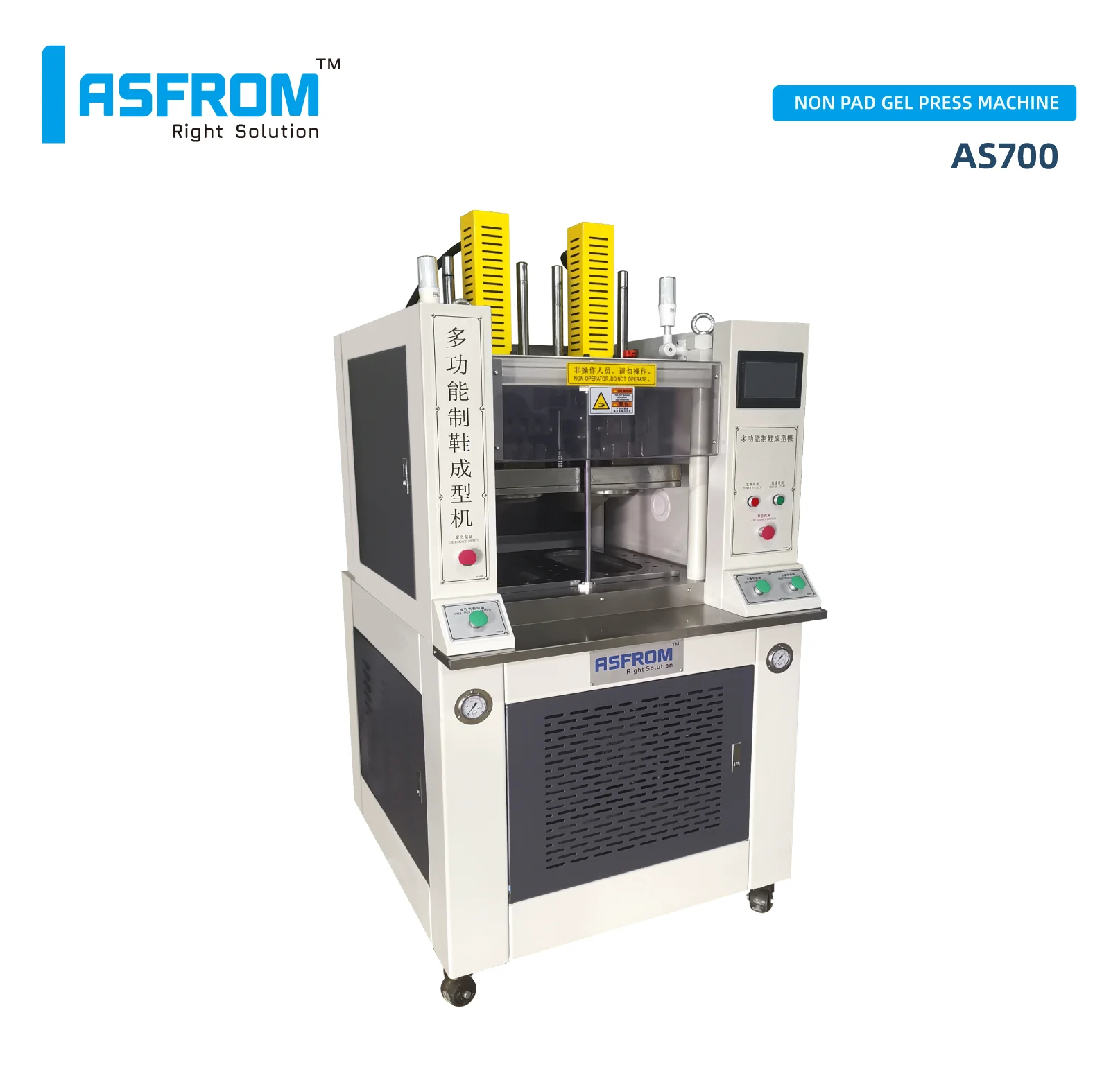

ASFROM NON PAD GEL PRESS MACHINE
Model : | AS700 |
Press rangfe : | 0-30Kg/CM2 |
Working range : | Size: 5-15 |
Production efficiency : | 7 Sec/Pairs |
Woriking oil : | Water Soluble Hydraulic Oil |
N.W./KG : | 2000kg |
Voltage : | 220V 60Hz/380V 50Hz |
Machine Size : L*W*H : | 1380*1000*2000 mm |
SPECIAL FUNCTION

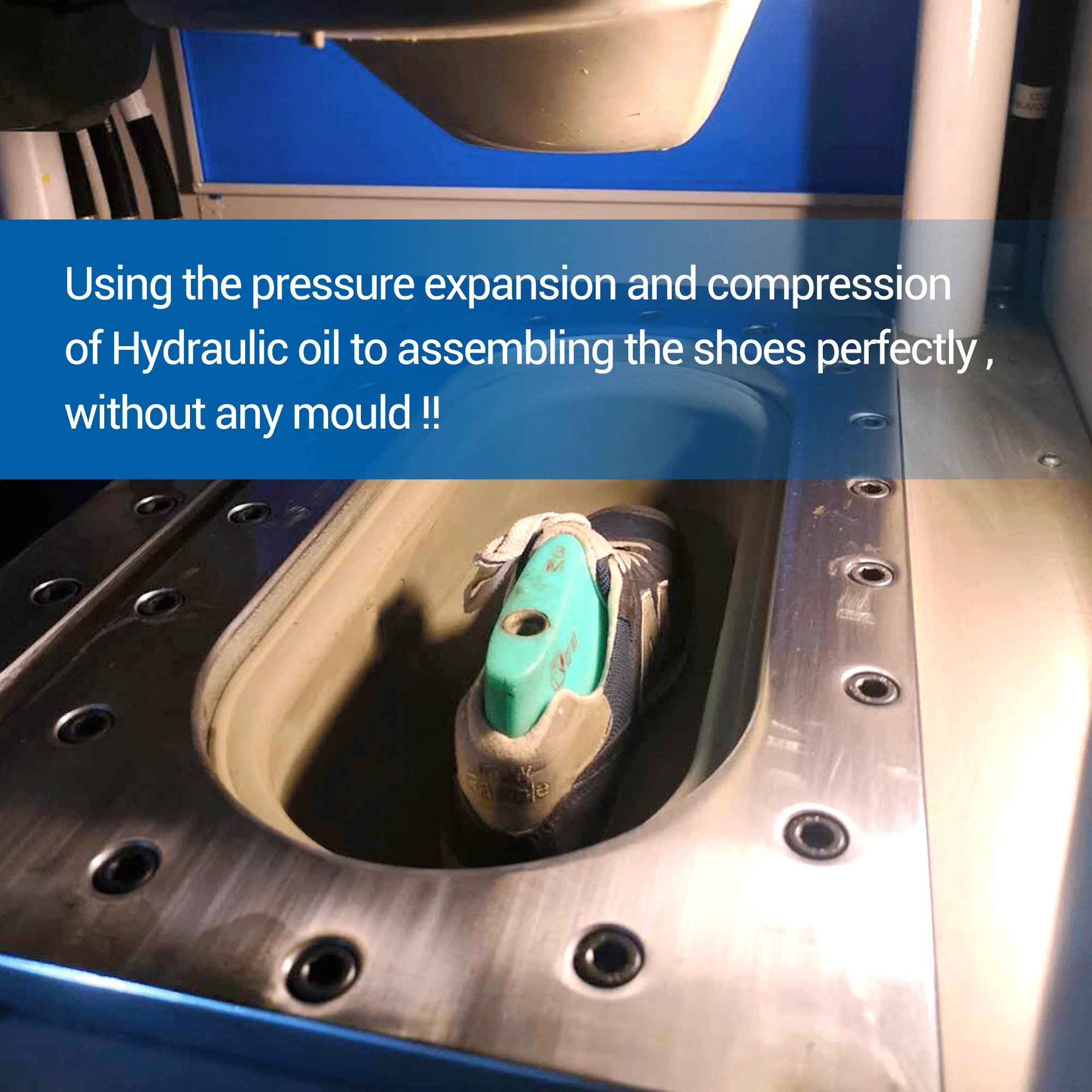

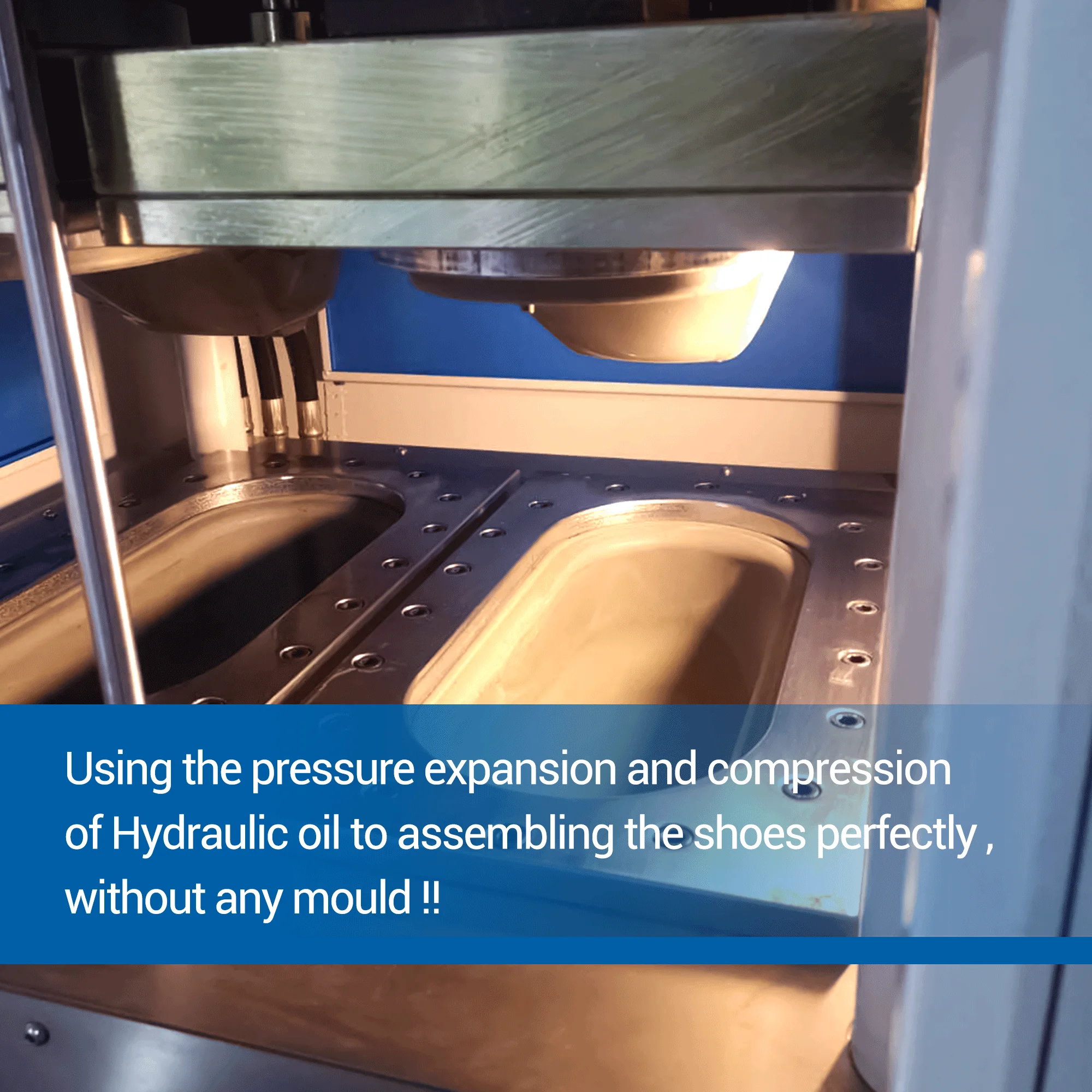

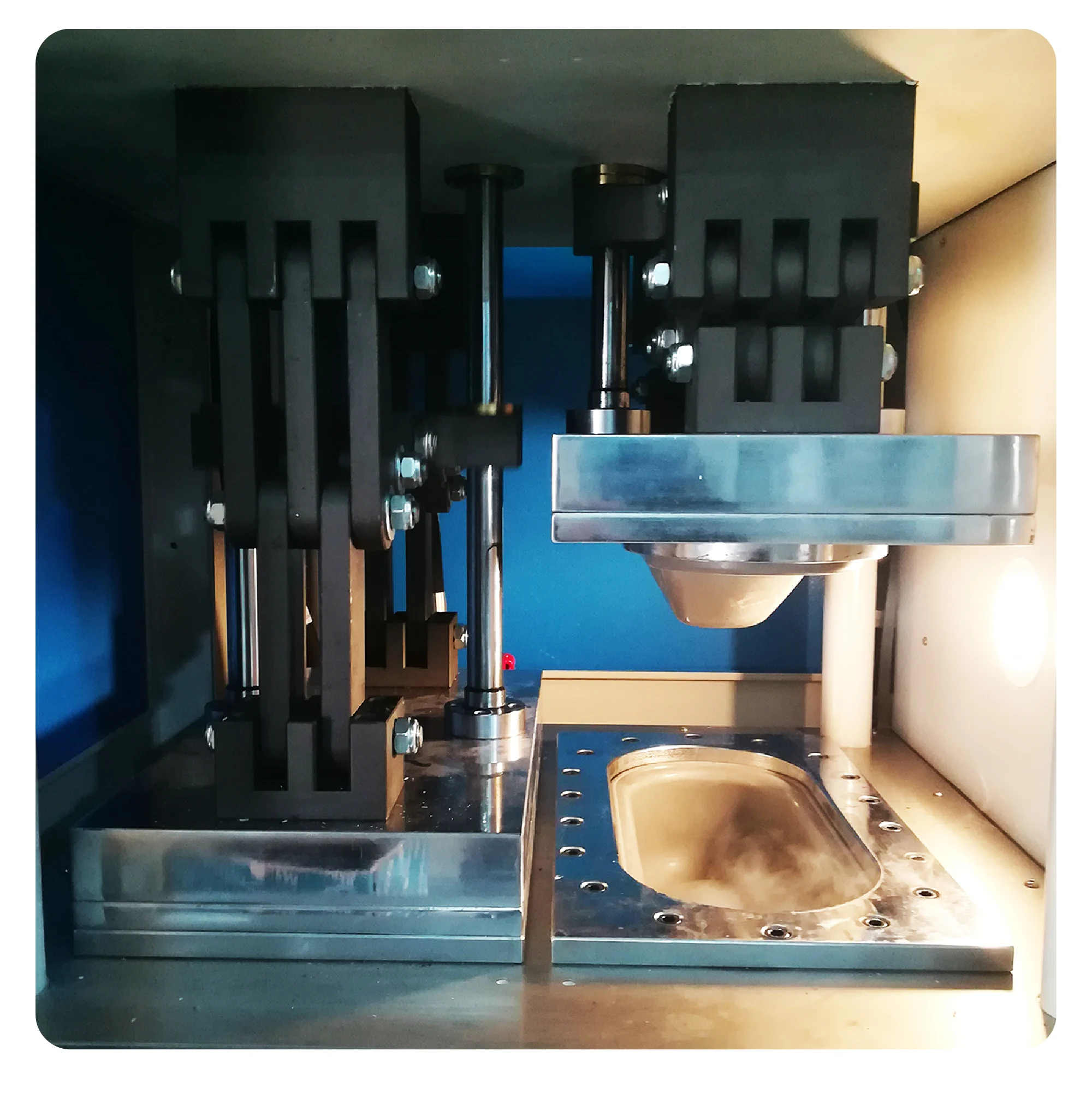

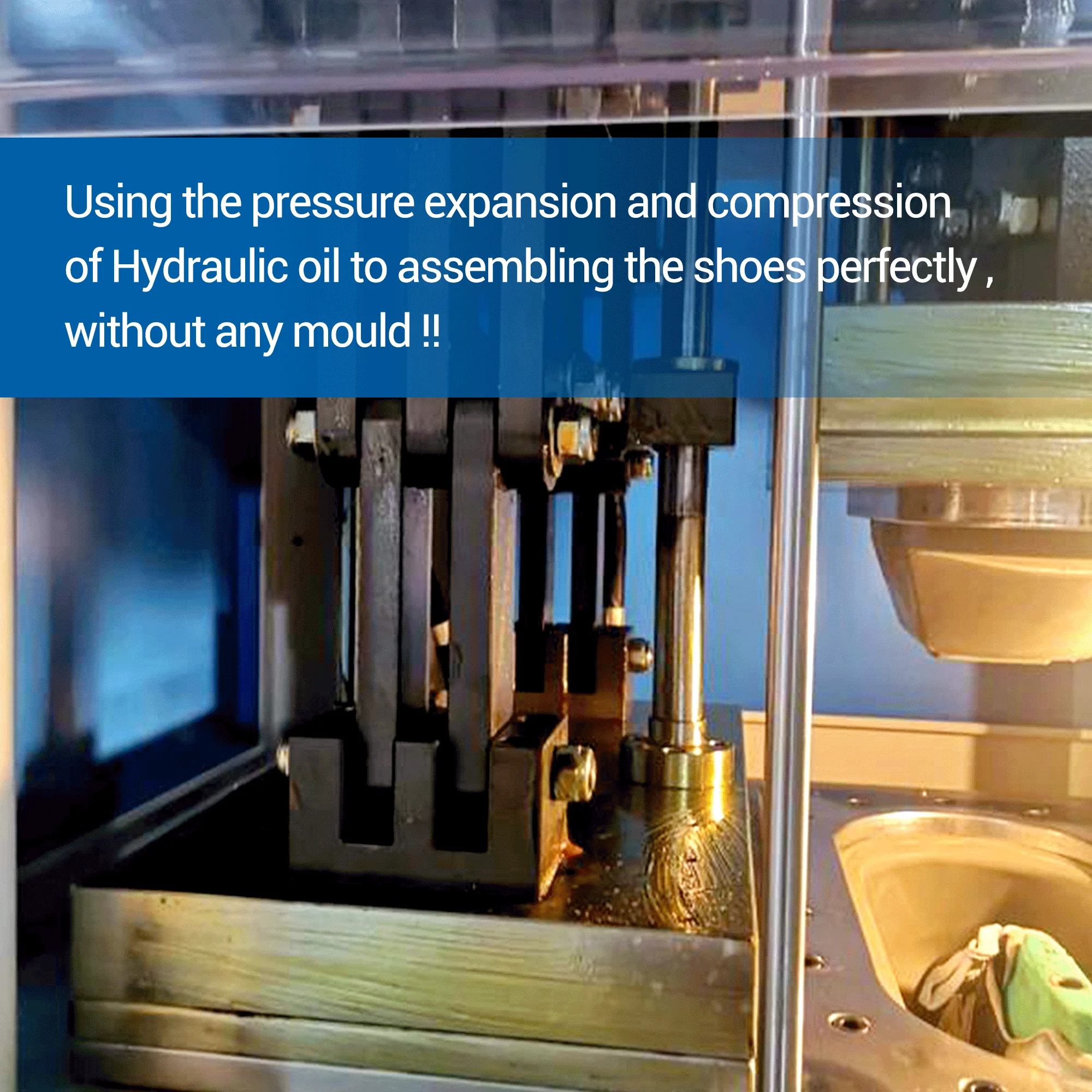

- The molding machine is suitable for outsole bonding or vamp and outsole laminating of leisure shoes and various sports shoes. the hydraulic oil is injected into the cylinder sleeve, the espansion rubber sheet is extruded by the pressure, and the principle of expansion and expansion rubber sheet is extruded by the pressure, and the principle of expansion andcompression is used to achieve the purpose of the all-directional extrusion, so as to make the laminating prefect. The processing shoes put in the round hydraulic cylinder sleeve and compress moulding, easy operation, the durability of each rubber sheets is up to three hundredthousand, it is one of the major breakthroughs in shoe molding machine. This machine is placed on the molding line will replace the wall perss machie, put on the outsole process line will replace the wall press machine and hydraulic press. Put in the development room, the machine ocan press the outsole and do the shoe molding at the same time.
- With oil pressure system, the pressure can be adjusted by the shoe shape, the averagepressure is up to 30kg/cm2.
- The molding machine adops with all directional pressure. It can complete the process thatwall press machines can not do . For example, the molding shoe side or back with side wall,the side strip can press well.

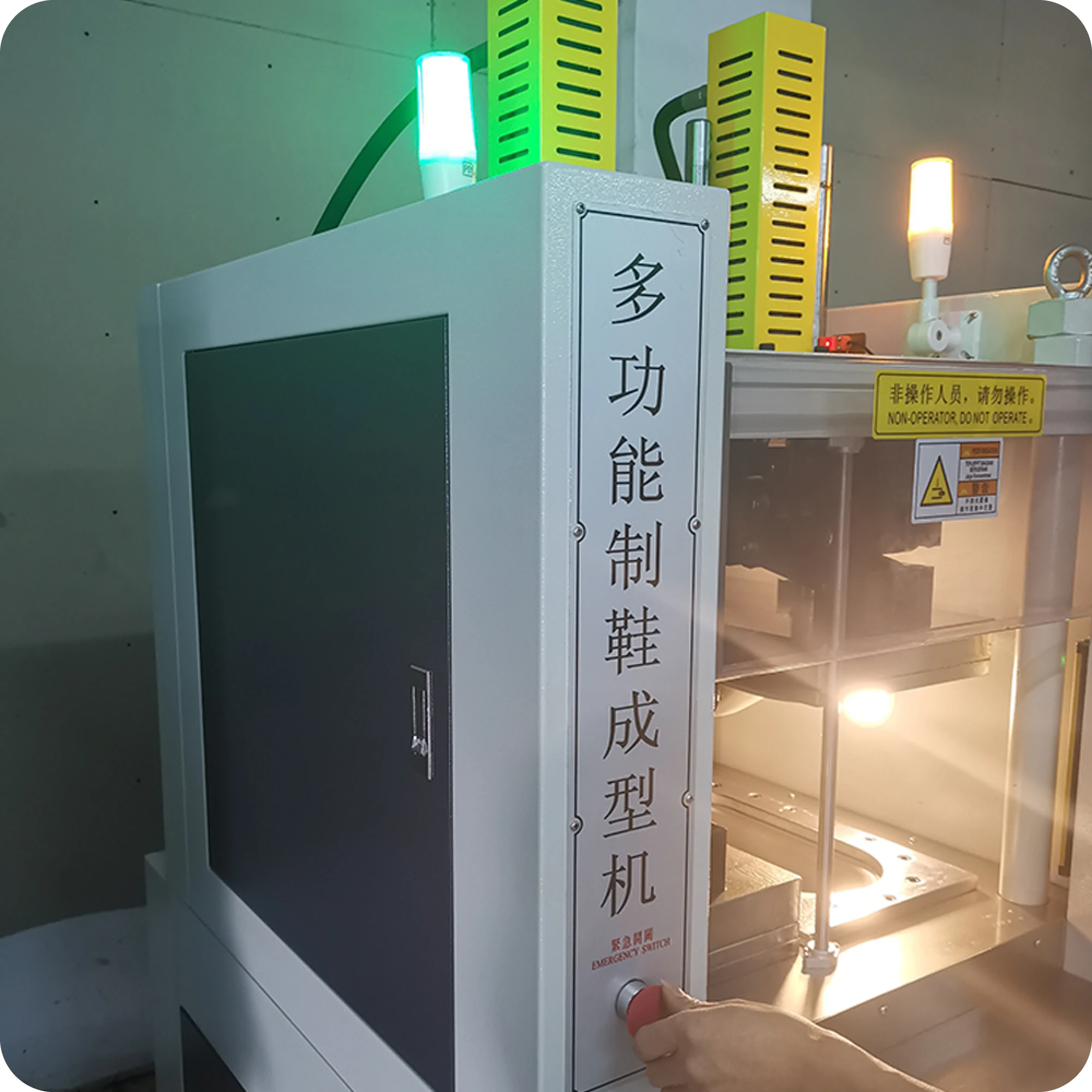

- Conform to safety standards, with safety sensors and emergency buttons to eliminate risks.

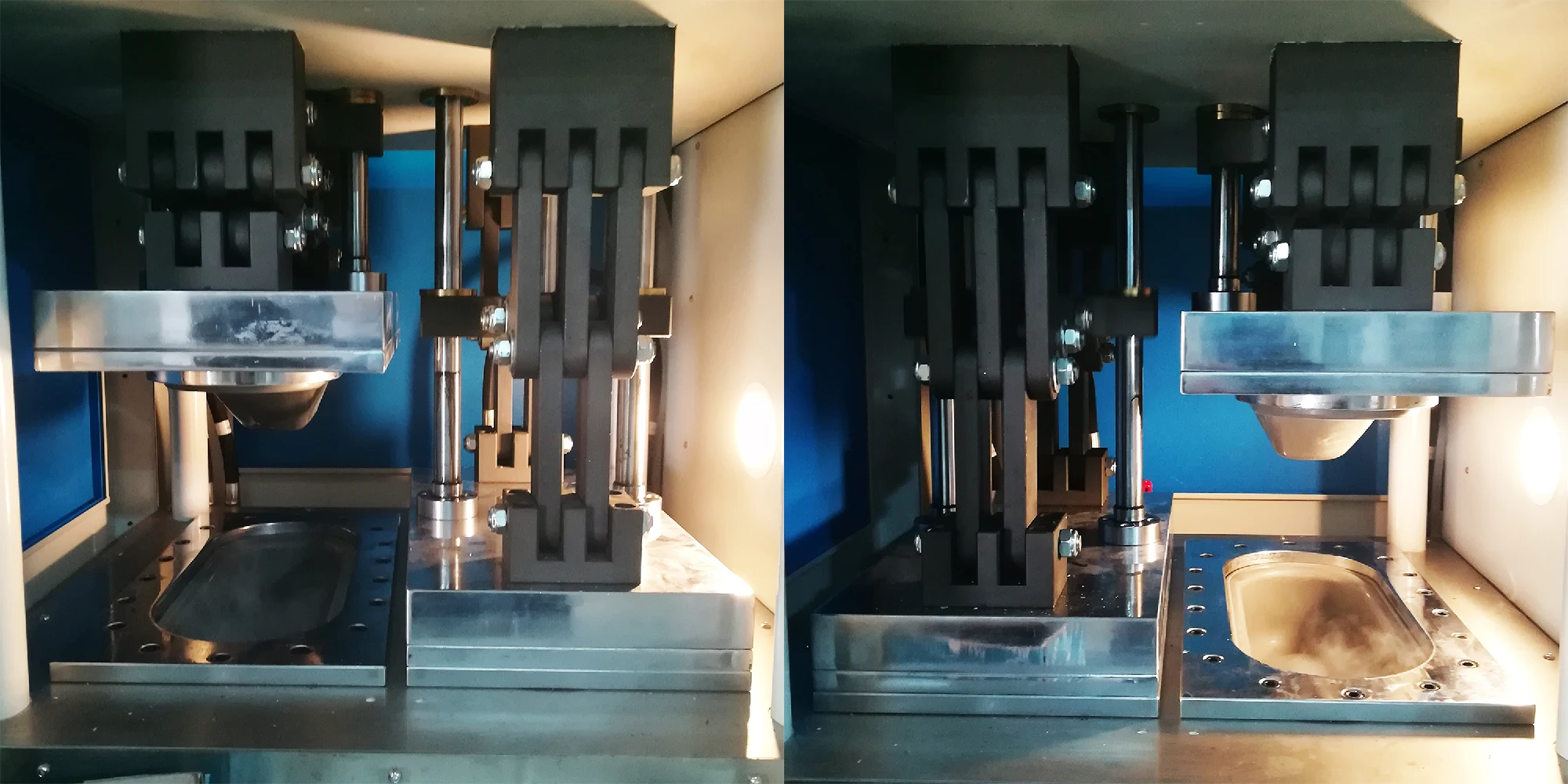

- One machine can complete the double pressing process, reducing the number of multiplayerwaste.
No need to make the traditional wall press mold, reduce mold cost, regardless of size code, regardless of left and right foot. Hydeaulic oli is water soluble, non-toxic, no environmental problems.
Comparison
with
Traditional Equipment
01.
Uniform pressure

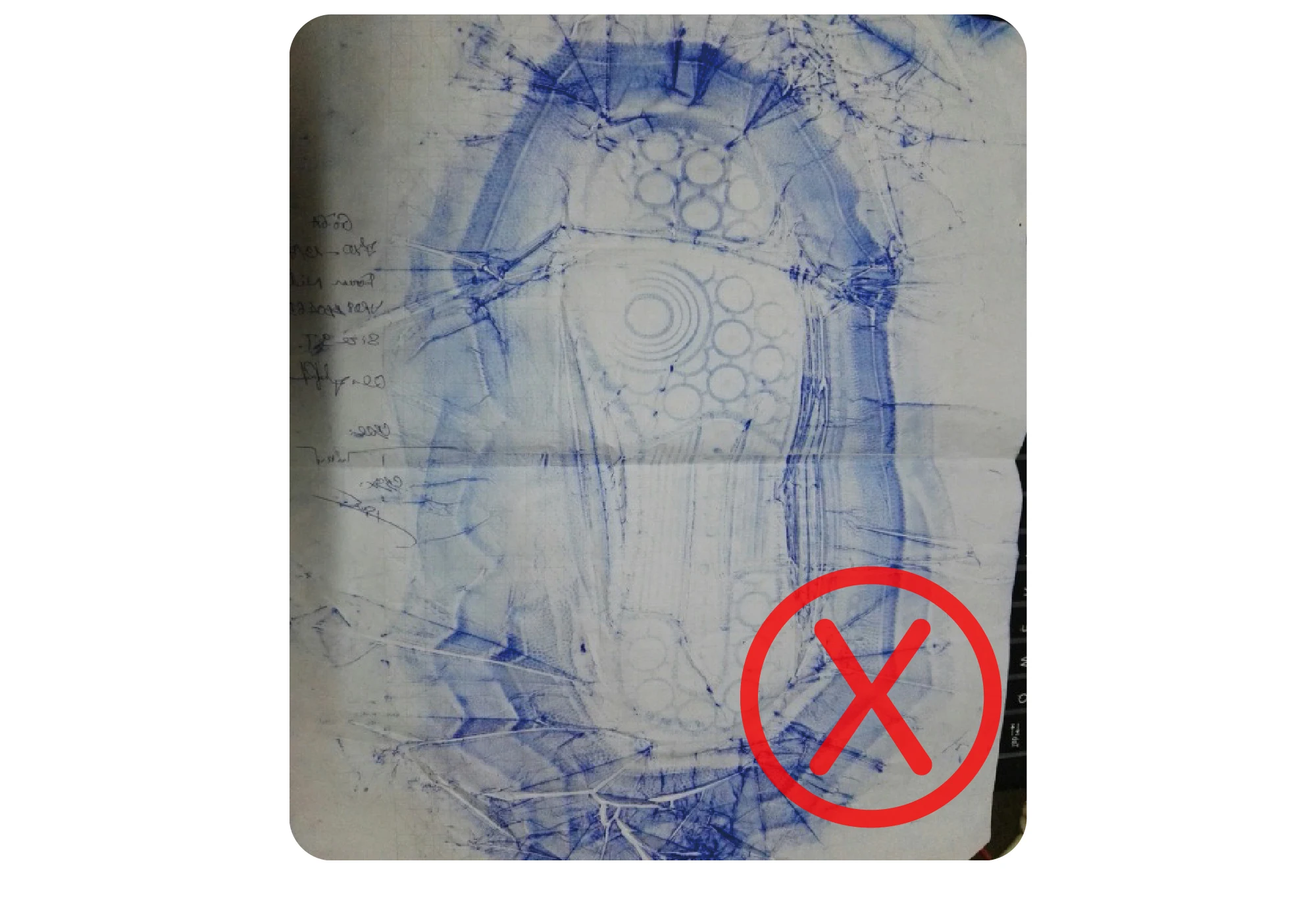

Because the blank holder of traditional pressing equipment is too concentrated on the edge, the pressure of the concave part of the middle pattern can not be transmitted in place

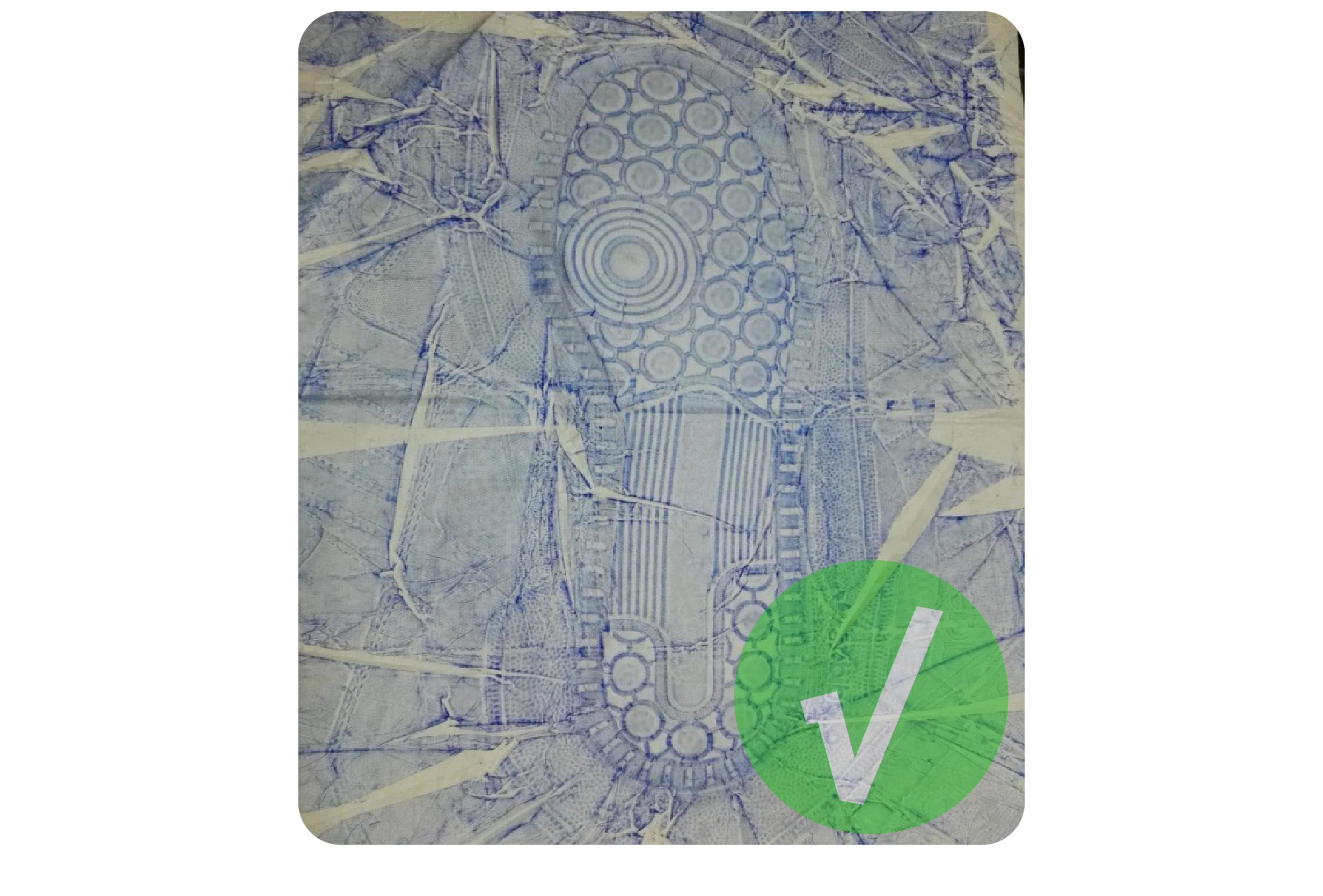

Our company’s non-mold press bottom machine pressing effect is shown, each part of the pressure is uniform, all kinds of patterns, arc edge pressure can be effectively conducted in place

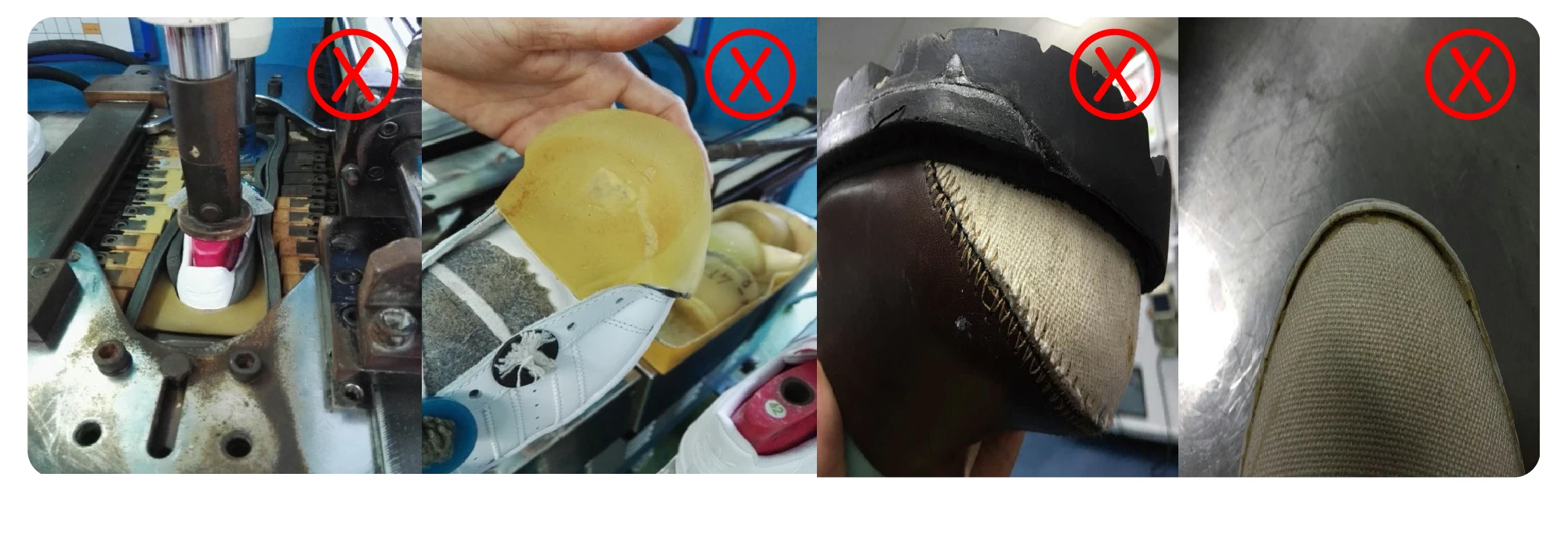

When using the traditional pressing equipment, because of the pressure and mold and other factors, there will be slippage and wrinkles and other problems
Our company’s non-mold pressing machine has uniform force, mold is not needed. There is almost no slippage and fold during the shaping
02.

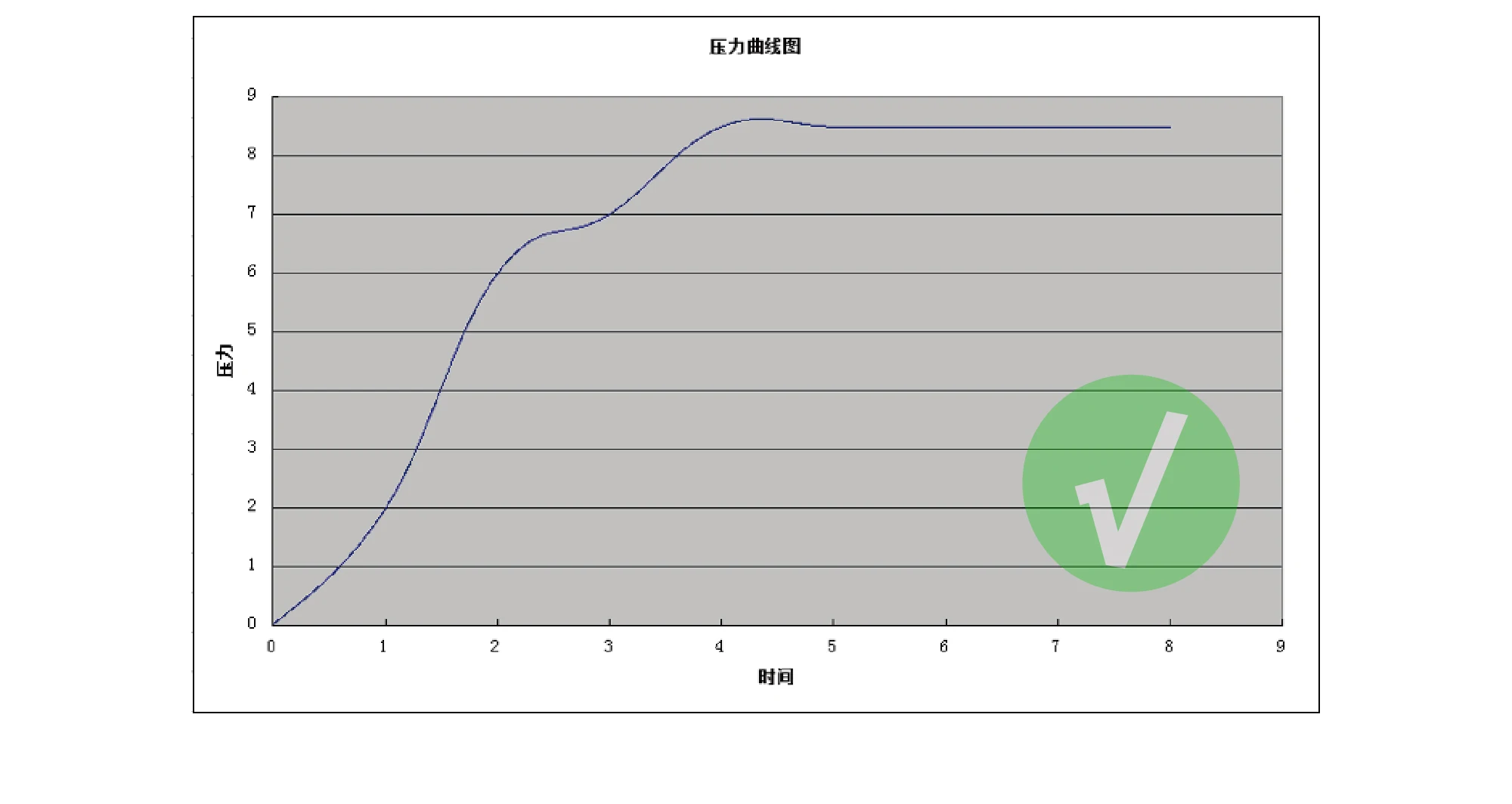

Step up and pressure curve is smooth

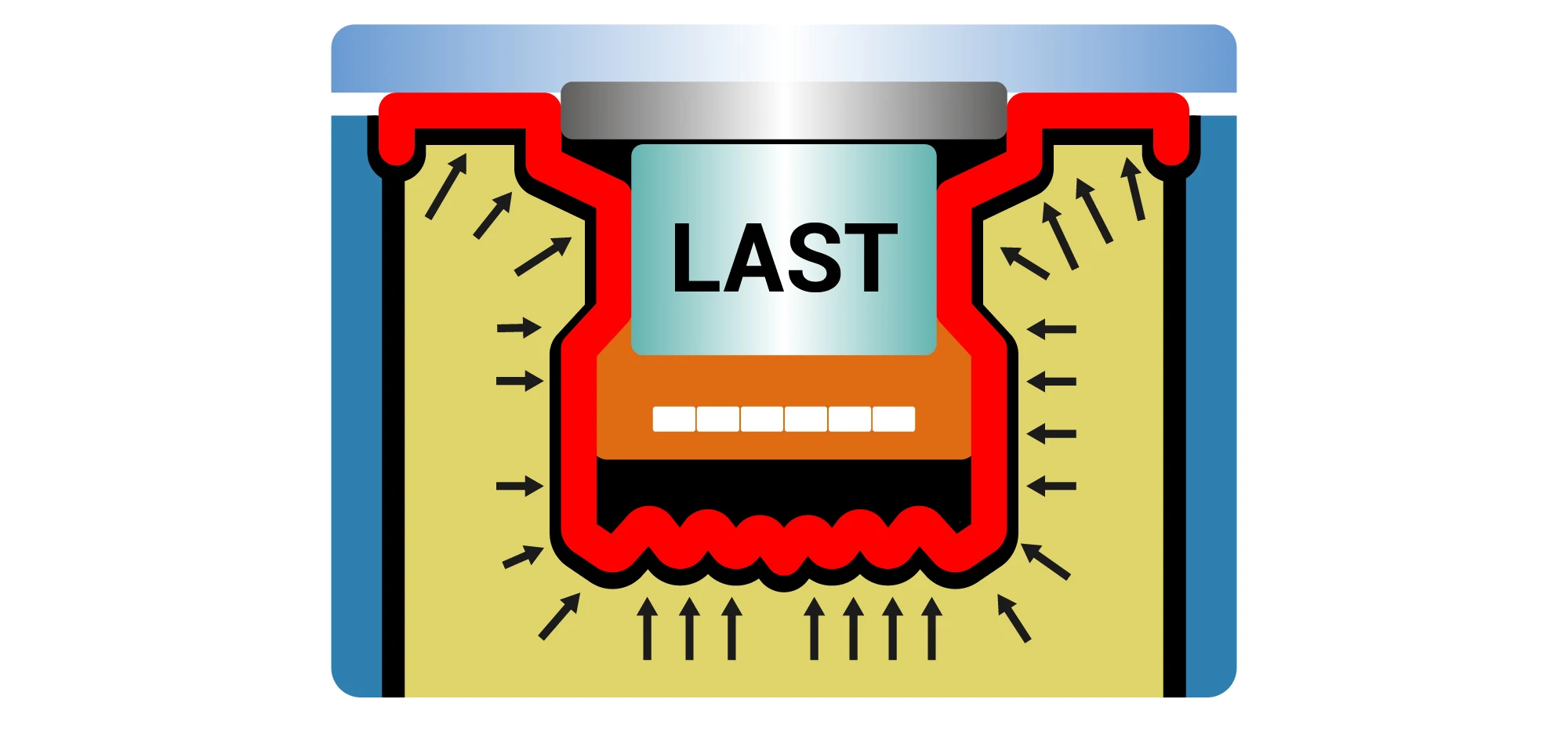

When pressure is applied to the fluid in the container, the pressure on the pressure surface is equal

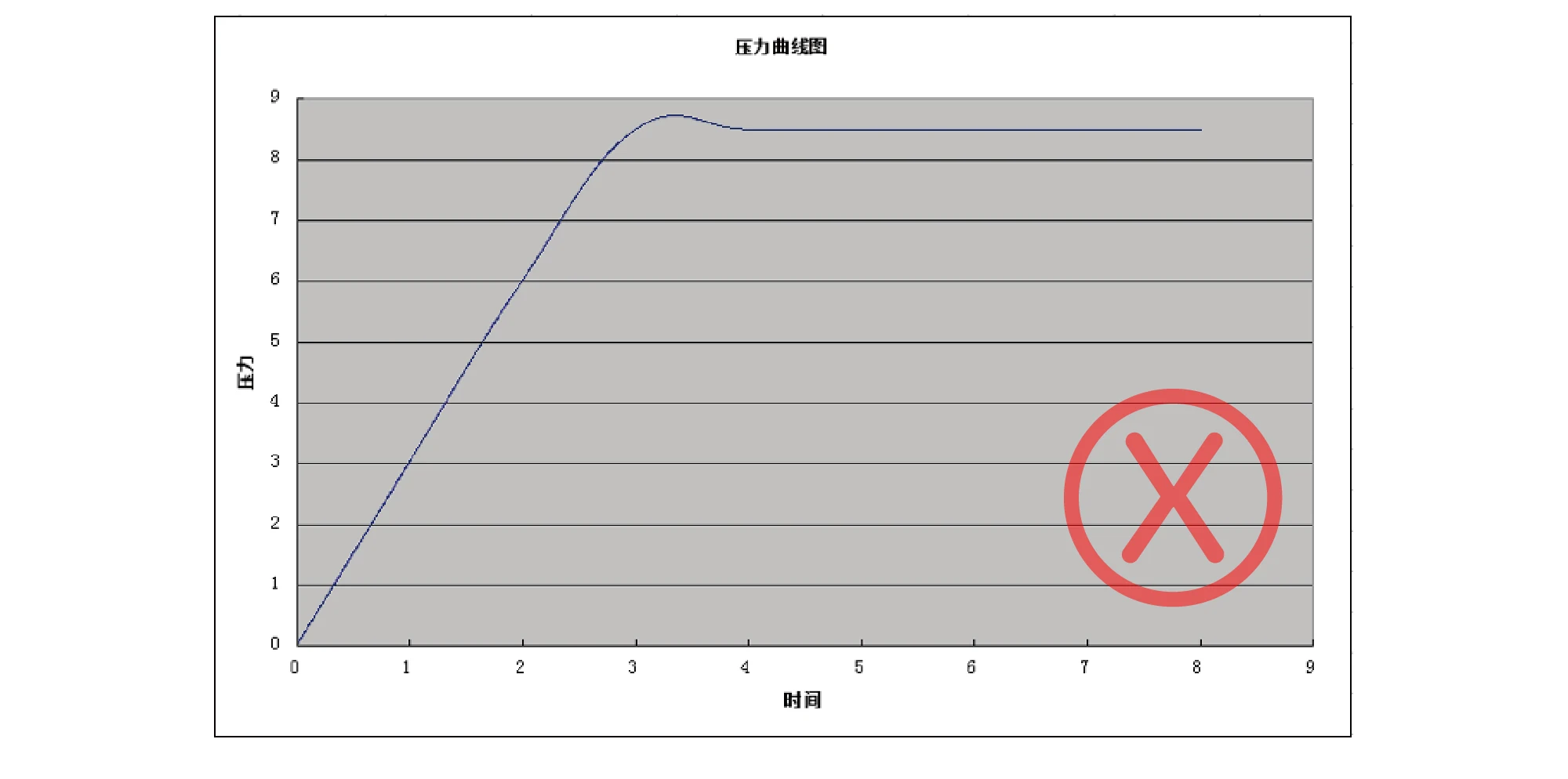

Traditional press machine’s pressure curve is steep, which is easy to cause material displacement
Our company’s non-mold press bottom machine pressure rise curve is smooth and the pressure rises in sections to avoid material displacement
03.
No need sole pressing mold
All kinds of shoes do not need the sole pressing mould, which saves the cost and does not need to dismantle the mould frequently in the pressing process
Simplify the tedious process of traditional pressure, without changing the mold, one-time molding, work efficiency increased by more than 50%
04.
Application examples

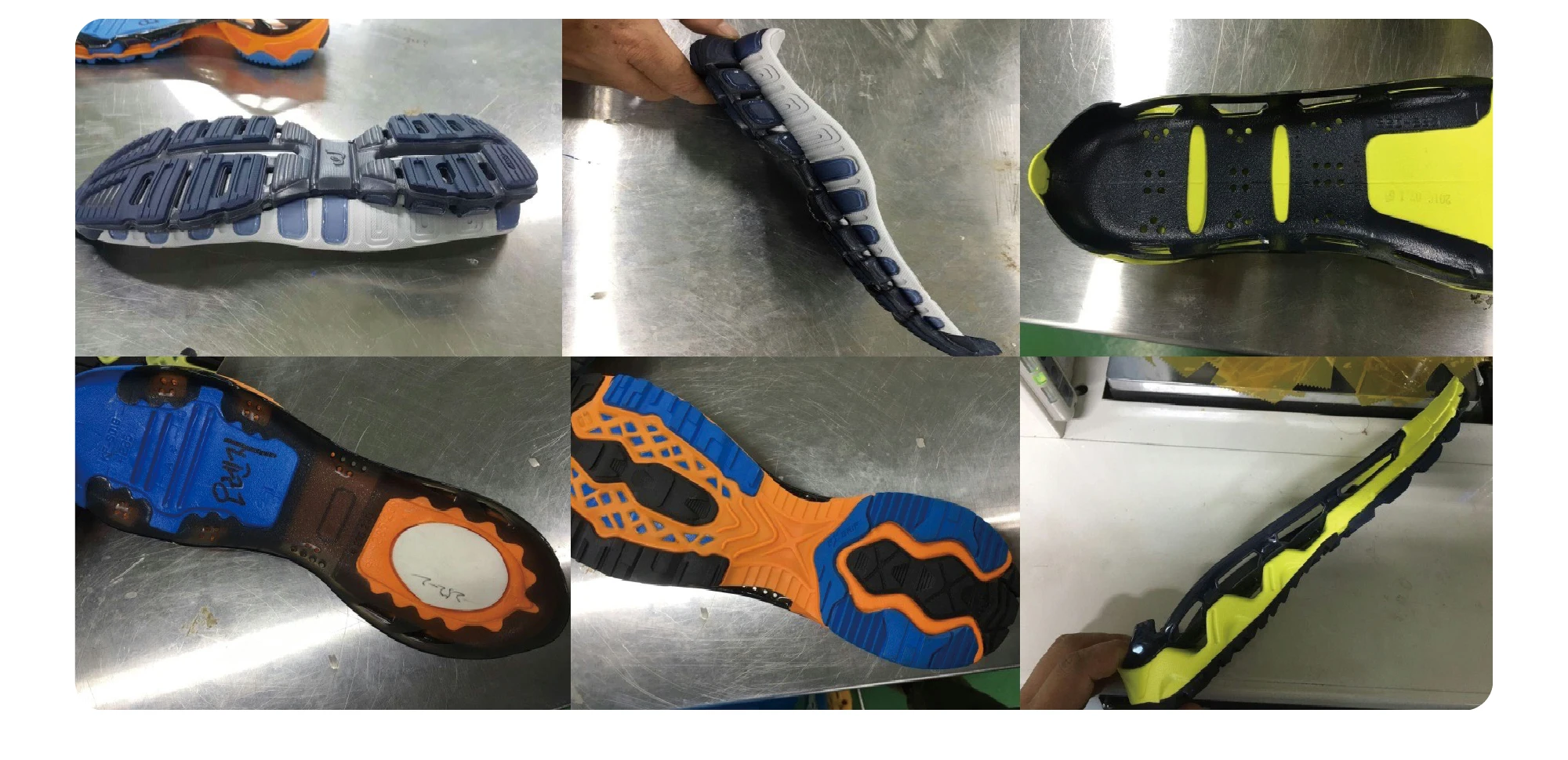

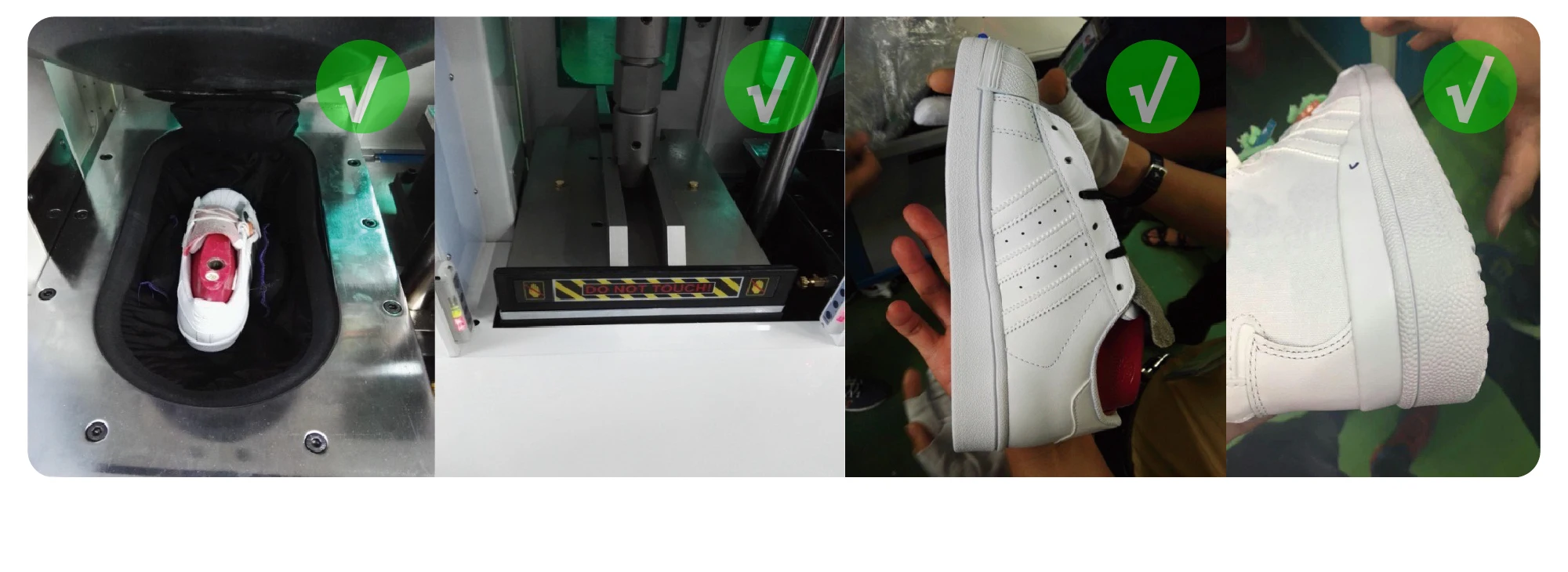

Part of the difficult combination sole produced by the factory

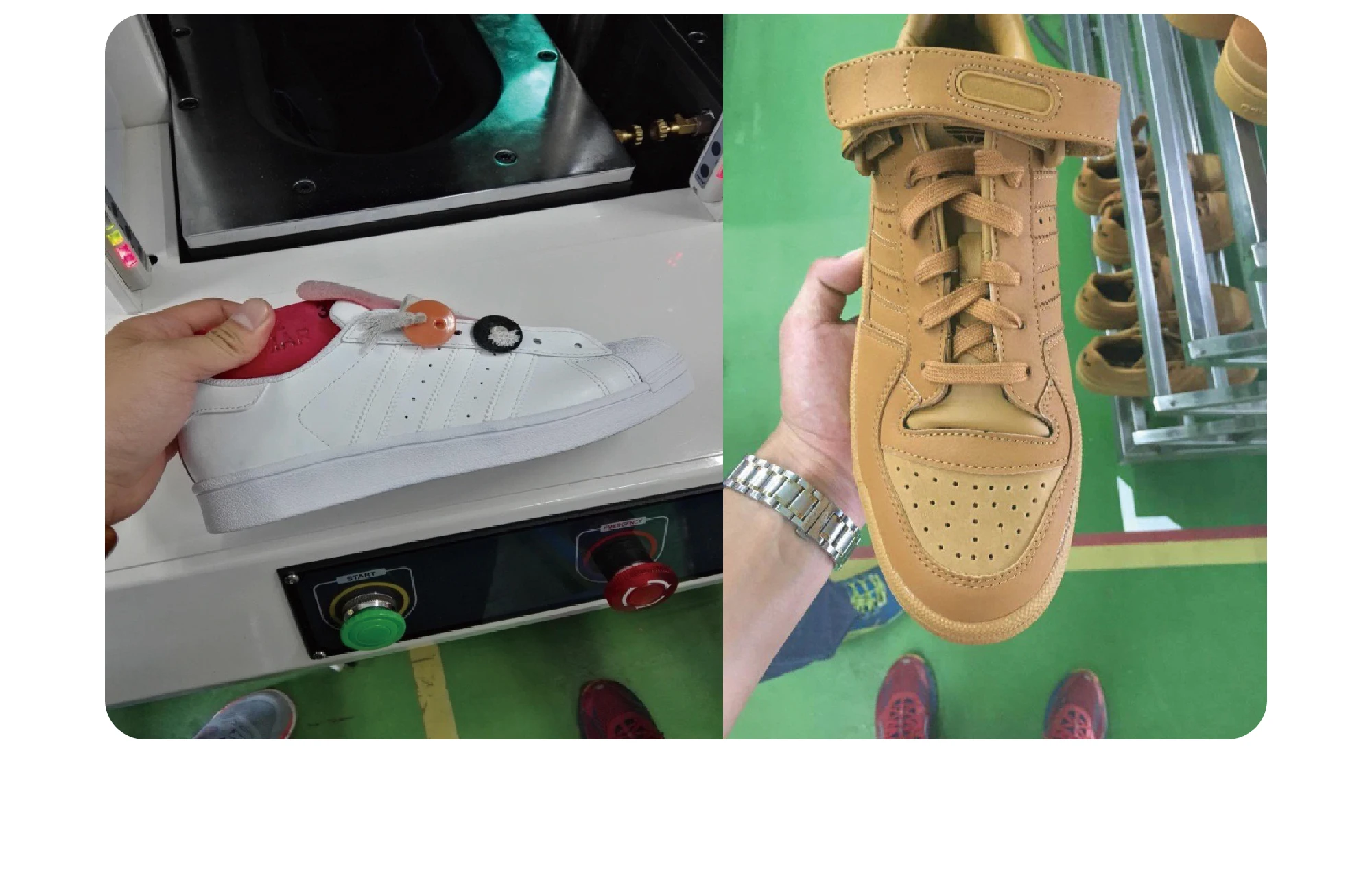

Introduction of the trial shoe types

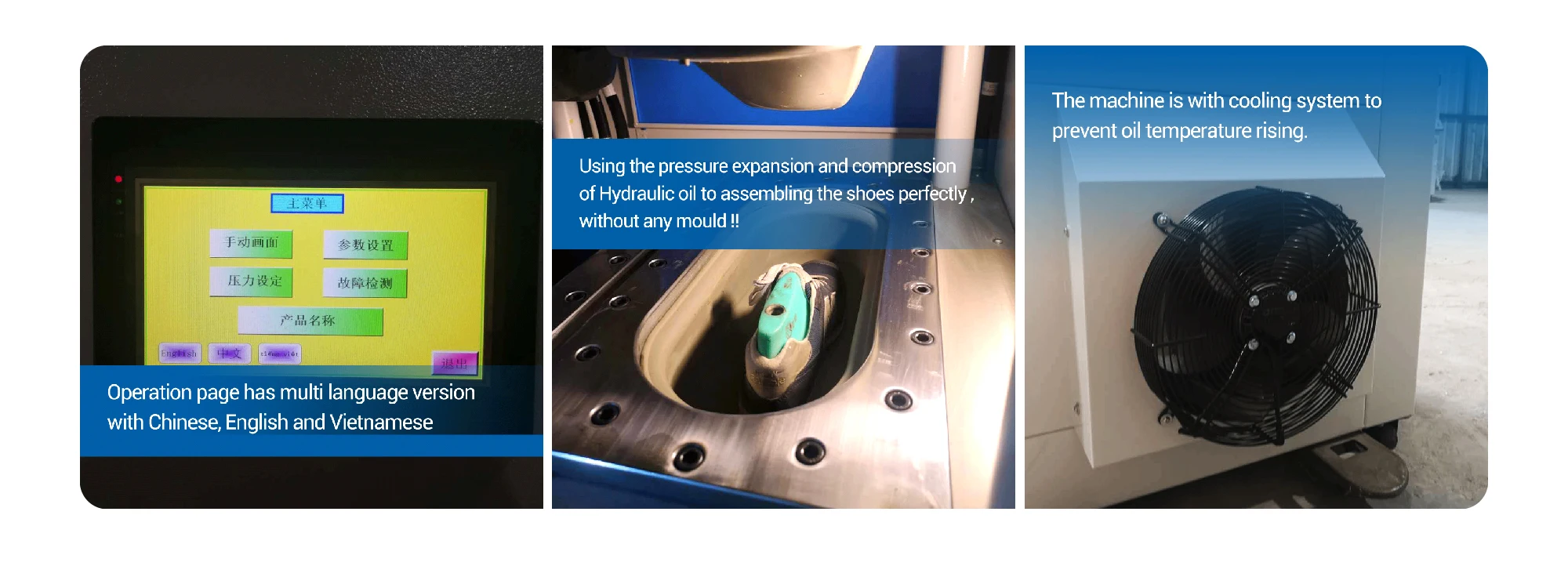

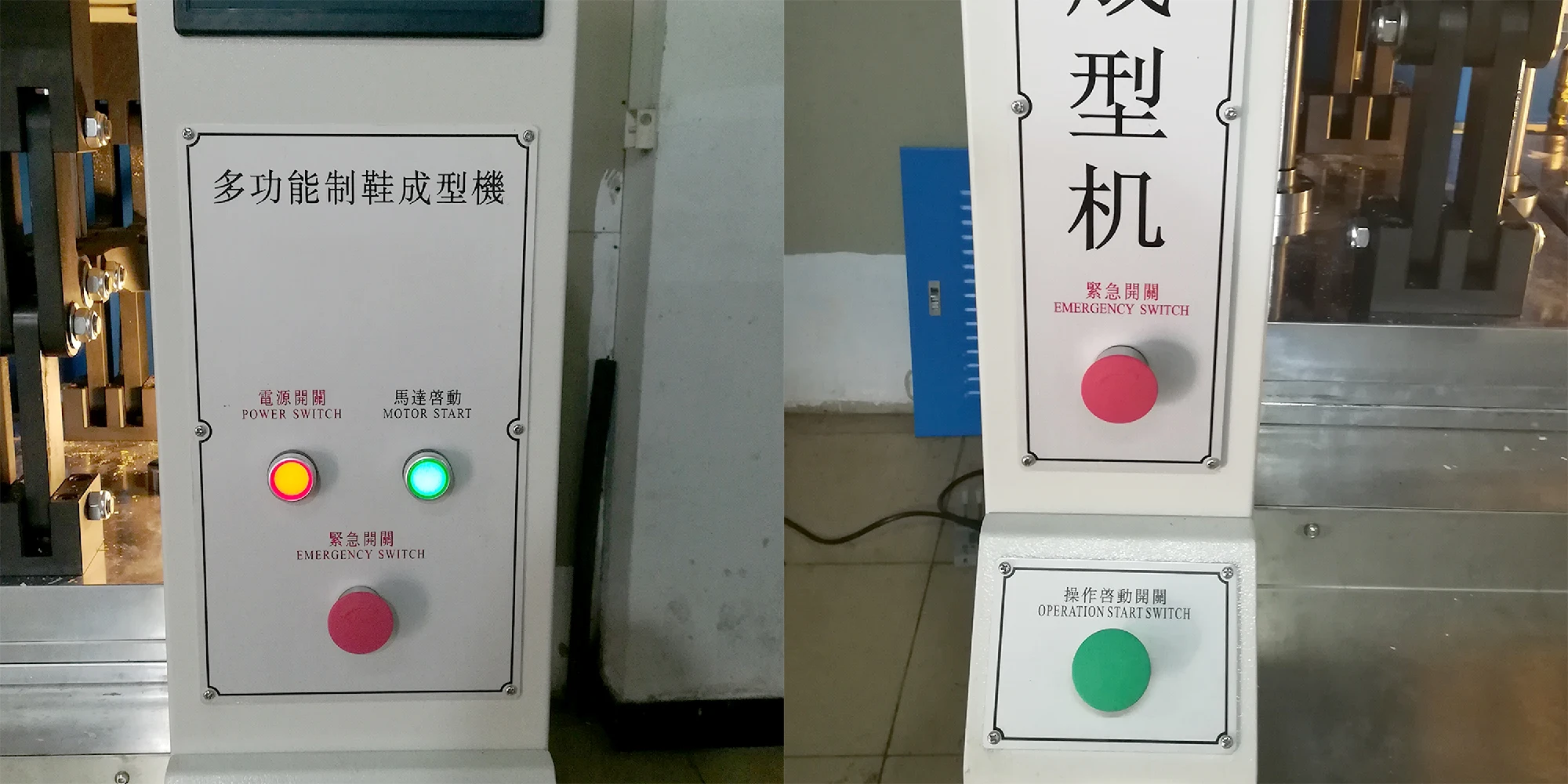

Functions and features
Running state | Standby state |
 |  |

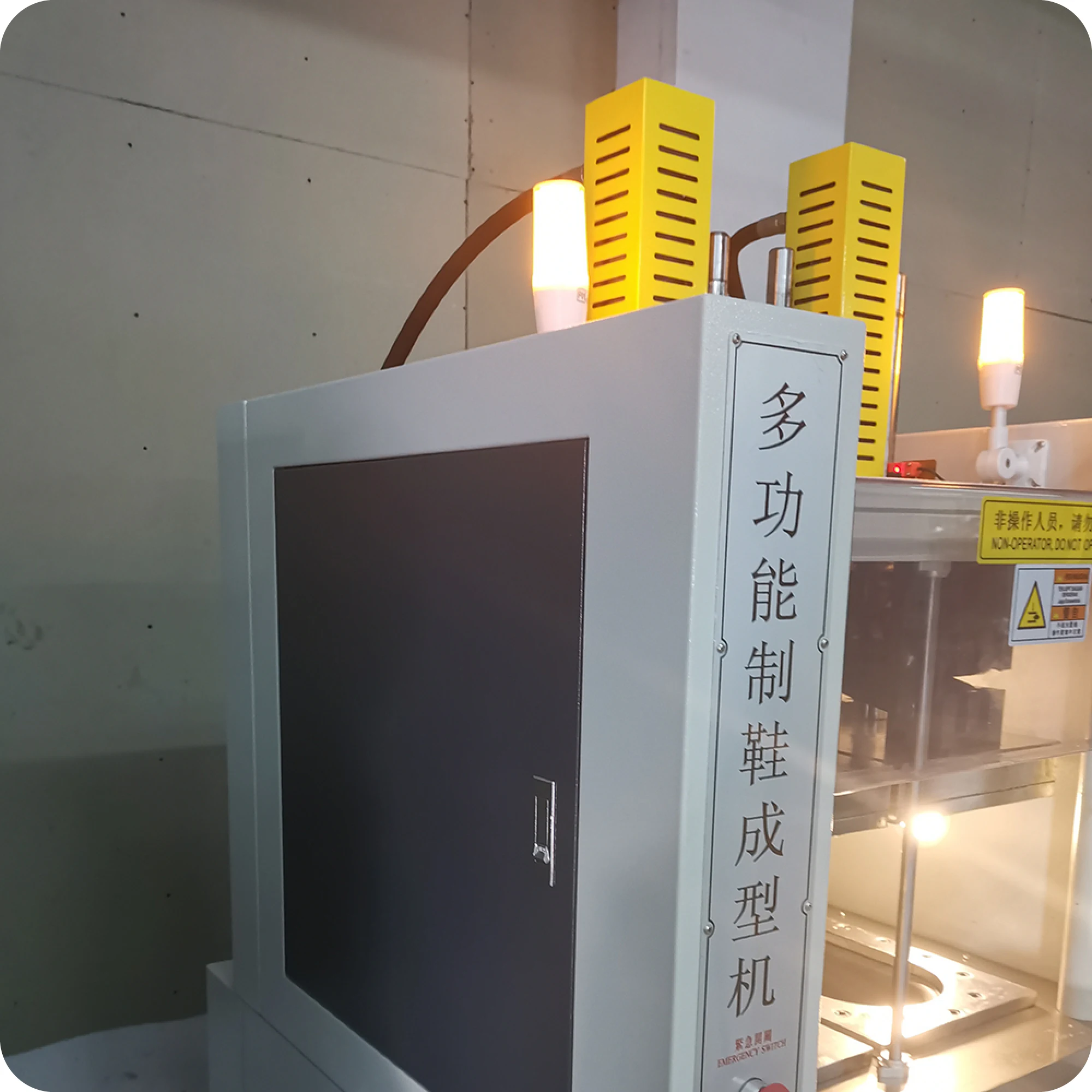

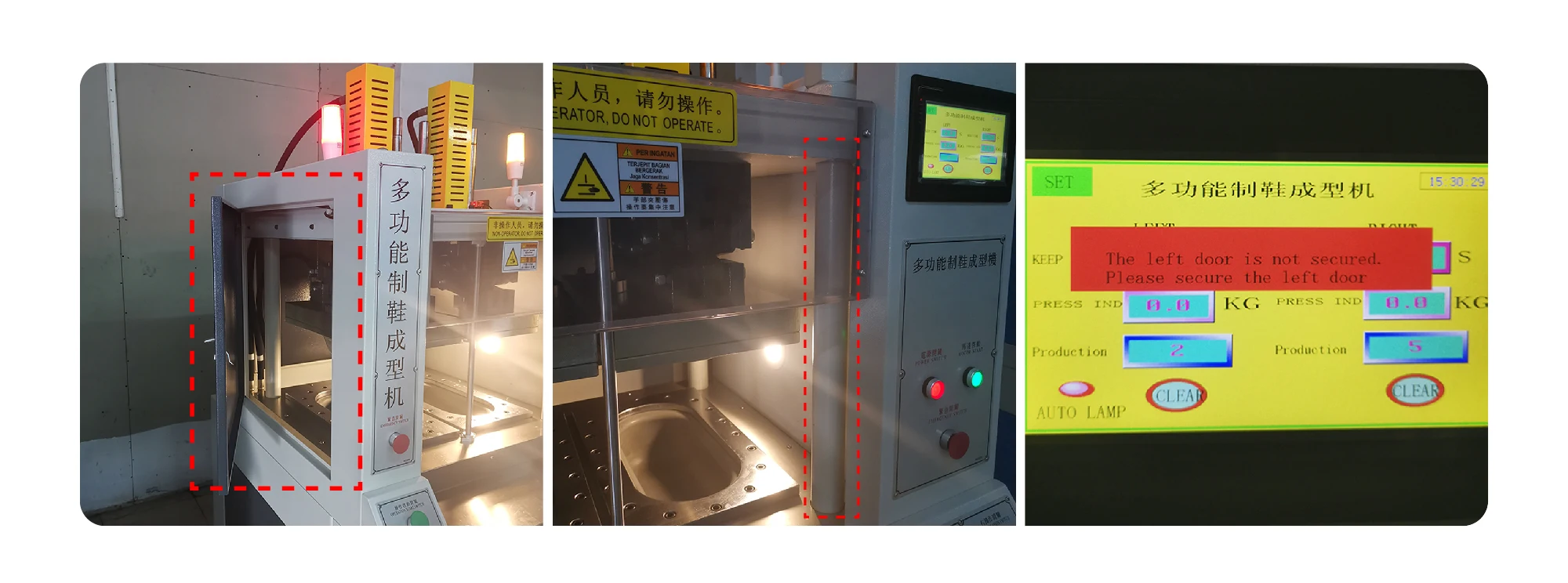

Alert status
01.
When the machine is running, the left door is
opened to trigger the alarm state and the machine
stops running.
02.
When the machine is running, the arm crosses
the sensing column to trigger the alarm state,
and the machine stops running.

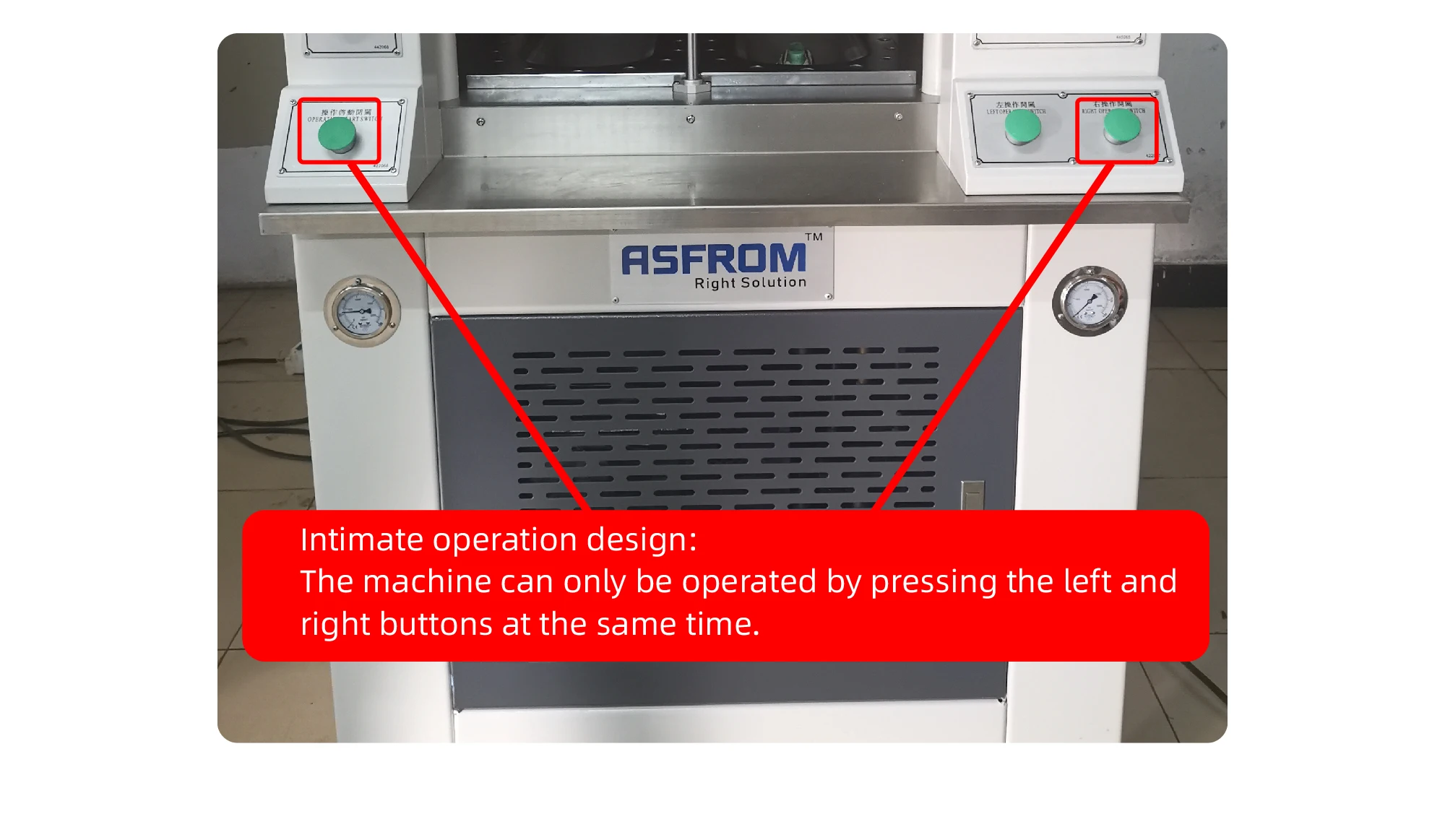

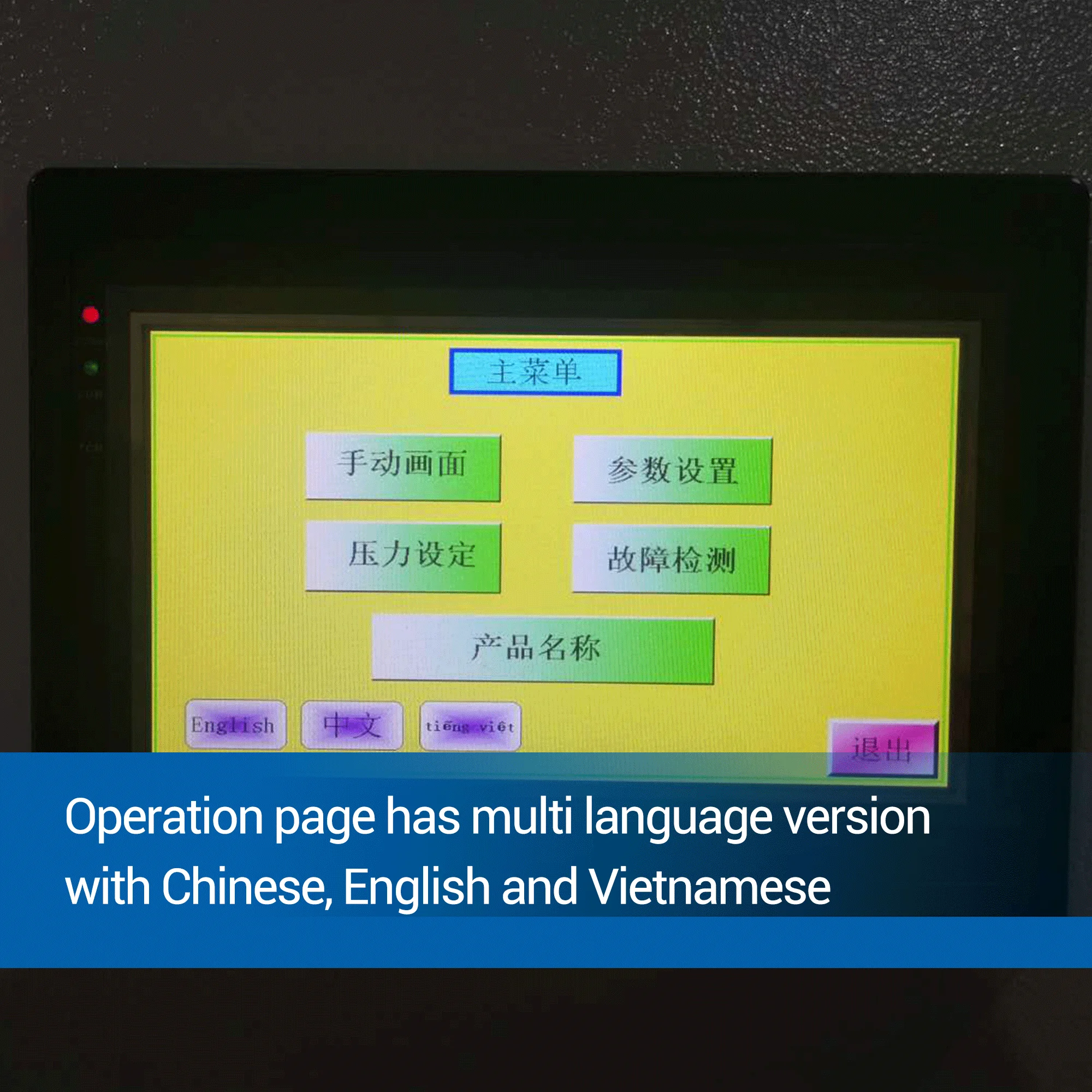

Intimate operation design
Asfrom Certificate
Asfrom Packing & Shipping
Asfrom Clients
Asfrom Exhibitions
ASFROM GROUP has been specializes in machinery and mold business in China for many years. Under our group, we have our own factories as follows:
1. Mould factory for Eva foaming and Rubber sheet.
2. Rubber sheet factory for High quality rubber product and Crepe Rubber Sheet.
3. R & D center of automatic customized equipment for Big Brand.
Our comprehensive experience and professional team can provide you with complete solution support for the following production lines:
1. EVA foaming sheet production line.
2. Sport shoes production line
3. Flip-flop whole production line.
4. Silkscreen automation equipment and technical support
5. 5G Technology
6. Solar power technology
We have already acted as a professional agency here for all kinds of shoes material collection for some oversea big factories, help to collect all of the shoe materials and control the quality, arranging the shipment by FCL or LCL as the order quantity, The most important thing is that we can make a very careful inspection before shipment. We are willing to offer you our excellent service for the shoes material business.
We hope that we can do better in the future with sticking to the principle of "Honesty as basis". Welcome customers from all over the world to cooperate with us and look forward to your visit. Really hope that we can build up mutual beneficial relatio ships together, we believe, Right beginning from ASFROM right solution!
