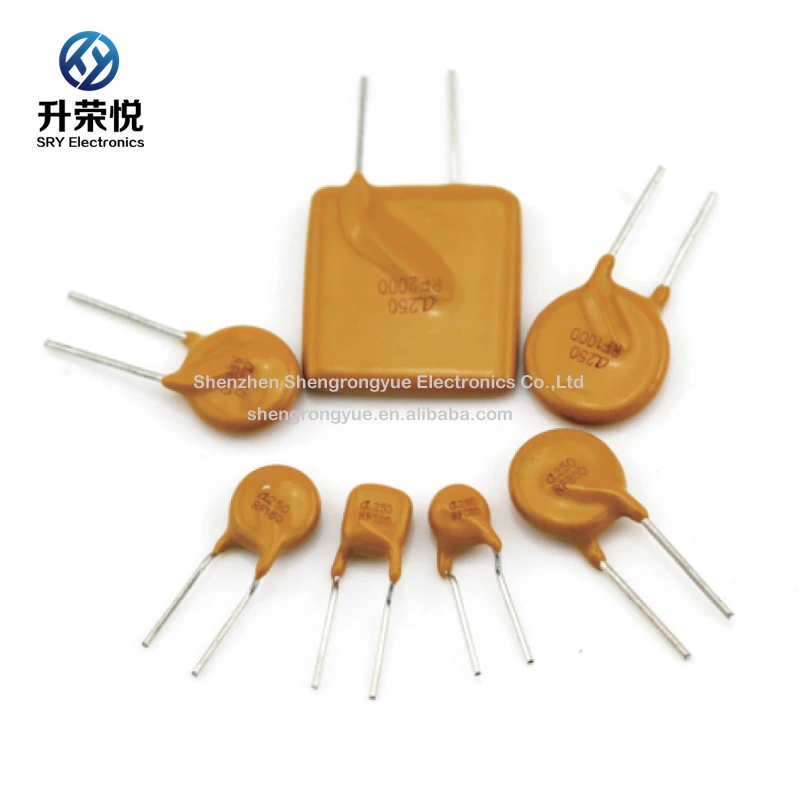

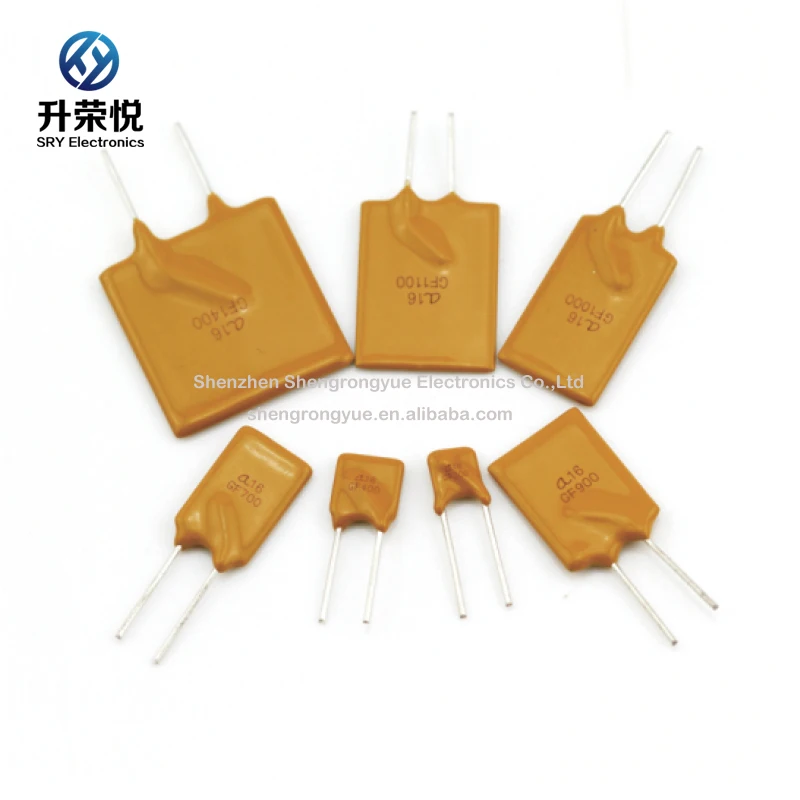

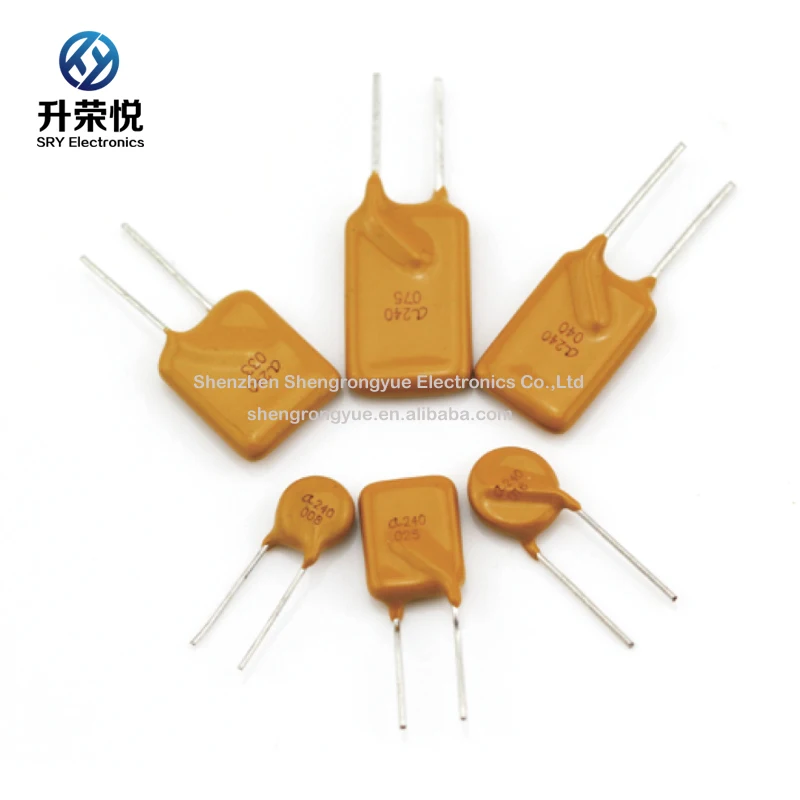

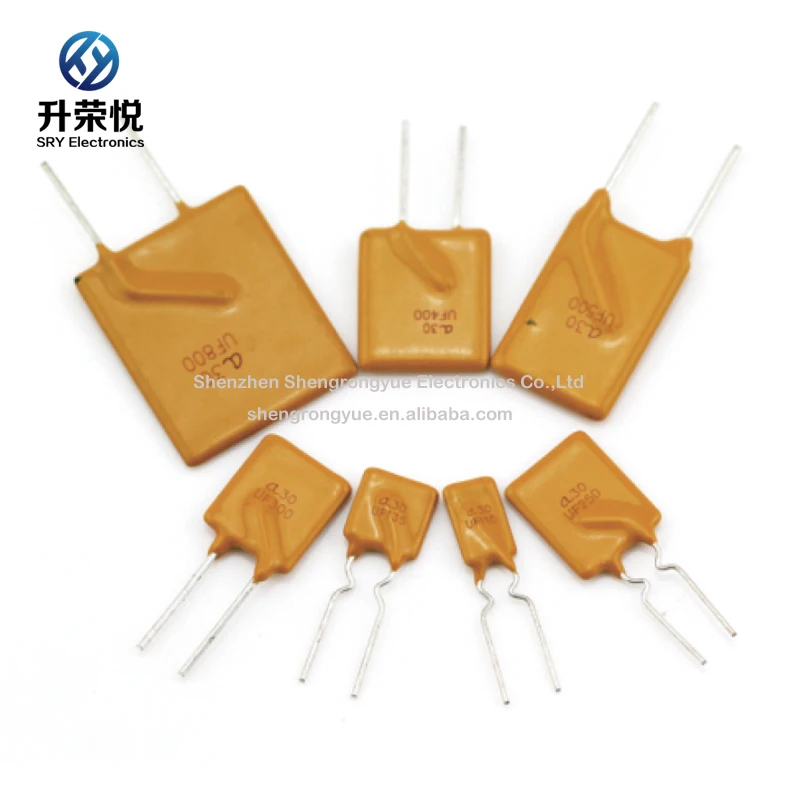

PPTC resettable fuse JK60 030 DIP fuse 300mA 60V Ploy Switch resettable fuse
- Category: Fuses & Fuseholders >>>
- Supplier: Shenzhen SRY Electronic Co. Ltd.
Share on (62587951615):
Product Overview
Description
Description
60V Series is designed to provide overcurrent protection to 60Vdc maximum voltage with a maximum 40A short circuit rating.
Images
Demension
Space
JDT Fuse PPTC, Radial-Leaded resettable fuses, 60V series, designed in Taiwan
Electrical properties
JDT FUSE | Working voltage | Maximum current | Maintain current | Trip current | Power consumption | Maximum current tripping time | Resistance range | |||
Vmax | Imax | Ihold | Itrip | Pd | Current | Time | Rimin | Rimax | R1max | |
(Vdc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (W) | (W) | (W) | |
A60-010 | 60 | 40 | 0.10 | 0.20 | 0.38 | 0.50 | 4.0 | 2.50 | 4.50 | 7.50 |
A60-017 | 60 | 40 | 0.17 | 0.34 | 0.48 | 0.85 | 3.0 | 2.50 | 5.21 | 8.00 |
A60-020 | 60 | 40 | 0.20 | 0.40 | 0.41 | 1.00 | 2.2 | 1.25 | 2.75 | 4.40 |
A60-025 | 60 | 40 | 0.25 | 0.50 | 0.45 | 1.25 | 2.5 | 0.65 | 1.95 | 3.00 |
A60-030 | 60 | 40 | 0.30 | 0.60 | 0.49 | 1.50 | 3.0 | 0.45 | 1.33 | 2.10 |
A60-040 | 60 | 40 | 0.40 | 0.80 | 0.56 | 2.00 | 3.8 | 0.40 | 0.86 | 1.29 |
A60-050 | 60 | 40 | 0.50 | 1.00 | 0.77 | 2.50 | 4.0 | 0.35 | 0.77 | 1.17 |
A60-065 | 60 | 40 | 0.65 | 1.30 | 0.88 | 3.25 | 5.3 | 0.25 | 0.48 | 0.72 |
A60-075 | 60 | 40 | 0.75 | 1.50 | 0.92 | 3.75 | 6.3 | 0.20 | 0.40 | 0.60 |
A60-090 | 60 | 40 | 0.90 | 1.80 | 0.99 | 4.50 | 7.2 | 0.15 | 0.31 | 0.47 |
A60-110 | 60 | 40 | 1.10 | 2.20 | 1.50 | 5.50 | 8.2 | 0.13 | 0.25 | 0.38 |
A60-135 | 60 | 40 | 1.35 | 2.70 | 1.70 | 6.75 | 9.6 | 0.10 | 0.19 | 0.30 |
A60-160 | 60 | 40 | 1.60 | 3.20 | 1.90 | 8.00 | 11.4 | 0.07 | 0.14 | 0.22 |
A60-185 | 60 | 40 | 1.85 | 3.70 | 2.10 | 9.25 | 12.6 | 0.06 | 0.12 | 0.19 |
A60-250 | 60 | 40 | 2.50 | 5.00 | 2.50 | 12.50 | 15.6 | 0.04 | 0.08 | 0.13 |
A60-300 | 60 | 40 | 3.00 | 6.00 | 2.80 | 15.00 | 19.8 | 0.03 | 0.06 | 0.10 |
A60-375 | 60 | 40 | 3.75 | 7.50 | 3.20 | 18.75 | 24.0 | 0.02 | 0.05 | 0.08 |
Vmax=Maximum voltage device can withstand without damage at rated current (Imax).
Imax=Maximum fault current device can withstand without damage at rated voltage (Imax).
Ihold=Hold Current: Maximum current device will sustain for 4 hours without tripping in 25oC still air.
Itrip=Trip Current: minimum current at which the device will trip in 25oC still air.
Pd=Power dissipated from device when in the tripped state at 25oC still air.
Ri=Minimum/Maximum resistance of device in initial (un-soldered) state.
R1max=Maximum resistance of device at 25oC measured one hour after tripping.
Caution=operation beyond specified ratings may result in damage and possible arcing and flame.
