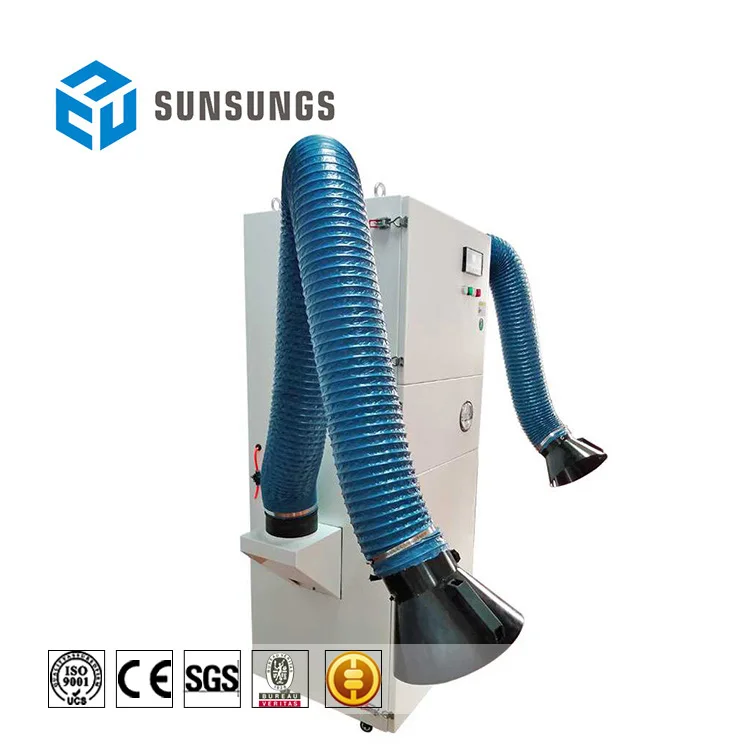

portable pulse cleaning stone cartridge dust collector machine for granite
- Category: >>>
- Supplier: Henan Sunsungs Import & Export Co. Ltd.
Share on (62588047687):
Product Overview
Description

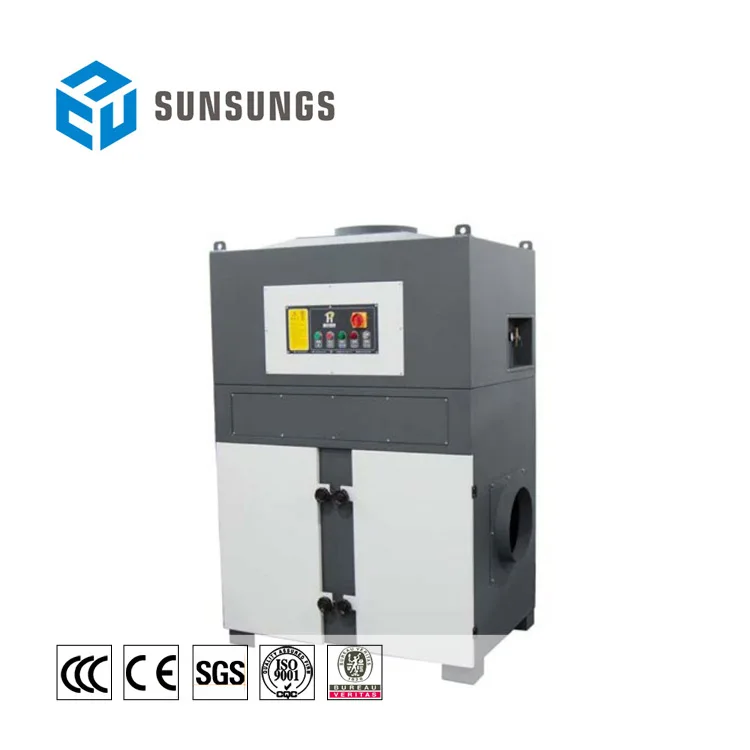

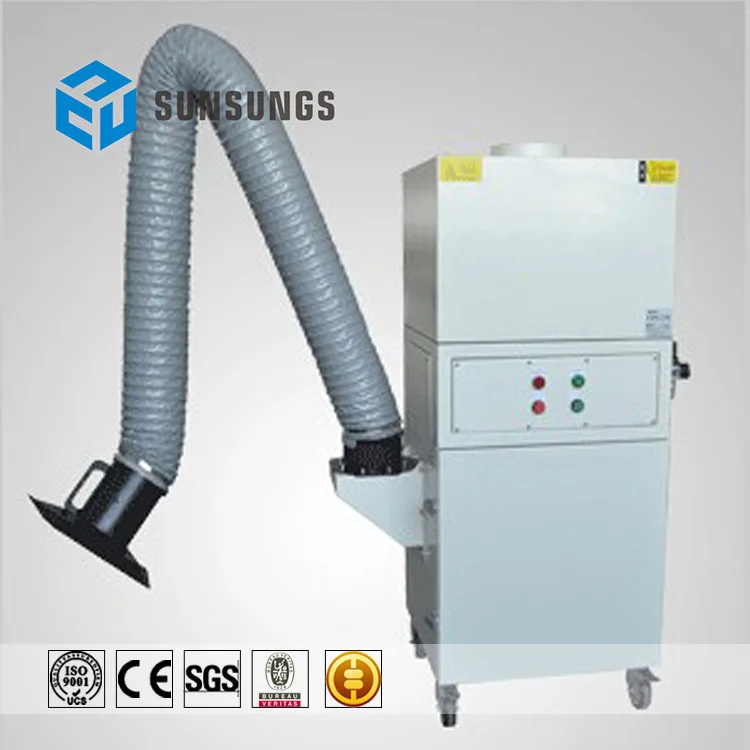

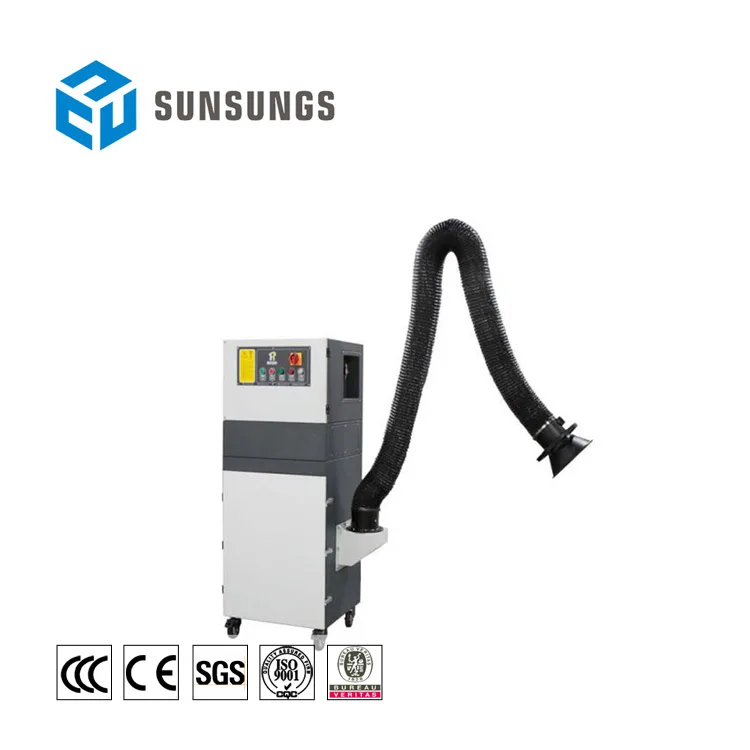

Factory New Design Pulse Type Portable Industrial Dust Collector
DF series portable dust collectors are characterized by beautiful appearance, large air volume, pulse backflushing and ash cleaning. They adopt integrated cabinet structure and beautiful appearance. They are designed for floating dust in powder industry, chemical industry, metal processing industry and wood furniture industry. Cost-effective. Configure Siemens motor, Japan Toray polyester fiber filter cartridge to ensure high level of filtration accuracy and efficiency.
Contact me for more parameters and quotation !
Technical Data Sheet | ||||||||||||||
Model | DF-15 | DF-22 | DF-30 | DF-55 | DF-75 | DF-110 | DF-150 | |||||||
Power(kw) | 1.5 | 2.2 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 | |||||||
Voltage | 380v/50hz;220v/50hz; Customize | |||||||||||||
Air Volume (m3/h) | 1800 | 2800 | 3600 | 5800 | 8000 | 11000 | 12000 | |||||||
Filter Area(m2) | 9 | 18 | 22 | 44 | 66 | 78 | 117 | |||||||
Suction Diameter (mm) | 150/200 | 150/200 | 200/250 | 250/300 | 300/350 | 400/450 | 450/500 | |||||||
Dust Bin Volume(L) | 30 | 50 | 50 | 60 | 60 | 100 | 100 | |||||||
Noise | 74 | 76 | 80 | 82 | 83 | 85 | 83 | |||||||
Size(mm) | 650*600*1620 | 820*720*1720 | 820*720* 1820 | 1000*900* 1980 | 1300*900*2010 | 1300*900*2100 | 1400*1250*2150 | |||||||
Weight(kg) | 180 | 255 | 280 | 330 | 600 | 680 | 830 | |||||||
Siemens motor
Three-phase 380V voltage in the power system uses Siemens three-phase asynchronous motor, equipped with special custom aluminum alloy impeller, designed with perfect combination of negative pressure and flow, stable operation, low failure rate, low noise and continuous operation for 24 hours.
Filter cartridge filter
The filter system uses a filter cartridge filter, Japan Toray polyester fiber substrate. Standard configuration PTFE coating material, the filtration efficiency of dust with an equivalent diameter of 0.3 micron or more is over 99%, and the filter material of higher filtration precision can be selected..

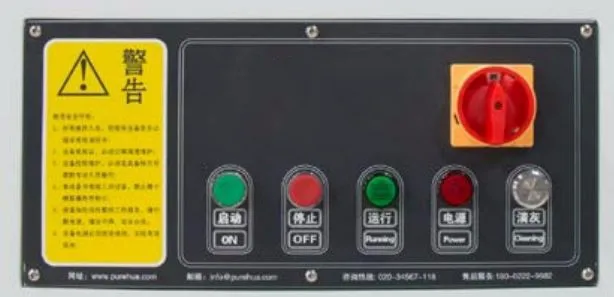

Electronic control system
In terms of electrical systems, the main electronic control components use the internationally renowned brand - France Schneider products. The motor realizes independent control of the electric box, built-in power main switch, thermal overload protection, phase loss, phase reversal and other phase sequence protection. The control panel is simple and generous, and can easily realize remote control and linkage control.

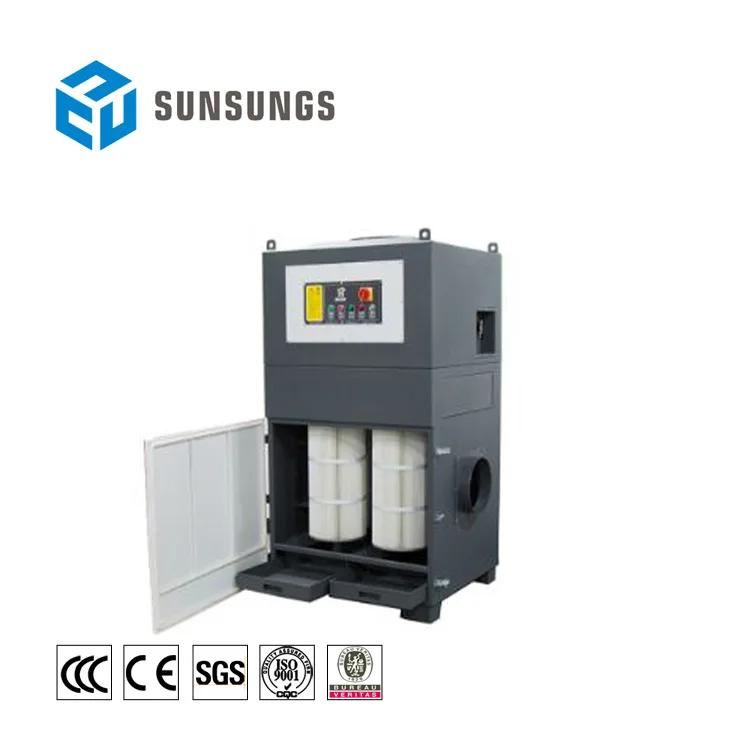

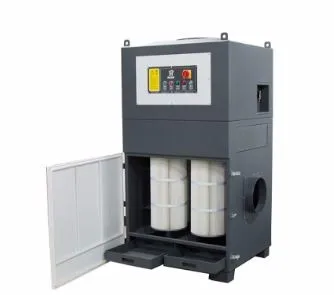

Drawer dust box
The dust box adopts a drawer structure. When the dust is full, the door panel is opened, and the dust box can be pulled out to clean the dust. After the dust box is sent, the dust box can be fed. Convenient, fast and practical.
Industrial skid casters
Industrial mobile casters are standard accessories for this unit. The wheels are made of top-grade polyurethane (PU), the brackets are made of 2.5mm pickling plates to increase the ribs, and the 4-inch casters can carry 150kg individually. The wheel surface is designed with grain to enhance the anti-slip performance.

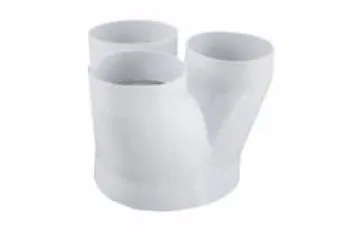

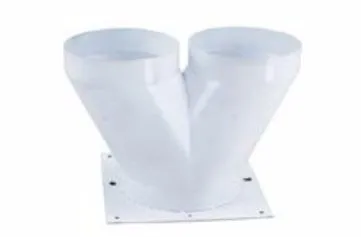

Customized suction port, meet you need

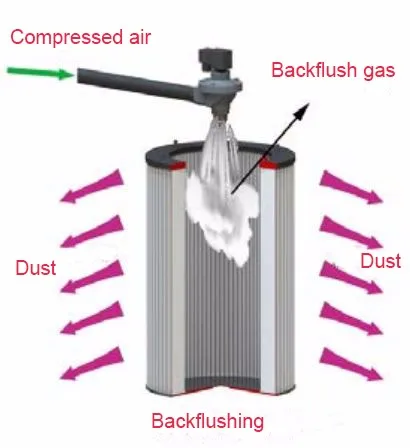

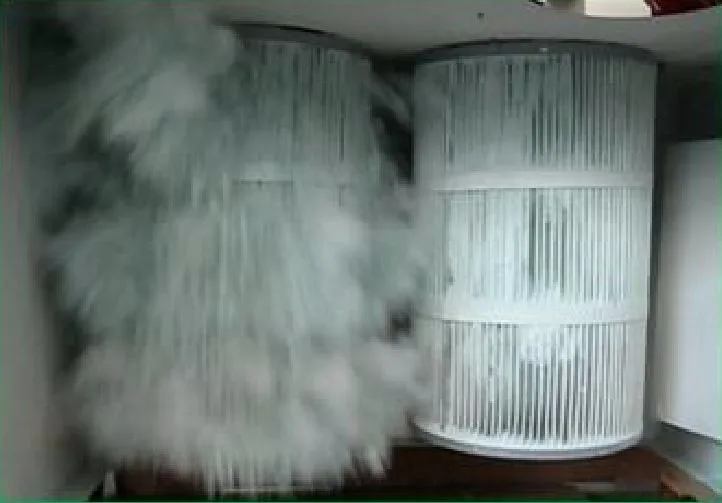

The pneumatic pulse backflushing system consists of a cylinder, an electromagnetic pulse valve, a PLC controller, and compressed air. One end of the pulse valve is connected to the compressed air storage cylinder, and the other end is connected to the injection pipe. An exhaust valve is mounted on the bonnet, and the exhaust valve is controlled by a pulse controller.
When the pulse controller does not send a signal, the pulse solenoid valve starts to work. Each time the spray cleaning is completed at 0.1~0.3S, the high pressure air sprayed at this moment has a good cleaning effect. The air enters the filter cartridge at a high flow rate, causing the filter cartridge to expand rapidly, causing a shock vibration, so that the dust attached to the filter cartridge is shaken off, and the dust adsorbed on the surface of the filter material is shaken to the dust collecting bucket under the action of the airflow. .
Beauty fume extractor
95% Response Rate
Welding fume extractor
99.8% Response Rate

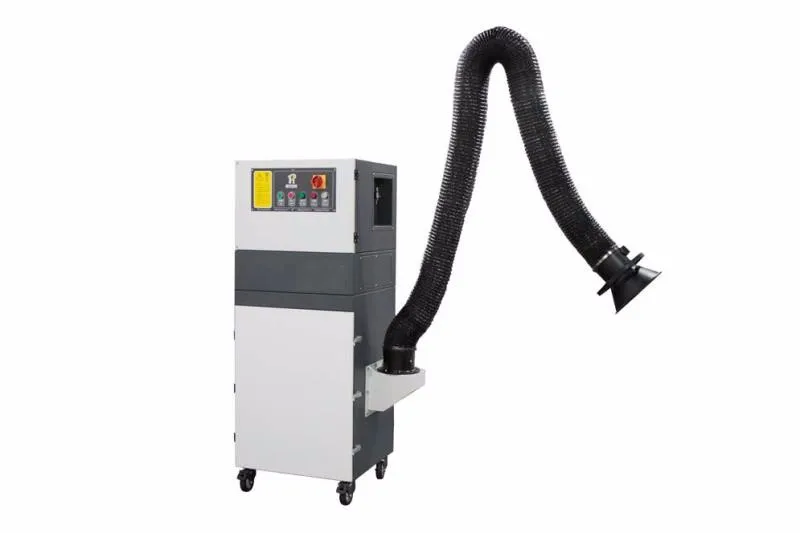

Portable Dust Collector
99% Response Rate
Packaging | ||
Size | 650(L) * 600 (W) *1620 (D) | |
Weight | 180kg | |

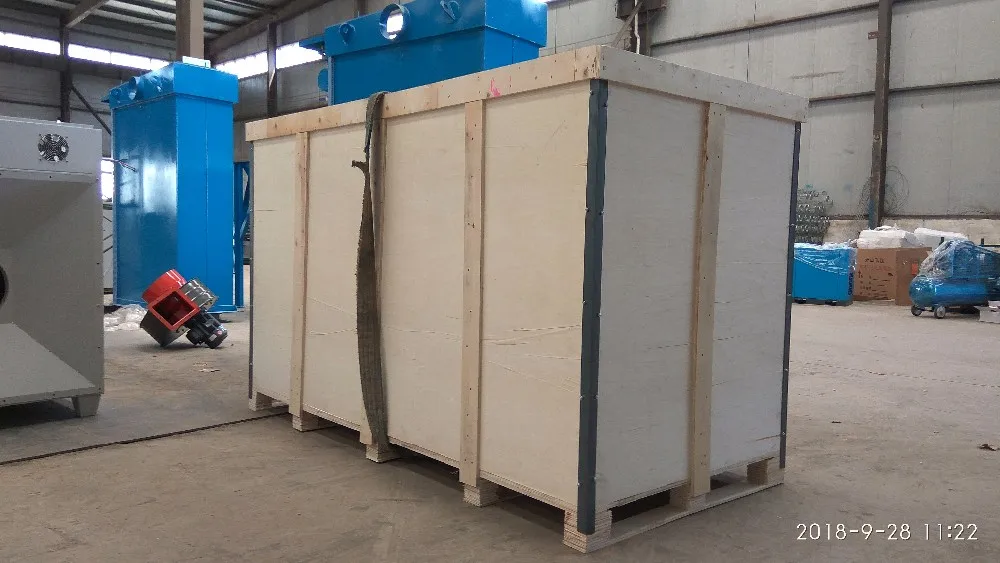

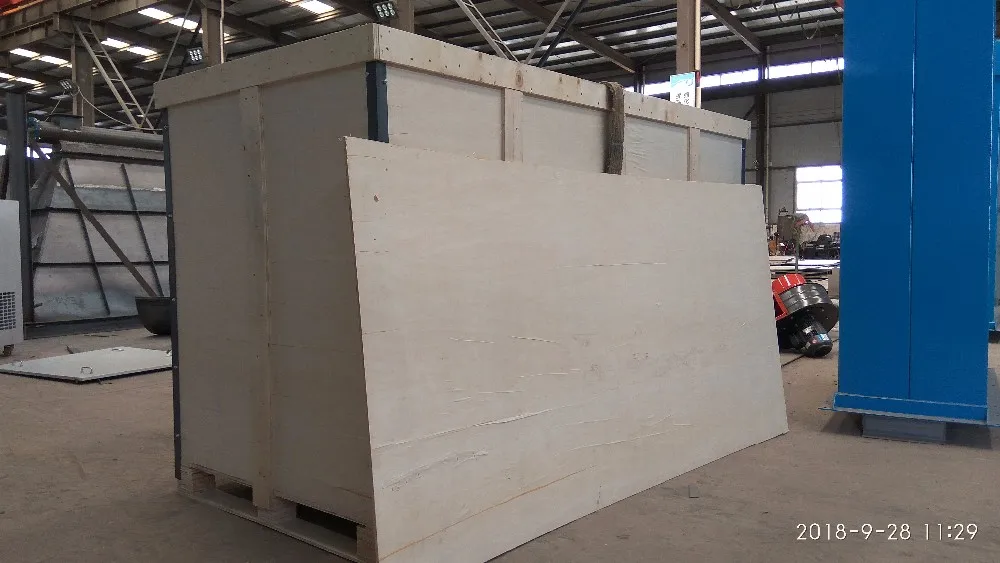

Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Customer Visiting
Vietnamese customer
Mexican customer
Indonesian customer
New Zealand customer
Pre-sale Service
1. Communicate to confirm customers' requirement.
2. Do efficient and reliable solution and quotation.
3. Welcome customers to visit our factory at any time.
In-sale Service
1. Complete production and timely delivery.
2. Assist customers to achieve an optimum installation scheme.
After-sale Service
1. One or more engineers will be dispatched to customer site to guide installation, commissioning and so on.
2. Provide necessary training about machine daily maintenance to local workers.
