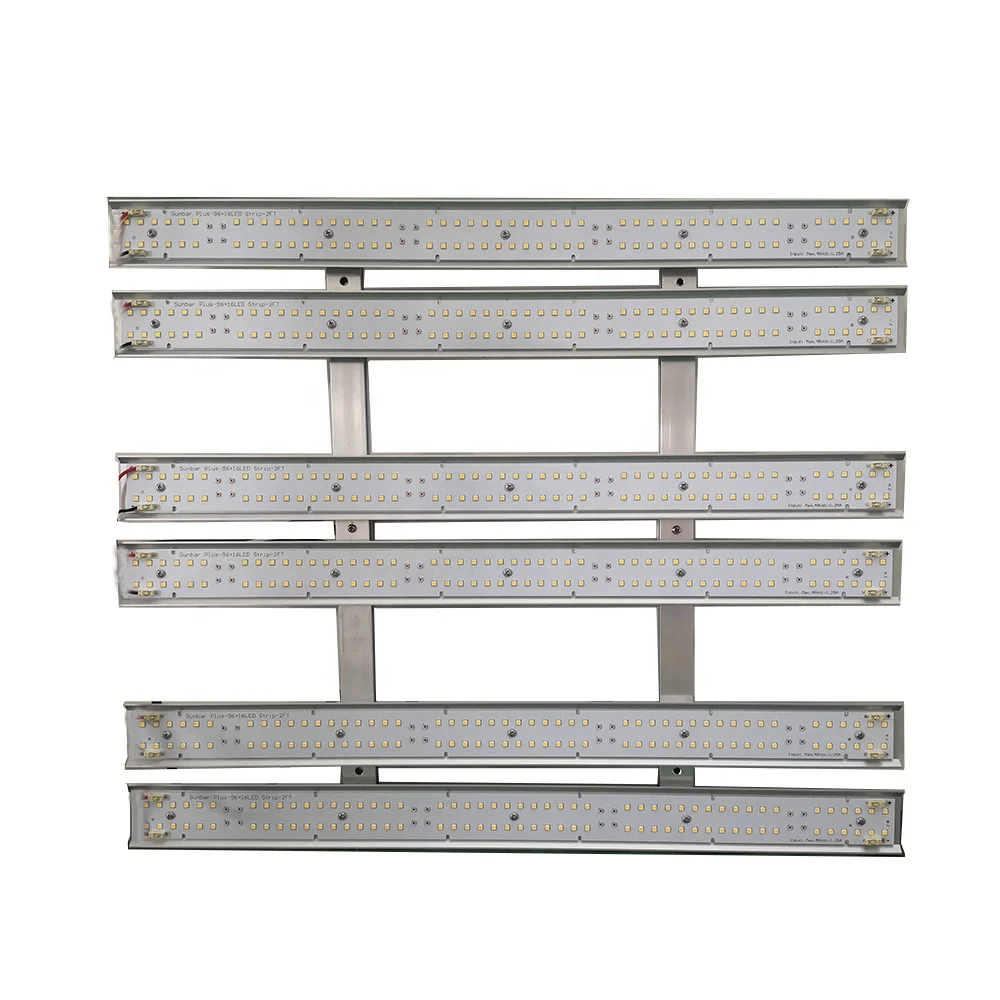

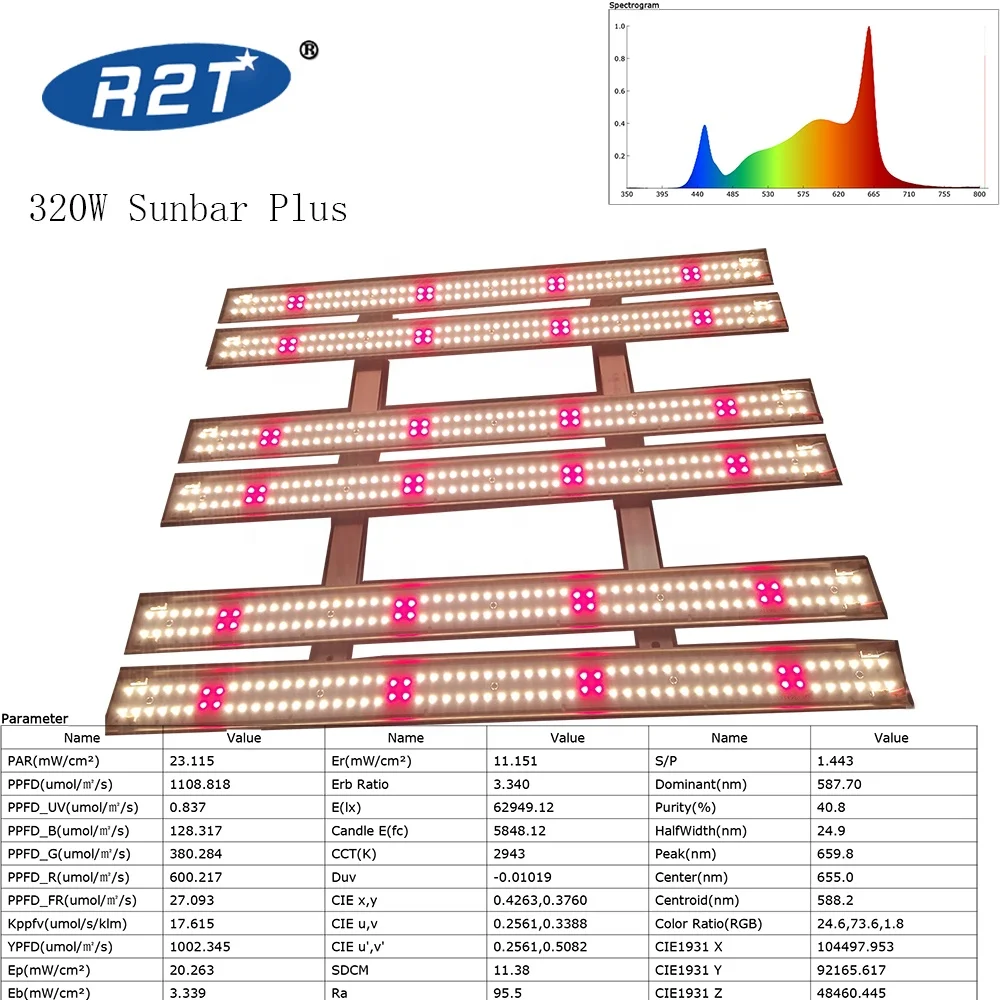

320w Sunlike Full spectrum Samsung LM301h Quantum led grow light bar for 4*4ft indoor growing tent
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (62588083915):
Product Overview
Description
320watt Sunlike Full spectrum Samsung LM301B Quantum panel led grow light bar for 4*4ft indoor growing tent
Attention: Each strip run at 60watt. match meanwell hlg-60H-48B.
advanced: can be make it as 1200mm-4ft inch longer, and it also can be make it as 120watt, 240watt, 180watt, 320watt, 480watt. 600watt....
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B RA:80, CCT option: 3000k/3500K/4000K
4.color chips is Oslon SSL chips, can be options
Initiator: | Russell | Date: | 2019-10-17 |
Project Name: | Sun plus led grow light | New Project Code: | R2T-Sunbar+-60w |
Function Request | |||
Electronic Requirement): | 60W 560*35mm strips with heatsink: 1pcs each strip with 96pcs Samsung LM301B chip ,and 16pcs SMD3030 oslon ssl 120 deep red 660nm chips | ||
Optic Requirement: | total 96+16pcs chips, | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 1.6mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||

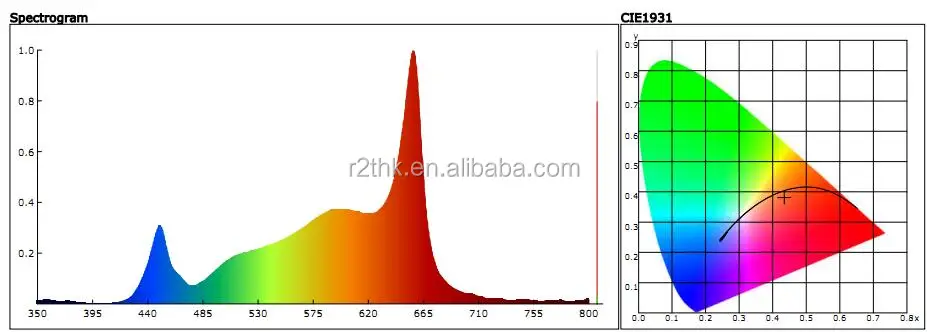

Spectrogram 1
Testing Data:

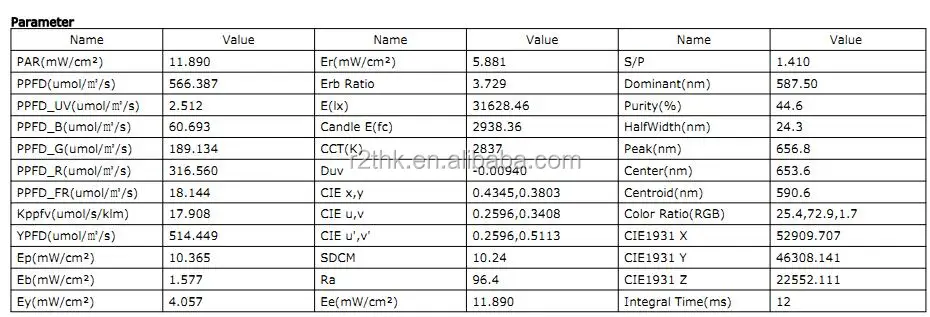

1: testing distance: 12inch

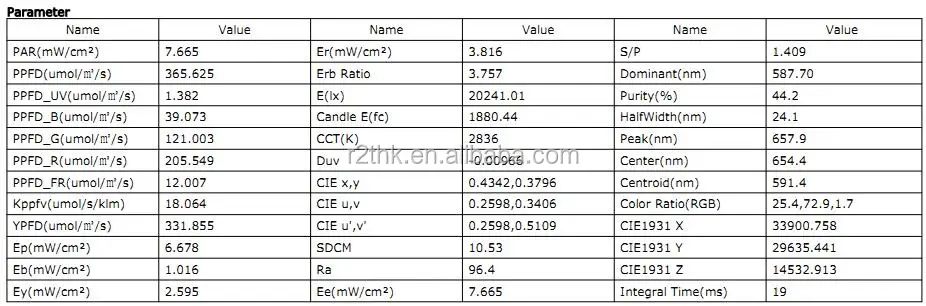

Channel1+channel2: testing distance: 16inch
2: testing distance: 16inch

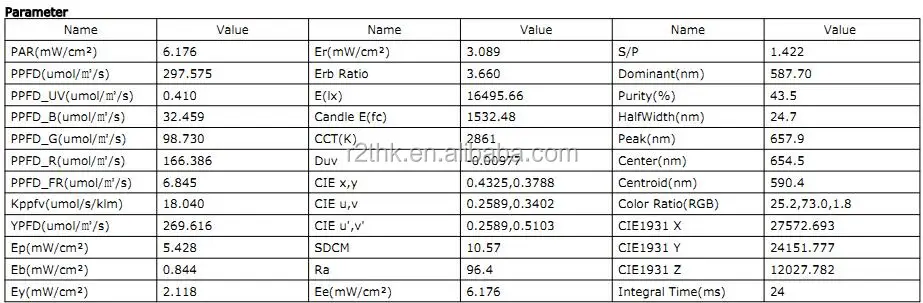

2: testing distance: 18inch

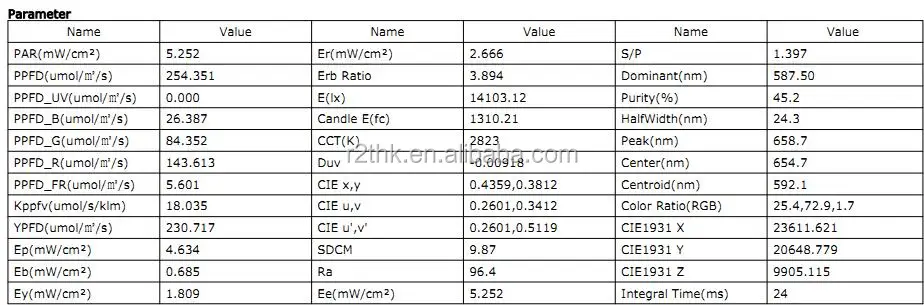

3: testing distance: 20inch

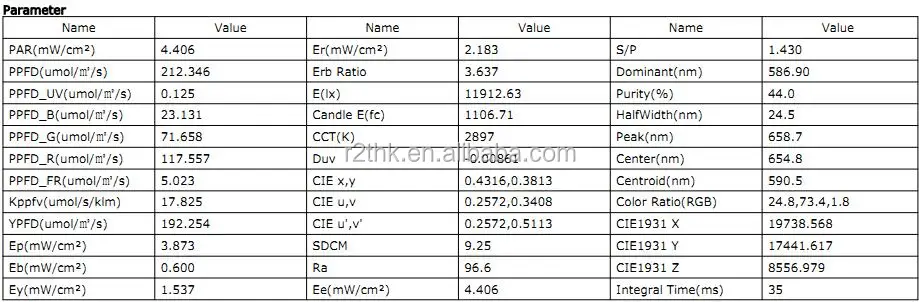

4: testing distance: 22inch

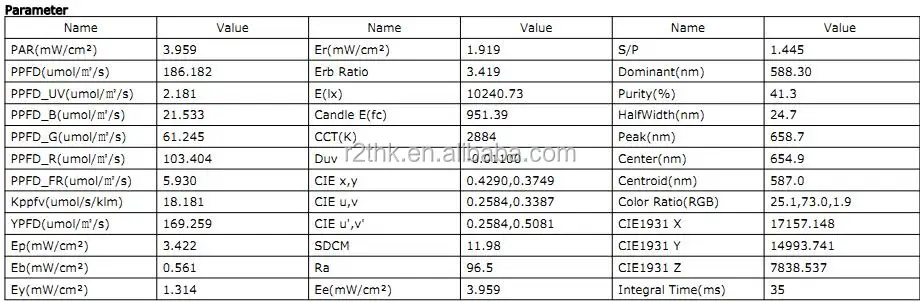

2: testing distance: 24inch
application exsample:
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
