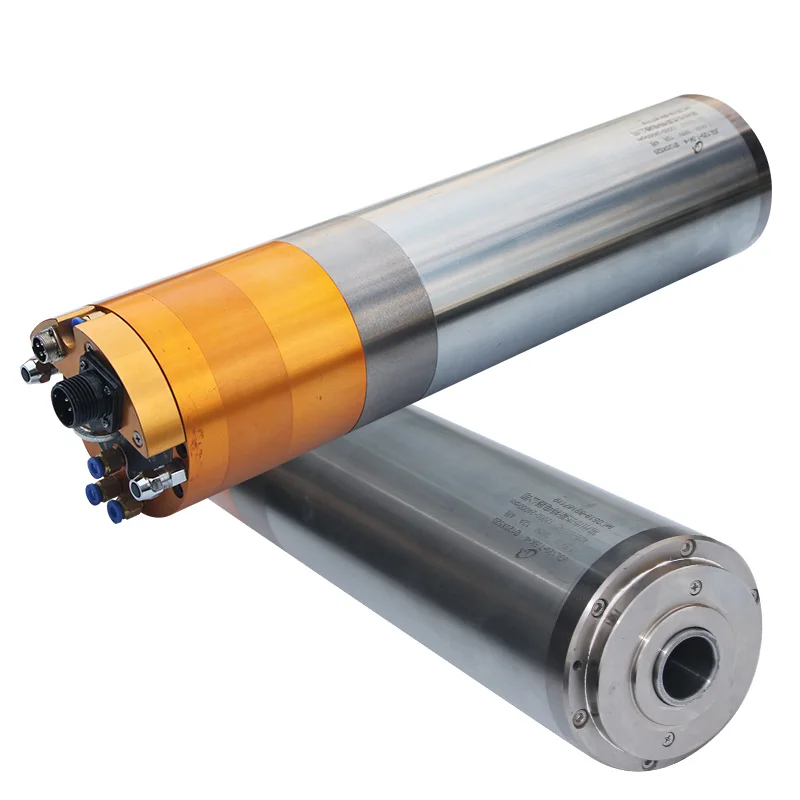

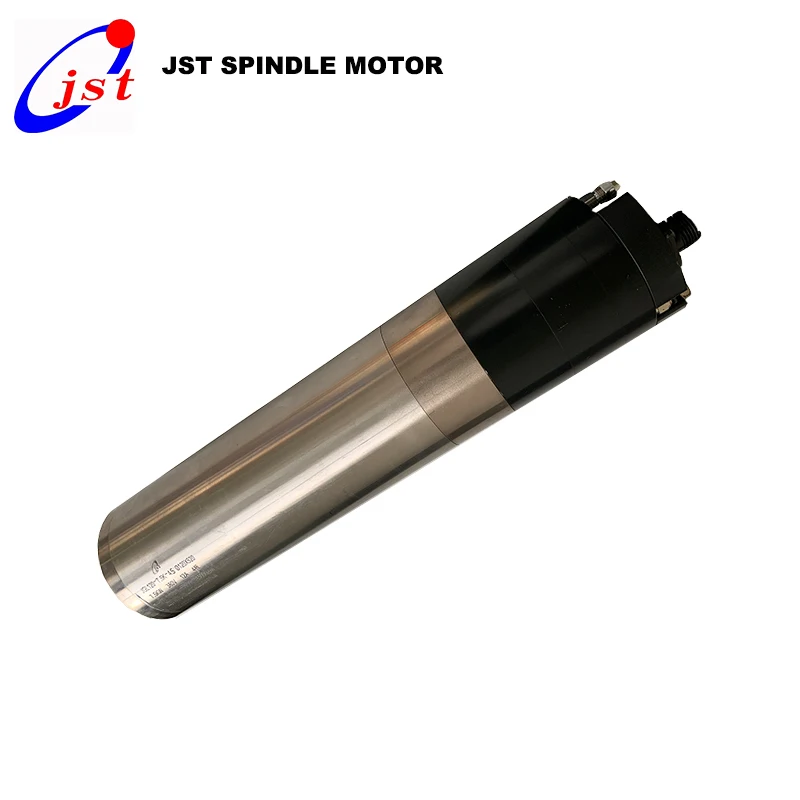

JST JGL 80 2.2kw 24000rpm ISO20 220v 380v Automatic Tool Change Cnc Spindle Motor
JST JGL-80 2.2kw 24000rpm ISO20 220v 380v Automatic Tool Change Cnc Spindle Motor
JST JGL-80 2.2kw 24000rpm ISO20 220v 380v Automatic Tool Change Cnc Spindle Motor
JST JGL-80 2.2kw 24000rpm ISO20 220v 380v Automatic Tool Change Cnc Spindle Motor

JST JGL 80 2.2kw 24000rpm ISO20 220v 380v Automatic Tool Change Cnc Spindle Motor

Share on (62588239403):


Price:$2,000.00 - $2,100.00

Quantity:


Product Overview

Description


Product Description
Model
JGL-80-1.5KW
Joint Of Nose
IOS20
Voltage (V)
220/380
Cooling
Water Cooling
Rotation Speed (Rpm)
24000
Current (A)
2.8/4.7
Power (KW)
1.5
Bearing Type
2*7006 P4+2*7004 P4
Frequency (Hz)
400
Lubrication
Grease
Details Images
Company Profile
FAQ
Maintenance

1.The electric spindle and the frequency inverter shall be suitable with each other. The specifications and parameter settings of
the inverter shall match the nominal parameters of the spindle, and it will burn the spindle if the settings are not correct.

2. Before using water-cooling spindle, it shall ensure that cooling cycle system works normally and the running under no cooling
conditions is prohibited. The volume of cooling water is calculated as per 1 liter/kw, minute, the minimum flow of cooling water
is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry
out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant
temperature of 20℃.

4.During storage and transport of the spindle, the status of highspeed grease inside the bearing will change. The user shall run
it at a low speed first by starting from the lowest speed of the spindle for 30 minutes and then 20 minutes for every 3000 rounds;
otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle is
started directly at a high speed. During long term storage, the spindle shall run (at Iow speed) for 15~30minutes once a week at least.
