200 мм светодиодный дорожный столб с 3 полными шарами

Product Overview

Description

 200MM LED Traffic Light with 3 Full Balls Specification Sheet



1.Model No: TP-JD200-3-203

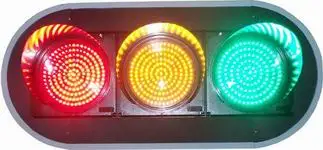

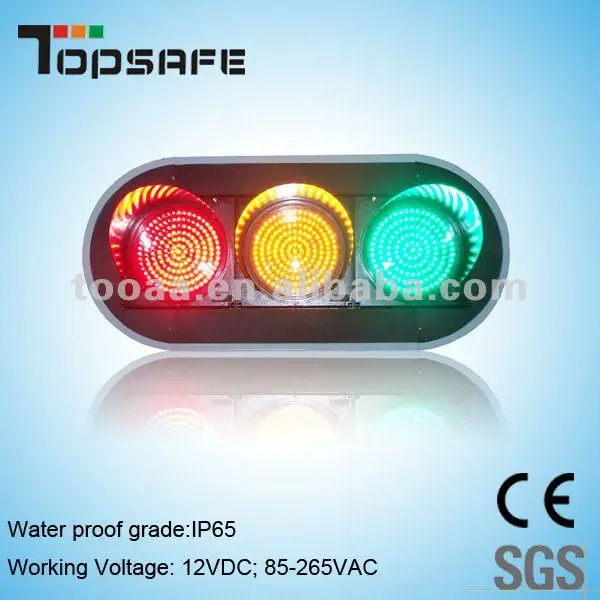

2.Picture of Product



3.Characteristics
1)Light Intensity automatically adjustable
2)Low power consumption
3)Larger Visual angle
4)Long Lifetime
5)Nice Design & Excellent Appearance
6)Multi-ply sealed water resistant
7)Exclusive optical lensing, good Color uniformity
8)Conformity to National standard GB-14887-2003 & other International Standards
9)Universal Power supply for all over the world



4. Technical Parameter:
1)Housing Material: GE UV resistance PC
2)Working Voltage: 12VDC; 85-265VAC 50HZ/60HZ
3)Led lifetime: >100,000 Hours
4)Water proof grade:IP65
5)Work environment: -20°C--- +65°C
6)Visibility: (Approx) 800m
7)Size: 770*260*130mm
8)Certificate:CE
9)Warranty:1 year



10). LED Specification



ø200mm	Luminous  (mcd)	Emission Color	LED Quantity	Wavelength(nm)	Visual  Angle		Power Consumption
					Left/Right	Down
	≥4000	Red	90(pcs)	625±5	30	30	≤9W
	≥4000	Yellow	90(pcs)	590±5	30	30	≤9W
	≥4000	Green	90(pcs)	505±5	30	30	≤9W



11). Packing Information



Diameter 200mm (8 inch) LED Traffic Lights with 3 full balls
Packing Size:	Quantity	Net Weight.(kg):	Gross Weight (kg):	Wrapper	Volume(CBM)
930*330*350MM	2 units /Carton	10.0	13.0	K=K Carton	0.11



5. Drawing:

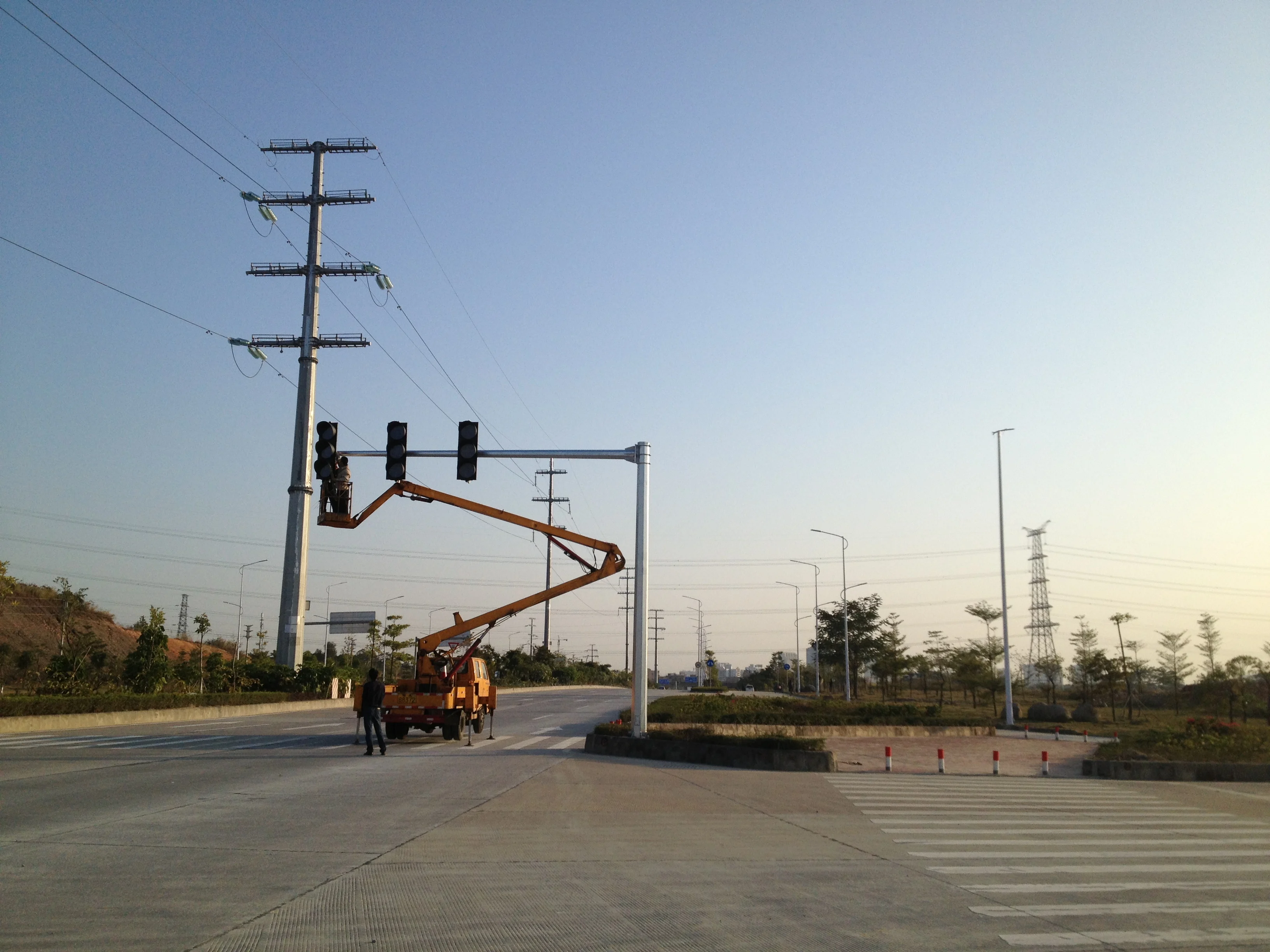

6.The drawing of installation in the road cross
