WISNETWORKS WCAP AC S WisCloud WAVE2 Dual Band Indoor Wireless wifi Access Point

Product Overview

Description

Product Overview



  Product Overview

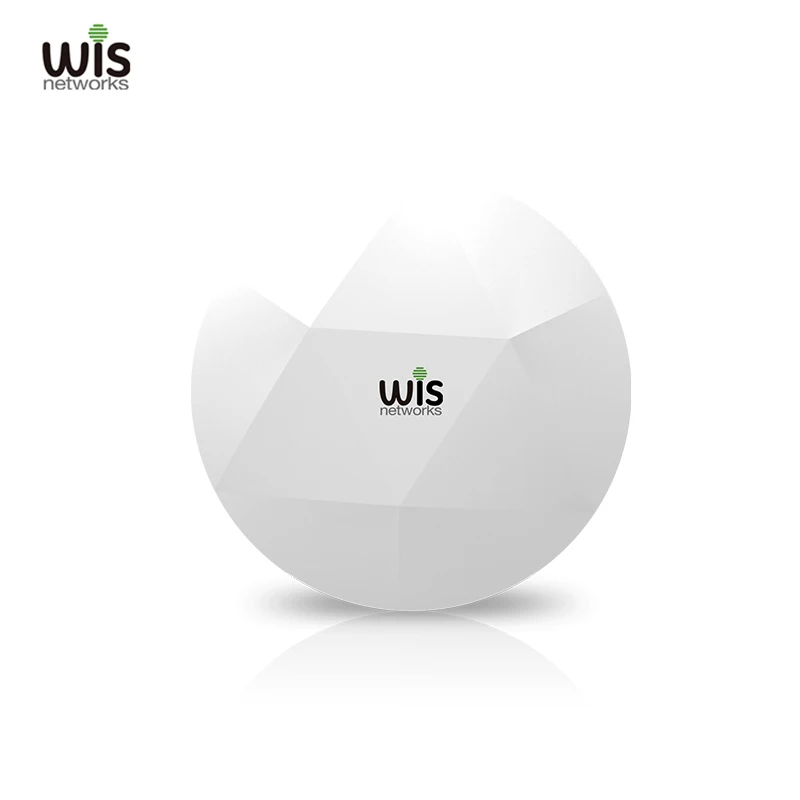

The WisCloud Indoor Access Point is the innovative series of products with remarkable performance in their features.

All configuration and management is centrally and effectively operated by the WisCloud Controller.





Superior Wi-Fi Speeds and Performance



QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna

 along with the latest generation 802.11ac Wave 2 MU-MIMO technology,

ensure superior 1167 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

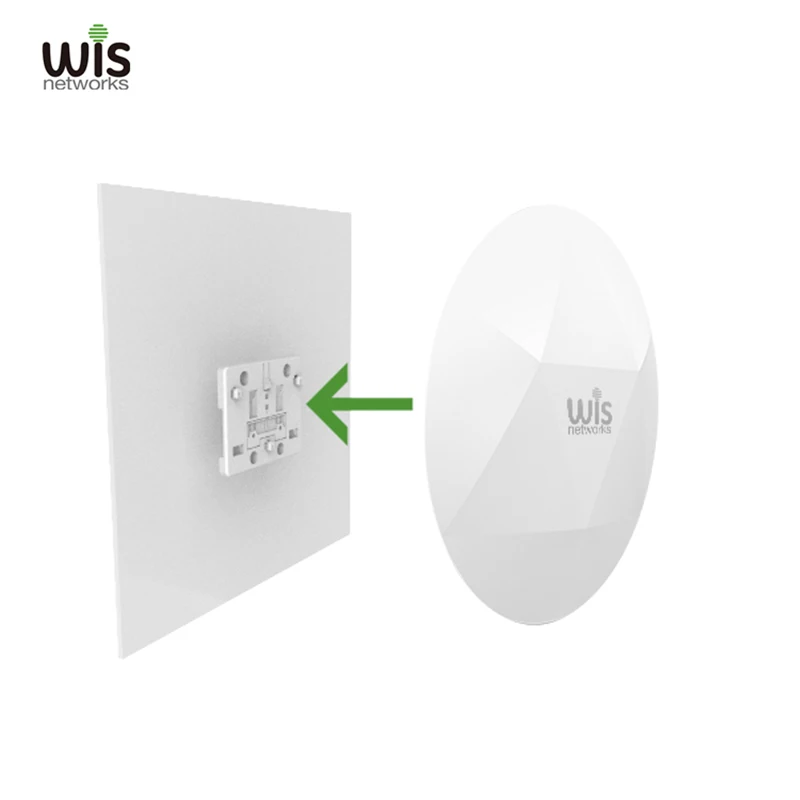

Easy Installation



With our mounting kits, customers can easily mount it in different indoor conditions. While the AP

is mounted on the ceiling or on the wall, you can avoid most interference and extend your Wi-Fi coverage.



Support for Standard PoE



WisCloud Access Point is able to be supplied power by a power injector using 802.3af(48 VDC) PoE

technology and make it more flexible to deploy the device in indoor ceiling environment.



Cloud-Managed Wireless Networks



Deploy WisCloud AP and scale up easily without any on-site controllers, truly cloud architecture.

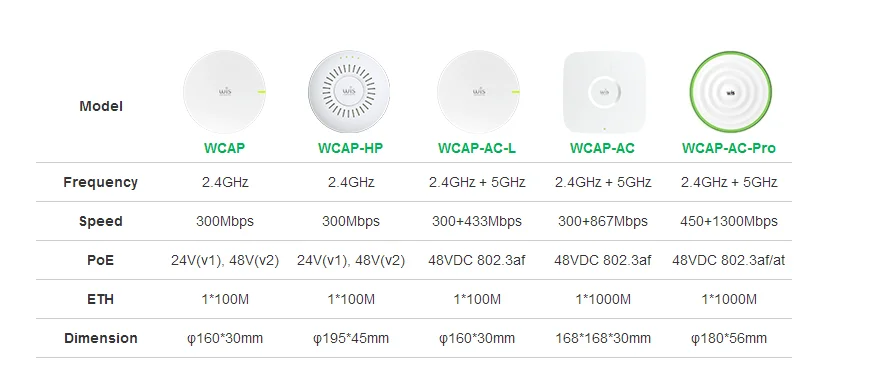

Model	WCAP	WCAP-HP	WCAP-AC-L	WCAP-AC	WCAP-AC-Pro
Frequency	2.4GHz	2.4GHz	2.4GHz + 5GHz	2.4GHz + 5GHz	2.4GHz + 5GHz
Speed	300Mbps	300Mbps	300+433Mbps	300+867Mbps	450+1300Mbps
PoE	24V(v1), 48V(v2)	24V(v1), 48V(v2)	48VDC 802.3af	48VDC 802.3af	48VDC 802.3af/at
ETH	1*100M	1*100M	1*100M	1*1000M	1*1000M
Dimension	φ160*30mm	φ195*45mm	φ160*30mm	168*168*30mm	φ180*56mm
