Промышленная малая емкость, автоматическая линия по производству гамбургеров, рыбок, мяса, птиц, куриных nuggets с CE
- Category: Meat Product Making Machines >>>
- Supplier: Shandong Xindaxin Food Industrial Equipment Co. Ltd.
Share on (62588659592):
Product Overview
Description

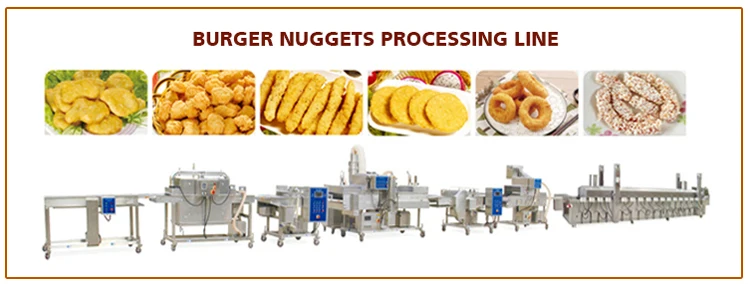

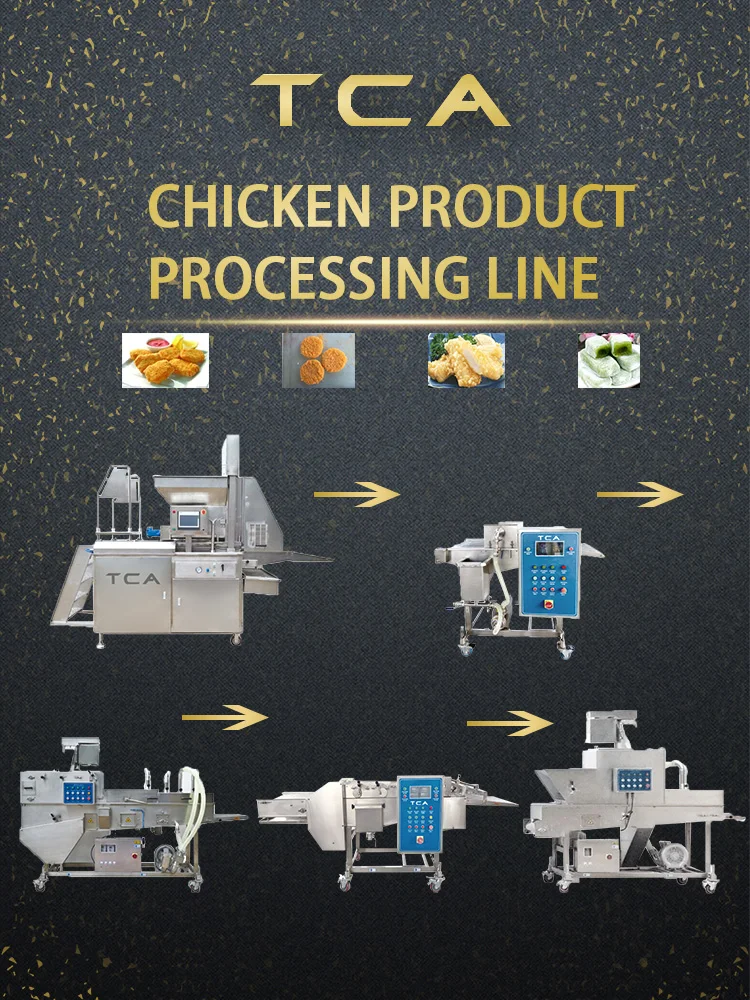

Automatic chicken processing line can automaticallyfinish the procedure of forming, batter spraying, predusting(flouring),battering:machine, frying, IQF and packaging machine. 'This line shares the reputation of high:automatic, mini size andeasyoperation, very simple cleaning design.
This line can process diversified materials:
Meat: Poultry, beef, mutton, porketc.
Seafood: fish, shrimp
Vegetable: Pumpkin and potato, cheese and their mixer.
The end products include the very popula rhamburger, chicken nuggets, chicken or beef steak, pumpkin patty etc. It regularly becomes the most ideal choice for the small or middle scale factory, home factory and dispatching center.
FORMING MACHINE
Introduction
1.Full-automatic filling, forming, and outputing
2.It can be used to produce hamburger patty and chicken nuggets,fish patty, etc.
3.Hydraulic filling ensures the good shape and the consistent weight of the products.
4.The screw-driven conveyor ensures the minimum breakage of raw materials
5.It is made of stainless steel which meet requirement of HACCP.
Model: CXJ-300/400/600
Air pressure: 6 Bar/ 2Bar
Power: 12kw
Forming speed: 15-55 times per min
Thickness for burger or nuggets: 6-25mm
Filling pressure:3-15Mpa adjustable
Dimension: 2828 x 830 x 2136mm
BATTER-SPRAYING MACHINE
LJJ-300/400/600 battered machine can work together with the patty forming machine and breading machine or use individually. It isused to coat layer of batter on the chicken meat patty or other patties or chicken nuggets and other vegetable patties
It realizedthe batter coating by dipping the products into the batter bath. It is widely used in meat, poultry, seafood and vegetable.
Thespace between the upper and lower belt can be . adjusted, which gives a wide range of variety of products
Dismountable design, easyto completely clean; it meet the HACCP standard.
Independent output belt available for your choice.
Model: LJJ-300/400/600
Mesh beltwidth: 300/400/600mm
Mesh belt speed: 3-15m.min
Power:3kw
Dimension: 2040*890*1800mm
PREDUSTING MACHINE
It is for coating layer of flourand can work together with the battering machine, breading machine for
different products.
1.upper
and lower powder density and coverage adjustable; can use a variety of powder on the surface of the product fully wrapped
and lower powder density and coverage adjustable; can use a variety of powder on the surface of the product fully wrapped
2.thethickness of the powder can be adjusted. just adjust the conveyor belt speed can change the density of powder layer
3.specialdesign with dusting
technology, uniform and reliable; mesh with automatic tension to reduce the wear or heavy load caused by the
loss of the mesh belt
loss of the mesh belt
4.specially designed screw lift, suitable for different mixed powder, corn starch, potato starch, wrapped powder
5.open and close the screw, so that the cleaning process is more simple
6.Dust collection system(optional)
Model:SFJ-300/400/600
Speed scope: 3-15m/min
Input height: 870-970mm
Output height: 1000mm
Belt width: 300/400/600mm
Power: 2.93kw
Overall size: 2780*850*2150mm
BATTERING MACHINE
NJJ400 battering machine can work together with the patty forming machine and breading machine or use individually. It is used to coat layer of batter on the chicken meat patty or other patties or chicken nuggets and other vegetable patties
Completely coating
Easy install and easy washing
With belt and air fan design can make the extra batter stay in the machine to reduce the waste
With cold medium for preventing temperature up
With cold medium for preventing temperature up
Connected with other forming machine breading machine and frying machine forcontinuous working
Model: NJJ-300/400/600
Belt width: 300/400/600mm
Input height: 1050mm
Output height: 1050mm
Power: 2.6kw
Size:2590*1035*1450mm
BREADING MACHINE
SXJ-300/400/600 coats layer of breading over the chicken, beef pork or shrimp
Structure：Suitable for breading crumbs below 3mm
Speed adjustable
Cycle used to reduce the waste
With the help of air fan the extra breading crumbs can be removed to reduce the frying oil consumption
With pressing device for making the products solid
Reliable design to prolong the belt using life
Can work together with
forming machine battering machine and frying machine for a complete line
forming machine battering machine and frying machine for a complete line
Model: SXJ-300/400/600
Belt width: 300/400/600mm
Inputheight: 1050 ± 70mm
Output height: 1050 ± 70mm
Power: 3.7kw

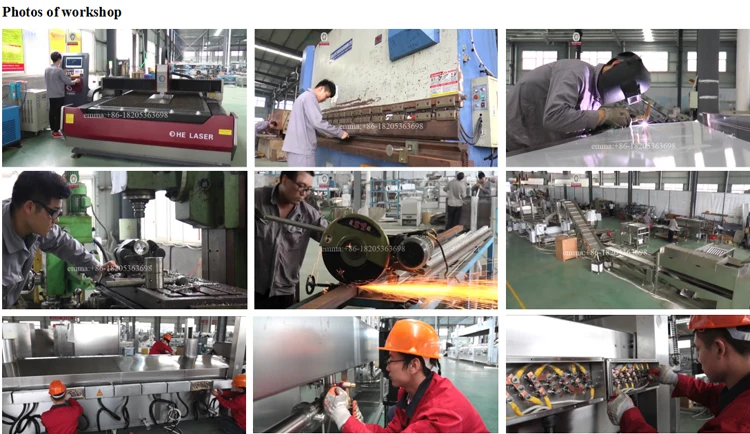

ZHUCHENG XINXUDONG MACHINERY CO., LTD is a professional global supplier of food industry equipment. Company is focused on R&D manufacturing and sales of food industry equipment including processing line for snacks, frozen French fries, potato chips, meat food , cake baking ,vegetable processing ,corn processing and so on. We provide a compete production line to our customers, corn processing. Company's products have been certified by CE and ISO9000(1)-2000 international quality management system certification, and in accordance with the QS standard food enterprise. After many years of efforts and innovation, "XXD"brand food equipment has been exported to Russia, Canada, Australia, USA, Britain, France and other 80 countries, enjoy a high reputation in the same industry.
