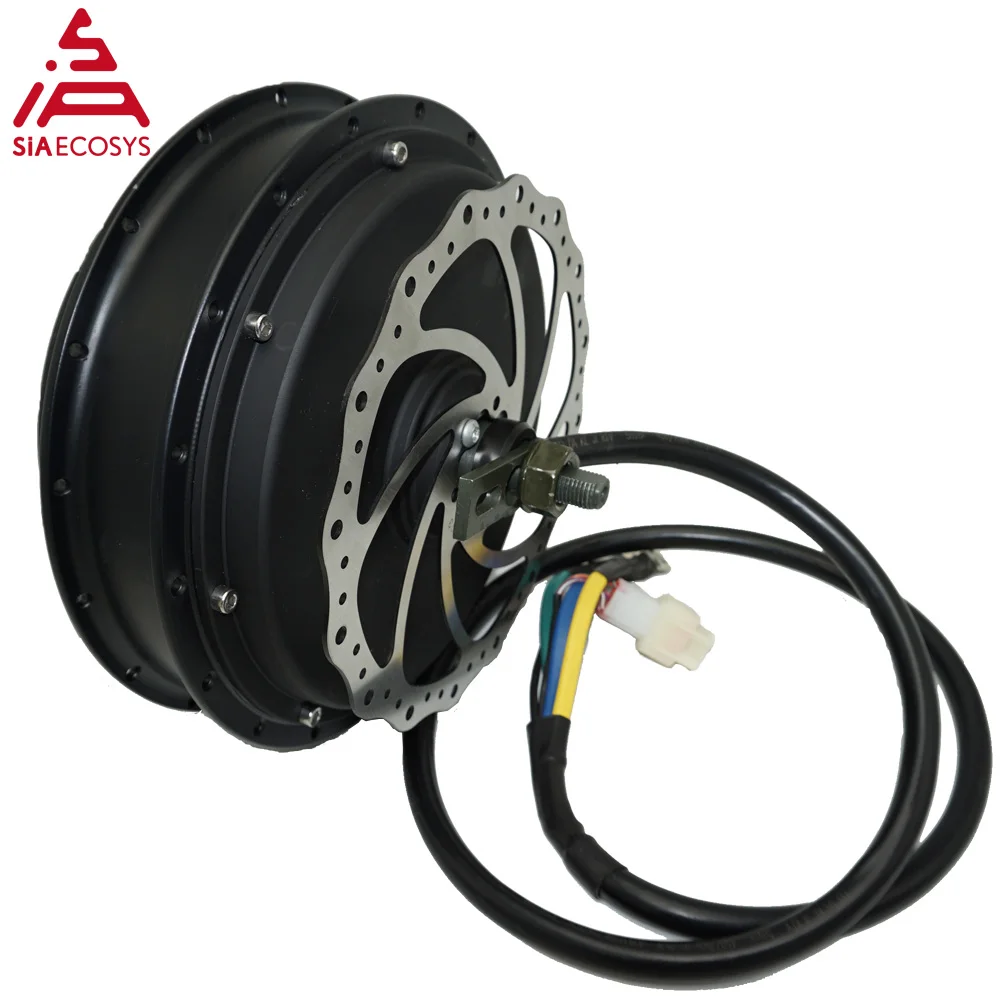

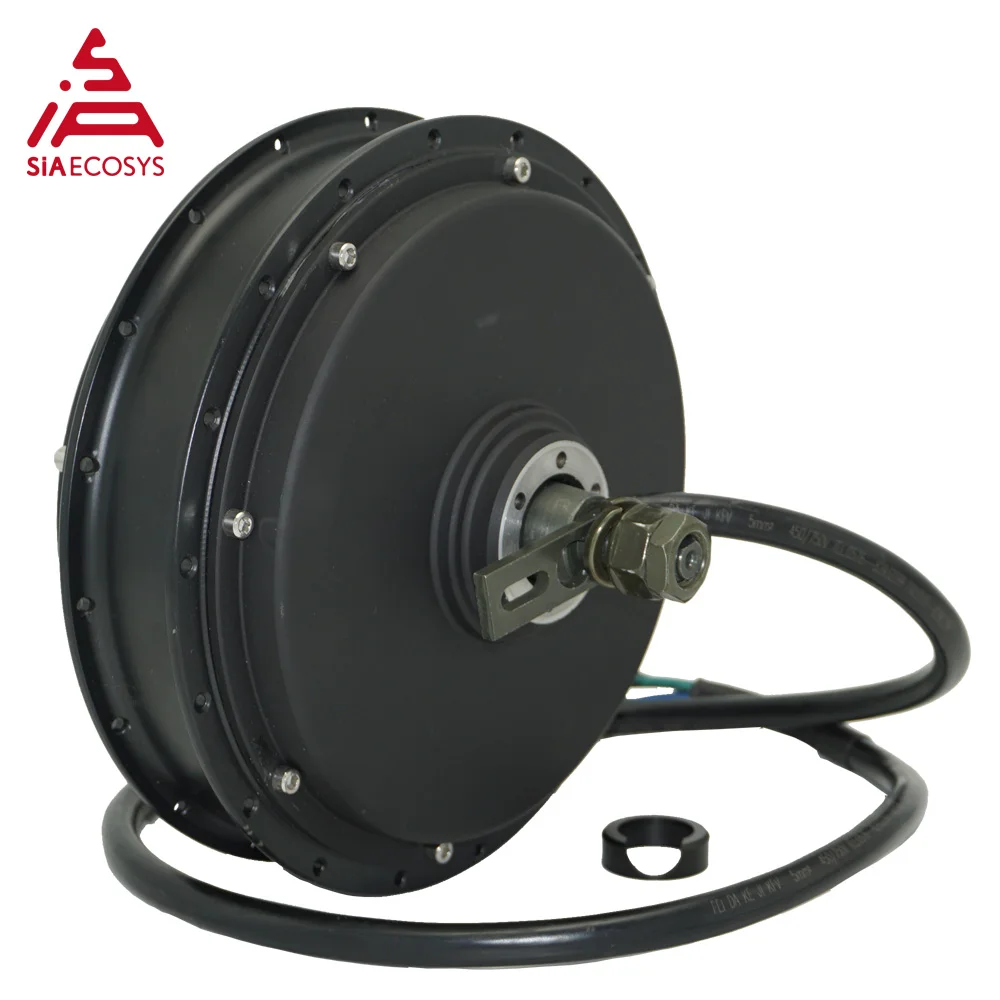

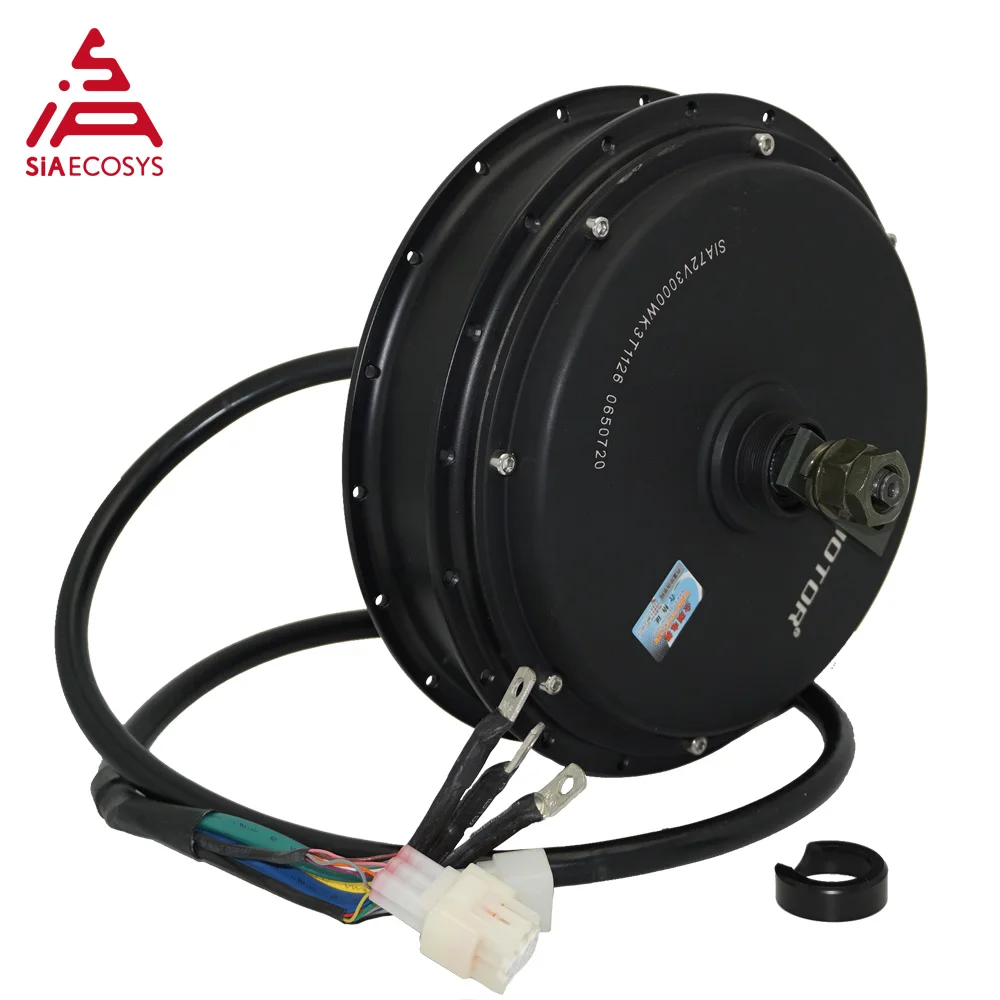

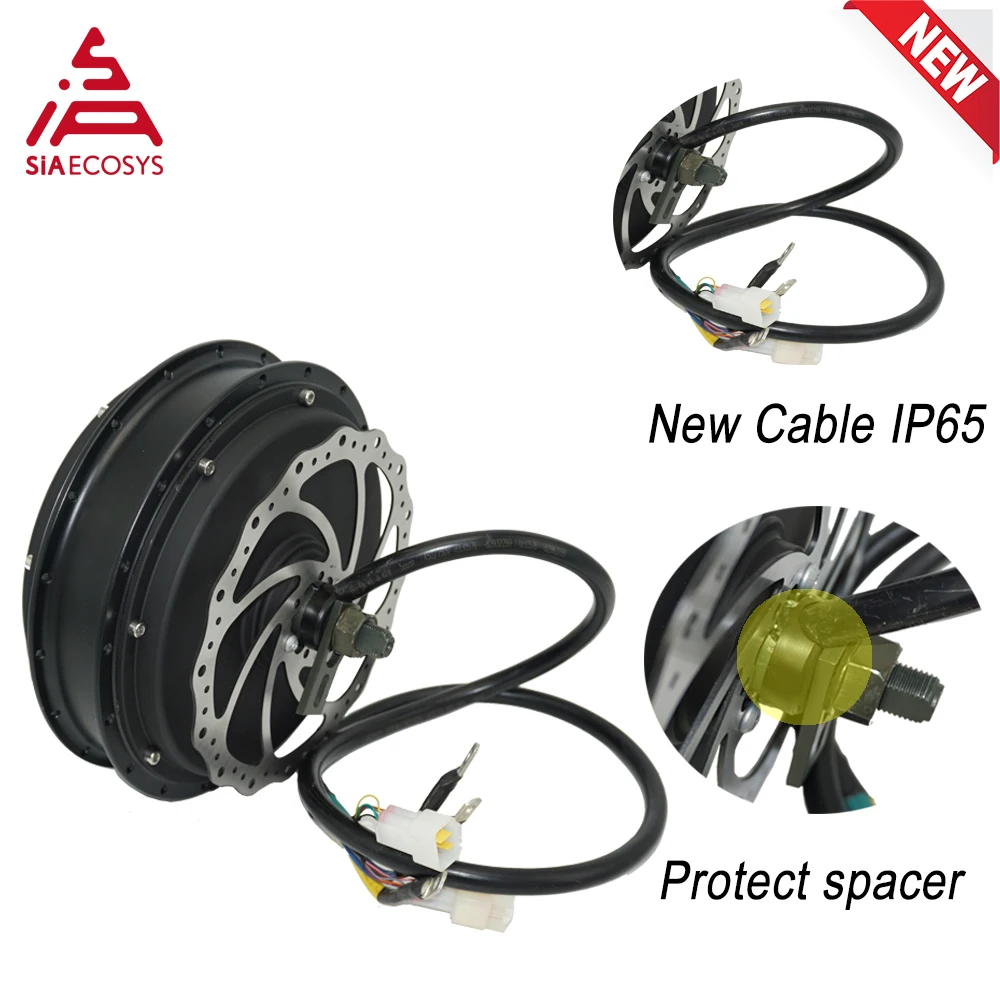

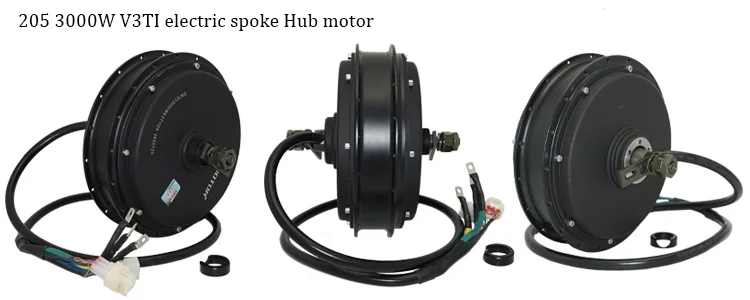

QS Motor 3000W 205 50H V3TI electric bicycle hub motor

For QS motor 3000w 205 50H V3TI electric motor, it’s new design and especially upgrades for e-bike. It could be 72V 70KPH, available in a variety of sizes, such as 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Main difference between V3 and V3TI

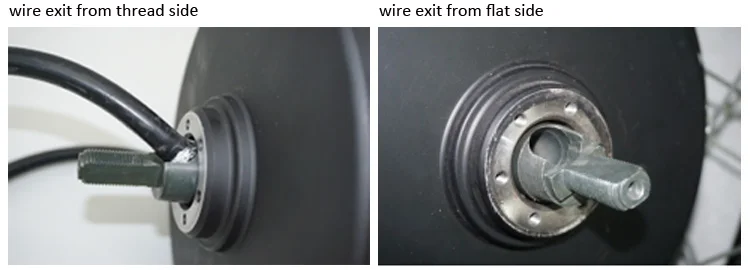

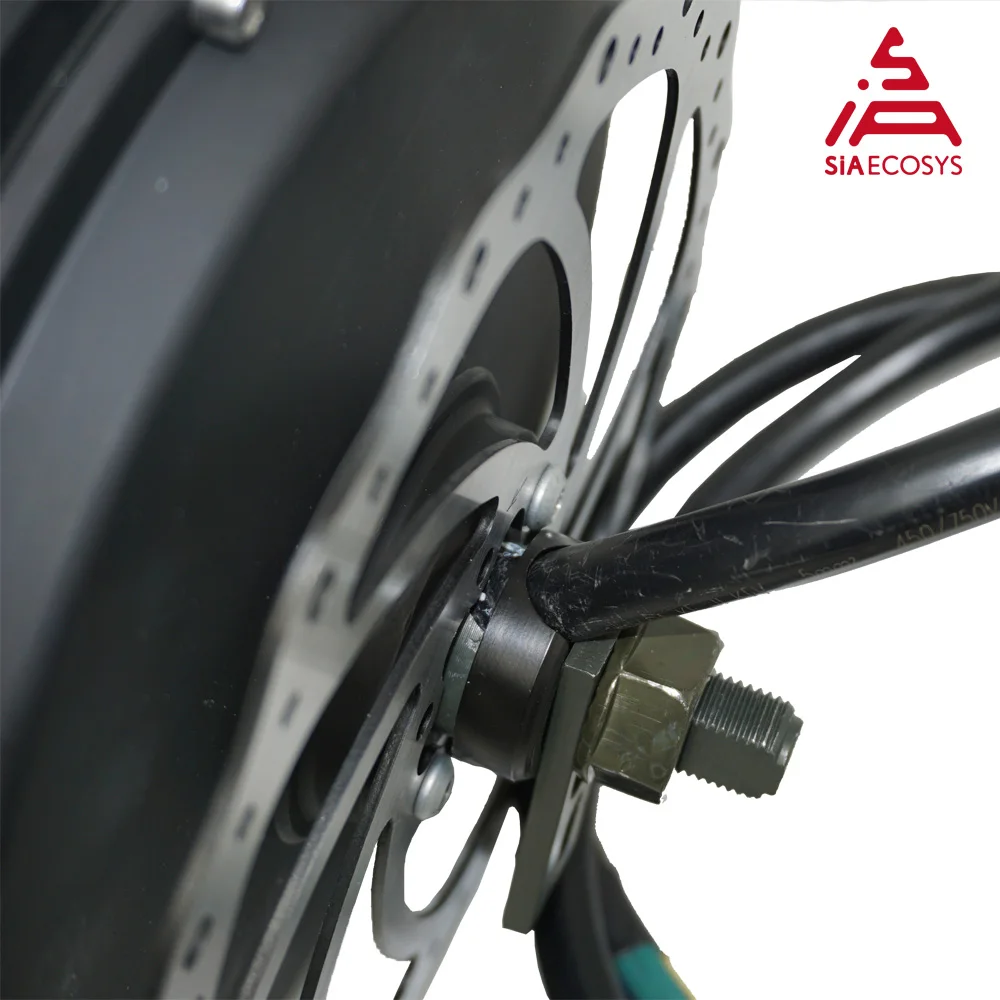

1. Phase wire exit from thread side, which is easier to mount on bike and it looks better.

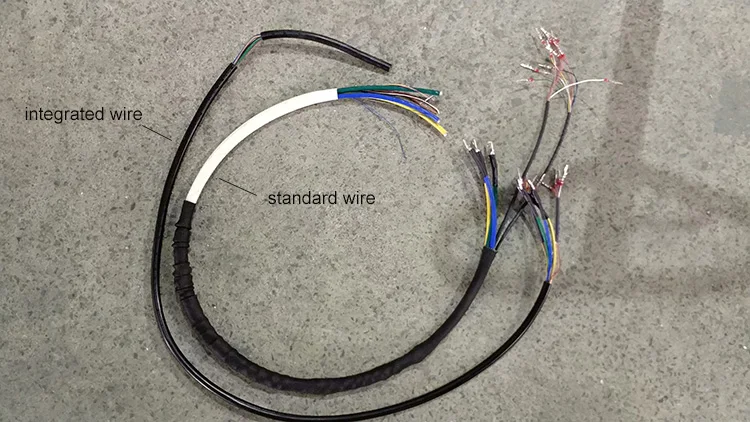

2. Phase wire change to integrated one instead of standard loose one, which improved from IP54 to IP65.

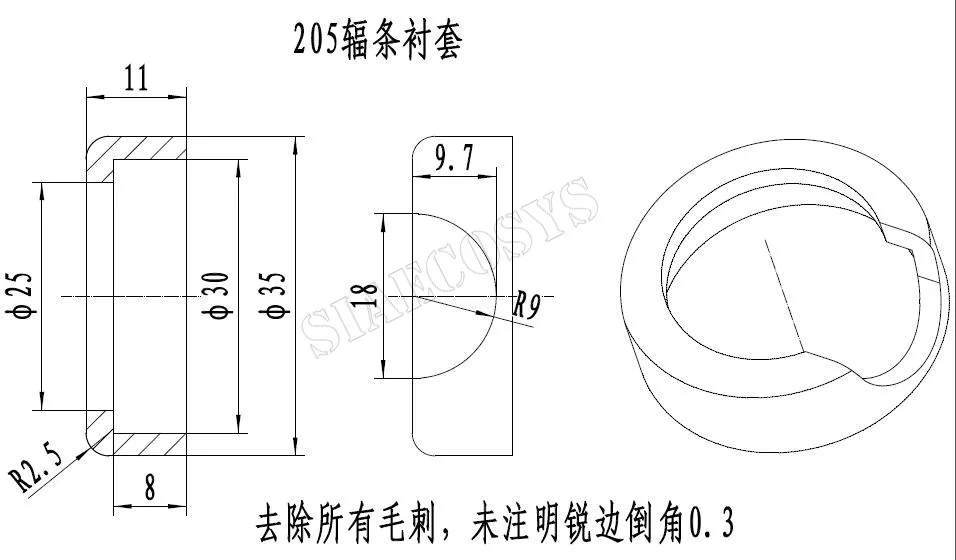

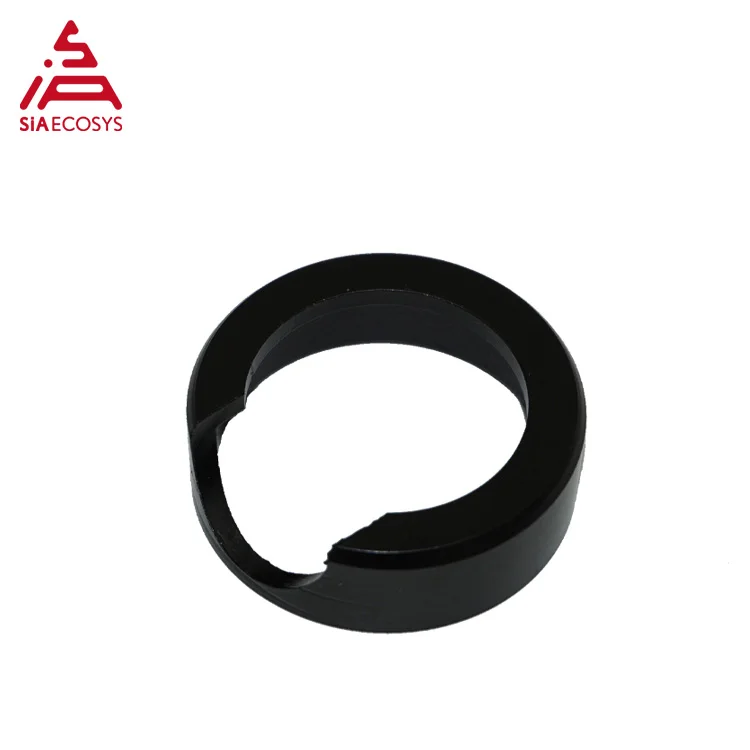

3. Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.


Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

Specification

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Whel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 650RPM no load, approx 70km/h

·KV: 9.0kV

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (72V)

·Suggest Peak Phase Current:240A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Bike Disc brake, PCD6*44mm(as default)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm english thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·10mm² Cross Section of Phase Wire (not include insulation layer)

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP54

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg (TBD)

·Package Dimension: 34cm*34cm*33cm/piece

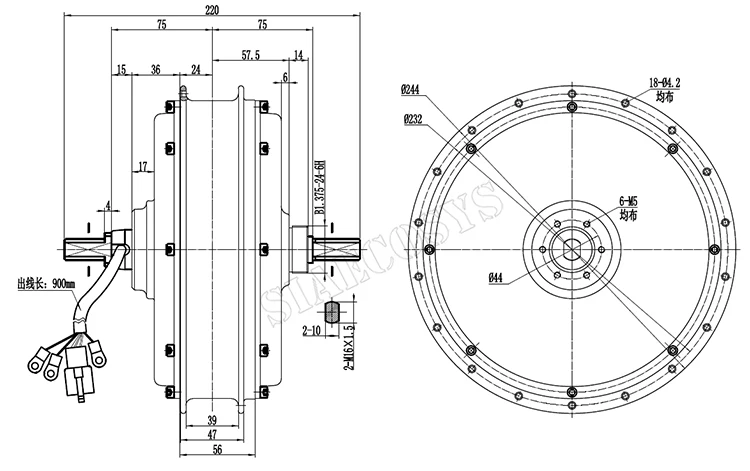

Drawing

Reference V3 drawing firstly

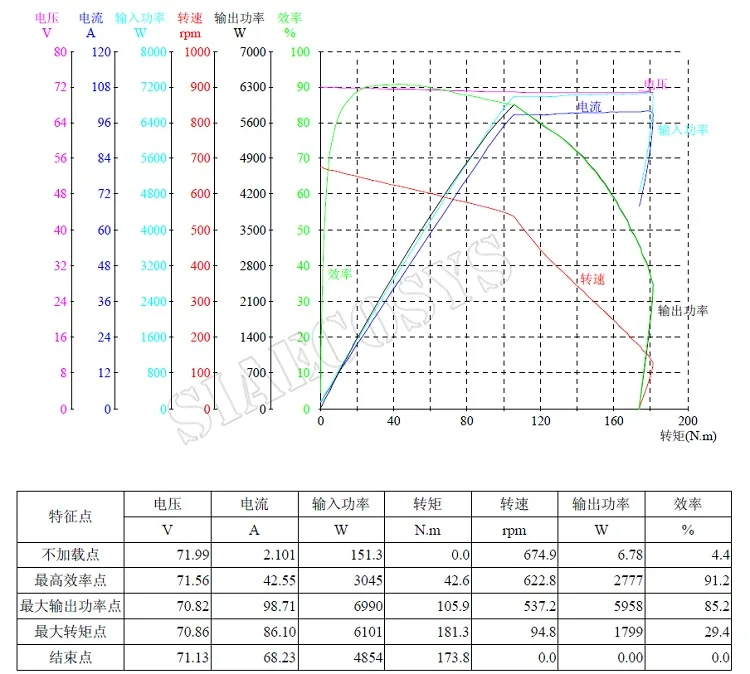

Test Report

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

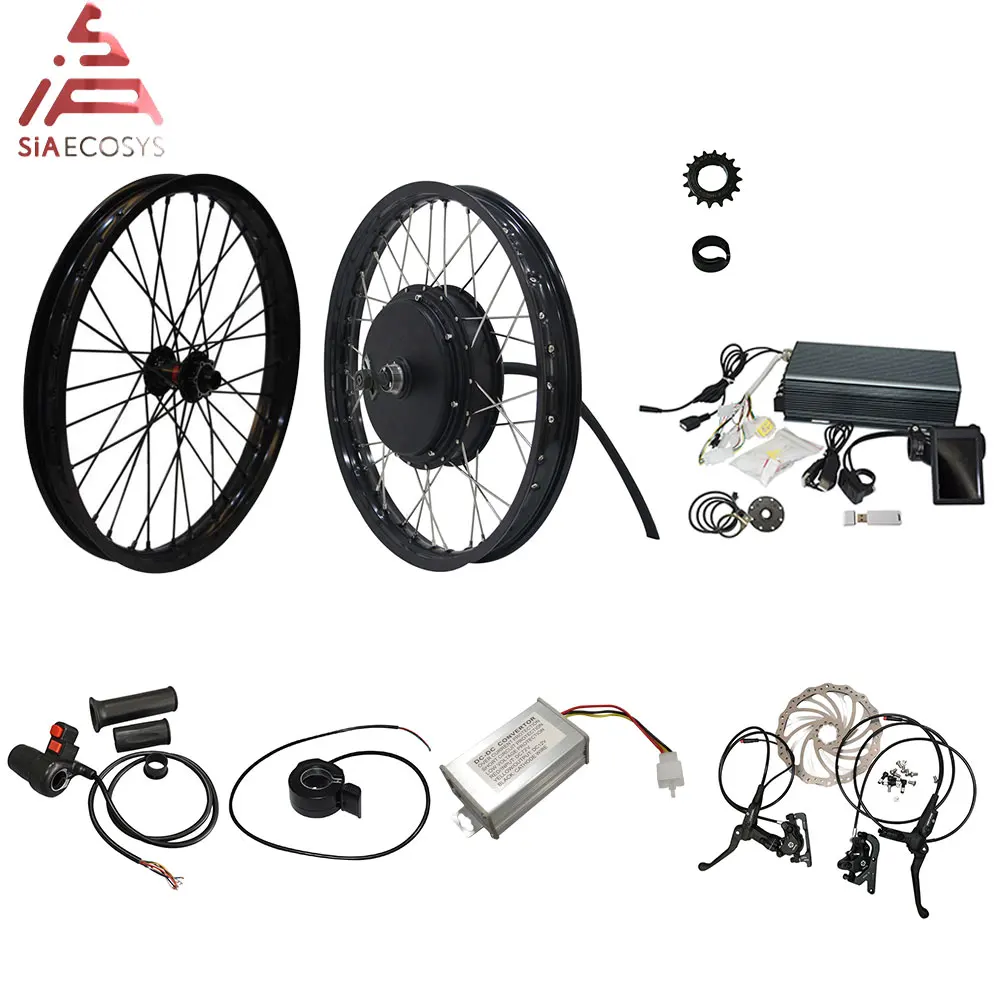

Conversion kits

We can provide the whole kits: motor, rim, controller, speedometer, throttle, disc brake, PAS, DC DC convertor...

Comb1

Comb2
