Product Overview

Description

Pile Borehole High Precision Inclinometer for Drilling Inclination Measurement

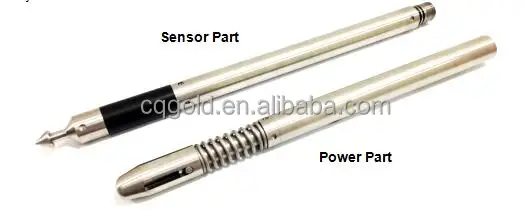

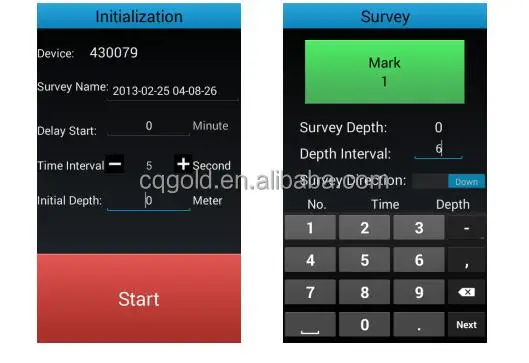

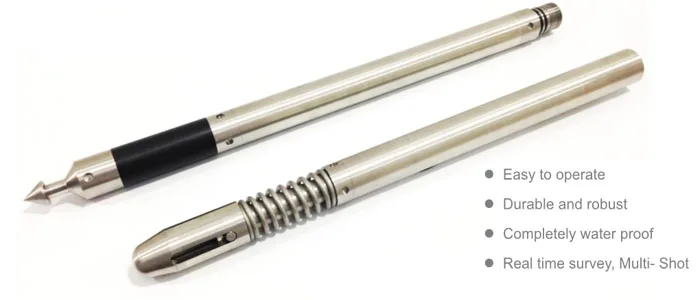

The GDP-3D borehole inclinometer and drilling inclinometer is a magnetic multi-shot survey tool. The electronic unit consists of three magnetometers and three accelerometers. They measure the magnetic field and gravity where the tool is placed along. The sensor data obtained during a survey is stored in the internal memory of the tool and can be downloaded vie Bluetooth when the tool is connected to the Android controller. The Power Part contains a 7.4v rechargeable lithium battery, which can be charged no less than 500 times. The inclinometer is suitable for non-magnetic rock formations with diameters greater than Ø46 mm and for boreholes.

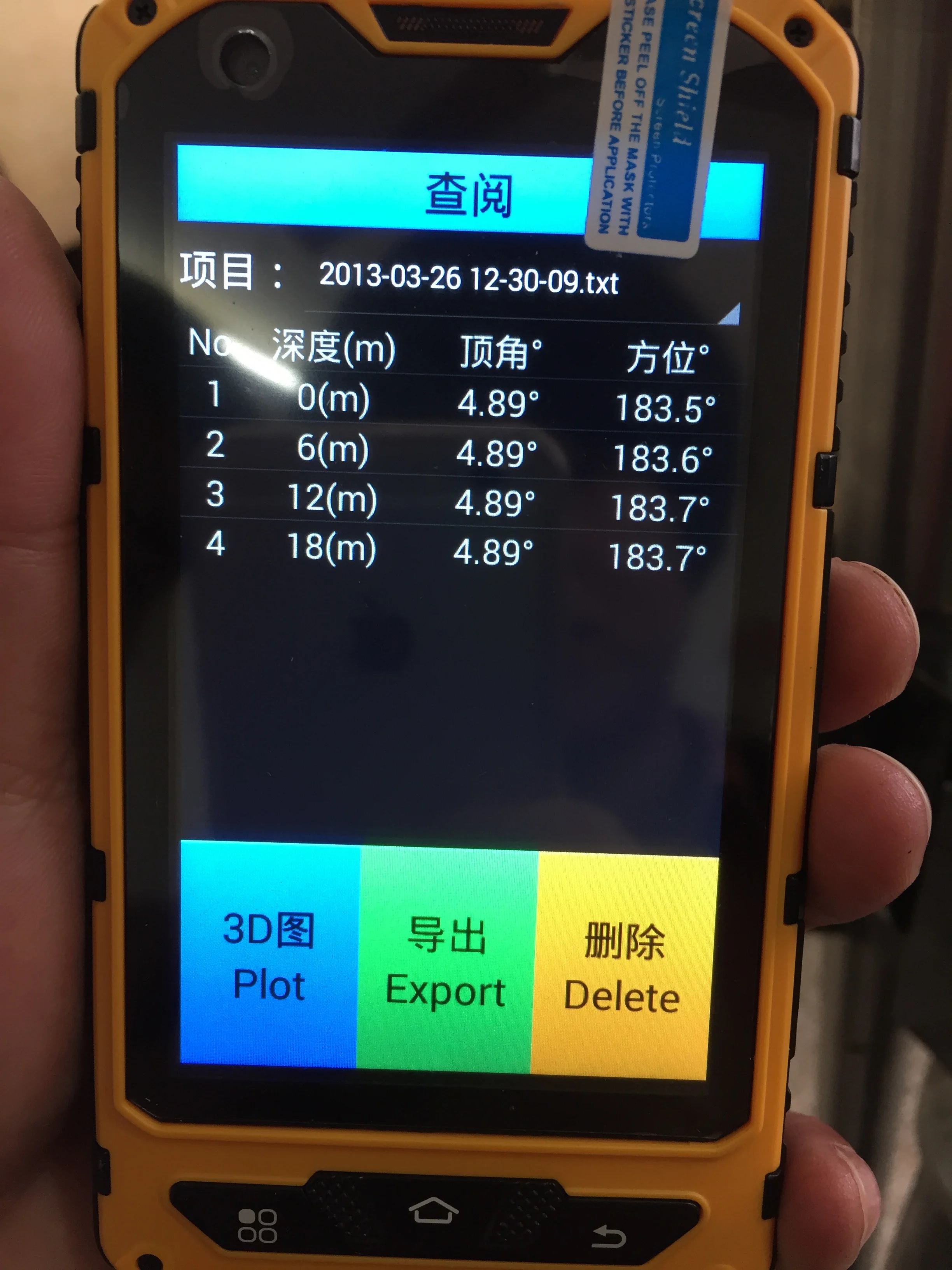

GDP-3D Wireless digital compass inclinometer is the latest high-end compass-type inclinometer product. The intelligent handbook of the instrument is fully upgraded, and the industrial three-proof (waterproof, dustproof, drop-proof) smart handbook is adopted.



We have innovatively added high-strength shock-proof and shock-absorbing joints at the front end of the inclinometer to protect the instrument in all directions. We have also removed the physical switch of the instrument, and the user does not need to disassemble the instrument during the whole process of measuring the inclination. At the same time, the instrument also provides humanity. The accessories make it easy for customers who use different habits to operate the instrument. The instrument is suitable for non-magnetic rock formations with diameters greater than Ø46 mm and for boreholes within the borehole.



We can provide you with instrumentation to measure the angle and deviation of a drilled hole. Our clients are primarily mining and quarrying companies, but the equipment could provide invaluable data in other applications or projects.



The Borehole Deviation probe measures the direction relative to magnetic north, inclination and trajectory of the borehole. Measurements are based on the "Applied Physics Systems" 544 orientation sensor containing both a 3-axis fluxgate magnetometer and a 3-axis accelerometer.


Applications Of Digital Compass Borehole Inclinometer

• Borehole True Vertical Depth


• Borehole trajectory based on direction, inclination and drift measurement


• True bed thickness


• Location of magnetic beds or steel piles near borehole (z-component of magnetometer)

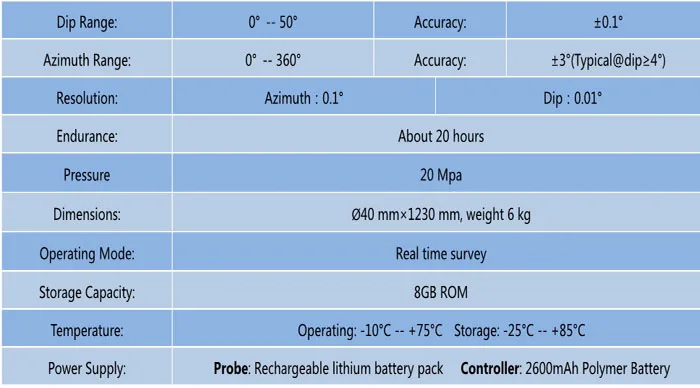

Technical Specifcations Of Digital Compass Borehole Inclinometer
