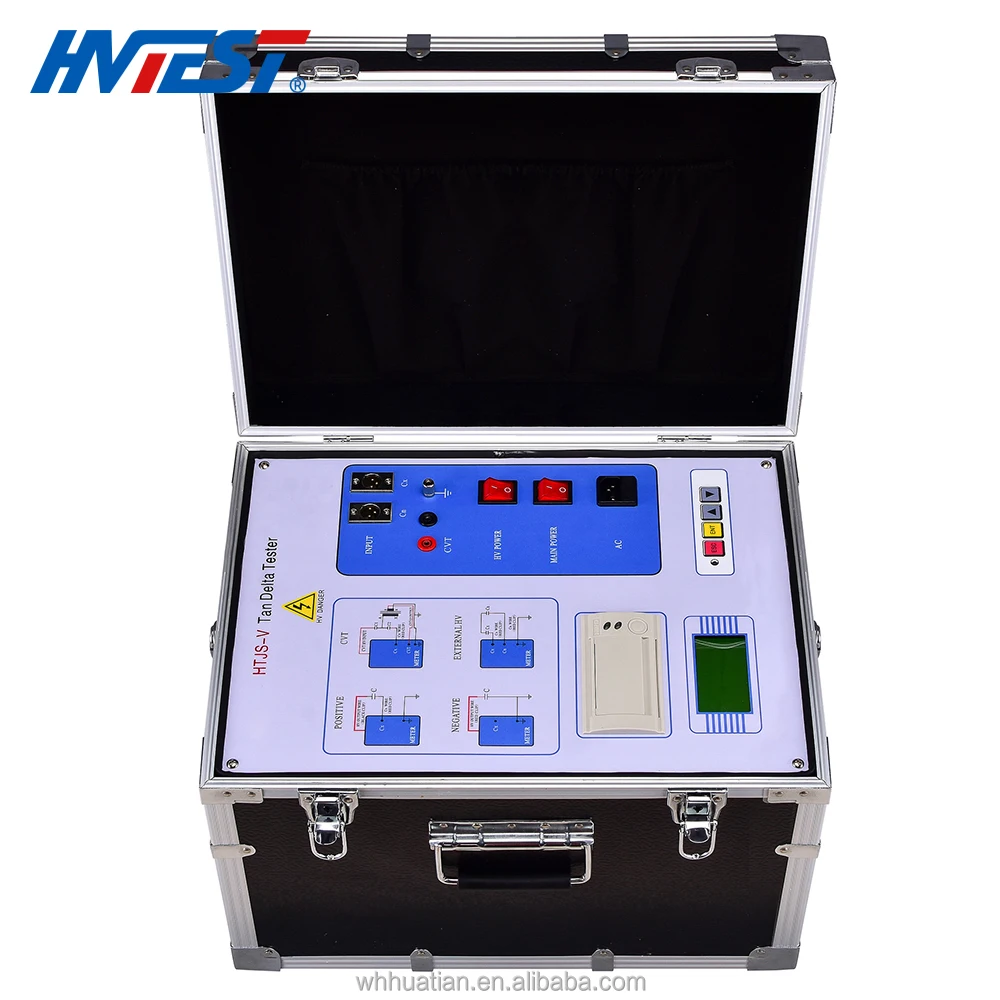

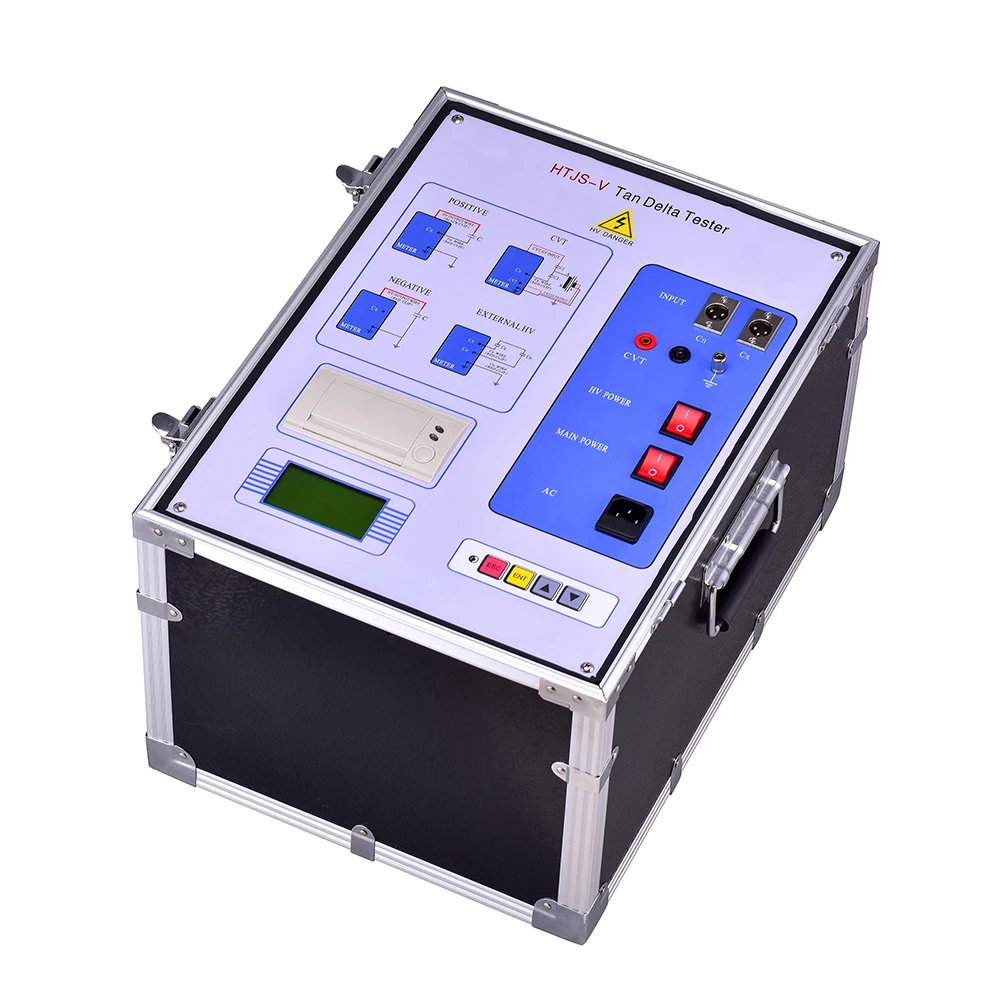

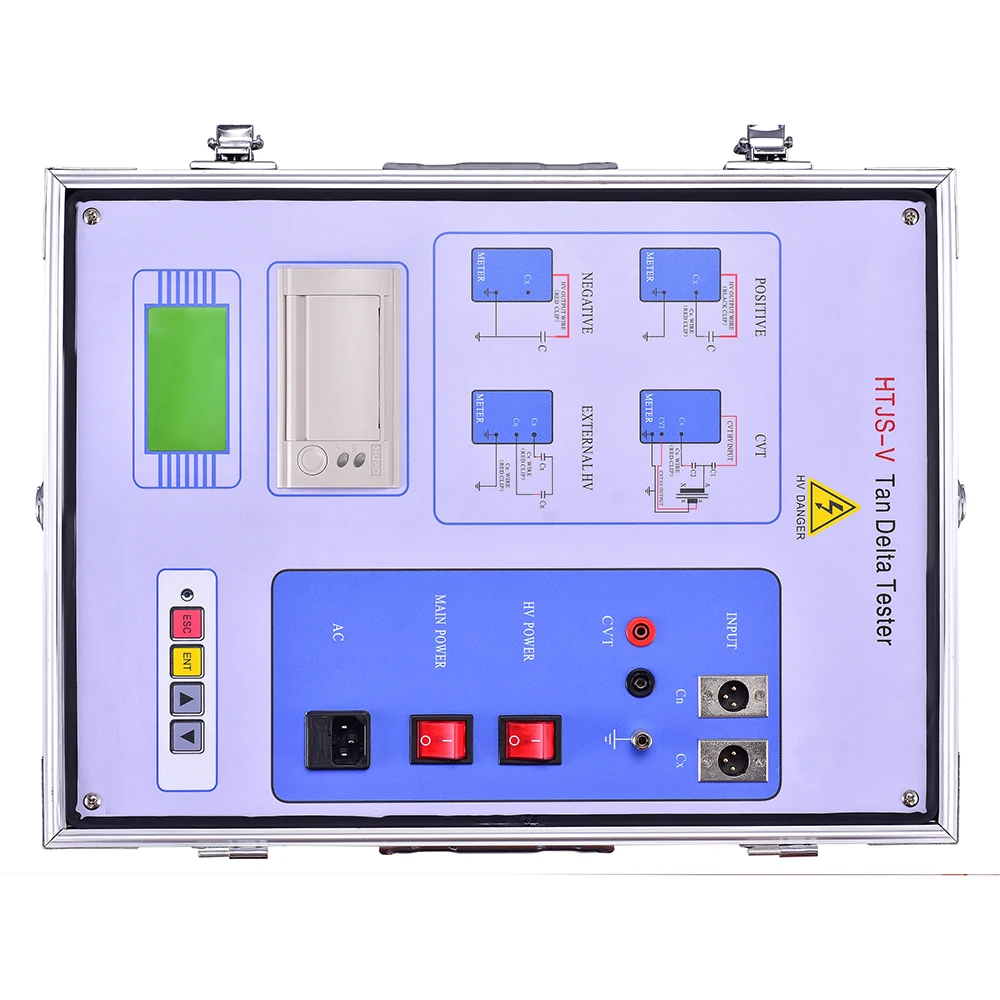

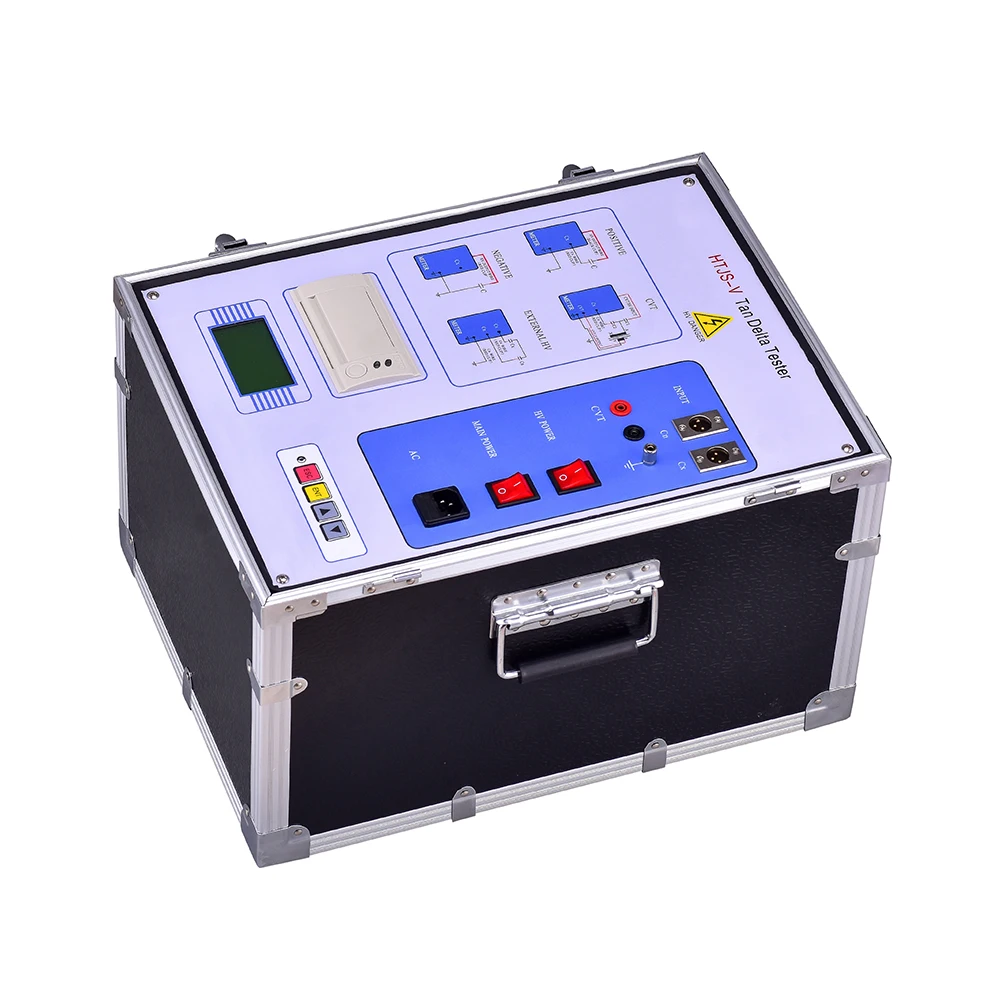

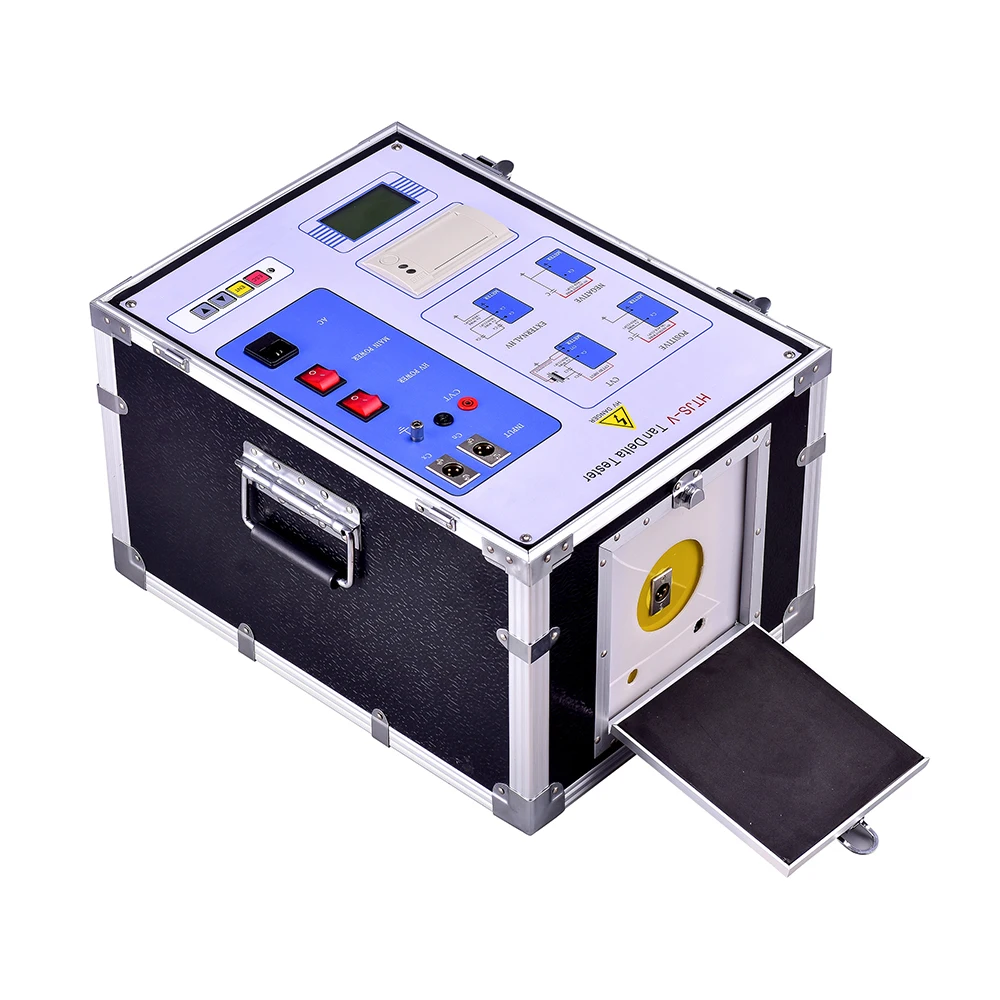

B HTJS V Full automatic Anti interference Dielectric Loss Tester Tan Delta Tester For Transformer Substation
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62589148880):
Product Overview
Description

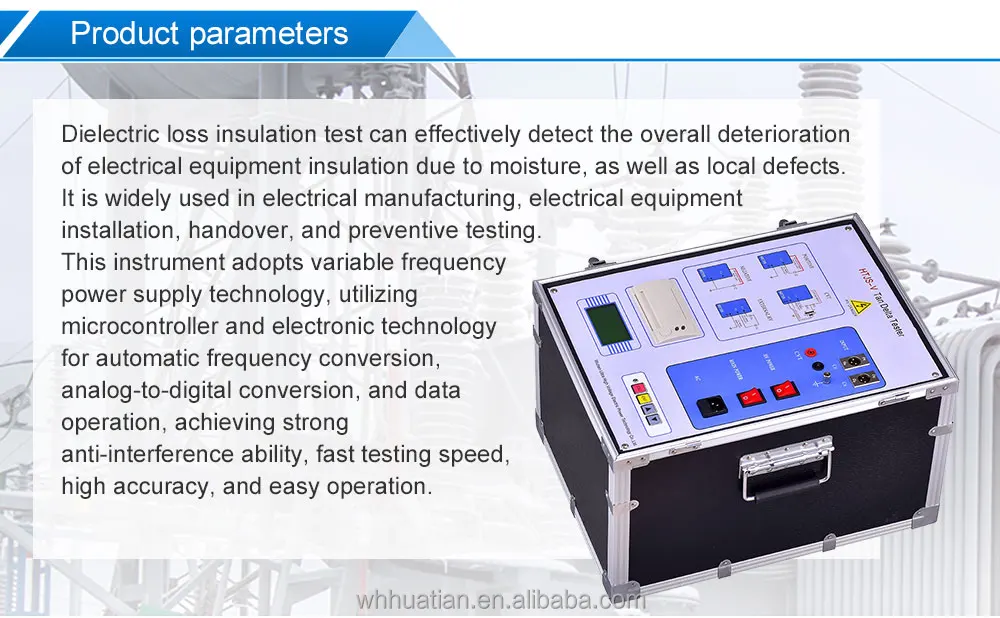

Product Paramenters
High voltage output | 0.5~10kV |
Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA | |
Accuracy | tgδ: ± (reading *1.5% +0.06%) |
Cx: ± (reading * 1.5% +5 PF) | |
Resolution | tgδ: 0.01% |
Cx: 1pF | |
Measuring range | 0.01% |
3PF | |
When it is 10kV、Cx ≤ 30000PF | |
When it is 5kV、Cx ≤ 60000PF | |
Power supply | AC 220V ± 10% 、 50 ± 1Hz |
Measuring method | a.working frequency：50Hz |
b.different frequency:45Hz/55Hz Automatic frequency conversion | |
Harmonic adaptation | ≤ 3% |
Application condition | -15 ℃－50 ℃ Relative humidity <80% |
Dimension | 460 (L) × 345 (W) × 350 (H) |
Weight | 35 kg |
Function&Characteristics
1. High precision. Precision high voltage thin film capacitance and precision high voltage glass glaze resistance are used，High input impedance，Reduced test current，Power consumption，The accuracy and stability of the instrument are improved；TBPU，High performance OP is adopted for signal amplification，Double integral AD sampling technique is used，Four semi liquid crystal display，The highest resolution reaches 0.001kV，Is a new generation of high voltage electrostatic voltmeter.
2. Good anti-interference performance. Special shielding technology is adopted.Aluminum alloy material uniform pressure ball surface smooth and glossy，The distribution of electric field around the ball is improved effectively，Prevent tip discharge，Improve the anti-interference ability of measurement data.The low-voltage display instrument is shielded by all-metal closed structure，High voltage divider and low voltage display table are connected by high quality coaxial cable，Reduce the effect of high pressure on indicator，Thus achieving high stability，high linearity.
3. Safe and reliable. Ac-dc voltage divider is composed of high voltage divider and low voltage display instrument，The high voltage divider is made of American dupont filling material，Special process potting，Structure of smaller，Lighter weight，Local internal discharge is minimized，Higher reliability.There is no oil leak.High voltage voltage divider and low voltage instrument are connected by coaxial cable，The high and low pressure parts are far apart，Safe and reliable work.
4. Simplicity of operator. Use the dialing switch to switch high and low voltage、ac/dc，convenient and efficient.Four - bit semi - liquid crystal displays the measurement results directly，easy and intuitive.It brings great convenience to the field inspection.
5. Easy to take.Portable structure. The whole machine is made of aluminum alloy packing case，It can be disassembled easily.small in size、in light weight，easy to carry，ease-of-use.
2. Good anti-interference performance. Special shielding technology is adopted.Aluminum alloy material uniform pressure ball surface smooth and glossy，The distribution of electric field around the ball is improved effectively，Prevent tip discharge，Improve the anti-interference ability of measurement data.The low-voltage display instrument is shielded by all-metal closed structure，High voltage divider and low voltage display table are connected by high quality coaxial cable，Reduce the effect of high pressure on indicator，Thus achieving high stability，high linearity.
3. Safe and reliable. Ac-dc voltage divider is composed of high voltage divider and low voltage display instrument，The high voltage divider is made of American dupont filling material，Special process potting，Structure of smaller，Lighter weight，Local internal discharge is minimized，Higher reliability.There is no oil leak.High voltage voltage divider and low voltage instrument are connected by coaxial cable，The high and low pressure parts are far apart，Safe and reliable work.
4. Simplicity of operator. Use the dialing switch to switch high and low voltage、ac/dc，convenient and efficient.Four - bit semi - liquid crystal displays the measurement results directly，easy and intuitive.It brings great convenience to the field inspection.
5. Easy to take.Portable structure. The whole machine is made of aluminum alloy packing case，It can be disassembled easily.small in size、in light weight，easy to carry，ease-of-use.
