Product Overview
Description

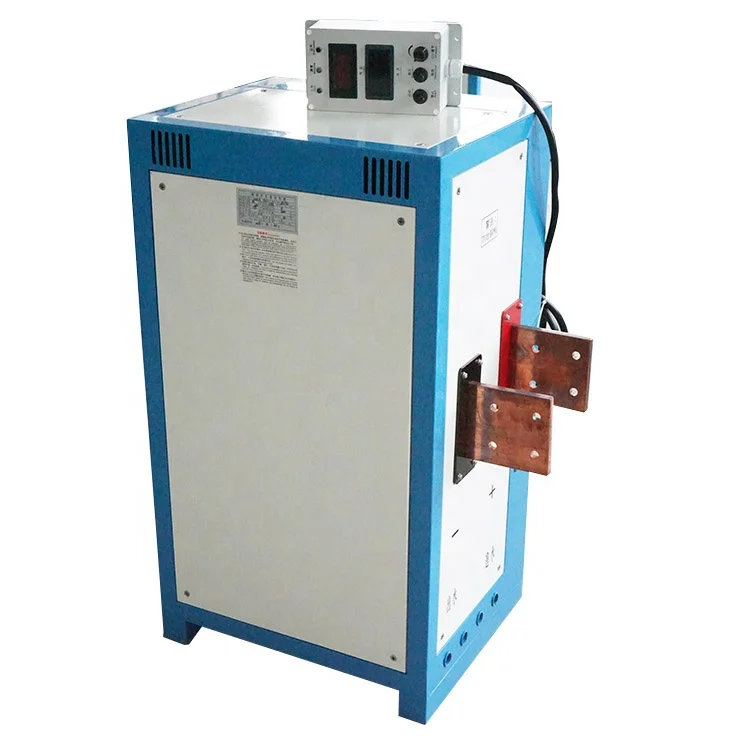

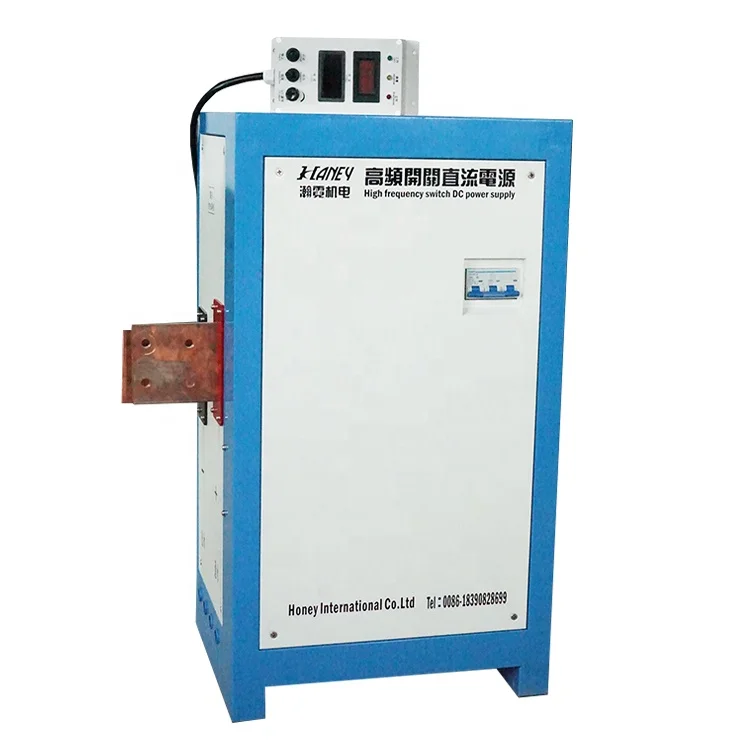

4000amp 3 phase30 volt 500 amp plating rectifier industrial 12 volt anodizing pulse plating retificador galvanoplastia
Product Description
A: industrial rectifier Features
The product adopts IGBT inverter soft switch rectifier technology, is mainly as finish electroplating rectifier power supply of all kinds of metal and nonmetal (like electroplating zinc, nickel, chrome and titanium etc), it can also be used as electrolytic rectifier power supply, general anodizing power supply and DC heating supply etc.
Main Technical Features
- Operation mode: local/remote operation mode can be chosen
- Output control mode: constant current/constant voltage output control mode can be chosen.
- Soft start time: Working time of soft start can be: set between 0-200s
- Constant current/constant voltage control accuracy ≤±1%
- Rectifier mode: IGBT inverter soft switch rectifier, 5% energy-saving comparing with common switch rectifier power supply, 15-25% energy-saving comparing with thyristor rectifier
- IGBT inverter switch frequency: 18KHZ-20KHZ
- Rectifier efficiency ≥92%
- Output current ripple coefficient ≤1-3%
- Master controller : DSP computer digital PWM pulse width modulation control, pulse phase resolution ≤1us
- Main protection functions: deficient phase, overvoltage, under voltage, quick fuse alarm protection of AC power supply, output over current and current limiting protection, output short circuit and instantaneous overload protection, over temperature and overheat protection of IGBT power component, switch rectifier transformer, quick rectifier diode component and BUS copper bar, overheating and high pressure protection of wind machine, low block PWM trigger pulse protection.
B: 4000amp 3 phase30 volt 500 amp plating rectifier industrial 12 volt anodizing pulse plating retificador galvanoplastia Application
C:related products:
D:hard chrome plating rectifier Parameters:
| AC input | 220V±10% |
| DC input voltage | 0-12V continuously adjustable |
| DC output current | 0-4000A continuously adjustable |
| Out put power | 48KW |
| Waving data | Waving valid values less than 3% |
| Constant current, constant voltage conversion | Precision of constant current 1%, Constant pressure precision 1% |
| Defensive function | Under voltage, over voltage, overload, short circuit protection, thermal protection. |
| The power factor | Using active power factor is positive, full range 0.95 |
| Insulation resistance | >10mΩ |
| Power DC protection time | More than 20msec |
| Overload protection | 105~120% Rated output current |
| Short-circuit protection | Instantaneous short-circuit |
| Working frequency | 28KHz |
| Operating temperature range | -20℃~50℃ |
| Type of cooling | Air-cooling |
| Dimensions (L * W * H)mm | 500mm*410mm*890mm |
Our advantage:
1.Using high-tech infrared detector to ensure product quality
2.manual or automatic reverse
3.fine internal structure
4.stainless steel pipe fittings
5.24 hours operation at full load
6.independant research and development
7.super GB configuration
8.Experimental power
9.250KVA green aging tests to ensure 20000A within models can be loaded continuously detected.
D: 4000amp 3 phase30 volt 500 amp plating rectifier industrial 12 volt anodizing pulse plating retificador galvanoplastia internal structures:

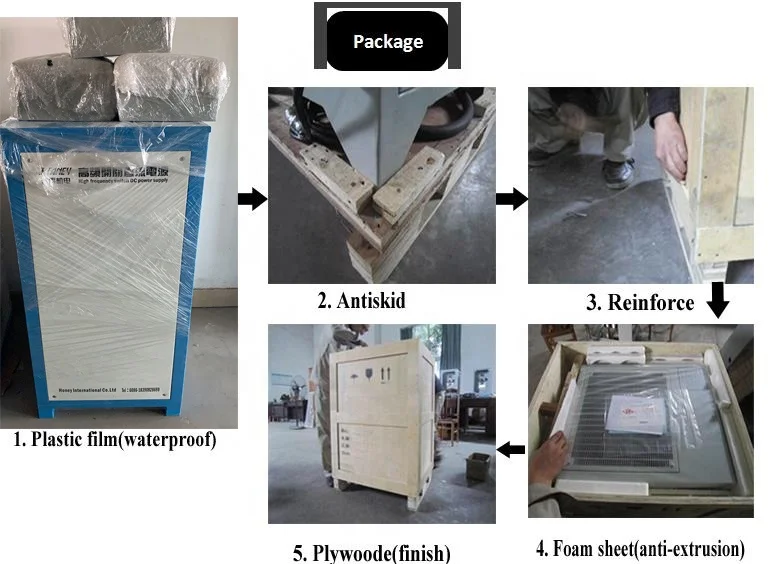

Packaging & Shipping
FAQ
Q: Are you a factory or not?
A: 100% sure we are manufacturer. We have factories based on Dongguan City.
Q: How about your terms and service?
A: Terms: FOB.CIF .CNF, Payment: T/T. or L/C at sight, Delivery time: Within 7days.
Q:What extra function do you have?
A:Optional:manual or auto reverse,timing control(manual or auto),filtering, temperature control, Ampere accumulative,slow start. Cooling mode:air cooling or water cooling.
Q:what’s the advantage of your rectifier?
A:New original accessories, pcb board made by our factory to control cost,100% full load aging test to ensure the stability of the machine.super allowance to make it can be full load used. 250KVA special line aging test to ensure the current within 20000A machine can be tested continuously,Quality access to ISO system.
Q:Do you have existing stock?
A:For normal item500-1000-2000-3000-4500-5000-6000-8000A,we always have stock, for customized requirement,delivery time is 5-7days,wooden case packing,which is secure enough.
Q: quality warranty
A:Quality warranty is 1year,we can send you free accessory for replacement during the warranty time.
Q: application
A:Haney Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome,anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.

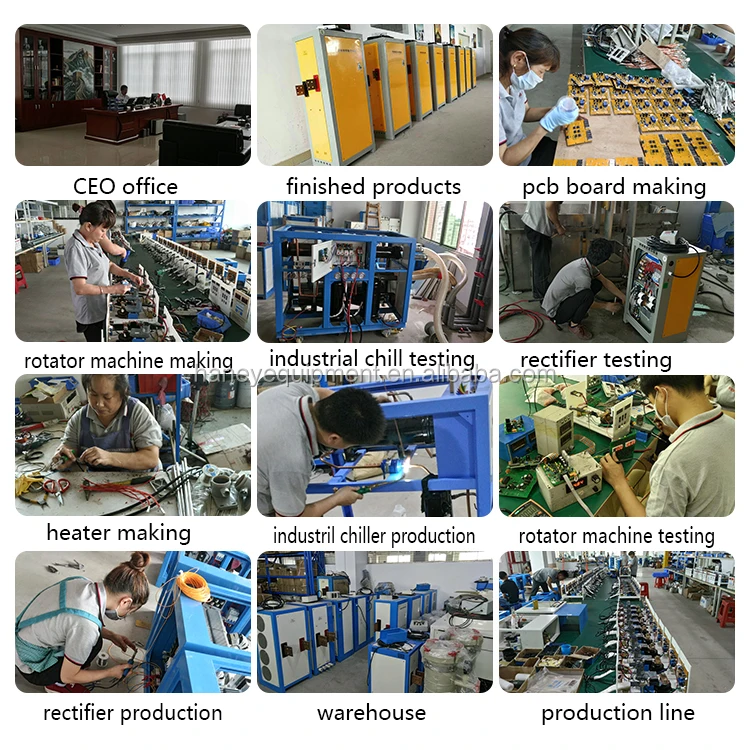

Company Information
Haney equipment mainly in line with surface treatment indusrial equipment,which products include rectifier,rotator machine,industrial chiller,heat pump,immersion heater,heat exchanger and so on....
Find us for surface treatment industrial equipment,we will be of help.OEM service can be offered due to cutomized parameters.High quality,punctual delivery time &long-life after sale service is our goal for you.
