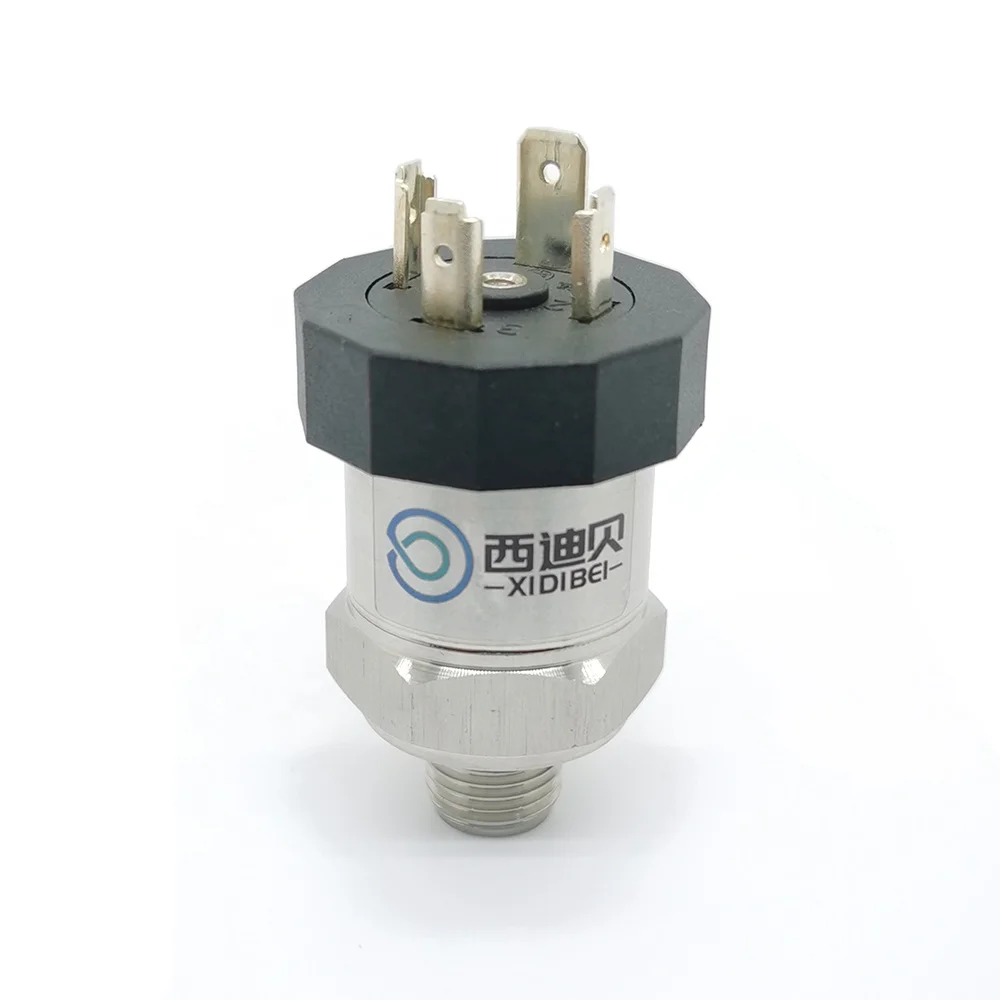

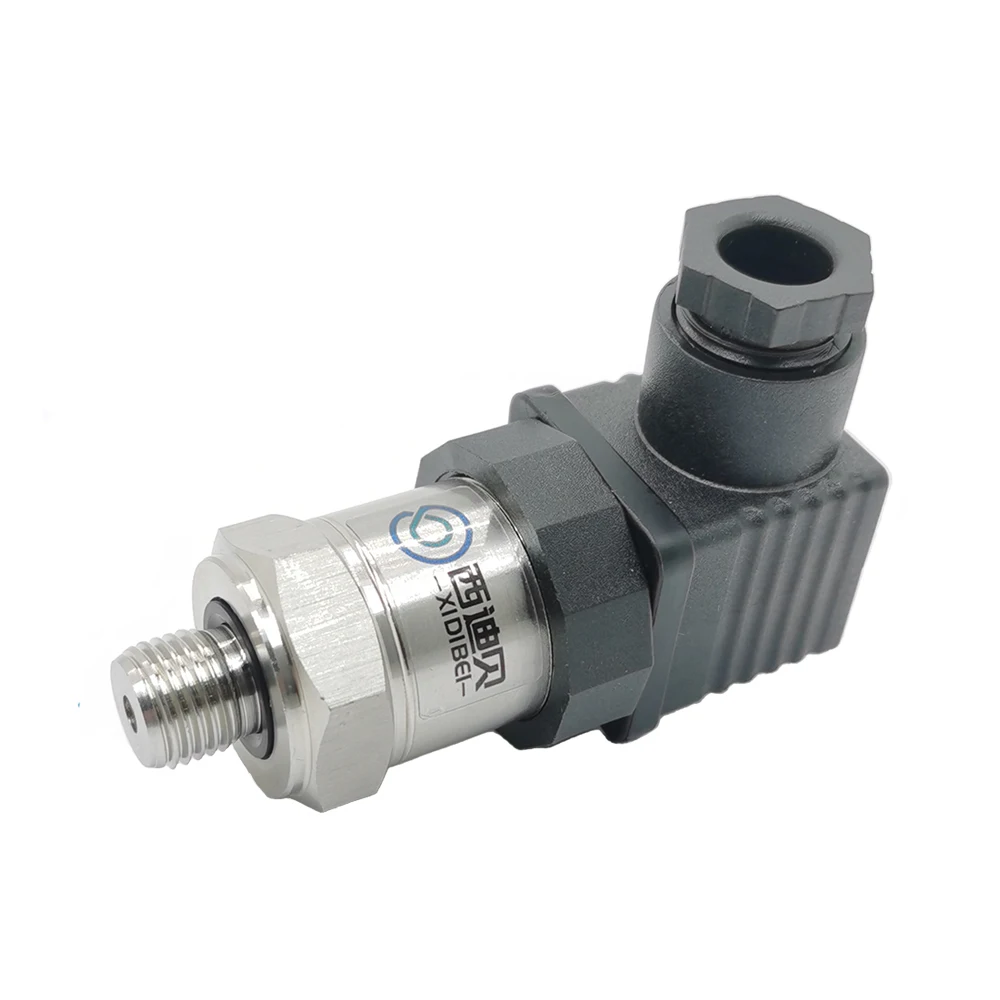

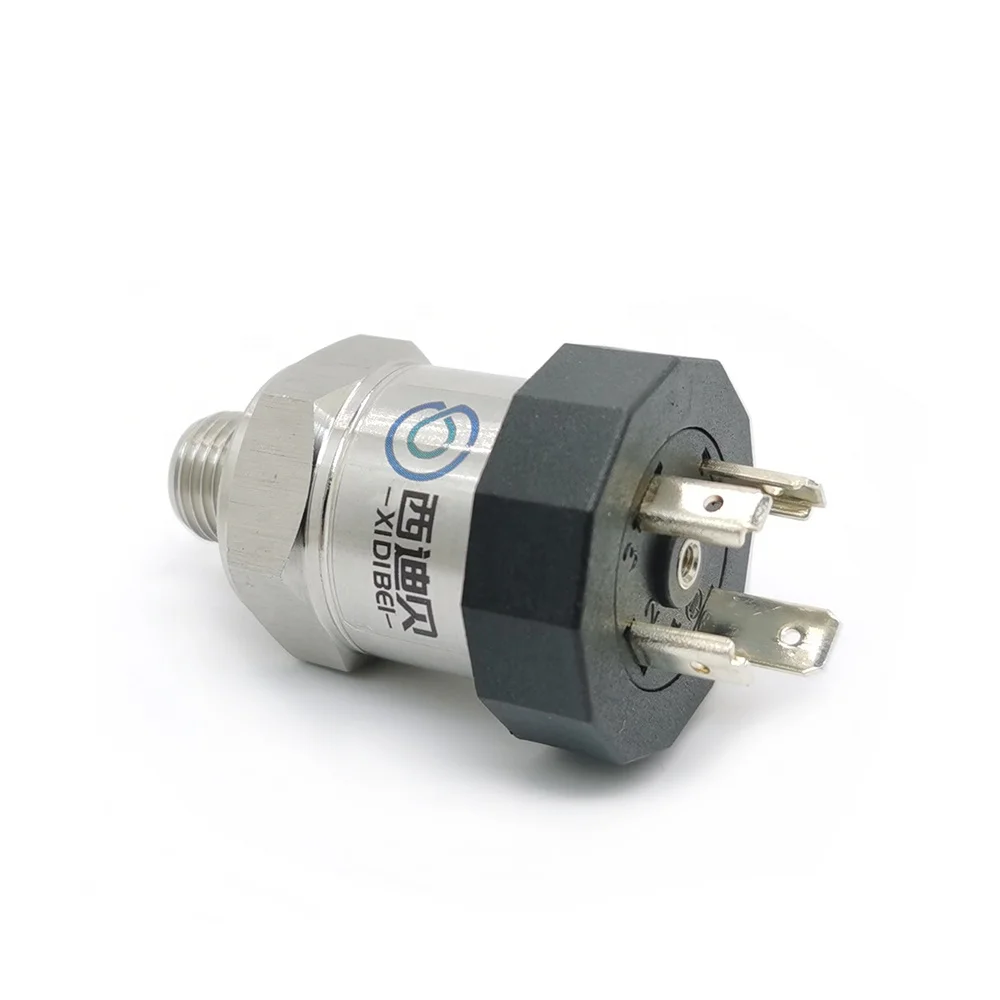

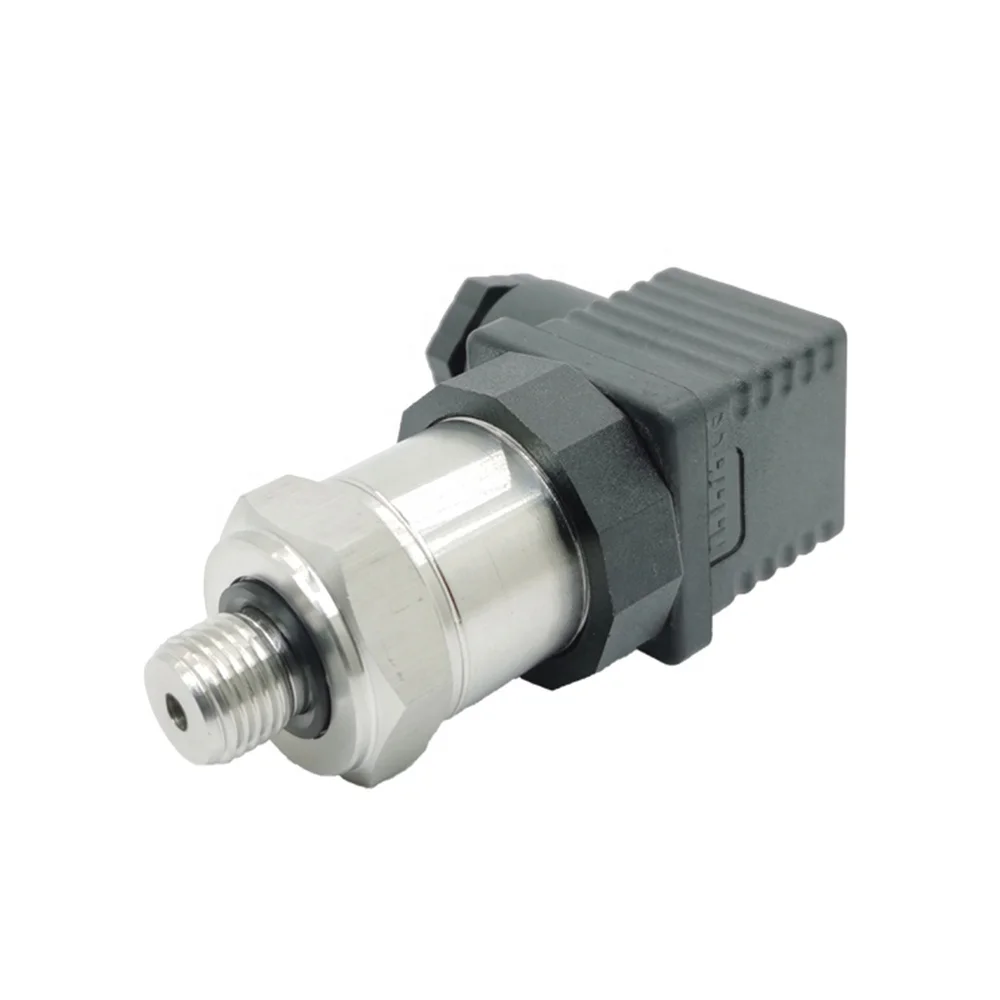

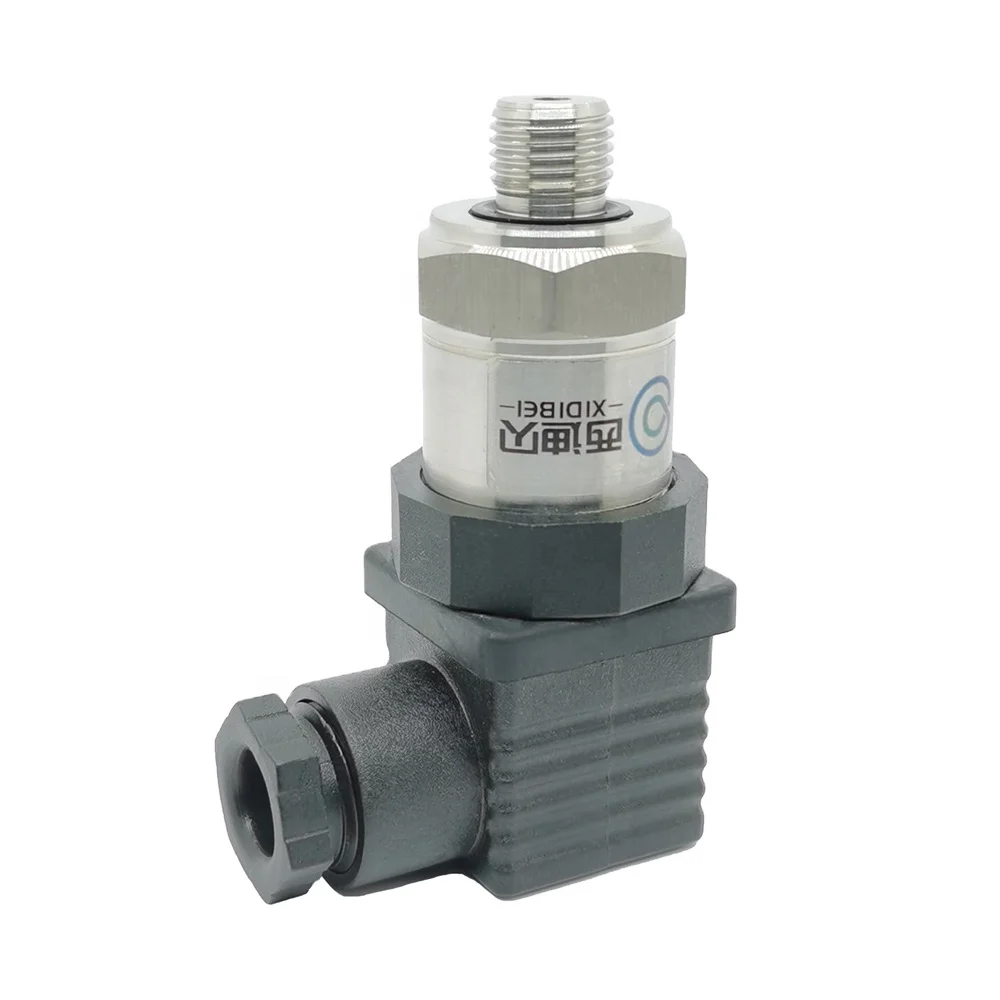

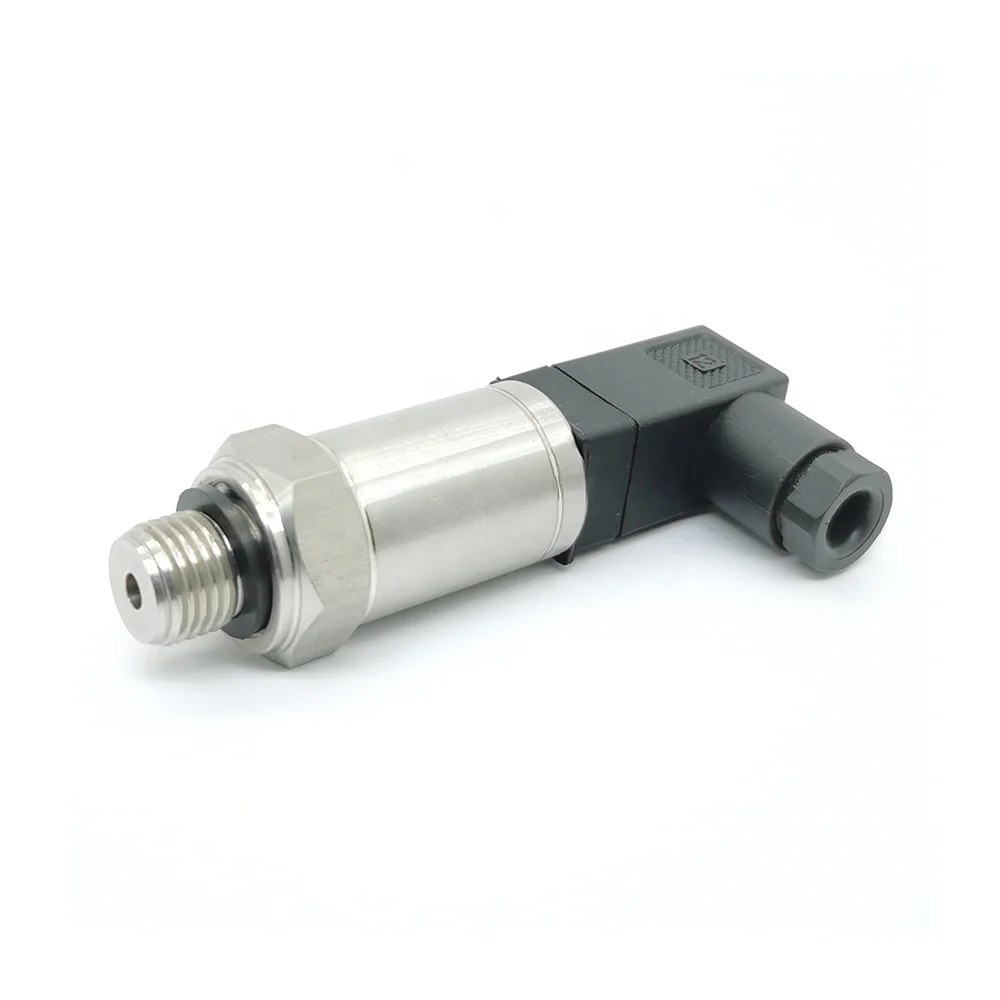

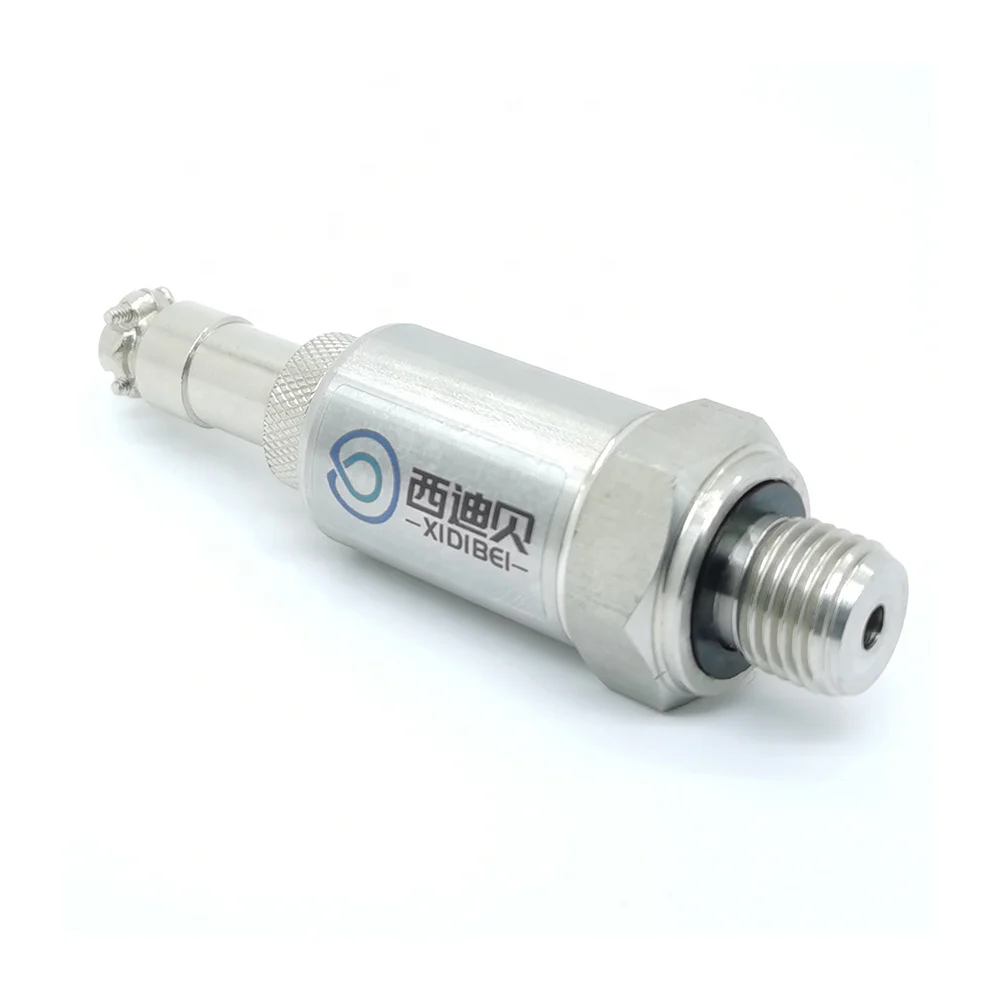

XDB305 G1/4 9 32VDC 4 20mA 0 10V Hirchman DIN43650A 2 600bar optional stainless steel Ceramic pressure transmitter
- Category: Pressure Measuring Instruments >>>
- Supplier: Shanghai Zhixiang Sensor Technology Co. Ltd.
Share on (62589184885):
Product Overview
Description
Hot Sales
Product Description
XDB305 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.
Features
* CE conformity
* Low cost and high quality
* All stainless steel structure
* Small size, convenient to install and operate
* 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output
* Complete surge voltage protection function
* For applications such as air, water, oil
* Provide OEM, flexible customization
* Low cost and high quality
* All stainless steel structure
* Small size, convenient to install and operate
* 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output
* Complete surge voltage protection function
* For applications such as air, water, oil
* Provide OEM, flexible customization
Applications
* Intelligent IoT constant pressure water supply
* Engineering machinery, industrial process control and monitoring
* Energy and water treatment systems
* Steel, light industry, environmental protection
* Medical, agricultural machinery, testing equipment
* Flow measurement equipment
* Hydraulic and pneumatic control systems
* Air-conditioning unit and refrigeration equipment
* Water pump, air compressor pressure monitoring
* Engineering machinery, industrial process control and monitoring
* Energy and water treatment systems
* Steel, light industry, environmental protection
* Medical, agricultural machinery, testing equipment
* Flow measurement equipment
* Hydraulic and pneumatic control systems
* Air-conditioning unit and refrigeration equipment
* Water pump, air compressor pressure monitoring
Manufacture Specification
Measuring range | -1～0～600Bar |
Accuracy | ±0.5%FS, ±0.2%FS |
Output signal | 4-20mA (2 wire), 0.5-4.5V; 0-5V; 1-5V; 0-10V (3 wire), I2C (digital signal) |
Supply voltage | 12～36(24)VDC |
Operating temperature | -20～85℃ |
Compensation temperature | -20～80℃ |
Operating current | ﹤=3mA |
Temperature drift (zero & sensitivity) | ≤±0.03%FS/℃ |
Long-term stability | ≤±0.2%FS/year |
Response time | ≤3ms |
Overload pressure | 150%FS |
Burst pressure | 300%FS |
Cycle life | 500,000 times |
Sensor core | Al2O3-96% ceramic sensor |
Pressure medium | Non-corrosive liquid or gas |
Pressure connection | G1/4”, Other pressure connection is on request |

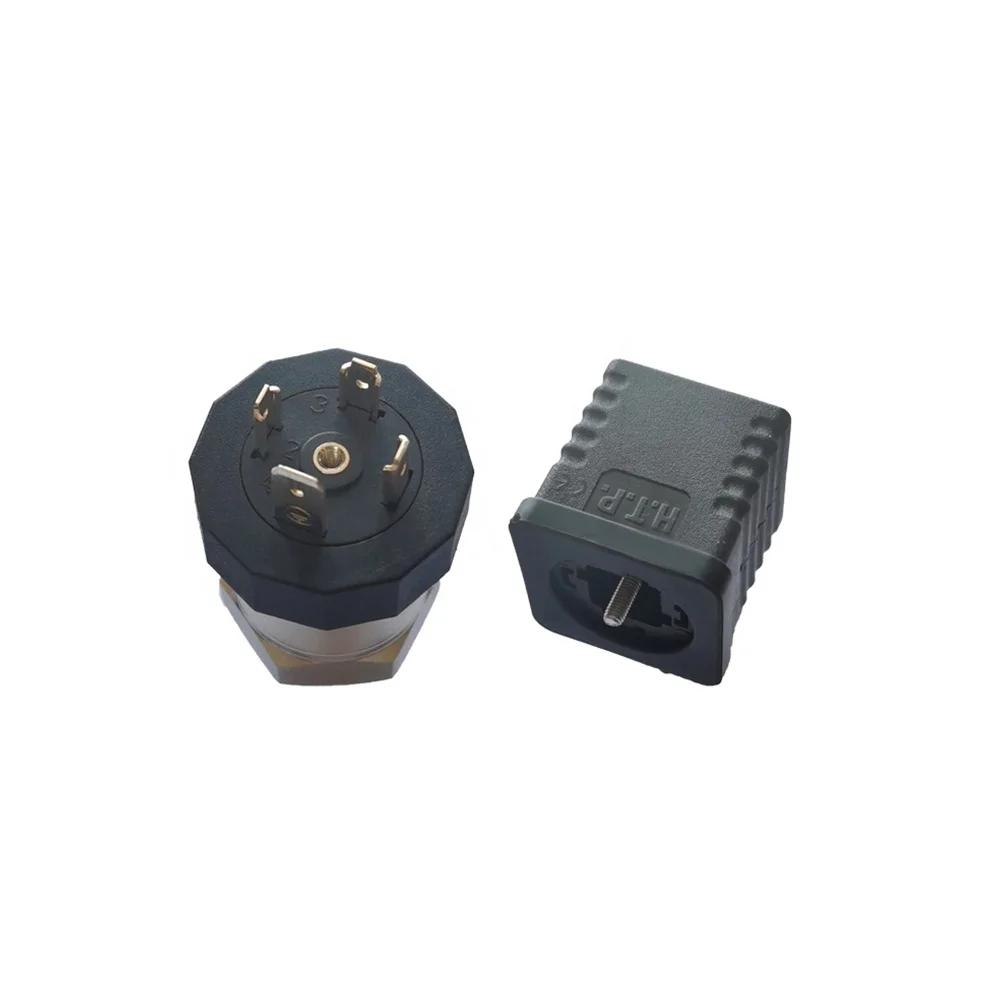

Electrical connection | Hirchman DIN43650A |
Housing material | 304 Stainless Steel |
Protection class | IP65 |
Explosion-proof class | ExiaⅡCT6 |
Size Information

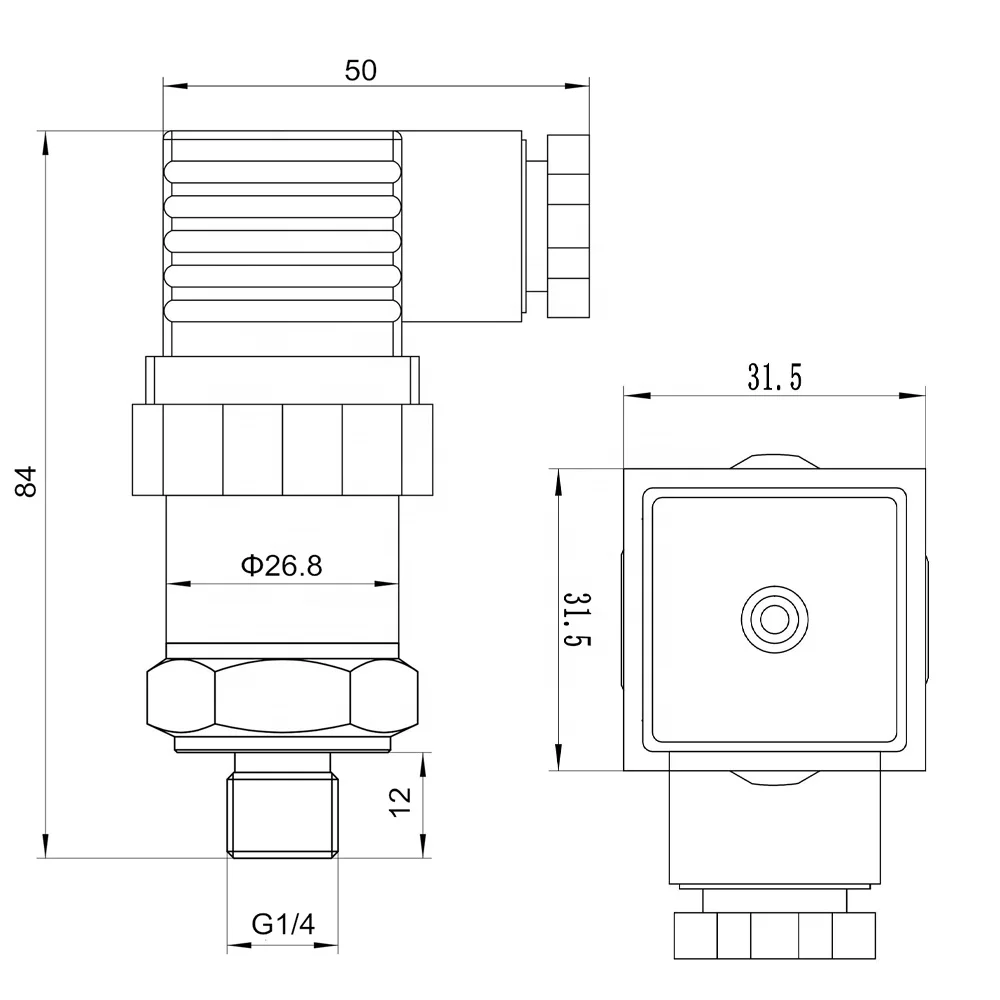

Dimension (unit:mm)
Electrical connection
Company Information
We have been engaged in the field of pressure sensors for more than 10 years. We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.
Packaging & Shipping
FAQ
Q1: What's your business range?
We have piezoresistive ceramic pressure sensor production lines and MEMS technology to provide customers with high-quality, low-price pressure sensors and transmitter products.
Q2: May I visit your factory?
Of course, welcome to Shanghai, China. Our factory and sales are two separate professional companies.
Q3: Why should I use Alibaba Trade Assurance orders?
Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have been engaged in the field of pressure sensors for more than 10 years.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Q5: Can you accept ODM & OEM service ?
We professional provide OEM &ODM service for all of items.
If you have other questions, please feel free to contact us, thank you!
