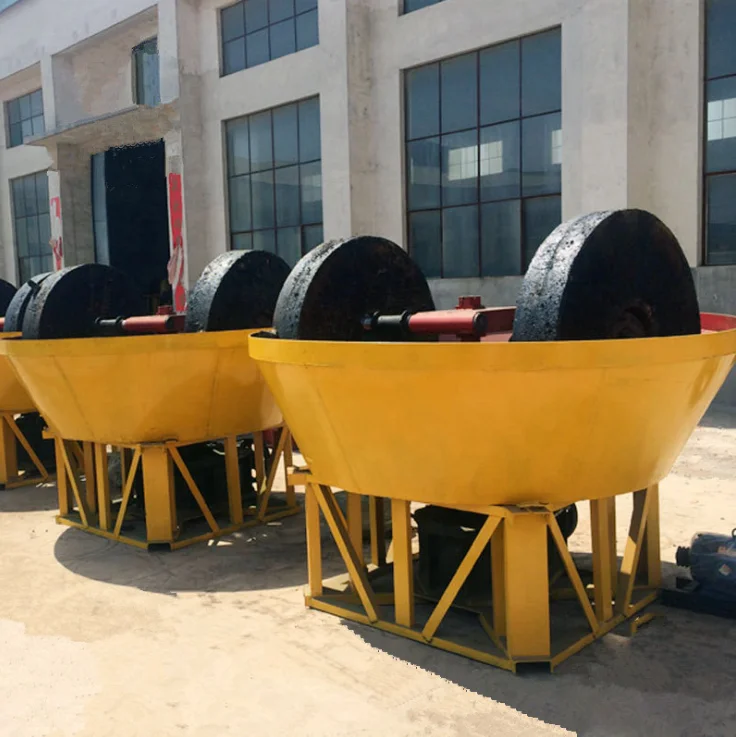

1000 Double Wheel Dressing Gold Grinding Machine, Factory Price Wet Pan Mill
- Category: >>>
- Supplier: Zhengzhou Huayu Briquette Equipment Co. Ltd.
Share on (62589235357):
Product Overview
Description

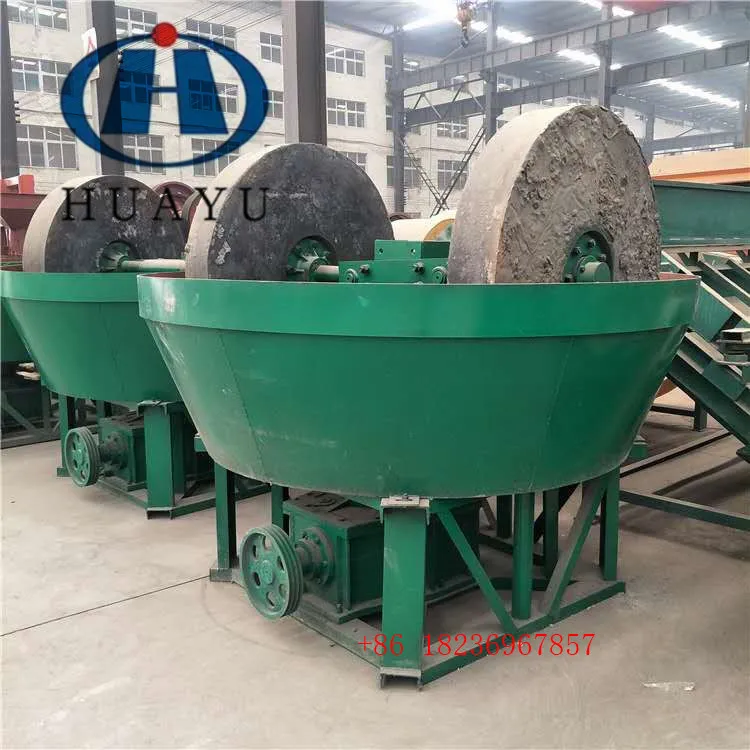

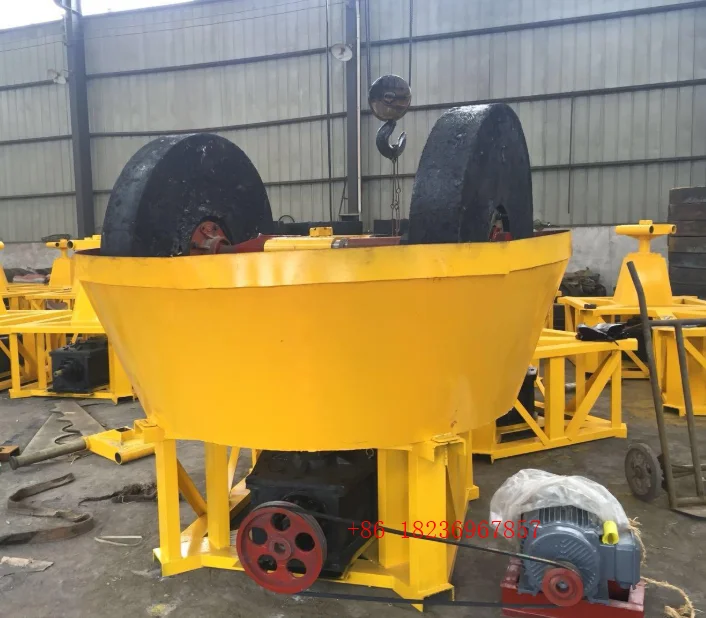

Detailed Images
Product Description
Brief Description of Wet Pan Mill:
The wet pan mill is mainly used for separating gold, silver, lead, zinc, iron, molybdenum, copper, antymony and so on.
The pan mill is excellent equipment which can instead of ball mill. Wet pan mill is perfect equipment for medium sized company and small enterprises.
The wet pan mill is mainly used for separating gold, silver, lead, zinc, iron, molybdenum, copper, antymony and so on.
The pan mill is excellent equipment which can instead of ball mill. Wet pan mill is perfect equipment for medium sized company and small enterprises.
Working principle

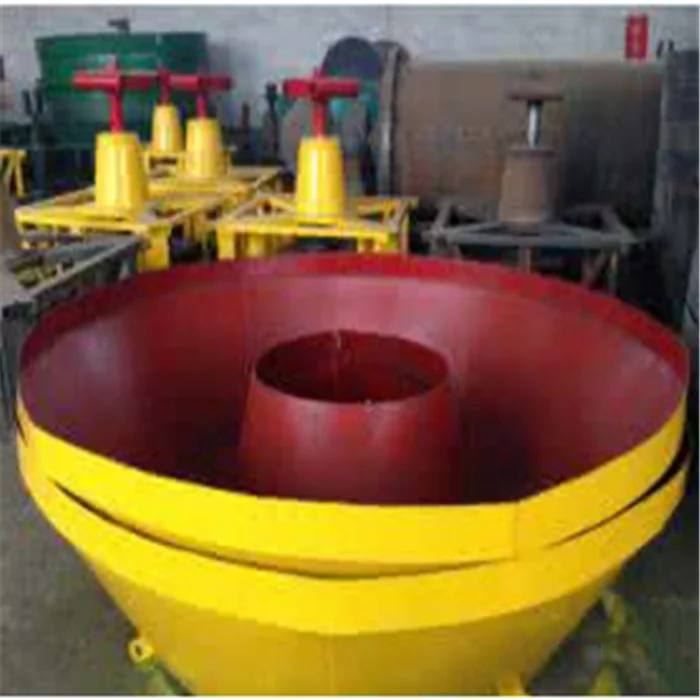

It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc.
1) When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2) Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3) At last, use a high-density red cloth to wrap mercury up.
4) Then squeeze it, the mercury will be pressed out and pure gold stayed.
5) As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc.
1) When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2) Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3) At last, use a high-density red cloth to wrap mercury up.
4) Then squeeze it, the mercury will be pressed out and pure gold stayed.
5) As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
Advantages of wet pan mill
1) The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
2) The ores and water are evenly mixed, which makes the pulp density and other indexes stable.
3) After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.
4) The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.
1) The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
2) The ores and water are evenly mixed, which makes the pulp density and other indexes stable.
3) After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.
4) The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.

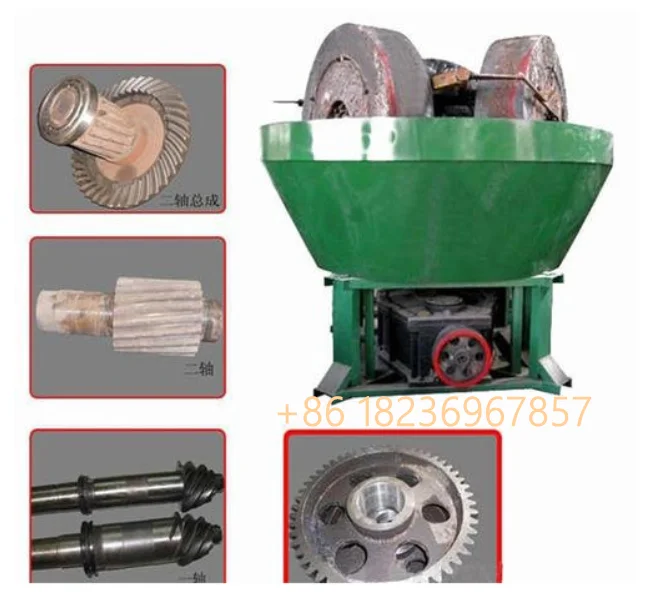

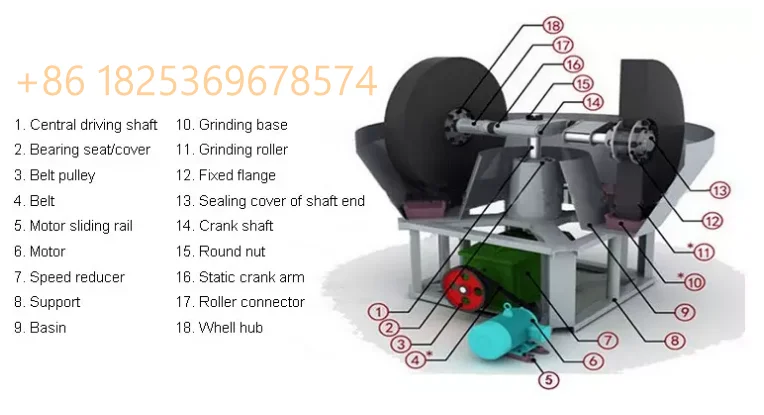

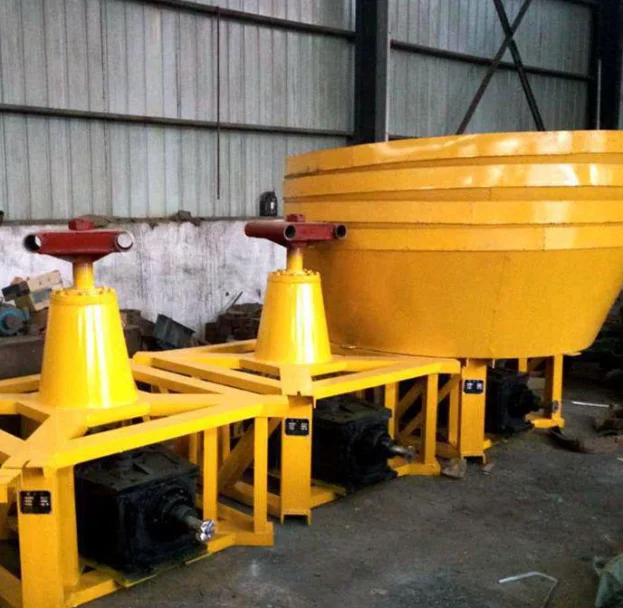

Structure of the product
Product Paramenters
Model | Specification | input size (mm) | Rotation speed (r/min) | Power (kw) | Weight | Capacity |
(t) | (t/h) | |||||
1600 | 1600*400*200*500±20 | 30 | 20-22 | 30 | 14.5 | 6--10 |
1500 | 1500*350*200*460±20 | 30 | 20-22 | 22 | 13.5 | 5-8 |
1400 | 1400*250*150*350±20 | 30 | 16-18 | 18.5 | 8.5 | 3-5 |
1300 | 1300*250*150*350±20 | 30 | 16-18 | 15 | 7.5 | 2-4 |
1200 | 1200*200*80*250±20 | 30 | 17-19 | 11 | 5.5 | 1.5-2 |
1100 | 1100*200*80*250±20 | 30 | 17-19 | 7.5 | 5 | 1-1.5 |
1000 | 1000*200*80*250±20 | 30 | 13-15 | 5.5 | 4.5 | 1 |
900 | 900*200*80 | 30 | 10--15 | 5.5 | 3 | 0.5 |

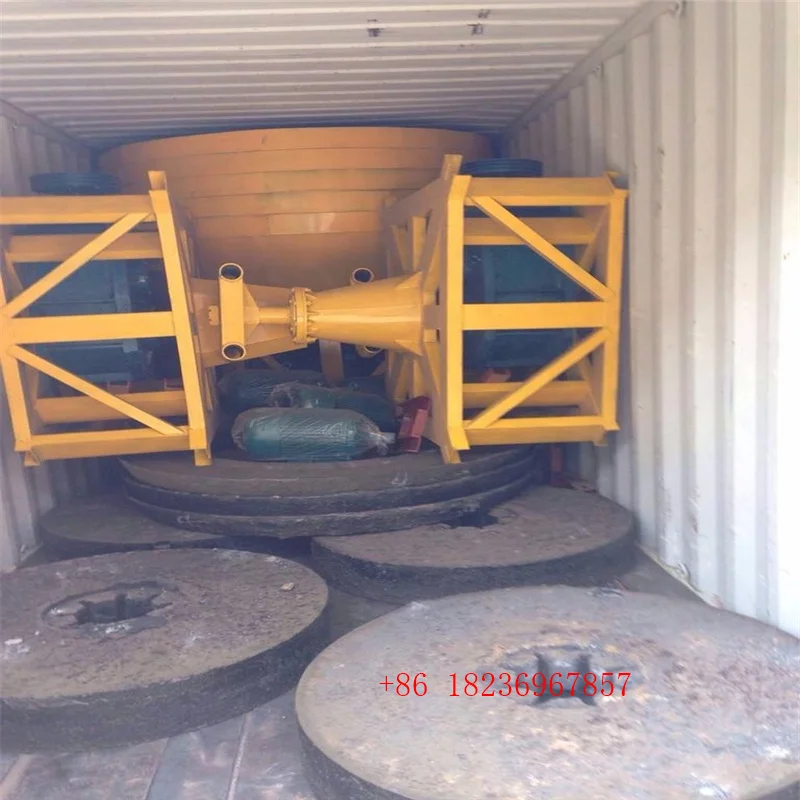

Packing and Delivery

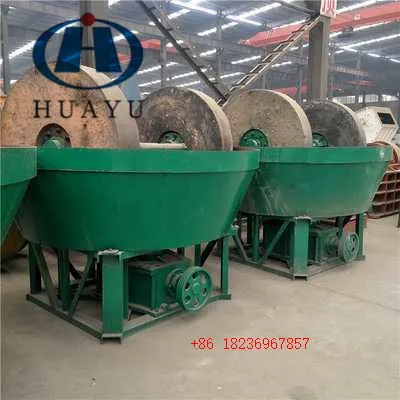

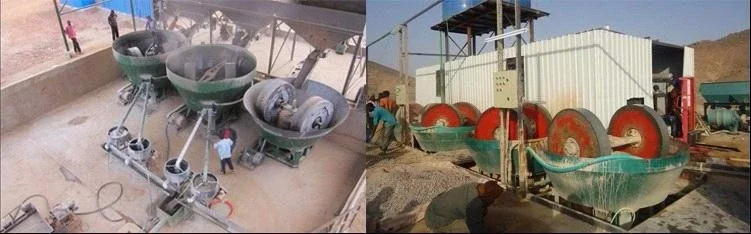

Customer Photos
Company Introduction
Zhengzhou Huayu Briquette Equipment Co., Ltd is a manufacturer of briquette machine with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in power plants and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online
brochure is available under request and we warmly welcome you to visit our factory.
2. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
3. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized according to your specific requirements, with your logo on is
also available and region agents are welcomed.
4. About the aftersale service, how can you solve the problems of your overseas
customer in time?
The machine warranty is 12 months, and during the warranty, we will arrange the international express immediately to deliver the
spare parts to the customers; and there are engineers available overseas.
5. How about price?
Yes, we are factory and be able to give you the lowest price than market one, of course,the discount is based on the quantity.
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online
brochure is available under request and we warmly welcome you to visit our factory.
2. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
3. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized according to your specific requirements, with your logo on is
also available and region agents are welcomed.
4. About the aftersale service, how can you solve the problems of your overseas
customer in time?
The machine warranty is 12 months, and during the warranty, we will arrange the international express immediately to deliver the
spare parts to the customers; and there are engineers available overseas.
5. How about price?
Yes, we are factory and be able to give you the lowest price than market one, of course,the discount is based on the quantity.
Trust us and don't hesitate to contact when you have a need
Welcome you to our factory for a visit.
