Kitchen grease ventilation air pipe duct cleaning machine equipment

Product Overview

Description

kitchen grease ventilation air pipe duct cleaning machine equipment with brush

kitchen grease ventilation air pipe duct cleaning machine equipment with brush





Brief introduction of Duct cleaning machine:

Duct cleaning machine, which is specially developed for kitchen fume ducts in restaurants,hotels, has an innovative brush and spray cleaner at the same time, which has efficient disinfection and cleaning capabilities.

Oil stain cleaning agent, hot water, brushing,three cleaning methods work together,excellent effect.

Features of Duct cleaning machine:

1.High power motor, cleaning greasy dirt easily.

2.Pneumatic foot switch, keep your hands and maintain safety.

3.Portable design, do not worry about transportation.

4.Double wire brush, remote pollution of heavy oil effectively. 5.Brush of various sizes for cleaning different duct sizes.

6.Adjustable rotation speed makes oil cleaning more convenient.

7.Integrate high pressure water spray at high temperature.

8.Wire brush head can spray cleaning agent,higher efficiency.

Technical Parameters of Duct cleaning machine:



Model	MN-200
Voltage	AC 220v
Power	1.5KW
Diameter	200-800mm
Length	15meter
Spray capacity	3L/min
Size	1000*580*1000mm
Weight	93KG
Rotating speed	0-1400r/min



Suction pump Technical Parameters

Power	0.37KW
Flow	2.7m³/h
Size	630*210*260mm
Weight	6.7KG



Packing list



Machine	1pcs
Flexible shaft	1pcs
Foam generator	1 pcs
Cleaning brush	5pcs
Spray gun	1pcs
User manual	1pcs
Warranty card	1pcs
Machine	1pcs

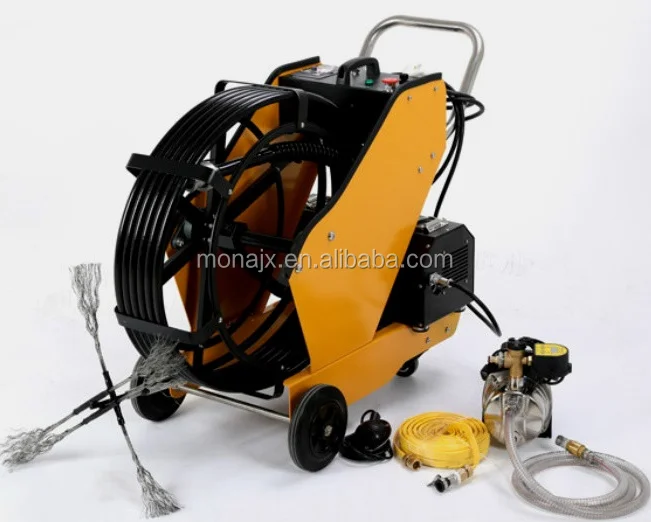

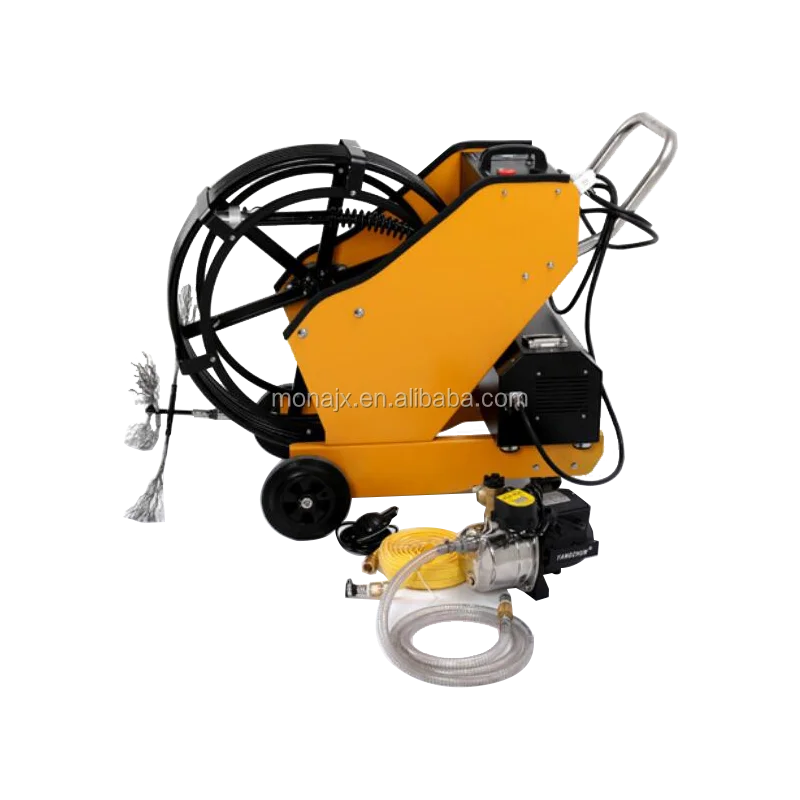

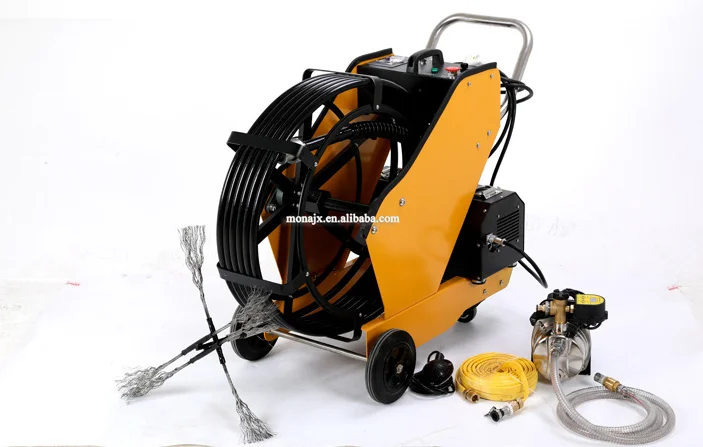

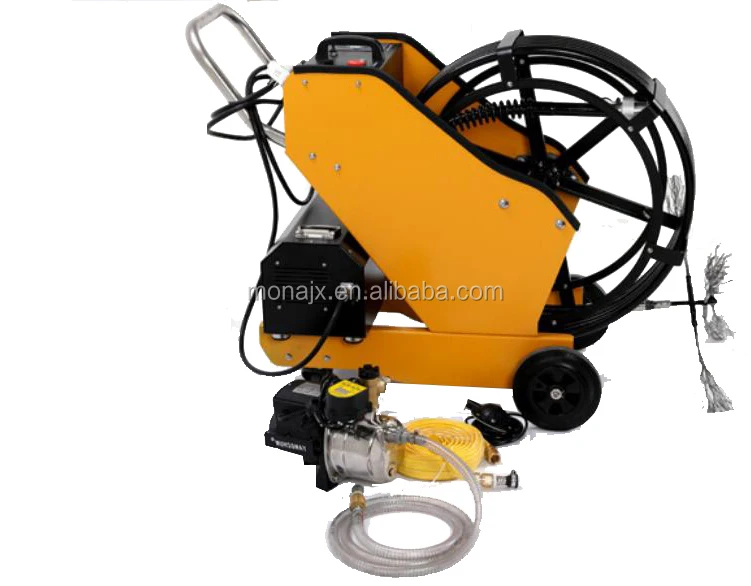

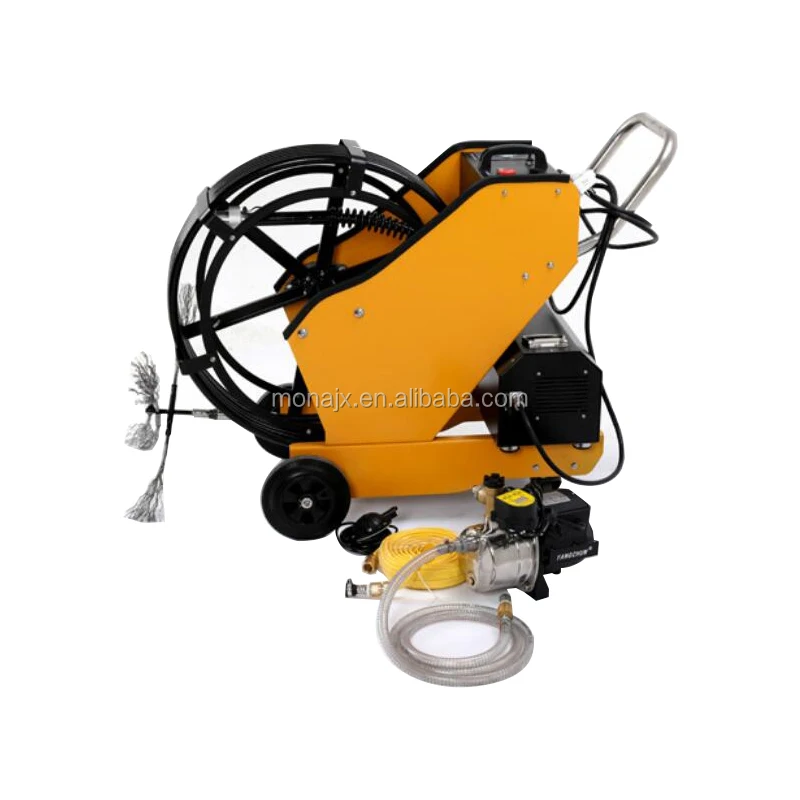

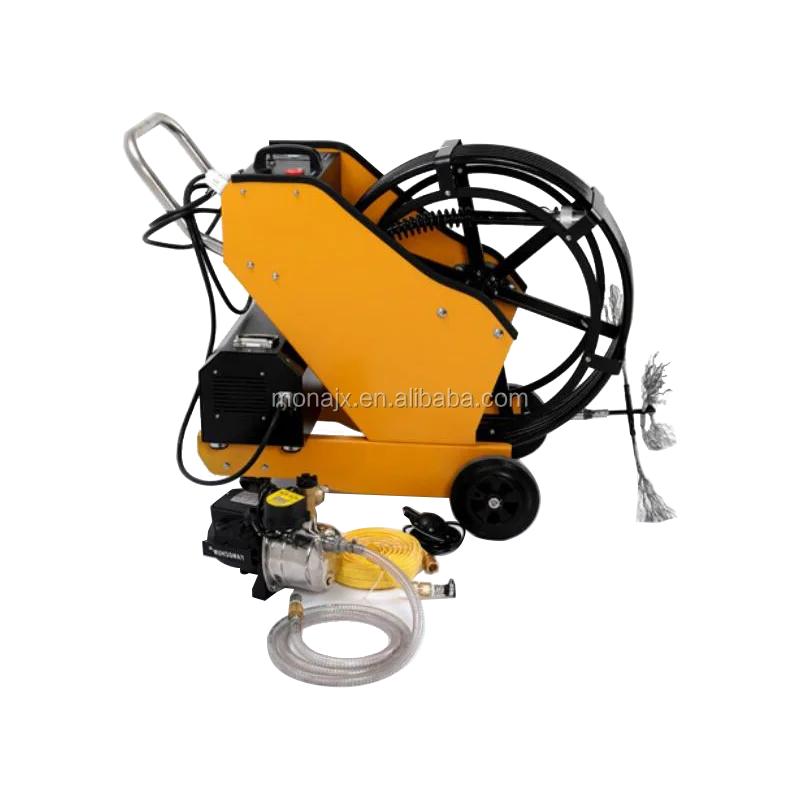

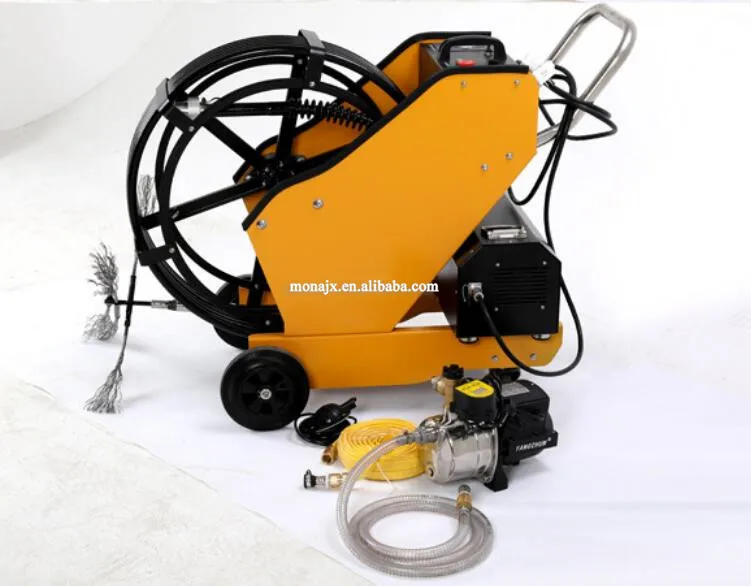

Picture shows of of Duct cleaning machine:
