200 ton melamine urea plastic cup making machine with PLC

Product Overview

Description

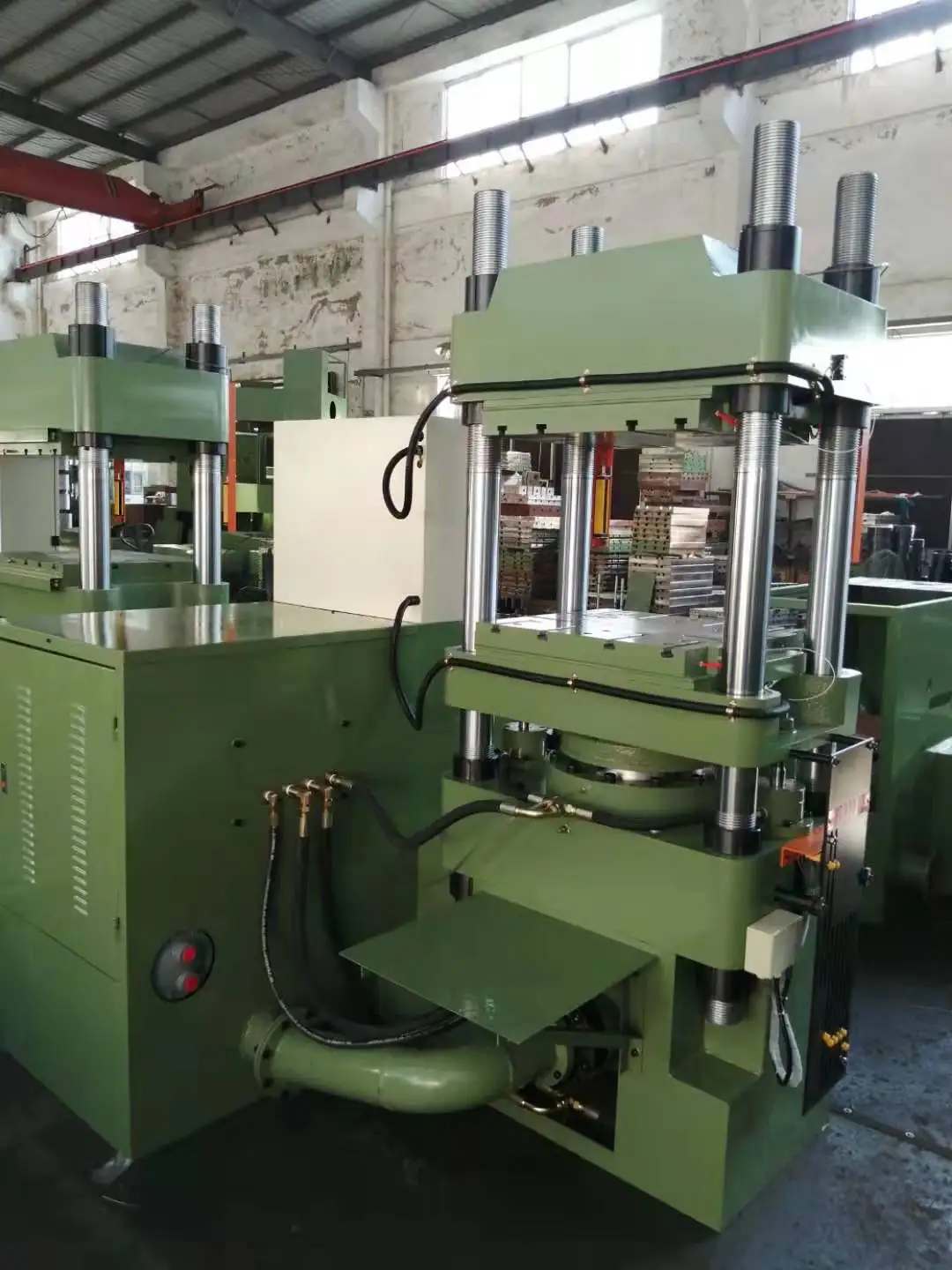

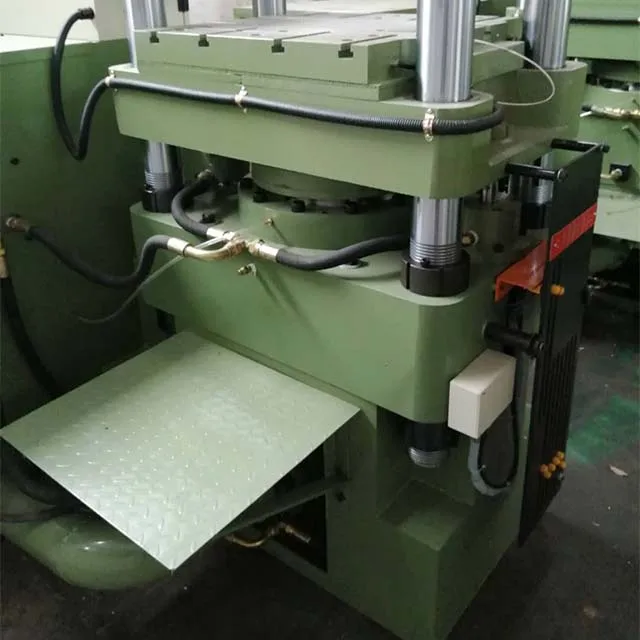

200 ton melamine urea plastic cup making machine



YIHAO has been specialized in manufacturing melamine urea plastic cup making machine for over 15 years. From the source to the finished products, we can provide the whole melamine dinner set production line, including all the related equipment, mold, decal paper and raw material. The following are the detailed product information.

Machine Specifications:

clamping force	ton	200
piston diameter	mm	350

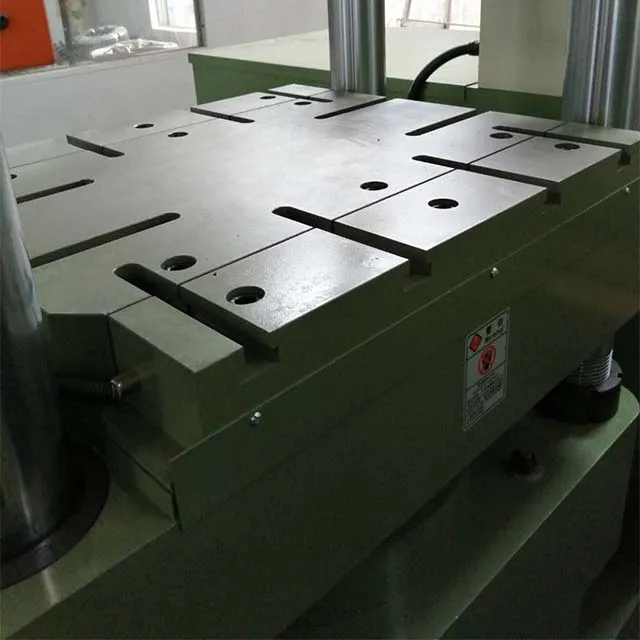

platen size	mm	600*650MM
stroke	mm	500
maximum opening stroke	mm	750MM
pump pressure	kg/cm2	210
oil tank volume	L	405
motor power	hp(kw)	10(7.5)
heating power	kw	12
total wattage	kw	19.5
machine dimension	m	1.85*1.5*2.4
machine weight	ton	4



More Options:



Machine features:

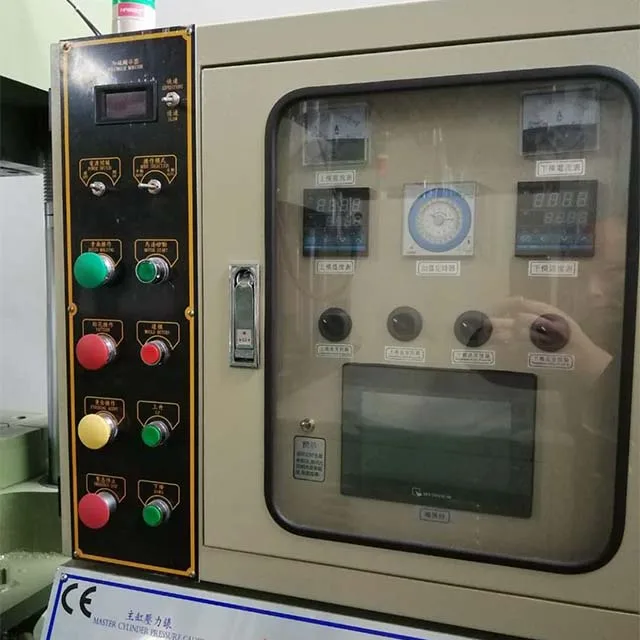

1. PLC control system, simple operation, low failure rate, easy maintenance.

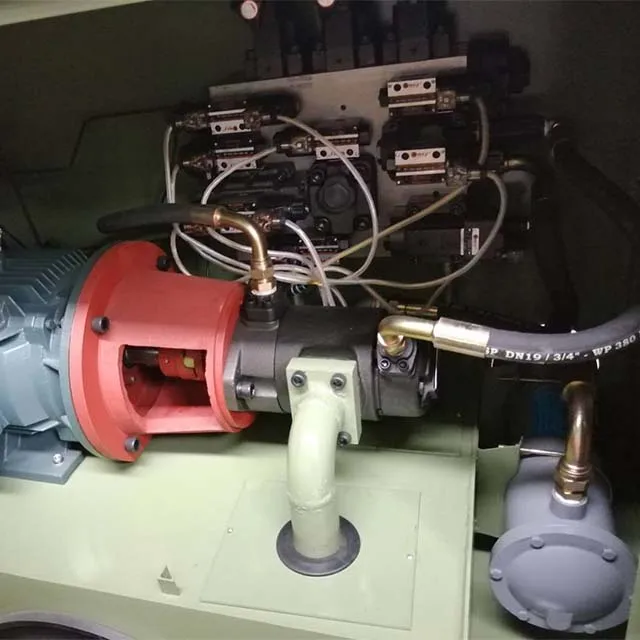

2. High and low pressure loop system, the machine moves smoothly without noise, high and low speed free adjustment.

3. Adopting safety grating to ensure safety operation.

4. Suitable raw material: melamine, bamboo fiber, urea, bakelite, fiber and other thermosetting material.







1. we have over 15 years of experience in melamine making machine industry,

2. provide one-stop factory building services, make it easier, efficient, and cost effective for you to build the melamine production line.

3. the engineers team is always on standby to solve problems and follow up.

4. the machines have high production capacity.

5. the machine has good quality, not easy to break down.











1. for small problems, we offer online video technical support.

2. for big problems, we will send engineer to your factory to repair machines for you

3.for new machine installation and commissioning, we will send engineer to your factory.





In June 2004, due to business expansion, we set up factory in Dongguan city Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory is engaged in professional R & D and manufacturing high precision hydraulic presss rubber moulding machine, toilet seat cover moulding machine, melamine tableware molding machine, melamine tableware molding machine, double-color melamine moulding machine, cup mode melamine tableware molding machine, double-layer toilet seat cover moulding machine, mahjong moulding machine and so on.After several years of development, the factory has professional production line and technical personnel to ensure good quality machines.The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment. We are willing to work with new and old customers to create a better future.



200 ton melamine urea plastic cup making machine
