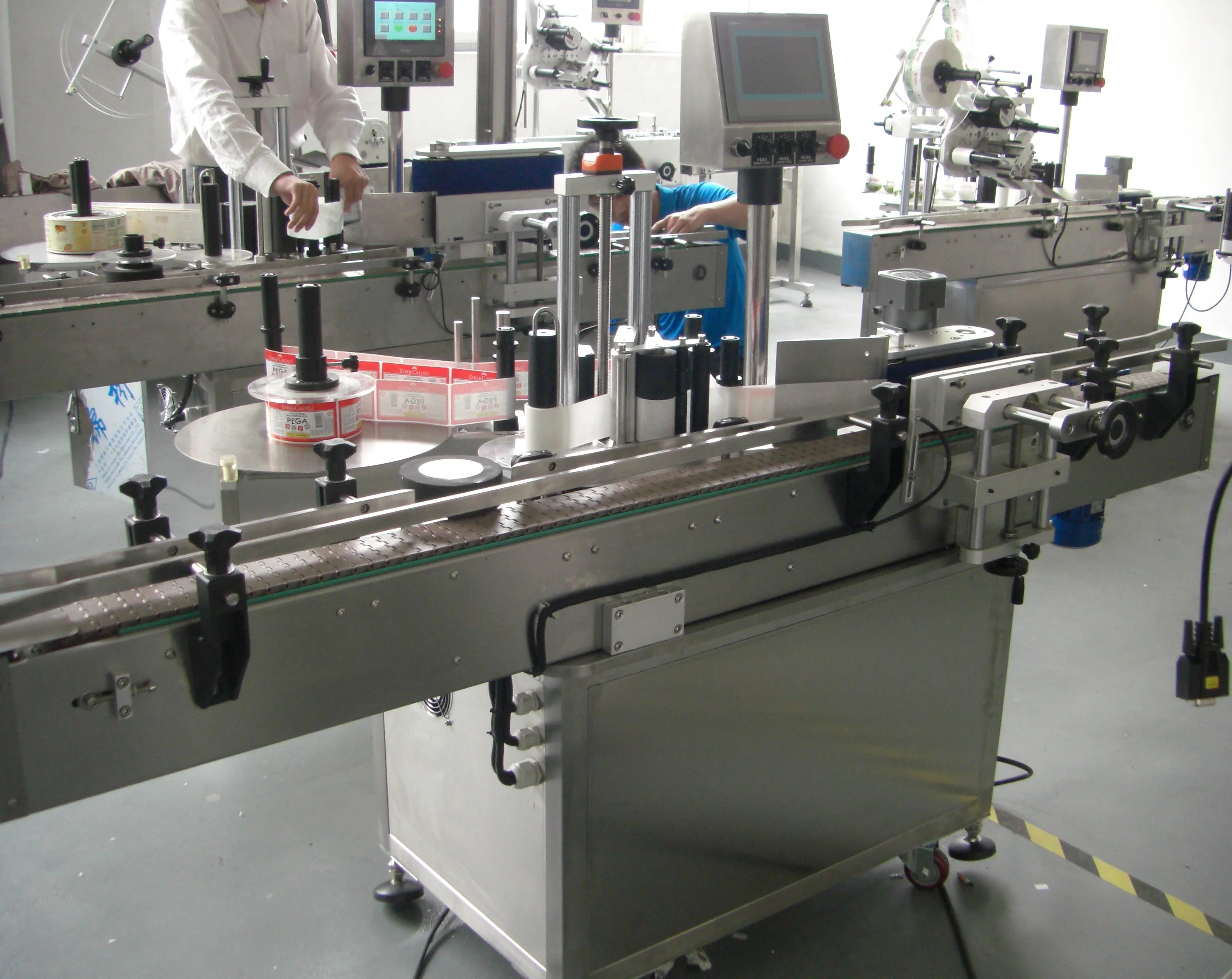

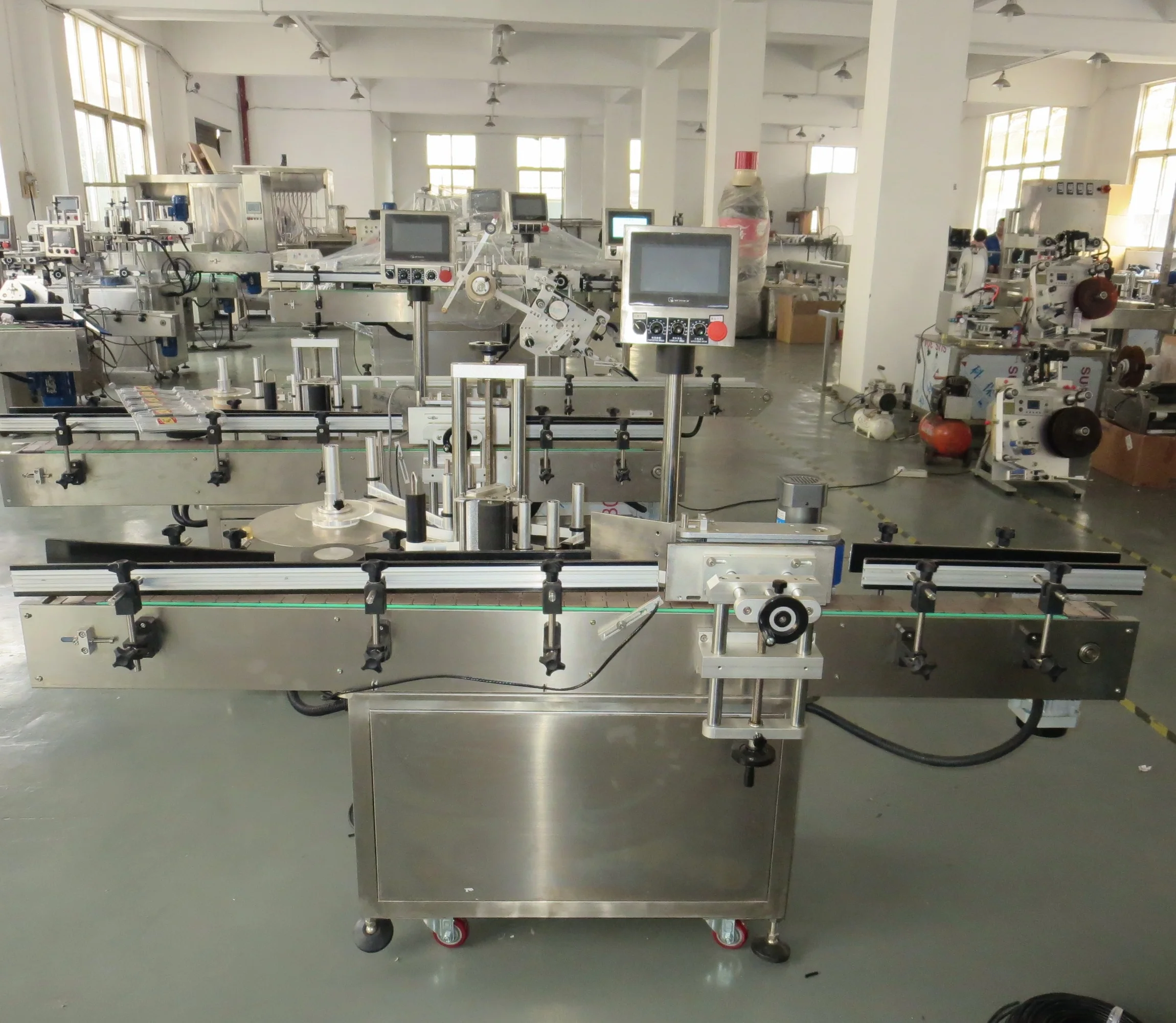

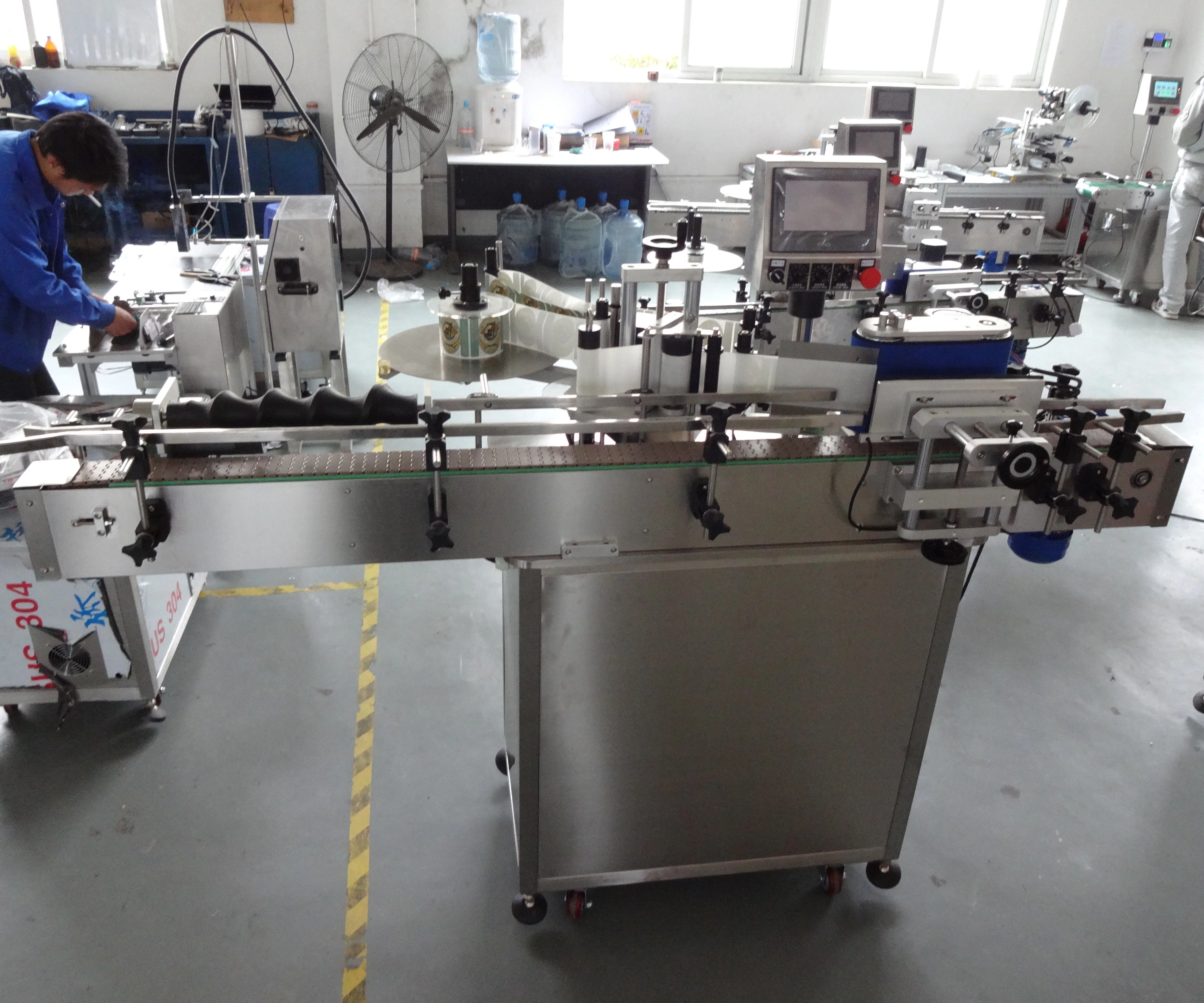

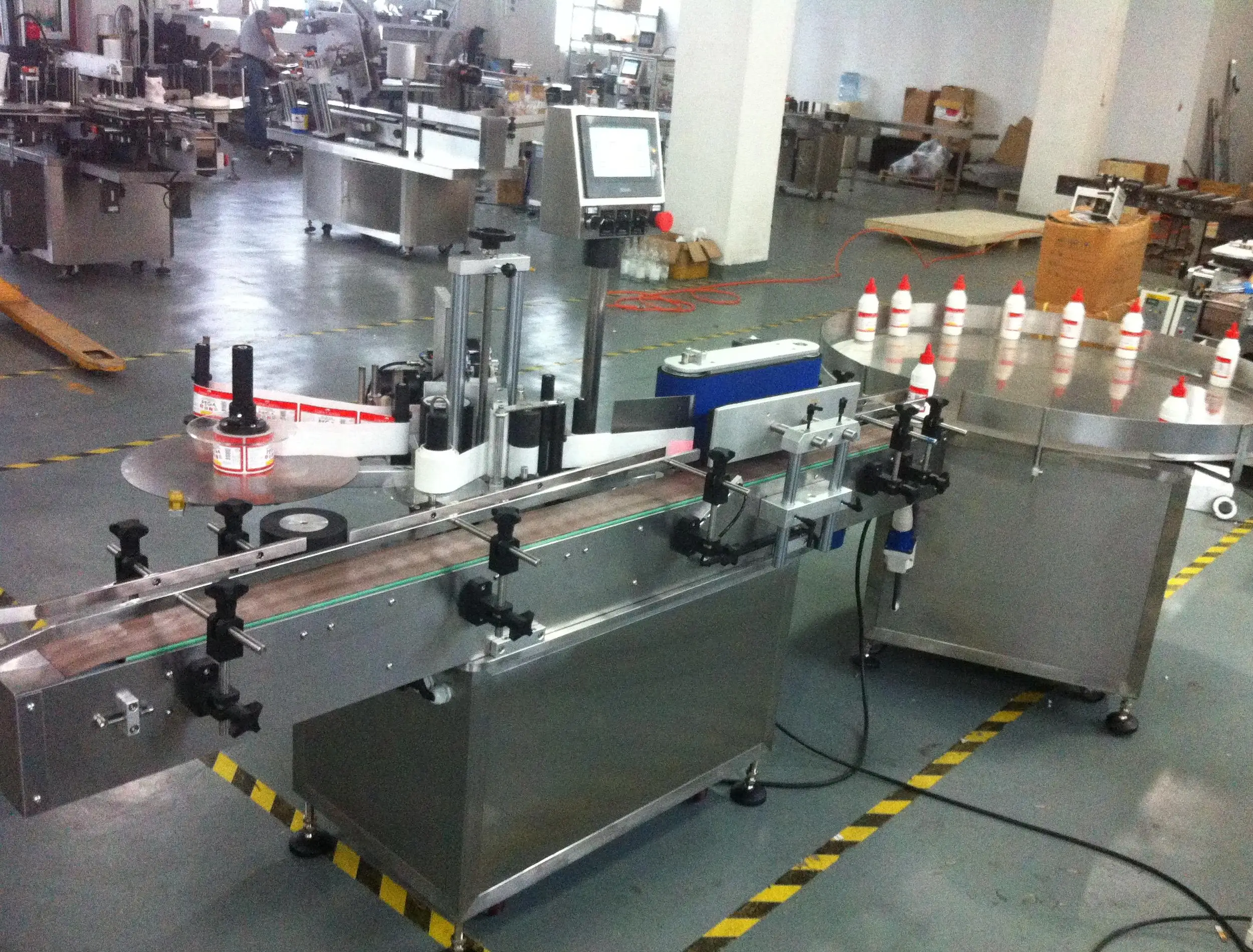

YIMU YM 510 Full Automatic Cylindrical Nutella Glass Bottle Labeling Machine
- Category: >>>
- Supplier: Shanghai Yimu Machinery Co. Ltd.
Share on (62589329115):
Product Overview
Description
1. Machine suitable for any round shape product labeling.
2. PLC and touch screen control panel with easy operation, many units parameter setting and save.
3. Automatic stop when label breaks down or runs out, Malfunction self-testing and display with alarm.
4. Machine can use alone or connect with filling packing line use.
5. All components are precisely processed by CNC to ensure high quality.
6. All electrical configurations are big international brand, such as Siemens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.
7. High labeling accuracy, long-time using.
2. PLC and touch screen control panel with easy operation, many units parameter setting and save.
3. Automatic stop when label breaks down or runs out, Malfunction self-testing and display with alarm.
4. Machine can use alone or connect with filling packing line use.
5. All components are precisely processed by CNC to ensure high quality.
6. All electrical configurations are big international brand, such as Siemens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.
7. High labeling accuracy, long-time using.
Product Paramenters
Model | YM510 |
Capacity (PCS/min) | 0-80（depond on bottle and label size） |
Conveyor running side | from left to right / from right to left |
Conveyor speed(meter/min) | ≤40 |
Labeling error | ＜ ±0.5 mm |
The inner diameter of label roll | 76 mm |
The outer diameter of label roll | 360 mm(max) |
Suitable for label size | W:5-300mm, L:10-500mm |
Suitable size of labeling objects | any size |
Power supply（In China） | AC220V 50/60HZ single phase （customized） |
Power | 600W |
Weight | 300 KG |
Machine size | 2000（L） 800 (W) 1650 (H) mm |
Detailed Images

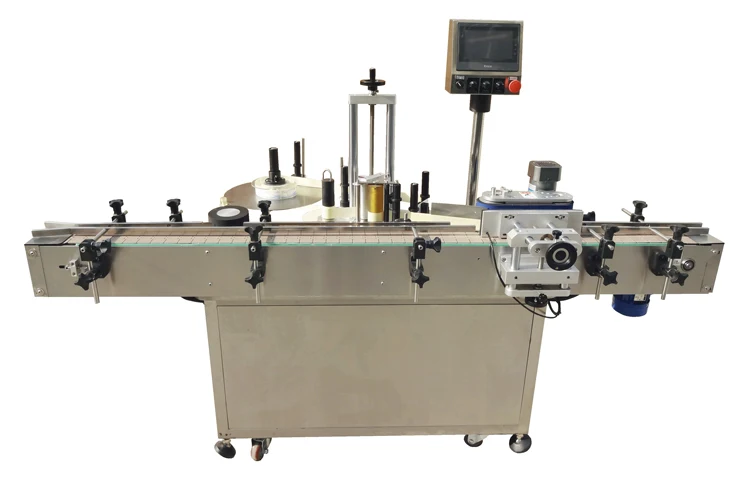

product strcture
Touch screen
Siemens touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameters, with production counting function,power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.
Ribbon Printer
It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging
process of bottle and improve production efficiency.
process of bottle and improve production efficiency.
PLC control system
Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine safe and running steadily.
Wrap around labeling device
Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label.
Bottle Dispersing
The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function ,can be produced in a single machine , and also can be connected with the production line .
High quality labeling head
1. It can be adjusted automatically according to the label height.
2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.
Applicaiton
Type:Round bottle, jar, can, tin.
Material:Plastic, glass, metal.
Label:preprinted label or transparent label.
Material:Plastic, glass, metal.
Label:preprinted label or transparent label.
