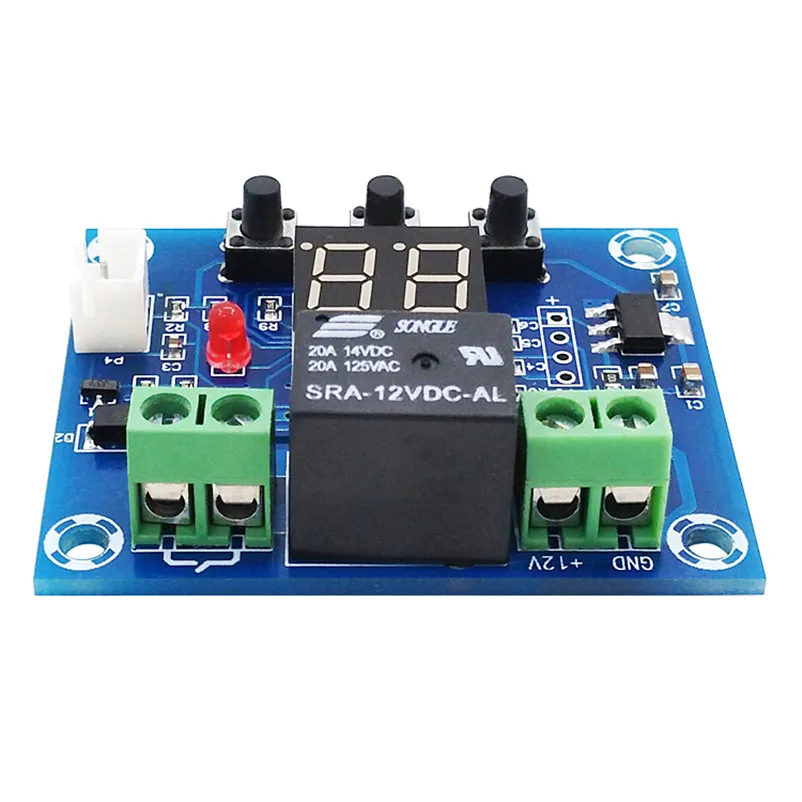

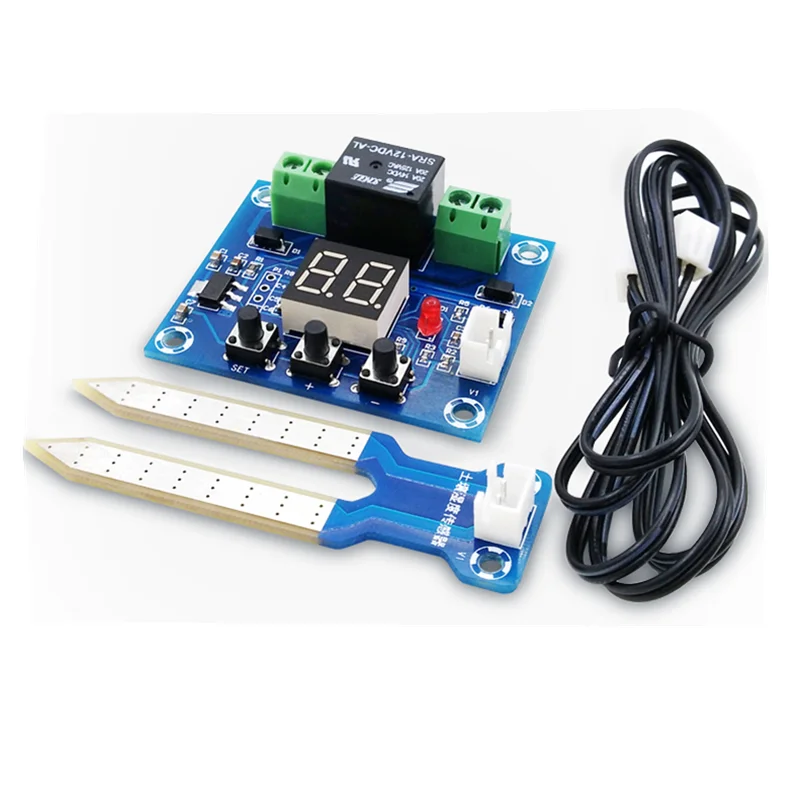

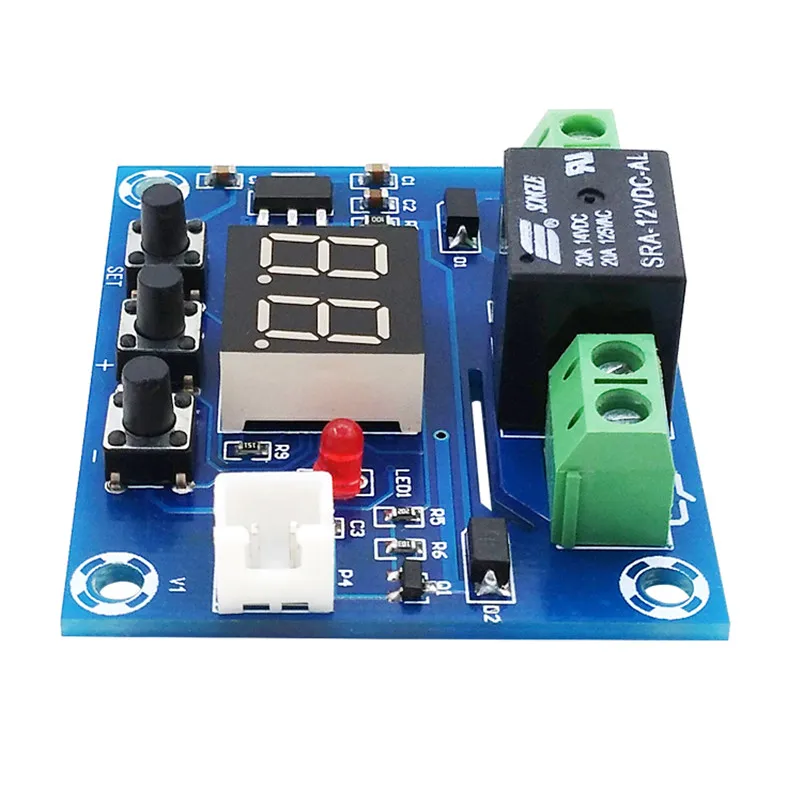

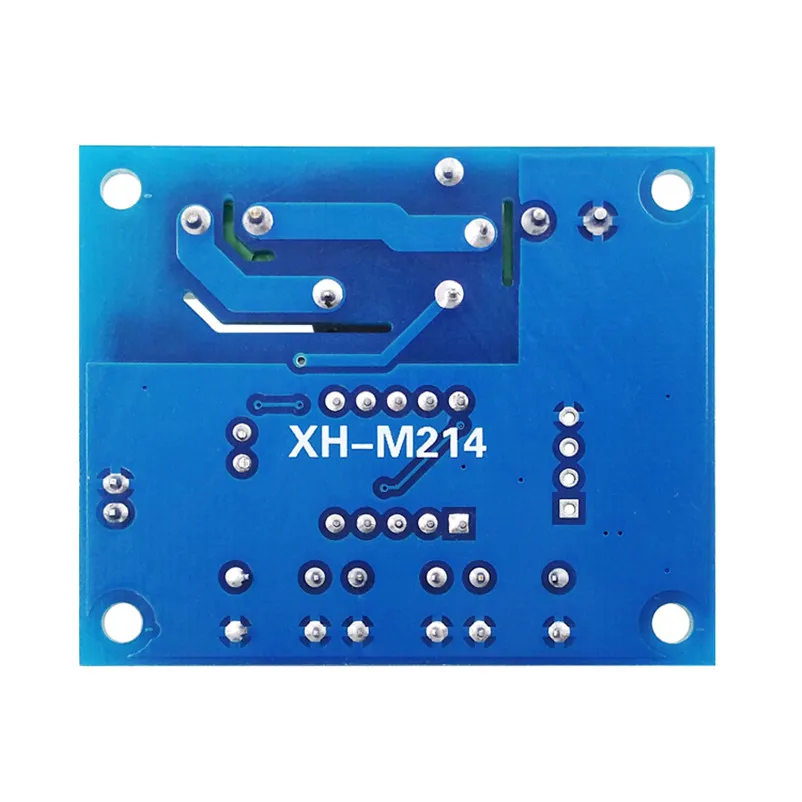

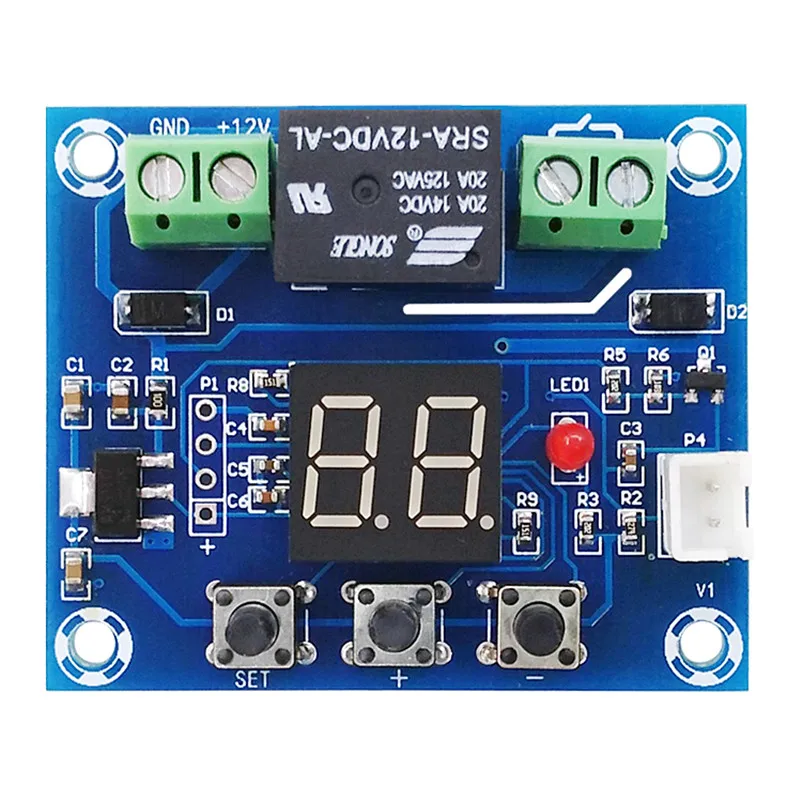

RDS Electronics XH M214 Soil Moisture Module Digital Display Soil Sensor Humidity Controller board

 Parameters:
Model: XH-M214
Current control: 10 A
Supply voltage: DC 12V
Control accuracy: 1% RH
Output way: output switch
Humidity range: 20-99% RH

How to use:
You can choose the appropriate wiring mode based on the voltage load you use.
1. F0 setting start humidity (the humidity of the solenoid valve or the pump start working)
Press the "SET" button to display "F0"
and press the "SET" button to display the beginning of humidity,
and press + / button for "SET" the humidity value.

2. F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working)
Press +/- button to switch to "F1",
press the "SET" button to display the humidity value stop,
and press + / button to SET the humidity value.

3. F2 correction humidity
Normal use without error correction.
The correction of values in the use of multiple modules at the same time,
is conducive to a unified operation operation.

Applications:
Garden plants
Moisture detection
Intelligent agriculture
