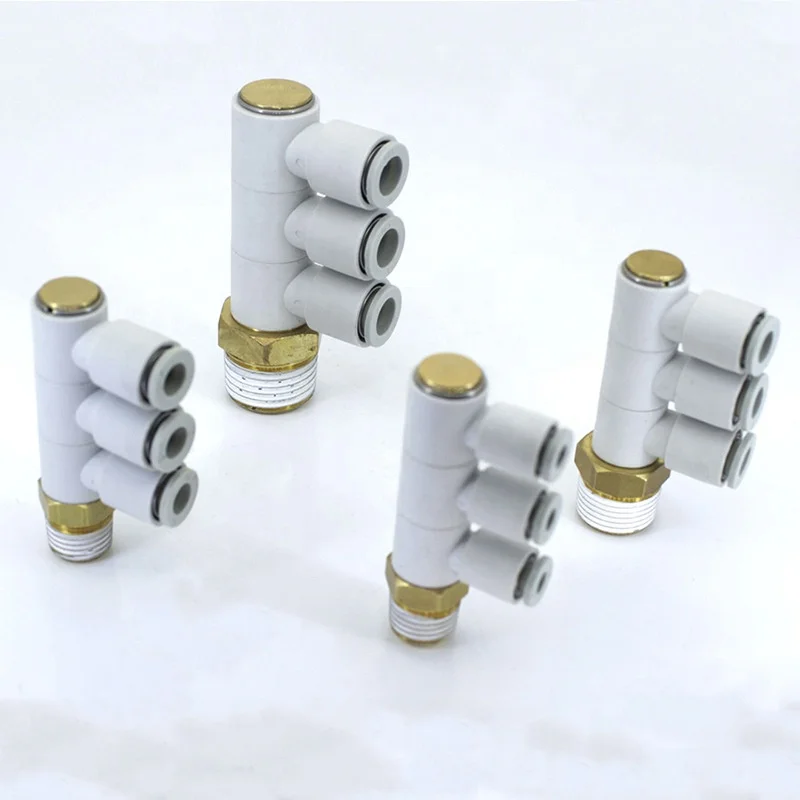

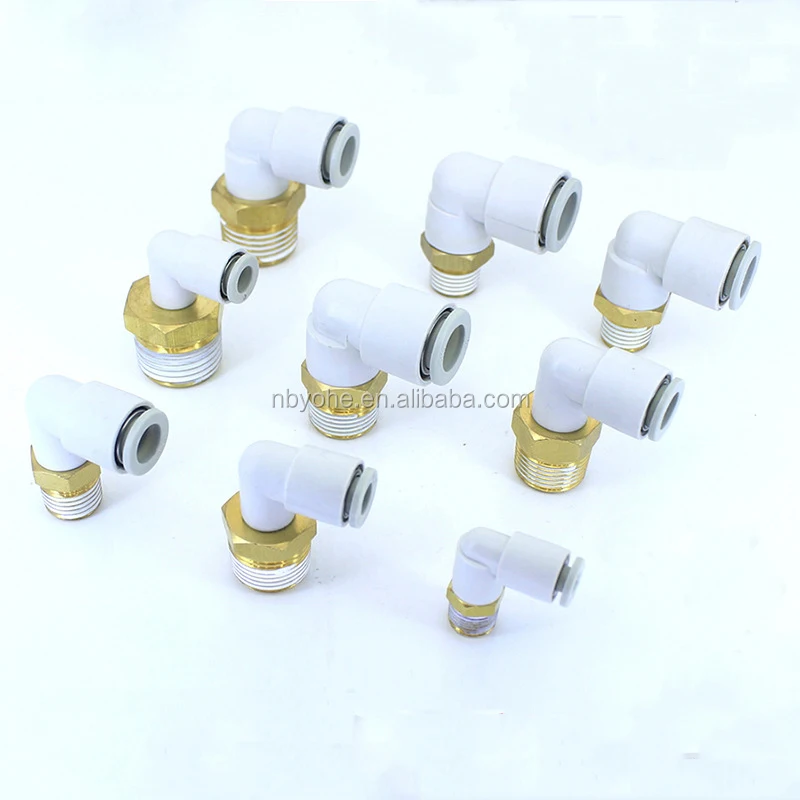

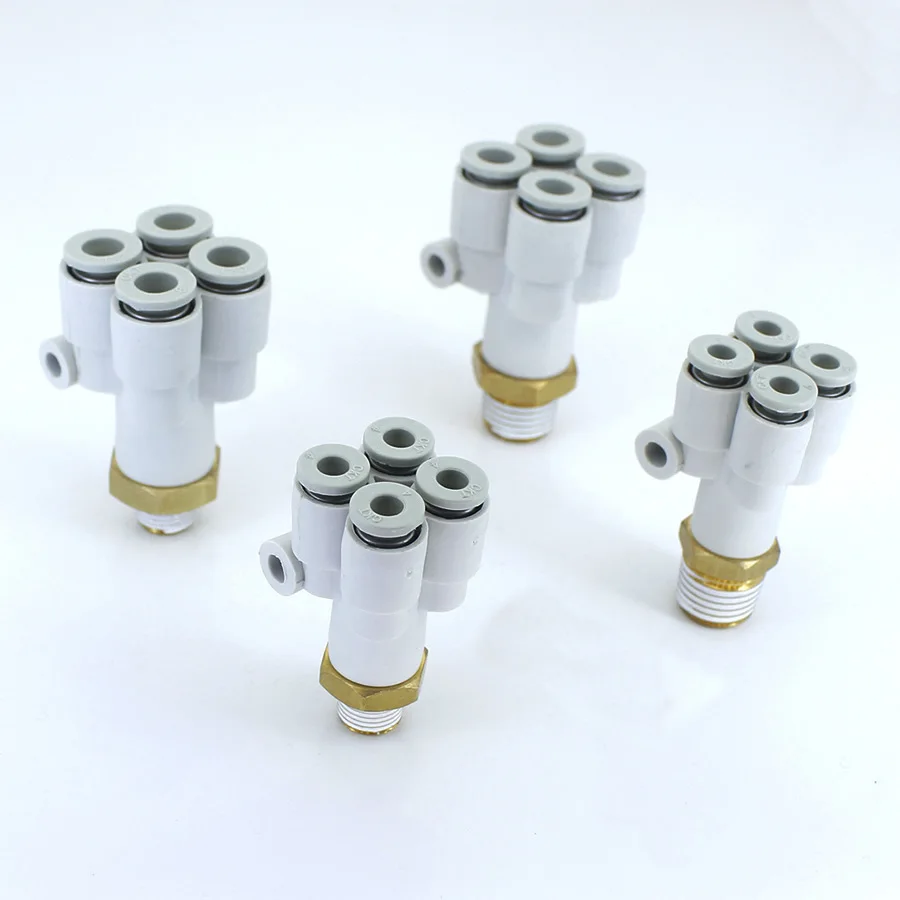

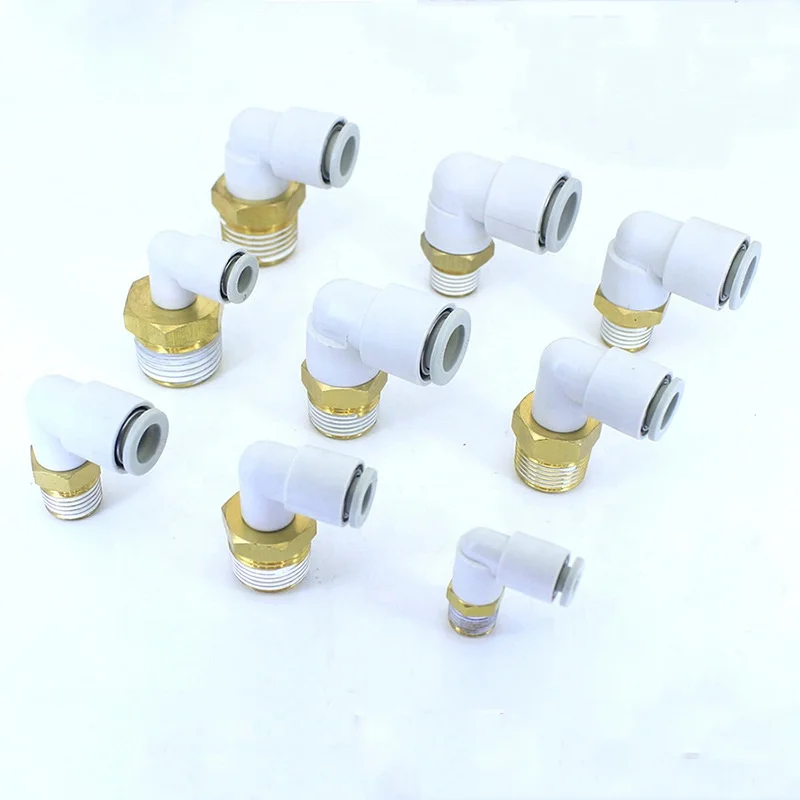

SMC Type Pneumatic Fitting/Air Fitting Kq2 Series (KJ/KQ2H/KQ2L/KQ2U/KQ2T SERIES)
- Category: >>>
- Supplier: Ningbo Yohe Supply Chain Co. Ltd.
Share on (62589540329):
Product Overview
Description
SMC TYPE PNEUMATIC FITTING KJ & KQ2 SERIES
Miniature One-touch Fittings KJ Series
One-touch Mini Type
Applicable Tubing: ø 3.2, ø 4, ø 6
Connection Thread: M3, M5, R 1/8

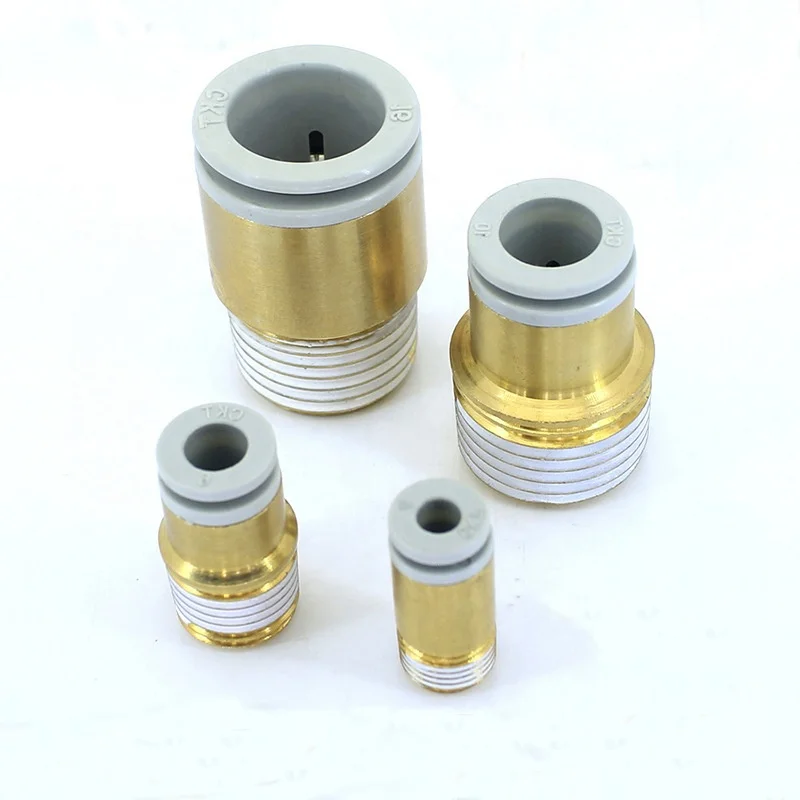

One-touch Fittings KQ2 Series
Applicable Tubing: ø 4, ø 6, ø 8, ø 10, ø 12, ø 16
Connection Thread: M5, M6, R1/8, R1/4, R3/8, R1/2
Release button (Light gray)
Light force for removal
When the fitting is removed from the tubing, the chuck and collet are released, thus preventing
Them from biting into the tube to an unnecessary degree. Unique shape allows easy tube release.
Specifications
Fluid Air/Water
Maximum operating pressure 1.0 MPa
Operating vacuum pressure 100 kPa
Proof pressure 3.0 MPa
Ambient and fluid temperature 5 to 60° C, Water: 0 to 40° C (No freezing)
Thread seal (Standard) With thread seal
Copper/Copper-free (Standard) Brass/Brass parts are all electroless nickel plated.
Ordering Code
| R(PT)Thread | ||||
| Code | 1 | 2 | 3 | 4 |
| Size | R1/8" | R1/4" | R3/8" | R1/2" |
| NPT Thread | ||||
| Code | N1 | N2 | N3 | N4 |
| Size | NTP1/8" | NTP1/4" | NPT3/8" | NPT1/2" |
| G(PF)Thread | ||||
| Code | G01 | G02 | G03 | G04 |
| Size | G1/8" | G1/4" | G3/8" | G1/2" |
