Landpack LP 350B 3ply Facemask Face Masks Mask Package Packaging Packing Machine
- Category: Multi-Function Packaging Machines >>>
- Supplier: Foshan Land Packaging Machinery Co. Ltd.
Share on (62589653311):
Product Overview
Description

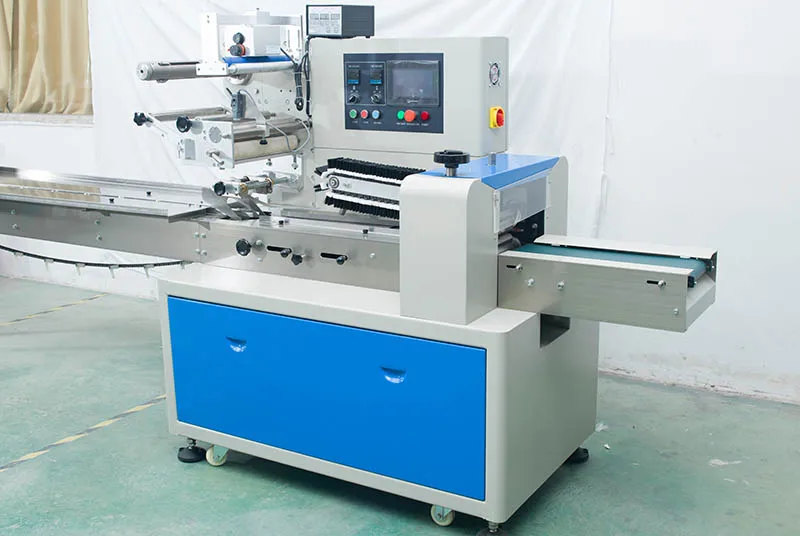

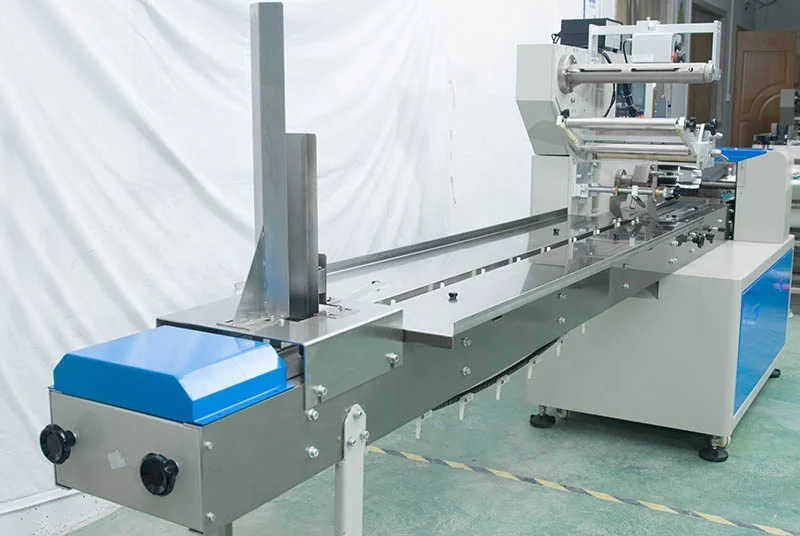

Landpack LP-350B 3ply Facemask Face Masks Mask Package Packaging Packing Machine
Features
1.Three Servo control, automatically detect product length and cut, operator needn't to adjust the unloading working, saving time and saving films.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
Specification
Specification (With the product size selection models) | ||||||||
Model | LP-350 | LP-400 | LP-450 | LP-600 | ||||
Film Width | Max.350mm | Max.400mm | Max.450mm | Max.600mm | ||||
Bag Length | 65-330mm | 150-400mm | 150-450mm | 160-500mm | ||||
Bag Width | 50-160mm | 50-180mm | 50-180mm | 50-280mm | ||||
Products High | max.60mm | max.65mm | max.75mm | max.110mm | ||||
Packing Speed | 40-180bag/min | 30-150bag/min | 30-150bag/min | 20-150bag/min | ||||
Power | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | ||||
Machine Size(mm) | 4020x770x1420 | 4020x770x1420 | 4020x820x1420 | 4020x970x1500 | ||||
Machine Weight | 580kg | 600kg | 650kg | 680kg | ||||
(We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag Size required.)
Why Three Servo Motor?
1.Three servo motor, horizontal seal&vertical seal, film transport motor and material feeding will be controlled by three servo motor individually.
2.No material,No bag:It includes a sensor,Machine will stop working immediately (sealing&cutting&packing) once no material is detected on the conveyor belt.
3.Anti-cutting function:When the cutting occurs, the cutter is suspended immediately and The cutter will rebound when it touches the material.
2.No material,No bag:It includes a sensor,Machine will stop working immediately (sealing&cutting&packing) once no material is detected on the conveyor belt.
3.Anti-cutting function:When the cutting occurs, the cutter is suspended immediately and The cutter will rebound when it touches the material.

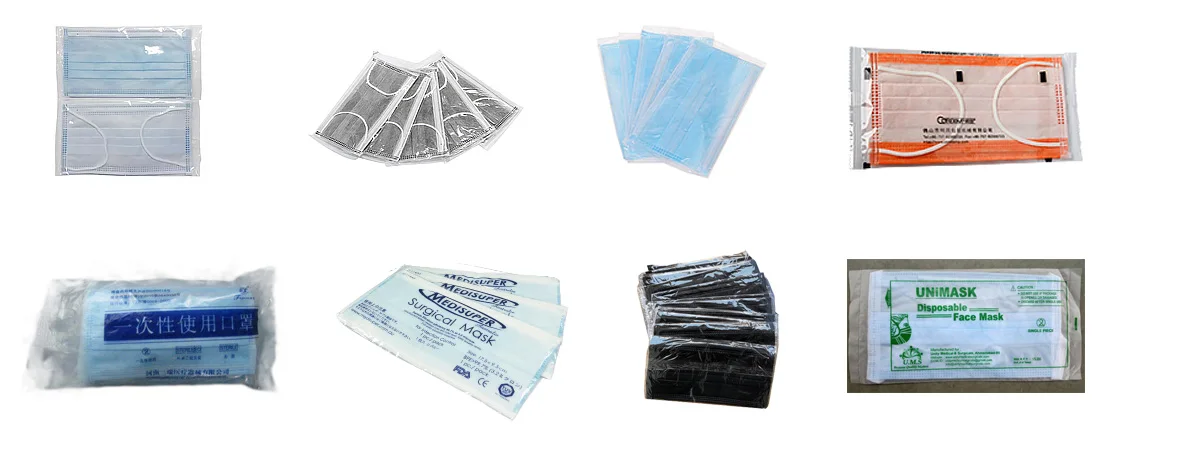

Application
It is suitable for Packaging soft, strip and unorganized objects like cookie, popsicle, hardware, face mask, towels, tissues, gloves, noodles, egg rolls, sausages, fish, ice-lollies, soft candies, wet tissue,diaper,vegetable and fruits etc.

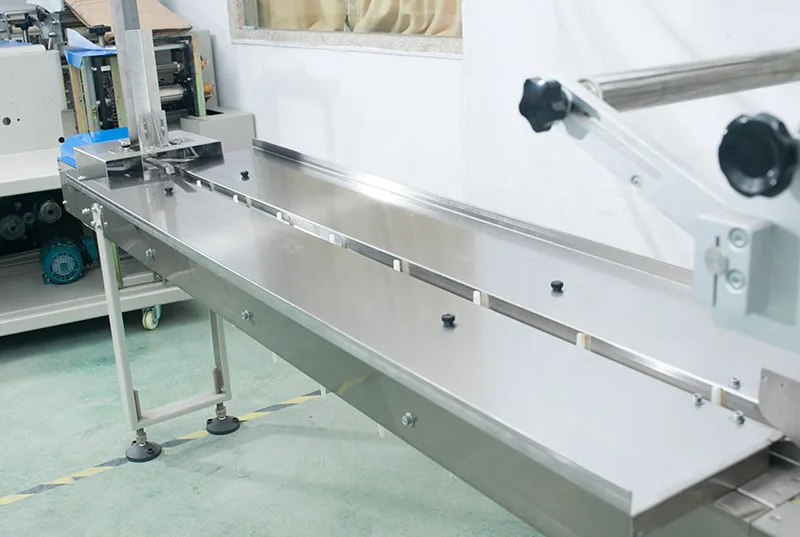

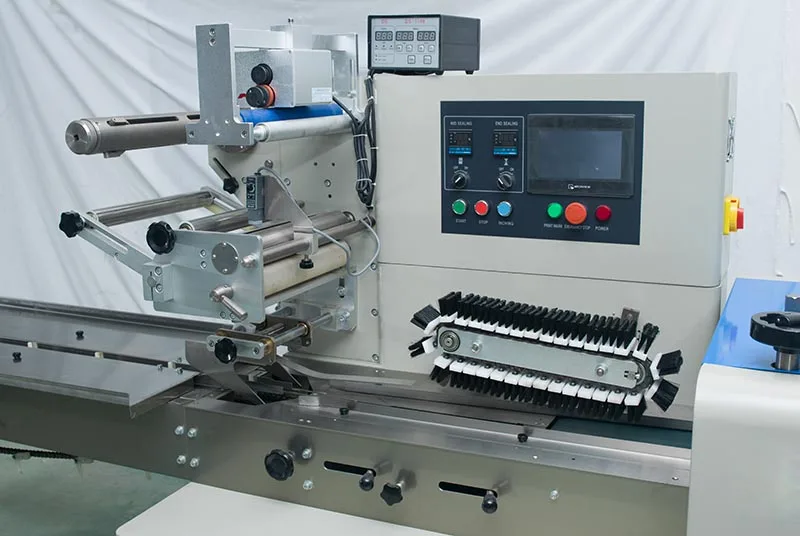

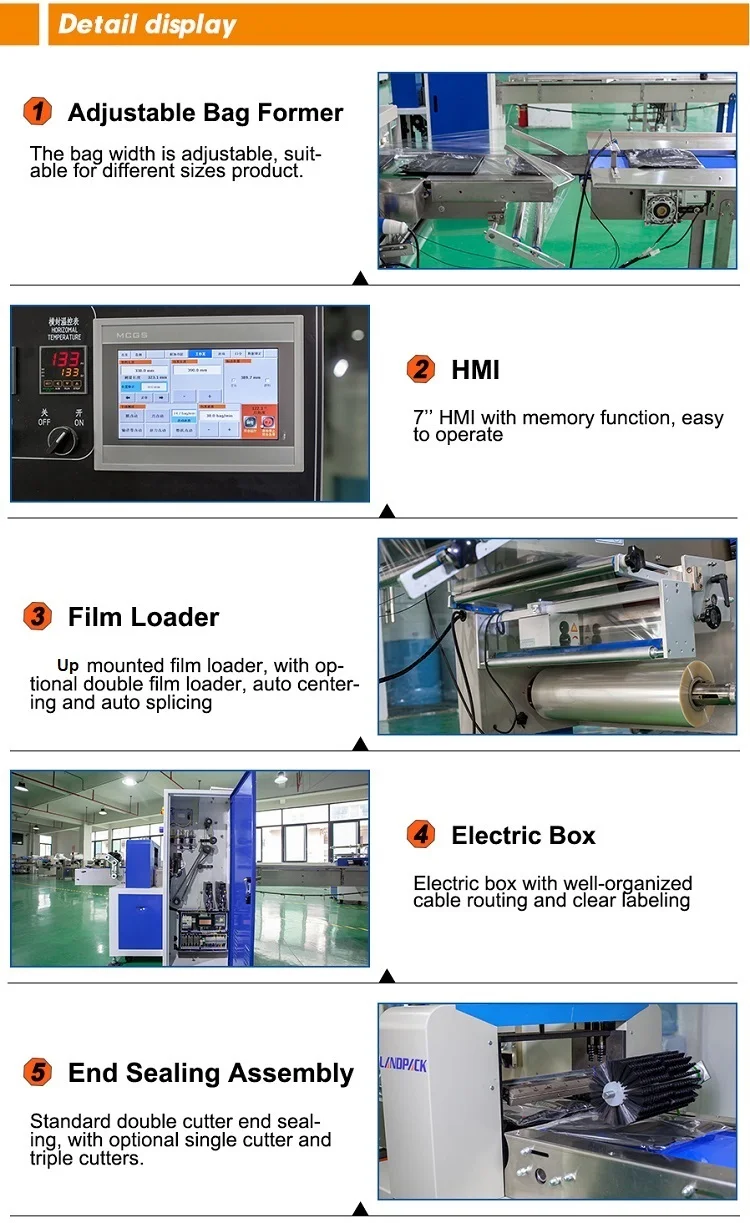

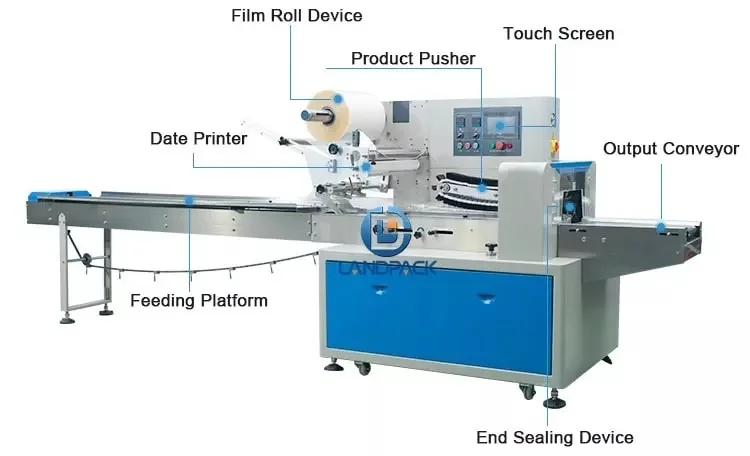

Details Images
Buyers Praise
Packing & Delivery
1、We use the wooden case to pack our packing machine
2、Upon receipt of payment , delivery date will be in 10-35 days, By Air, bySea or by Express (DHL etc) Shipment cost will depend on the destination, shipment way and the weight of the goods
Company Profie
Our Organization
The manufacturing plant and facilities, designed with modern criteria complying with CE directives, and the advanced process technology based on an economy of scale production, place LANDPACK among China producers for the top quality of products as well as for the quantity and variety of solutions proposed and sold. Research and Development Department is equipped with advanced tools and disposes of a qualified team of informatics, electronics and packaging experts involved in the study and experimentation of new solutions, indispensable for new projects and for the improvement of standard equipment.
Our Mission
Our aim is the complete customer's satisfaction, through research and trials of new automated packaging systems and technical
solutions.
Our Objective
Designing and building automatic packaging machines technologically advanced, durable and reliable, interfaced with modular
composed automatic feeders, easy to be integrated into automated packaging systems.
Our Sales and Service Network
Entrusted to Certified Agents of proven professional competence and expertise, employing Record trained service engineers,
stocking a suitable inventory of original spare parts for immediate delivery.
The manufacturing plant and facilities, designed with modern criteria complying with CE directives, and the advanced process technology based on an economy of scale production, place LANDPACK among China producers for the top quality of products as well as for the quantity and variety of solutions proposed and sold. Research and Development Department is equipped with advanced tools and disposes of a qualified team of informatics, electronics and packaging experts involved in the study and experimentation of new solutions, indispensable for new projects and for the improvement of standard equipment.
Our Mission
Our aim is the complete customer's satisfaction, through research and trials of new automated packaging systems and technical
solutions.
Our Objective
Designing and building automatic packaging machines technologically advanced, durable and reliable, interfaced with modular
composed automatic feeders, easy to be integrated into automated packaging systems.
Our Sales and Service Network
Entrusted to Certified Agents of proven professional competence and expertise, employing Record trained service engineers,
stocking a suitable inventory of original spare parts for immediate delivery.
Contact us

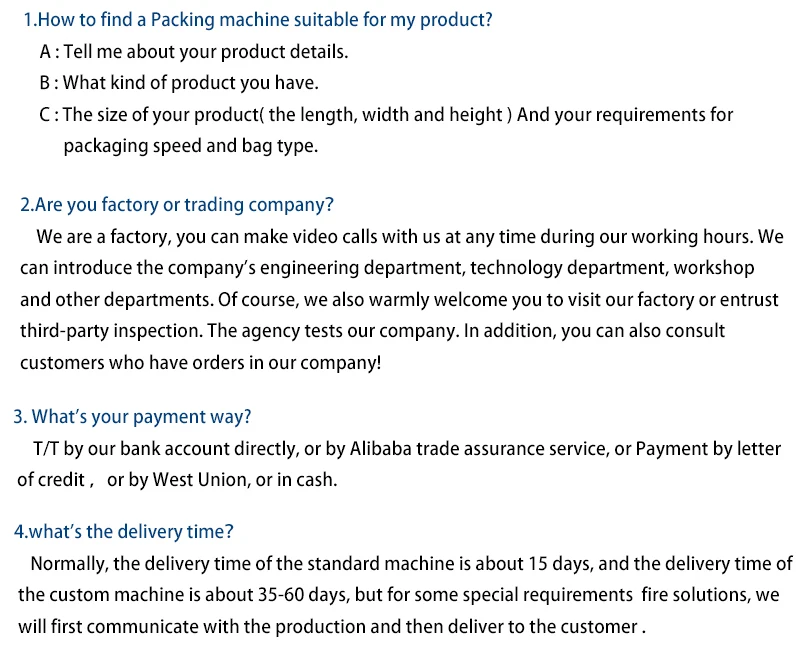

FAQ
