West Tune WTMD-06 6’’(dia: 150mm) 2.0~3.0L/h wiped film molecular distillation

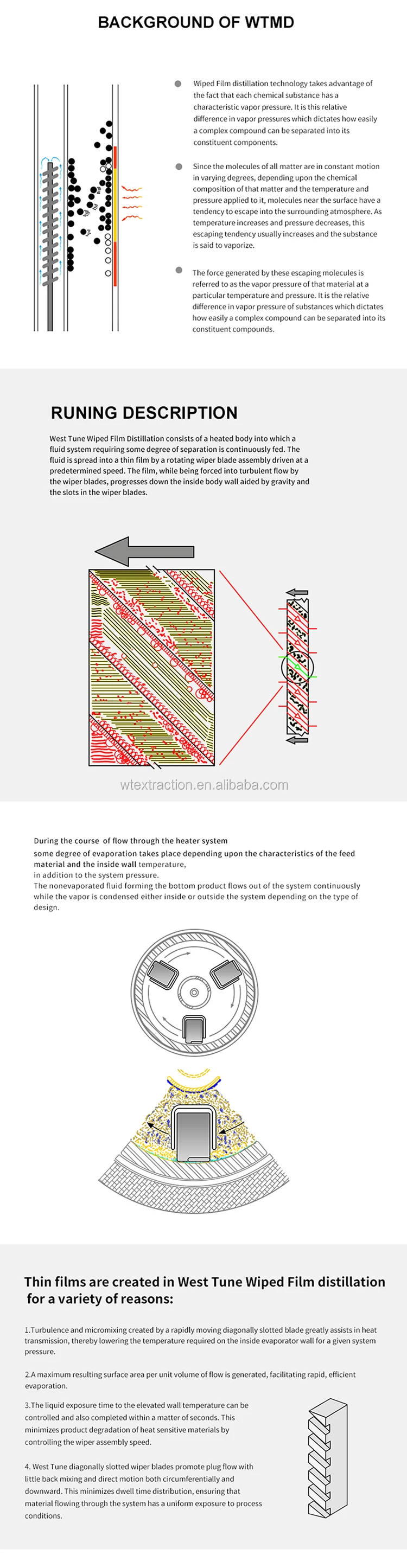

West Tune Wiped Film Molecular distillation is a special type of short-path, molecular distillation equipment.

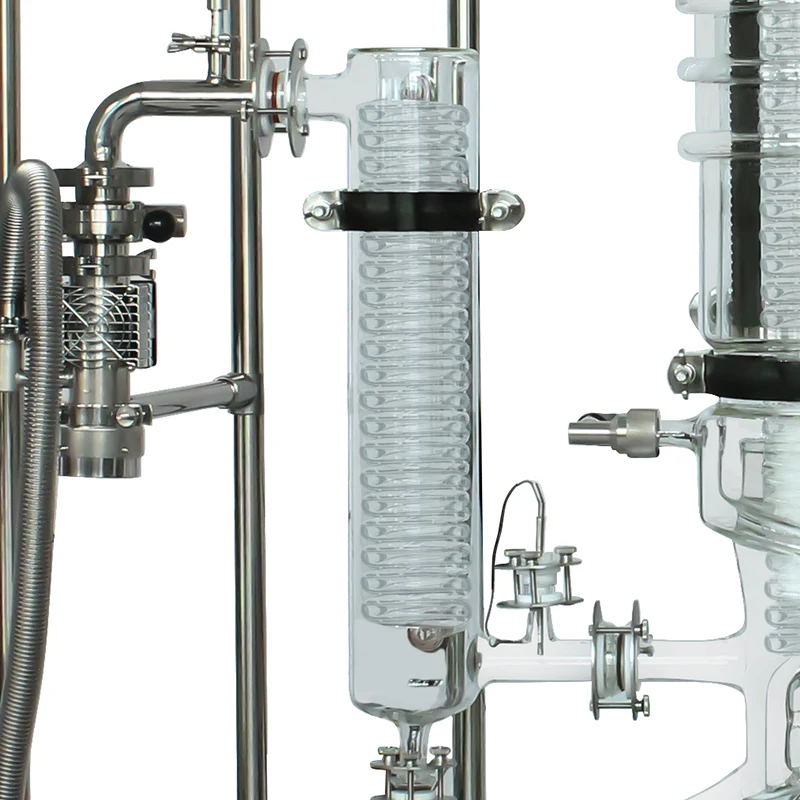

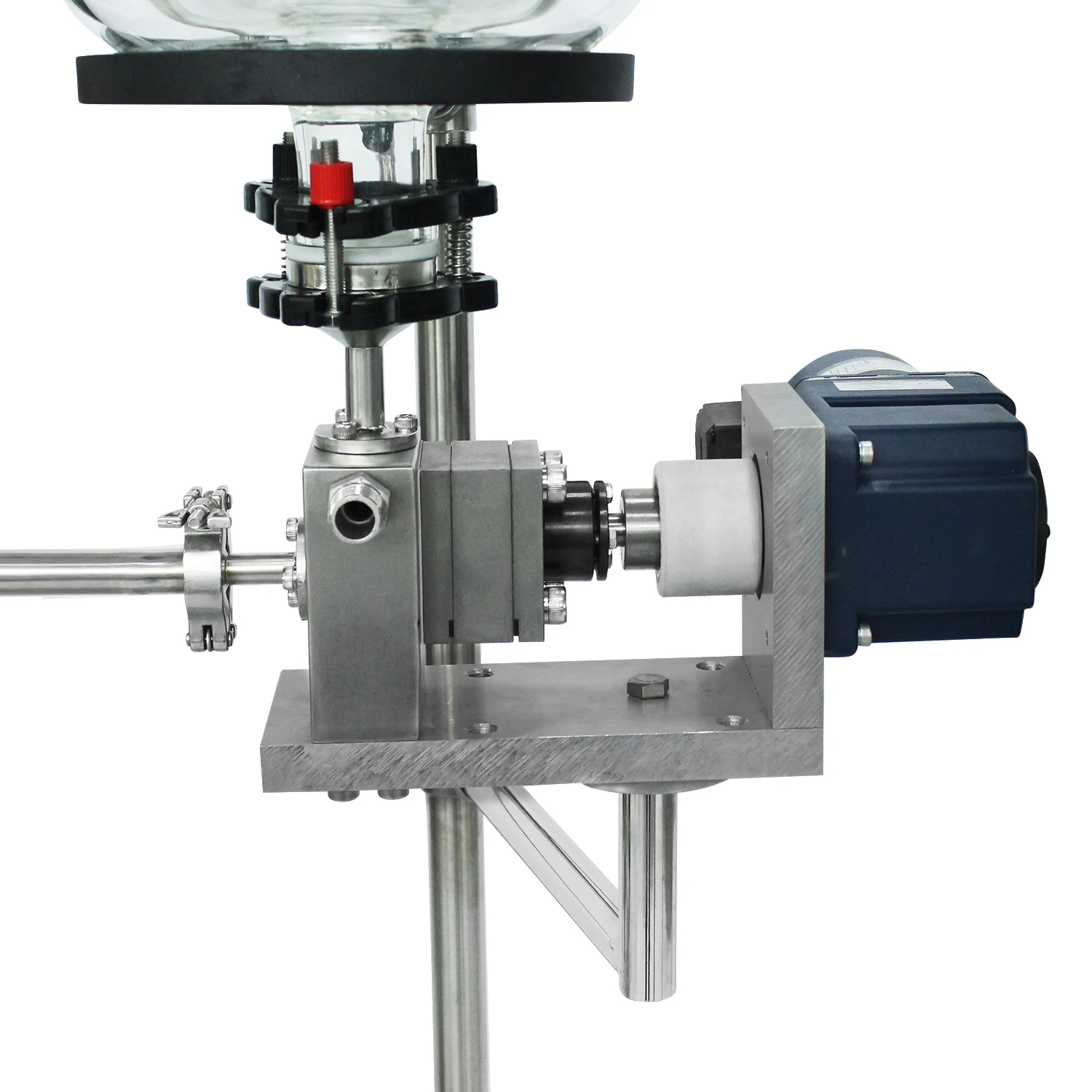

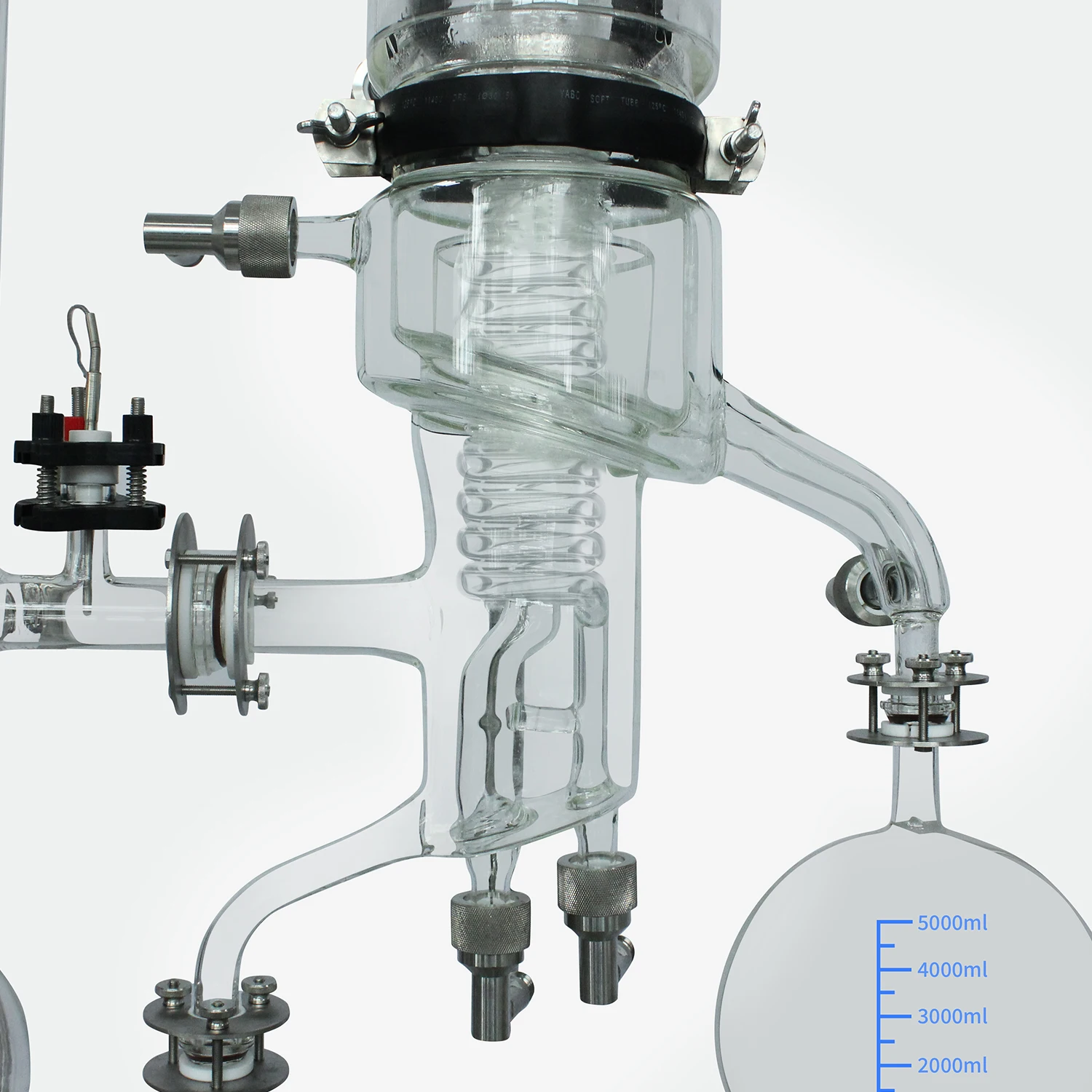

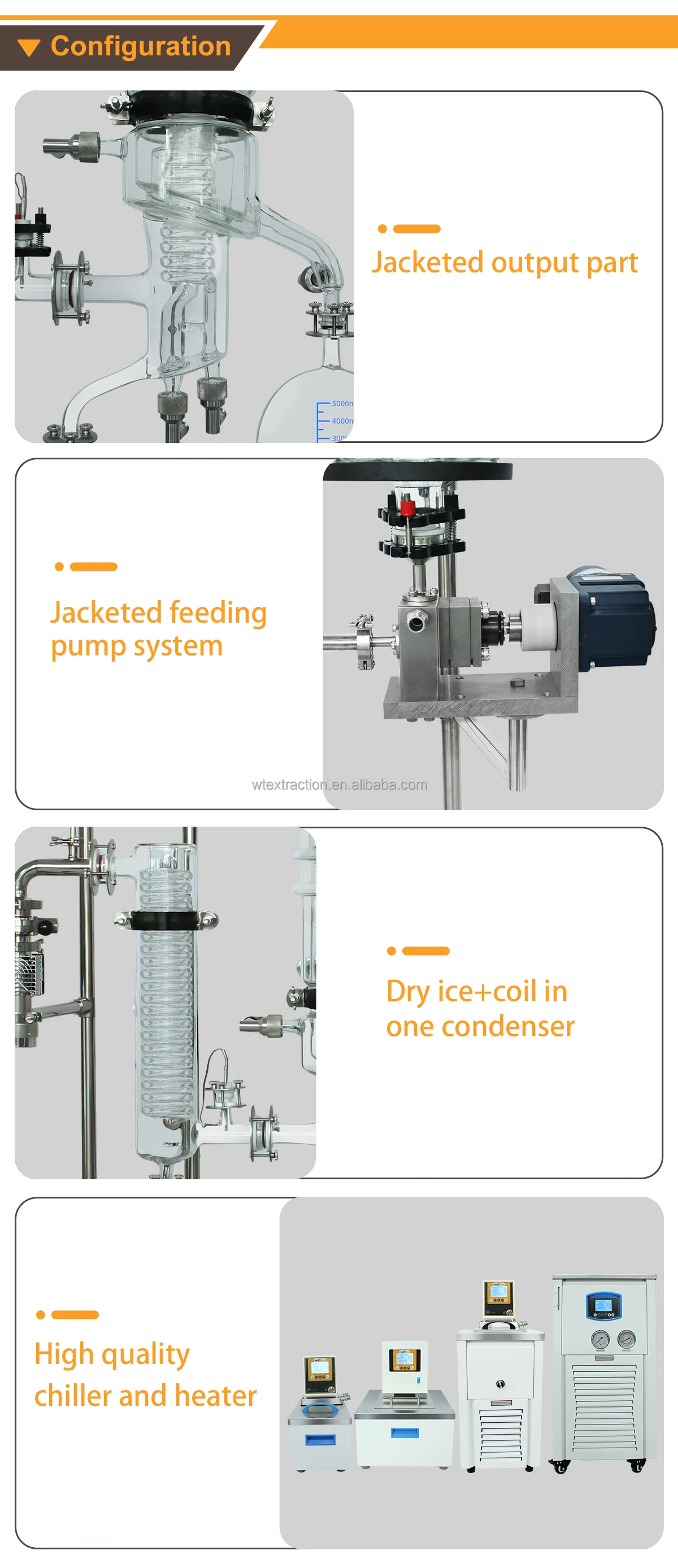

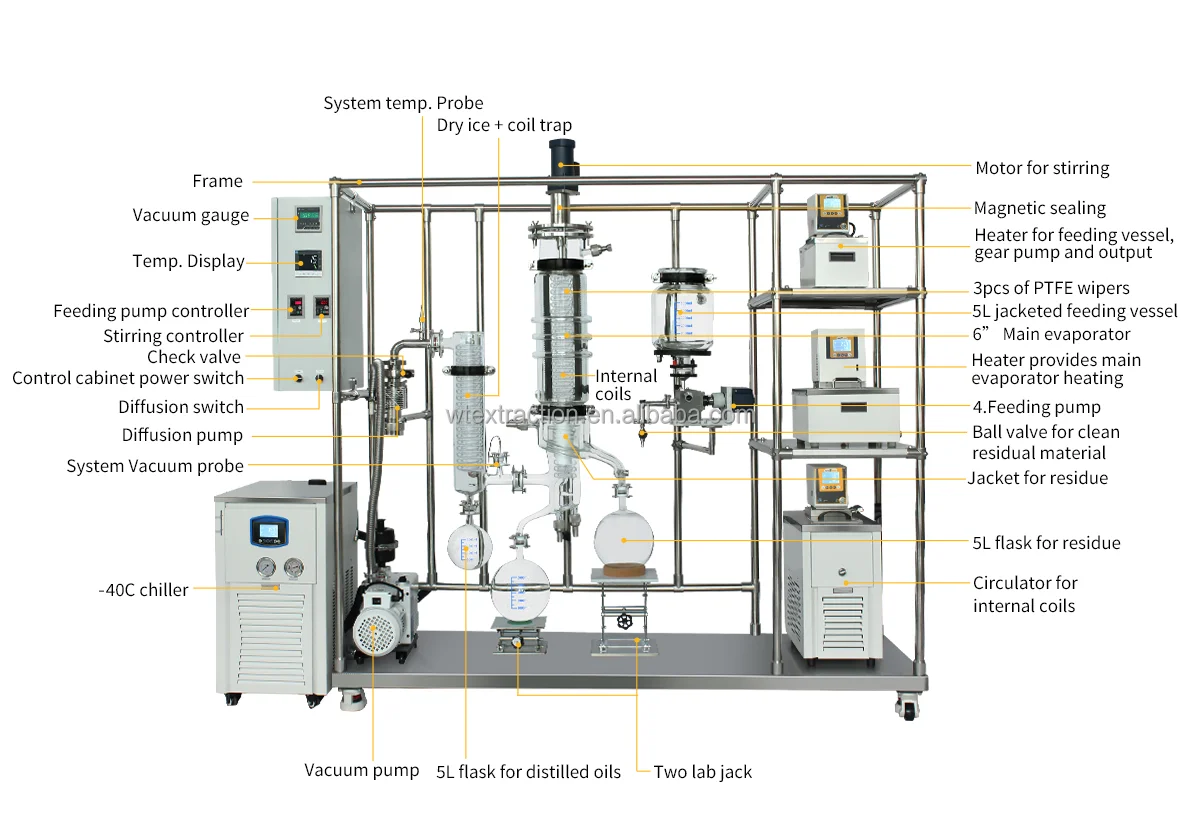

Details Images

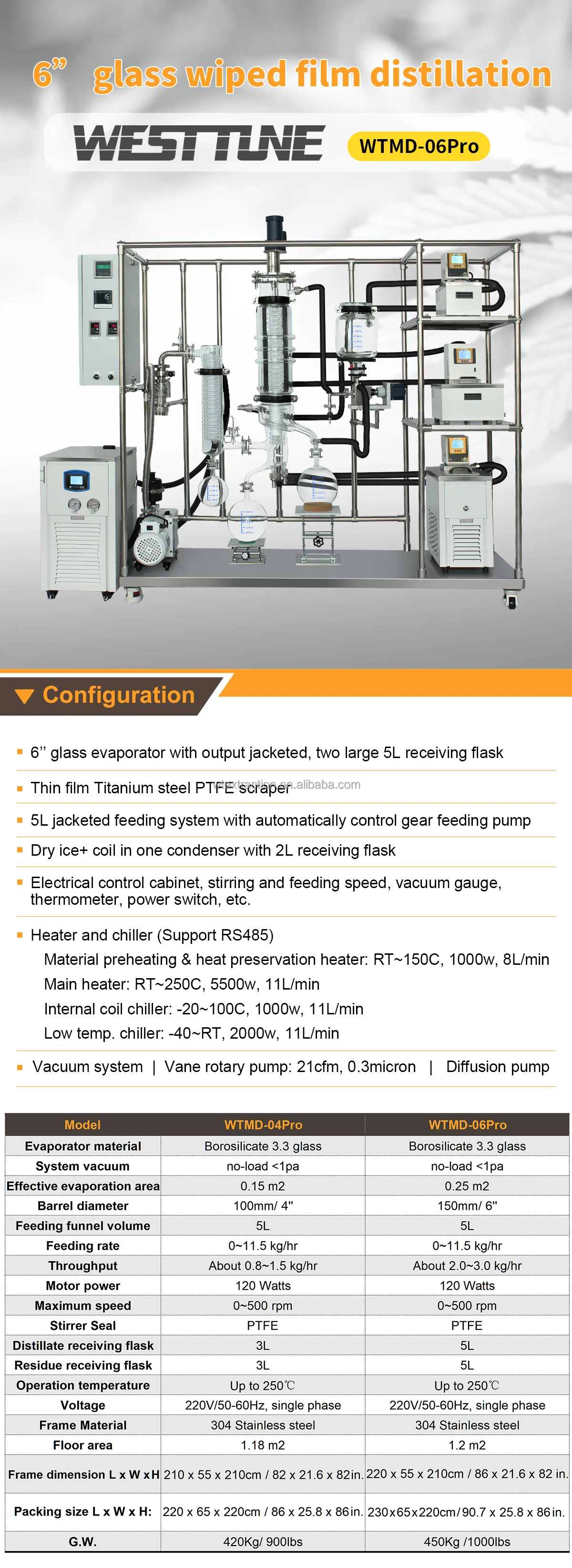

Specifications
Model | WTMD-06Pro |
Evaporator material | Borosilicate 3.3 glass |
Effective evaporation area | 0.25 m2 |
Barrel diameter | 150mm/ 6'' |
Feeding funnel volume | 2L |
Feeding rate | 1.0~8.0 kg/hr |
Throughput | 2.0~3.0 kg/hr |
Daily throughput | 16Kg (8hrs per day) |
Motor power | 120 Watts |
Maximum speed | 0~500 rpm |
Stirrer Seal | PTFE |
Distillate receiving flask | 5L |
Residue receiving flask | 3L |
Operation temperature | Up to 200℃ |
Voltage | 220V/50-60Hz, single phase |
Frame Material | 304 Stainless steel |
Floor area | 1.18 m2 |
Frame demension | L*W*H: 220*55*210cm / 86*21.6*82 in. |
Packing size | L*W*H: 230*65*220cm / 90.7*25.8*86 in. |
G.W. | 450Kg /1000lbs |
Features
1.The main body of the evaporator is made of Borosilicate glass 3.3, gas & vacuum tight
2.Easy cleaning and maintenance
3.Continuous distillation process
4.The system creates low operating pressures (100~10000pa ,100pa=1mbar), short residence time, high evaporation rates
5.Processing of high-boiling, high-viscosity or crystallizing products is possible.
6.It is able to process products with high viscosities
2.Easy cleaning and maintenance
3.Continuous distillation process
4.The system creates low operating pressures (100~10000pa ,100pa=1mbar), short residence time, high evaporation rates
5.Processing of high-boiling, high-viscosity or crystallizing products is possible.
6.It is able to process products with high viscosities
