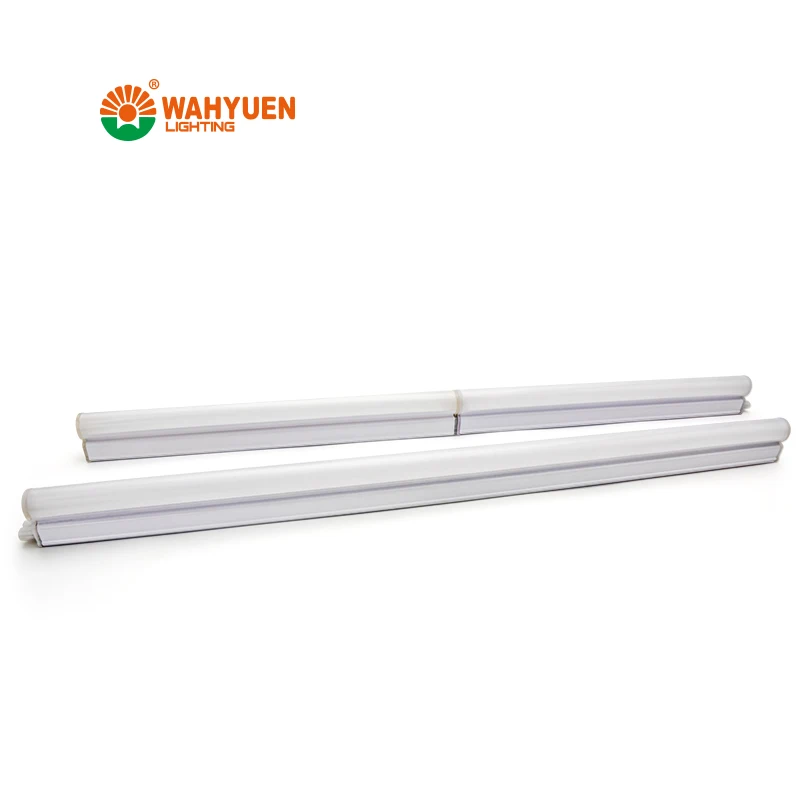

Highly Durable T5 PC Integrated LED Tube Light Seamless Connectors LED Tube Lamp For Supermarket
- Category: >>>
- Supplier: Zhongshan Huayuan Optoelectronics Technology Co. Ltd.
Share on (62589802356):
Product Overview
Description

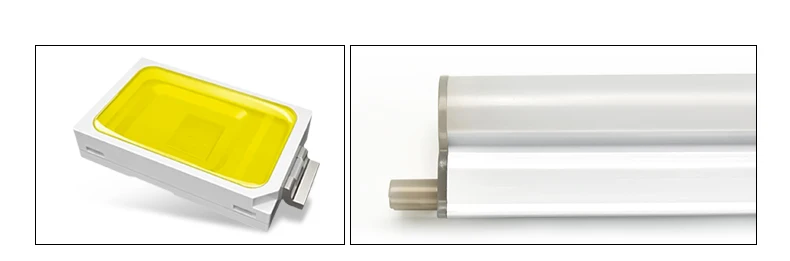

Highly Durable T5 PC Integrated LED Tube Light Seamless Connectors LED Tube Lamp For Supermarket
Luminous Efficiency: 80~120LM/W Up to 3 Years Warranty 300,000hrs Life Span High CRI, Ra>80 ,PF>0.5/ PF>0.9 |  |
Technical / Electrical Characters (at TA=25°C)
Item | Symbol | L=300mm | L=600mm | L=900mm | L=1200mm |
Model | / | WEPB5030530A1 | WEPB5060930A1 | WEPB5091330A1 | WEPB5121830A1 |
Rate Power | W | 5W | 9W | 13W | 18W |
LED type/Qty | SDM2835 | 36 | 72 | 92 | 120 |
Luminous Flux | Lumen | 400~600 | 700~1050 | 1050~1550 | 1450~2150 |
Luminous Efficacy | LM/W | 80~120 | |||
Color Temperature | TC(K) | WW:3000K NW:4000K PW:5000K CW:6500K | |||
Color Index | CRI(Ra) | Ra>80 | |||
Beam Angle | Degree | 150 degree | |||
Power Factor | PF | PF≥0.5, PF>0.9 | |||
Input Voltage | V | AC165~245V, AC85~265V 50/60Hz | |||
Working Voltage | V | 54V | 108V | 90V | 130V |
Start Time | S | <0.5s | |||

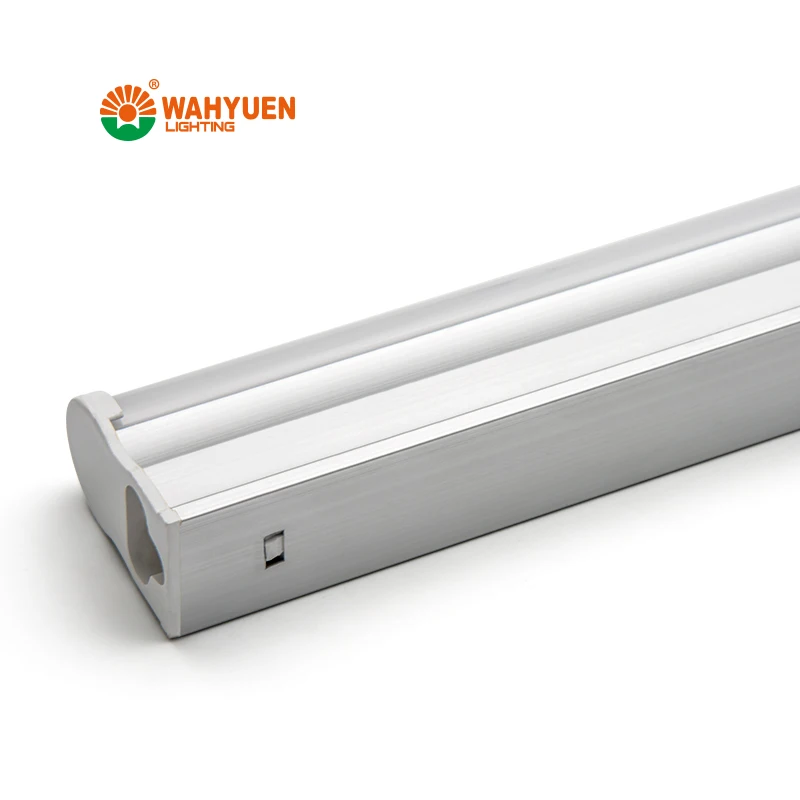

Housing Material | / | PC or PC+ALU | |||
Temperature | ℃ | Operation:-15℃~+45℃ Storage:-25℃~+55℃ | |||
Protection Class | IP | IP20 | |||
Life span | h | >200,000 times | |||
Warranty | / | 3 years | |||
