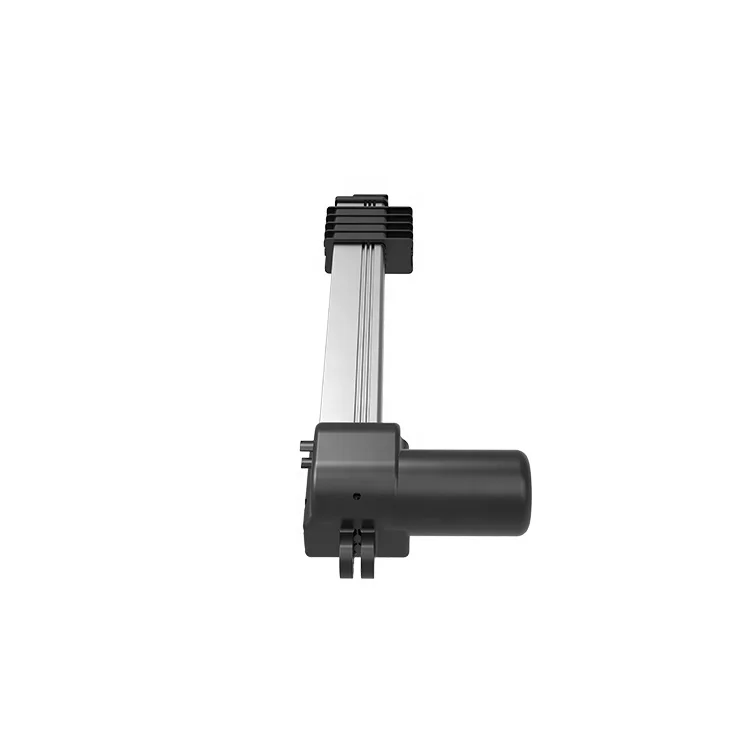

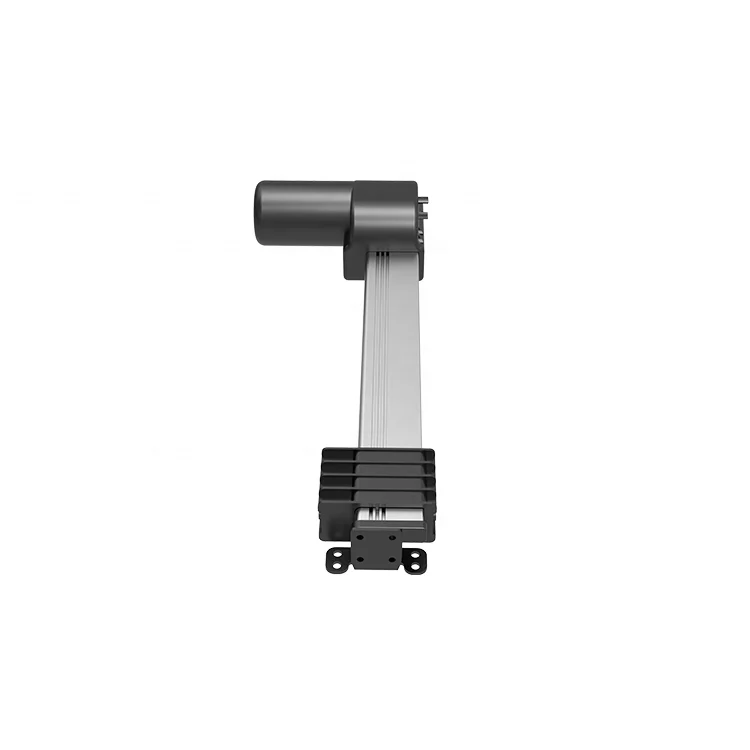

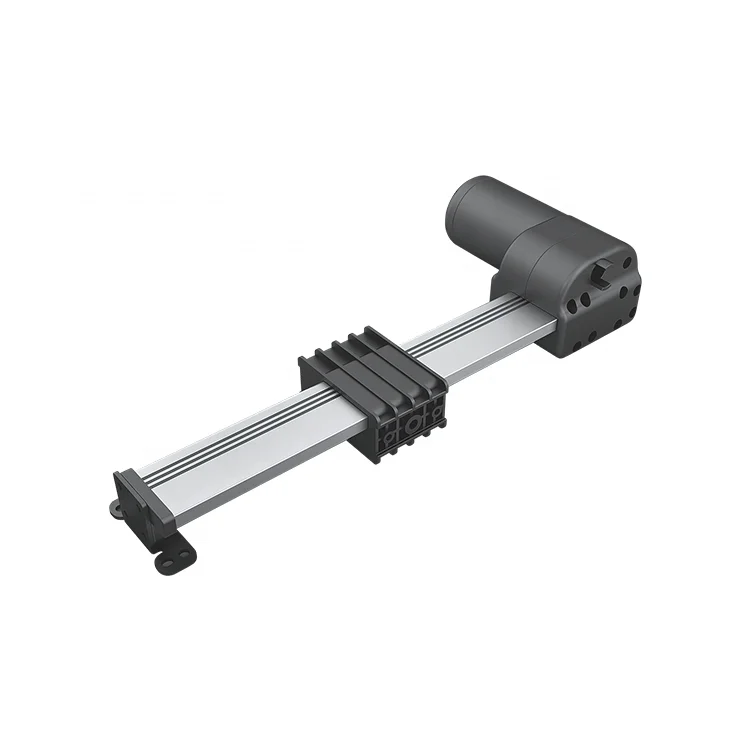

JIECANG track actuator nut moving outside reclining chair recliner 12v linear actuator
- Category: >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (62589852563):
Product Overview
Description
Product Description
Dynamic Load Push(N) | 4000 | 2000 | 750 |
Dynamic Load Pull(N) | 3000 | 1500 | 500 |
Inpul(VDC) | 24/12 | ||
Speed at Full Load(mm/s) | 4 | 9 | 22 |
Stroke Length(mm) | 100~400(option>400) | ||
Mounting position | H type | ||
Color | Black or Grey | ||
Limit Switch | Build-in | ||
Overload Protection | Yes | ||
Duty Cycle | 10%, max 2min. continuous use | ||
IP Grade | IP20 | ||
Operation Temperature | +5°C ~ +40°C | ||
Optional Features | Hall sensor option | ||
Relay free option | |||
Standard | CE | ||
Company Information

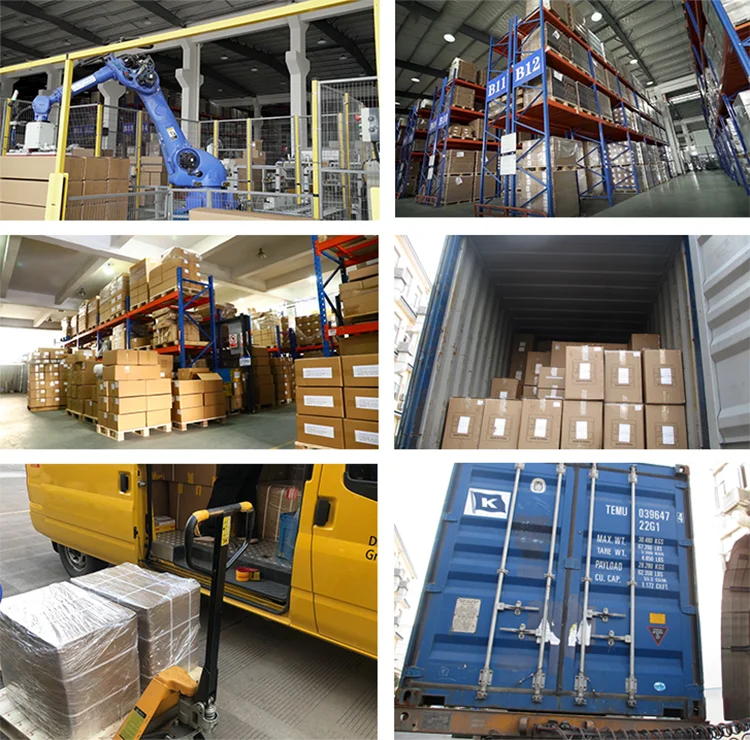

Packaging & Shipping
Our Services
Our services
1. JIECANG has 5 years global warranty service. Our products are reliable and guaranteed.
2. JIECANG hsa strong professional R&D team and accept customized services.
3. JIECANG has efficient services. Reply to your questions in a day, and solve your matters within 48 hours.
4. JIECANG products have passed international certifications like CE,UL,ROHS,SAA,PSE,KE and etc.
5. If it is possible, Installation Service is available, if not, we will give you the installed video or the maintenance video.
Your satisfaction is our eternal need! We promise to provide you with the best service!
FAQ
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can i get the quotation?
A: Usually you need to send up information, our sales wil contact you within 12 hours.You should provide your company information and official email address.
About product, the prices are different specifications for different. Need to communicate with sales.
Q: May i have a sample order before bulk one?
A:Of course, we can provide a sample for you.
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015, OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
