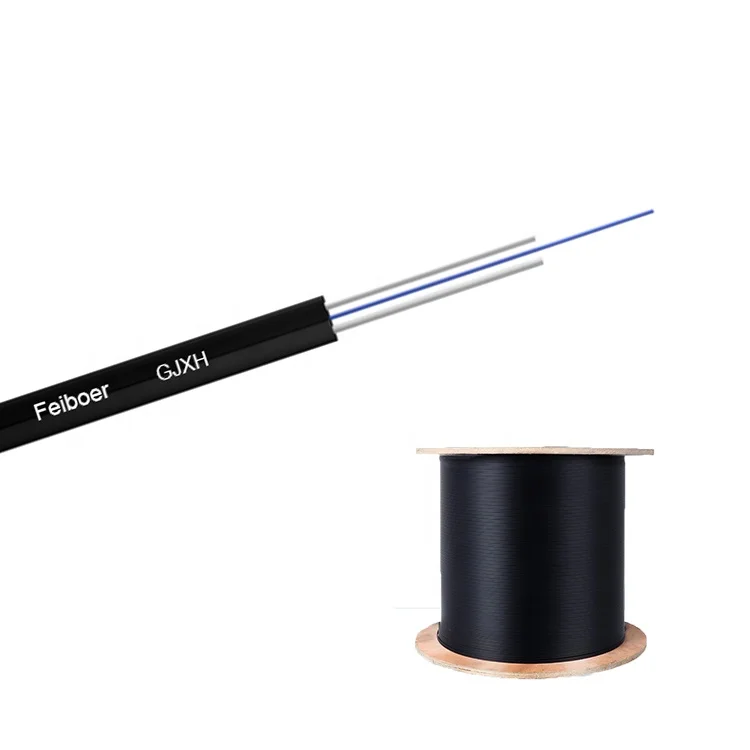

G657a2 Lszh Self Supported fiberhome figure 8 optical fiber drop cable round FTTH 4 core 6 core fiber drop cable outdoor indoor
- Category: >>>
- Supplier: Hunan Feibo Guangtong Communication Equipment Co. Ltd.
Share on (62589900170):
Product Overview
Description
G657a2 Lszh Self Supported fiberhome figure 8 optical fiber drop cable round FTTH 4 core 6 core fiber drop cable outdoor indoor
Product Description
Indoor drop fiber optical cable
Product Characteristics

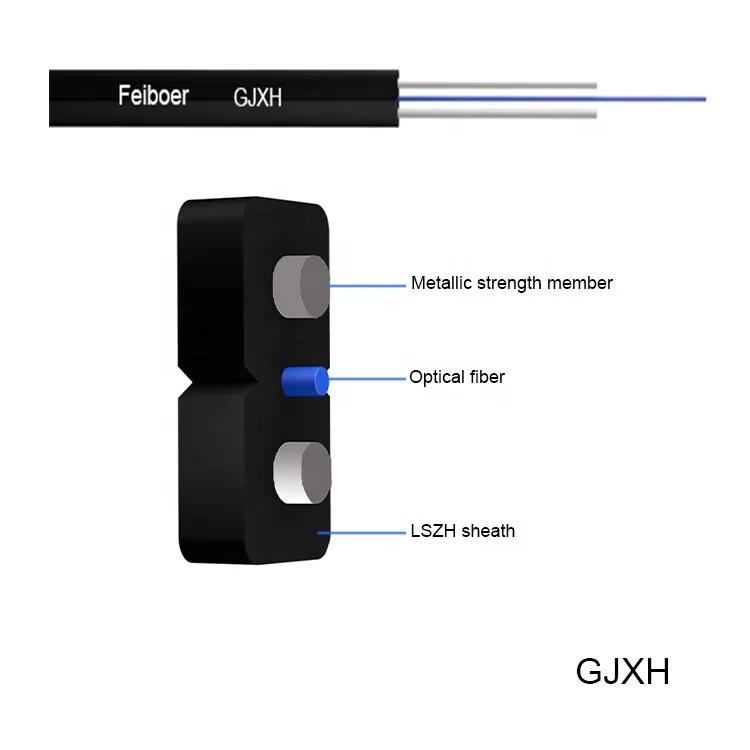

• Bow-tie type cross-section design, LZSH or PVC jacket

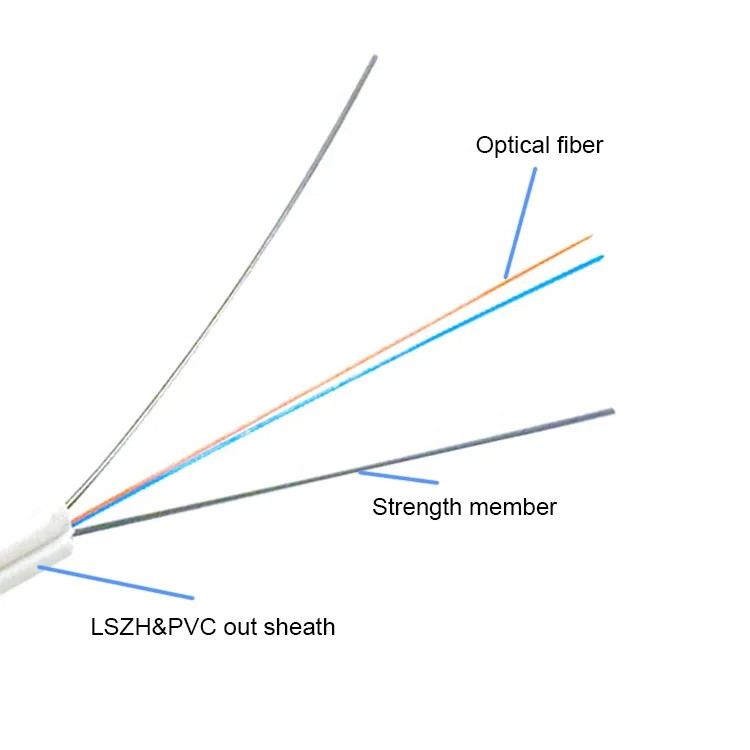

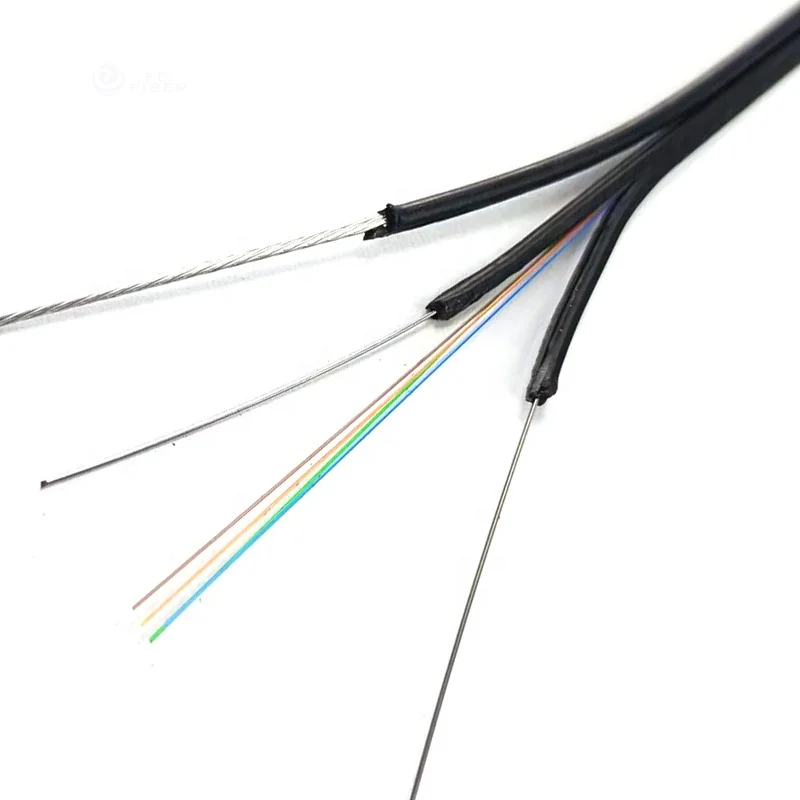

• Two parallel steel wire as strength member to protect the fiber and provide adequate tension and pressure
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Easy peeled off, light weight,small size, unique groove design, easy for maintance
Application
• Indoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Structural Parameter
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension (N) | Crush (N/100mm) | Bending Radius Static / dynamic |
GJXH | 1-4 | 2.0×3.0 | 9 | Longterm 100/40 short term 200/80 | Long term 1000/500 short term 2200/1000 | 20D/40D |
Optical Fibre Performance
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
Packaging & Shipping

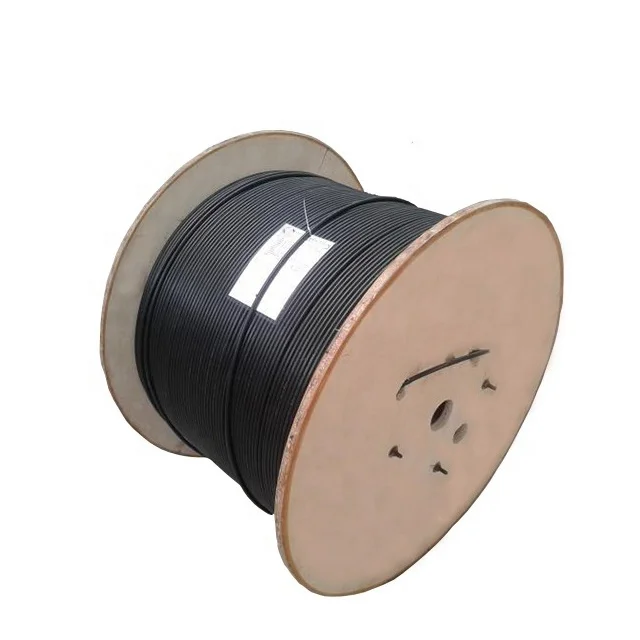

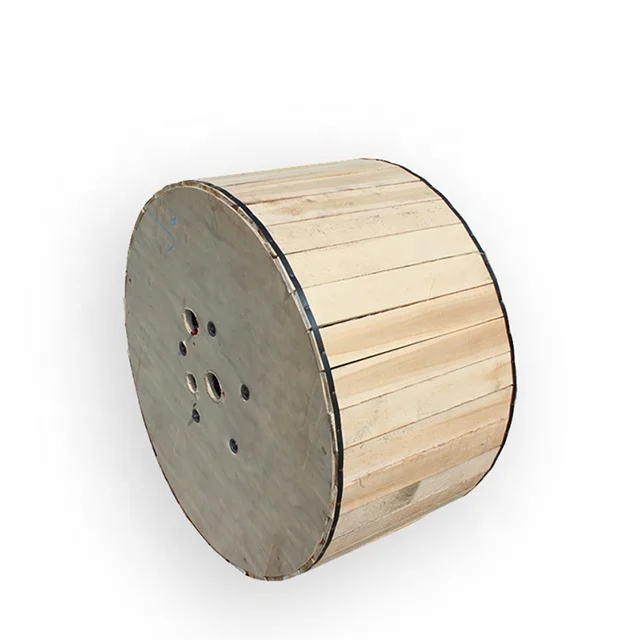

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
Our Services
24 hours online service
Free sample
Company Information
COMPANY PROFILE
Hunan feibo guangtong communication equipment co.,LTD is a comprehensive high-tech optical fiber communication product development,production,sales and network engineering.
FEIBOER products mainly include: indoor & outdoor fiber optical cable, ADSS, OPGW, FTTH drop cable,patch cord,pigtail and other series and optical passive device series.
Products are strictly implemented in national standards,and have obtained the product certification certificates of the broadcasing and televison network access license,the power supply special communication equipment network access license,the telecom equipment network access license. The company has obtained ISO9001,ISO14001,OHSAS18001 certifacation,and obtained import and export rights.
FEIBOER will always adhere to the "quality first, reputation first, management basis, service sincere" business philosophy.Focus on the product and customer-oriented, we will keep innovating and improve service.
Production Flow
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
