Dry Wall Screw 3.5x25 Making Machine/ Thumb Knurled Screw Machine Price
- Category: >>>
- Supplier: Xuchang Hongshuo Machinery Co. Ltd.
Share on (62590025307):
Product Overview
Description
Drywall Screw Making Machine/Wood And Ground Screw Machine (M4-40D & R5-55B)
Process Flow
TELL US THE SCREW SIZE & TYPE YOU WANT TO PRODUCE
1022A Annealed Wire Rods----Cold Heading Machine----Thread Rolling Machine----
Finished Screws.
Product Description
GET THE LATEST PRICE
Screw heading machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

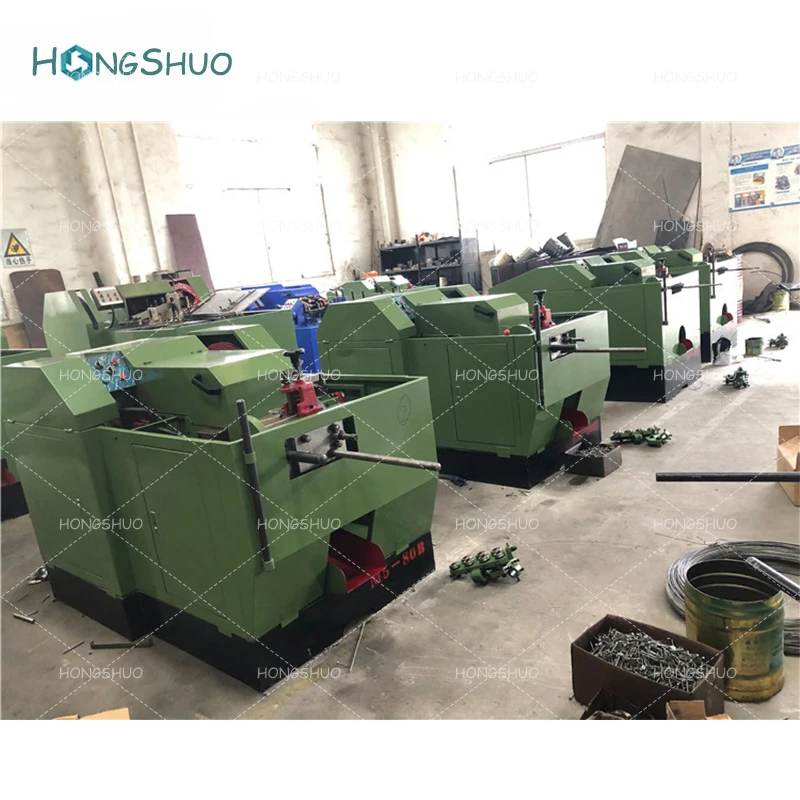

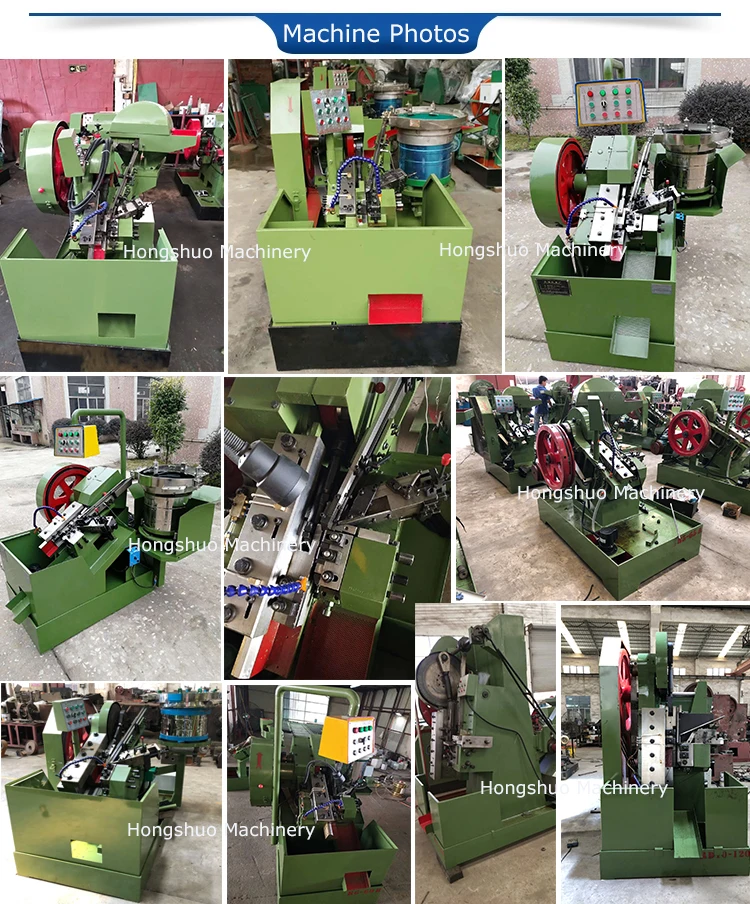

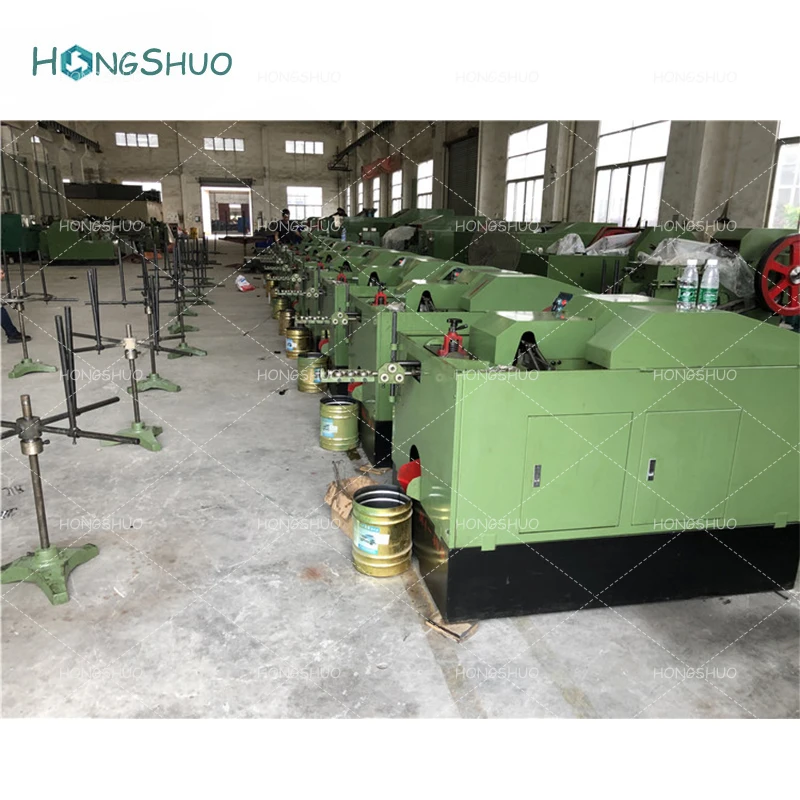

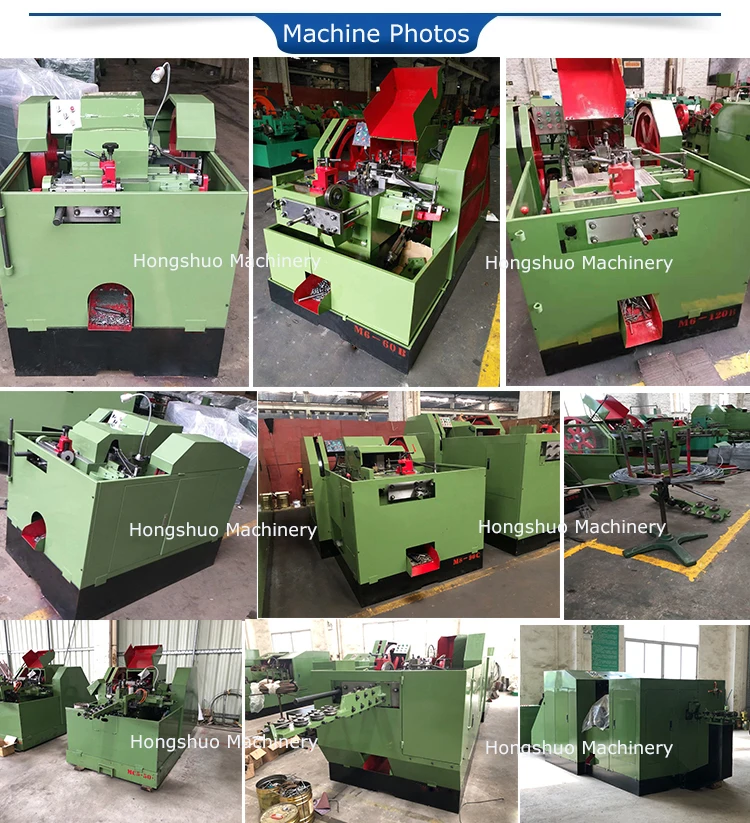

Photos of Machines

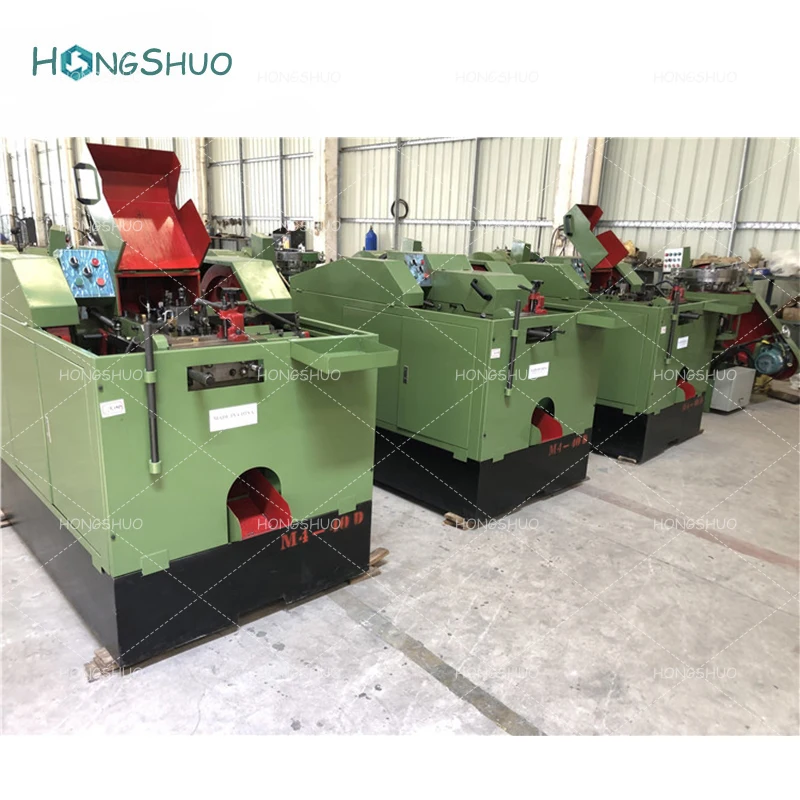

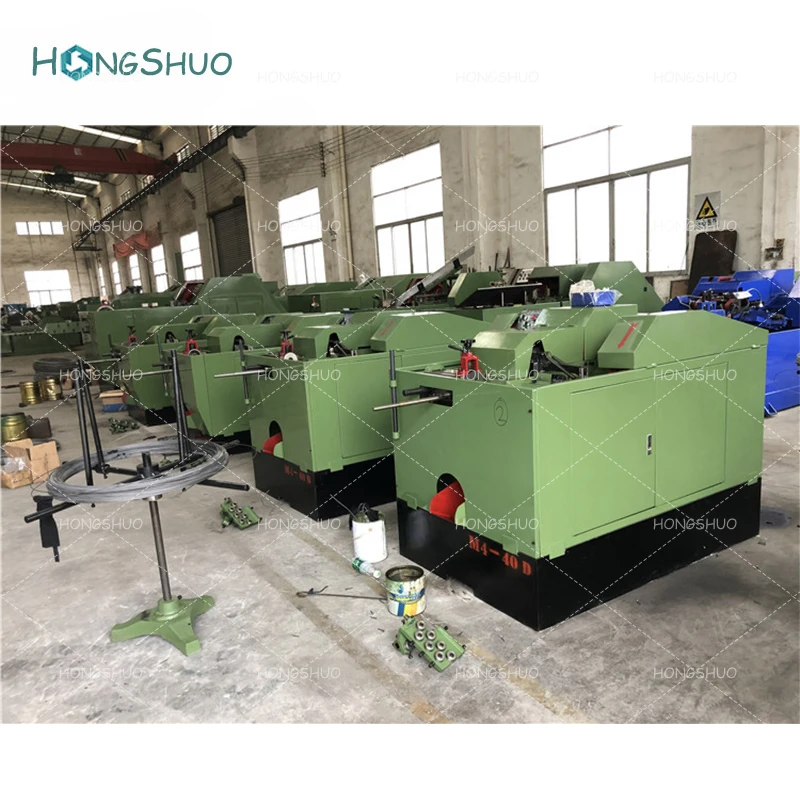

Step 1: Cold Heading Machine (For the screw blank)
Model | M4-40D |
Max. Screw Dia | 4mm |
Max. Screw length | 40mm |
Capacity | 180-200pcs/min |
Motor | 1.5/0.37kw |
Weight | 1.3Ton |
Overall size | 1.6*1.1*1.1 |
Step 2: Thread Rolling Machine (For the screw)
Model | R5-55B |
Max. Screw Diameter | M5 |
Max. Screw Length | 55 |
Capacity | 160pcs/min |
Motor | 3+0.37 |
Weight | 1.2Ton |
Overall size | 1.6*1.35*1.7 |

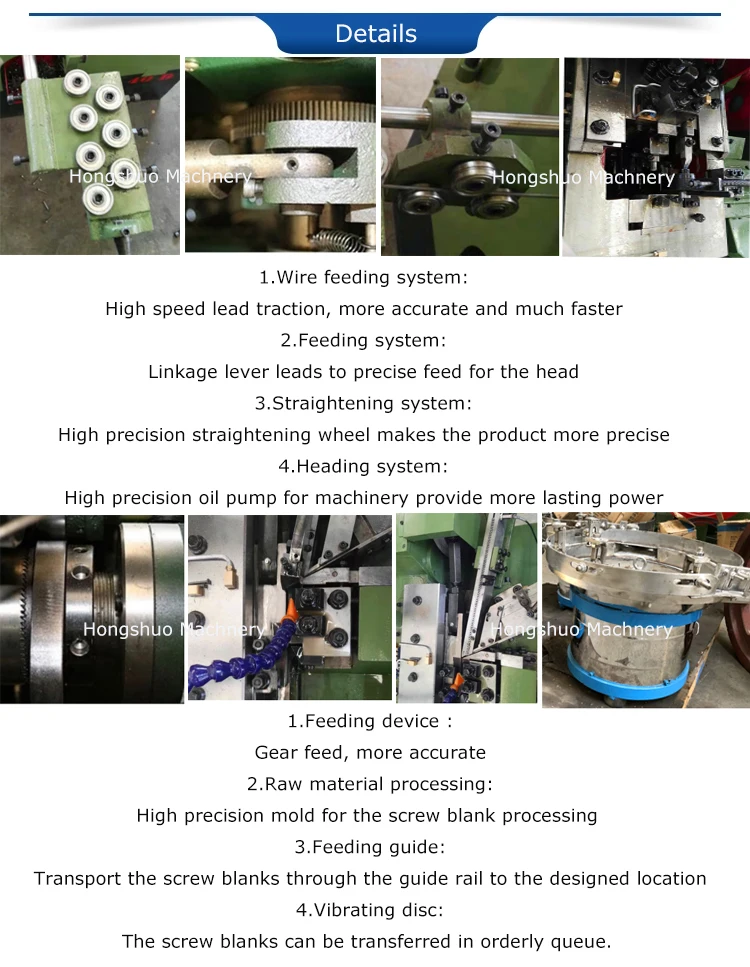

Highlight Details

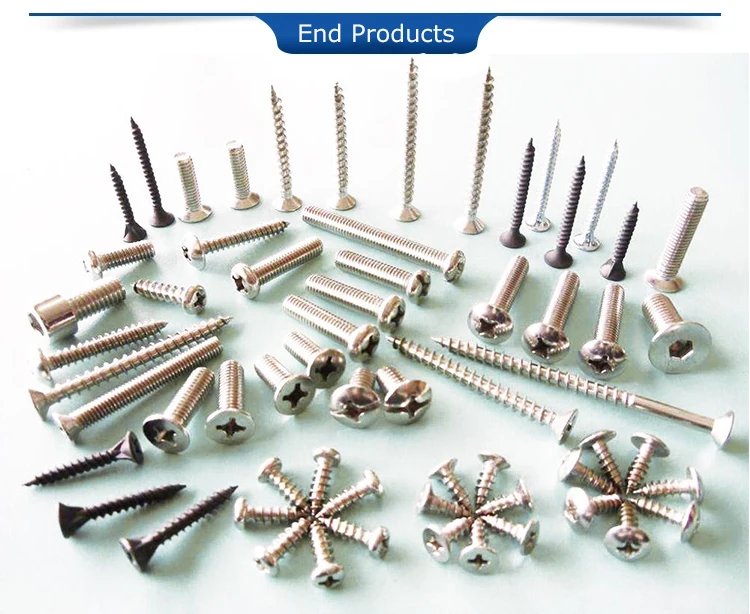

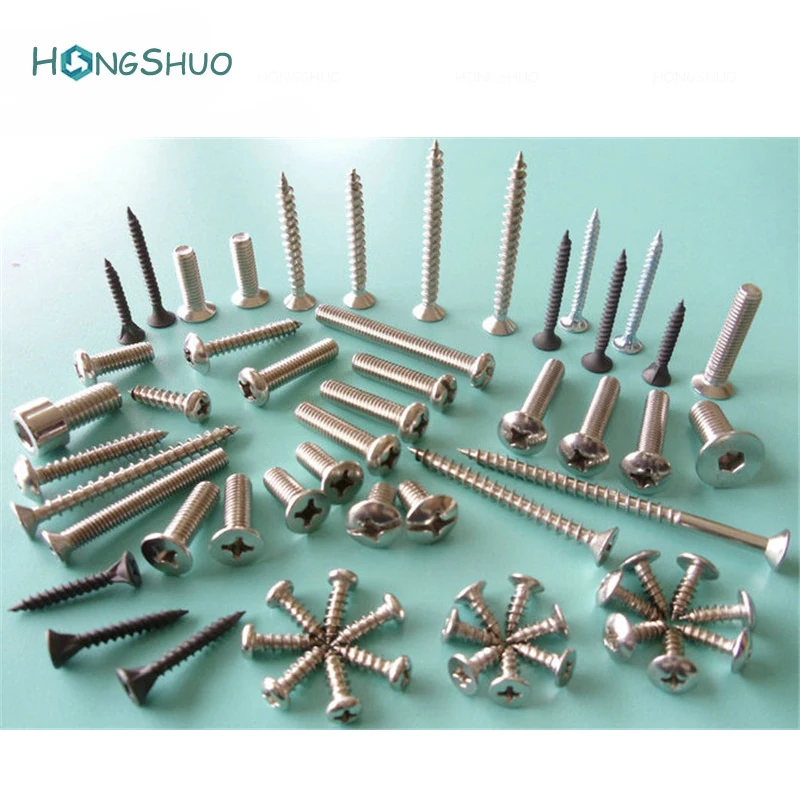

Finished Products
FREE SCREW SAMPLES PROVIDED
Shipment Photos
Contact Us

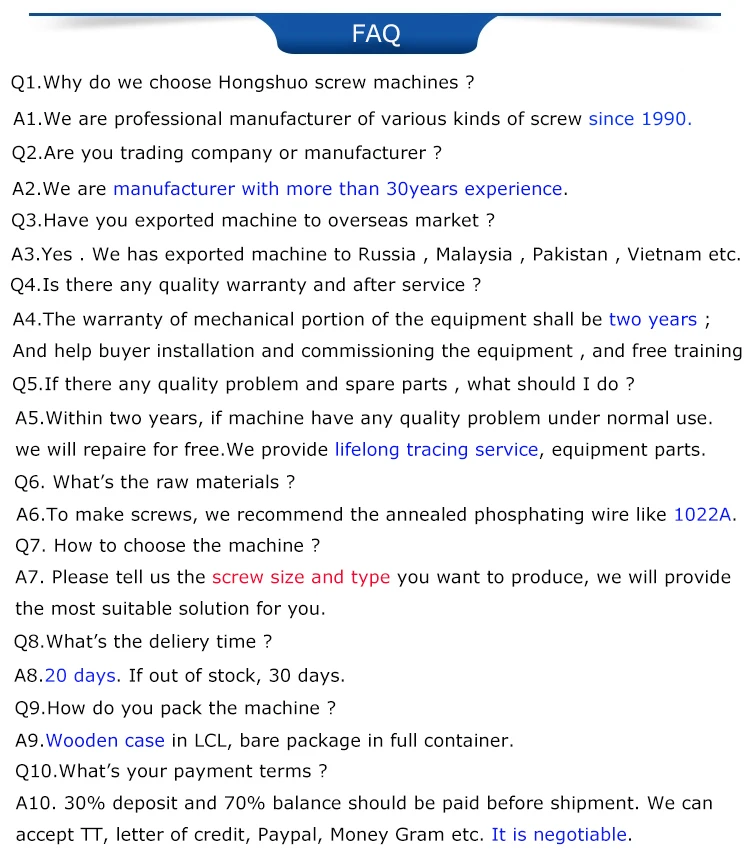

FAQ
