High definition table type iron cutting machine plasma for heavy industry
- Category: >>>
- Supplier: Shanghai TAYOR Welding Machine Co. Ltd.
Share on (62590049334):
Product Overview
Description
Product Description

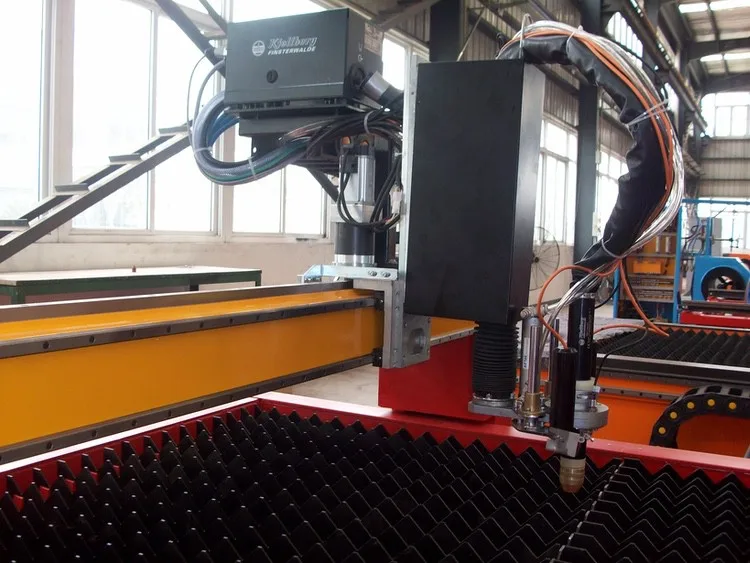

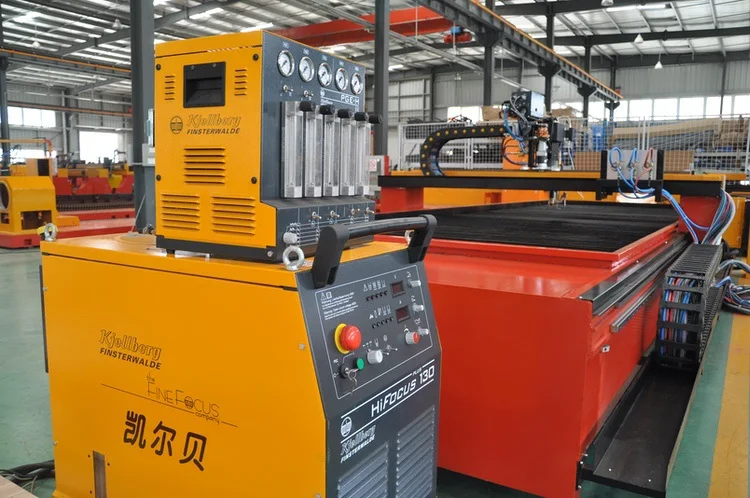

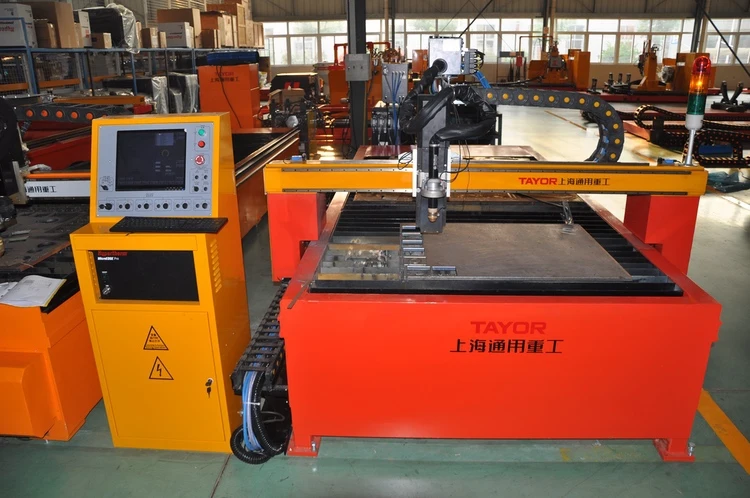

High definition table type iron cutting machine plasma for heavy industry
Heavy duty, precision machine
Product Detail
| Brand | TAYOR |
| cutting width | 1500mm |
| cutting length | 3000mm |
| cutting thickness | 1-50mm |
| Cutting Mode | Plasma and Oxy-Fuel/Flame |
| Drive Mode | AC Servo motor, Dual-drive |
| Controller | LKNC3200 bus control |
| Programming Software | provided |
| Available Plasma Power | Hypertherm, Kjellberg, Victor, ESAB |
| Cutting Torch Number | 1 set |
| Product Keywords | iron cutting machine plasma,high definition plasma cutting machine,hd plasma cutting machine |
CNCTMG series CNC plasma and oxyfuel cutting machine
High Speed and Precision
CNCTMG Series of Precision Table type Cutting Machine is integral type cutting equipment with high speed and precision. With precision linear guides and world well-known high definition plasma source such as Hypertherm, Kjellberg, Thermal Dynamics, it shows high guiding accuracy, excellent running stability and high precision cutting ability. It is able to keep highest standard cutting process under long-term and high-intensive working conditions.
Machine Features
Compact and integral type modularization cutting unit, excellent rigidity.
Without foundation preparation, space saving, heavy duty and durable
Precision linear guide driving, low deformation during high speed cutting
Great finish surface, no slag, dispense with secondary treatment
Low use-cost, without special maintenance, friendly operator panel, easy to learn
Utility CNC system, reliable and safe G code and M code readable
DXF/DWG file programming and nestling
USB key data transmission
Technical Specification
Effective Cutting Width (mm): 1500
Effective Cutting Length (mm):3000 to 6000
Flame Cutting Thickness(mm) :5-60mm
Plasma:1-60mm(according to plasma model)
Basic Components
Cutting ModePlasma and Oxy-Fuel/Flame
Drive ModeAC Servo motor, Dual-drive
Cutting Torch NumberCustomization
Driving MotorPanasonic/Yaskawa
CNC Controller Hypertherm EDGE CONNECT TC; EDGE CONNECT; LKNC-3200
Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB
Programming Software:Fastcam, SmartNest, Hypertherm
Input Power Voltage3×380V±10% 50HZ/according to user's local condition
Operation Language: Multilanguage
Main Application
CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
e
Plasma cutting samples

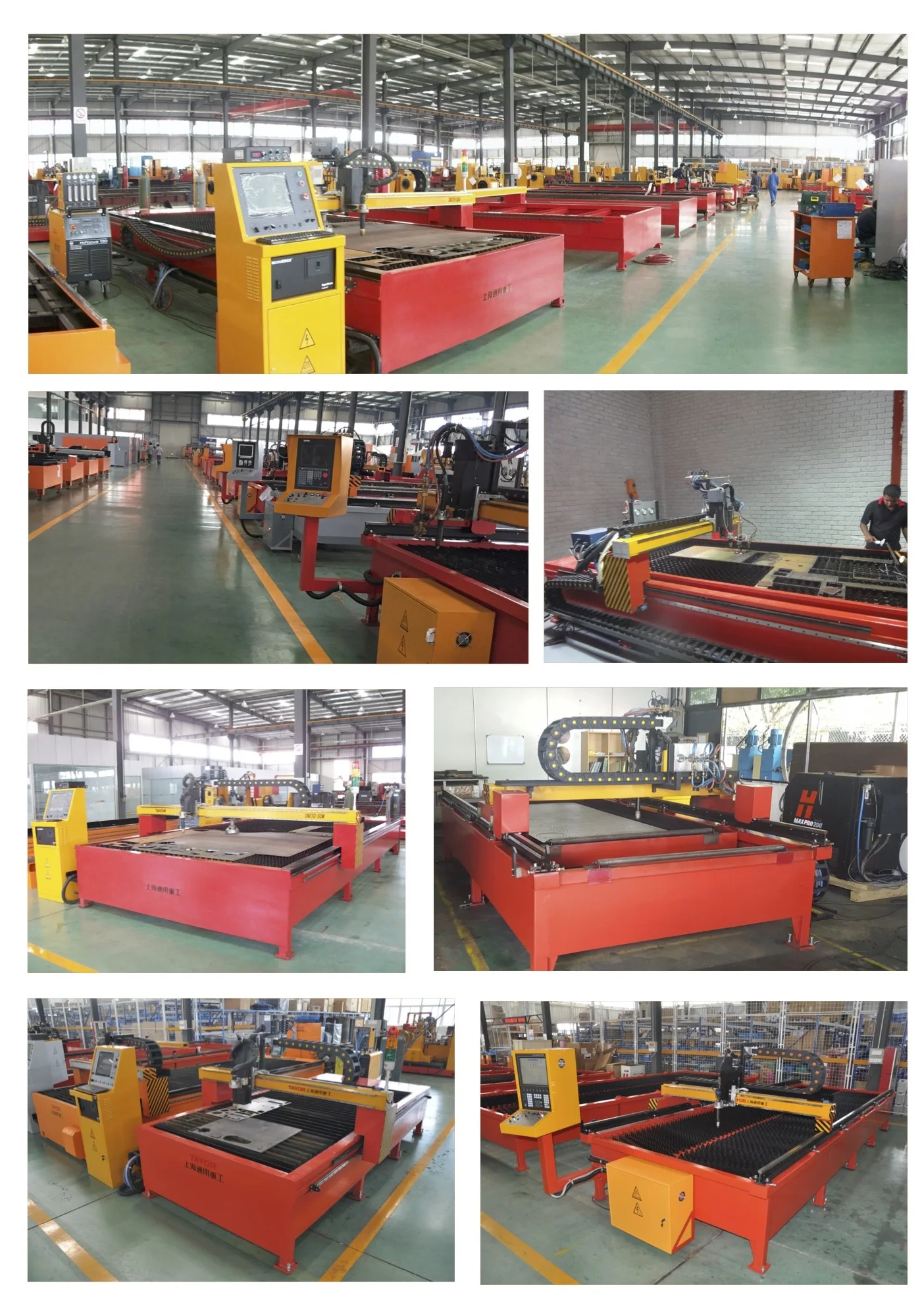

Workshop
Packing & Shipping
Product Category

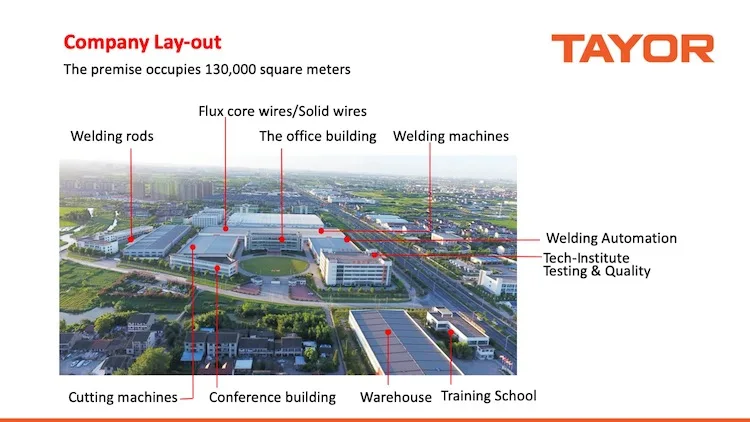

Company Information
1. SHANGHAI TAYOR HEAVY INDUSTRY GROUP CO., LTD was established in the year of 1951, a group of integrating the manufacture of welding machine, auto - welding cutting equipment, welding consumables, welding technology R&D and training school. Tayor welding industry park is the biggest welding equipment manufacture bases in China.
2. Tayor concentrates on welding equipment, cutting equipment and welding consumables as core industry . We have brands of TAYOR, like SWEC, DONGFENG, YAZI and GOLDEN SHIP which indicate products of welders, cutters, welding robots, and welding consumables.
3. By means of global marketing network, the group supplies welding & cutting equipment, welding consumables and technical service for steel structure, heavy equipment, ship manufacturing, aerospace military industry, pipes and pressure vessels, bridge construction machinery processing, vehicles and rail transit, etc.. Our products are exported to more than 1 0 0 countries and regions.
Exhibition
Contact US
SHANGHAI TAYOR HEAVY INDUSTRY (GROUP) CO., LTD.
Add:No. 3888 South Shenjiang Road, Pudong District, Shanghai, China
Mobile(whatsapp): +86-13816628775
Skype: cuttingsunny
MANUFACTURER & SUPPLIER OF CUTTING AND WELDING EQUIPMENT
