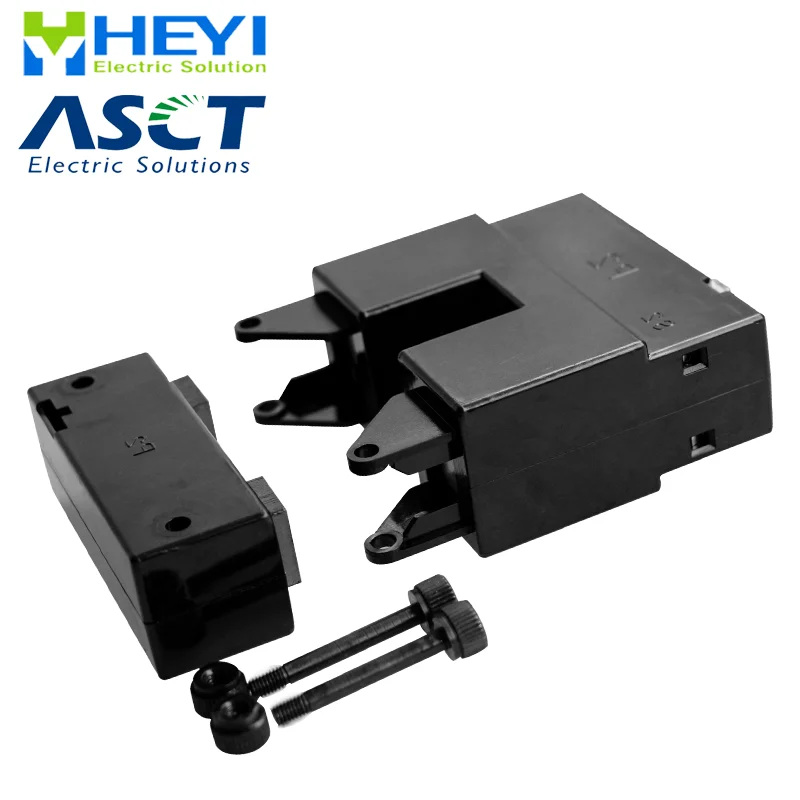

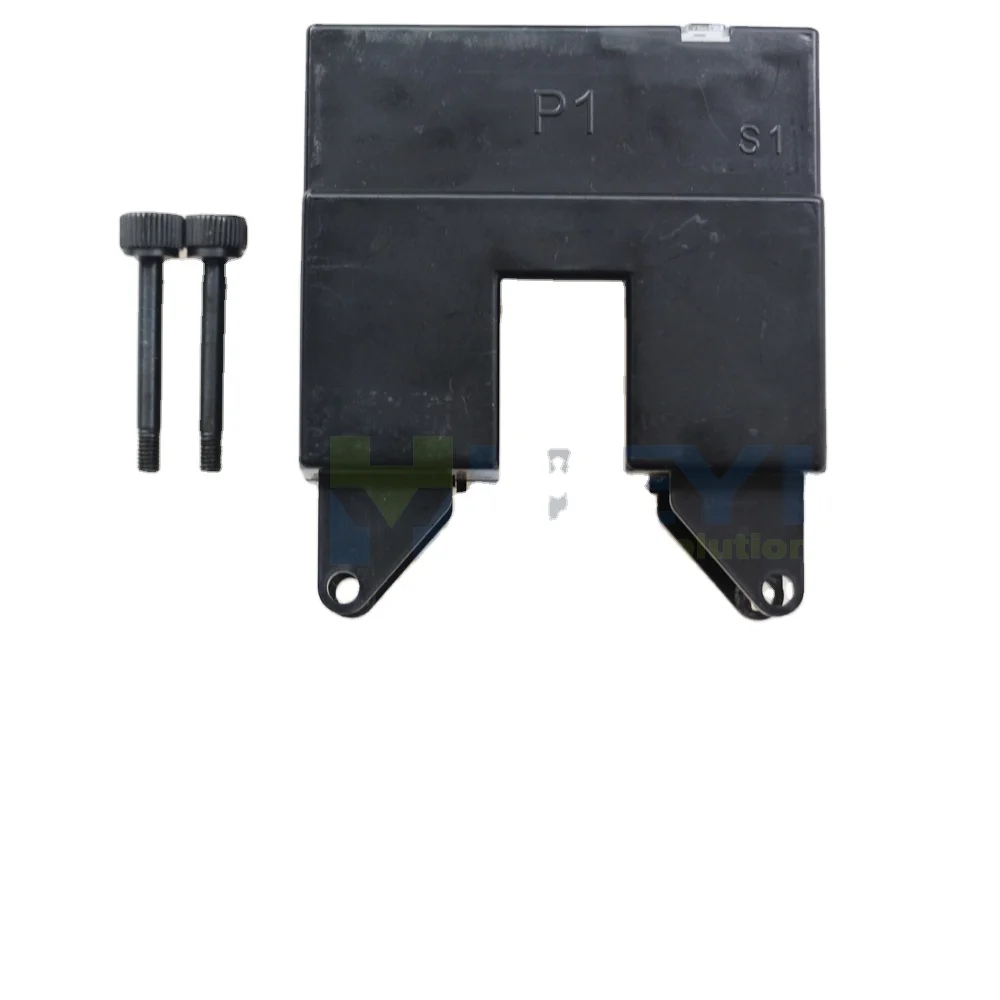

HEYI DP 23 100/5A current transformer ct meters split Core Current Transformer test control transformer
- Category: >>>
- Supplier: Yueqing Heyi Electrical Co. Ltd.
Share on (62590114355):
Product Overview
Description
HEYI Electrical Co., LTD. is a comprehensive multi-business industry and trade integration of high-tech enterprises.
We own one strong R&D and QC team continues to innovate new solutions for customers in the area of Smart
Grid Industry all covering distribution, Saving&Protecting&Metering Electicty, and Power System.
Features
1) Double-screw fastening, safe, easy to install, portable
2) Two built in fixing methods: Base; Busbar mounting
3) Wide inner window, allowing clamping of big cables or bus-bars
4) Wide range of sizes to accommodate all the existing installations.
5) Primary current from 5A to 6000A

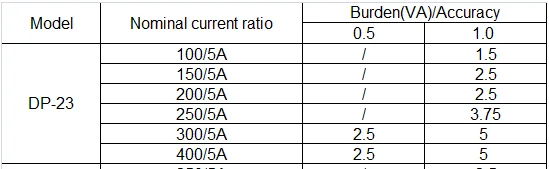

Specification
Note: The Current Ratio above are common type, that's ok to customise the ration according to
customers' requirement. HEYI ELE. Co.,LTD could provide professional OEM service :)

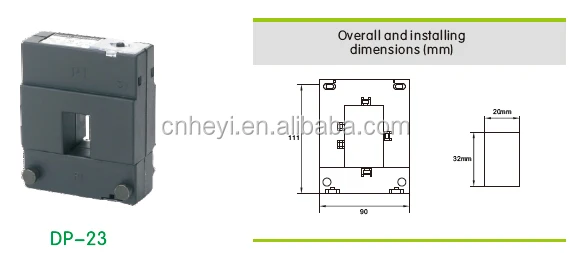

Specification
| Model | A | B | C | D | E | F | G | H | I | Wight(kg) |
| DP-23 | 21 | 31 | 51 | 89 | 111 | 34 | 47 | 40 | 32 | 0.75 |
| DP-58 | 51 | 81 | 78 | 114 | 145 | 32 | 32 | 32 | 33 | 0.9 |
| DP-88 | 81 | 81 | 108 | 144 | 145 | 32 | 32 | 32 | 33 | 1.05 |
| DP-812 | 82 | 122 | 108 | 144 | 185 | 32 | 32 | 32 | 33 | 1.25 |
| DP-816 | 82 | 162 | 120 | 184 | 245 | 52 | 52 | 52 | 38 | 4.3 |
Graph

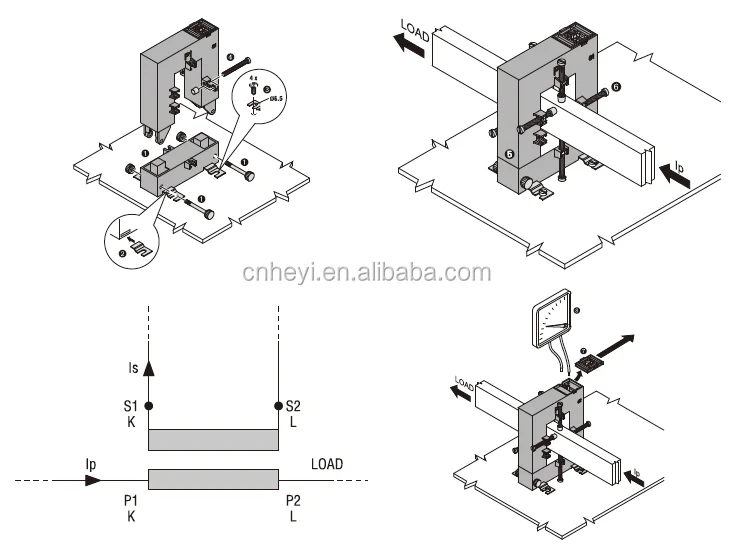

Installation
Applications
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.
Advantages

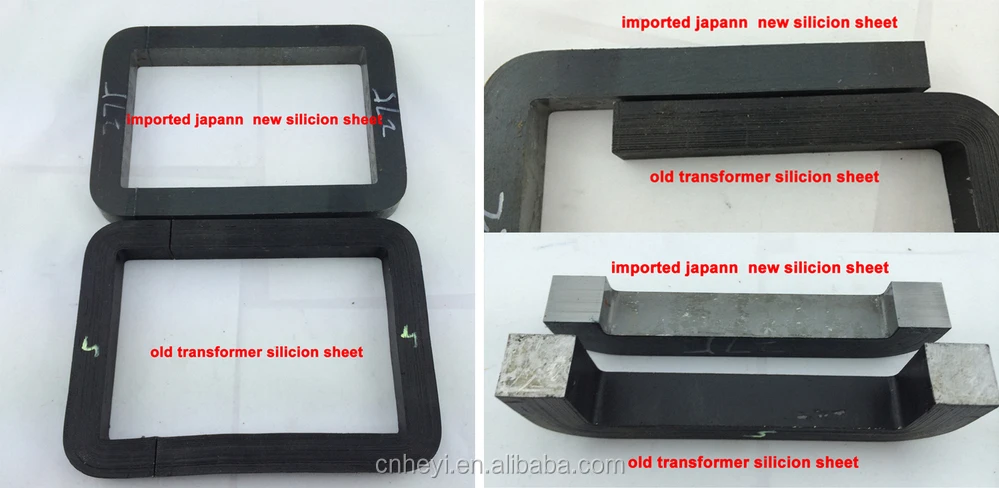

The advantages of HEYI DP split core ct
Packaging & Shipping
Delivery (Global courier, Ocean transpor, Air transport)
