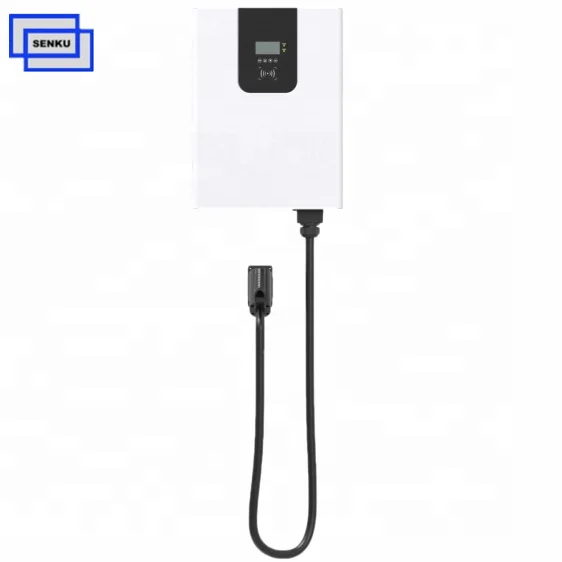

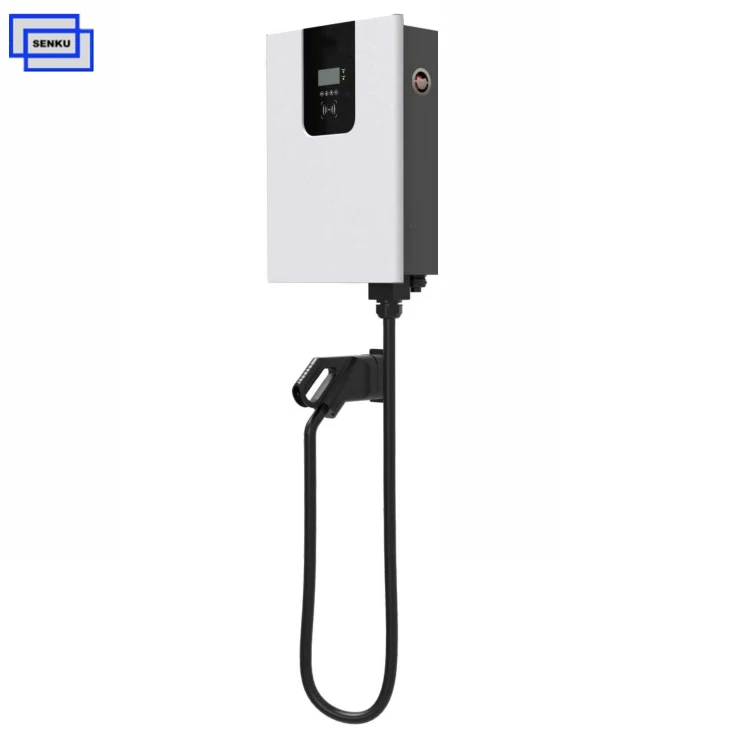

Eu Standard CCS2 Wallbox DC Charger 20KW Home / EV Fleet Use Charging Station
Overview
DC020K Series DC charging station is designed for private use,applications for CCS2 standard fast charging.
With EV battery capacity increasing, DC charging will emerge in more and more locations.

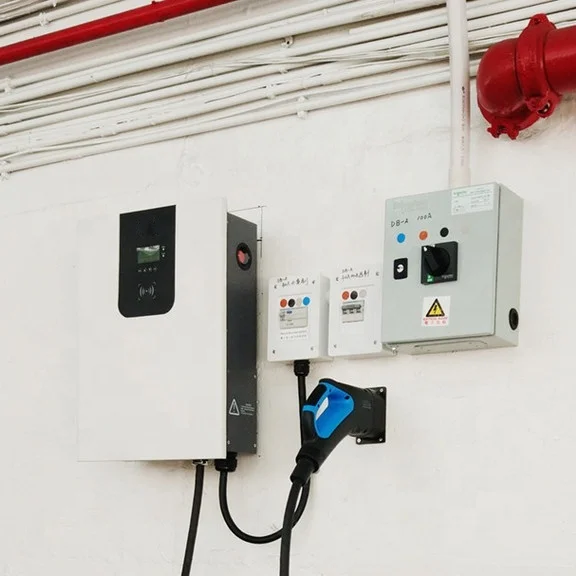

This charger with light weight and small size design, it easy wall mounting or Ground stand installation. IP54
protection,sturdy and durable for outdoor application.
EV Charger Technical Data
AC Nominal Input | Phases/ Lines | 3-phase (without neutral supported) | ||
Input Voltage | 400VAC ±10% | |||
Frequency | 50Hz-60Hz | |||
DC Nominal Output | DC Voltage Accuracy | <±0.5 | ||
Output Efficiency | >94% (Rated input and output) | |||
Outpur parameters | 20KW 150V-550V DC output ; 50A 20KW 200V-750V DC output ; 33A | |||
Electrical Specification | LED Indicator | YES | ||
LCD Display Screen | YES | |||
Emergency Stop Button | Yes (Red Color) | |||
RFID Function | YES (Authorized RFID cards can charged only) | |||
Structure Design | Housing Material | Metal case | ||
Application scenes | Private Use (Both indoor & Outdoor Installation) | |||
Charging Standards | IEC 62196-3 Combo CCS2 | |||
Charging Outlet Quantity | 1 | |||
Cable Length | 4M cable | |||
Communication | Communication Protocol | CAN, PLC (DIN70121 and ISO15118) | ||
Environmental Index | Operating Temperature | -30~+50°C | ||
Working Humidity | 5%~95% without condensation | |||
Working Altitude | <2000M | |||
Protection Grade | IP54 / IK10 | |||
Security Protection | Multi le Protection | Over-Load, Over/Under Volatge, Short Circuit Protection,Surge Protection, | ||
MTBF | 100,000 hours | |||
Safety Standard | IEC 61851-1:2017, IEC 61851-23:2014 | |||
Warranty | 12 months | |||
Dimension | Dimension & Weight | 426*163*566 mm & 30KG | ||
Features
- Combo CCS2 Fast Charging Support
20kw fast charging speed, can charging all the combo ccs2 standard electric cars
- Support RFID card charging support
Authorized RFID cards can charged only
- Charging State Indicate Function Support
Display, touch button and LED indicator show the real time charging condition
- Wide output 550VDC output, compatible with most ev on the road
Suitable for BMW / VW / NIssan / Chevy / Porsche / Tesla (with adapter) etc...
- Customized Brand Painting support
We can help you print your label on the charger to improve your company influence in local ev industrial
WE BELIEVE IN
ONE GOOD Quality Charger> N Poor Quality Chargers
Senku Machinery ev charging station is strictly design and produce according to the CE and IEC 61851 standard. Unlike other manufacturers, they simply replace the china GBT standard charging station with a charging connectors and sell it directly to customers.
We choose the international high quality components as raw material, ensure the charger stable performance, safe and the long service life of the charger. Instead of using the inferior components. Because poor quality ev charger will bring many additional invisible operation and maintenance costs.
Especially for EV operators, Once the ev charging station installed, it will service for many electric vehicles, so a stable & safety and real high efficiency charging station is important to them, so we always believe one good quality charger can bring more profit to them.
Produce Process
Part of Certifications
What are you waiting for? Get in touch with us to experience quality products and services!!!
FAQ
What after service you support?
1 Year warranty and while service life technical support.
During the warranty time, we provide comprehensive technical support.In normal conditions, we provide after-sales technical training by providing written training materials or videos, also we support online remote technical service. If there is a urgent situation, we will also send our professional technicians to provide local on-site support.
And we supply "One time purchase, lifetime service” , even the ev charger which you buy is out of warranty time, you also can contact us to get in time service support.
How I know which connector i should choose?
CCS1: also know as Combo ccs type1 or Combo CCS-1.
This is the dc fast ev charging standard North America market.
Typical EVs: Chevy Bolt.
CCS2 also know as Combo ccs type2 or Combo CCS-2.
This is the dc fast ev charging standard for Europe.
Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO
DC fast charging standard for Japan
Typical charging EVs: Nissan Leaf.
Chademo ev charger also can charge Tesla EVs with CHAdeMo adapter.
Any other questions please contact us to get details.
