Baudouin 1800rpm 1400hp/1029kw 12M33C1400 18 Marine Diesel Motor
- Category: >>>
- Supplier: Shandong,Everwide,Power,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product feature of Baudouin 1800rpm 1400hp/1029kw 12M33C1400-18 Marine Diesel Motor:
12M33 series marine propulsion power diesel engine is originated from French bourdouin company. It has the characteristics of large torque reserve, low fuel consumption, good emission, long overhaul period and strong reliability.The product power covers 368-551kw and is widely used in inland navigation, fishing, engineering ship, official ship and other ships.
Product information of Baudouin 1800rpm 1400hp/1029kw 12M33C1400-18 Marine Diesel Motor:
| Brand, model | Baudouin brand, 12M33C1400-18 |
| Type | 4-stroke, water-cooled, V type, wet cylinder liner |
| Intake method | Turbocharged&Intercooled |
| Cylinder NO.s / Bore x Stroke | 12/150*185mm |
| Starting method | Electric start |
| Fire order | A1-B2-A5-B4-A3-B1-A6-B5-A2-B3-A4-B6 |
| Noise | ≤ 105dB(A) |
| Displacement | 39.2 L |
| Idle speed | 650±30 rpm |
| Smoke intensity | ≤1.0Rb |
| Emission standard | IMO TIER II |
| Fuel consumption | 190 g/kw.h |
| Flywheel and housing | SAE1 flywheel housing and SAE 14 size flywheel |
| Open dimension | 2352*1454*1720 mm |
| Open weight | 3900 kg |
Baudouin 12M series marine propulsion power diesel engine:
| Model | Intake type | Ratedpower(kW/Ps) | Rated speed(r/min) |
| 12M33C900-15 | Turbocharged&Intercooled | 662/900 | 1500 |
| 12M33C1000-15 | Turbocharged&Intercooled | 735/1000 | 1500 |
| 12M33C1100-15 | Turbocharged&Intercooled | 809/1100 | 1500 |
| 12M33C1200-15 | Turbocharged&Intercooled | 881/1200 | 1500 |
| 12M33C1300-15 | Turbocharged&Intercooled | 956/1300 | 1500 |
| 12M33C1200-18 | Turbocharged&Intercooled | 881/1200 | 1800 |
| 12M33C1300-18 | Turbocharged&Intercooled | 956/1300 | 1800 |
| 12M33C1400-18 | Turbocharged&intercooled | 1029/1400 | 1800 |
| 12M33C1500-18 | Turbocharged&intercooled | 1103/1500 | 1800 |

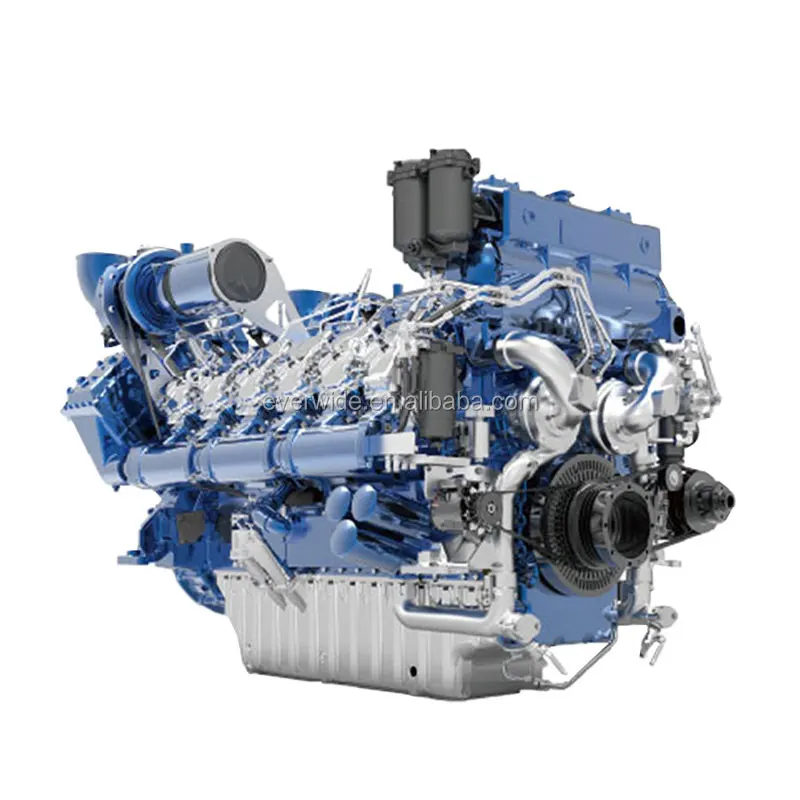

Product picture of Baudouin 1500rpm 1400hp/1029kw 12M33C1400-18 Marine Diesel Motor:
Related Product
 |  |  |
| Gas generator | Marine generator | Diesel generator |
 |  |  |
| Trailer type generator | Soundproof type generator | Container type generator |
Company Information
1. Product detailed images:

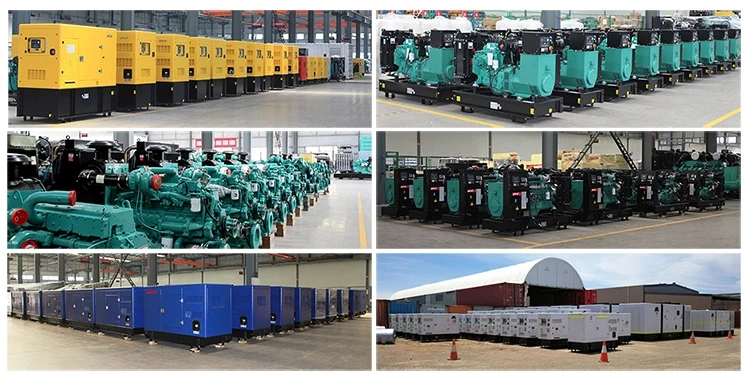

2. Factory show:
3. Workshop overview:
4. Installation cases:
Packaging & Shipping
Certificate
Our Services
Warranty policy:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable.
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets.
OEM Service:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
