Product Overview


 Needle punching machine high speed velour nonwoven dilo for padding

Company Information


We are leading company in this field, We provide specific solutions for our every customers.


Qingdao Qinyuan Machinery Co.,Ltd. is one of the earliest and biggest factories in manufacture & sale. We are professional in quilting machines, with a history of nearly 20 years. most enterprises in the line of garments, bedding and mattresses use our computerized and mechanical quilting machines of various types.


Our sales.


Our products sell well in Asia, Europe, Africa, and Oceania. In our trade with merchants of various countries, we always adhere to the principle of equality and mutual benefits. It is our hope to promote, by joint efforts, both trade and mutual advantages.


Our products.


We produce computerized machines, mechanical machines, multi needle machines, single needle machines, chain stitch machines, bobbin winders, and oblique cutting machines. For each kind of machine, we all provide a variety of models to meet the need of different customers, and new patterns are continuously designed up to meet the demands of the market.


Our strategies.


We can provide not only commercial services but also a perfect system of after sales service. For instance, we can provide technical communication put forward by many customers, installation and debugging, technical training and timeless supply of spare parts, which are all satisfied by our customers.





Product Description



1)Bale-opener→2)Pre-opening Machine →3)Fiber Reserve Box →4)Main opening Machine →5)Cotton feeding Machine →6)Carding Machine →7)Cross Lapper →8)Oven(different heating ways for selection) → 9)Cutting and Rolling Machine


The performance of the whole production line for quilt
1) the speed governing system can be controlled by the speed control of the infinitely variable speed motor or the speedregulation by frequency converter.
2) the raw material can be used as chemical fiber, wool, hollow and so on.
3) electrical components use brand-name electrical appliances, light control switch adopts imported brand.
4) The total area of the machine is 11 meters -12 meters long and about 13 meters long.
5) The total power of the motor is 18kw-25kw.
6) The total weight of the whole machine is between 10 tons and -20 tons.







1)Cross Lapper


Uses and Characteristics:To fold and pave the mesh after carding evenly into certain width and thickness.Then transfer it to next procedure after pressurization. All paving aprons are driven separately for easy adjustment.The reciprocal commutation is controlled by frequency conversion,and the rail is proof against oil leaking.


Input apron width1700mm
Output apron width2800mm
Lapping speed≤45m/min
Total power4KW


2)Outfit machine


It can be applied to any synthetic fiber, wool and quilt products of various sizes. It can be matched with non-woven carding machine and quilting machine to form quilt series of processing automatic production lines.


Inner width2700mm

3)Opening machine
Inner width1000mm
Mechanical size2500mm*2000mm*800mm
Out put150-180kg/h
PowerMotor 0.75kw 4 level one set(Laura feeding cotton)
2.2kw 2level one set (Fan machine use)
2.2kw 4level one set (Host opening)


4)Feeding machine
ApplicationIt is mainly used for loosening raw materials, and the cotton can also be combined with the loosening machine through the counterweight, and the middle is transported by the fan.
Features1. The amount of cotton entered by photoelectric control is basically uniform and the amount of cotton is stable.
2. Adopt the volumetric feeding mechanism to achieve uniform and continuous feeding.
3. The cotton roller and peeling roller are driven by the constant speed of the motor.
Inner width1380mm
Out put30-80kg/h
PowerMotor 1.1kw 4 level one set (Hairy and peeling roller)

1.5kw 4 level one set (Angle nail curtain and Xiaoping curtain)

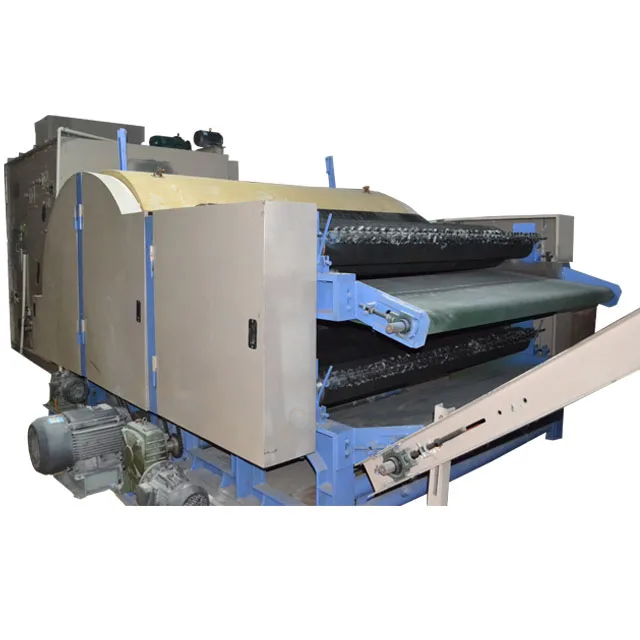

5)Carding machine
Inner width1550mm
Cylinder diameterφ50mm/φ1020mm/φ1230mm
DofferSingle and double doffer
Mechanical size3000mm*2500mm*2800mm
Out put80-150kg/h
PowerMotor 0.75kw 4 level one set(Cutter box)
0.75kw 4 level one set (Roller speed adjust)
1.5kw 4 level one set (Doffer speed adjust)
5.5kw 4 level one set (Host Cylinder)




Finished Products



Packaging & Shipping




Our Services


1.The machine is guaranteed for one year.


2.We can arrange engineer to debug and install for customers.
