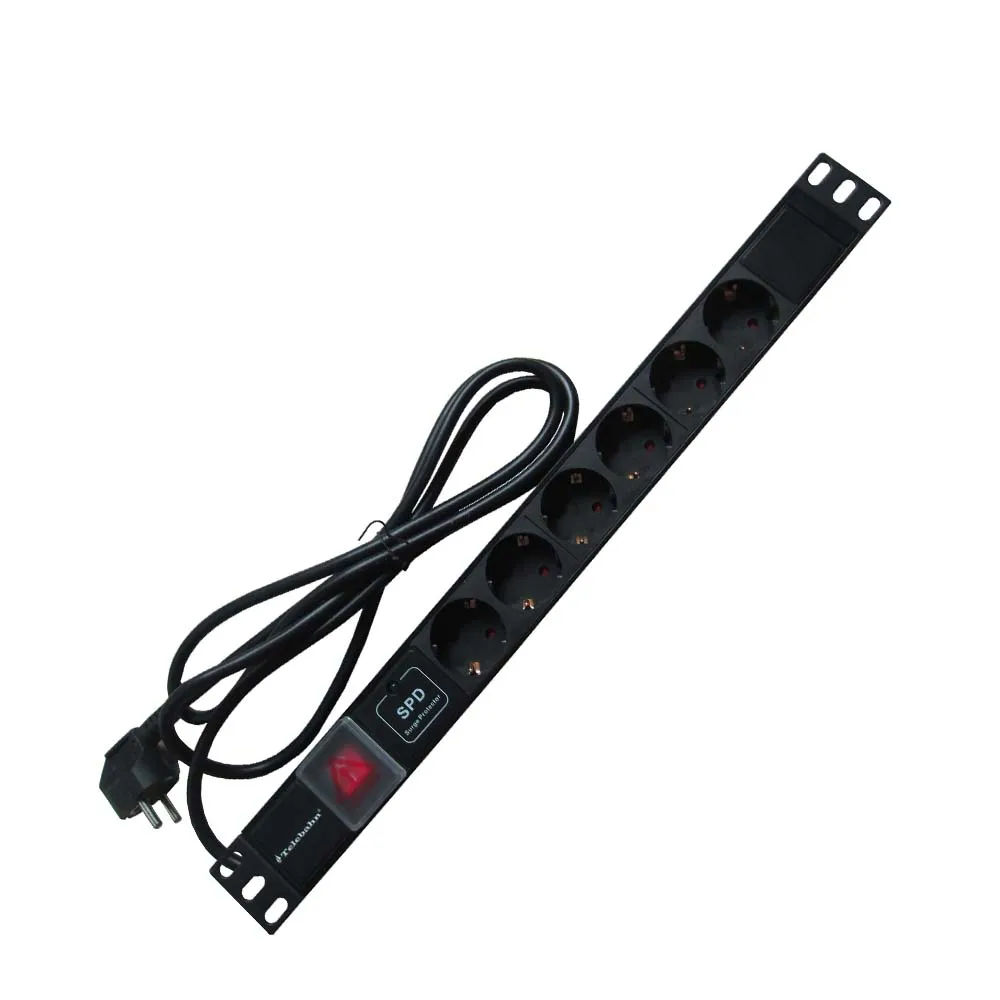

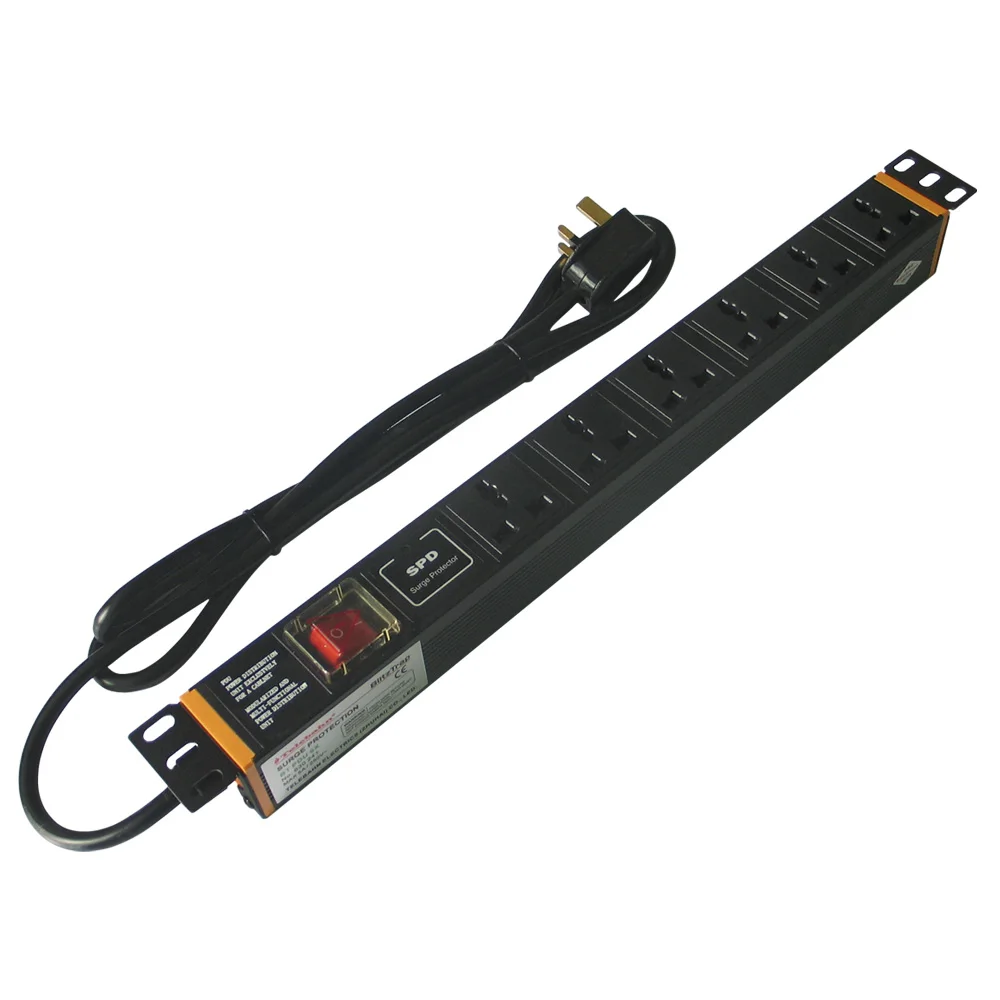

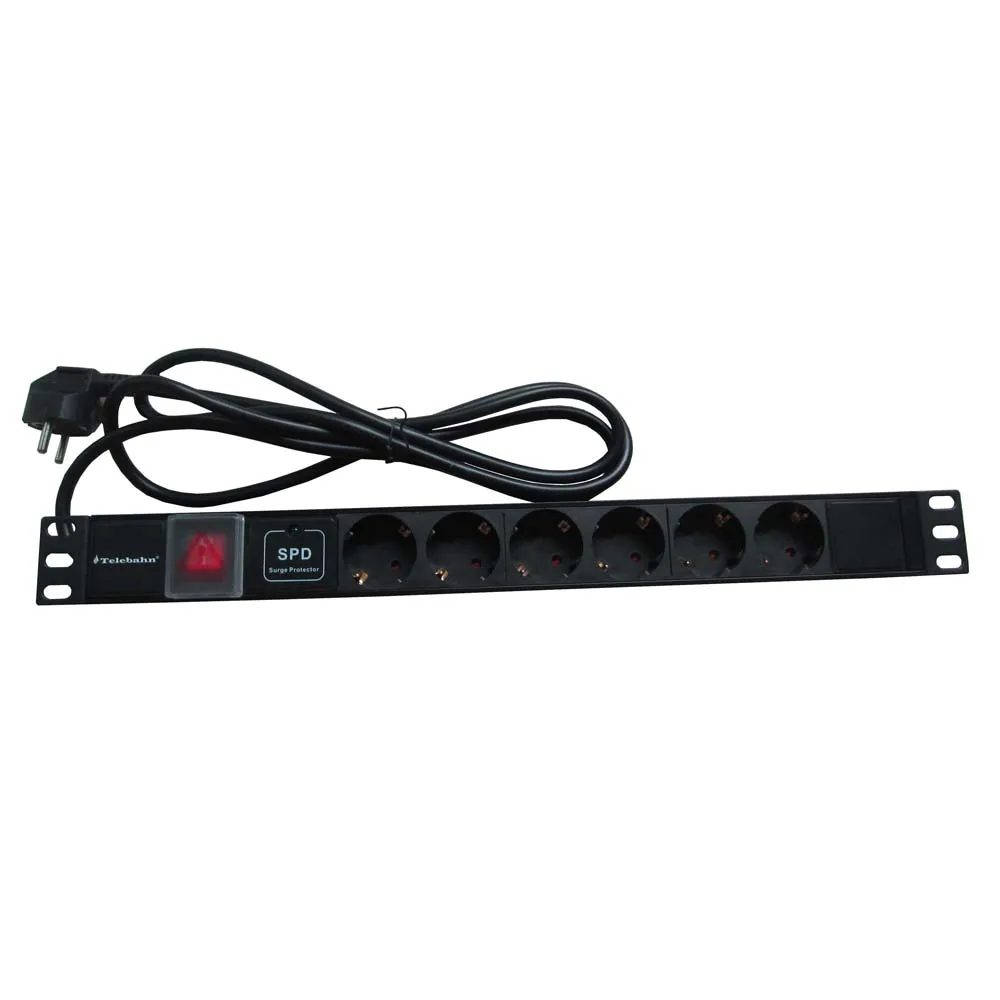

Intelligent Power Distribution Unit 230V 15A 1 To 6 Outlets IP PDU

Product Overview

Description

Intelligent Power Distribution Unit 230V 15A 1 to 6 Outlets IP PDU







Product introduction:

220V 10KA PDU 6 outlet SPD transient voltage surge protectors for cabinet

2016 China new 230V multiple socket Class III power supply surge arrester

Product Description:
Multiple socket outlet for protecting electronic equipment from surge damages. Applied in SPD Class III (Class D) for single phase various power supply system.Designed according to GB 18802.1 / IEC 61643-1.

Main character:
1. High discharge capacity, low voltage protection level
2. Quick response
3. Green light indicates normal

4. Can be installed in a 19" panel



Parameters:

Type	BT PDU 06
Art.-No.	830 240
Nominal voltage	UN	230V
Rated voltage (max. continuous a.c. voltage)	Uc	320V
Nominal discharge current (8/20µs)	In	3KA (L–N), 5KA (L+N–PE)
Combination wave	Uoc	6KA (L-N),10KA (L+N-PE)
Voltage protection level at In	Up	≤1.15KV (L-N), ≤1.5KV (L/N–PE)
Response time	tA	≤25ns (L-N)  ≤100ns (L/N-PE)
Max. Back up fuse		16A gL/gG
Short-circuit withstand capability at max. backup fuse		6kArms
Operating temperature range	Tu	-40°C...+80°C
Terminal wires		1 mm2, length 120 mm
Enclosure material		Aluminum
Test standards		YD/T 1235.1; GB 18802.1; IEC 61643-1
Certification		CE (LVD, EMC)
