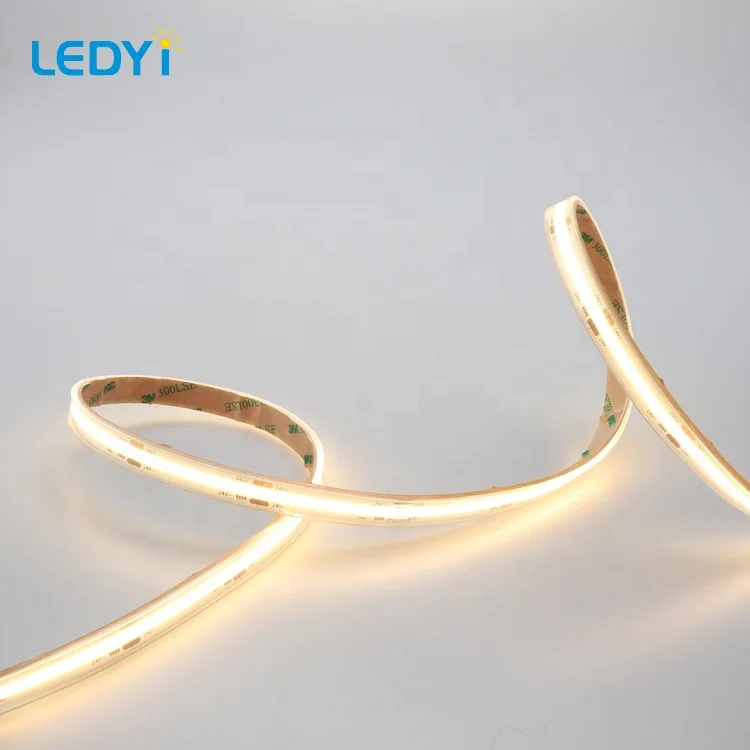

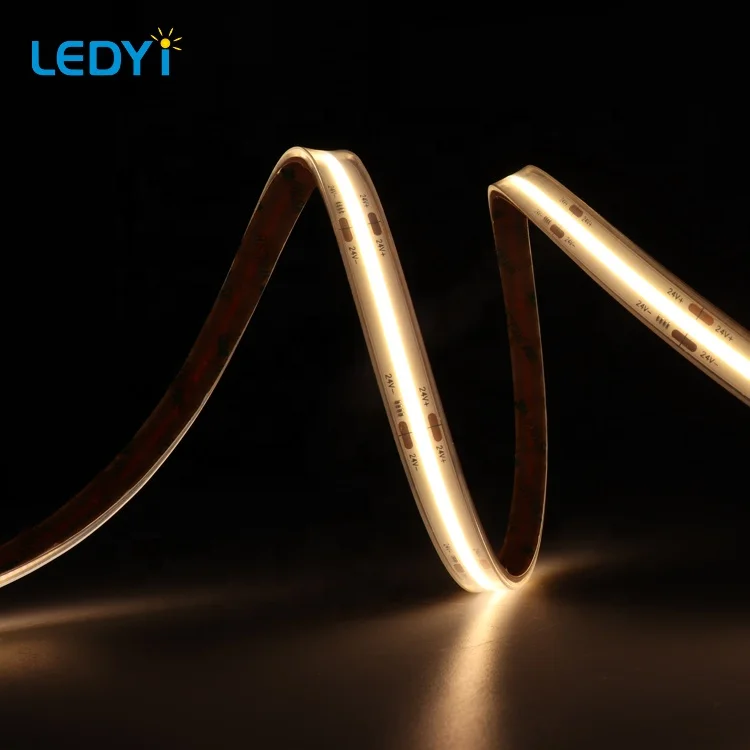

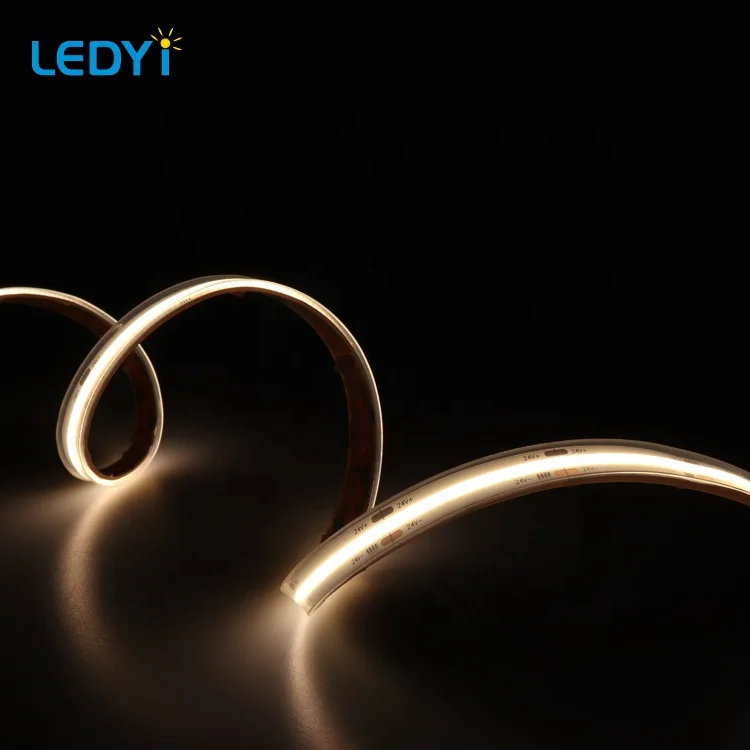

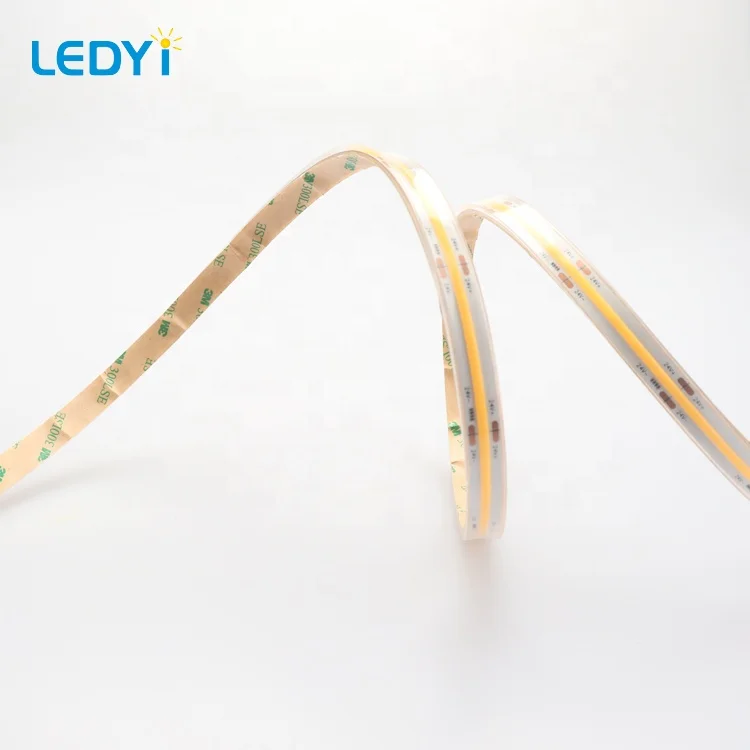

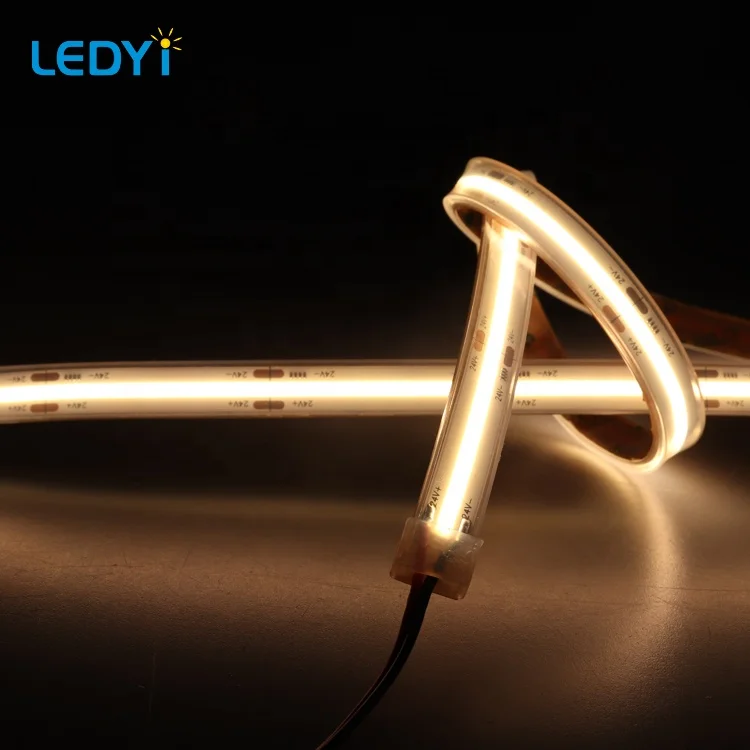

12V / 24V, flexible COB LED strip (Step length: 25mm(12V)/50mm(24V)) with 3M adhesive tape on the back for easy installed. 573.90lm/m at 5W/m, 1138lm at 10W/m, 1690lm at 15W/m . 180° beam angle. Very good color reproduction with CRI>90. IP67 Silicone filling waterproof for outdoor/marine application.
Product Specification

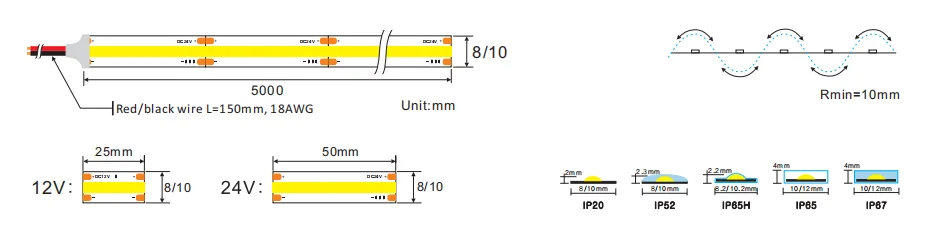

Dimension:
5000x8/10x2mm
Voltage(V):
DC12V/DC24V
Chip Type:
COB
Current(A/m):
0.42A(12V)/0.21A(24V)
Chips/m:
480pcs
Power(W/m):
5w;10w;15w
Step Chips:
12pcs(12V）/24pcs(24V)
Beam Angle:
180°
Step Length:
25mm(12V)/50mm(24V)
Operation Temperature:
-20℃-50℃
Product Photometrics(Data base on IP20 CRI>90)
CCT
Lumon
(5W/m)
Lumon
(10W/m)
Lumon (15W/m)
Efficacy
CRI
R9
TM-30-15
Rr
Rg
2700±100
481.05
957.3
1418
96.21
92.33
62.26
90.55
99.88
3000±100
512.80
1029.0
1527
102.56
93.25
64.51
92.36
100.39
4000±200
550.75
1138.0
1690
110.15
92.93
65.28
94.55
101.19
6000±300
573.90
1124.0
1672
114.78
94.62
66.88
93.98
101.28
Product Presentation
IP20: bare, max. light output and the best color consistency, indoor use.
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments. IP65/IP65H: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency,
Indoor use or semi-outdoor use, for raining environments.
IP67: Silicone tube + silicon filling , ~7% less output and 4th best color consistency, outdoor use, max length is 10 meters.
IP67E: Solid silicone extrusion, ~7% less output and 4th best color consistency, outdoor use, max length up to 50 meters.
IP68: PU(Polyurethane),~7% less output and 4th best color consistency, under the water, within 2 meters deep.
Packing&Shipping
Related Products
Certificate
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications. Thanks to the strict quality control
processing, on-time delivery and best after-sale service, strictly followed to UL, EU safety standards, our products have
been hot sold to Europe, North and South America, Russia, Southeast Asia, such as Germany, France, Italy, Spain, UK,
Australia, USA, Argentina, Chile, Venezuela, Brazil etc.
Company Introduction
LEDYi Lighting, founded in 2011, a specialized LED Strip manufacturer, with over 5000 square meters of standard workshop and over 150 employees.
Our company have LED encapsulation line, auto SMT machines, reflow soldering machine, and professional test equipment, such as IP68 waterproof level test machine, integrating spheres, AOI tester, etc. We also have a professional trained QC team to ensure the quality of all the products.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
