High Accuracy Shovel Loader Weight Scales, Front End Wheel Loader Weighing Scales With Printer and Oil Pressure Sensor

Product Overview

Description

High Accuracy Shovel Loader Indicator, Front End Wheel Loader Weighing Controller With Printer and Oil Pressure Sensor

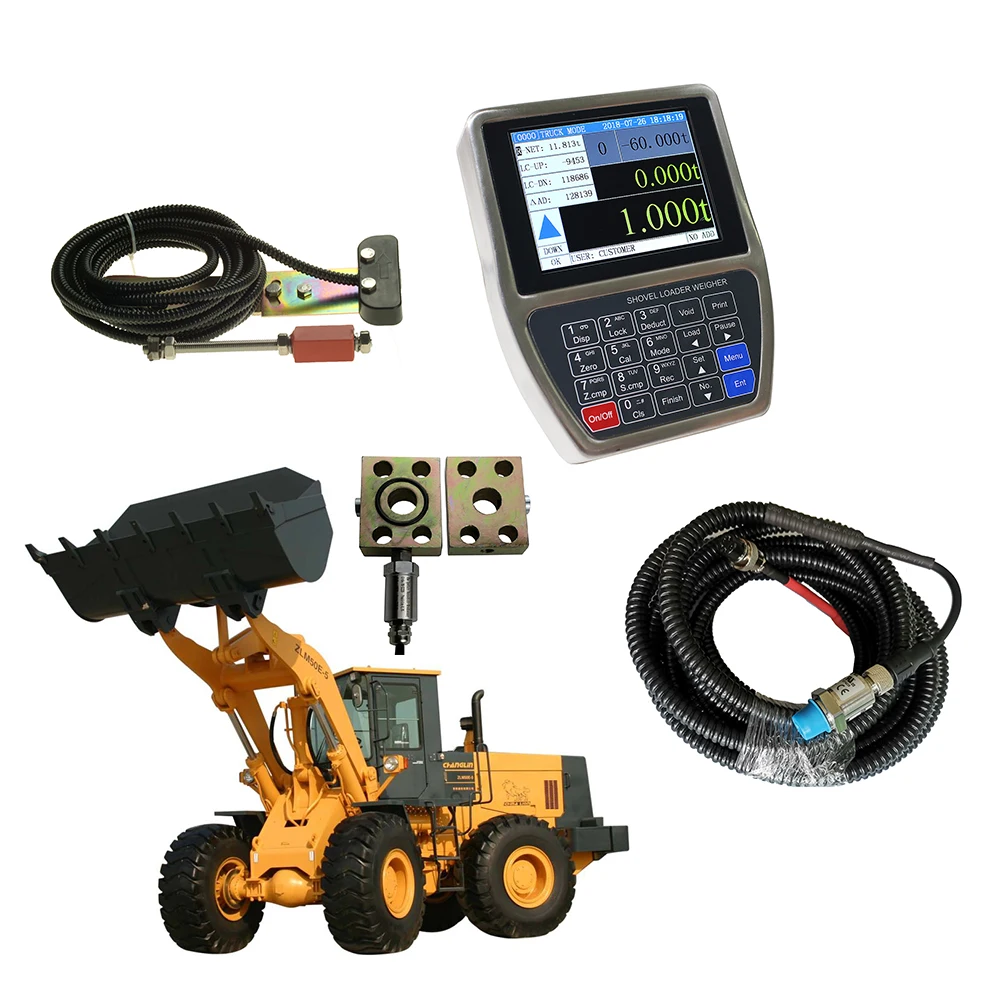

1. Configuration of 1 set Wheel Loader Controller

Weighing Controller with built-in printer	1 pcs
Oil Pressure Sensor	2 pcs
Position Sensor	1 set
Three-way joint	2 pcs



2. Photoes of the attachment:

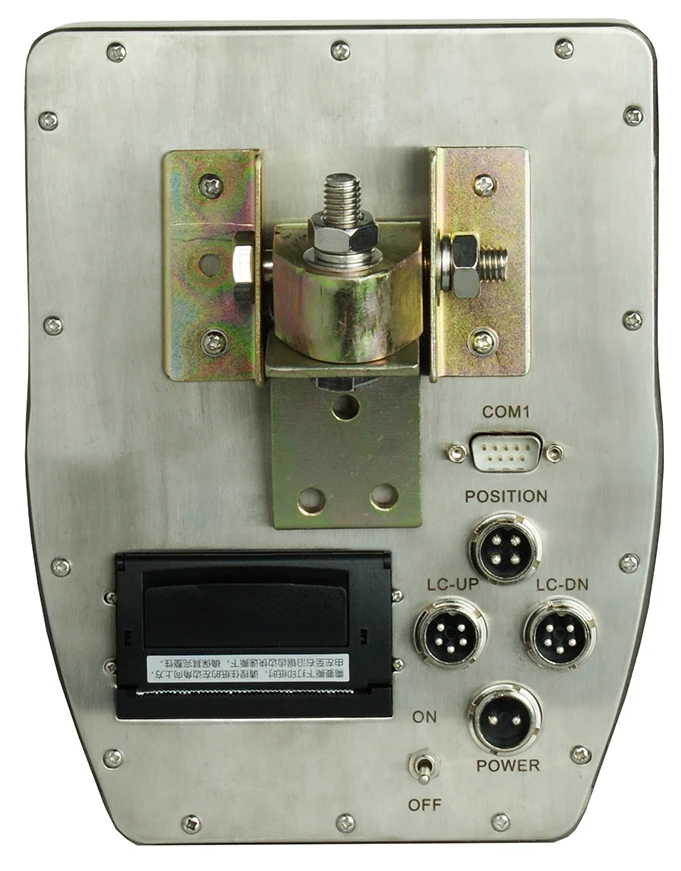

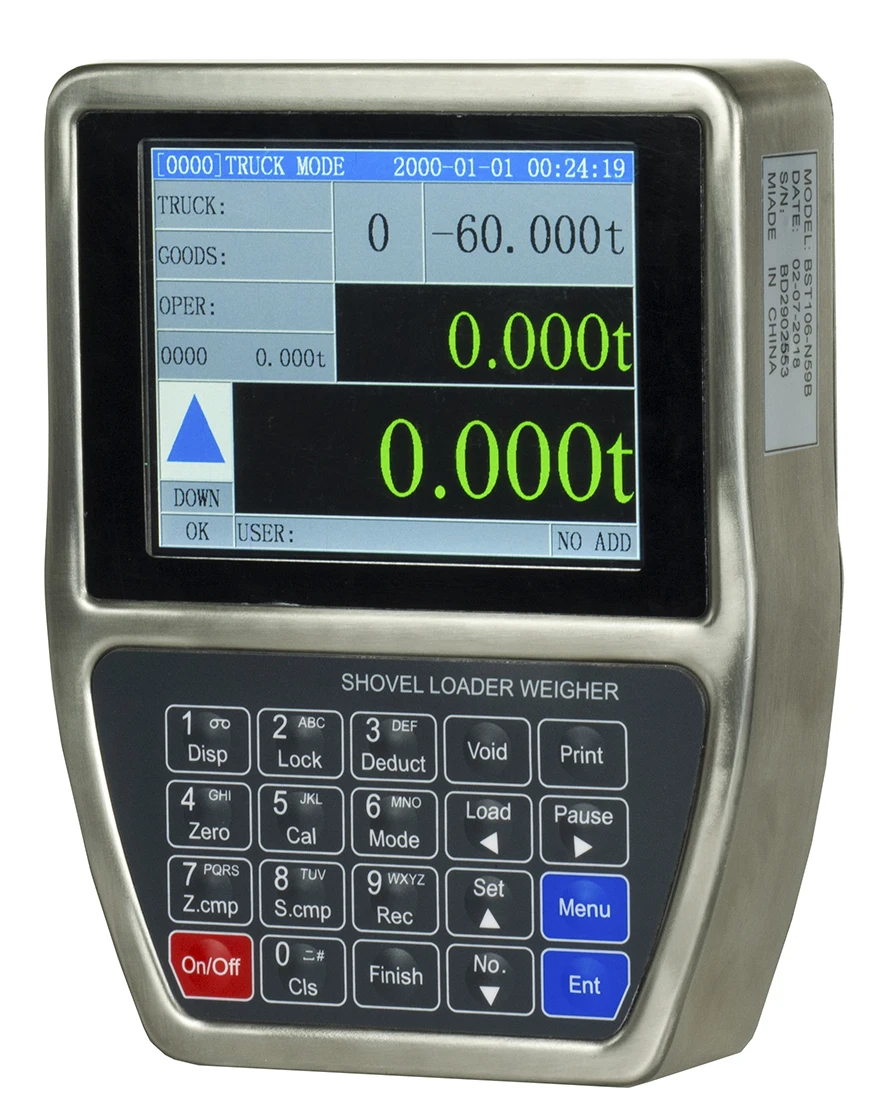

A. Weighing Controller

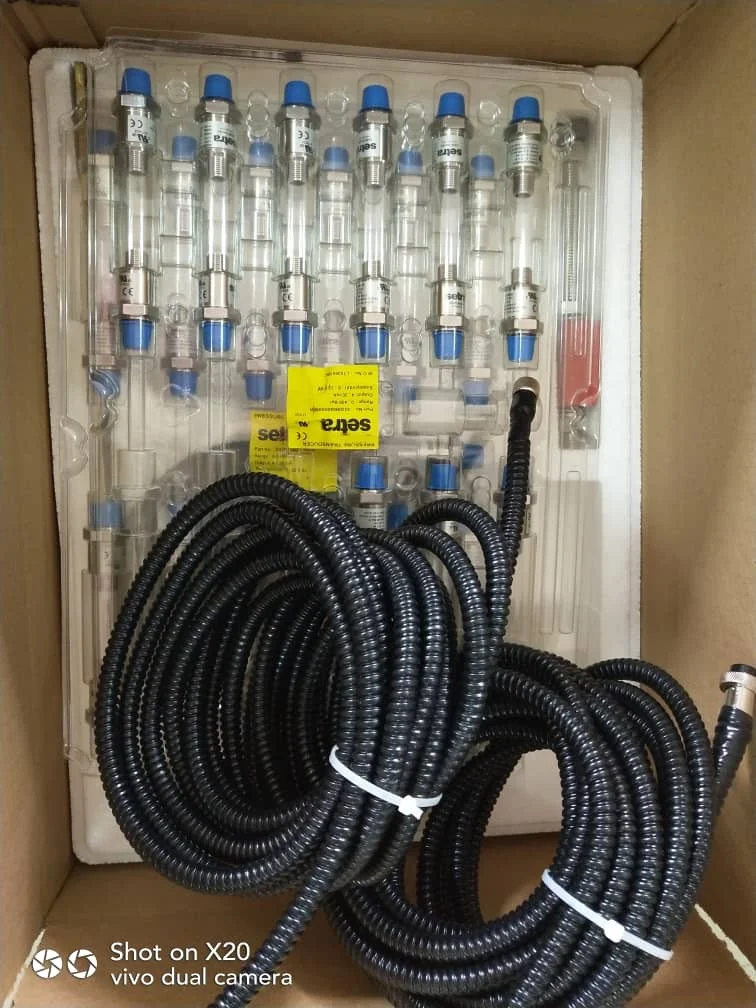

 B. Oil Pressure Sensor

C. Position Sensor

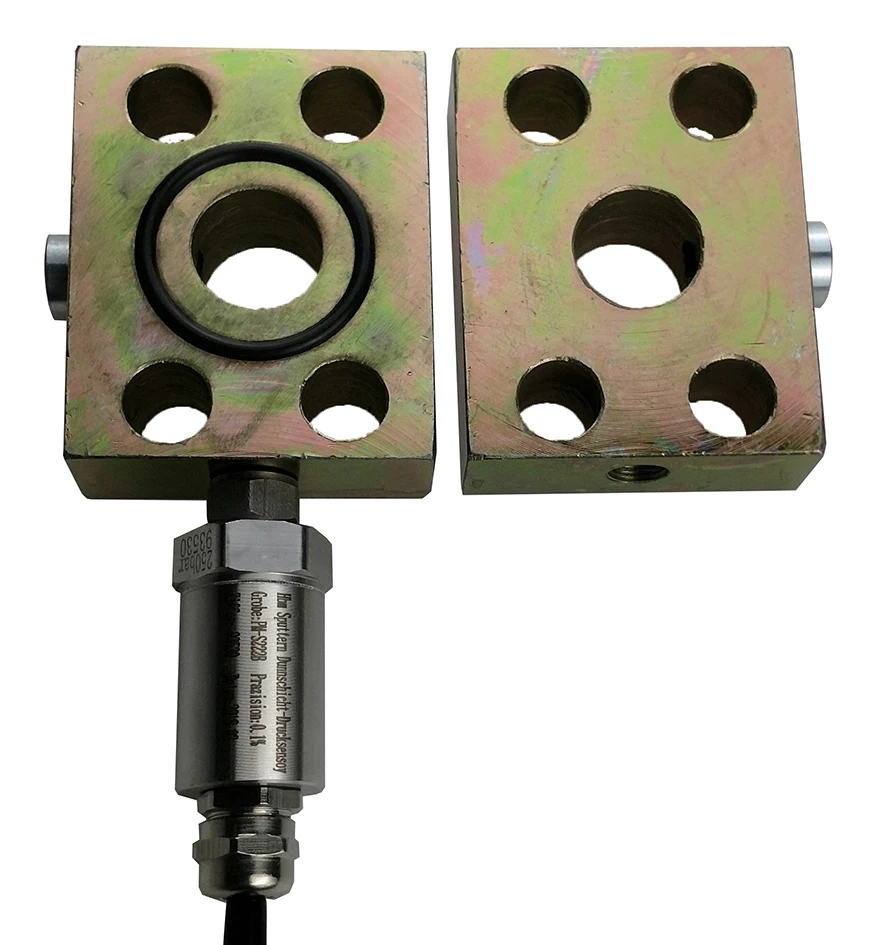

D. Thee-way Joint

Structure of Wheel loader



1: Bucket;  2: Lift-arm;  3: Arm-lifting Oil Cylinder;  4: Oil Connecting Port of Upper Oil Chamber;

5: Oil Connecting Port of Lower Oil Chamber.





Related Operation Terms:

² Arm-up: Lift the lift-arm so that the bucket rises.

² Arm-down: Put the lift-arm down so that the bucket goes down to the lowest position.

² Bucket-up: Flip the bucket upward to the limit position.

² Bucket-down: Flip the bucket downward.

² Discharge: Flip the bucket downward for discharging materials.

² Shovel: Shovel materials into the bucket.
