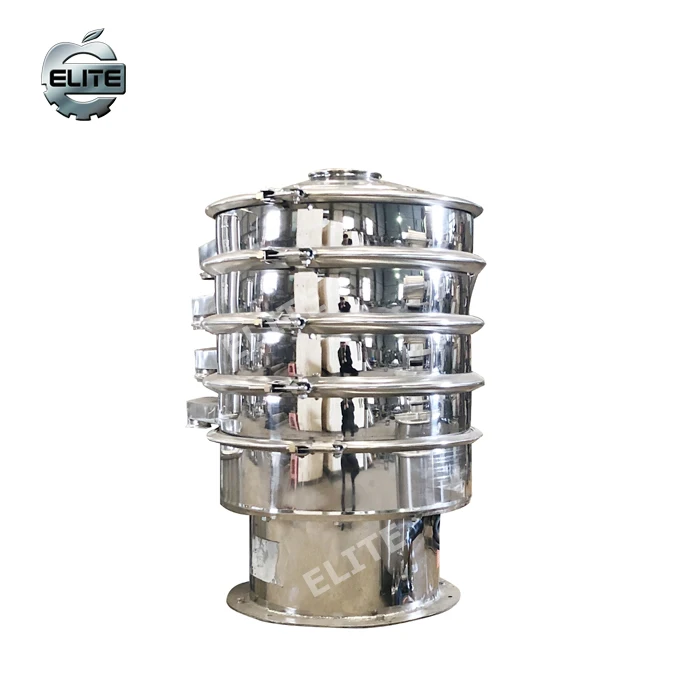

horizontal vibrating sieving machine groundnut sieving machine grape seeds sieving machine

Share on (62590735837):


Price:$950.00 - $1,050.00

Quantity:


Product Overview

Description



Product Description

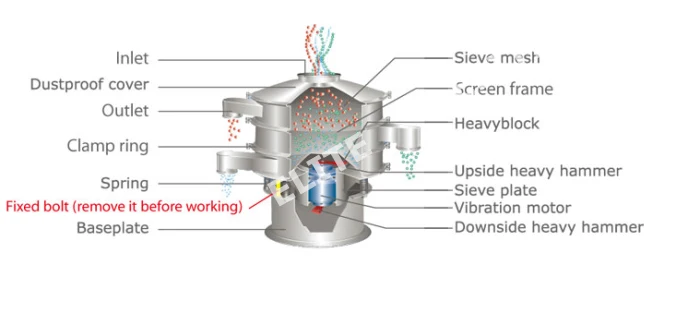

Vibrating screen separator,rotary vibrating screen machine is designed as a high-precision screening machinery. Rotary filter sieve price is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.



Technical parameters
Type
Capacity (T/H)
Power (kw)
Size (mm) adjustment
XSZ-600
0.2-1
0.25
700*770*720
XSZ-800
1-1.5
0.55
900*900*780
XSZ-1000
2
0.75
1180*1150*880
XSZ-1200
2.5
1.1
1380*1350*1050
XSZ-1500
3
1.5
1800*1800*1120
ZGJ-1
1-2
0.18
1200*800*630
ZGJ-3
3
0.24
1500*1000*630
ZGJ-5
5-10
0.36
1800*1200*630


Detailed Images

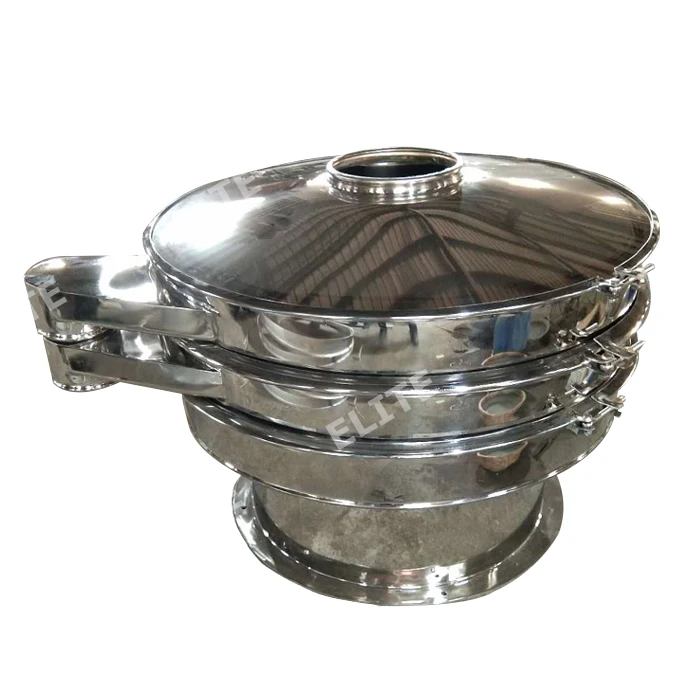

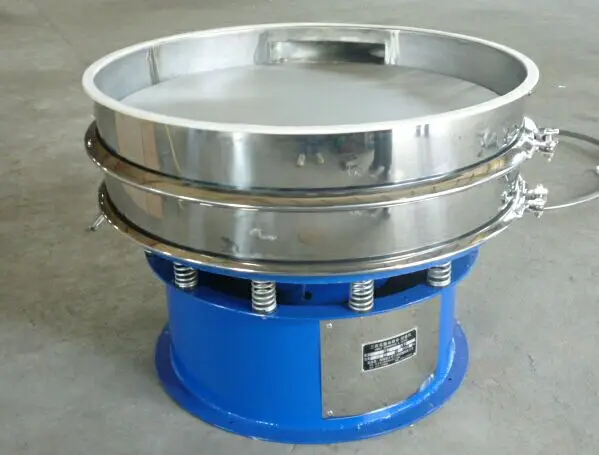

Single layer rotary vibrating screen

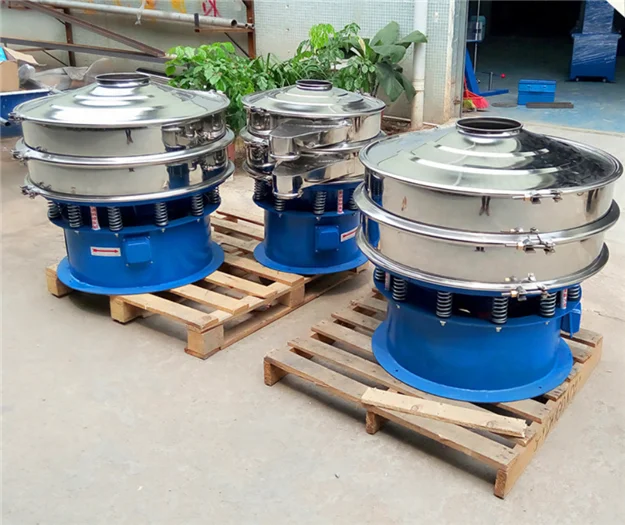

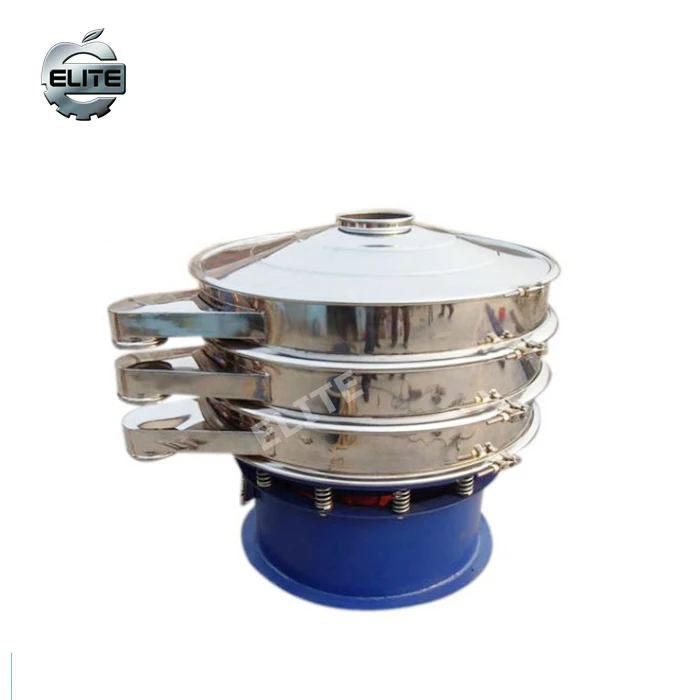

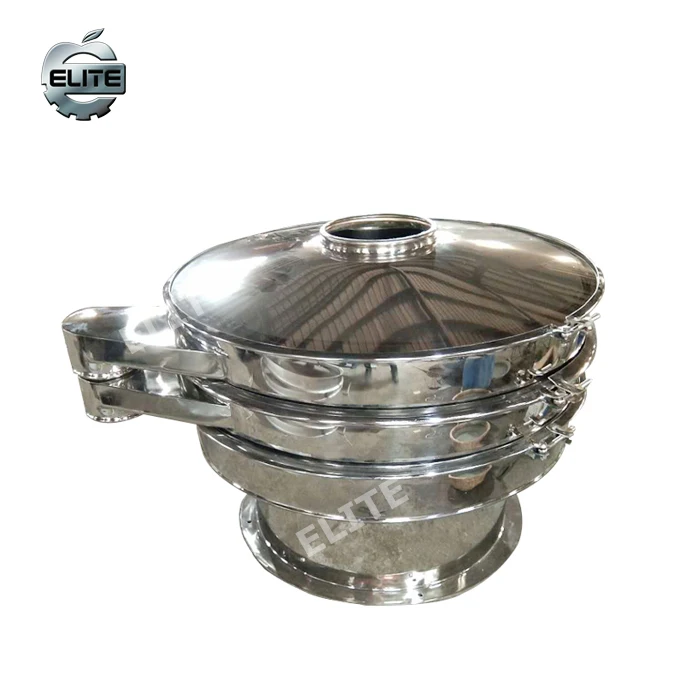

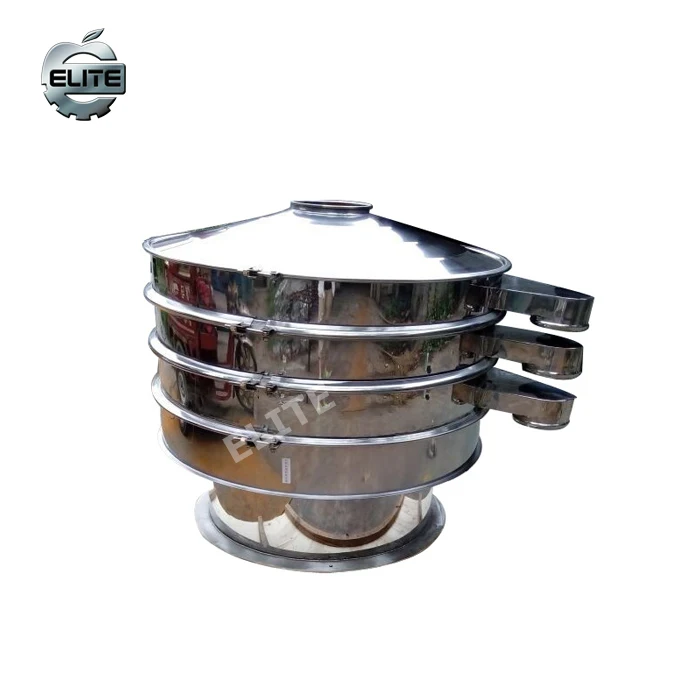

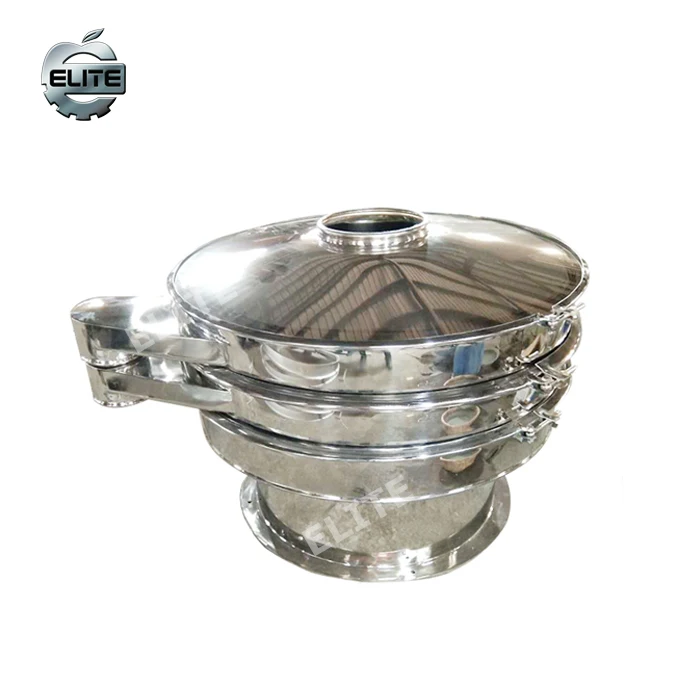

Multi-layer layer rotary vibrating screen


Vibration Separation Filtration
