China Modern Agriculture Aeroponics Culture System for Vegetables/Fruits
- Category: >>>
- Supplier: Shouguang Zenong Greenhouse Engineering Co. Ltd.
Share on (62590740169):
Product Overview
Description
Product Description
Liquid nutrient cultivation:
Liquid nutrient cultivation is to directly soak the root system of plants into nutrient solution, which can
replace the soil and provide plants with water, nutrients, oxygen and other growth factors, so that plants can grow normally. Plants can directly absorb nutrients and water from the nutrient solution through their roots, and people can manually mix a nutrient-balanced solution to achieve a balanced "diet" of plants. These solutions are stored in containers, they can be recycled and will not flow into the soil and affect the environment. They are safe, reliable and sustainable.
replace the soil and provide plants with water, nutrients, oxygen and other growth factors, so that plants can grow normally. Plants can directly absorb nutrients and water from the nutrient solution through their roots, and people can manually mix a nutrient-balanced solution to achieve a balanced "diet" of plants. These solutions are stored in containers, they can be recycled and will not flow into the soil and affect the environment. They are safe, reliable and sustainable.
Aeroponic cultivation:
Aeroponic cultivation is to use the spray will be atomized into small droplets of nutrient, direct injection to the plant roots to provide moisture and nutrients needed for plant growth a soilless culture technique of crop cultivation of hanging in a closed device (slot box or bed), and root nude inside the cultivation device, nutrient solution after spray atomization spray to the root surface, reduce the nitrate content of cultivated plants. It can accelerate the growth rate of plants, fruits and vegetables, shortened the time and greatly increased the biomass.
Substrate cultivation:
Substrate cultivation method in which plant roots are fixed with solid substrate (medium) and nutrient solution and oxygen are absorbed through the substrate. The common inorganic substrate includes vermiculite, perlite, rock wool sand, polyurethane, etc. The organic substrates include peat, rice husk, carbon bark, etc. Therefore, the substrates can be divided into rock wool cultivation, sand culture, etc. The nutrient solution is supplied by drip irrigation method, which has the advantage of simpler equipment and lower production cost.
Liquid Cultivation System

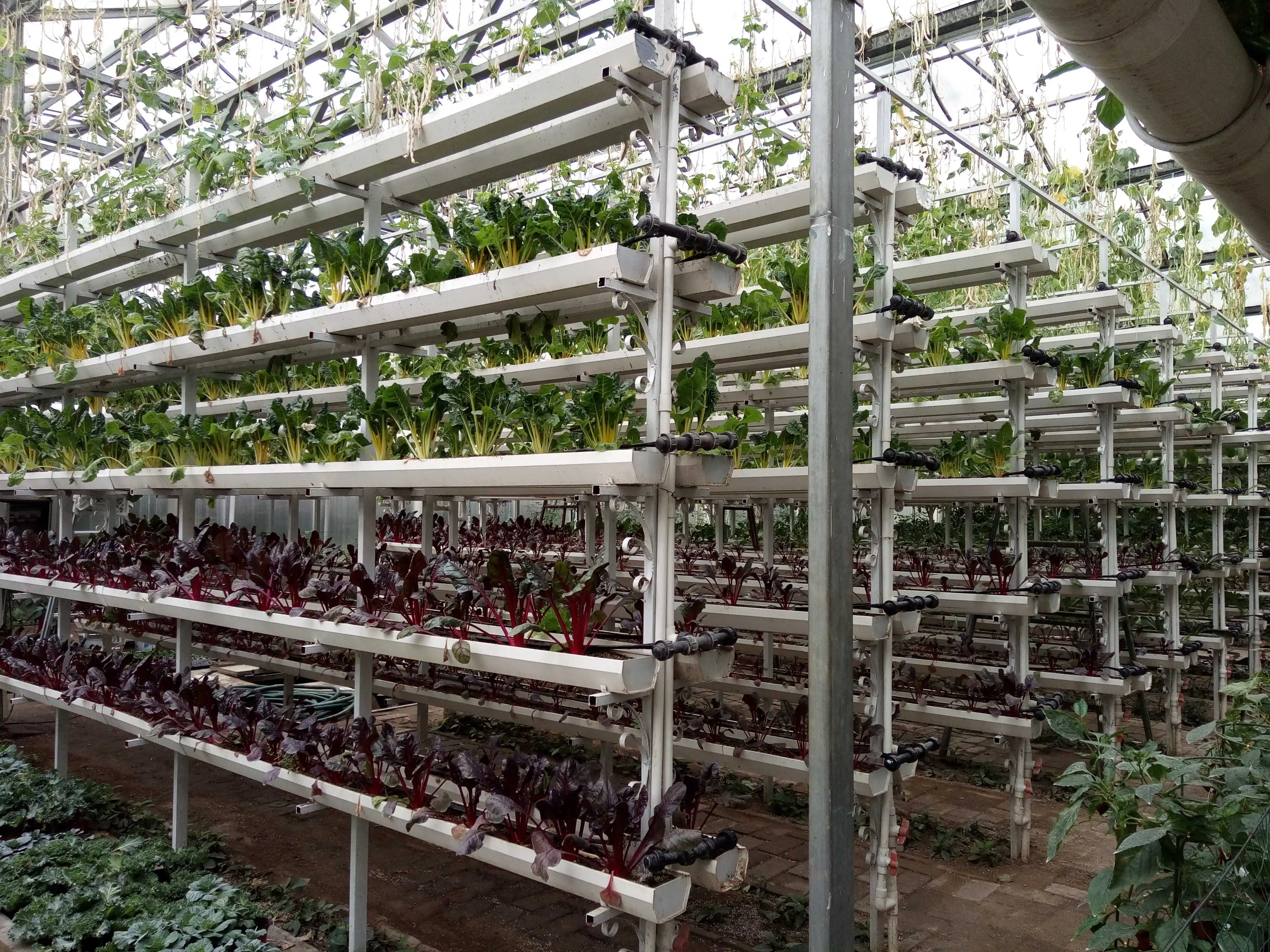

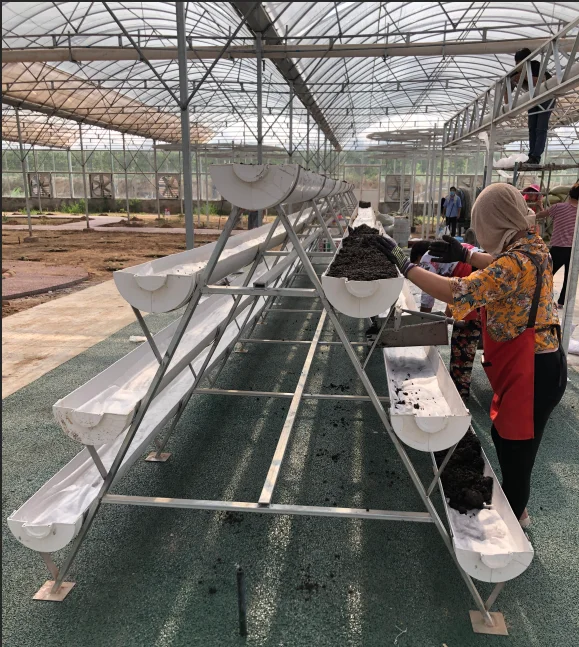

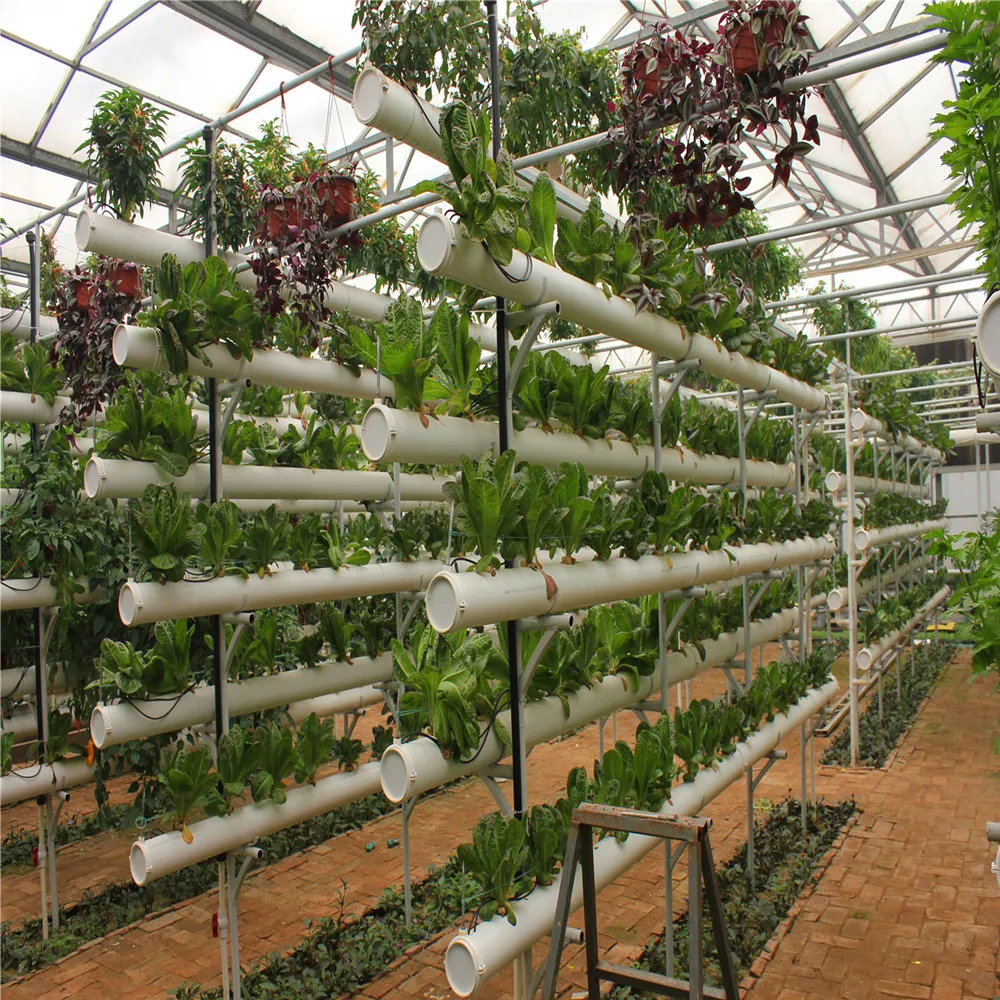

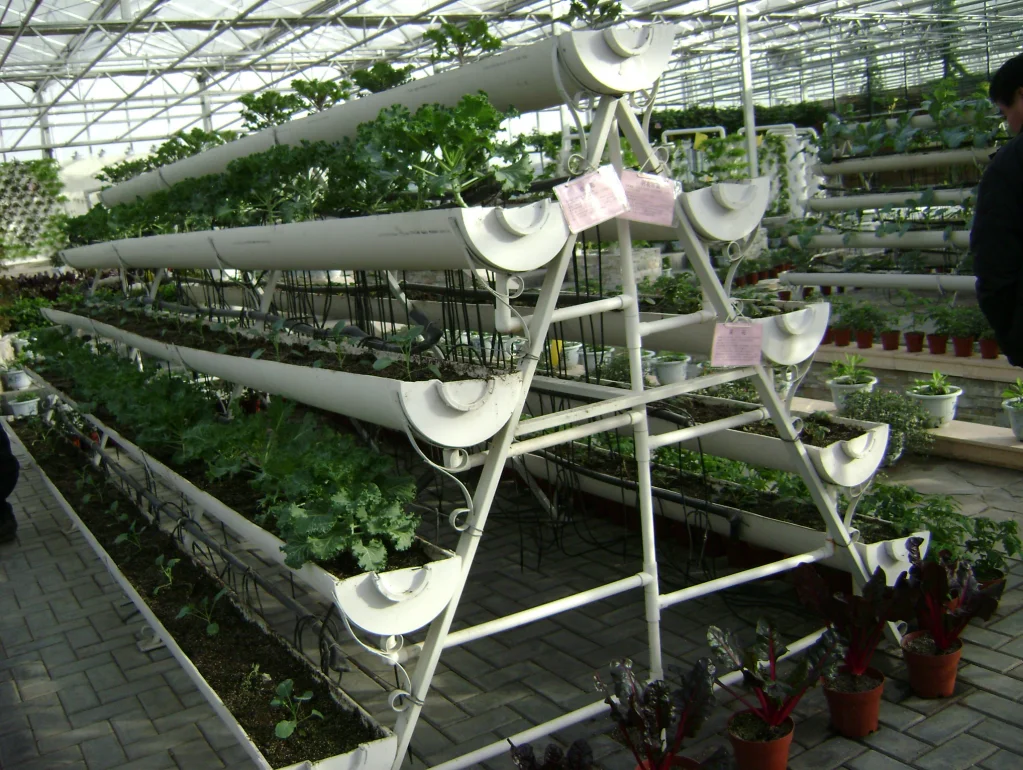

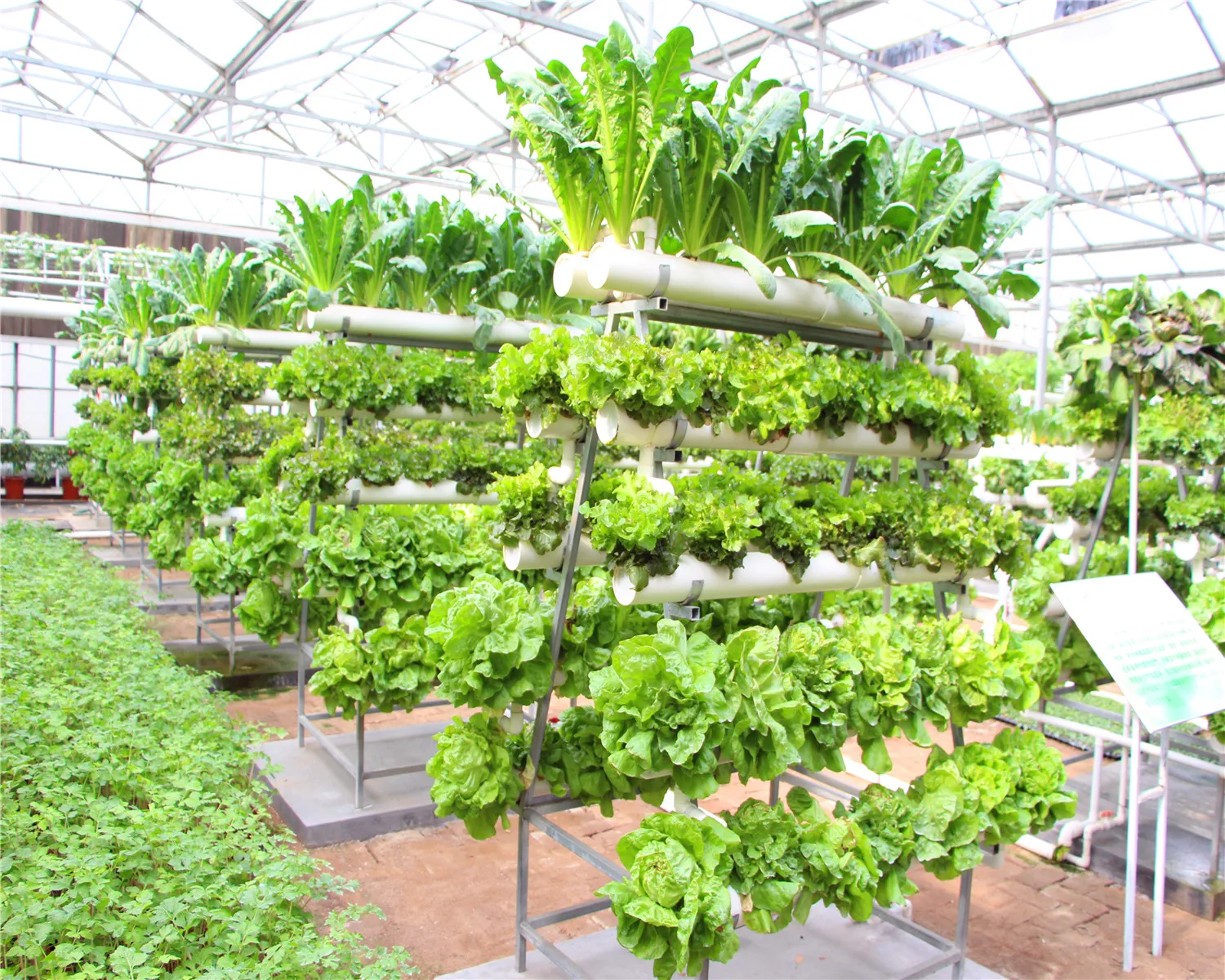

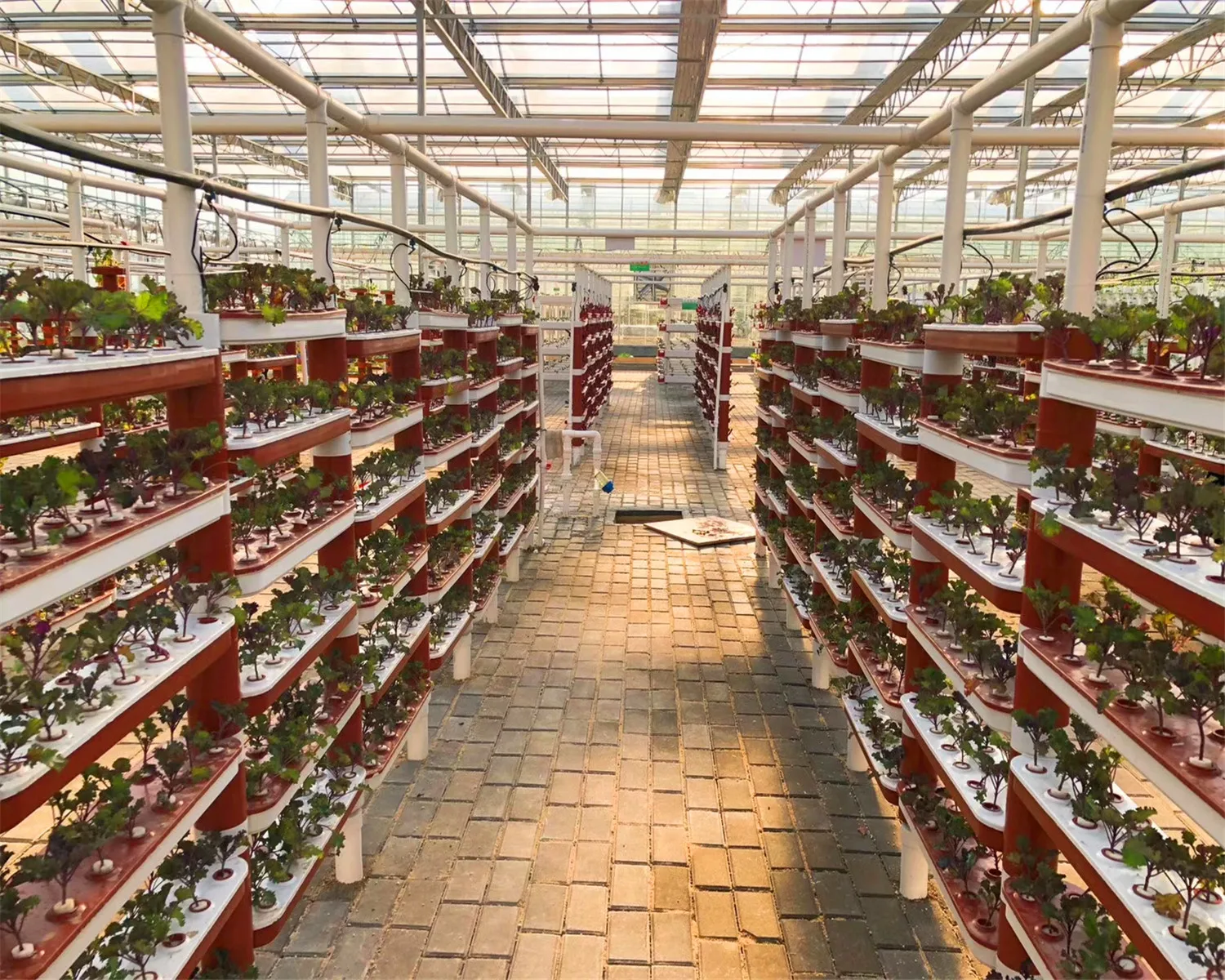

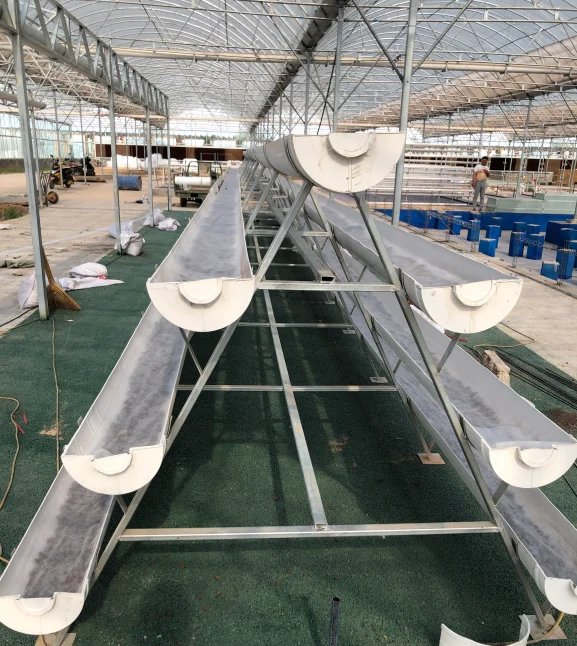

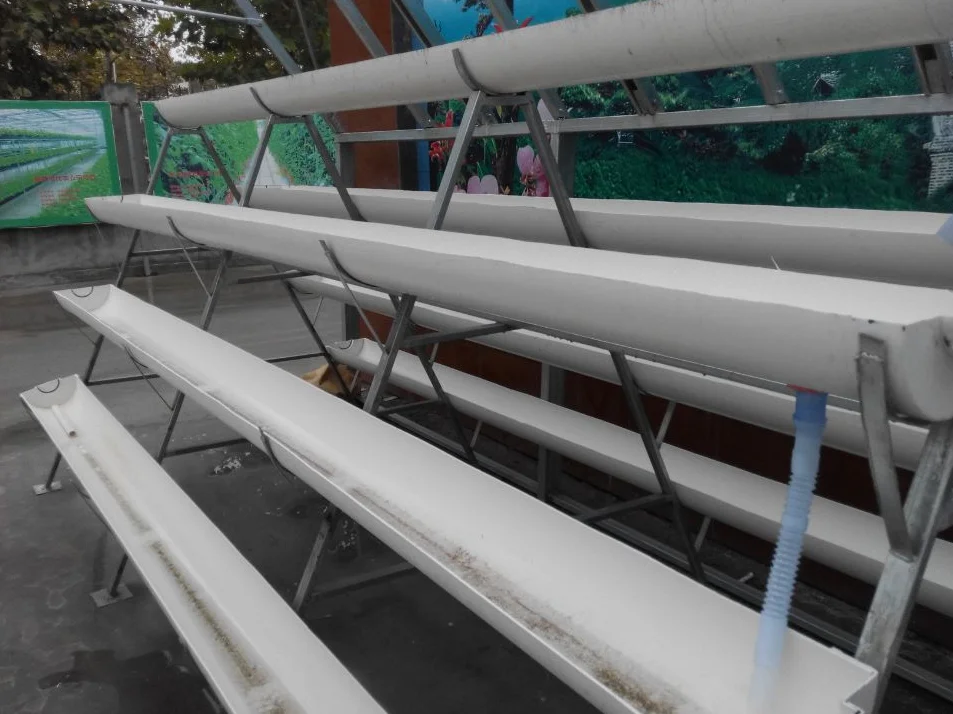

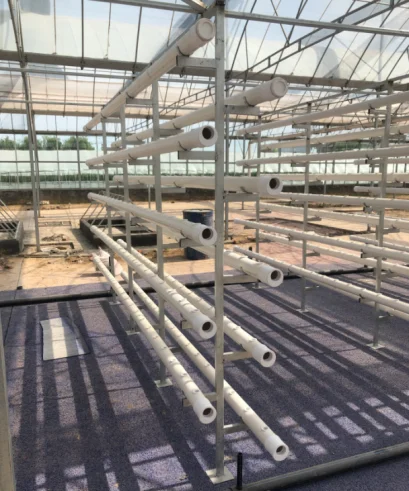

A-frame Cultivation: pipes or gutter, water or Substrate
Bottom width: about 1.4m, Height: about 1.8m, Length 2m to 8m, or as required. Layer: 5 or 7 layers.
A-frame hydroponics: Pipe or gutter (customize) | ||||||||
Size: | Frame Layer: 5 or 7 layers(customize) | Width: 1.4-1.5m / set(customize) | Length: 2-8m(customize) | Height: 1.6-1.8m(customize) | ||||
Materal: | Planting pipes or gutter: PVC/PE/PP | Frame: stainless steel or gavalnized steel | ||||||

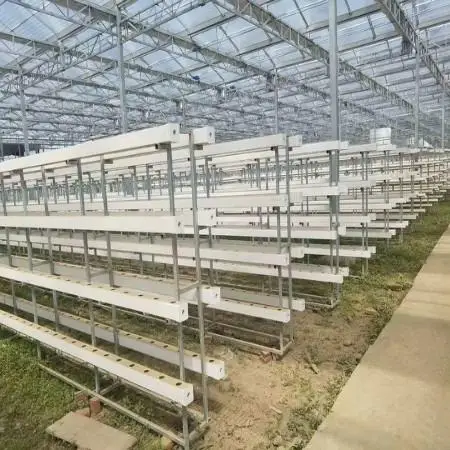

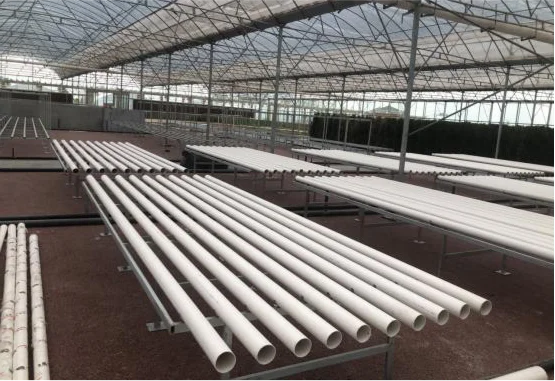

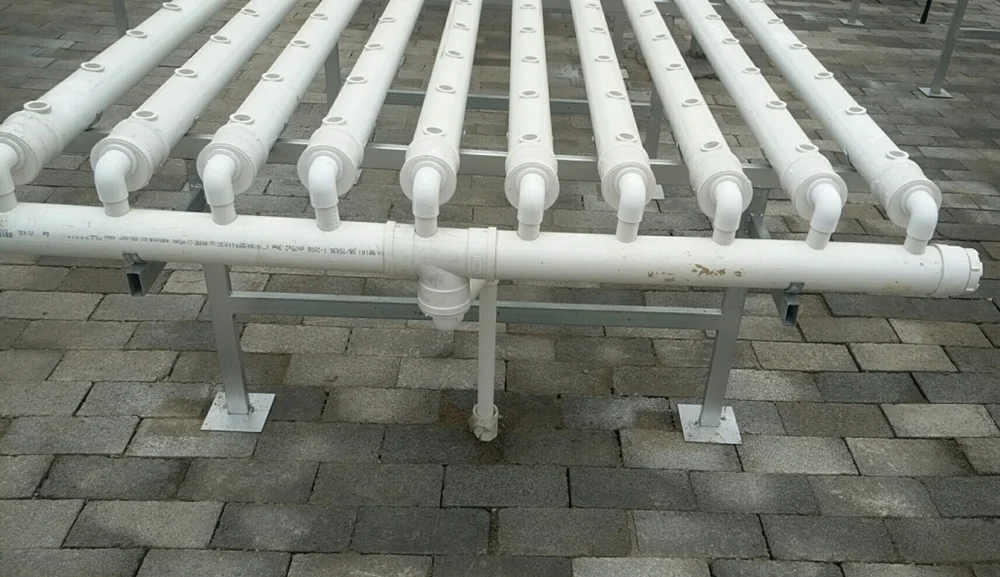

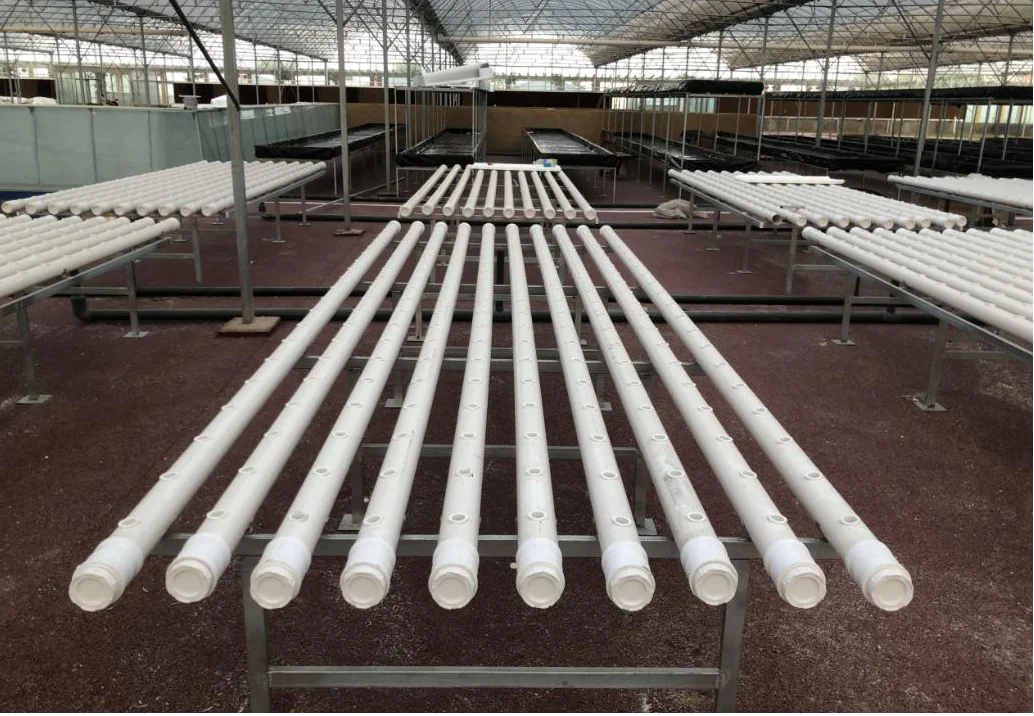

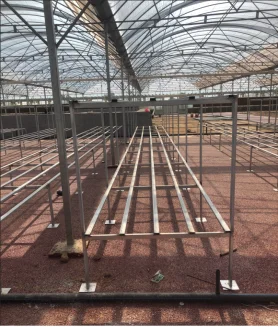

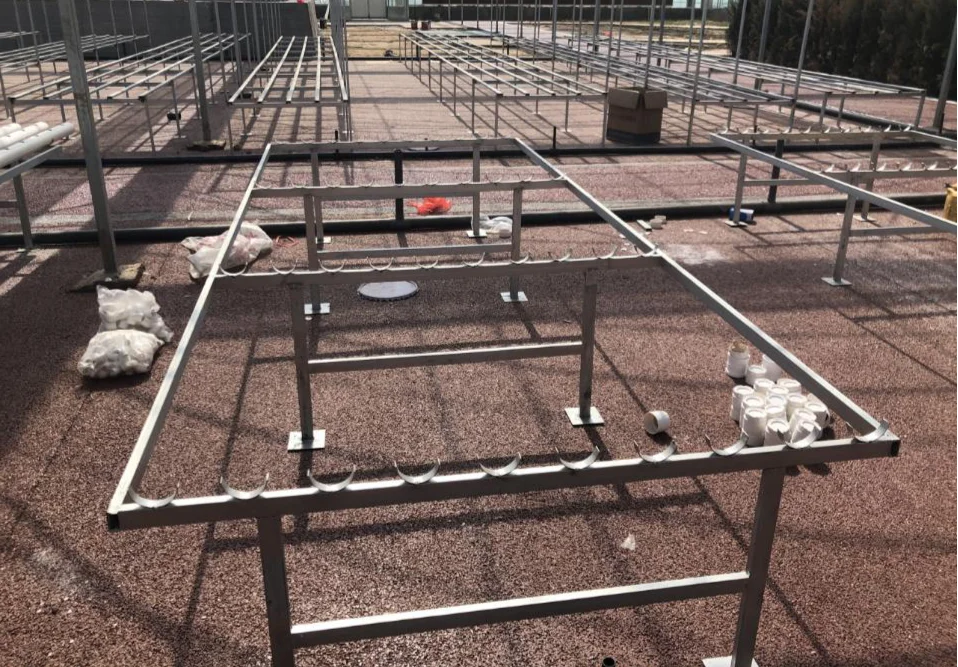

Flate Pipes Cultivation:
Material: | planting pipes: PVC | frame: hot gavalnized | |||
Size: | width as required | length 2-200m | |||
Details: | PVC pipes as joint pipe, planting pipe Ø75, return pipe Ø75, inlet pipe Ø25; frame(welded), taper ring, joint, elbow Ø75, tee Ø75, valve, pressure compensator, planting cup Ø32 | ||||

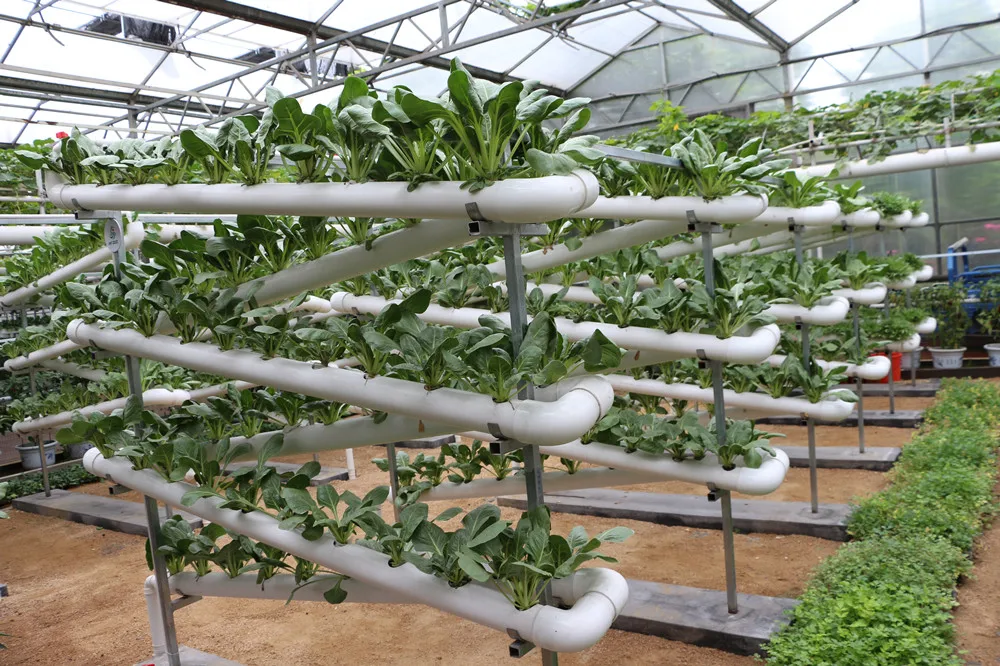

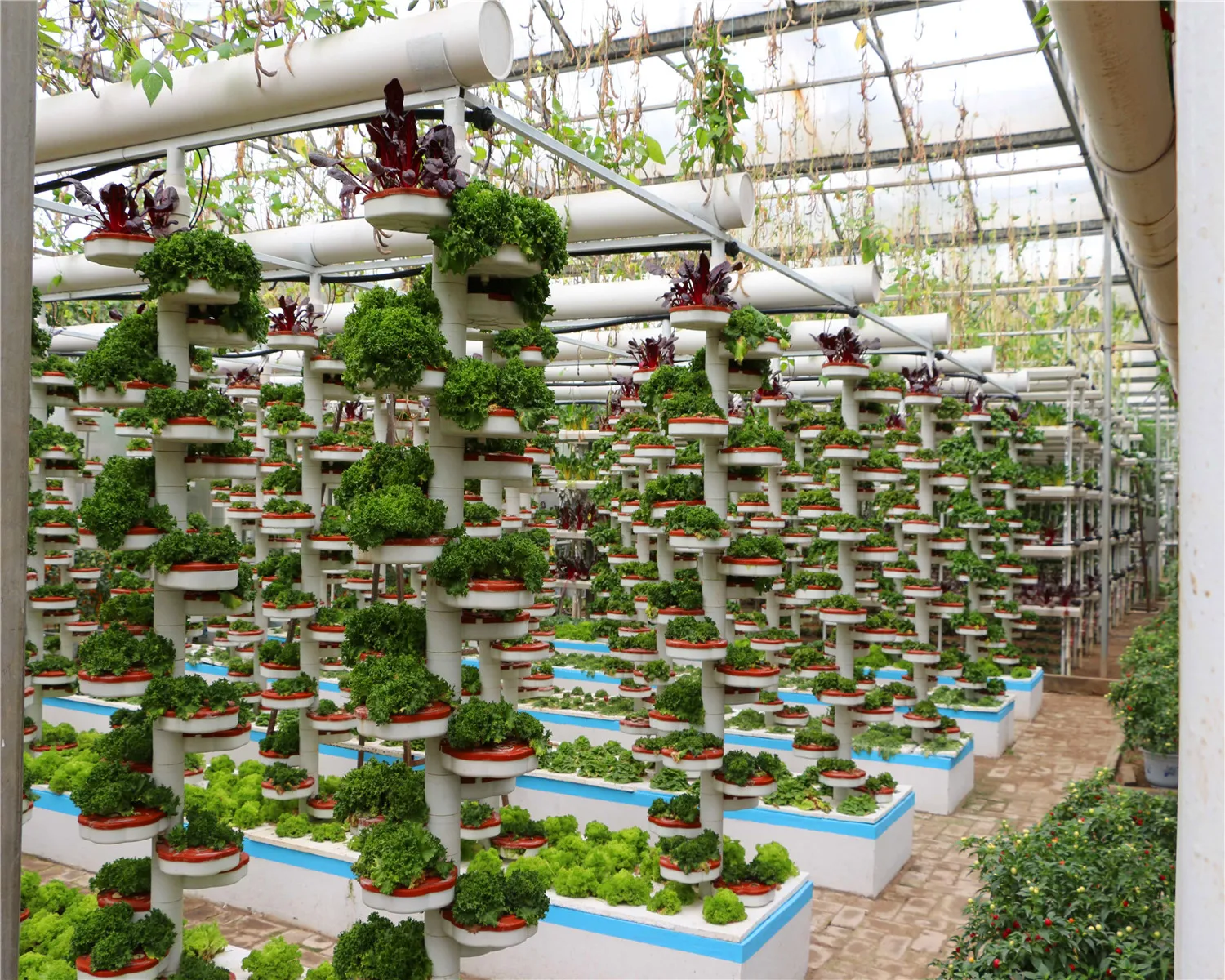

Vertical Pipes Cultivation:

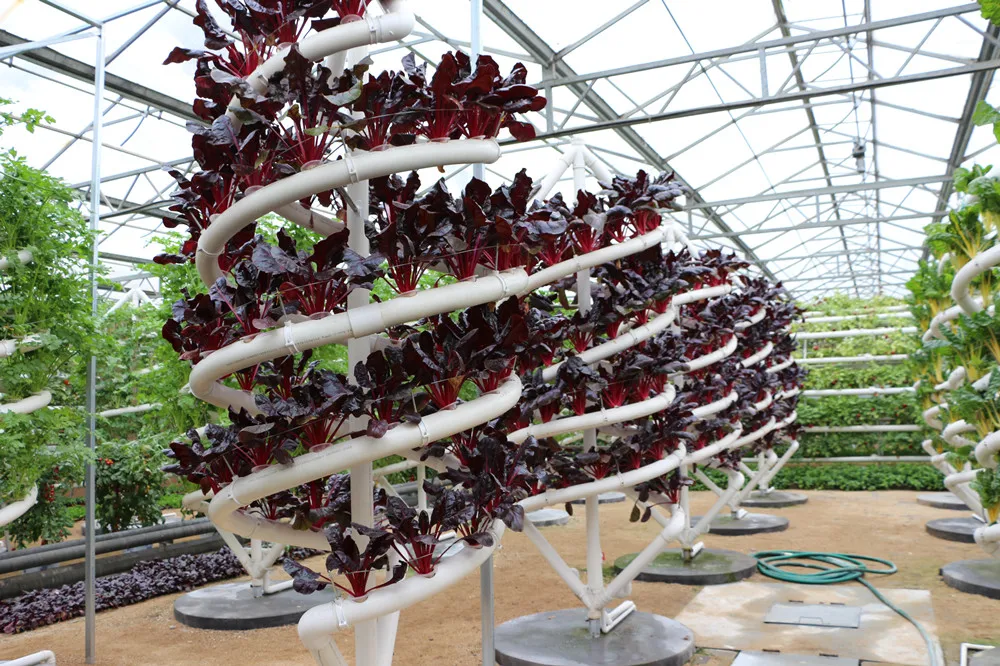

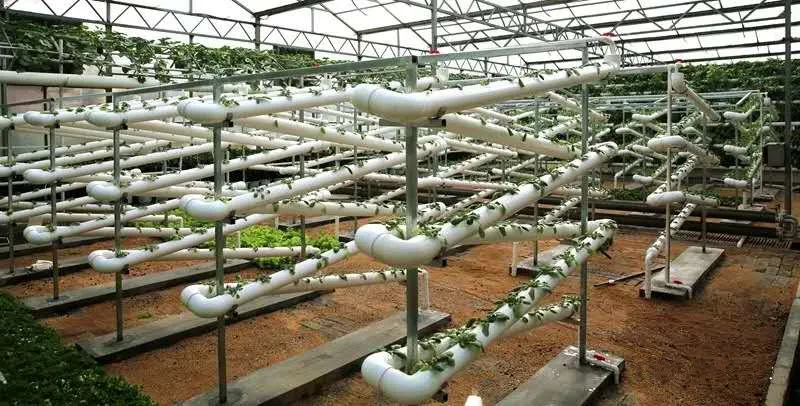

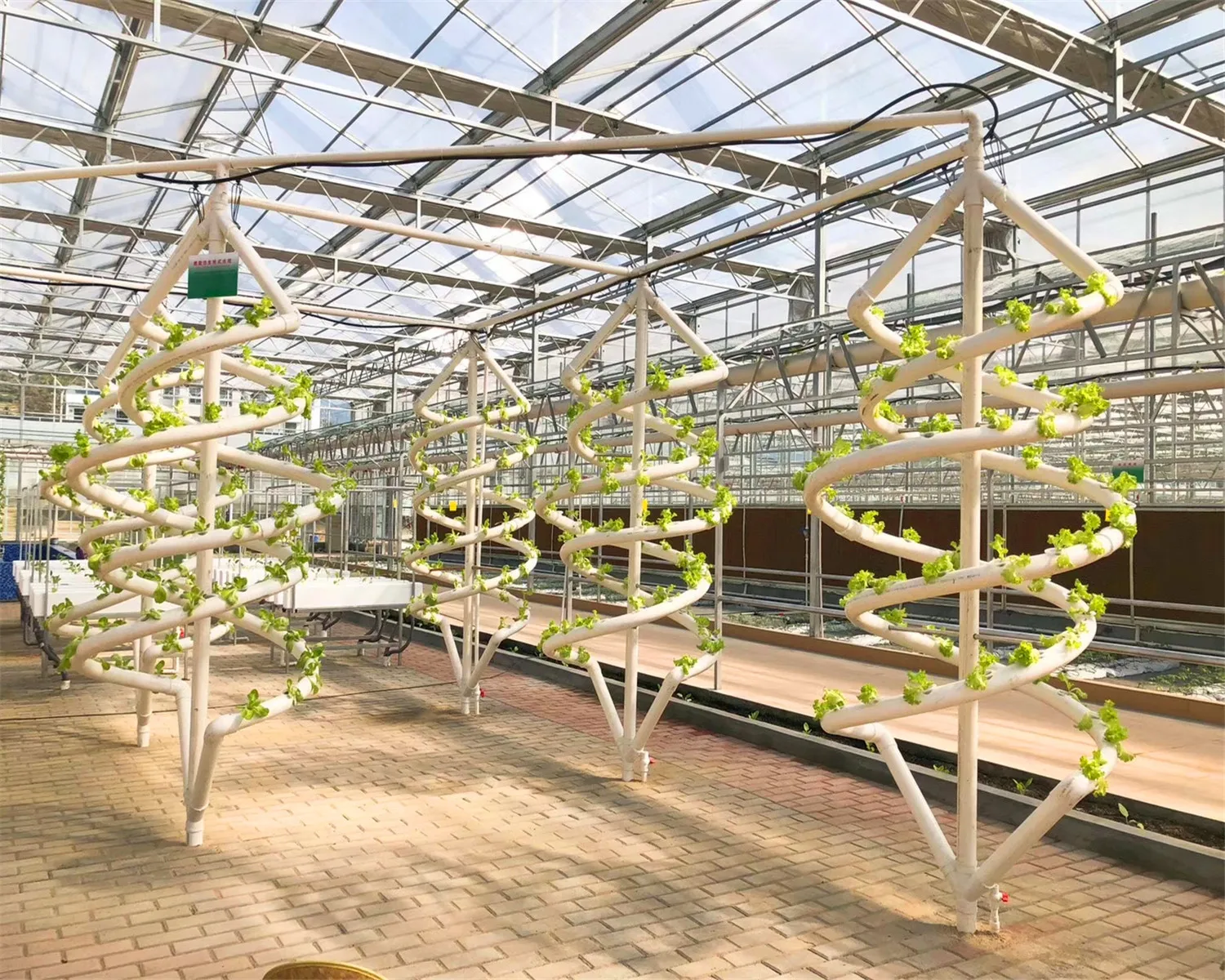

PVC pipes(round tubeor square tube), Z type, spiral pipes

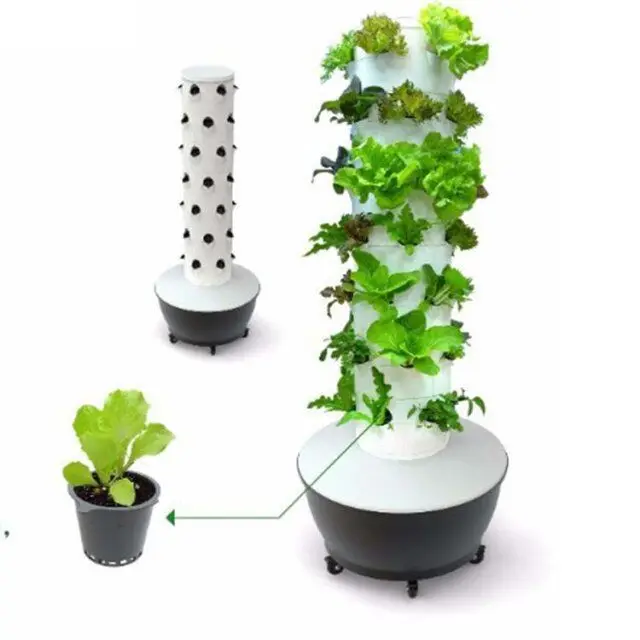

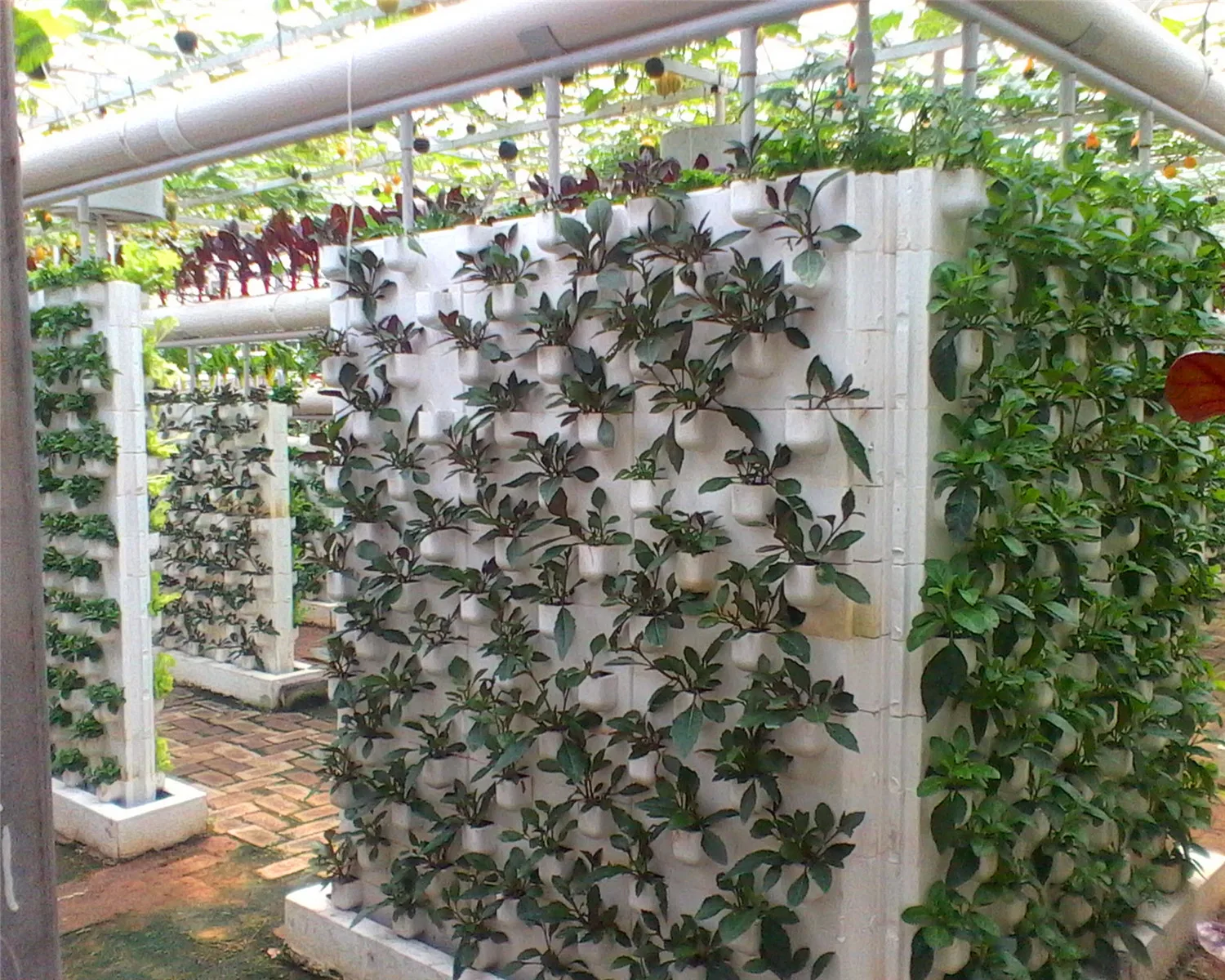

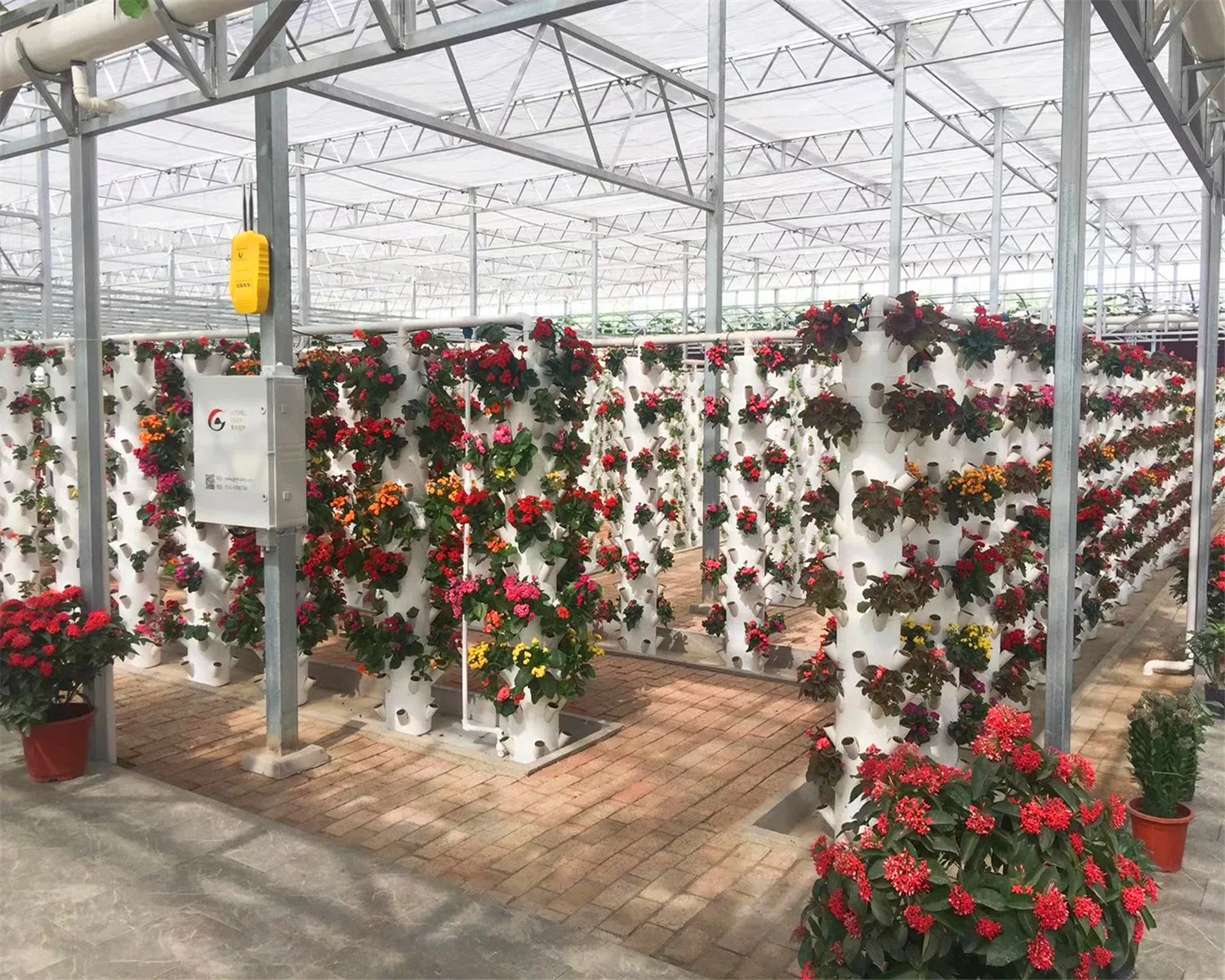

Other Vertical Cultivation Methods:

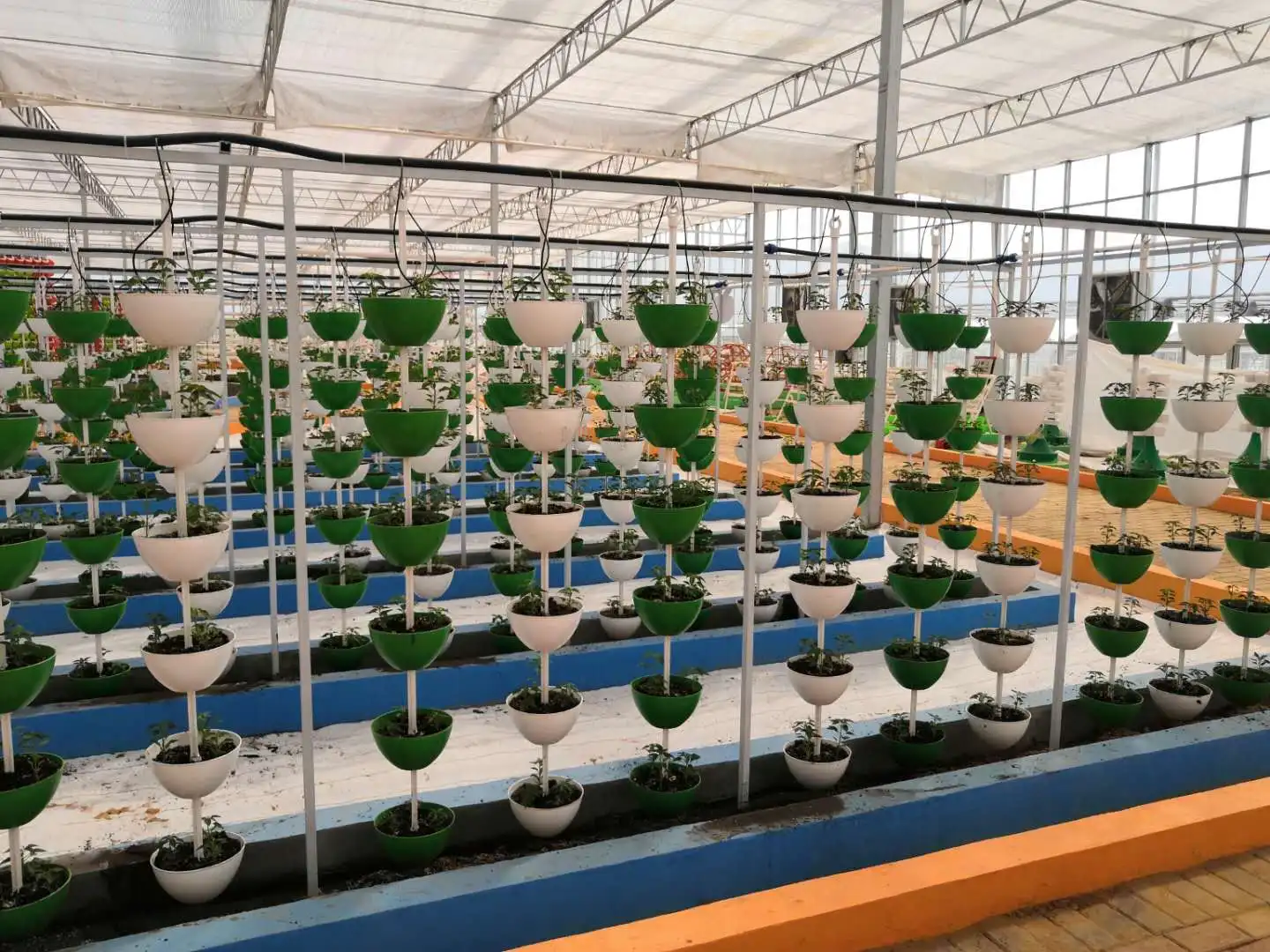

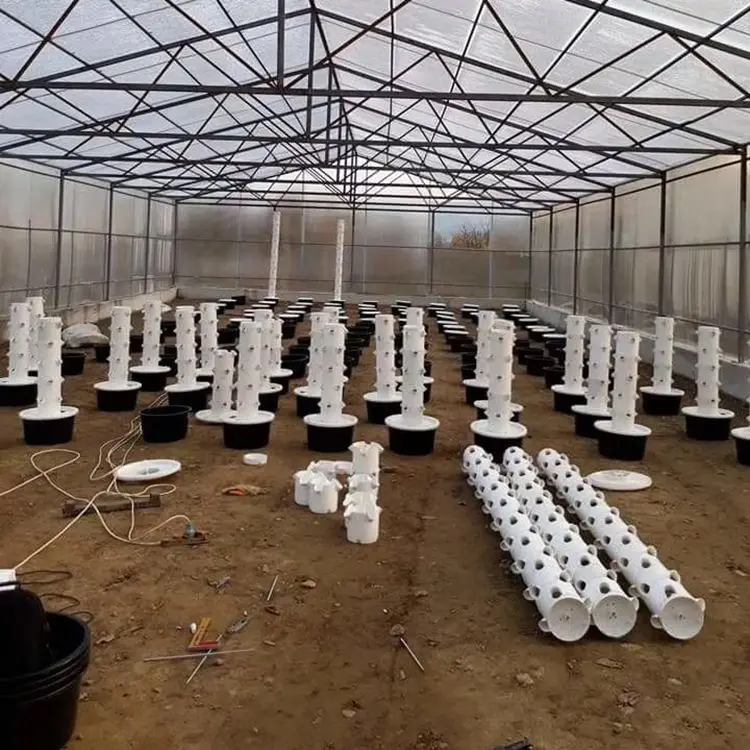

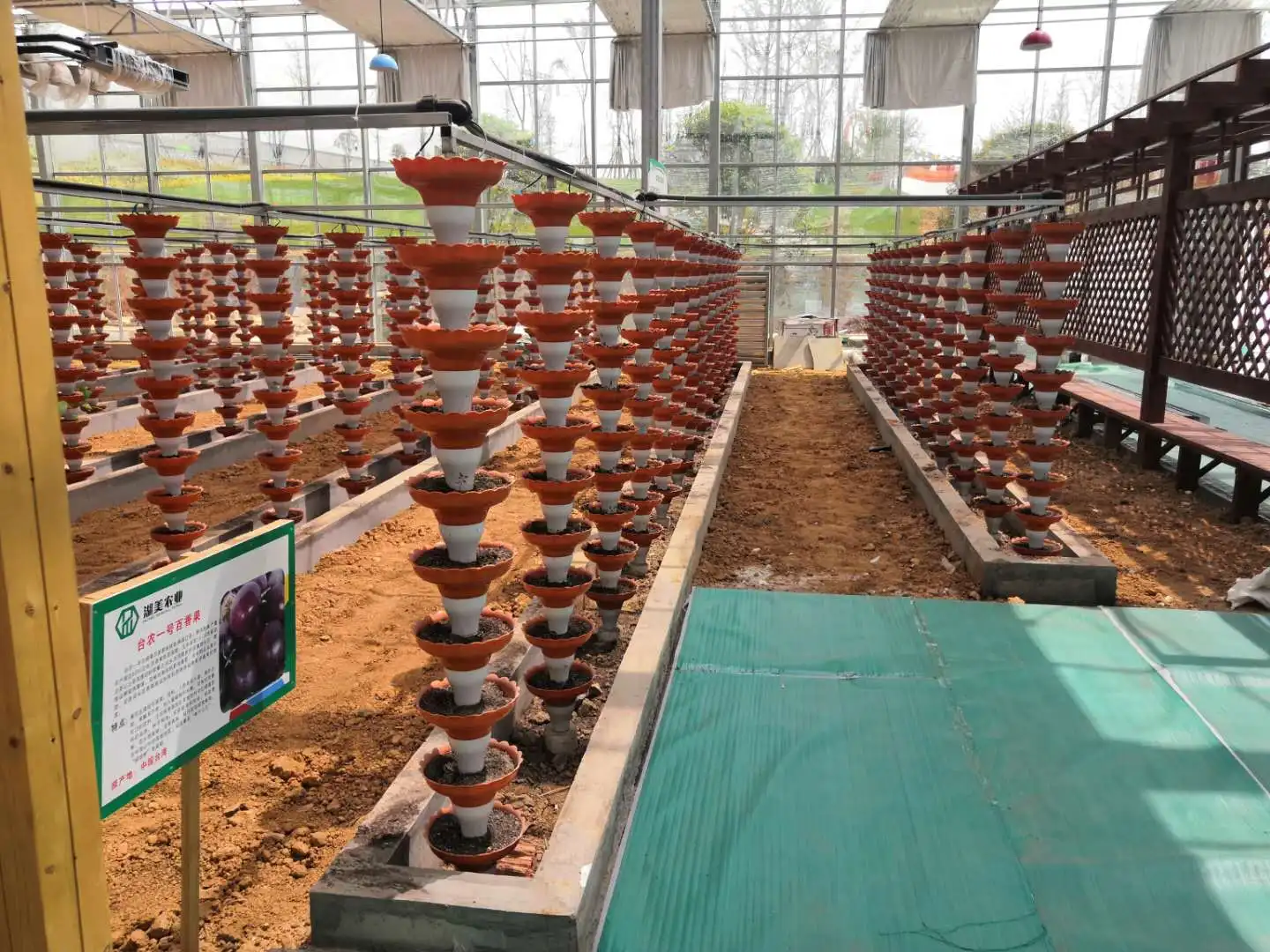

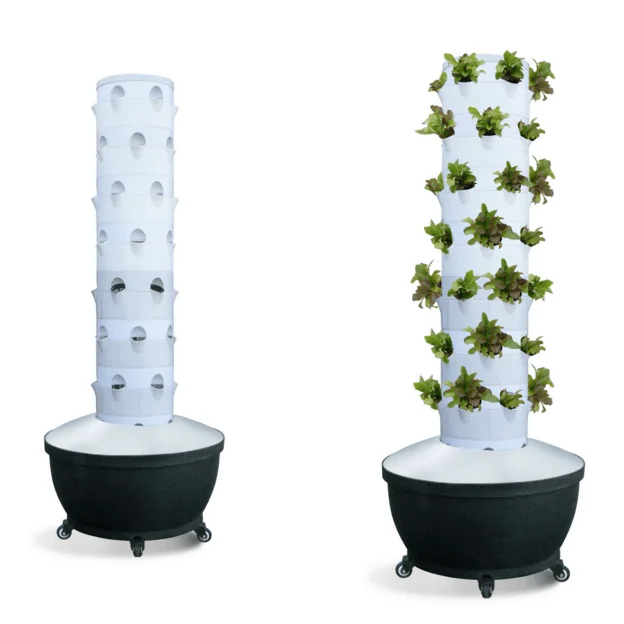

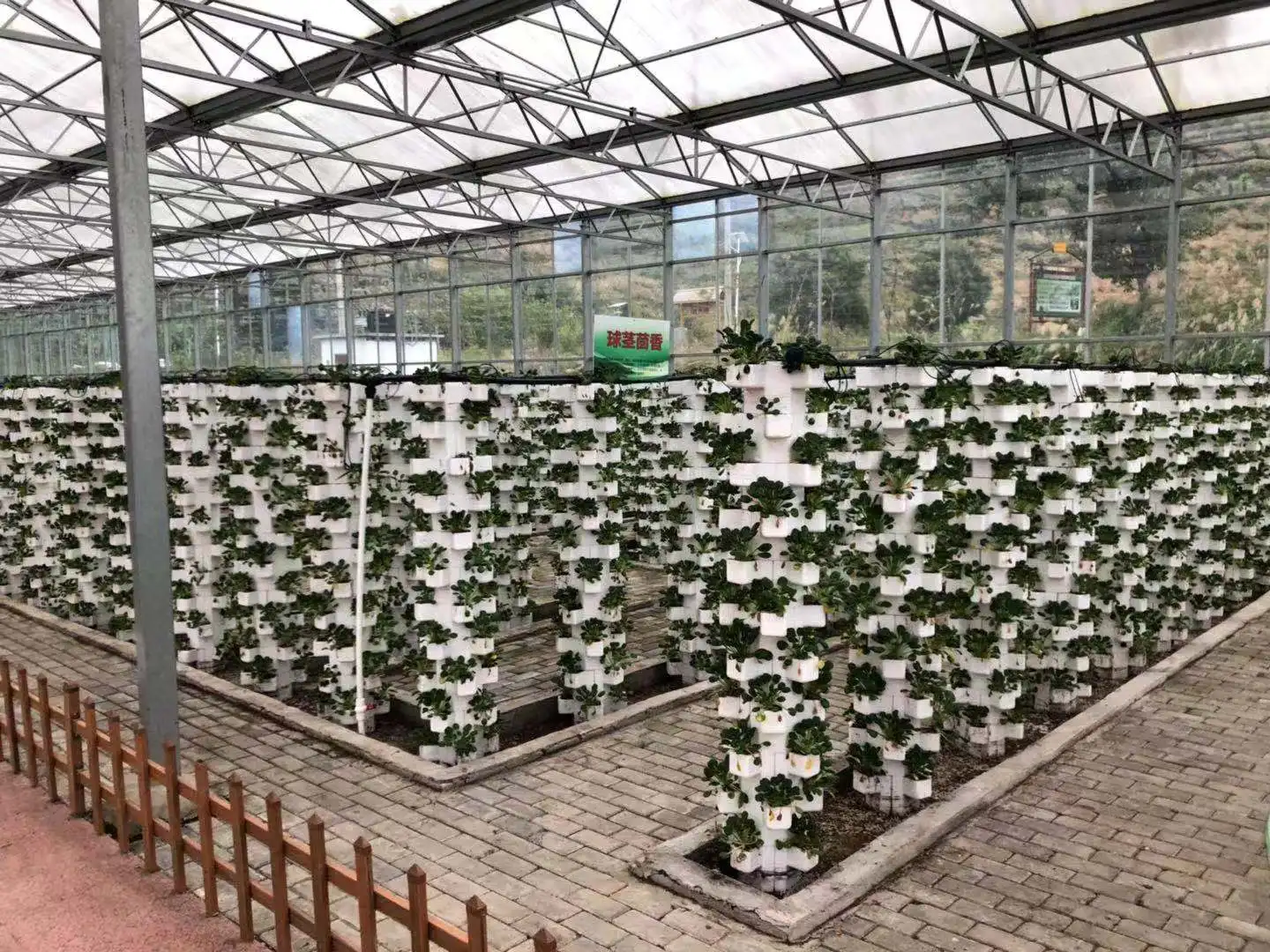

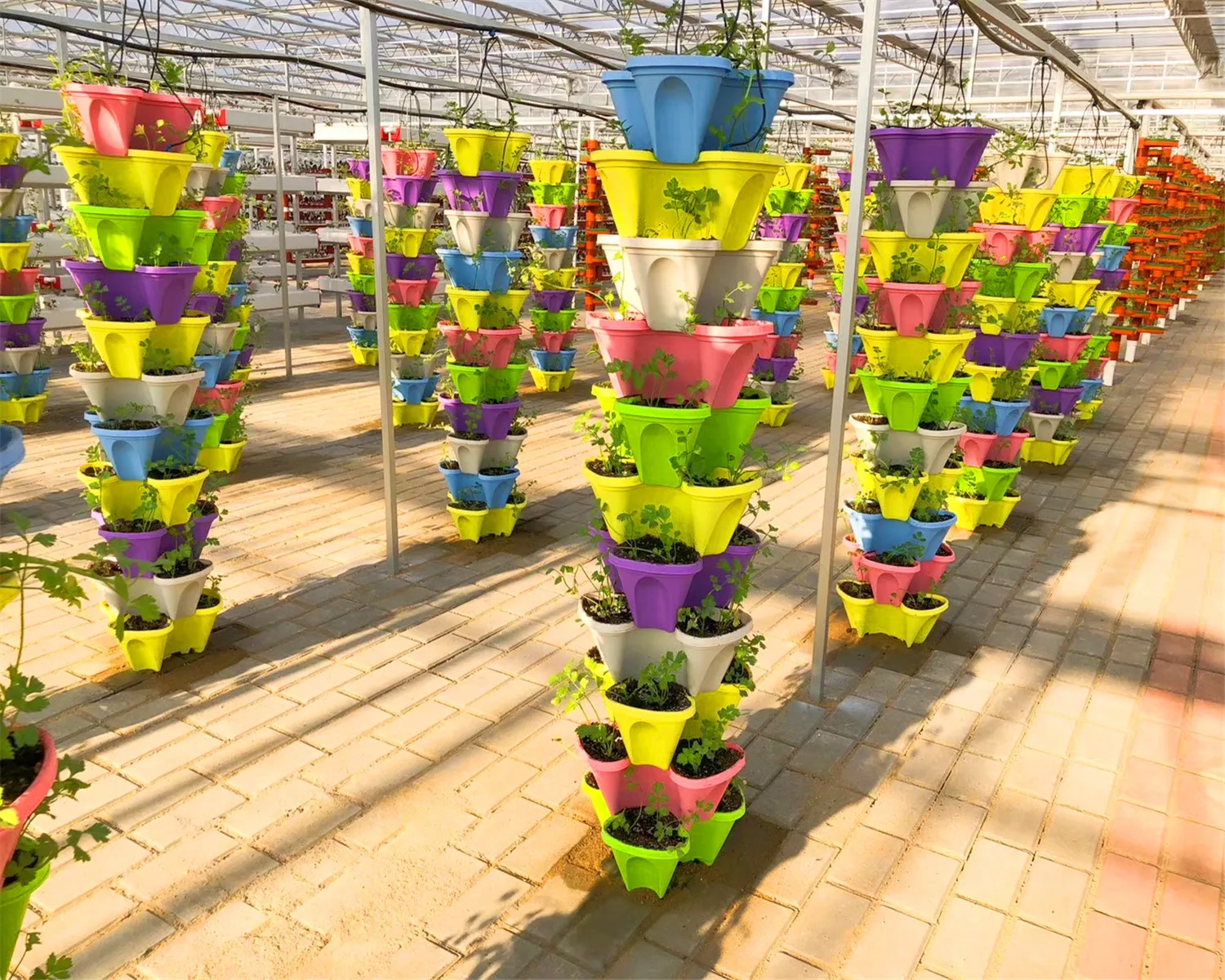

Towers, Columns, vertical layout flowerpots, wall type cultivation, etc

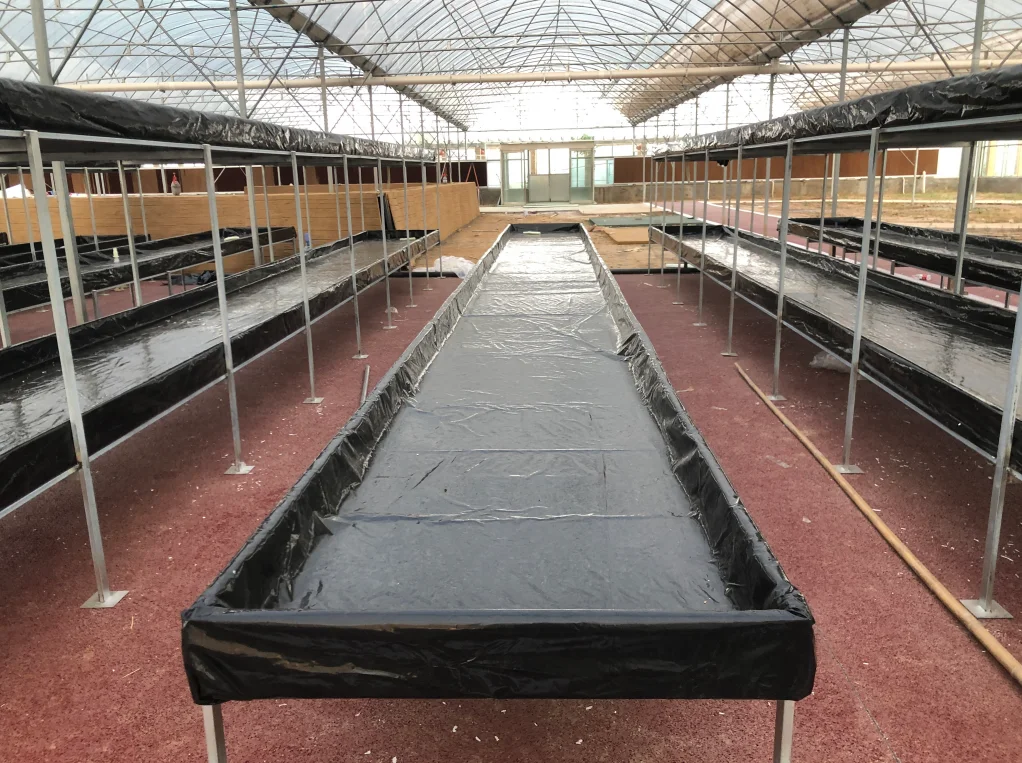

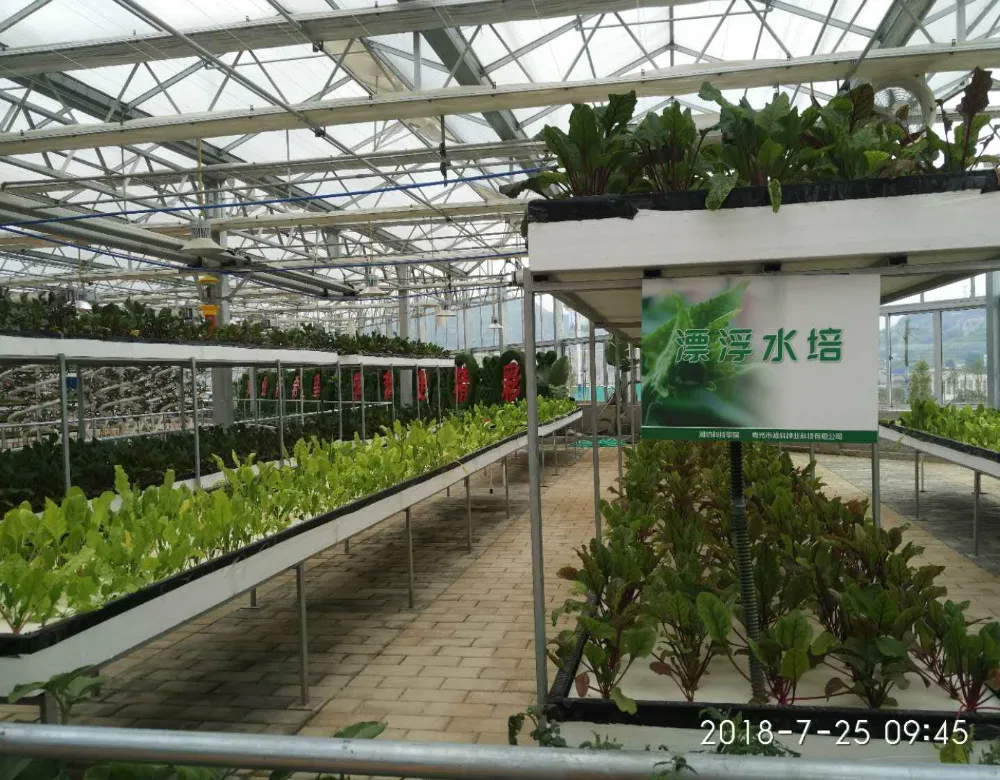

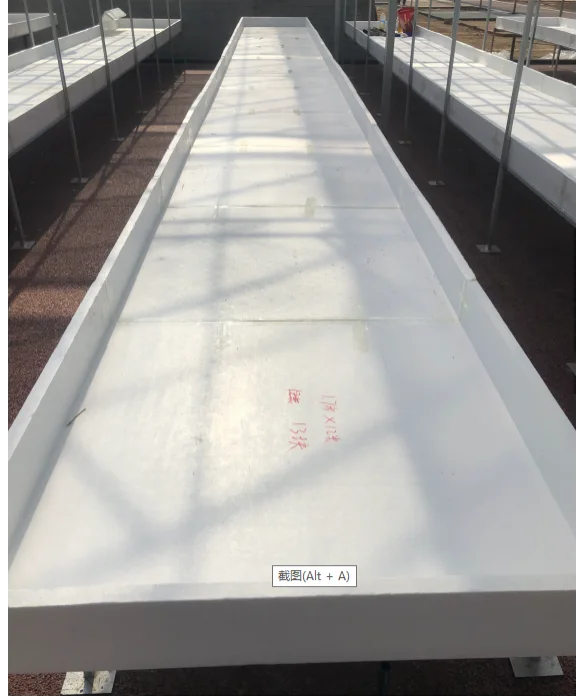

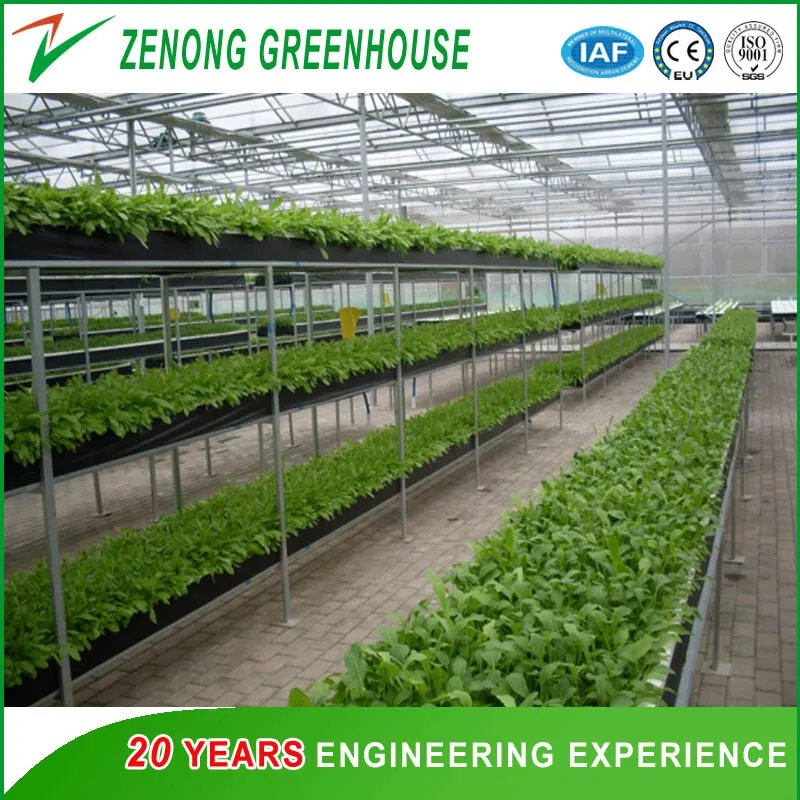

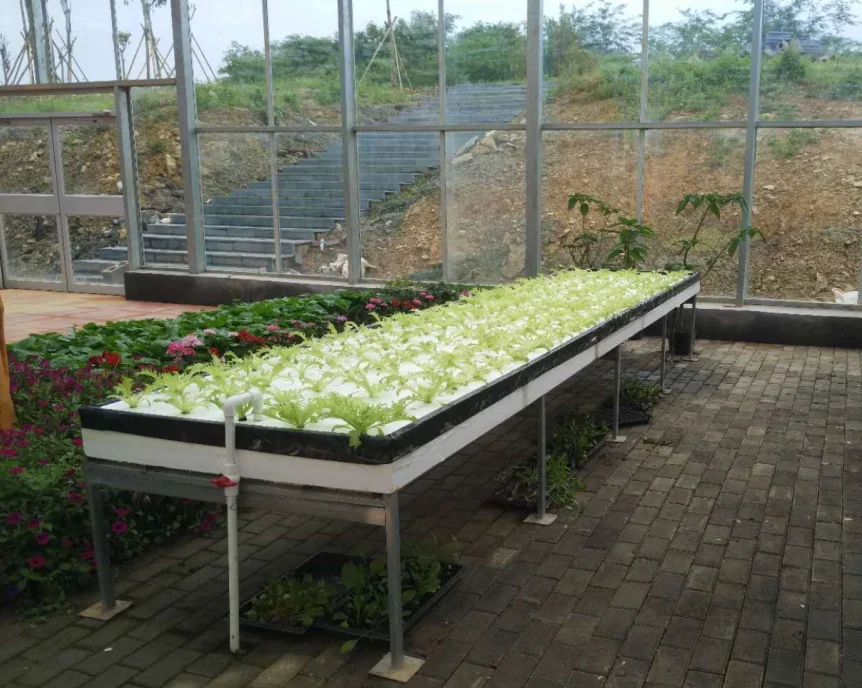

NFT Cultivation:

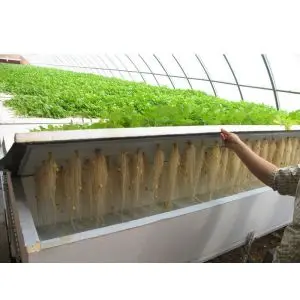

Deep flow cultivation, Shallow flow cultivation, Floating Cultivation
Width: | Height: | Length: | Layer: |
0.45m /0.65m, as required | 0.8m / 1.7m,as required | 2m-20m as requried | single, double or three layers |

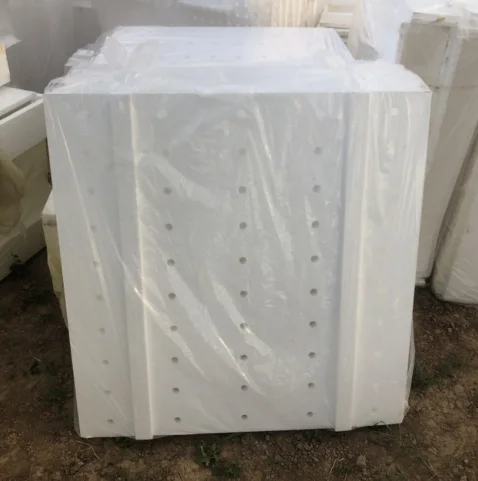

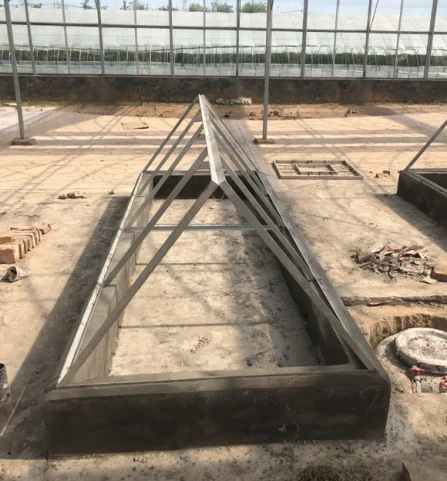

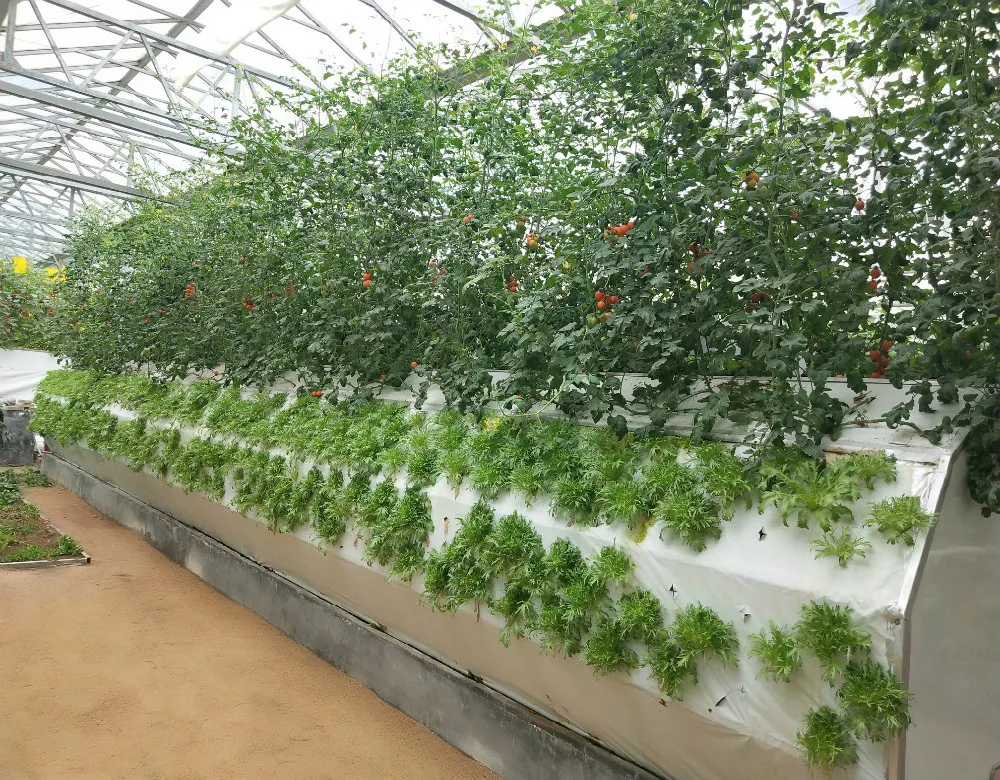

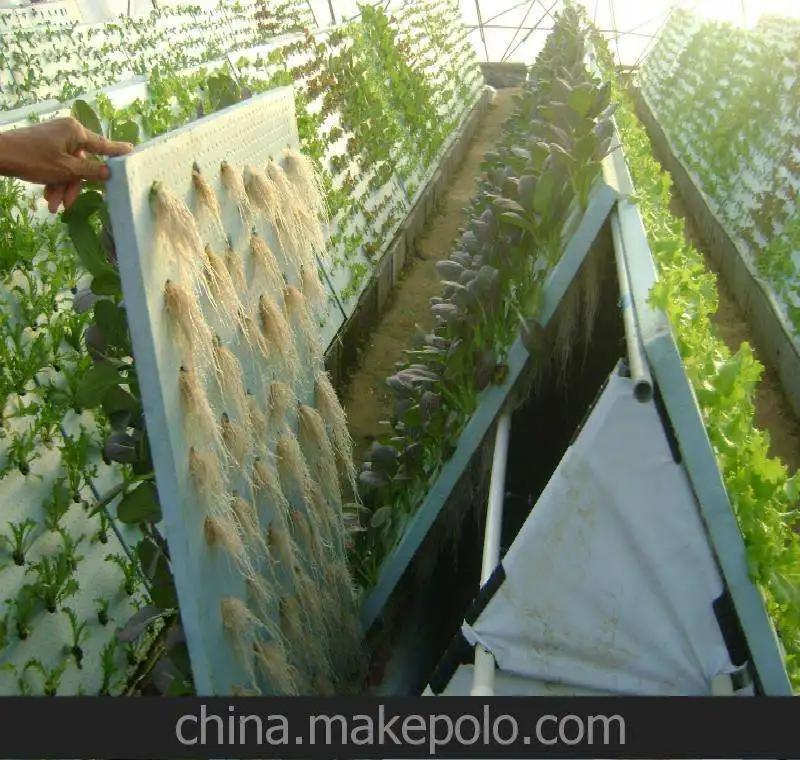

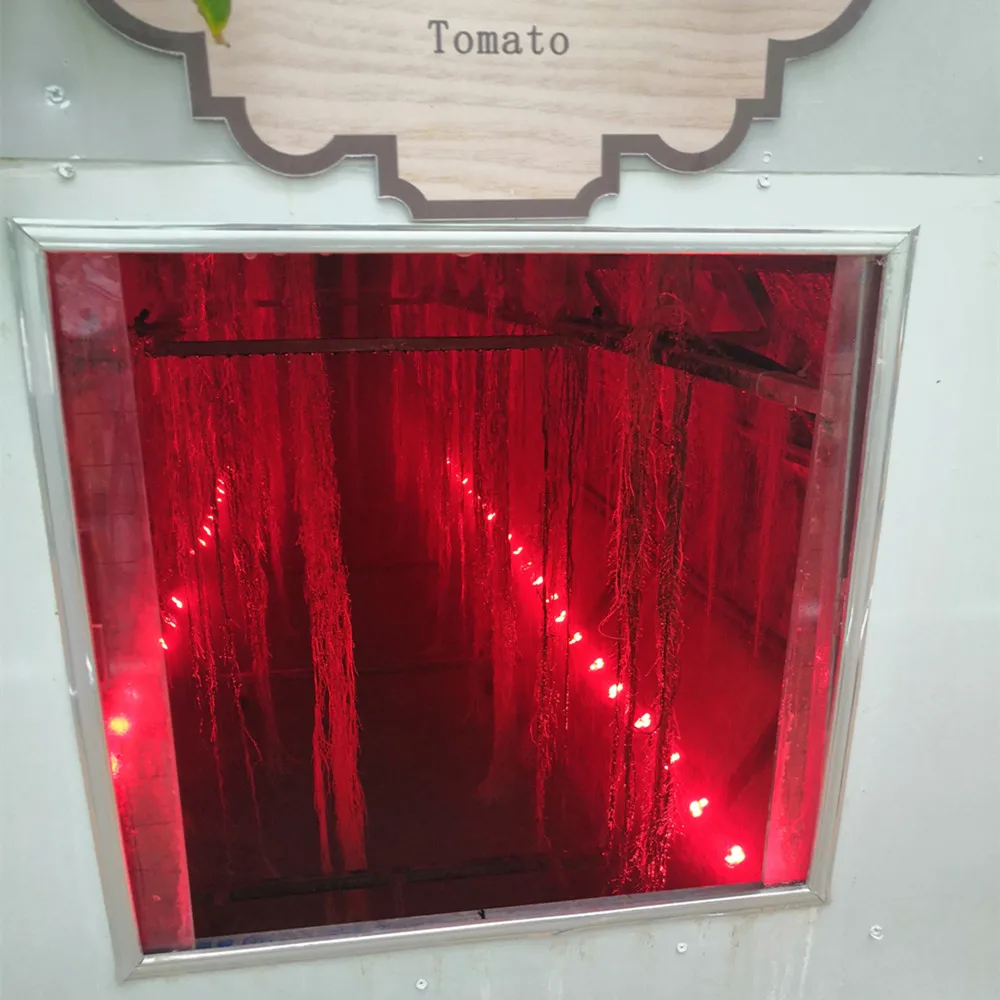

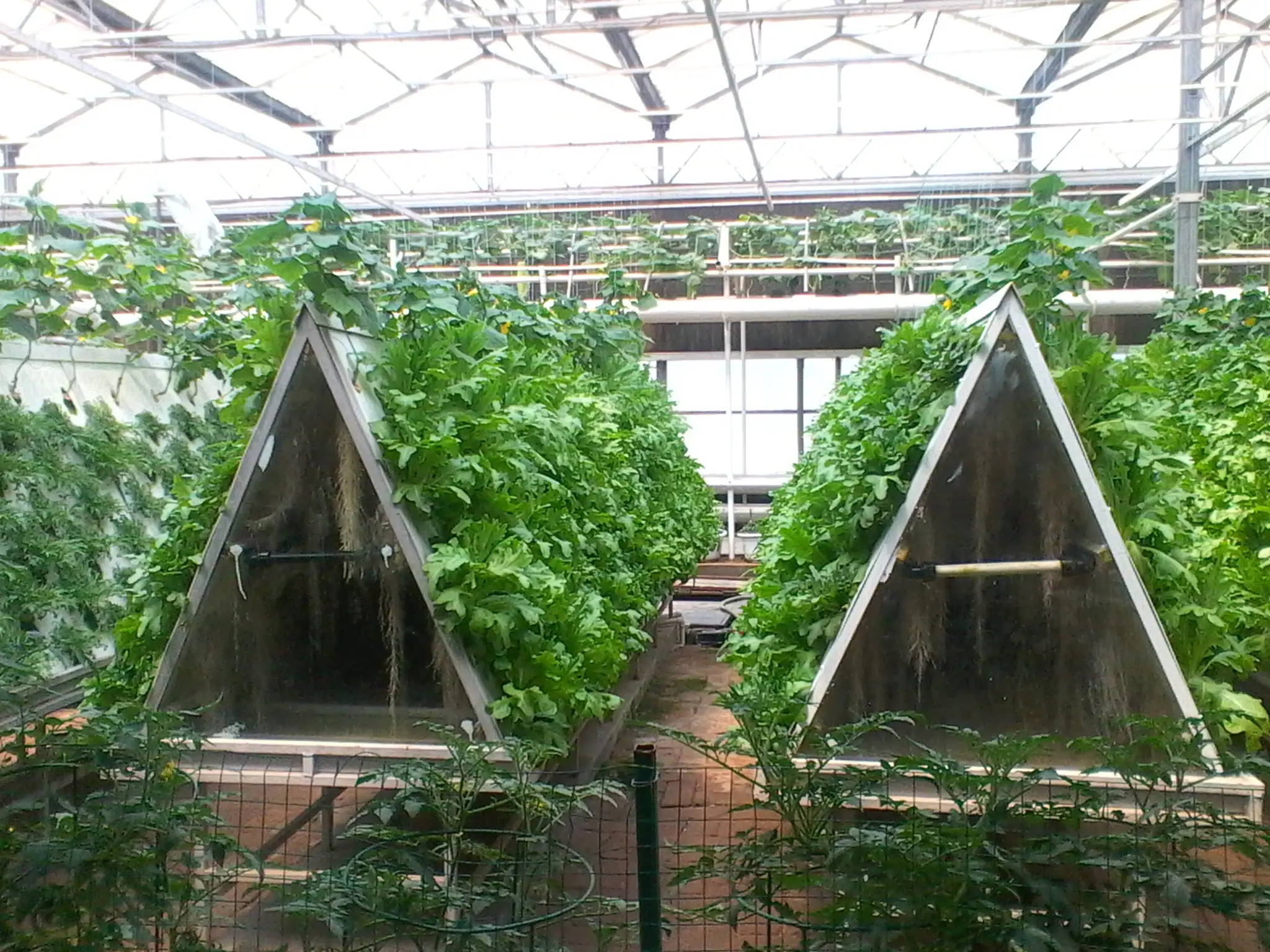

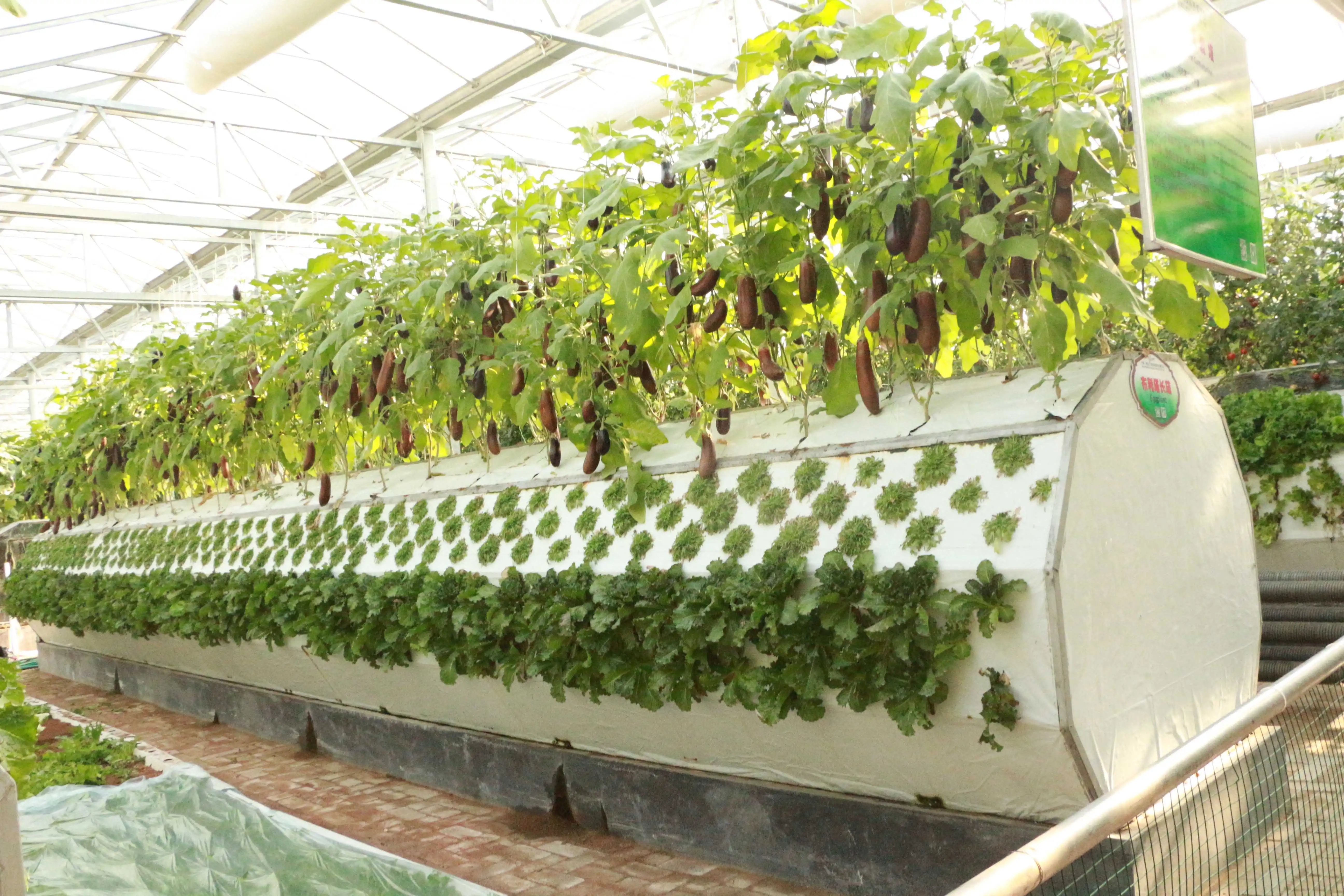

Aeroponic cultivation System:

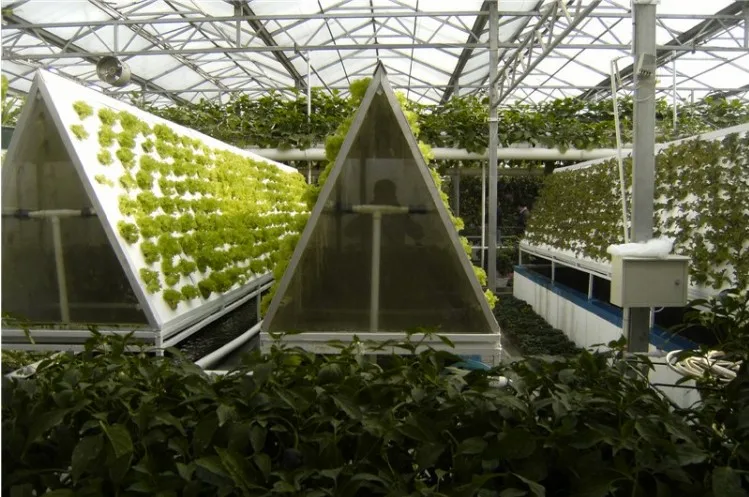

Triangle box or polygon box, or Colums

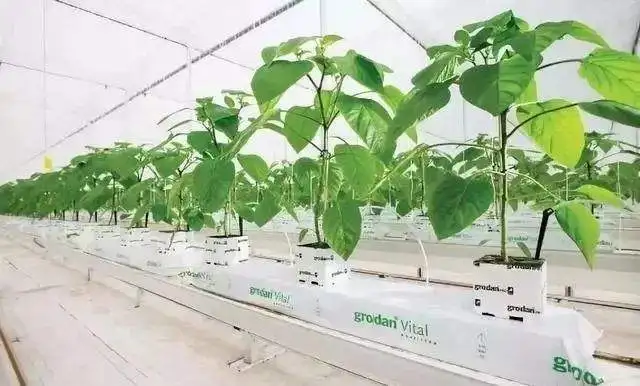

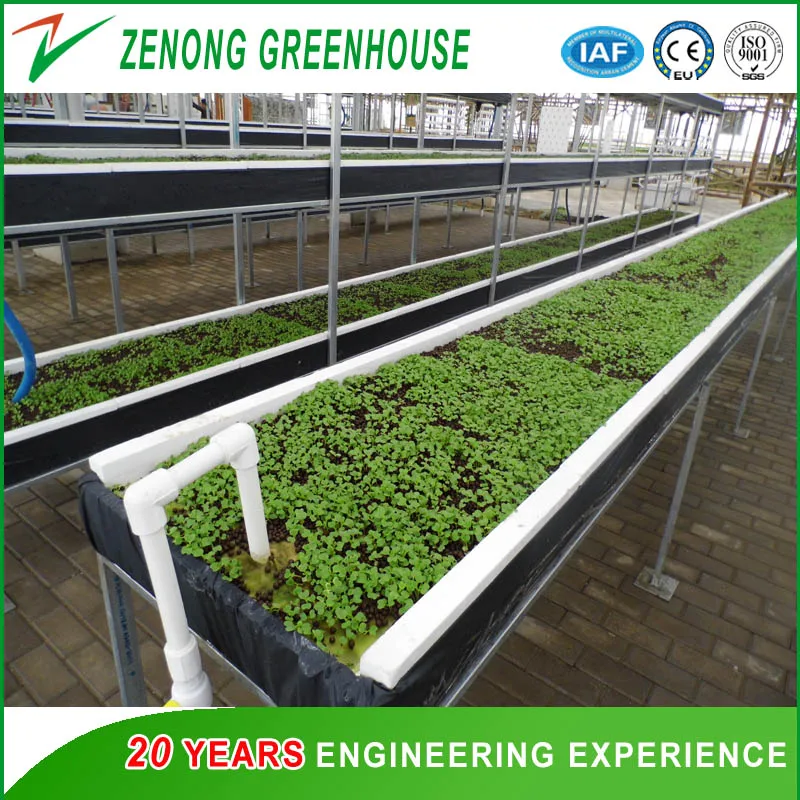

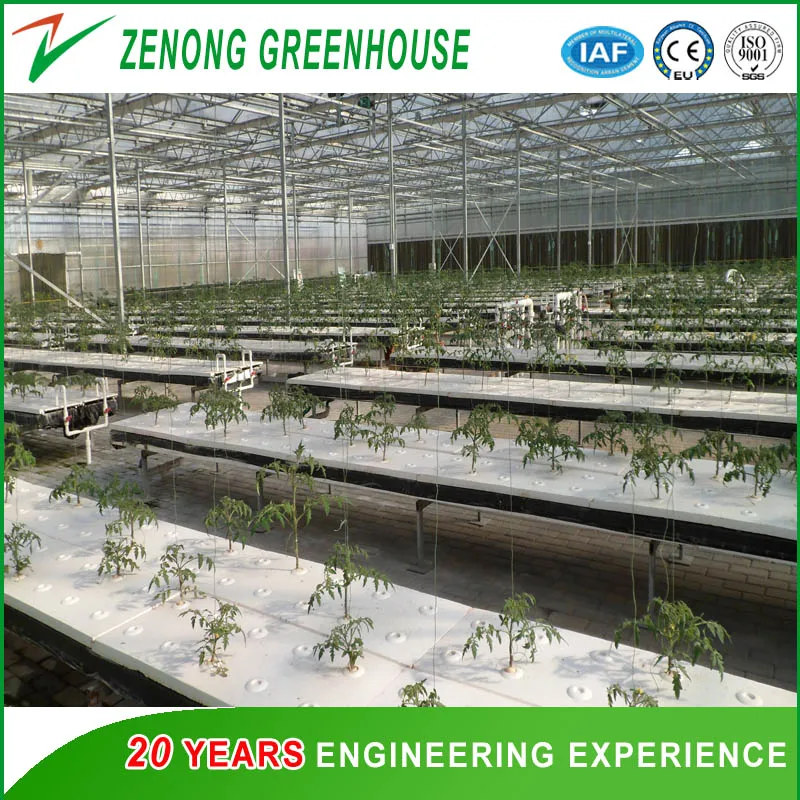

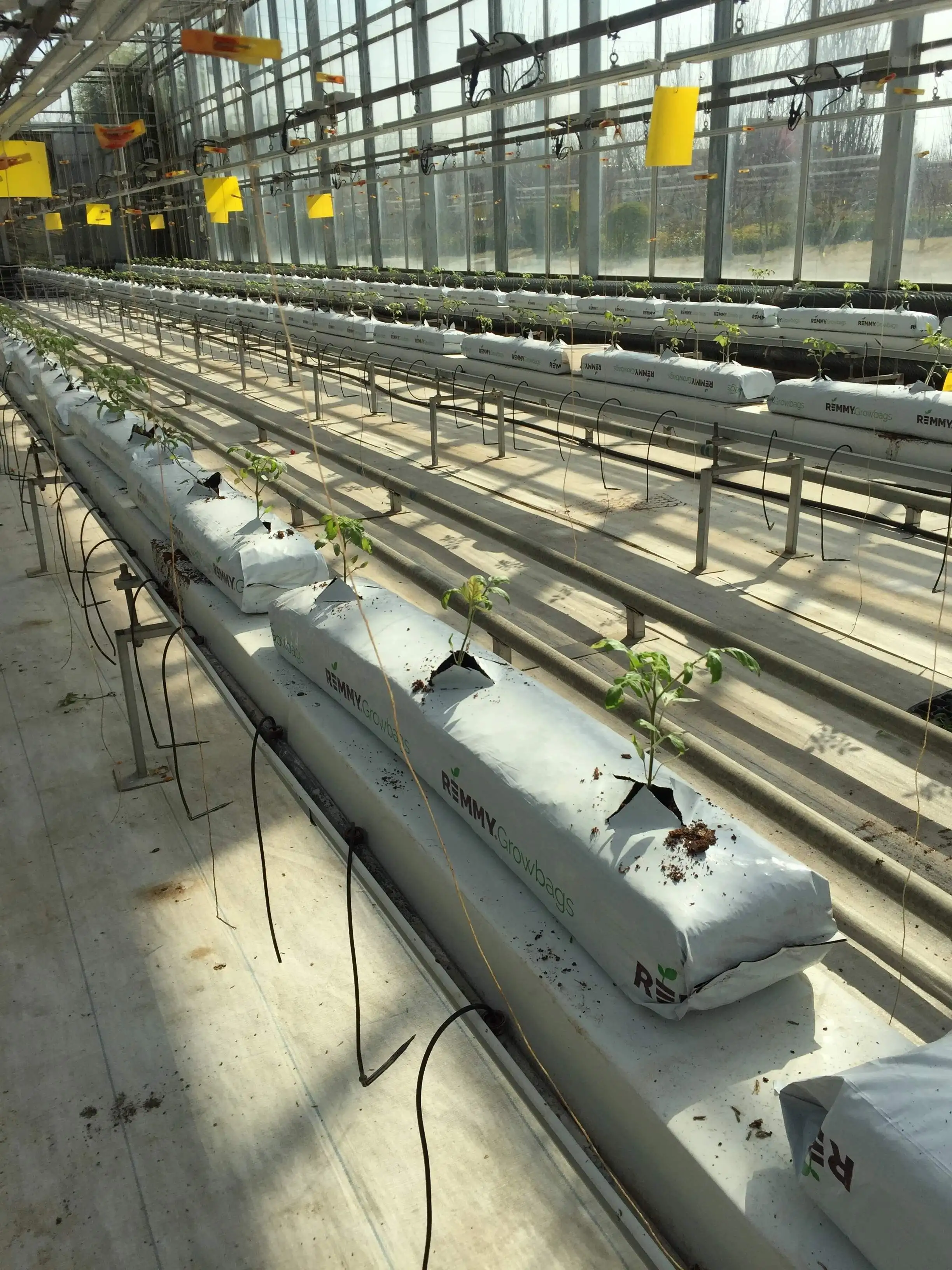

Substrate Cultivation System

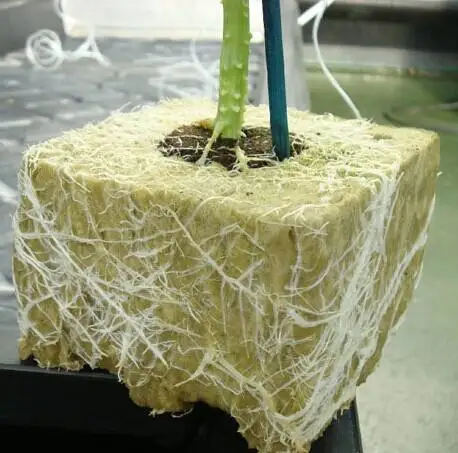

Rock wool cultivation, Coconut chaff cultivation
Advantage of Hydroponics Cultivation:
1. No soil is needed for hydroponics
2. The water stays in the system and can be reused - thus, lower water costs
3. It is possible to control the nutrition levels in their entirety - thus, lower nutrition costs
4. No nutrition pollution is released into the environment because of the controlled system
5. Stable and high yields
6. Pests and diseases are easier to get rid of than in soil because of the container's mobility
7. It is easier to harvest
8. No pesticide damage
9. Plants grow healthier
10.It is better for consumption
2. The water stays in the system and can be reused - thus, lower water costs
3. It is possible to control the nutrition levels in their entirety - thus, lower nutrition costs
4. No nutrition pollution is released into the environment because of the controlled system
5. Stable and high yields
6. Pests and diseases are easier to get rid of than in soil because of the container's mobility
7. It is easier to harvest
8. No pesticide damage
9. Plants grow healthier
10.It is better for consumption
Our Services:
1. Design as your requirement, your field area, plants, etc.
2. High quality product, quality guarantee for the mean parts.
3. Can send technican for installition and planting technicain, video guide support for any question.
4. After sales services.
Contact:
Contact me if you are interest in any kind hydroponics system.
