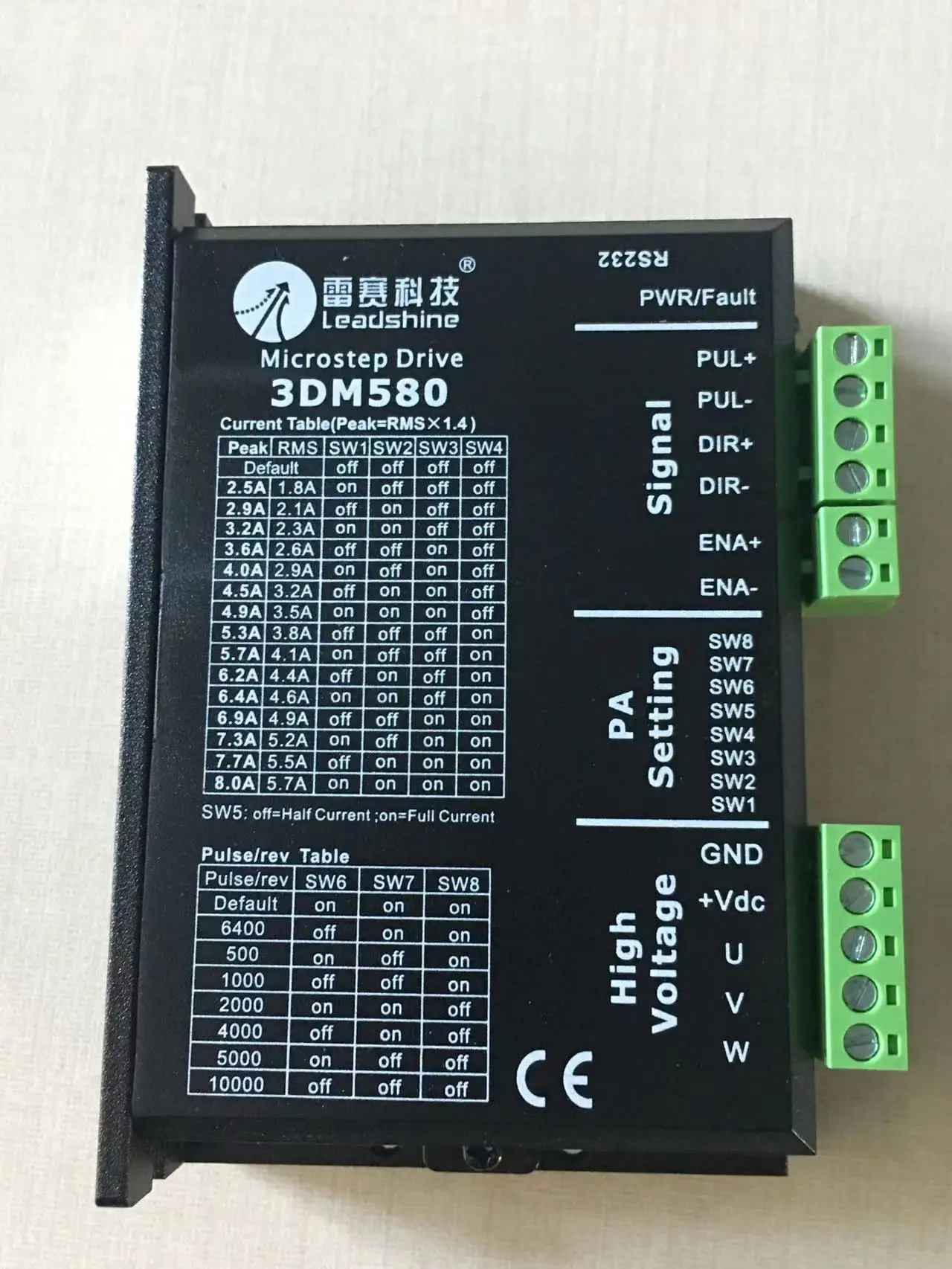

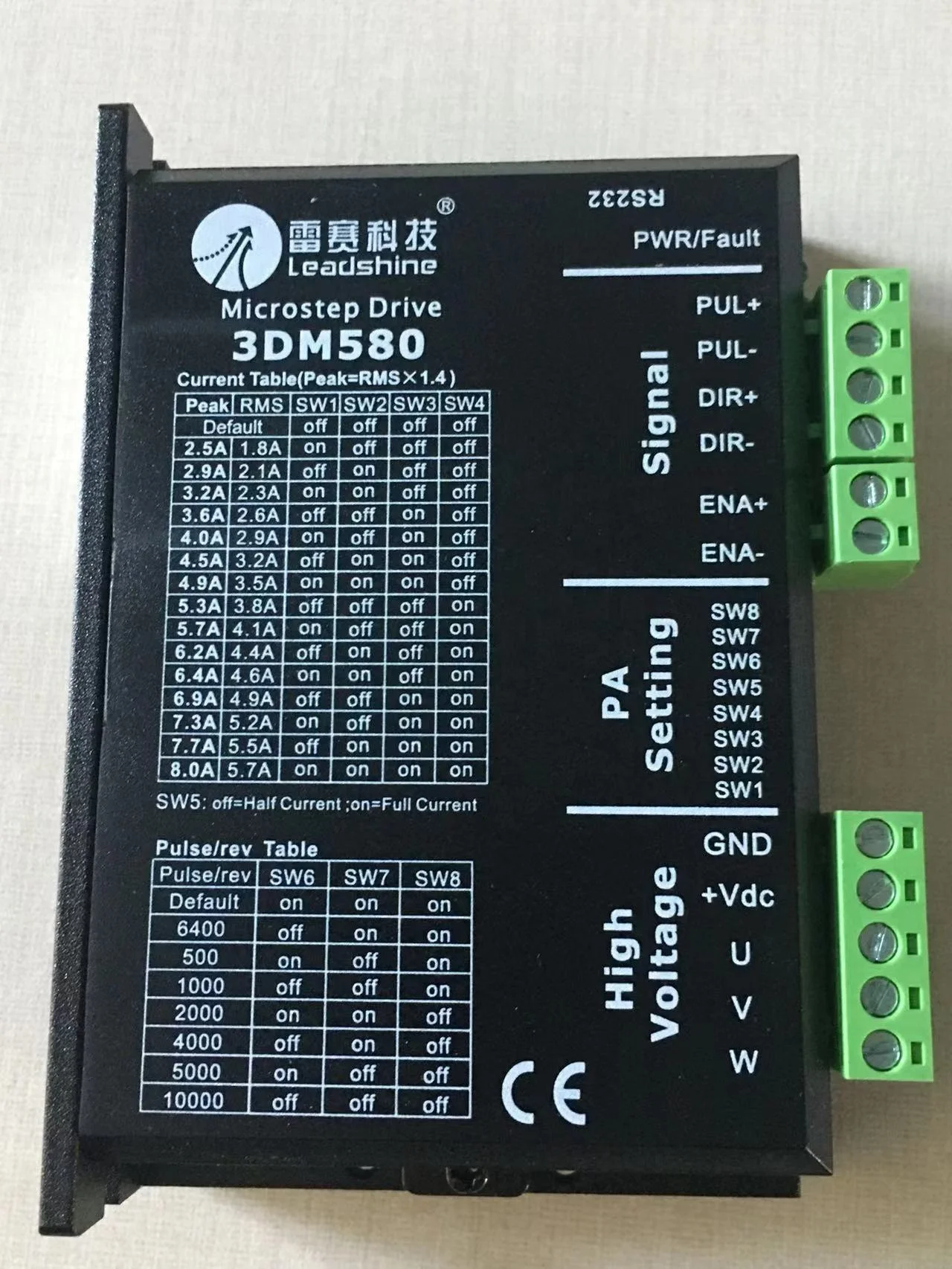

Leadshine 3DM580 Stepper Motor Driver for Cutting Machine
- Category: >>>
- Supplier: Shandong Man Machinery Equipment Co. Ltd.
Share on (62590891861):
Product Overview
Description
Features
- High performance, cost-effective
- Supply voltage up to 18-80VAC
- Output current up to 7.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current and short-cicuit protection
Overview
Leadshine is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.
stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 18 - 80 VAC and output current of 1.80 - 7.20 A, DMA860H can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.
stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200, and 8 output current settings from 1.80 - 7.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.
Leadshine is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.
stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 18 - 80 VAC and output current of 1.80 - 7.20 A, DMA860H can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.
stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200, and 8 output current settings from 1.80 - 7.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.
