4 Axis CNC Lathe Vertical Rotary Table

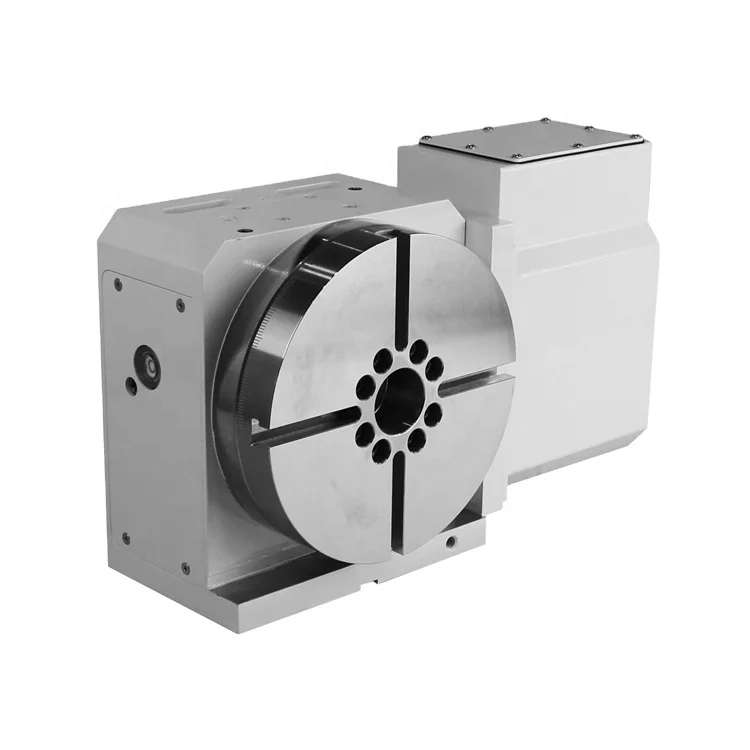

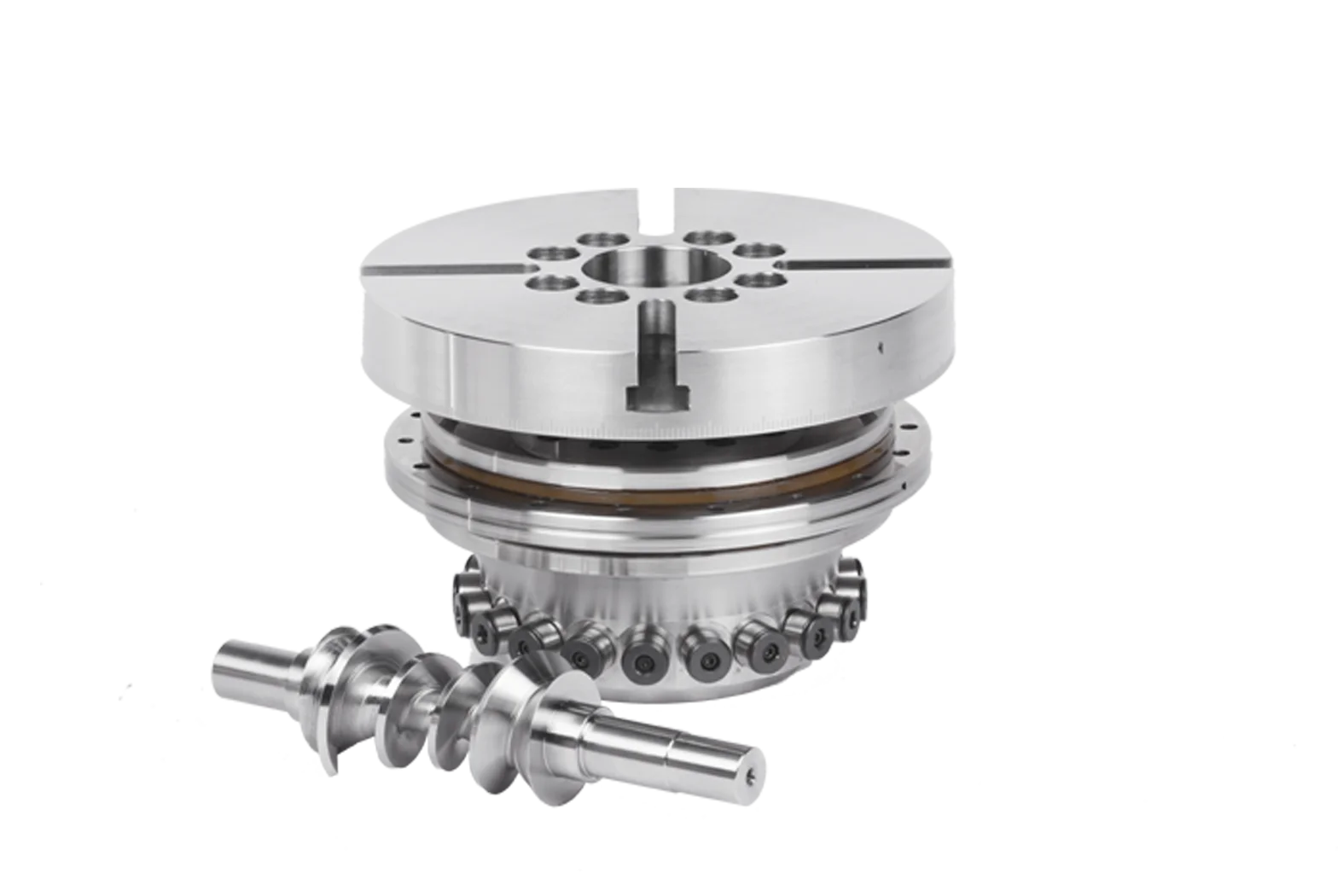

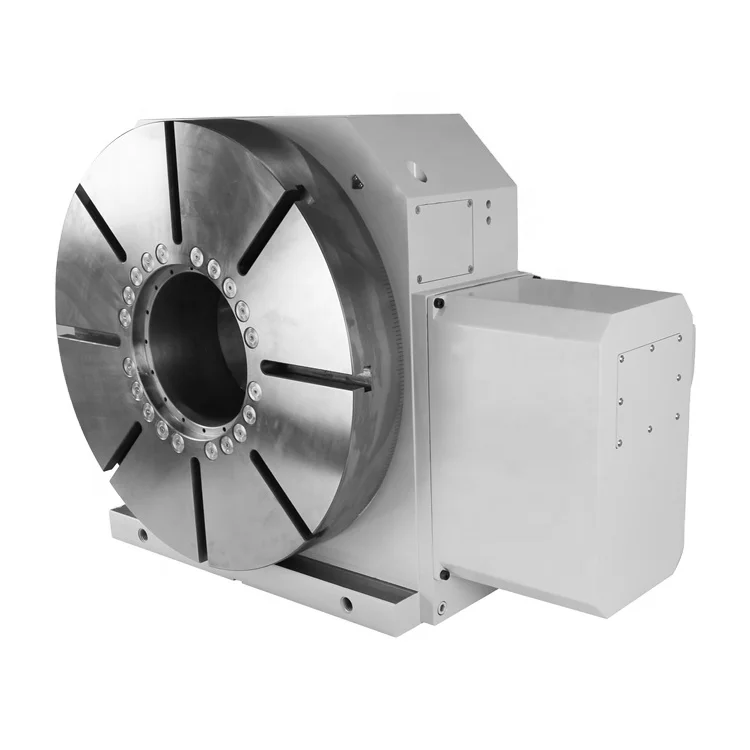

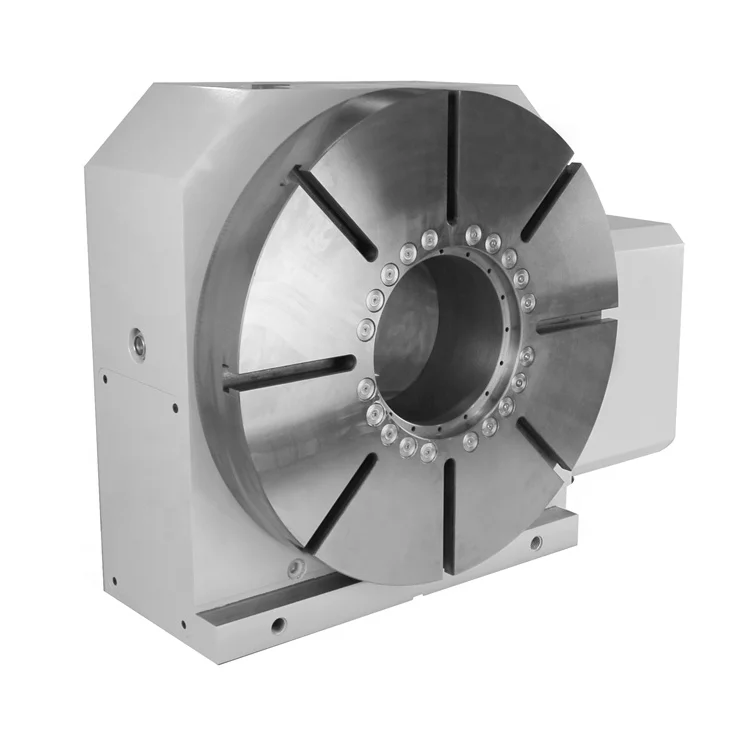

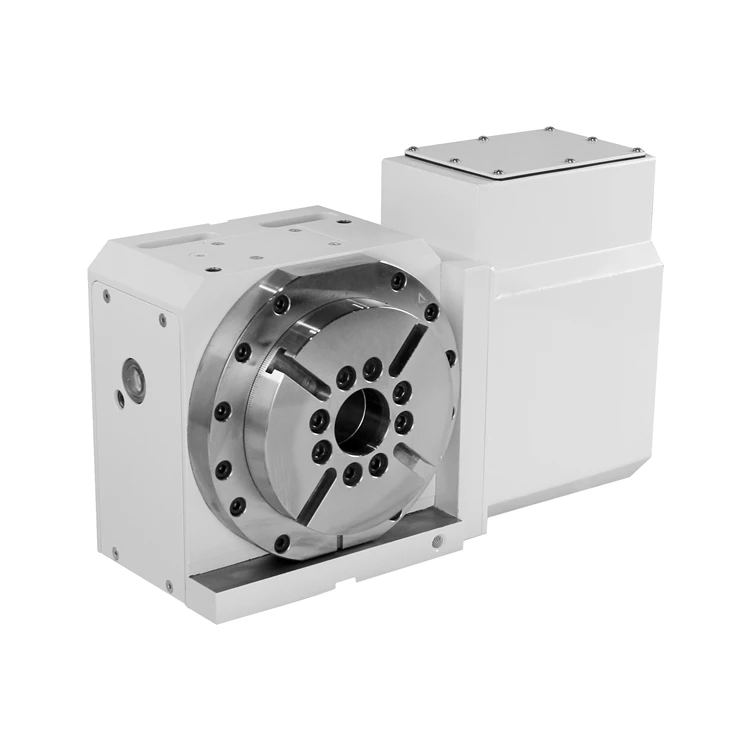

Product Picture:
Technical Parameter:
Model | B170 | B200 | B250 | B320 | B400 | B500 | B630 | |
Working disc size(mm) | 0170 | 0200 | 0250 | 0320 | 0400 | 0500 | 0630 | |
Central height(mm) | 135 | 160 | 160 | 210 | 255 | 310 | 365 | |
Center hole diameter(mm) | 50117 | 50H7 | 50H7 | 90H7 | 90II7 | 180H7 | 220117 | |
Size of T-groove on disk surface(mm) | 12H7 | 12H7 | 12H7 | 14H7 | 14H7 | 18H7 | 18H7 | |
Reference positioning key(mm) | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | |
Motor Using | FANUC | a4i | a4i | A8i | al2i | al2i | al2i | A22i |
MITSU BISHI | F104 | HF104 | HF154 | HF204 | HF204 | HF204 | HF354 | |
Deceleration ratio | 1:60 | 1:60 | 1:60 | 1:60 | 1:80 | 1:120 | 1:120 | |
90°Indexing time (sec) | 0. 3 | 0. 3 | 0. 3 | 0. 3 | 0.4 | 0. 6 | 0.6 | |
Mim Setting Unit (deg) | 5* /0. 001* | 5./0. 001 • | 5* /0. 001* | 5* /0. OOP | 5* /0. OOP | 5° /o.oor | 1* /0.001* | |
Allowable cutting torque(kg*m) | 24 | 24 | 45 | 65 | 90 | 130 | 220 | |
Torque of hydraulic brake (kg*m) | 80 | 80 | 80 | 142 | 200 | 250 | 600 | |
Torque of disc brake(kg*m) | 300 | 300 | 300 | 500 | 500 | 700 | 1000 | |
Segmentation accuracy / disc positioning(sec) | ±20/5 | ±20/5 | ±20/5 | ±15/5 | ±15/5 | ±15/5 | ±15/5 | |
Repeatability(sec) | 8 | 8 | 8 | 6 | 6 | 6 | 6 | |
Allowable bearing(kg) | Vertical | 80 | 100 | 100 | 180 | 200 | 350 | 500 |
Horizontal | 160 | 200 | 200 | 350 | 400 | 800 | 1200 | |

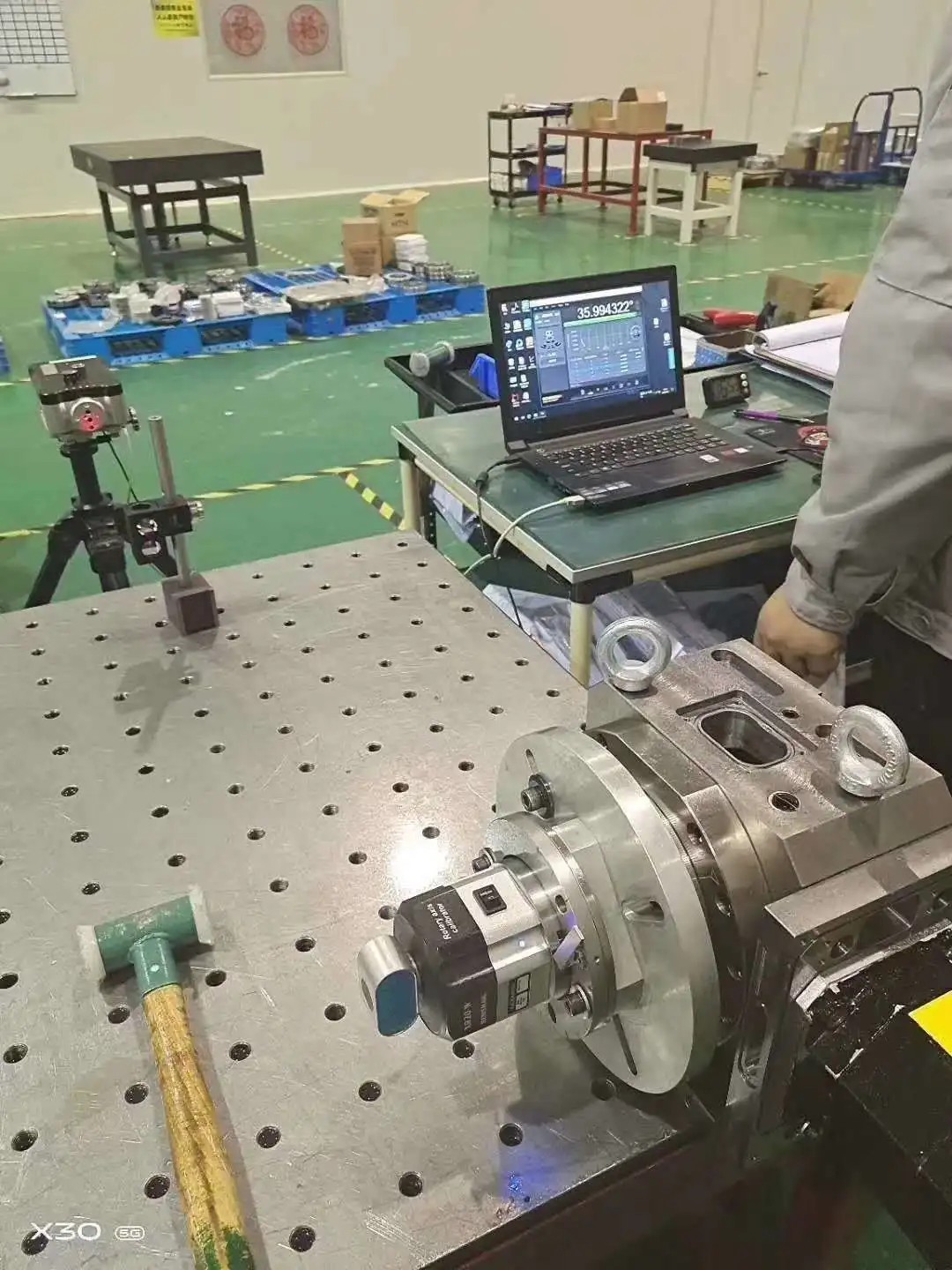

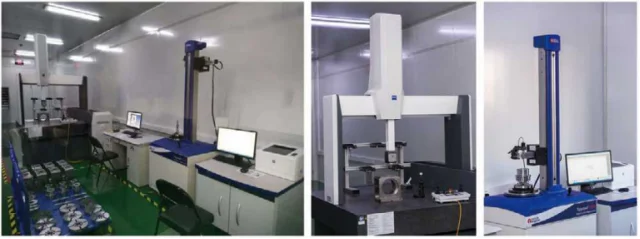

Reliability Test:
Product Line:
Why Choose Us:
Chongqing BeiCun Precision Machinery CO.,LTD is estabilished in 2012, located in southwest of China-Chongqing. Chongqing is the economic center of upper Yangzi river, the comprehensive transportation hub include sea and air, the international metropolis positioned by the State Council.
Our company is professional to produce Small High Precision CNC Lathe,Fixture,Roller Table,Spare Parts of CNC Lathe, we have provided deeply service include pre sale & after sale for clients from southwest and central China, we have accumulated rich experience and team reserve, we have successfully served for aerospace,medical equipment,optics,automobile & motorcycle,communication field and have accquired high reputation from clients .
With the aim of “creat value for customer, welfare for employee and profit for enterprise” to provide the best products and services for every customer via building longtern cooperate relationship.
Welcome you to visit, enquiry and negotiate business.
