High definition table type cnc plasma cutting and drilling machine for heavy industry
- Category: >>>
- Supplier: Shanghai TAYOR Welding Machine Co. Ltd.
Share on (62590939453):
Product Overview
Description
Product Description

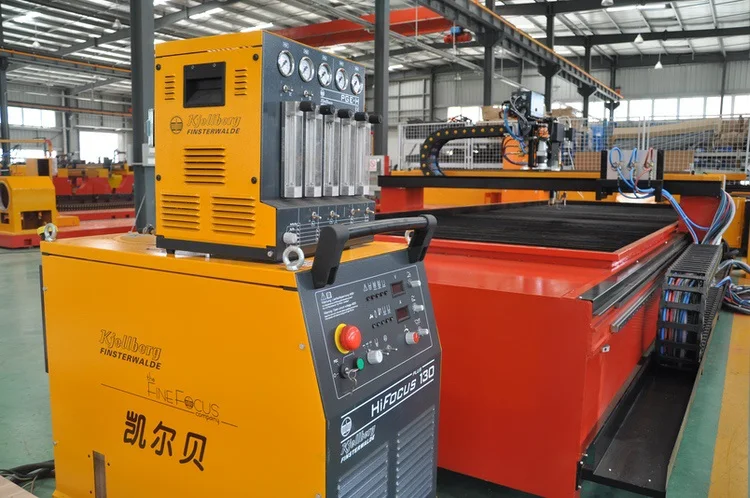

High definition table type cnc plasma cutting and drilling machine for heavy industry
Heavy duty, precision machine
Product Detail
| Brand | TAYOR |
| cutting width | 1500mm |
| cutting length | 3000mm |
| cutting thickness | 1-50mm |
| Cutting Mode | Plasma and Oxy-Fuel/Flame |
| Drive Mode | AC Servo motor, Dual-drive |
| Controller | LKNC3200 bus control |
| Programming Software | provided |
| Available Plasma Power | Hypertherm, Kjellberg, Victor, ESAB |
| Cutting Torch Number | 1 set |
| Product Keywords | cnc plasma cutting and drilling machine,cnc metal plasma cutting machine |

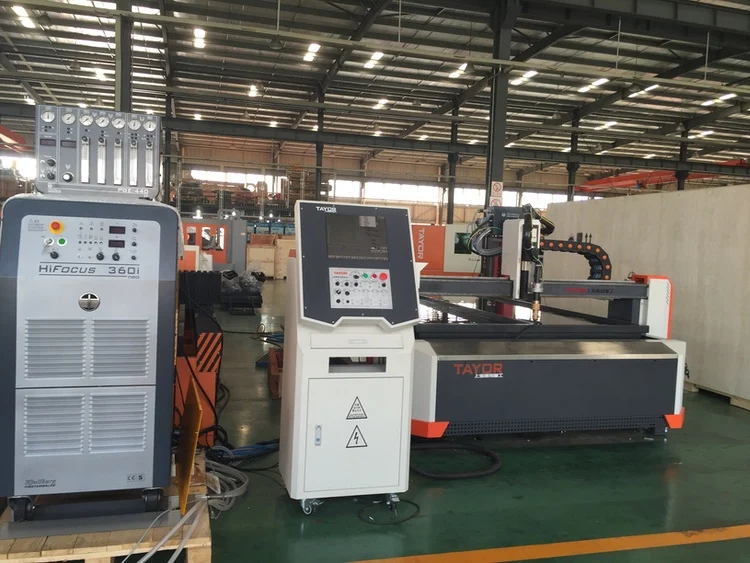

CNCTMG series CNC plasma and oxyfuel cutting machine
High Speed and Precision
CNCTMG Series of Precision Table type Cutting Machine is integral type cutting equipment with high speed and precision. With precision linear guides and world well-known high definition plasma source such as Hypertherm, Kjellberg, Thermal Dynamics, it shows high guiding accuracy, excellent running stability and high precision cutting ability. It is able to keep highest standard cutting process under long-term and high-intensive working conditions.
Machine Features
Compact and integral type modularization cutting unit, excellent rigidity.
Without foundation preparation, space saving, heavy duty and durable
Precision linear guide driving, low deformation during high speed cutting
Great finish surface, no slag, dispense with secondary treatment
Low use-cost, without special maintenance, friendly operator panel, easy to learn
Utility CNC system, reliable and safe G code and M code readable
DXF/DWG file programming and nestling
USB key data transmission
Technical Specification
Effective Cutting Width (mm): 1500
Effective Cutting Length (mm):3000 to 6000
Flame Cutting Thickness(mm) :5-60mm
Plasma:1-60mm(according to plasma model)
Basic Components
Cutting ModePlasma and Oxy-Fuel/Flame
Drive ModeAC Servo motor, Dual-drive
Cutting Torch NumberCustomization
Driving MotorPanasonic/Yaskawa
CNC Controller Hypertherm EDGE CONNECT TC; EDGE CONNECT; LKNC-3200
Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB
Programming Software:Fastcam, SmartNest, Hypertherm
Input Power Voltage3×380V±10% 50HZ/according to user's local condition
Operation Language: Multilanguage
Main Application
CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
e
Plasma cutting samples

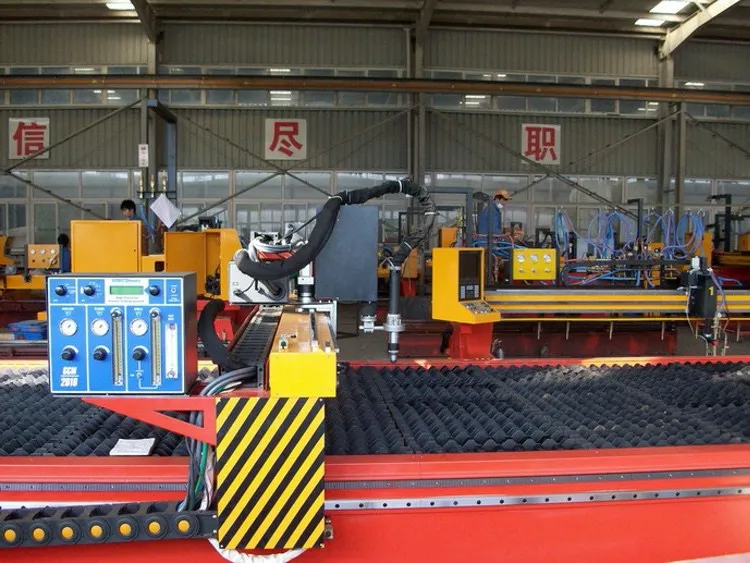

Workshop
Packing & Shipping
