Китайская Фабрика wantai, сборная стальная конструкция, механическая мастерская
- Category: Workshops & Plants >>>
- Supplier: Gaomi Wantai Steel Structure Engineering Co. Ltd.
Share on (62590973394):
Product Overview
Description

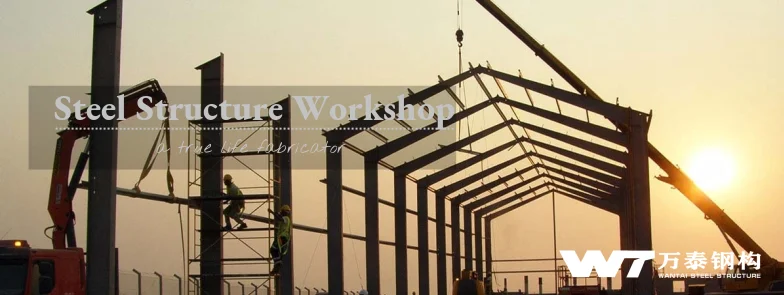

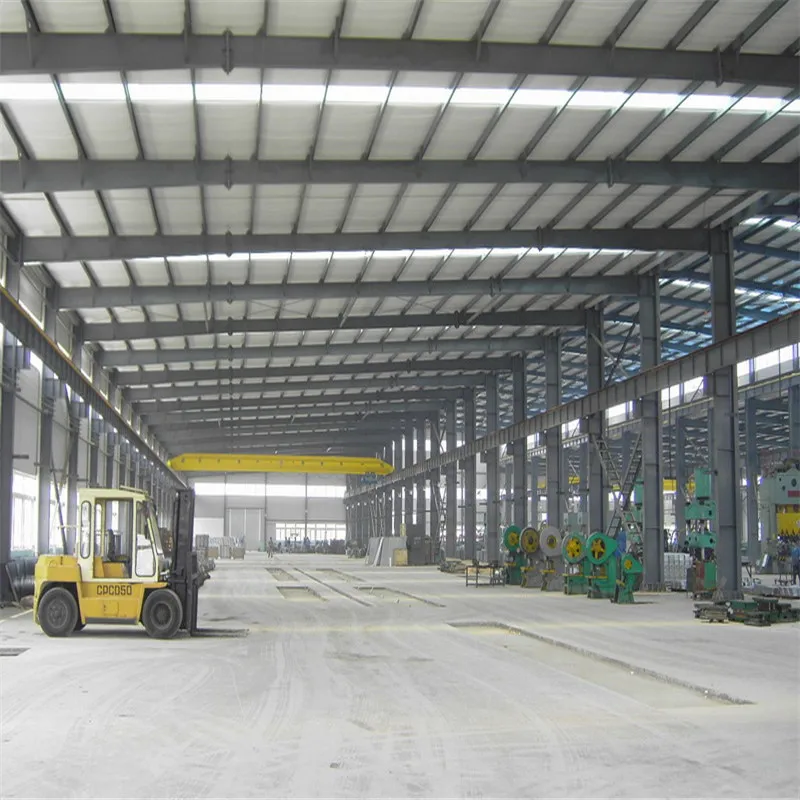

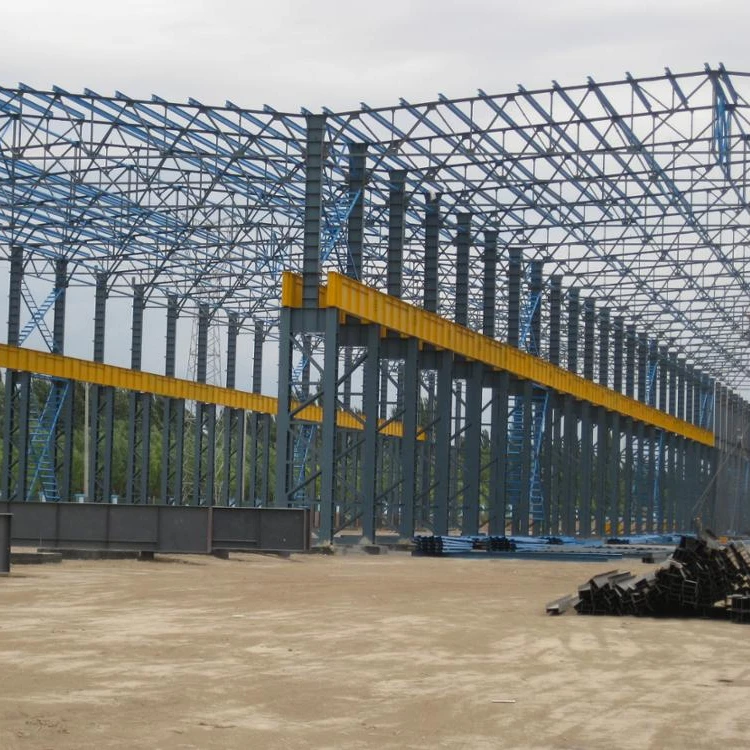

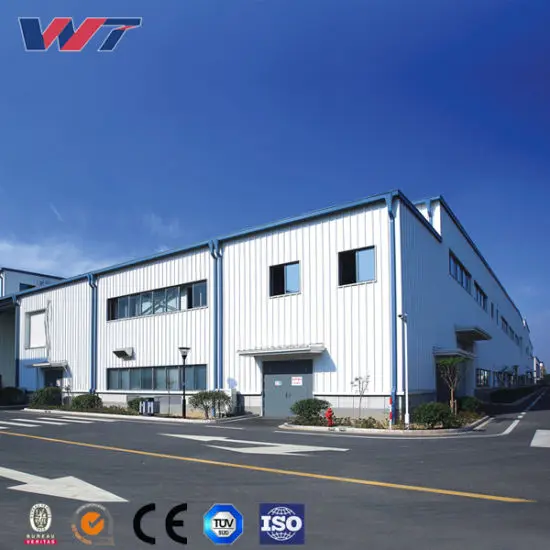

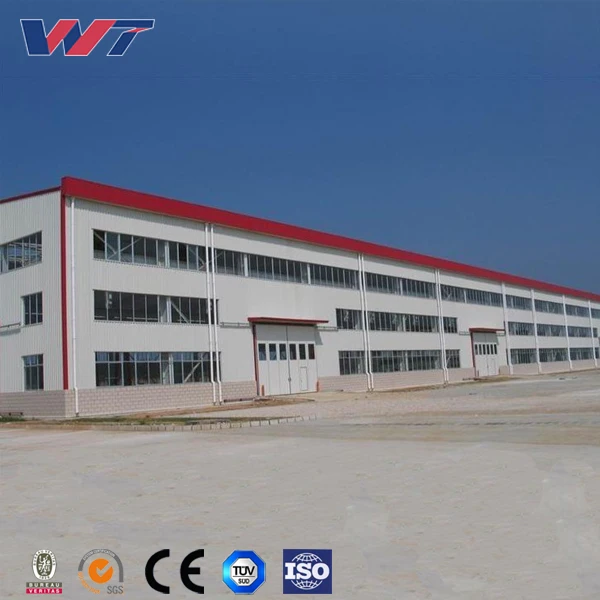

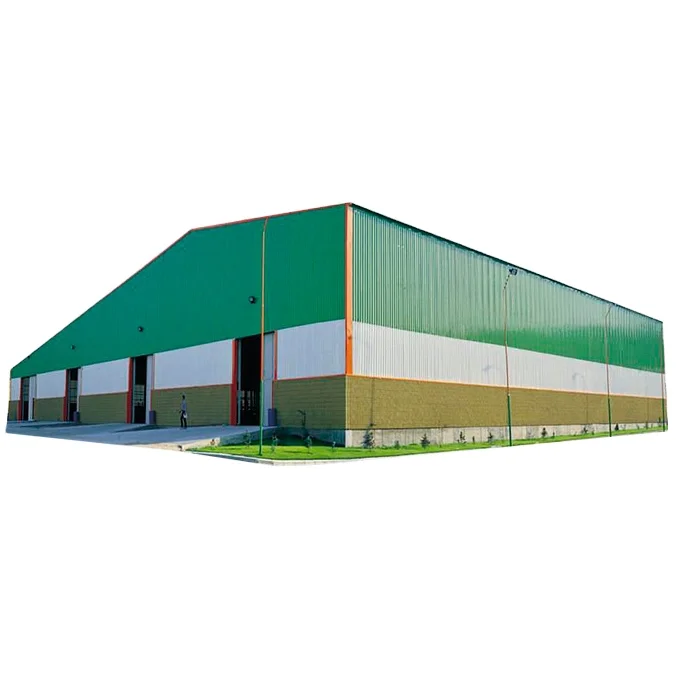

Prefabricated Steel Structure Buildings : Warehosue | Workshop | Plant
Prefabricated steel industry building can reduce construction time. The buildings are measured and designed at the factory., all the Steel Structure fabricated in workshop , after , cutting , welding , drilling , sandblast and painted then delivery to project site do the installation , much better than the normal concrete building , and good for environmental. Once selected and ordered, the building requires no further construction.
WANTAI Steel solution for industrial includes the R&D, design, manufacture, engineering, service support of both light and heavy steel structure building projects mainly based on industrial building.
WANTAI Steel Construction for Industry have been used in many fields of industry. Projects of industrial building steel structure undertaken by WANTAI involve shipbuilding, power plant, mechanical industry, electric equipment, medical manufacturer, chemical industry, communications, construction material plant, aircraft industry, optical instrument, commerce & trade Logistics etc.

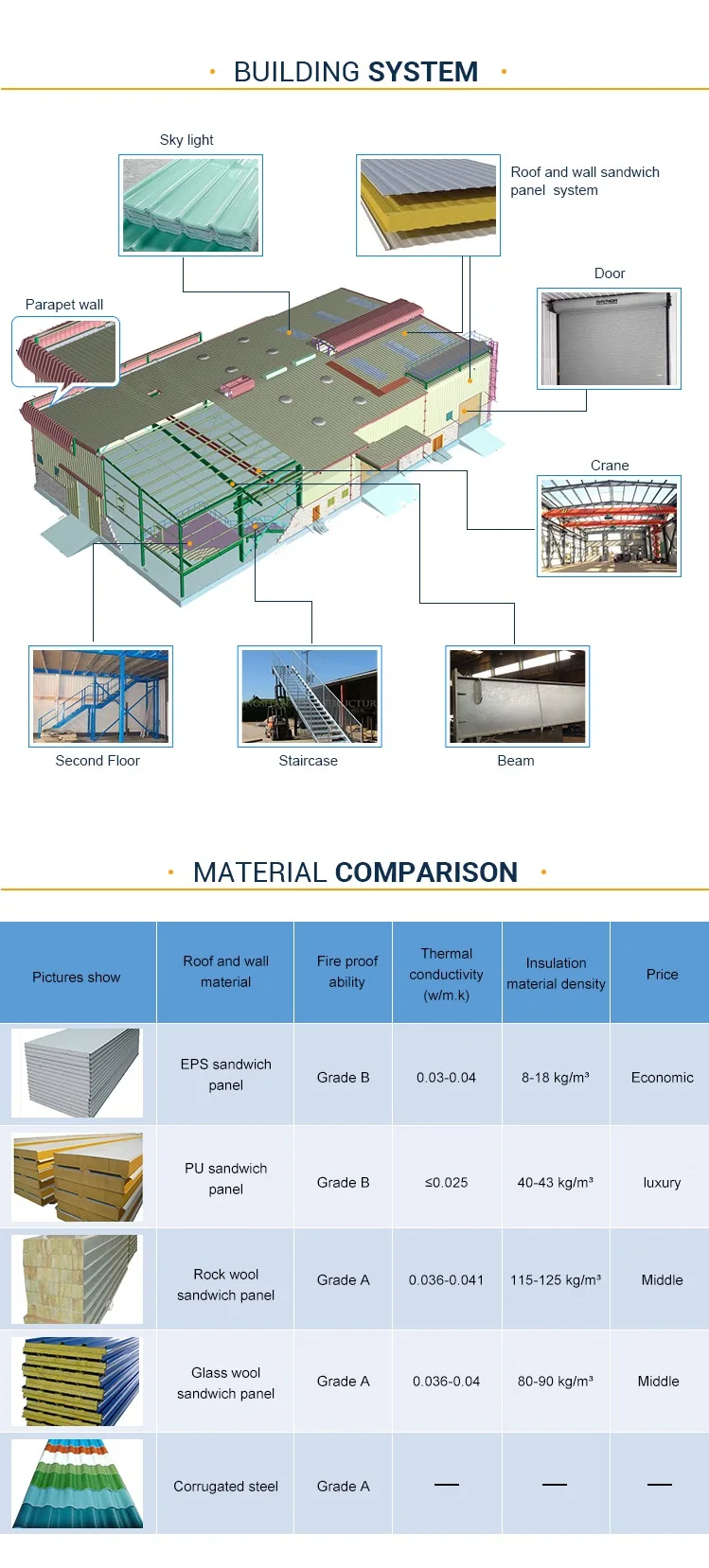

Wantai Steel Structure Building System Including:

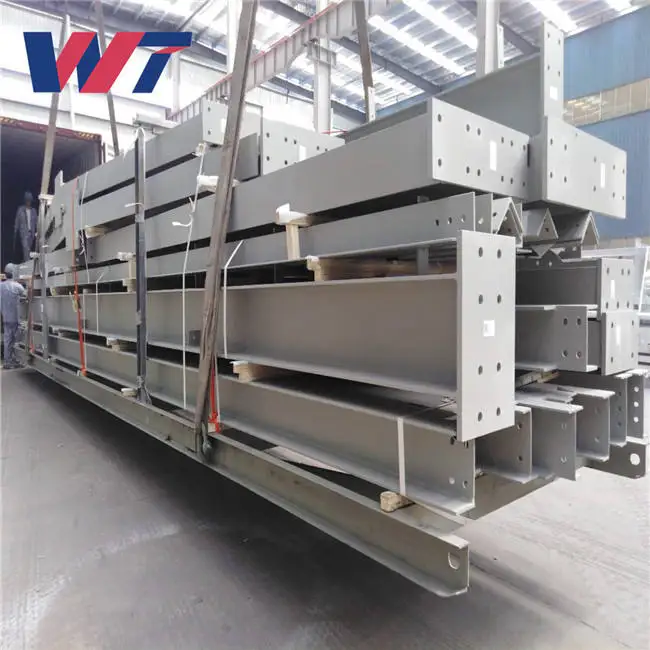

Main steel frame | Clolumn | Q235,Q355 welded H section steel | |
Beam | Q235,Q355 Welded H section steel | ||
Secondary Frame | Purlin | Q235 C and Z purlin | |
Knee brace | Q235 angle steel | ||
Tie Rod | Q235 Circular Steel Pipe | ||
Brace | Q235 Round Bar | ||
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | ||
Maintenance system | Roof panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet | |
Wall panel | Sandwich Panel / Corrugated Steel Sheet | ||
Accessories | Window | Aluminiumn Alloy Window / PVC,UPVC Window / Sandwich Panel Window | |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | ||
Rainspout | PVC Rainspout | ||
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | ||
Wind Resistance Grade | 12 Grades | ||
Earthquake-resistance | 8 Grades | ||
Structure Usage | Up to 50 years | ||
Temperature | Suitable temperature.-50°C~+50°C | ||
Certification | SGS, ISO9001:2008,ISO14001:2004 | ||
Finishing Options | Vast array of colors and textures available | ||
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | ||
We might need below information for pricing and design for you:
* Exact size: length * width *height;
* Wind speed (max speed);
* Snow load (kg/m2 in max situation);
* Earth quake grade (if have);
* Earth quake grade (if have);
* Live load and dead load for roof and flooring (special for multi-floors building);
* The requirements for window and door;
* Max height and weight for crane to lift;
* What are the materials for roof and wall?
* The requirements for window and door;
* Max height and weight for crane to lift;
* What are the materials for roof and wall?
Quality Control
Wantai Steel Structure quality system according to:
-- ISO 9001:2008 - Quality Management System
-- ISO 14001:2004 – Environmental Management System
--OHSAS 18001:2007 – Occupational Health Safety Management System
--AWS D 1.1 I AWS D1.5 Welding Code Executed
--BV I TUV third party inspection and supervision
-- ISO 9001:2008 - Quality Management System
-- ISO 14001:2004 – Environmental Management System
--OHSAS 18001:2007 – Occupational Health Safety Management System
--AWS D 1.1 I AWS D1.5 Welding Code Executed
--BV I TUV third party inspection and supervision
for each project quality documents and qualifications will be providing
--Qualified welder according to AWS I EN I
--Quality Plan
--ITP (Inspection Test Plan)
--PQR
--WPS
--MDR (Manufacturer data report)--Size & Welds Checking Report
--Hot dip galvanized report ASTM A123
--Painting Reports
--Assembly Report
* Other documents may be required by Customer
--Qualified welder according to AWS I EN I
--Quality Plan
--ITP (Inspection Test Plan)
--PQR
--WPS
--MDR (Manufacturer data report)--Size & Welds Checking Report
--Hot dip galvanized report ASTM A123
--Painting Reports
--Assembly Report
* Other documents may be required by Customer
Fabrication Procedure
Size Checking
Grinding
Painting
Hot Dip Galvanizing
Welding
Wantai Steel Structure is capable to fabricate ：
Pre-engineered metal buildings (PEMB)
Workshop/warehouse/Residential house | Sheds
Power/Energy steel structure Plant
Prefabricated steel Bridge | Infrastructure steel constructions
Steel Structure Components
Hot Dipped Galvanized | Painted Profiles
Project Reference
Scope & Technology
Wantai Steel Structure provide full professional steel fabrication solutions as:
Design | Detailing | Fabrication | Engineering | Erection
Wantai Steel Structure applying word advance BIM 3D software. Wantai is capable to
fabricate:
----Pre-engineered metal buildings (PEMB):
----Workshop/warehouse/Residential house | Sheds
----Pre-engineered commercial buildings | Prefabricated steel Bridge | Infrastructure steel constructions |
----Power/Energy steel structure Plant
----Hot Dipped Galvanized | Painted Profiles
----Steel Structure Components
----Mining Machinery and equipment | Steel Towers | Custom structural steel works
Design | Detailing | Fabrication | Engineering | Erection
Wantai Steel Structure applying word advance BIM 3D software. Wantai is capable to
fabricate:
----Pre-engineered metal buildings (PEMB):
----Workshop/warehouse/Residential house | Sheds
----Pre-engineered commercial buildings | Prefabricated steel Bridge | Infrastructure steel constructions |
----Power/Energy steel structure Plant
----Hot Dipped Galvanized | Painted Profiles
----Steel Structure Components
----Mining Machinery and equipment | Steel Towers | Custom structural steel works
FAQ
Here what you want to know：
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you
professional. You would enjoy the best quality and competitive price.
Q: What’s the quality assurance you provided and how do you control quality?
A: The warranty period usually is 5 years, you can contact our after-sales for any questions to get service.
We established QA procedure to control all process from Welding & Visual Inspection, Coating Inspection, Pre-assembly Inspection to WPS, Nondestructive Examination, ITP （Inspection Test Plan） , Offer full MDR(Manufacture Data Report) documents to customer.
All manufacturing welds are performed by qualified welders, according to AWS D1.1 according to the welding processes involved. We also arrange QC to inspect end products, offer Material Certificates And Accept full supervision by SGS, BV …ect third party testing to ensure that every parts we deliveried meets the quality requirements
Q: Can you offer designing service?
A: Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirement. Designed by Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0. etc.
Q: Do you offer guiding installation on site overseas?
A: Yes, Normally we send you the detailed installation drawing. And we can provide the service of installation, supervision, and training by extra. We can send our professional technical engineer to supervise installation on site overseas. They have succeeded in many countries, such as Iraq, Dubai, South Africa, Algeria, Malawi, Thailand, etc
A: We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you
professional. You would enjoy the best quality and competitive price.
Q: What’s the quality assurance you provided and how do you control quality?
A: The warranty period usually is 5 years, you can contact our after-sales for any questions to get service.
We established QA procedure to control all process from Welding & Visual Inspection, Coating Inspection, Pre-assembly Inspection to WPS, Nondestructive Examination, ITP （Inspection Test Plan） , Offer full MDR(Manufacture Data Report) documents to customer.
All manufacturing welds are performed by qualified welders, according to AWS D1.1 according to the welding processes involved. We also arrange QC to inspect end products, offer Material Certificates And Accept full supervision by SGS, BV …ect third party testing to ensure that every parts we deliveried meets the quality requirements
Q: Can you offer designing service?
A: Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirement. Designed by Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0. etc.
Q: Do you offer guiding installation on site overseas?
A: Yes, Normally we send you the detailed installation drawing. And we can provide the service of installation, supervision, and training by extra. We can send our professional technical engineer to supervise installation on site overseas. They have succeeded in many countries, such as Iraq, Dubai, South Africa, Algeria, Malawi, Thailand, etc
