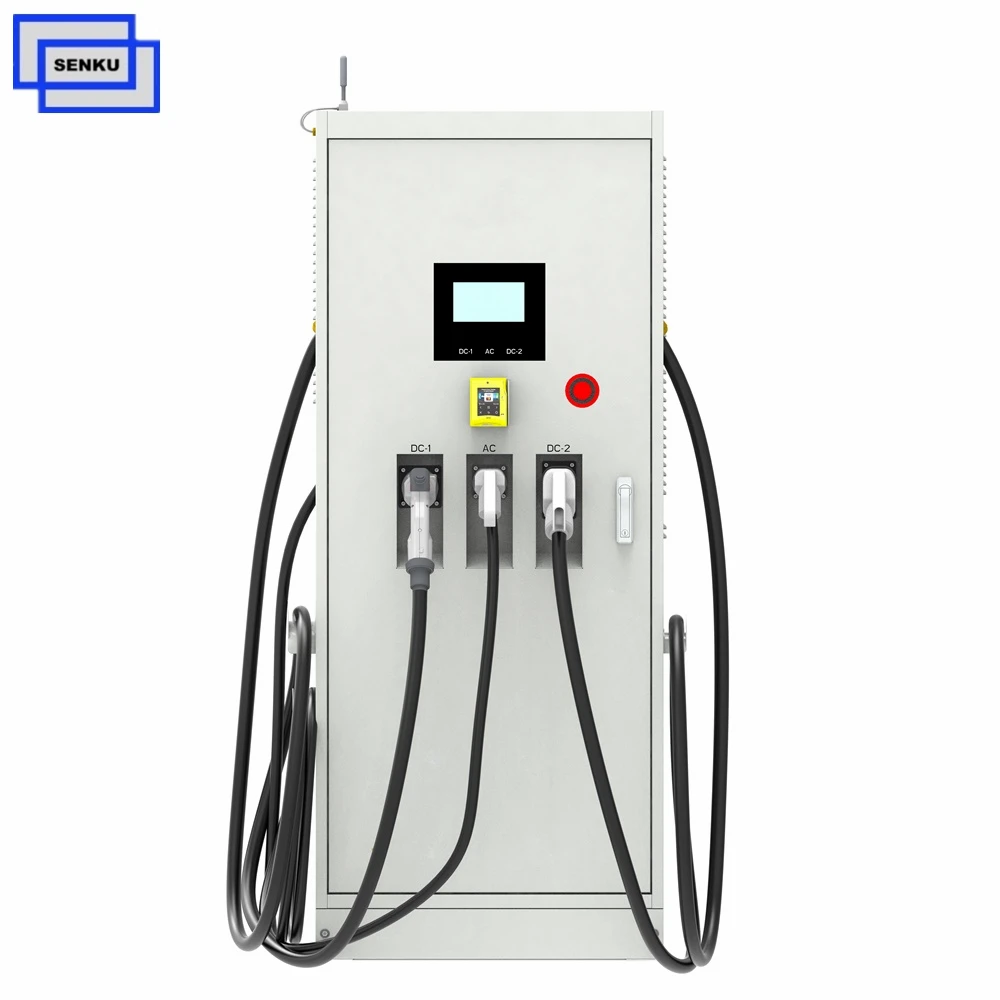

Оплата кредитной картой EV Charger 32A type 2 60KW 125A CCS2 Chademo, стоимость зарядных станций

Product Overview

Description

Credit Card Payment EV Charger 32A Type2 60KW 125A CCS2 Chademo Charging Stations Cost

1. Basic Data



AC Input	Input Voltage	3-phase AC 400 V ± 10%; 50Hz
DC Output	Output Voltage/Current	DC Part: 60KW ; 200A max; 200V - 1000V DC output AC Part: 22KW 32A max; AC 400 V ± 10% output OR AC Part: 43KW 63A max; AC 400 V ± 10% output for option
Electrical Specification	HMI	Colorful 7" Touch screen; LED Indicator; Emergency Stop Button
	Start Method	RFID Card /  Smart Phone APP / Credit Card (Charger with a credit card reader)
Structure Design	Connector Standard	Type2 / CCS2 / CHAdeMo option
	Charging Outlet Quantity	3 or 2 or 1 for Option
	Cable Length	4M cable
Communication	Network Method	Ethernet/4G/WIFI
	Communication Protocol	CAN, PLC (DIN 70121: 2014-12)
		OCPP 1.6 JASON ( Charger with ocpp board inside)
Environmental Index	Operating Temperature	-30 °C ~ +50 °C, 5%~95% without condensation;<2000M
	Protection Grade	IP55/ IK10 (Indoor / Outdoor installation)
	Cooling Method	Fan colloing with Heat exchange technology
Security Protection	Multi le Protection	Over/Under voltage protection, Overload protection, Short circuit protection, Over/Under temperature protection, Grounding protection, Surge protection
	MTBF	100,000 hours
	Safety Standard	IEC/EN 61851-1, IEC/EN 61851-23
Dimension	Dimension & Weight	700*550*1850mm & 210KG
Note	Configuration	30KW - 60KW Configuration





 2. Main Feature

1- Ready for the Future

This ev charging station with 1000V DC ouput option. The 1000V option is able to charge electric vehicles with a battery voltage below 500 V and  with battery voltage between 500V to 1000V.

This ev charging station system with modular design, which enables the operator to start today with lower power at lower cost and can easy change to high output by just adding or taking out the power modules.



2- Optimize investment cost

Save initial investment costs and start smart, by sharing capacity for three electric vehicles.

Free combination of different charging connector standards (CCS1  / CCS2 / CHADEMO / TYPE1 / TYPE2), Max 3 connectors charging at the same time.

Senku's Ultra Fast Charger (UFC) is maintenance-free and ensures continuous operation.



3-With Open Communicate Protocol OCPP 1.6
The ev charging station is compatible with the major charge point operator, e-mobility service provider and roaming platforms. Integration into existing backends can be realized due to the compliance with the open ev charging station protocol (OCPP). Connectivity is realized through Ethernet,  3G or 4G.



4- High Reliability

Pefect IP 55 waterproof and dust-proof design, efficient heat disipation,resistant to rain, snow, low temperature and high temperature, can stable operate in the -30℃ enviroment.

Safety standards IEC/EN 61851-1, IEC/EN 61851-23 are meeted.



5-Fully Service

All the chargers are with 12 months warranty.

Previde lifetime technical services.

WE BELIEVE IN

ONE GOOD Quality Charger> N Poor Quality Chargers





4. Part of Oversea Cases



FAQ

Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet.

Even we also have charger support the Ethernet, 3G,4G function.



Q: What after service you support?

1 Year warranty and while service life technical support.

During the warranty time, we provide comprehensive technical support. In normal conditions, we provide after-sales technical training by providing written training materials or videos, also we support online remote technical service. If there is a urgent situation, we will also send our professional technicians to provide local on-site support.

And we supply "One time purchase, lifetime service” , even the ev charger which you buy is out of warranty time, you also can contact us to get in time service support.



NOTE:

1- OEM customer is welcome...

2-Any requirement please contact us to talk about the details.

3-We will reply you for your inquiry in 24 hours.

4-If you have any questions about the charger, please contact us.

5-The above for reference only, final price decide by the charger KW, please contact us to get the quote.
