1) 4 pieces of solar energy double wave panels installed on board (see arrangement drawing for details), power capacity of each panel is 200W, 800W in total. Daily charging capacity is 640W of total 4 pieces solar panel in sufficient sunlight condition. The solar energy panels supply electricity for 4 pieces of 160mAh maintenance free batteries. The capacity of batteries is 7680W, it takes 12 hours to get the four 160mAh batteries fully charged.
2) Two sets of 3hp electric outboard motor installed on the stern of the boat, for use of going in and out port. Four 160mAh batteries provide 100 minutes operation time for the 2 sets of 3Hp motor in normal condition. Assuming that each time going in and out port takes 15 minutes, the boat can go for more than 3 back and forth trips with batteries fully charged.
3) The boat adopts water to replace the traditional aluminium block as ballast, which has better guaranteed the safety factor of the boat and made her a real “tumbler”. The boat has shorter production period by using modular manufacturing. She is built out of fiberglass reinforced material, with 10% lighter in weight compared with other same type boats. Her gravity center is also much lower, which makes her speed much higher.
Main Parameters
Overall Length
7.330m
Lwl
6.973m
Beam max.
2.154m
Draft (Canoe)
0.351m
Draft (Canoe)
1.796m
Displacement
2.223t

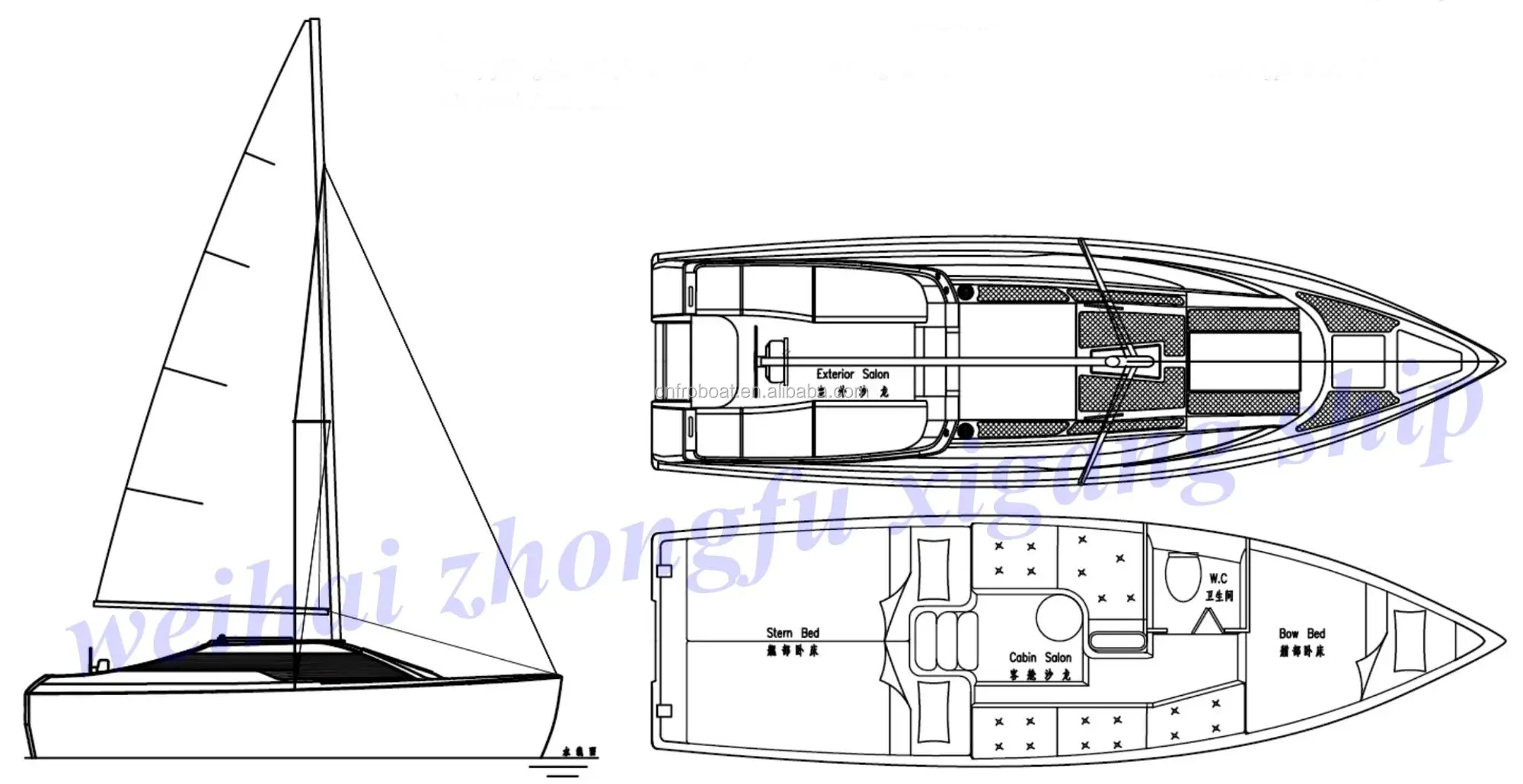

General Layout

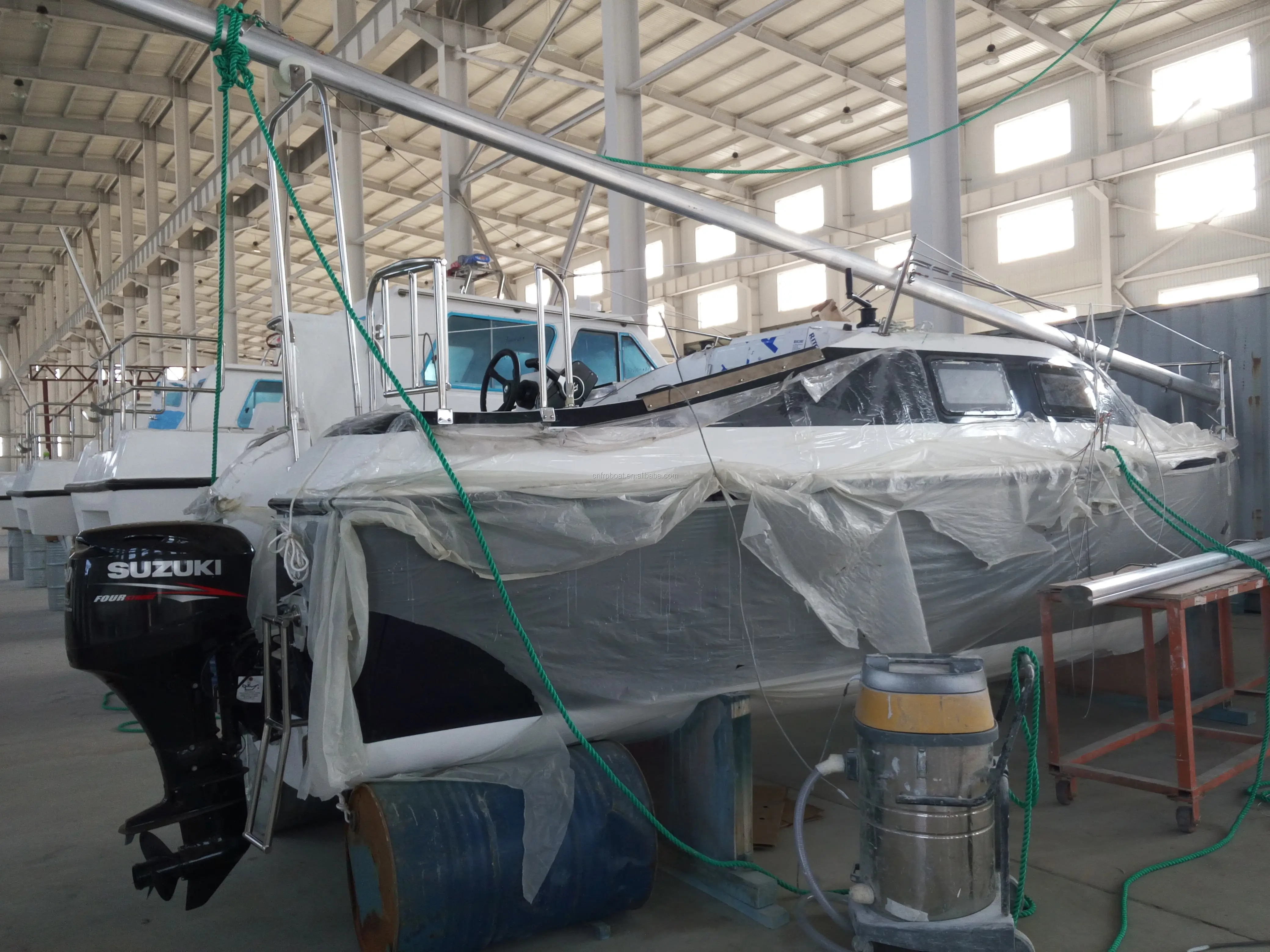

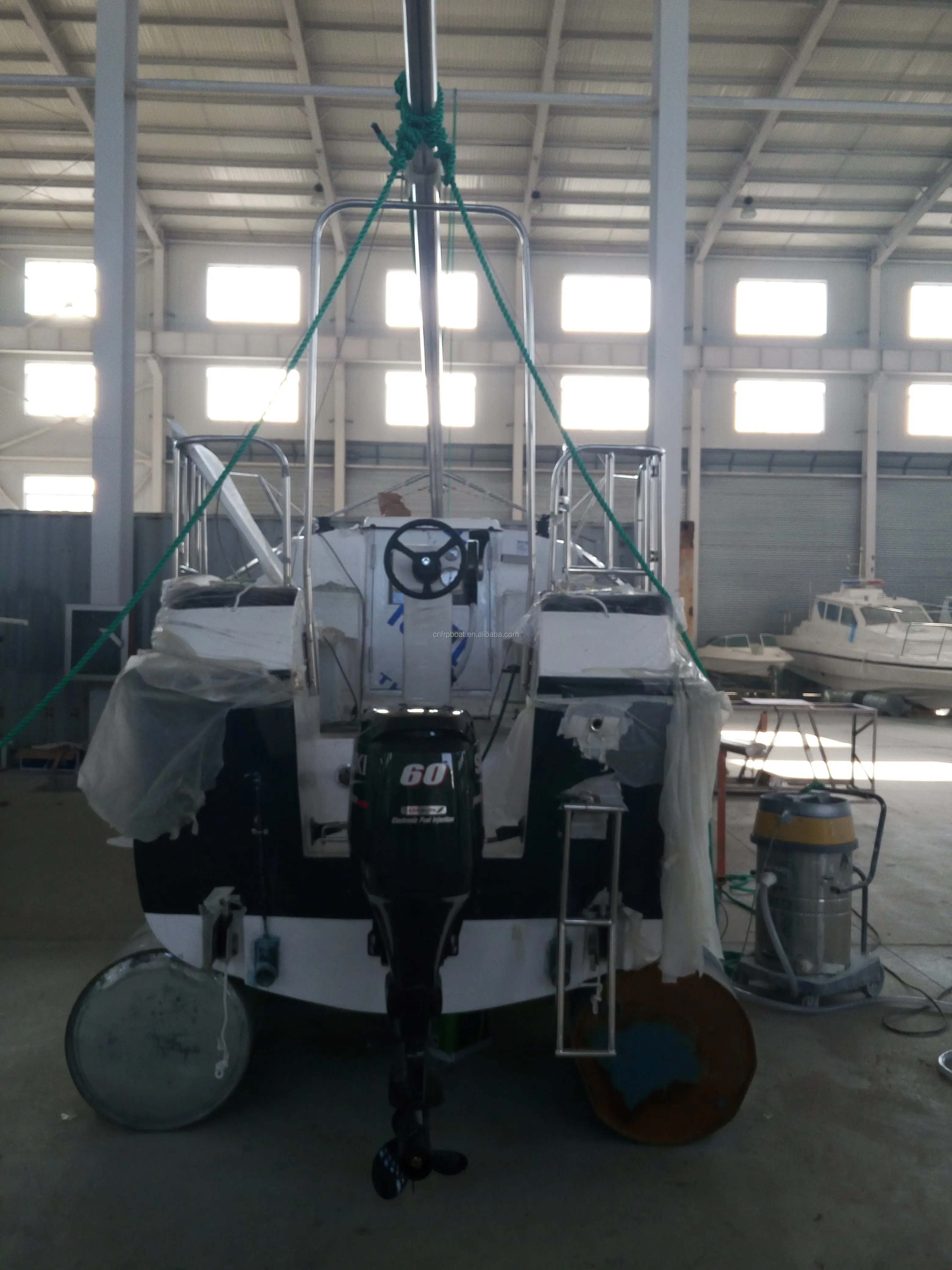

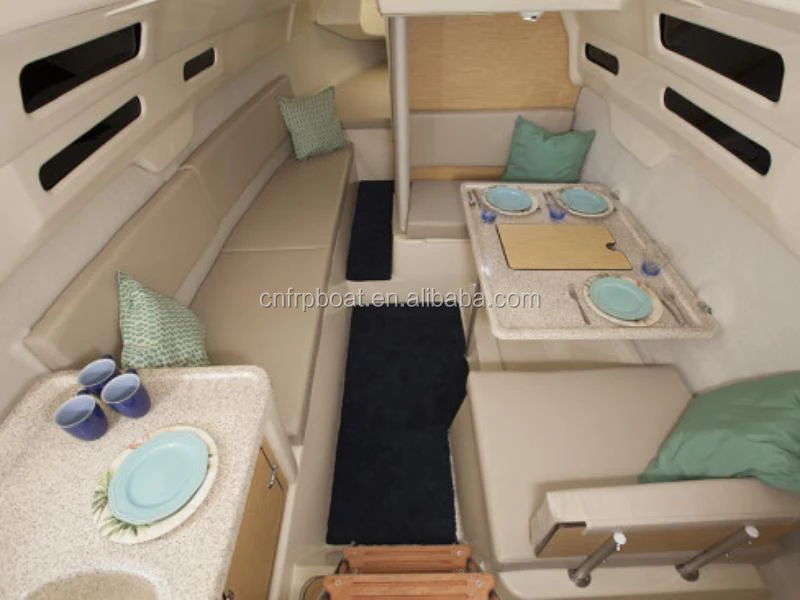

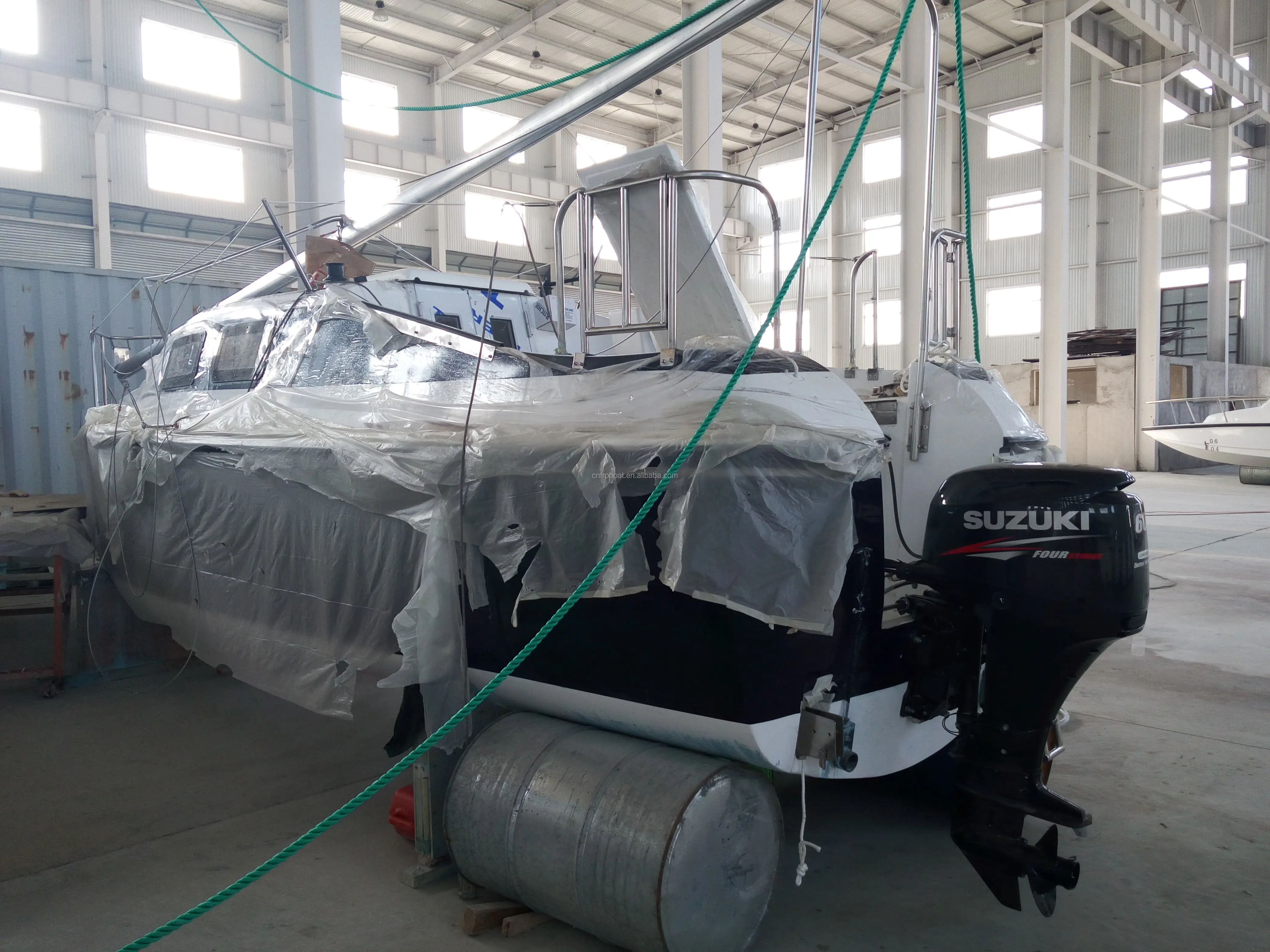

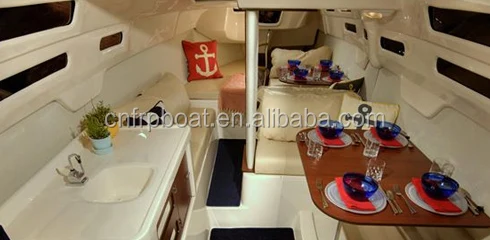

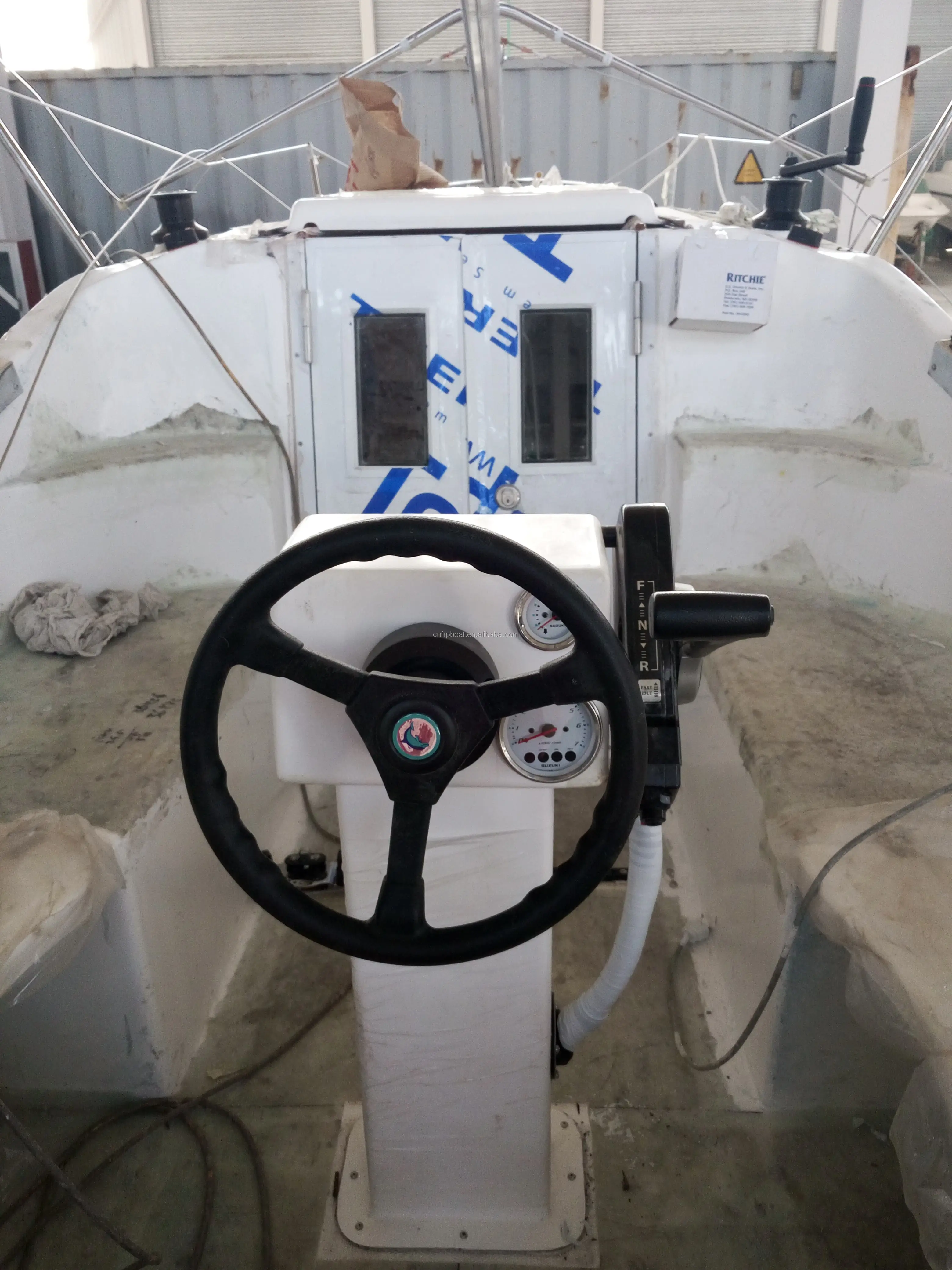

Detailed Images
Manufacturing Technique
Vacuum Infusion Process
The Vacuum Infusion Process offers many benefits vs. open molding:
1) Higher fiber-to-resin ratio (up to 70% fibers by weight)
2) Higher strength and stiffness
3) No resin entrapped air/ very low voids
4)Very consistent laminate with great process control (less human errors)
5) Minimal part shrinkage with good surface profile and accuracy
6) Can have good outside and inside surfaces
7) Efficient to laminate complex fiber layers, ribs, inserts and cores
8) Cleaner process with no VOC air pollution
9) Faster cycle time
Recommend Products
Company Profile
Our company is specialized in designing, researching, developing, manufacturing and marketing FRP ships especially FRP boats as well as providing the boat-related training and other leisure services.
The company possesses a total area of more than 20 thousand square meters, including a 150-meter long dock channel, a 2200 square meters of horizontally moving area, a 5000 square meters of slipway and more than 3800 square meters of FRP molding workshop. The company is also equipped with outfit workshop, machining workshop and locksmith workshop. It has an annual producing capacity of 50 large FRP boats and is qualified to design and build different types of FRP boats and ferries within 35m in length according to the requirements of the clients.
The company has developed tens of different types of boats ranging from 3.8m to 35m and undertaken the national key technological program listed in the national Ninth Five-Year Plan , covering 24m FRP trawl boat, 33m FRP trawl boat and 30m FRP tuna fishing boat which have been successfully passed the check and acceptance conducted by Ministry of Science and Technology and Fisheries Bureau of Ministry of Agriculture of the P.R.C in 1999. The company has satisfactorily fulfilled the Ninth Five-Year Plan tasks of building the three types of large boat and filled up the blanks in China. The completion of the task is also ranked the first in self -designing and self-building such large type of FRP boats in China and set a solid foundation for Chinese FRP boat industry.
