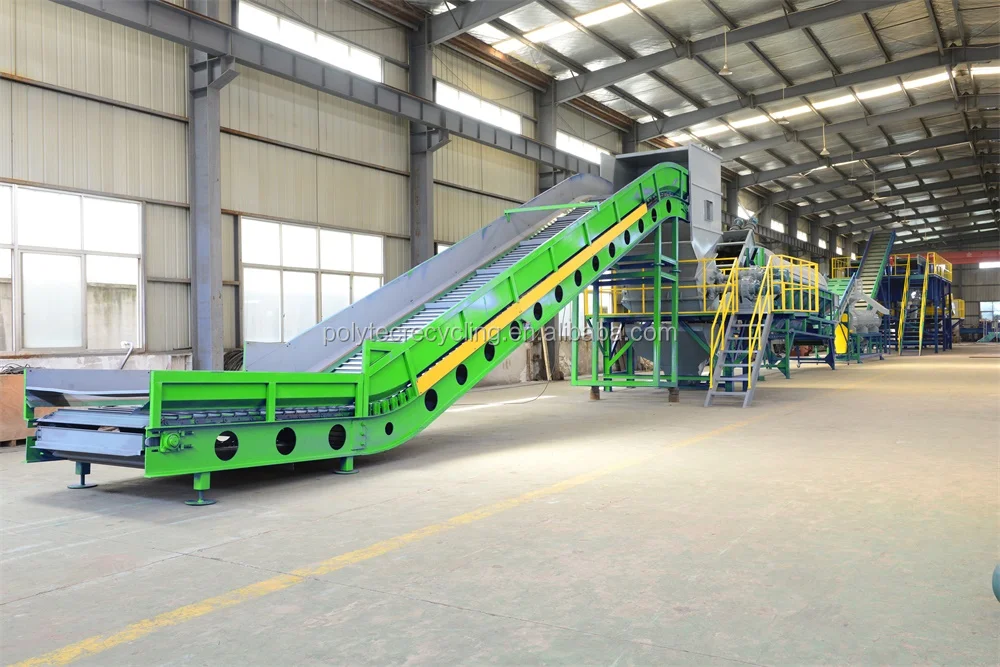

PET Bottle Washing Line Crushing Washing Drying Machine Line
- Category: >>>
- Supplier: Suzhou Polytec Machine Co. Ltd.
Share on (62591484693):
Product Overview
Description

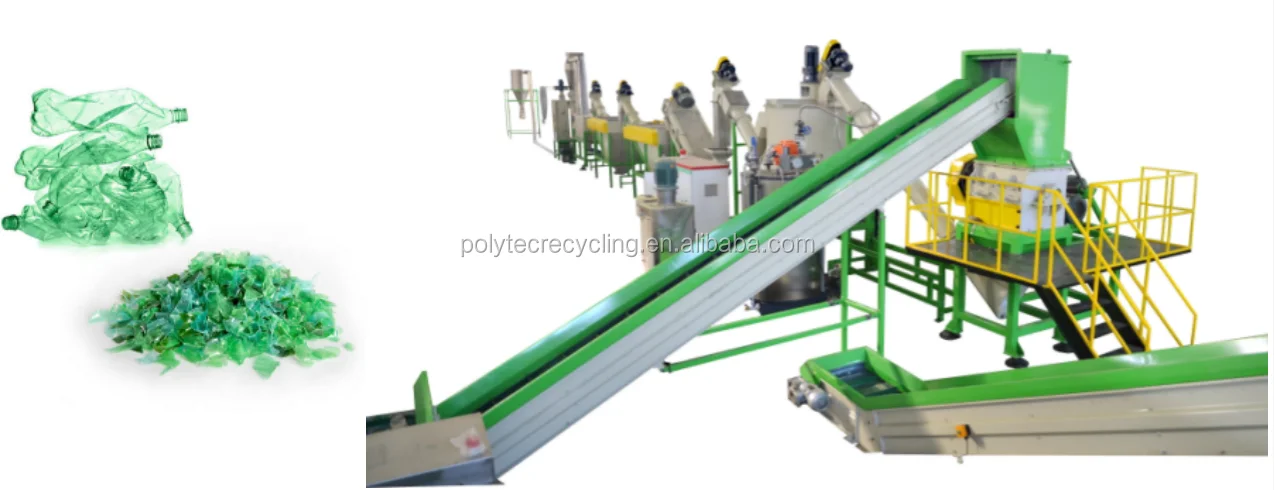

Plastic Recycling Machine PET Bottle Crushing Washing Production Line
Ⅰ. Waste PET bottle crushing washing recycling machine line features:

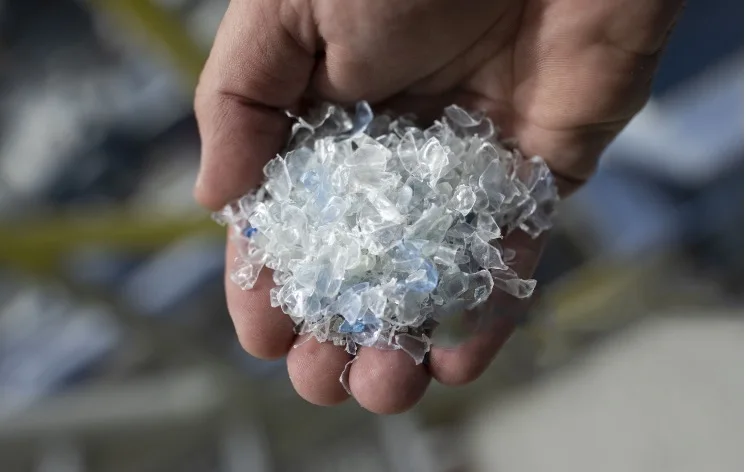

1. The waste PET bottle crushing washing recycling machine line is used for crushing, cleaning, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottles will become reusing PET materials.
2. We have several different standards of PET bottle crushing washing recycling machine line according to different production capacities and the requirement for cleaning. The PET bottle crushing washing recycling machine line has a capacity of 500-3000 kg/h.
3. Customers can choose the most suitable PET bottle crushing washing recycling machine line to produce high-quality PET plastic which can be used for selling, drawing filament, producing PET particles, or blowing bottles.
Ⅱ. Waste PET bottle crushing washing recycling machine line machine list
Belt conveyor | 1set |
Label Remover | 1set |
Metal detector + automatic separation device | 1set |
Manual Sorting Table | 1set |
Belt Conveyor | 1set |
Crusher | 1set |
Screw loader | 1set |
Floating tank | 1set |
Screw loader | 1set |
Steam washer | 1set |
Screw loader | 1set |
Steam washer | 1set |
Screw loader | 1set |
High-speed friction machine | 1set |
Floating washer | 1set |
Spray washer | 1set |
Centrifugal dewatering machine | 1set |
Zig-zag label blower | 1set |
Silo | 1set |
Electric cabinet | 1set |
Ⅲ. Detailed description for waste PET bottle crushing washing recycling machine line
1.When our waste PET bottle washing machine process PET bottle, final product humidity below 1%, impurities100 PPM, PVC label content 100 PPM. The whole line capacity between 500-3000 kg/h.
2. Parts that contact PET materials use SUS304, thickness more than 3mm, ensure the final products have good quality. keep the waste PET bottle crushing washing recycling machine line with long time service.
3. World-famous brand components will be applied to the waste PET bottle crushing washing recycling machine line, such as SKF bearing, Siemens contactor, Omron temperature controller, Siemens inverter, Siemens PLC controller, etc.
4. The whole production line with CE certification.
Belt conveyor

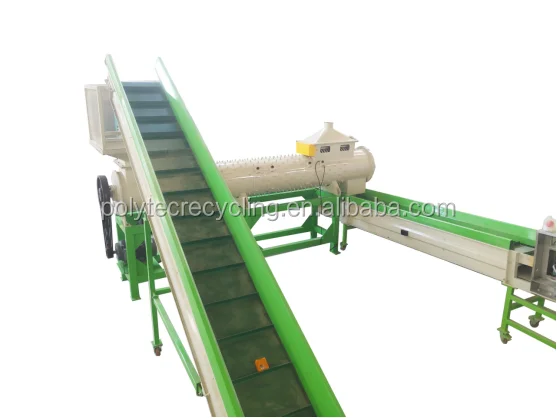

Label remover
1. Service life:
Blades and chamber are made of 10mm thick material, which prolongs the life of label remover for 3-4 years. (most of the market is between 4-6mm)
2. Loss rate:
Without affecting the remove-label rate and make sure output unchanged, our company reduces the speed of rotary blades, so as to minimize the breakage rate of bottle nozzle, more efficient & reduce wastage.
3. Humanity design:
Easy opening the machine and changing the blades.
Separation rate: ≥99.5%
Metal detector & manual sorting table

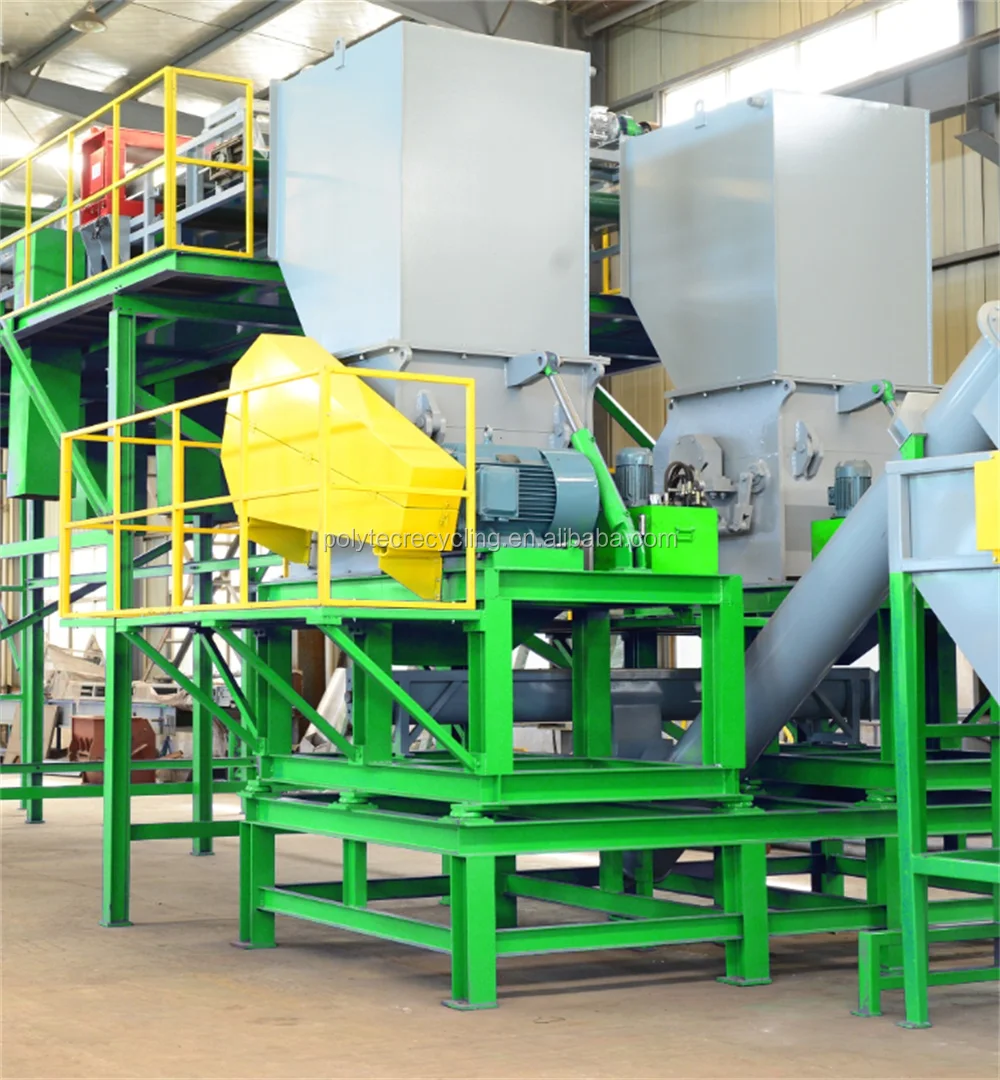

Wet crusher
1. Advantages:
20-40% additional output, 15% additional power saving
2. Blades are externally adjustable, material DC53 with cryogenic treatment, a longer service life.
3. Anti-wear machine housing, replaceable wear plates. Installed between wall and spindle, prevents the friction of the spindle after a long period of operation, which leads to the increase of sealing clearance and leakage.
4. Heavy-duty bearings, oversized external bearing housings
5. More convenient housing opening way
6. Hydraulic control / Electrical screw control
7. User-friendly design to change screen
8. Screen changer: Special screen changing system, more efficient and safer to prevent injuries.

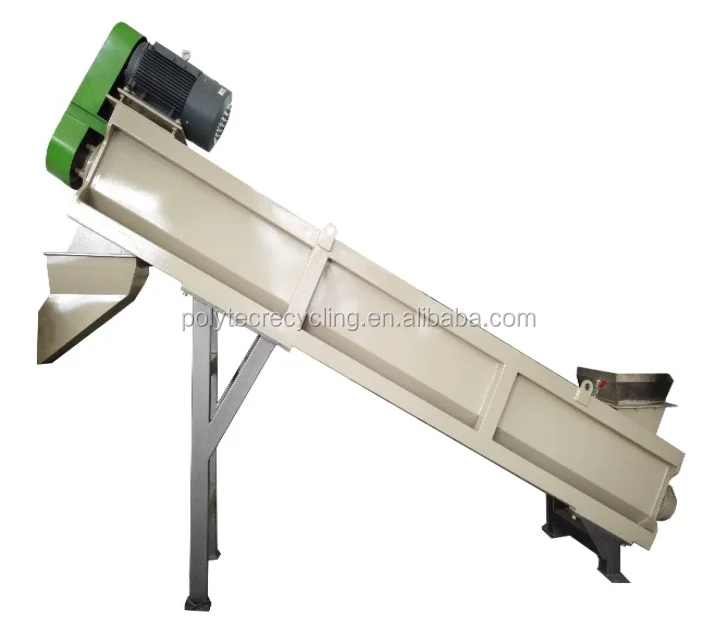

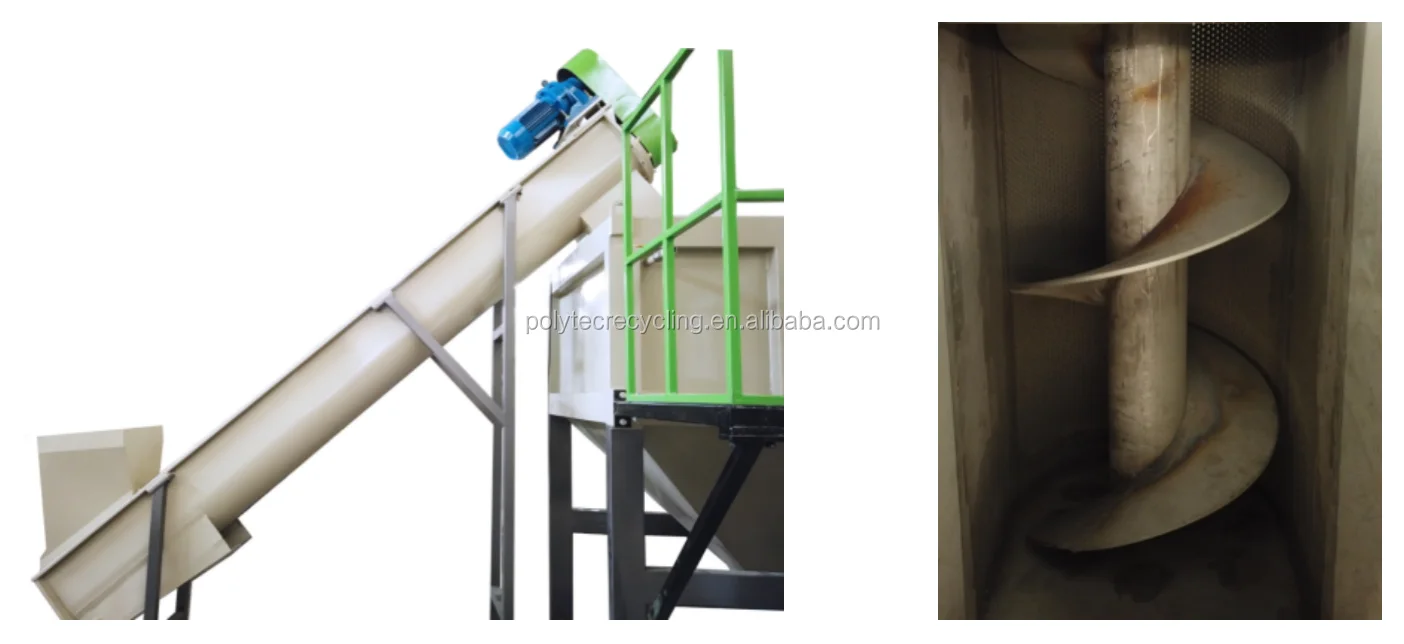

Screw loader

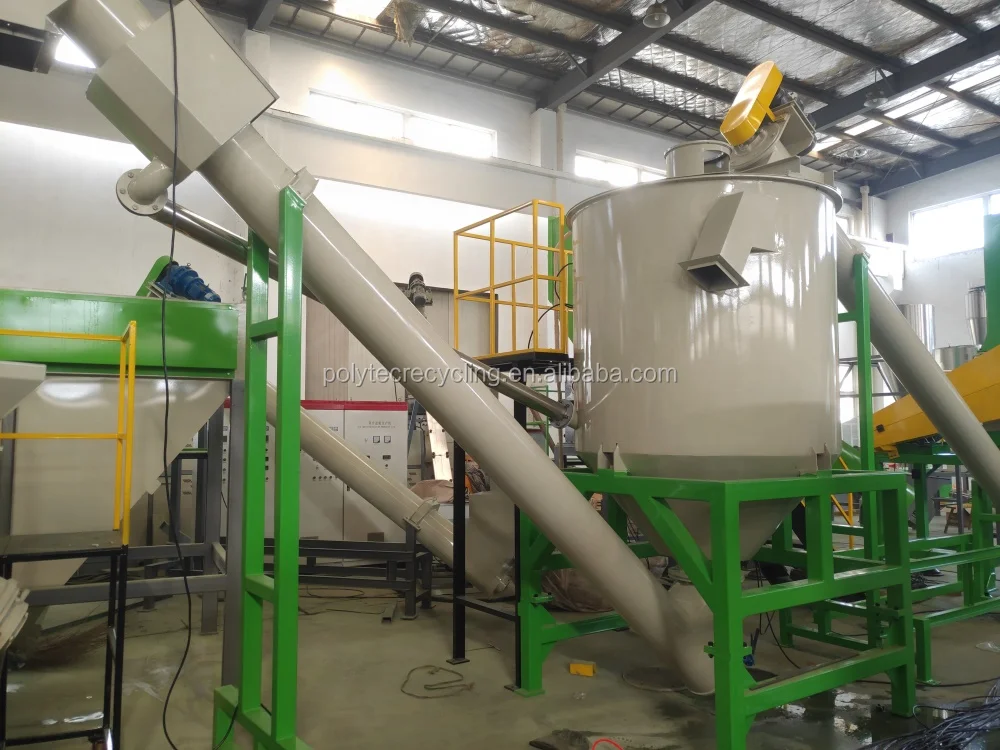

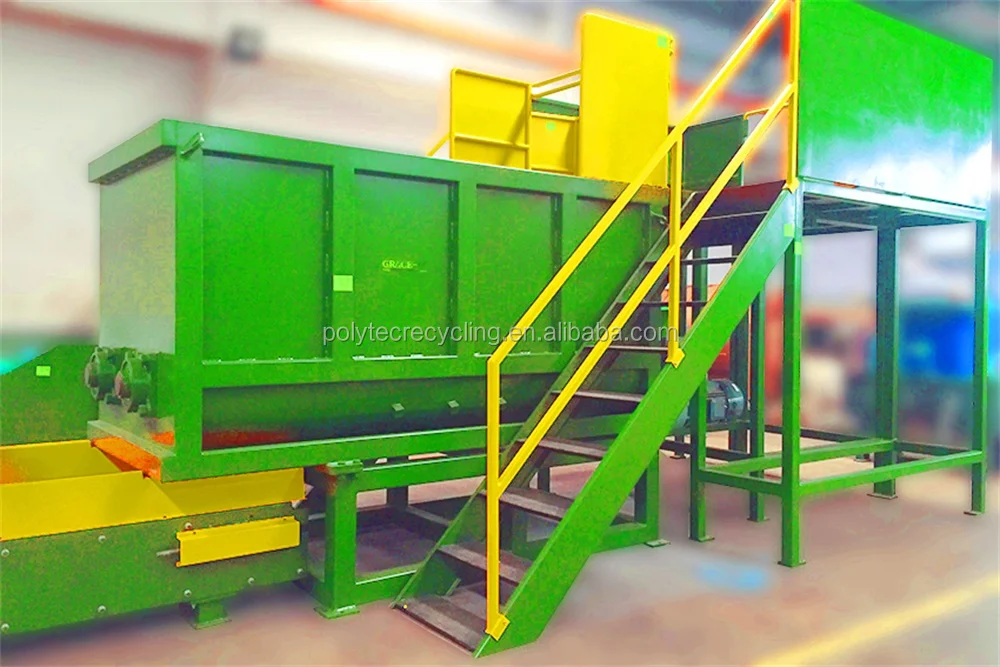

Hot washer
1. Both electrical heating and steam heating for options.
2. Caustic soda concentration: about 1-2 %.
3. Full Stirring paddles with motor power: 4-7.5 kW.
4. With special paddles inside to stir the flakes with water, flakes will remain in the hot washer for at least 12 mins, to ensure entirely washed.
5. PH value automatic detecting & control system.
6. Temperature controller.
7. Hot water can be reused through our special design, Energy saving 15%-20%.
8. Bottle caps separating & collecting design.
Boiler
Friction washer
1. Special blade arrangement, uniform discharge, sufficient friction cleaning, high water utilization rate, effective removal of paper labels, and other impurities.
2. Frame structure body, smaller vibration

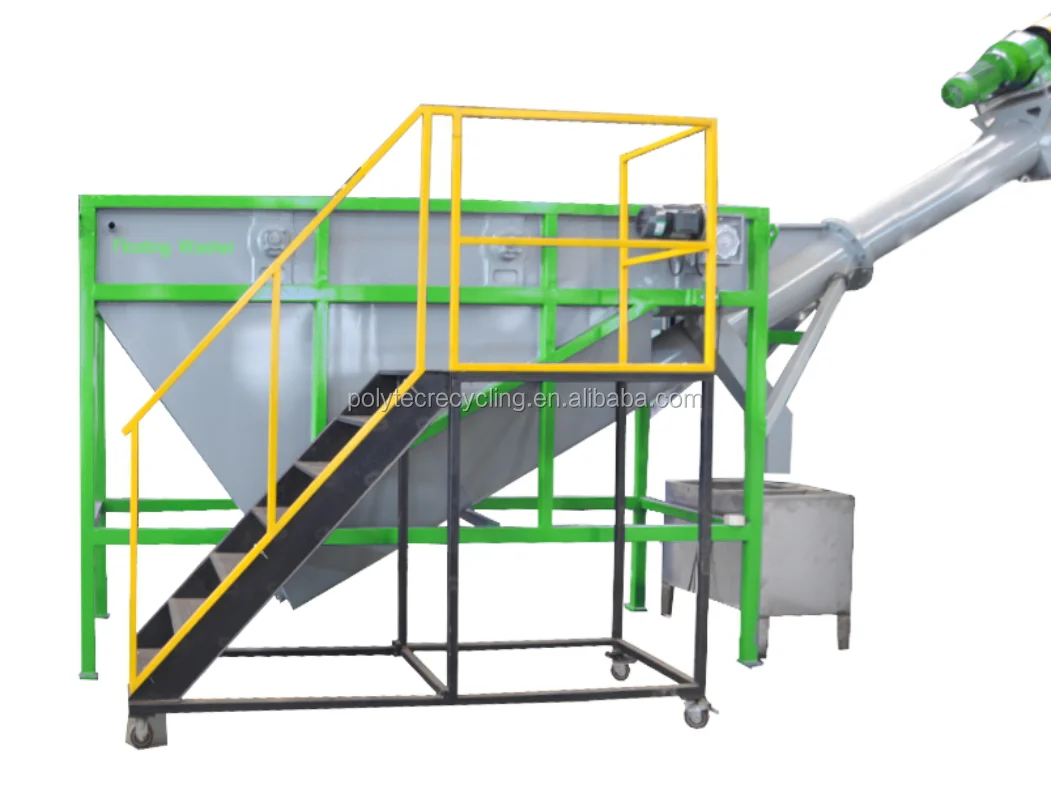

Floating washer
1. Sewage discharge valves at the bottom for regular cleaning.
2. Water tank thickness 4mm.
3. Inclined lifting screw design, blade thickness 5mm.
4. The parts that contact the wet PET flakes are made of SUS304.
De-watering machine
1. The integrated design of the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discharging, no blocking.
2. Adopt high-speed heavy-duty bearings, stainless steel spindles, and blades, dynamically balanced
3. Automatic screen cleaning device which is driven by air pressure, labor-saving.
4. Adopt a container for collecting wastewater & residue at the bottom.
5. Rotation speed: 2000 rpm. Dewatering rate: 98.5%.

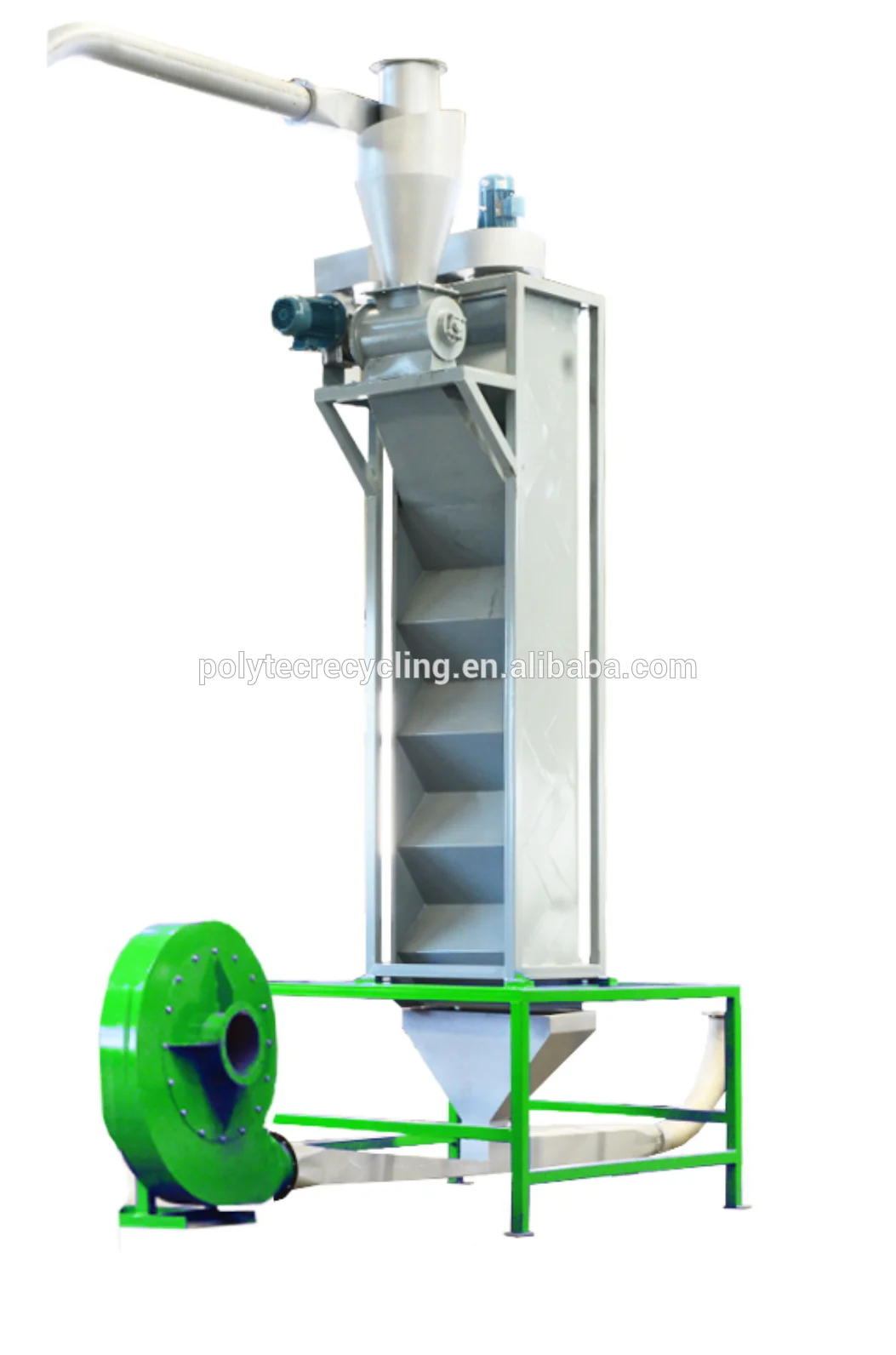

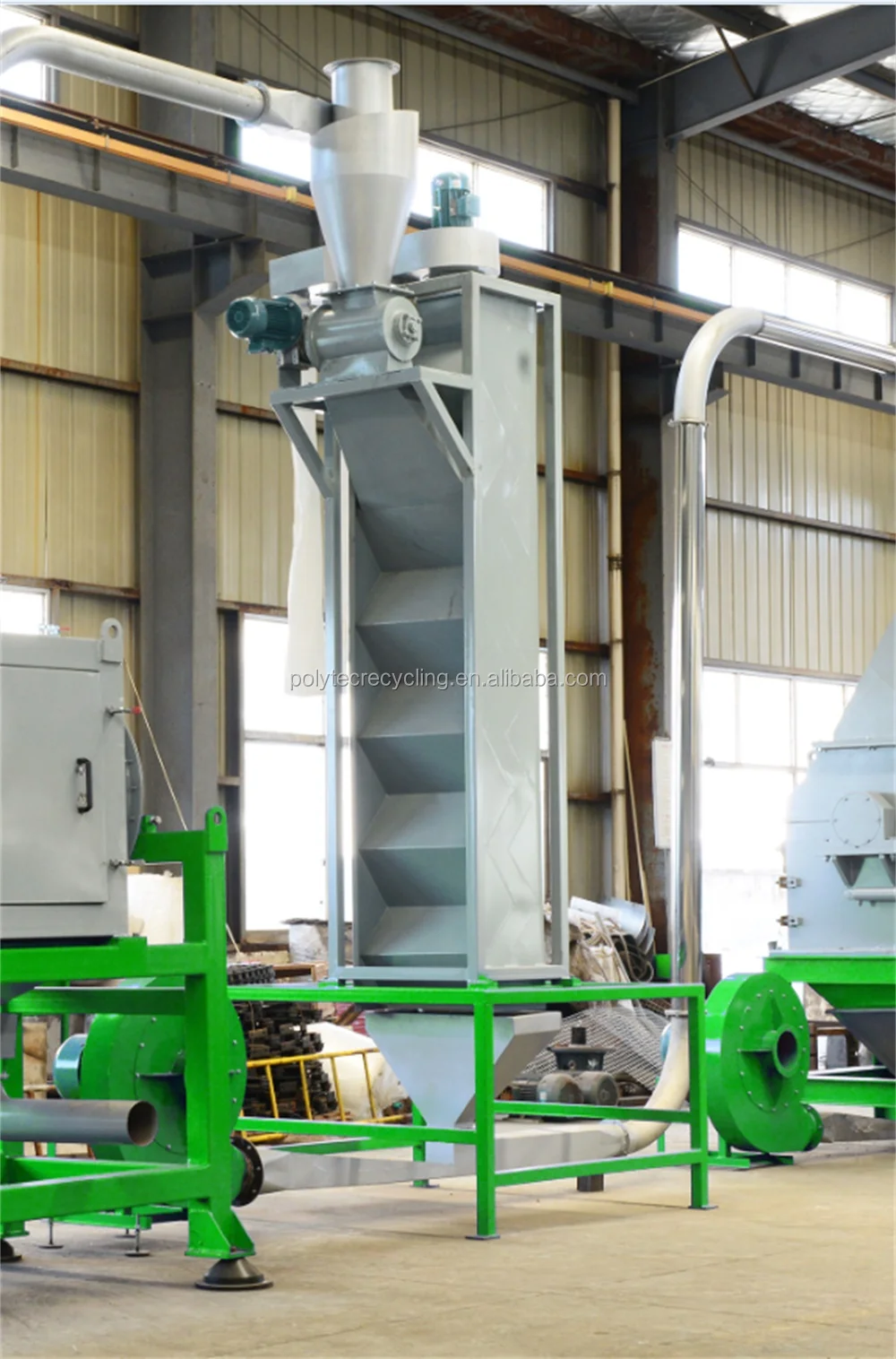

PVC label remover
1. Separation ensures label separation rate >99.5%, powder <1%.
2. Unique “Zigzag” structure design with the dust filter.
3. Specially designed suction fan power controlling system
4. The material outlet is equipped with a magnetic rack (as an option) to remove tiny magnetic metal.
Silo
VI. FAQ
1. How soon can I get a quotation?
Once we know the necessary information about the recycled raw material, we can provide you with a quotation within 24 hours.
2. Can I have a customized design?
We design and construct each project according to customer's needs.
3. How do I know I can trust ordering from you?
We have been in business since 2003 and are committed to bringing our customers 100% satisfaction. You can visit them if the customer allows the visit.
