Automatic Unit Nigeria Cashew Nuts Shelling and Processing Machine Thailand
- Category: Shellers >>>
- Supplier: Zhengzhou Longer Machinery Co. Ltd.
Share on (62591633363):
Product Overview
Description
Cashew nuts are a very popular nut and snack food, and the market demand is very large. We offer a full range of professional cashew processing equipment, manual production lines and fully automated production lines. Production equipment can be designed according to budget, production capacity, plant area, etc.

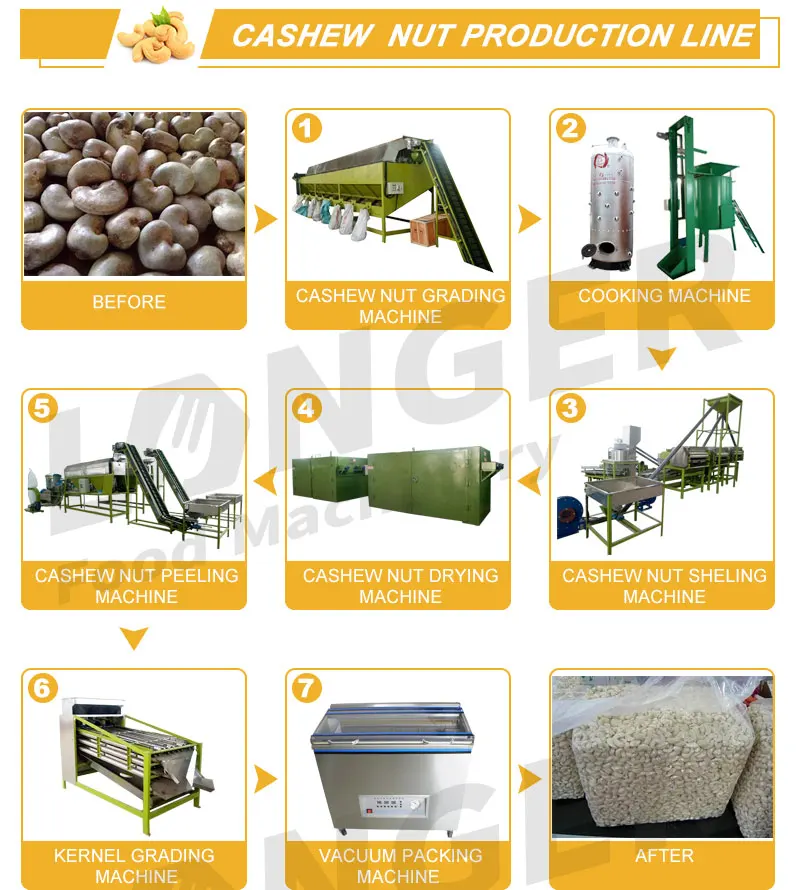

Cashew Nuts Processing Steps:
Grading machine-cooking machine-sheller-shell separator-nut drying-nut moisturizing-peeling-nut sorting machine-selecting packaging-nut finished products-baked into various flavors (deep processing machine According to the actual processing technology.)
Machine's Technical Data
Name | Parameter | Quantity |

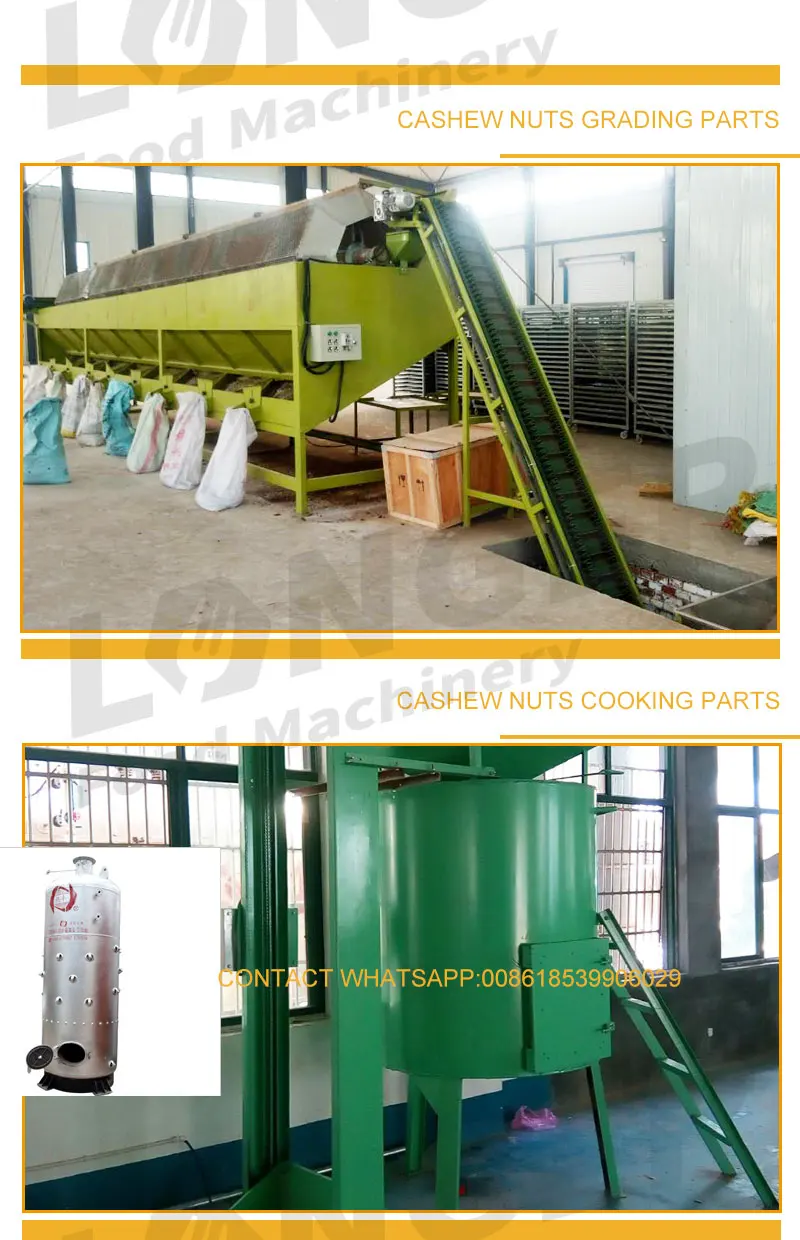

Grading Parts | Capacity: 1000kg/h | 1 set |
Power: 2.25kw | ||
Dimension: | ||
6000x1650x2300mm | ||
Weight: 1800kg | ||
Machine Material: Carbon Steel | ||
Grading with 5 level | ||
Match with Lifting Machine | ||
Cooking Parts | Capacity: 600kg/time | 1 set |
Power: 0.75kw | ||
Dimension: 1200x1200x3750mm | ||
Weight: 1200kg | ||
Machine Material: Carbon Steel | ||
Lifting Machine | ||
Steamer | ||
Capacity:0.2t | ||
Machine Material: Carbon Steel | ||

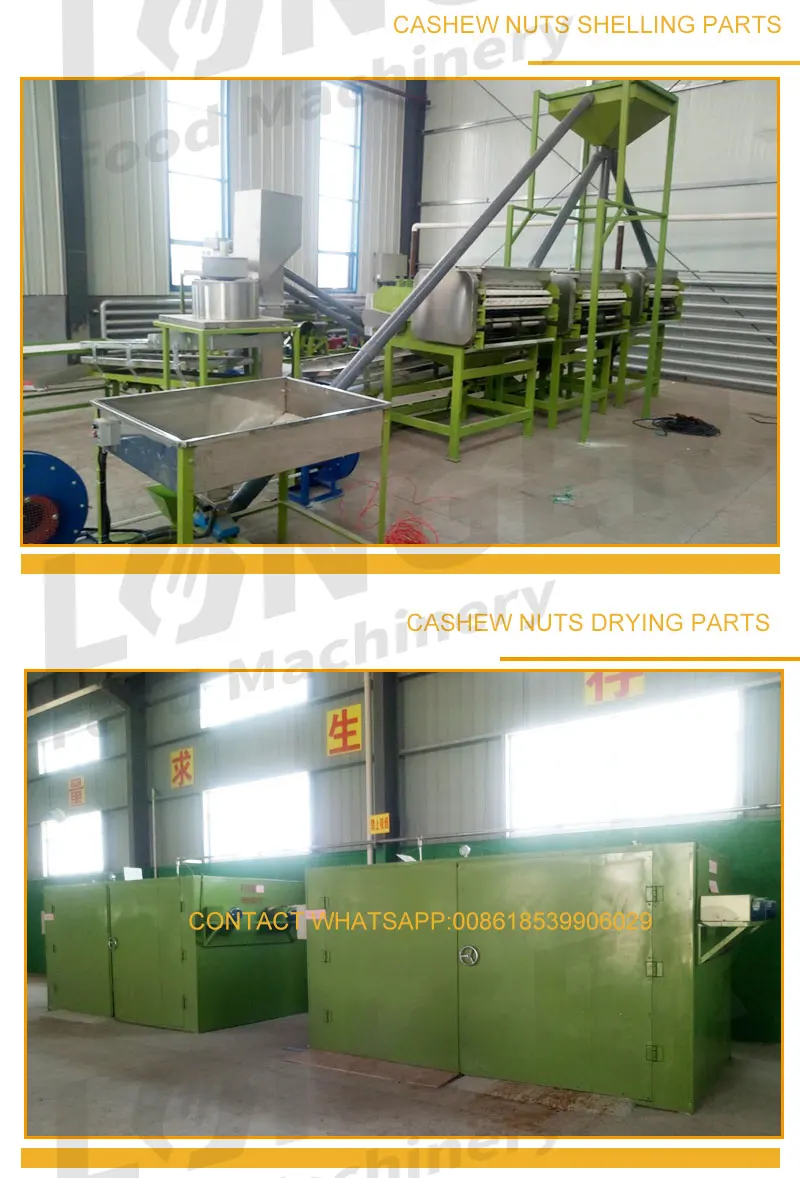

Shelling Parts | Including: | 2 sets |
10 heads sheller: 3 sets | ||
separator: 4 sets | ||
centrifuge: 2 sets | ||
sortor: 1 set | ||
winnor: 1 set | ||
lifter: 1 set | ||
feeder: 1 set | ||
hopper: 1 set | ||
air fan: 4 sets | ||
other spare parts | ||
Capacity: 500kg/h | ||
Total Power: 22kw | ||
Dimension: 8000x6850x2600mm | ||
Weight: 3500kg | ||
Machine Material: Carbon Steel for frame, stainless steel 201 for food contact part | ||
Drying Parts (Steam Heating) | Capacity: 900-1000kg/time | 2 sets |
Power: 3kw | ||
Dimension: 5250x2200x2300mm | ||
Weight: 2800kg | ||
With 6 trolley and 240 tray | ||
Machine Material: Carbon Steel | ||
Match with 0.5t Steamer | ||
Machine Material: Carbon Steel | ||
Humidifier | Dimension: 800x800x700mm | 3 sets |

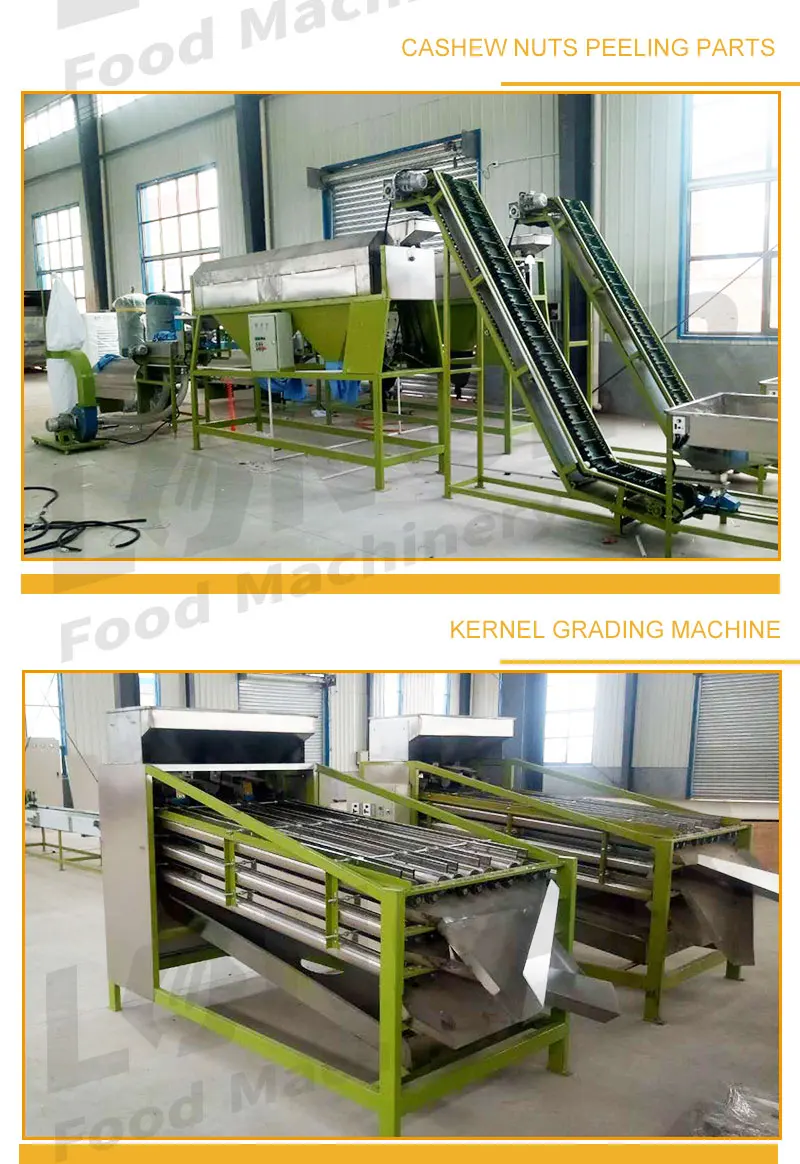

Peeling Parts | Including: | 1 set |
hopper, lifter, loosening machine, peeler, sortor | ||
Capacity: 200kg/h | ||
Power: 3kw | ||
Dimension: 8000x1350x2700mm | ||
Weight: 1100kg | ||
Machine Material: Carbon Steel for frame, stainless steel 201 for food contact parte | ||
Match with 40KW Air Compressor | ||
Kernel Grading Machine | Capacity: 300kg/h | 1 set |
Power: 0.75kw | ||
Dimension: 2500x1500x1600mm | ||
Weight: 550kg | ||
Machine Material: Carbon Steel for frame, stainless steel 201 for food contact part | ||
Vacuum Packing Machine | Model: GG-800 | 1 set |
Sealing Size: 800*8mm | ||
Packing Speed: 2-4bag/min | ||
Sealing Power: 1.5KW | ||
Pump Power: 0.75KW | ||
Dimension: 900*700*1800mm | ||
Weight: 190KG |
Above is for capacity 1000 kg per hour,we also can supply you other capacitys,from 100 kg per hour to 1000 kg per hour,besides,we also can customize the capacitys according to your requirements.
