MPR4200S:7'Super Thin 8 Channel Universal Digital Color Paperless Pressure &Temperature Chart Recorder with USB 8 Relay RS485
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (62591647486):
Product Overview
Description
7''Universal Digital 12/16/24/32 Channel Pressure/Humidity/Temperature Color Paperless Chart Recorder with USB+Ethernet
Product Show
Specification: MPR5000S | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' Color LCD TFT | |||||
Size/Installation Size | 195X145X60.5mm | |||||
Power supply | 100-240VAC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

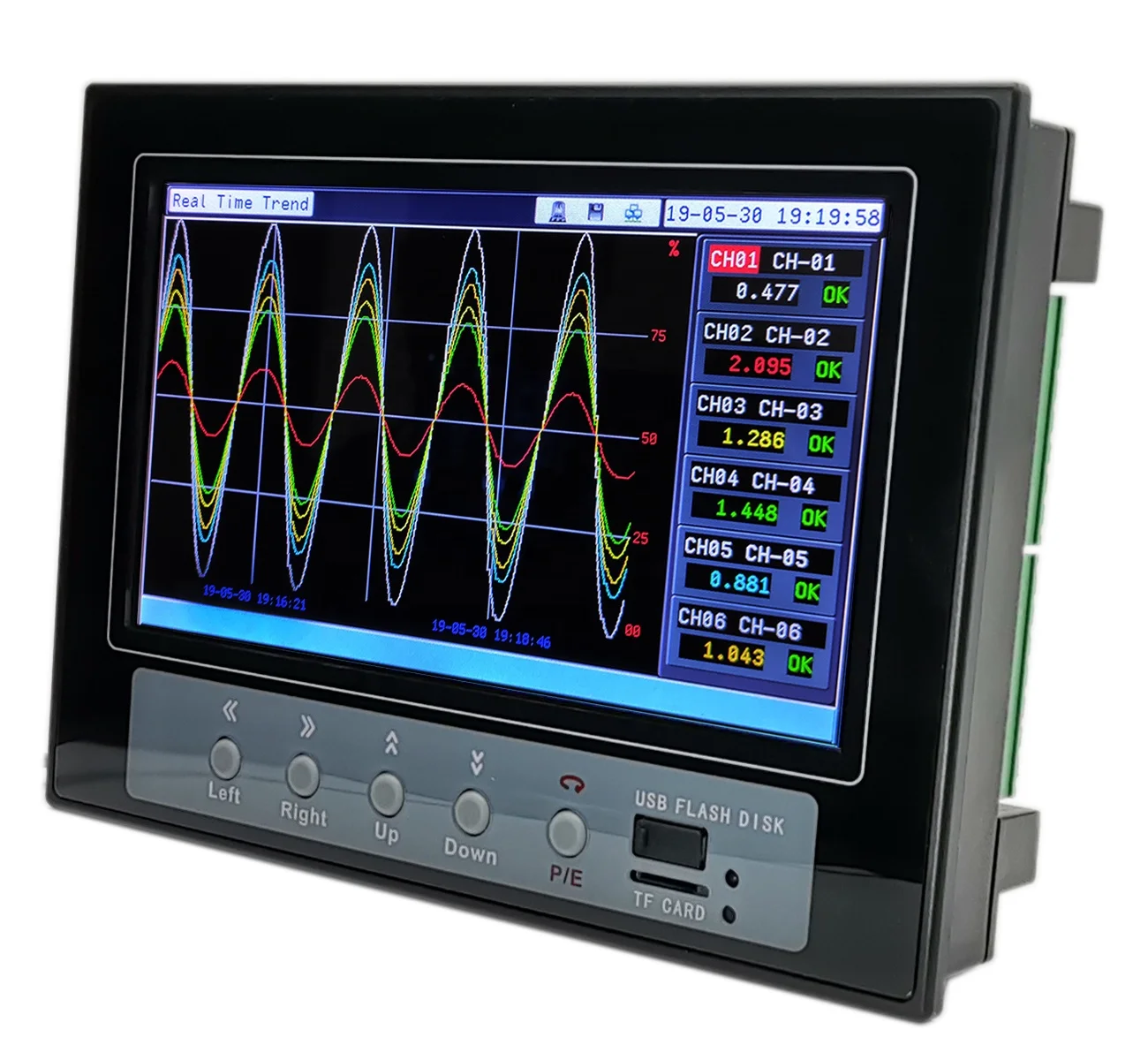

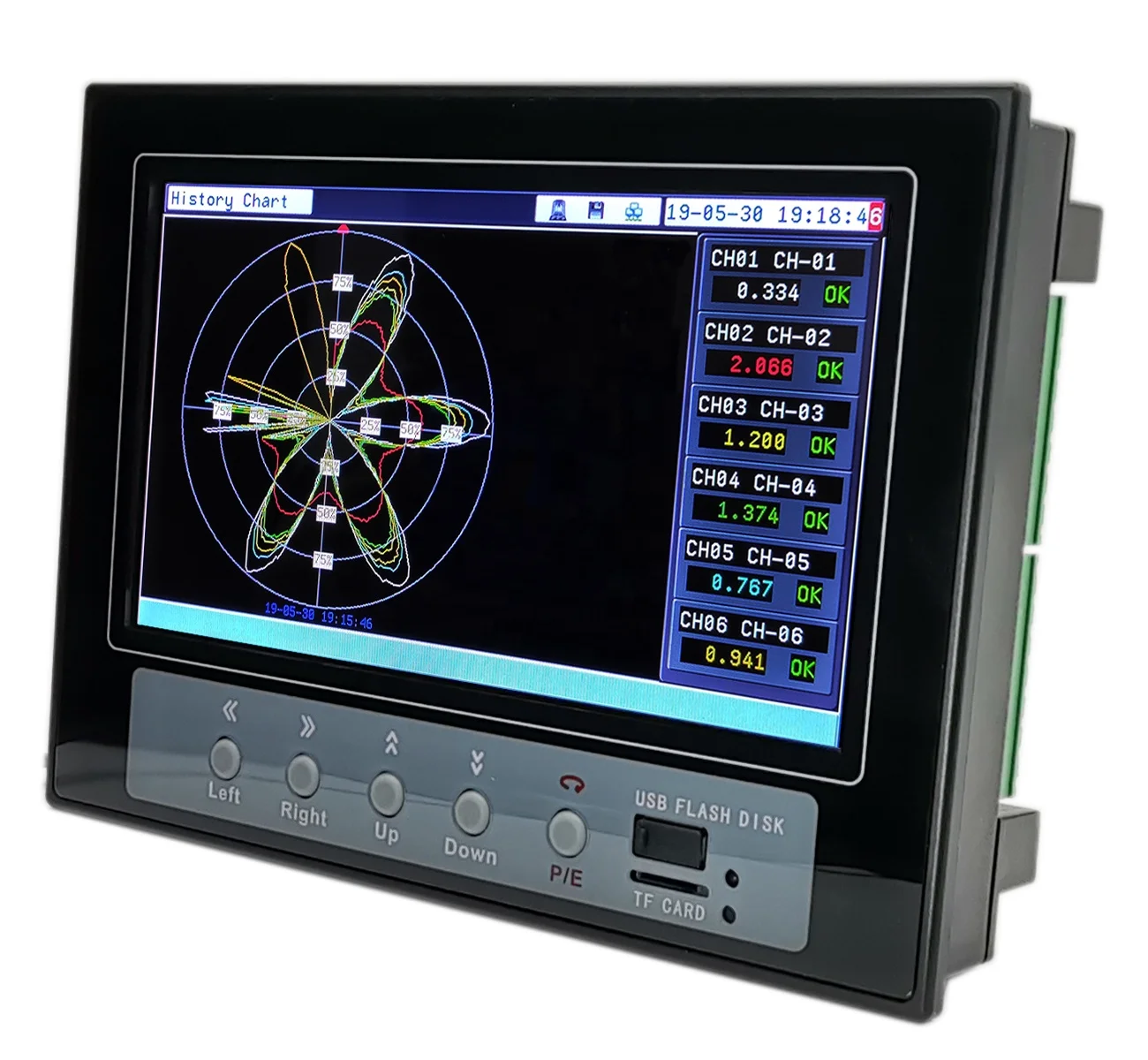

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | |||||||
Univeral Input | Themocouple, RTD, Analog, mV,frequency input; programmable | ||||||
Input Channels | 8 channels | ||||||
Channels Isolation | 400VAC photoelectrical isolation | ||||||
Sample Rate | 1 seconds /8 channels | ||||||
Relay output | 3A, NO, max 8 relay output, configurable for channels | ||||||
RS485 communication | standard Modbus-rtu protocol, | ||||||
PC software | history data analysis ; real time data monitoring and reading ,memory by provided pc software ex-work | ||||||
optional Output (Please advise us when order if it is required ) | |||||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | ||||||
feed output | auxiliary 24VDC output for transmitter | ||||||
Print | printing output for data in digital and curve | ||||||
Flow totalizer | with temperature, pressure compensation for channels | ||||||
Math | +, -, x, /, ,max, min, average; linear math | ||||||

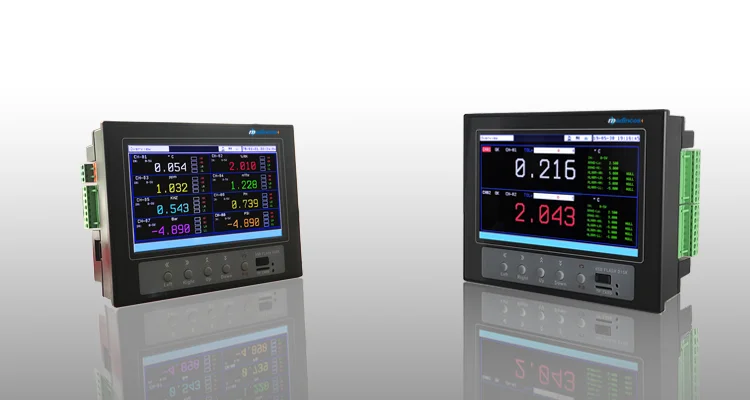

Detailed Images

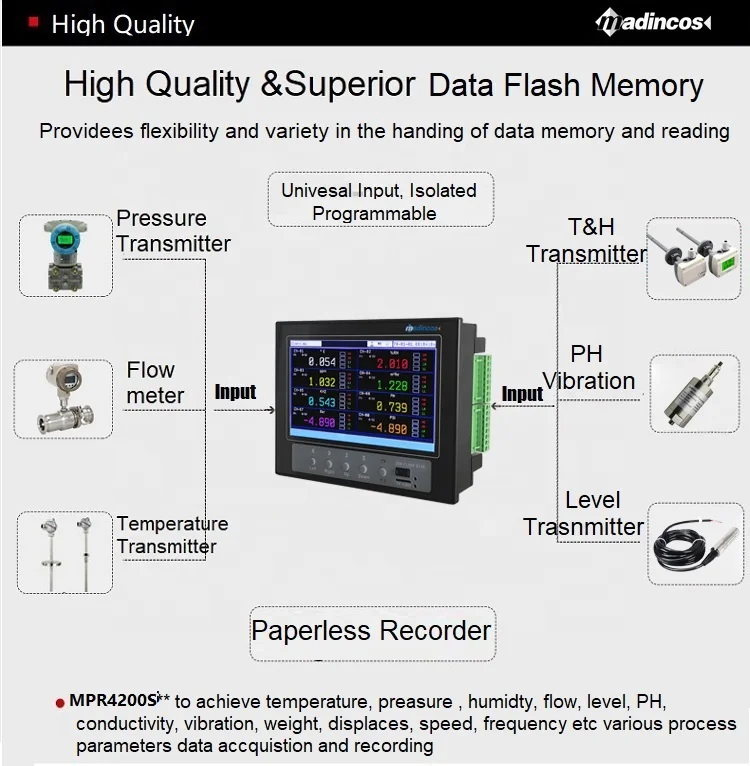

Powerful Programmable Universal Input, Each channels can be programmable individually as required, strong photoelectrical isolated, user friendly, Also with various output, donwload, commmunication fucntions
Temperature, Flow, Pressure Application:
Waste water dealing, buliding automation, boiler
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Cement Plant
Boiler, Furnace, Building, aviation,Medical University lab,Room, Warehouse,Lab, Cooled Chiller
Agricuturel, HVAC, Greenhouse,Mushroom, Marine, waster water Sewage treatment
Waste water dealing, buliding automation, boiler
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Cement Plant
Boiler, Furnace, Building, aviation,Medical University lab,Room, Warehouse,Lab, Cooled Chiller
Agricuturel, HVAC, Greenhouse,Mushroom, Marine, waster water Sewage treatment
7'' Universal Digital 12/16/24/32 Channel Ethernet Color Paperless Pressure Temperature Recorder with Flow Totalizer
USB Data Transferring, Plug and Play
*Huge Capacity 8G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software provided ex-work
To display and read the memoried data in digital and curve, print the chart data.; also export the data as Excel for further analysis.
Remote Real Time Reading and Monitoring ,provided ex-work

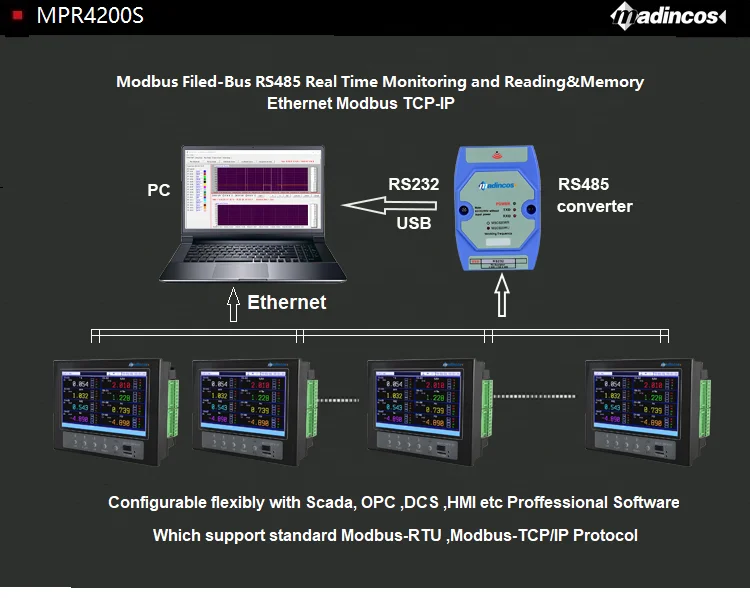

*Photoelectrical isolated RS485 ,Ethernet communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server,Cloud IOT for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Packing & Delivery
Packaging | ||
Size | 250(L) * 250 (W) * 230(D)mm | |
Weight | 2.8kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 250L*230W*230HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Optional Related Transmitter
MTH100 Humidity Temperature Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH300S Wall Type Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH800 Digital High Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 120℃
Output:4-20ma, 0-5V,0-10VDC, RS485
