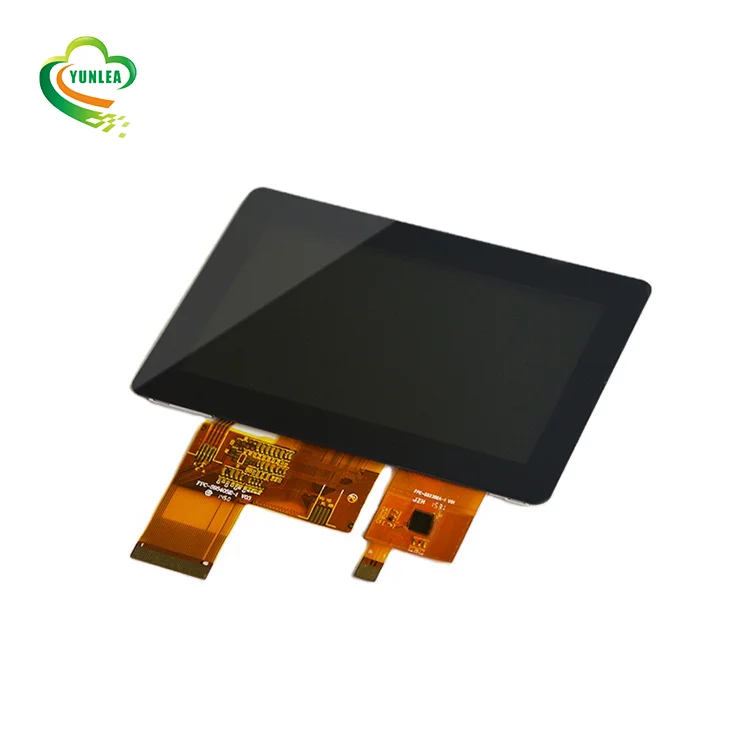

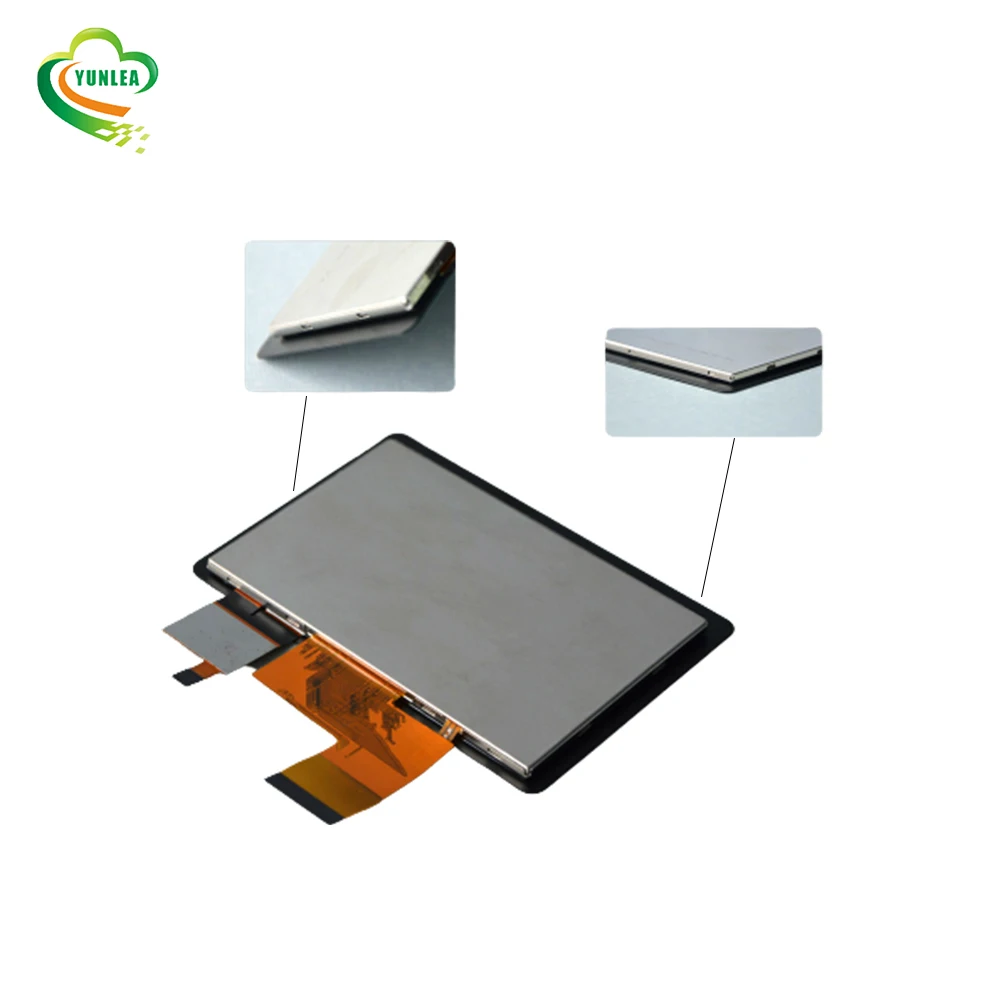

Industrial RGB Lvds Lcd Touch Display 3.5 4.3 5 7 10.1 Inch Tft Lcd Touch Screen Panel
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62591849522):
Product Overview
Description
Product Description
The specification PCAP Touch screen | ||
Screen size | 4.3 inch | |
Touch points | 5 touch points | |
Module Size | 114.0(W) x 77.0(H) x 4.88(D)mm | |
Active Area | 95.04(H) x 53.86(V)mm | |
Resolution | 480x272 | |
Luminance | 300 cd/m2 | |
Touch controller | FT5346 | |
Transparency | 80%min | |
Touch solution | COF(touch on the FOC) | |
Surface hardness | 6 H | |
Operating system | Win7/8/10, Linux, Android, Mac, QN | |
Operating temp | -20 to 70 degree | |

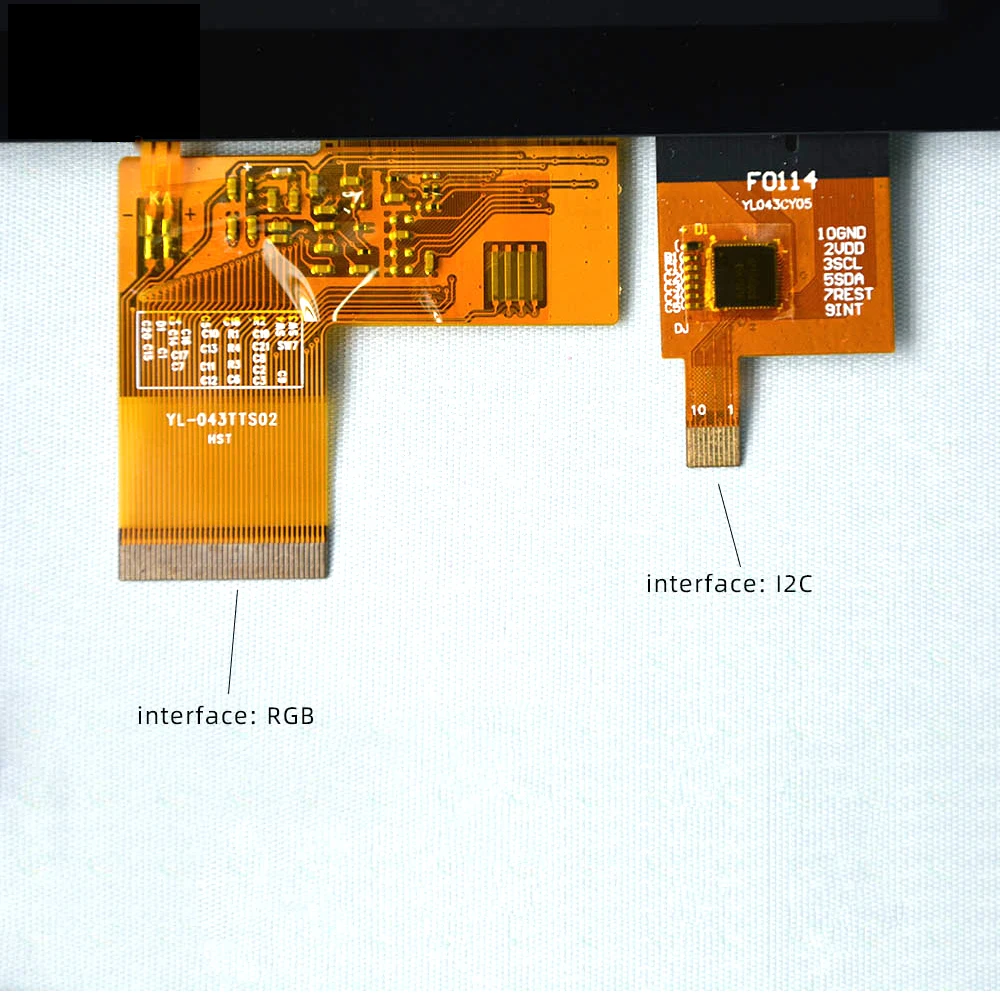

Interface of LCD | RGB | |
Interface of CTP | I2C | |
General Business Clauses | ||
MOQ | 1 pcs | |
Customize | Available | |
Trade Terms | EXW or FOB | |
Warranty | 12 months | |
Lead Time | Samples in stocks,2~4 weeks for mass production | |
Customized Solution
Δ We can offer sensor separately.
Δ We can offer sensor+cover lens, a full set of touch screen.
Δ We can offer touch screen+LCD display as well, a full set of touch screen display.
Δ We can offer sensor+cover lens, a full set of touch screen.
Δ We can offer touch screen+LCD display as well, a full set of touch screen display.

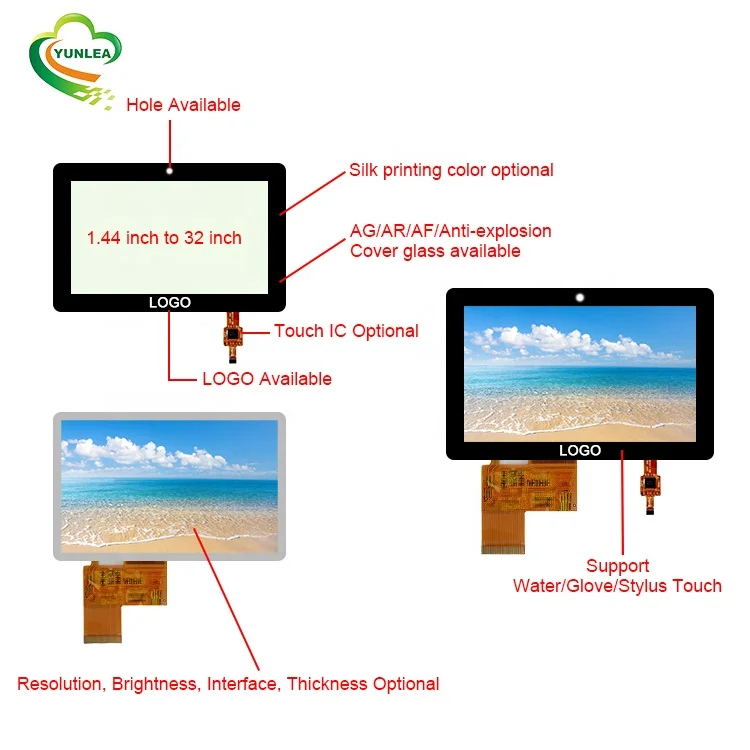

Personalized Customized Design

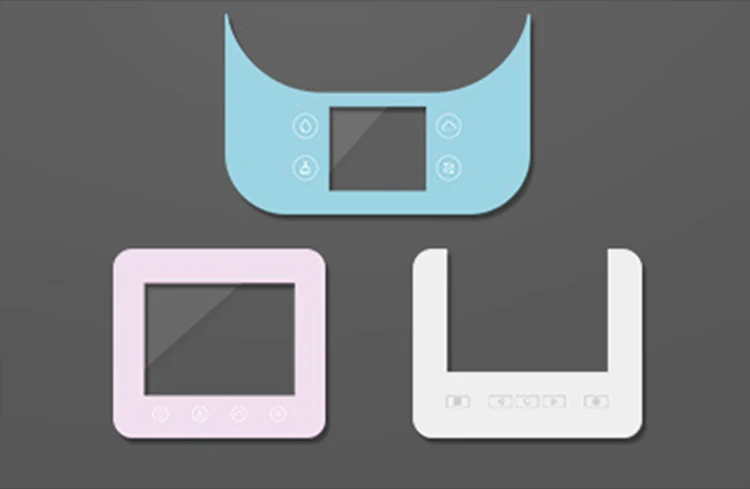

① Special glass shapes
② Colored prints in your favorite colors
③ Logo prints

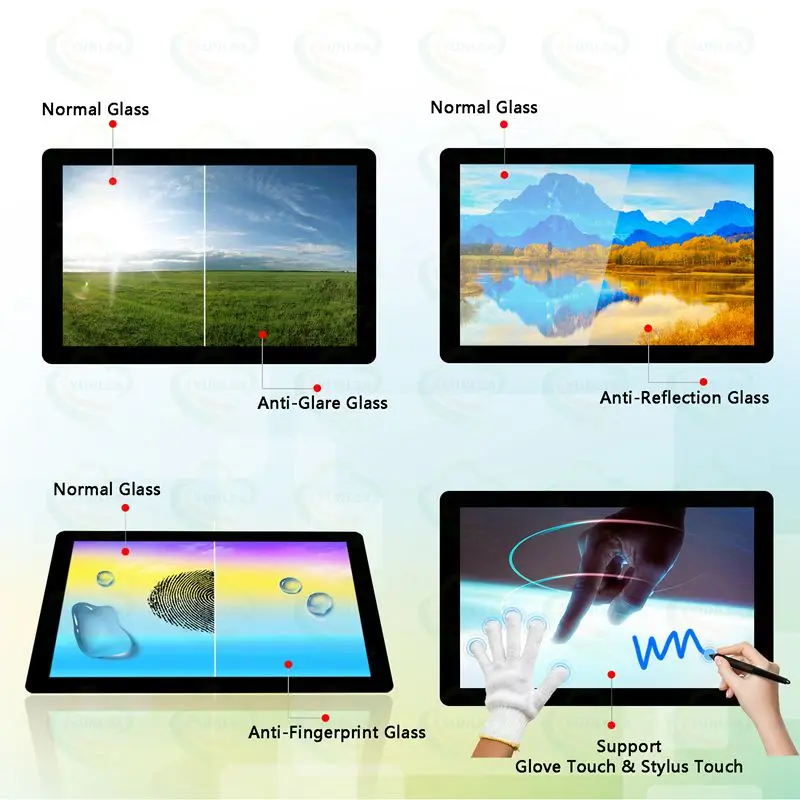

④ Special Coatings, such as Anti-glare, ani-inger, or ant-leltive
② Colored prints in your favorite colors
③ Logo prints
④ Special Coatings, such as Anti-glare, ani-inger, or ant-leltive

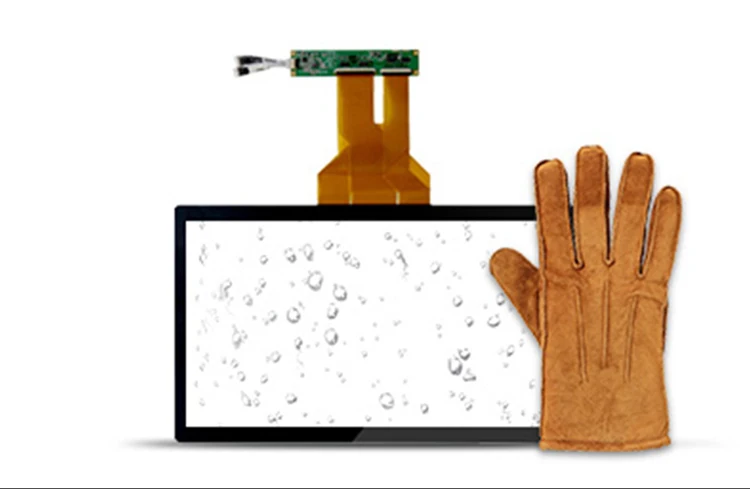

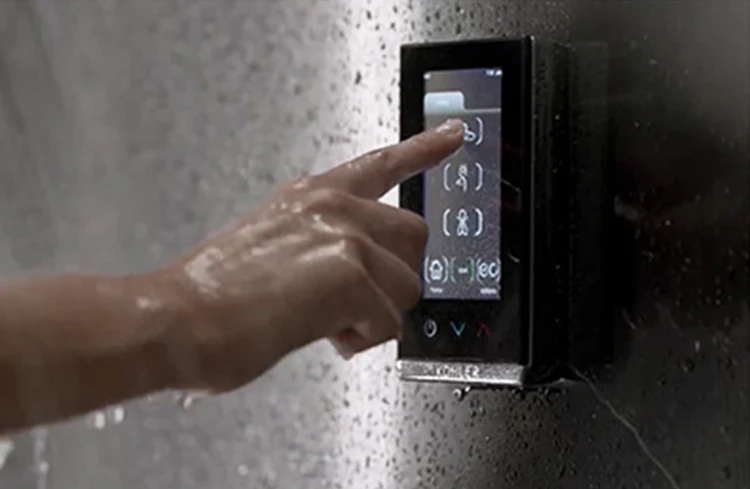

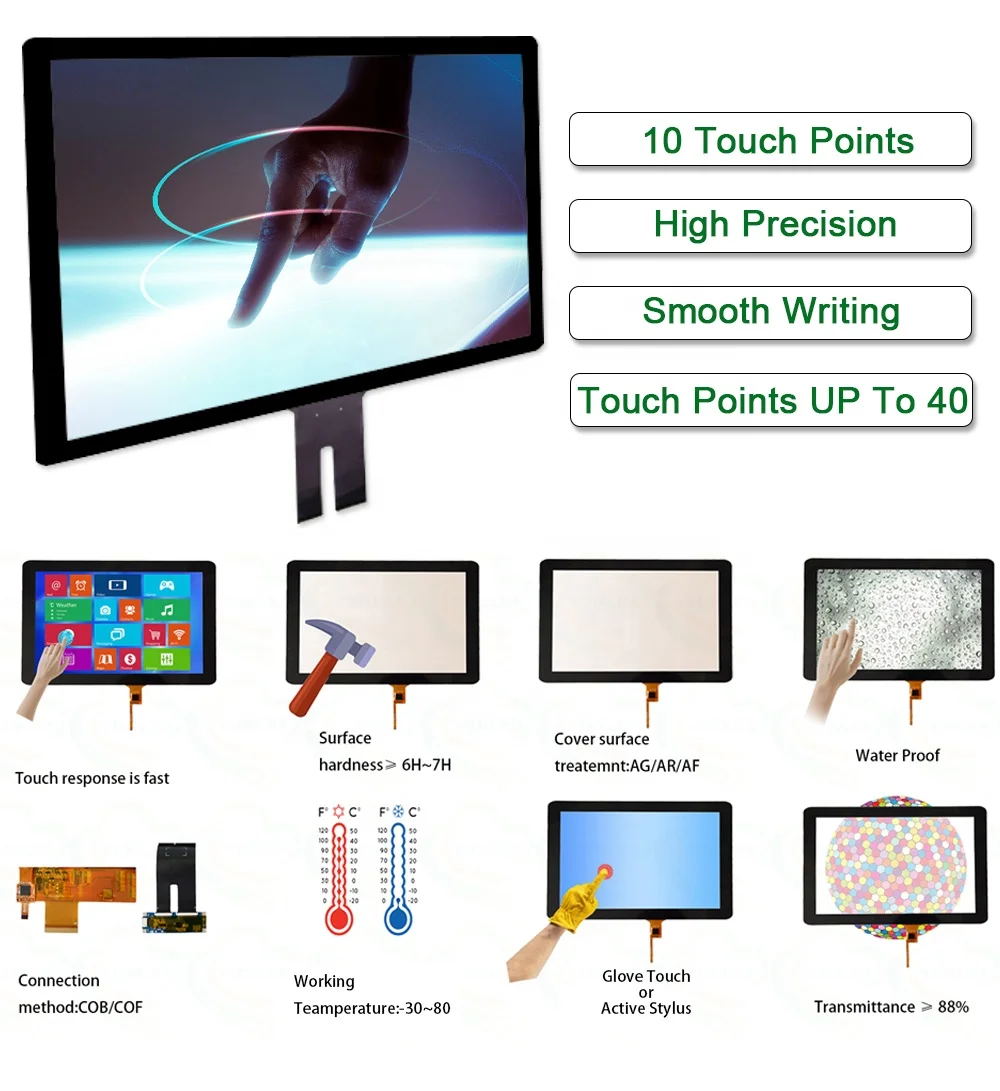

Ultimate Waterproof Performance
Wet fingers, sweaty fingers, in the shower, pool, ocean, or pouring rain,
YUNLEA touch delivers the ultimate water immunity and performance.
Give us your substrates, your cover lenses, your gloves. The thickest ones
Sometimes, consumer-grade touch just won't wash.
We've perfected capacitive touch with thick cover lens', durable substrates, and winter gloves.
We deliver to the requirements of medical and industrial devices, and human beings just trying to keep their hands warm.
We've perfected capacitive touch with thick cover lens', durable substrates, and winter gloves.
We deliver to the requirements of medical and industrial devices, and human beings just trying to keep their hands warm.
We provide different kinds of individual customzied solution. Shape, color, Glass materials, AG, AR AF treatment, kinds of thickness, structure.
If you have any demand, Simply Click Here for your Best Solution.
If you have any demand, Simply Click Here for your Best Solution.

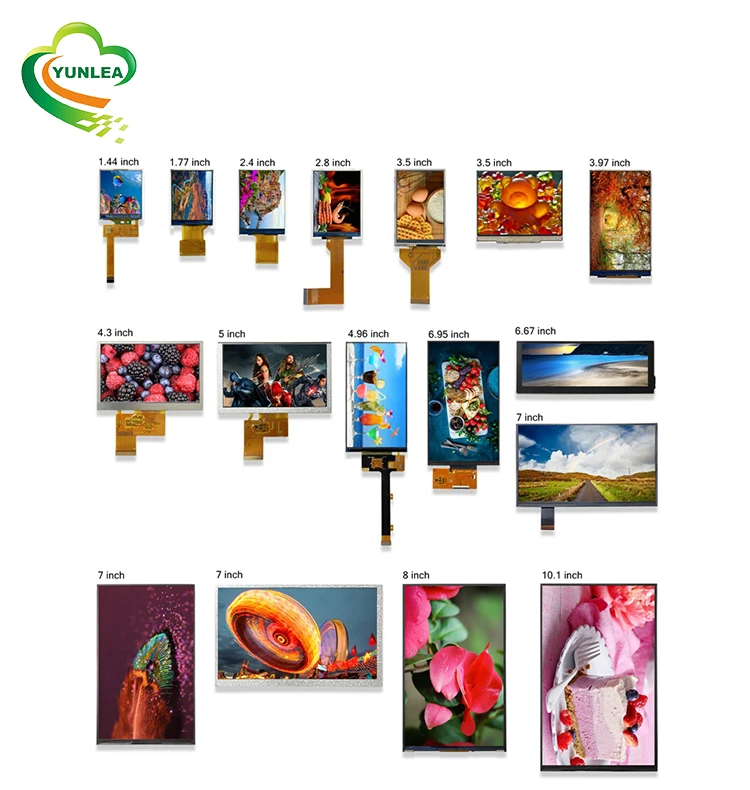

Product Catalogue
Touch display Size | Outline dimension | Active area | Resolution | TFT interface | CTP interface | Touch controller |
3.5" | 66.86x94.94 | 48.96x73.44 | 320x480 | RGB 18 bit+SPI-3 | I2C | Mstar 2133A |
4.3" | 114x77x4.88 | 95.04x53.86 | 480x272 | RGB | I2C | FT5346 |
5" | 127X85.8 | 108X64.8 | 800X480 | RGB | I2C | FT5436 |
7" | 164.9x100 | 154.08x86.42 | 800X480 | RGB | I2C | FT5436 |
10.1" | 235X143 | 222.72X125.28 | 1024X600 | LVDS | I2C | GT928 |
10.1" | 255X178 | 216.96X135.6 | 1280X800 | LVDS | I2C | GT927 |
Touch screen Size | Sesnor OD | LENS OD | LENS T | window VA | CTP interface | Touch controller |
3.5" | 82.34x56.86 | 94.94x66.86 | 0.7 | 74.94x50.36 | I2C | Mstar 2133A |
4.3" | 103.10x85.40 | 114x77 | 0.7 | 96.04x53.86 | I2C | FT5346 |
5" | 120.7X75.8 | 127X85.80 | 0.7 | 109X65.8 | I2C | FT5436 FT5316 |
7" | 159.70x94.10 | 164.90x100 | 0.7 | 154.08x85.92 | I2C | FT5436 |
We also can customize more sizes, click here to contact us.

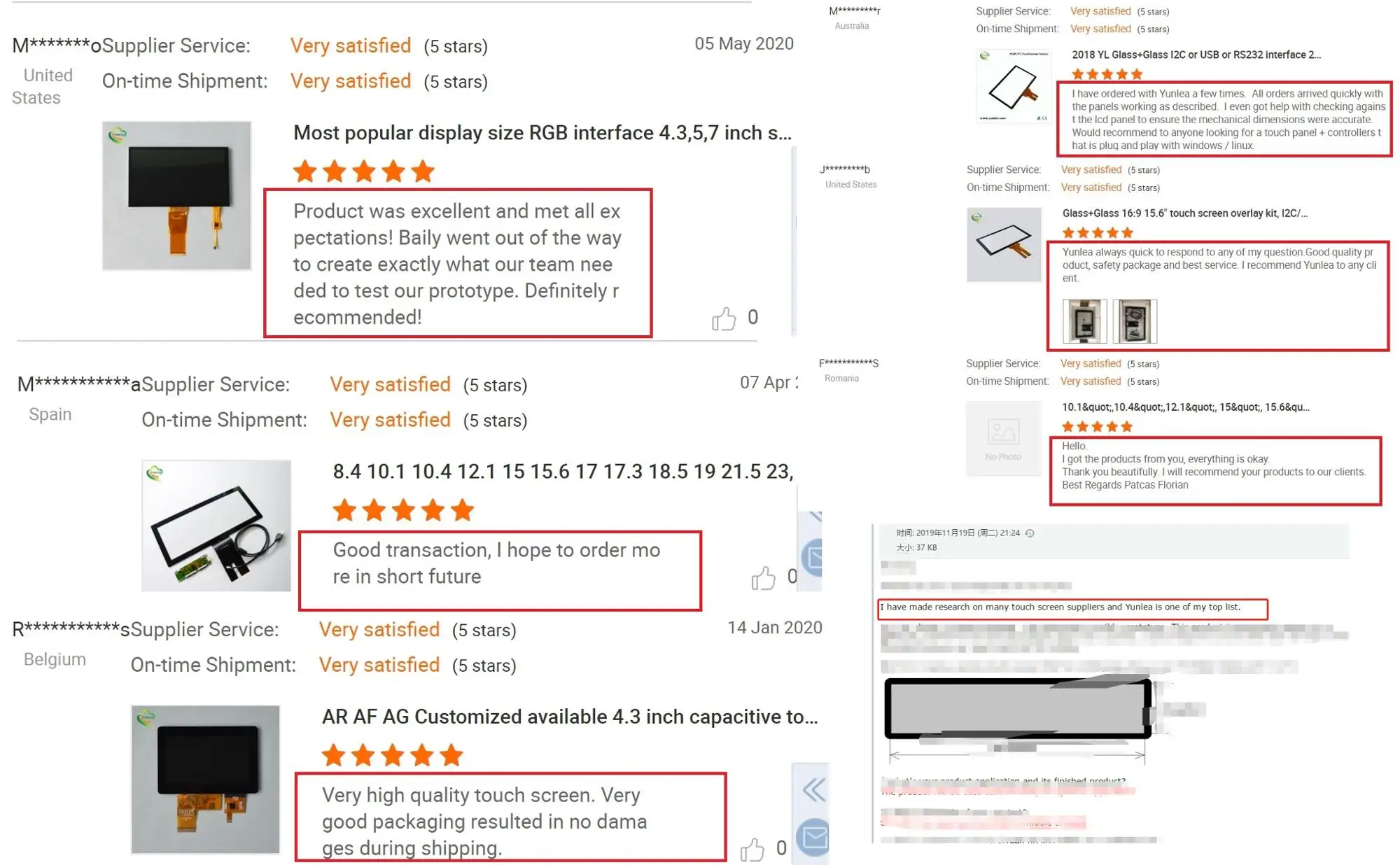

Feedback From Customers
We got many positive feedbacks from our customers.
It's really good for they to say YES.
Company Profile
Shenzhen Yunlea Electronics Co., Ltd.
Yunlea is a leading designer and manufacturer of Capacitive Touch Panels. With expertise in medical, industrial, and home automation sectors, we provide tailored solutions and professional support.
Choose Yunlea for reliable touch panels that meet your specific needs. Trust us as your preferred partner for high-quality, customizable solutions.
Based in Shenzhen, our team has 15 years of experience. We stay updated with global touch display advancements and have established strong partnerships with top manufacturers and suppliers.
Choose Yunlea for reliable touch panels that meet your specific needs. Trust us as your preferred partner for high-quality, customizable solutions.
Yunlea have :
1. 5000 m2 factory area
2. 15 + years touch screen experience
3. Stronger engineer team and 24 hours -7 days Online service
4. High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1. ITO sensor glass / ITO sensor film / Touch screen panel / Touch display
2. We have some standard products (1.44 inch to 65 inch PCAP )in stock and no tooling request
3. Customized available : size, FPC, logo printing, silk-printing color
4. Special Treatment : AG/AG/AF ,Water-proof,With glove touch
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6.Short lead time, 15 days for customized product, 2-4 weeks for mass production
1. 5000 m2 factory area
2. 15 + years touch screen experience
3. Stronger engineer team and 24 hours -7 days Online service
4. High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1. ITO sensor glass / ITO sensor film / Touch screen panel / Touch display
2. We have some standard products (1.44 inch to 65 inch PCAP )in stock and no tooling request
3. Customized available : size, FPC, logo printing, silk-printing color
4. Special Treatment : AG/AG/AF ,Water-proof,With glove touch
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6.Short lead time, 15 days for customized product, 2-4 weeks for mass production
If you come to China, welcome to visit our factory. We will show you how touch screen is made. Should you have any questions, free to contact me.
Certificate & Partner Brands

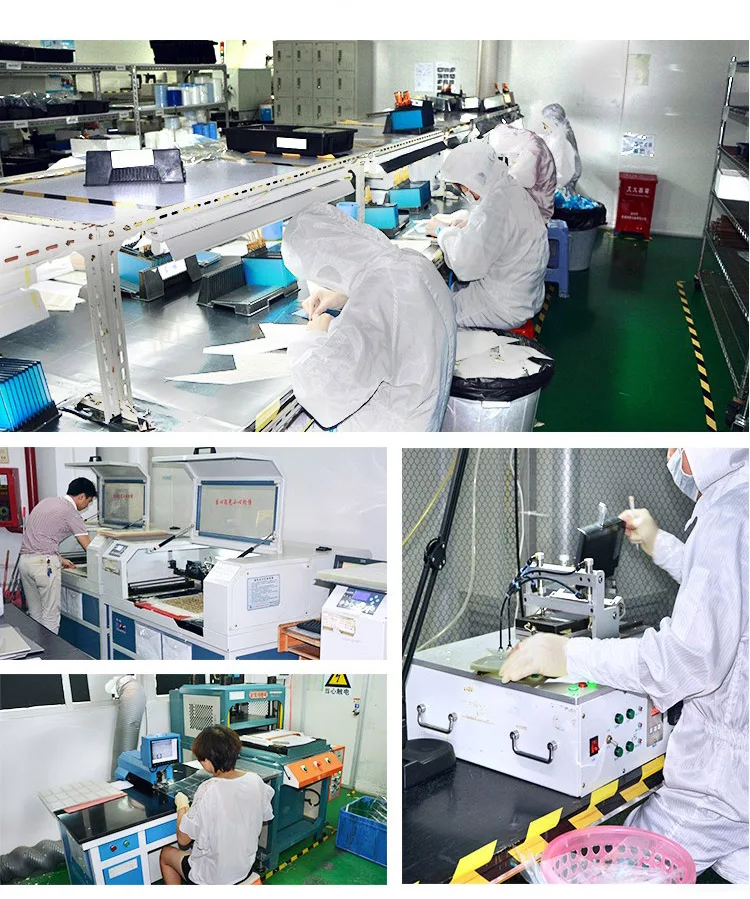

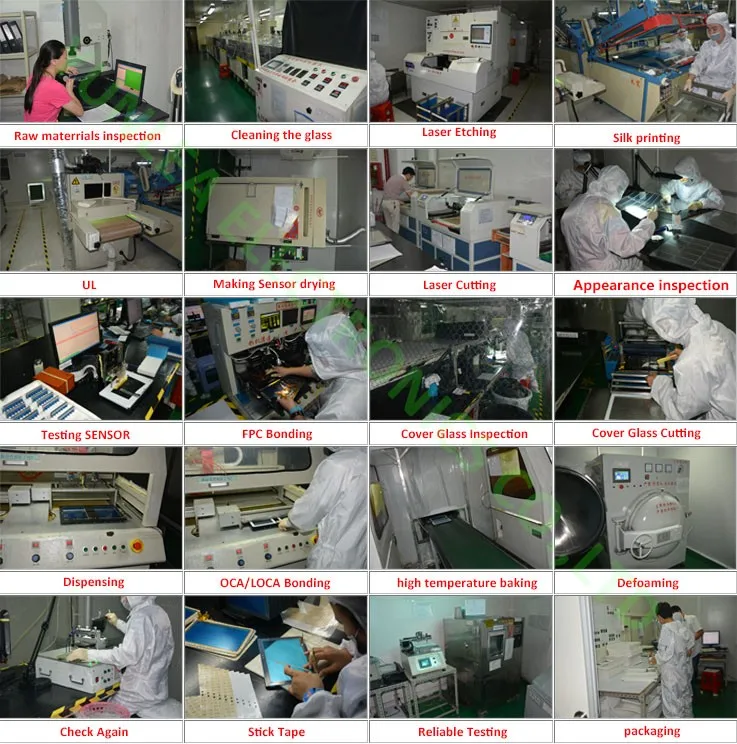

Production Process
We Can Customize The Packaging According To Your Needs！
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
