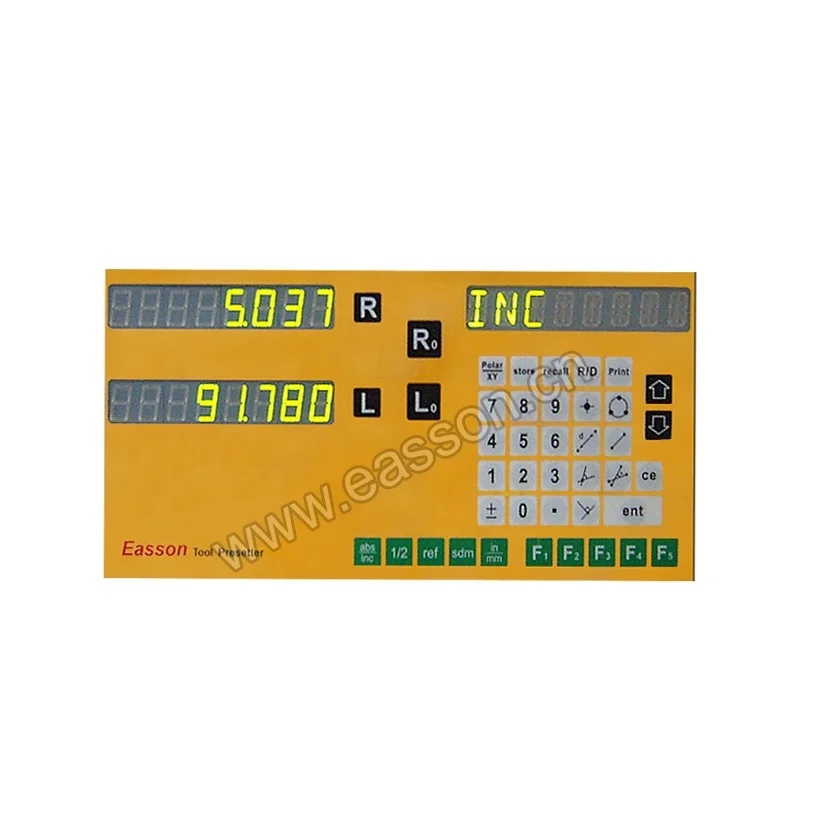

ET 300HR Optical Tool Preseting Machine

Product Overview

Description

Model: ET-300HR, ET-400HR, ET-600HR



Compare with mechanical type tool presetter, optical tool presetter can see tools profile directly from screen, in this way you can measure and  examine the tip angle and tip arc by data processor or even compare directly on screen. One fixed and one rotatable grid screen, with two invention patents can improve efficiency clearly.





Model	ET-300HR	ET-400HR	ET-600HR
Measuring Length for Spindle	300mm	400mm	600mm
Measuring Length for Diameter	300mm	300mm	400mm
Measuring System	High precision glass scales with 0.001mm resolution
Screen	Φ110mm,  Fixed and rotatable reticules on the screen can let you directly read out the radius and angle of the cutters
Magnification	20x
Accuracy	≤4um
Standard Spindle	BT30/40/50,HSK63/80/100
Adapter	BT30/BT40, BT30/B HSK63/BT50, HSK80/BT50, HSK100/BT50
Function	Measure Tools' Radius, Length, Tool tip angle, Tool tip arc
