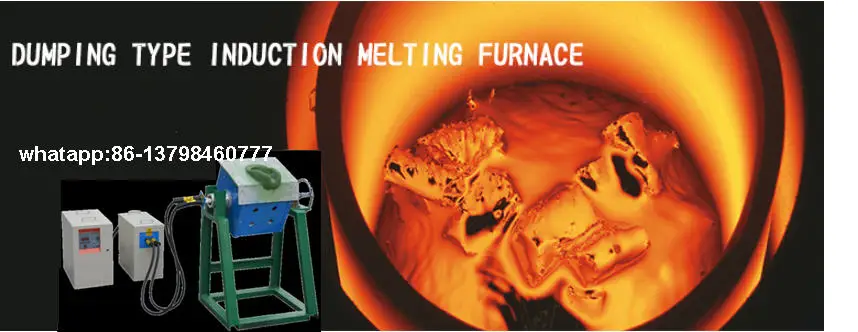

Gold melting furnace With crucible smelting of Brass, copper, silver, gold steel stainless steel Aluminum furnace

Product Overview

Description

Induction heating Melting machine Smelting different metals with fast heating speed

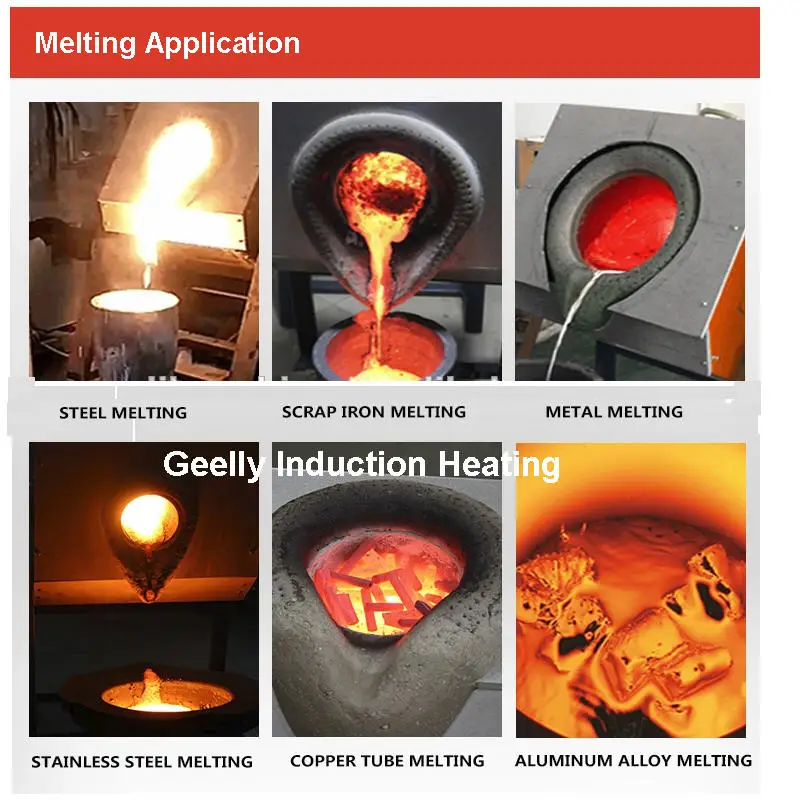

Applications:
Medium frequency induction melting machines are mainly used for the melting of steel, stainless steel, copper, brass, silver, gold, and aluminum materials, Nickel alloy. Silicon. Lead etc. Melting capacity can be from 3KG to 200KG.

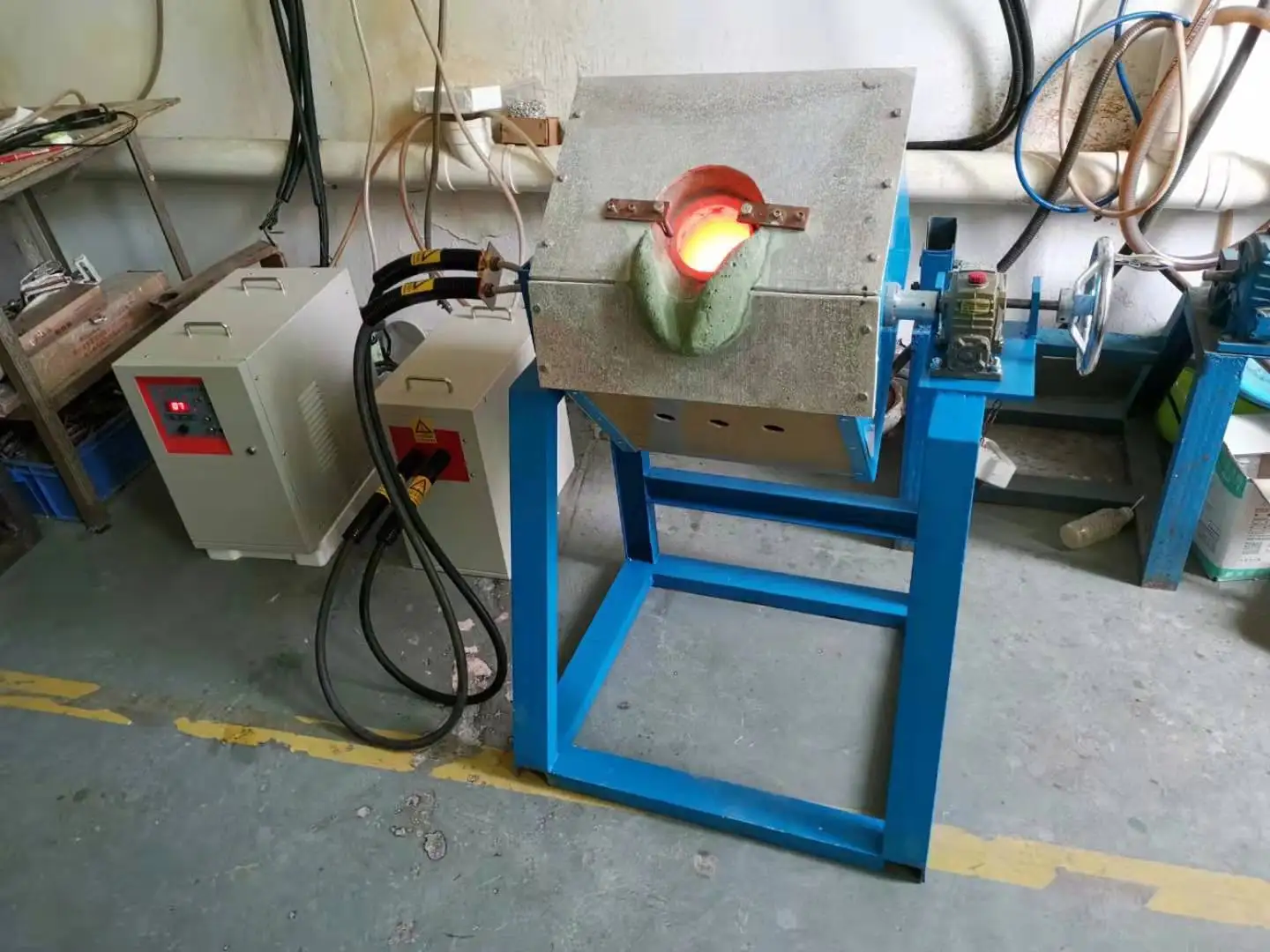

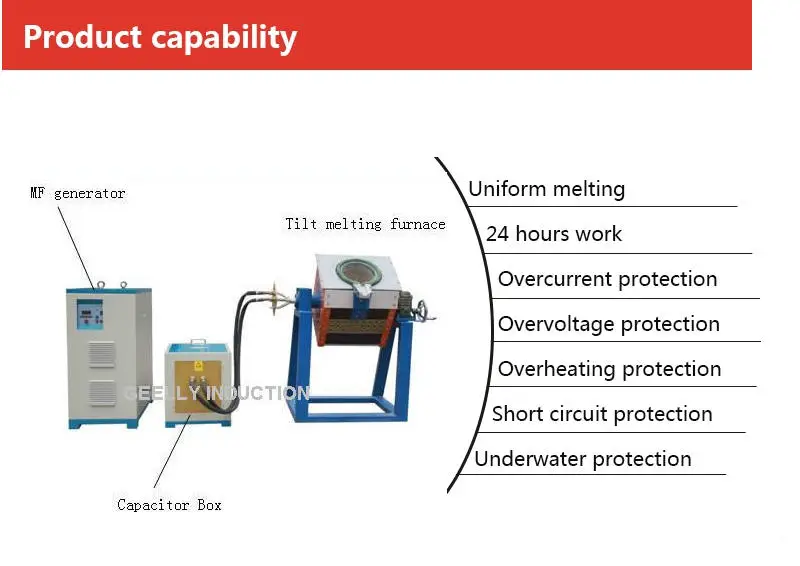

Major components to the system: The power supply, the compensating capacitor and the induction coil/smelting crucible.

Main features of M. F. Melting machines:
1. M. F. Melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1kHz to 20kHz, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4.100% duty cycle
5. Power efficiency is 20% higher than the SCR medium frequency machines;
6. Small and light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college and researching companies to use.

Main models	Maximum input power	Melting ability of common materials
		Steel and stainless steel	Brass, copper, silver, gold	Aluminium
GMF-15 melting machine	15KW	3KG	10KG	3KG
GMF-25 melting machine	25KW	5KG	20KG	5KG
GMF-35 melting machine	35KW	10KG	30KG	10KG
GMF-45 melting machine	45KW	18KG	50KG	18KG
GMF-70 melting machine	70KW	25KG	100KG	25KG
GMF-90 melting machine	90KW	40KG	120KG	40KG
GMF-110 melting machine	110KW	50KG	150KG	50KG
GMF-160 melting machine	160KW	100KG	250KG	100KG
GMF-240 melting machine	240KW	150KG	400KG	150KG
GMF-300 melting machine	300KW	200KG	500KG	200KG

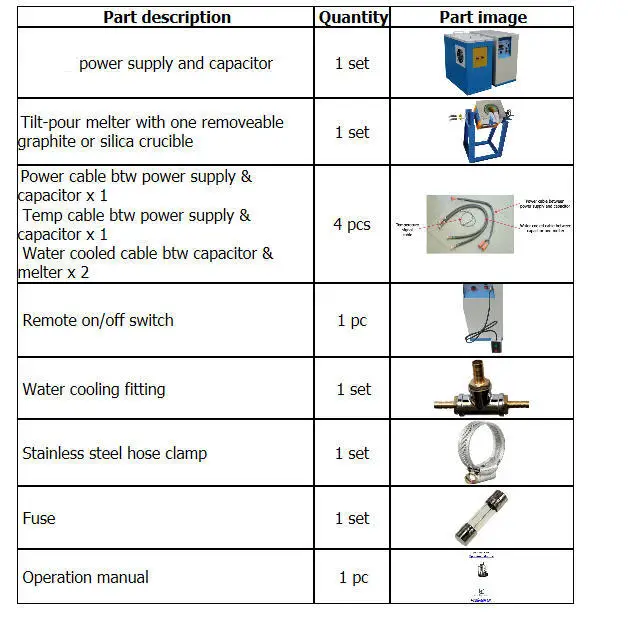

Packing List
