Automatic Small Scale Aluminum Cover Glass Bottle Washing And Filling Capping Wine Machine
- Category: >>>
- Supplier: Zhangjiagang Drinks Packaging Technology Co. Ltd.
Share on (62592065467):
Product Overview
Description
Product Description
Automatic Small Scale Aluminum Cover Glass Bottle Washing And Filling Capping Wine Machine

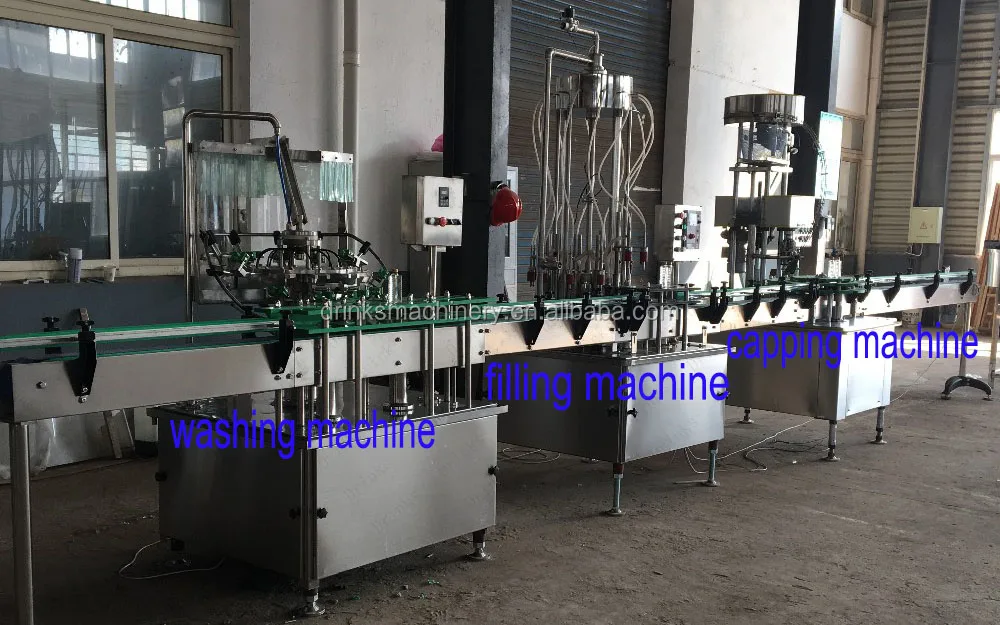

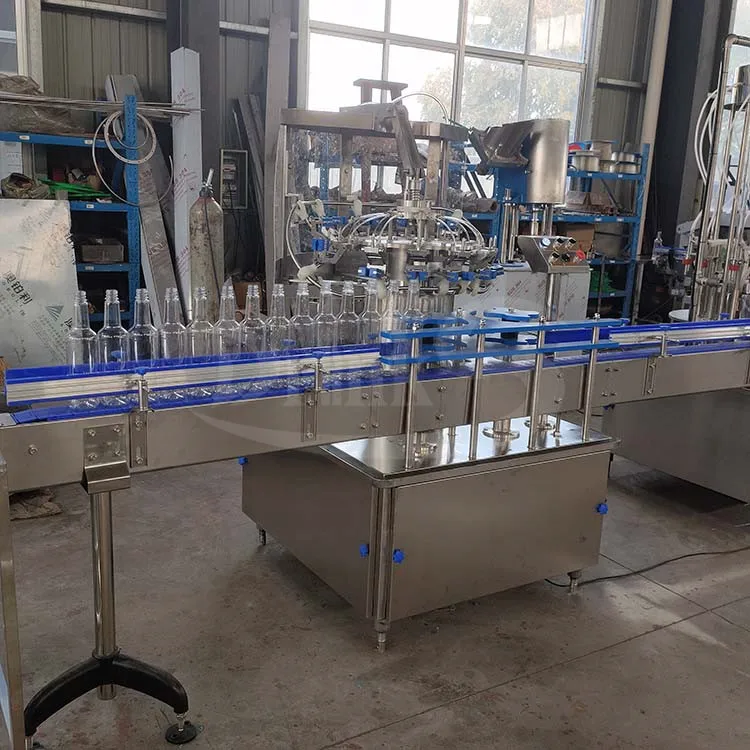

The split production line equipment includes automatic bottle washer, negative pressure filling machine, automatic capping machine and conveyor. It can be used alone or connected with other equipment. The main key components are made of high-quality stainless steel materials, with advanced technology, perfect system, reliable performance and convenient use.
Advantage:
This machine is suitable for glass bottle and filling of various capacities. When changing the bottle type, it is only necessary to adjust some parts to continue working.Convenient filling requirements for different bottle types.
Detailed Images

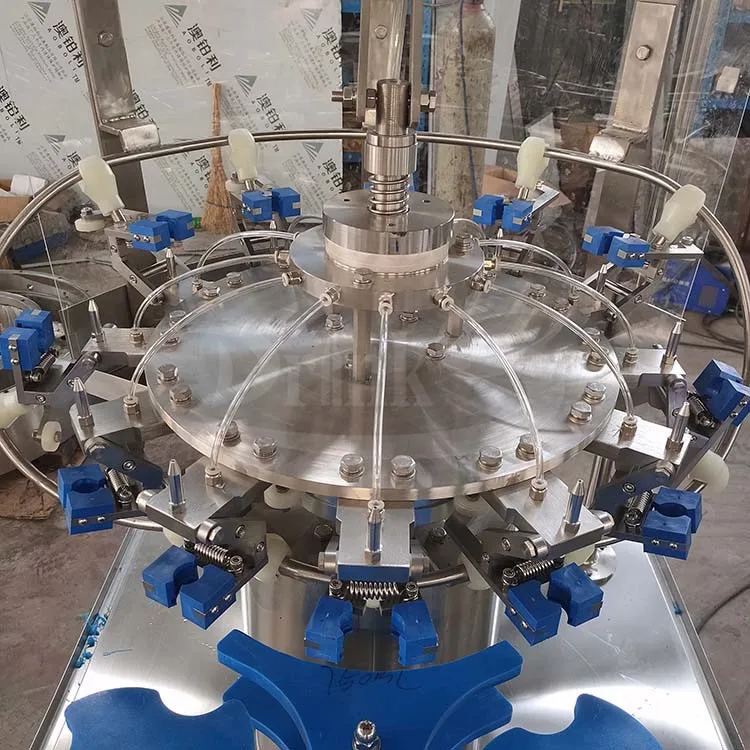

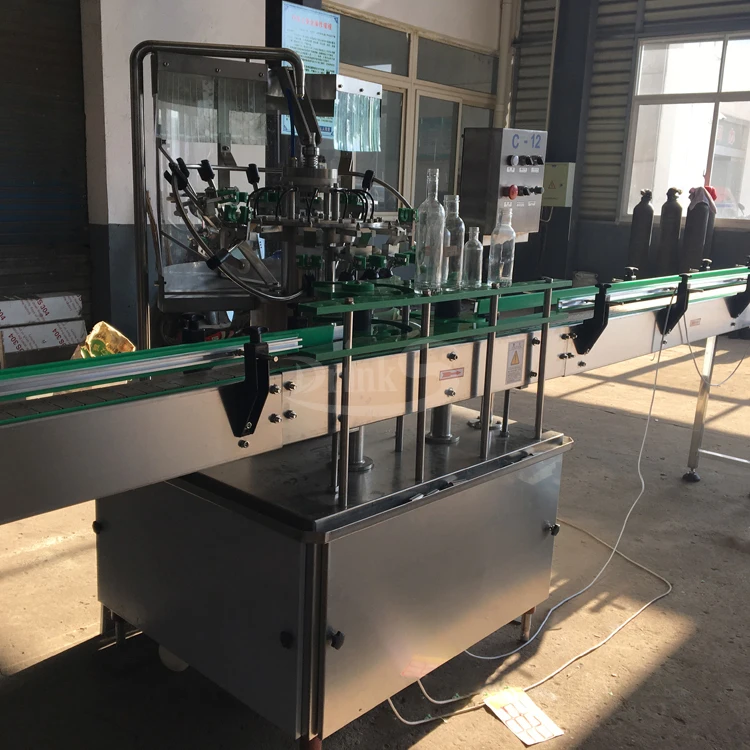

1. Rotary bottle washer:

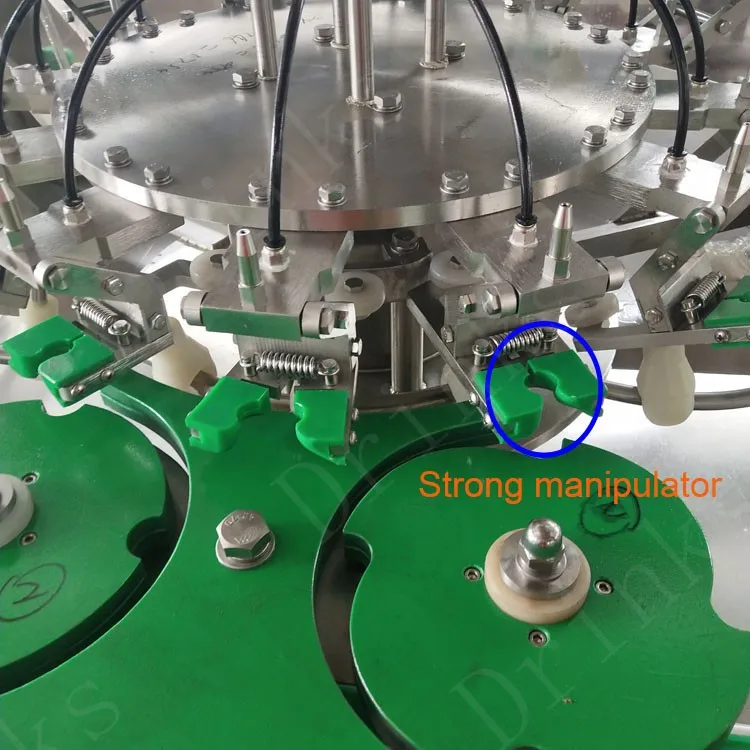

The washing machine is of international advanced level. Mainly used for PET or glass bottles. Advanced structure, stable performance, safe operation, convenient maintenance, high production efficiency, and unlimited speed adjustment. Cleaning agents are ideal for small to medium beverage plants.The bottle will enter the washing machine through the conveyor. The diameter plate will clamp each bottle with a spring clamp. The motor will drive the energy. The spring clamp moves forward along the main shaft one turn, the bottle reverses 180°, and the bottle mouth will face the floor. The water spray value will be turned on, and the cleaned pressure water will be sprayed into the bottle. As the water falls, the dirt inside the bottle will be taken away. The cleaned bottle is then rotated 180° again and sent to the next machine station.
The washing machine is of international advanced level. Mainly used for PET or glass bottles. Advanced structure, stable performance, safe operation, convenient maintenance, high production efficiency, and unlimited speed adjustment. Cleaning agents are ideal for small to medium beverage plants.The bottle will enter the washing machine through the conveyor. The diameter plate will clamp each bottle with a spring clamp. The motor will drive the energy. The spring clamp moves forward along the main shaft one turn, the bottle reverses 180°, and the bottle mouth will face the floor. The water spray value will be turned on, and the cleaned pressure water will be sprayed into the bottle. As the water falls, the dirt inside the bottle will be taken away. The cleaned bottle is then rotated 180° again and sent to the next machine station.
Parameters | ||
Rinsing heads | 12 | |
Capacity | 2000BPH | |
Power | 1.1KW | |
Dimension | 1050*950*1600mm | |
Weight | 250kg | |
Applicable bottle | φ50-100mm, H50-350mm | |

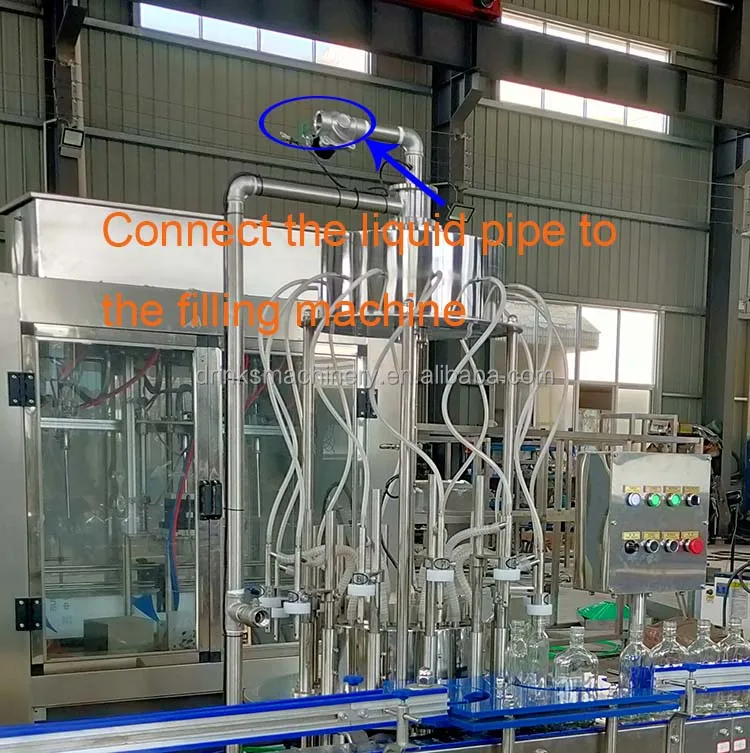

2.Negative pressure filler:
The negative pressure filling tank production line is a widely used automatic liquid filling machine, which can accurately fill non-gas beverages, such as white wine, whiskey, rum, milk, fruit juice, etc., and can also be filled with vinegar and cooking oil ,, olive oil and other liquids. Suitable for PET bottles and glass bottles. This machine can eliminate the pollution and the spread of harmful substances when the beverage or toxic liquid is completely enclosed, and meet the food hygiene requirements.Parameters | ||
Filling heads | 12 | |
Power | 1.1 kw | |
Produce | 2000BPH | |
Weight | 200kg | |
Dimension | 1000*1000*1985 | |
Working principle:
The liquid level of the wine tank is automatically controlled by the float ball to maintain a constant liquid level. When the wine valve is inserted into the bottle, the seal seals the bottle mouth and establishes a normal pressure. At this time, the beverage in the wine tank is under the pressure cover. Filled into the bottle, when the liquid surface has not passed through the suction hole of the wine bar, the pumping stops, the gland disappears, the filling stops synchronously, the wine valve is lifted, and the chain is transported out.

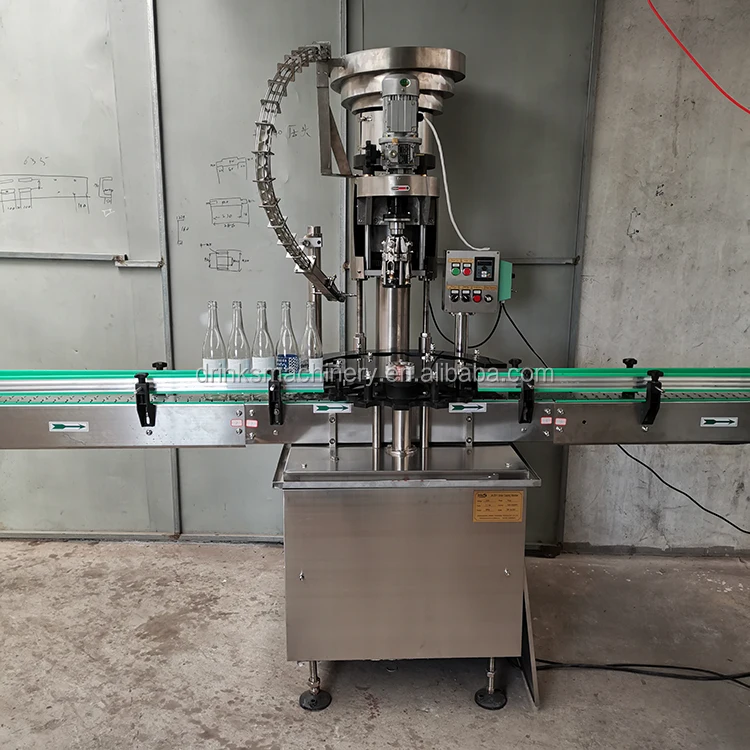

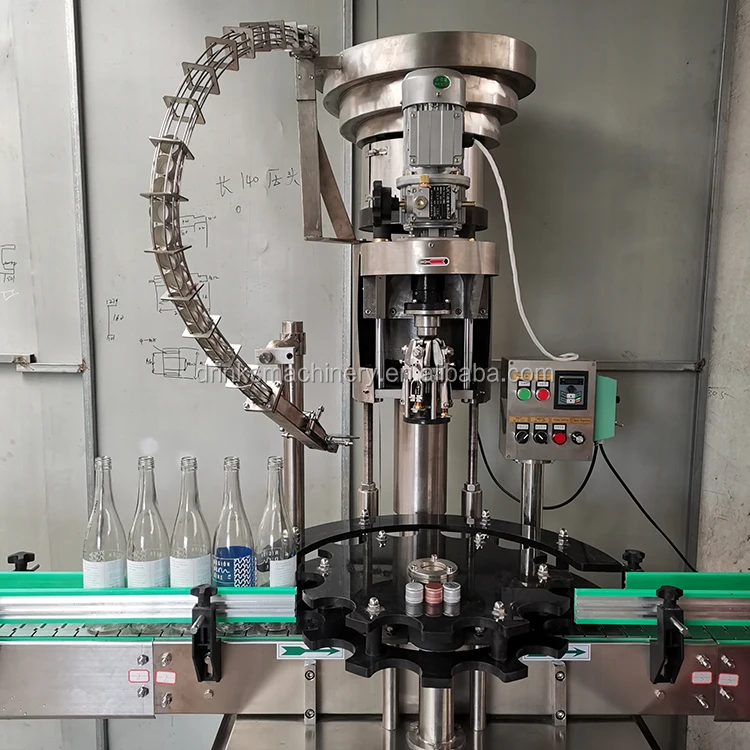

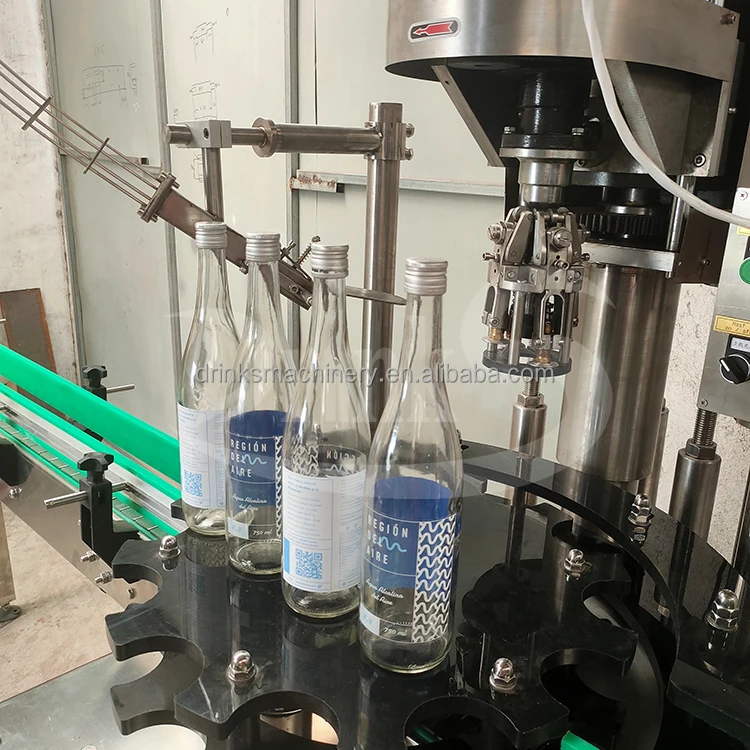

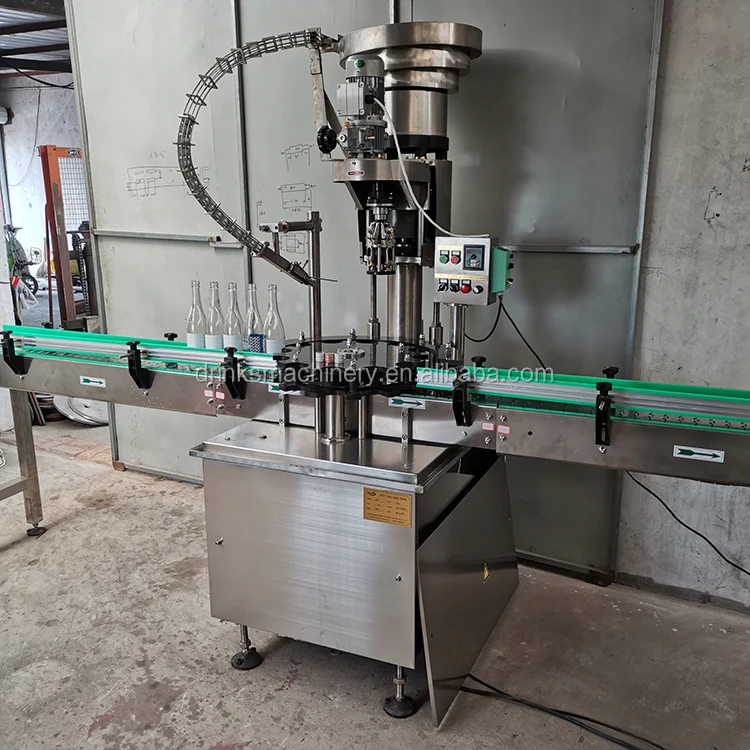

3. Screw cap capping machine:
The machine is used to cover plastic screw caps, including the automatic cap loader and capping system. Workers load a large number of lids into the cap loader, which automatically interprets the cap and places the cap into the lid rail, then caps it. The cap loader can hold more than 200 hats at a time, making it easy to add a hat. When the cap is capped, it will go down to the finish and complete the closure.The capping head uses Italian magnetic technology and the protective cap is not damaged. The correct rate of capping is 99%. The opposite cap will be automatically deleted. The cap is a separate part. Replacing the cap only requires replacing the cap to facilitate replacement and operation. The whole machine is made of SUS304 and has a long service life.
The machine is used to cover plastic screw caps, including the automatic cap loader and capping system. Workers load a large number of lids into the cap loader, which automatically interprets the cap and places the cap into the lid rail, then caps it. The cap loader can hold more than 200 hats at a time, making it easy to add a hat. When the cap is capped, it will go down to the finish and complete the closure.The capping head uses Italian magnetic technology and the protective cap is not damaged. The correct rate of capping is 99%. The opposite cap will be automatically deleted. The cap is a separate part. Replacing the cap only requires replacing the cap to facilitate replacement and operation. The whole machine is made of SUS304 and has a long service life.
Parameters | ||
Capping head | 1 | |
Capacity | 1500BPH | |
Power | 1.1kw | |
Weight | 250kg | |
Dimension | 1000*850*2000mm | |
Related Products
For more products, please view our website:https://drinksmachinery.en.alibaba.com/productlist.html

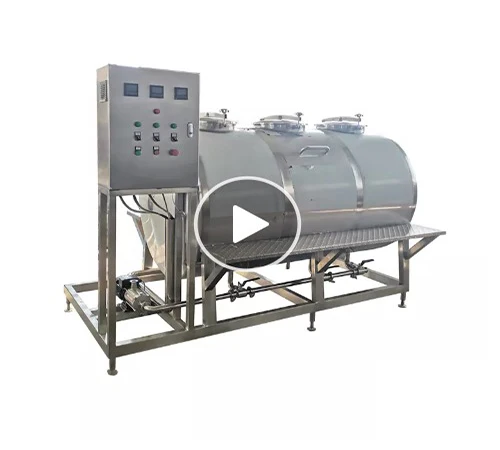

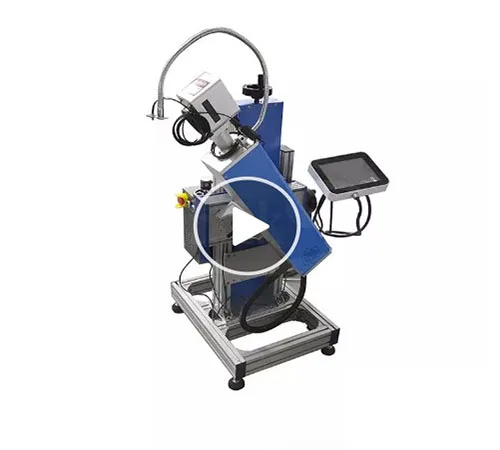

CIP cleaning system Labeling machine Laser coding machine
After Sales Service
1.) Sample service
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.
2.) Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.
3.) After-sale service
After receiving the final payment, we will provide the bill of lading on time to ensure that the customer receives the goods as soon as possible.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.
Company Introduction
Packing&Shipping

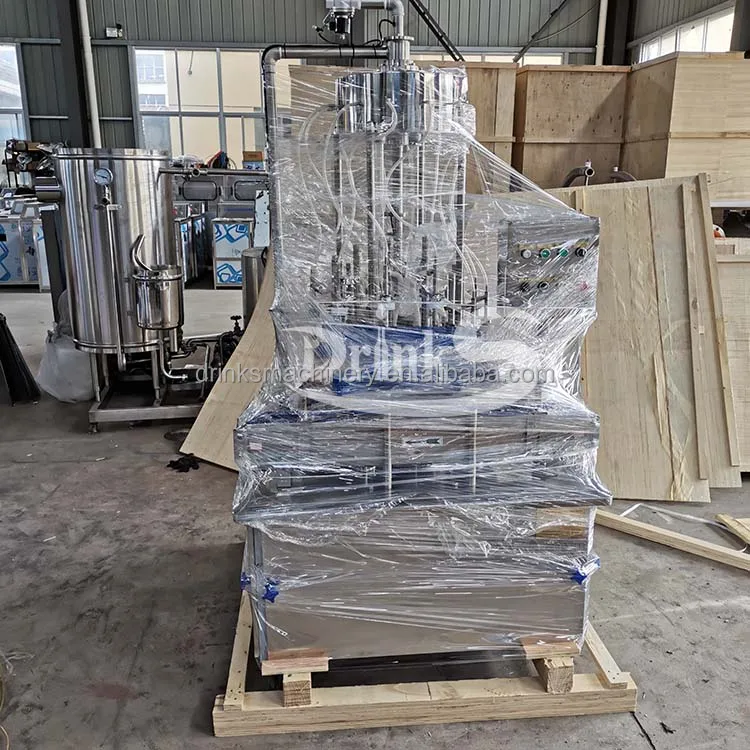

Our products are usually packed in plastic film and wooden boxes before leaving the factory. Sometimes it is based on customer requirements.
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
FAQ
Q: Are you a trading company or manufacturer?
A: We are manufacturer ,we supply there equipment directly.
Q: Where is your company located ? How can i visit there?
A: Our factory is located in LeYu Town .Zhangjiagang City. JiangSu Province.China.
You can fly to Shanghai Pudong International Airport and we are warmly welcome to visit us.
( Provide Pick-up Service)
You can fly to Shanghai Pudong International Airport and we are warmly welcome to visit us.
( Provide Pick-up Service)
Q: How can i know your machine works well?
A: We will show you the condition of the machine before delivery.
Q: What about the delivery time?
A: Usually 20 working days.
Q: Can you send engineer to our local place for installation?
A: Yes,if you need, we will arrange engineer for you, to install and debug the machine in your factory, provide the training service to help you master the whole line.
